[DirectX11] 064~65 Bone 위치에 충돌체 삽입하기

컴퓨팅 셰이더(Compute Shader)는 그래픽 렌더링에 주로 사용되는 정점 및 픽셀 셰이더와 같은 다른 유형의 셰이더와 달리, Compute Shader는 더 유연하고 다용도적으로 설계되어 있다.



목차





---







Animation Instancing



Shader
	RawBuffer.fx GetAnimationBone.fx
Framework
	Model
	ModeAnimator.h .cpp
	Objects
	Collider.h .cpp
	Renders
	Buffer.h .cpp Render2D.h .cpp
UnitTest
	DirectCompute
	RawBufferDemo.h .cpp GetAnimationBoneDemo.h .cpp
	Instancing
	InstancingFrameworkDemo.h .cpp
	Main.h .cpp



---

fx



어제만든 GetAnimationBone.fx 사용

---

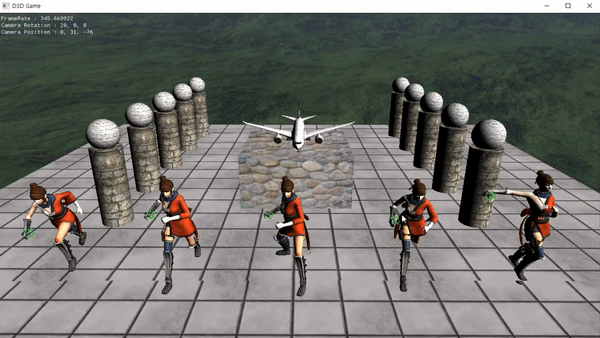

Instancing Framework Demo



InstancingFrameworkDemo.h

#pragma once
#include "Systems/IExecute.h"

class InstancingFrameworkDemo : public IExecute
{
public:
	virtual void Initialize() override;
	virtual void Ready() override {}
	virtual void Destroy() override {}
	virtual void Update() override;
	virtual void PreRender() override {}
	virtual void Render() override;
	virtual void PostRender() override {}
	virtual void ResizeScreen() override {}

private:
	void Mesh();
	void Airplane();
	void Kachujin();

	void Pass(UINT mesh, UINT model, UINT anim);

private:
	Shader* shader;

	CubeSky* sky;

	Material* floor;
	Material* stone;
	Material* brick;
	Material* wall;

	MeshRender* cube;
	MeshRender* cylinder;
	MeshRender* sphere;
	MeshRender* grid;

	ModelRender* airplane = NULL;

	ModelAnimator* kachujin = NULL;

	vector<MeshRender *> meshes;
	vector<ModelRender *> models;
	vector<ModelAnimator *> animators;
};





InstancingFrameworkDemo.cpp

#include "stdafx.h"
#include "InstancingFrameworkDemo.h"

void InstancingFrameworkDemo::Initialize()
{
	Context::Get()->GetCamera()->RotationDegree(20, 0, 0);
	Context::Get()->GetCamera()->Position(1, 36, -85);


	shader = new Shader(L"55_Render.fx");

	sky = new CubeSky(L"Environment/GrassCube1024.dds");

	Mesh();
	Airplane();
	Kachujin();
}

void InstancingFrameworkDemo::Update()
{
	sky->Update();

	cube->Update();
	grid->Update();
	cylinder->Update();
	sphere->Update();

	airplane->Update();
	kachujin->Update();
}

void InstancingFrameworkDemo::Render()
{
	sky->Render();


	Pass(0, 1, 2);

	wall->Render();
	sphere->Render();

	brick->Render();
	cylinder->Render();

	stone->Render();
	cube->Render();

	floor->Render();
	grid->Render();

	airplane->Render();
	kachujin->Render();
}

void InstancingFrameworkDemo::Mesh()
{
	//Create Material
	{
		floor = new Material(shader);
		floor->DiffuseMap("Floor.png");
		//floor->SpecularMap("Floor_Specular.png");
		//floor->NormalMap("Floor_Normal.png");
		//floor->Specular(1, 1, 1, 20);

		stone = new Material(shader);
		stone->DiffuseMap("Stones.png");
		//stone->SpecularMap("Stones_Specular.png");
		//stone->NormalMap("Stones_Normal.png");
		//stone->Specular(1, 1, 1, 20);

		brick = new Material(shader);
		brick->DiffuseMap("Bricks.png");
		//brick->SpecularMap("Bricks_Specular.png");
		//brick->NormalMap("Bricks_Normal.png");
		//brick->Specular(1, 0.3f, 0.3f, 20);

		wall = new Material(shader);
		wall->DiffuseMap("Wall.png");
		//wall->SpecularMap("Wall_Specular.png");
		//wall->NormalMap("Wall_Normal.png");
		//wall->Specular(1, 1, 1, 20);
	}

	//Create Mesh
	{
		Transform* transform = NULL;

		cube = new MeshRender(shader, new MeshCube());
		transform = cube->AddTransform();
		transform->Position(0, 5, 0);
		transform->Scale(20, 10, 20);

		grid = new MeshRender(shader, new MeshGrid(5, 5));
		transform = grid->AddTransform();
		transform->Position(0, 0, 0);
		transform->Scale(12, 1, 12);

		cylinder = new MeshRender(shader, new MeshCylinder(0.5f, 3.0f, 20, 20));
		sphere = new MeshRender(shader, new MeshSphere(0.5f, 20, 20));
		for (UINT i = 0; i < 5; i++)
		{
			transform = cylinder->AddTransform();
			transform->Position(-30, 6, -15.0f + (float)i * 15.0f);
			transform->Scale(5, 5, 5);

			transform = cylinder->AddTransform();
			transform->Position(30, 6, -15.0f + (float)i * 15.0f);
			transform->Scale(5, 5, 5);


			transform = sphere->AddTransform();
			transform->Position(-30, 15.5f, -15.0f + (float)i * 15.0f);
			transform->Scale(5, 5, 5);

			transform = sphere->AddTransform();
			transform->Position(30, 15.5f, -15.0f + (float)i * 15.0f);
			transform->Scale(5, 5, 5);
		}
	}

	sphere->UpdateTransforms();
	cylinder->UpdateTransforms();
	cube->UpdateTransforms();
	grid->UpdateTransforms();

	meshes.push_back(sphere);
	meshes.push_back(cylinder);
	meshes.push_back(cube);
	meshes.push_back(grid);
}

void InstancingFrameworkDemo::Airplane()
{
	airplane = new ModelRender(shader);
	airplane->ReadMesh(L"B787/Airplane");
	airplane->ReadMaterial(L"B787/Airplane");

	Transform* transform = airplane->AddTransform();
	transform->Position(2.0f, 9.91f, 2.0f);
	transform->Scale(0.004f, 0.004f, 0.004f);
	airplane->UpdateTransforms();

	models.push_back(airplane);
}

void InstancingFrameworkDemo::Kachujin()
{
	kachujin = new ModelAnimator(shader);
	kachujin->ReadMesh(L"Kachujin/Mesh");
	kachujin->ReadMaterial(L"Kachujin/Mesh");
	kachujin->ReadClip(L"Kachujin/Sword And Shield Idle");
	kachujin->ReadClip(L"Kachujin/Sword And Shield Walk");
	kachujin->ReadClip(L"Kachujin/Sword And Shield Run");
	kachujin->ReadClip(L"Kachujin/Sword And Shield Slash");
	kachujin->ReadClip(L"Kachujin/Salsa Dancing");


	Transform* transform = NULL;

	transform = kachujin->AddTransform();
	transform->Position(0, 0, -30);
	transform->Scale(0.075f, 0.075f, 0.075f);
	kachujin->PlayTweenMode(0, 0, 1.0f);

	transform = kachujin->AddTransform();
	transform->Position(-15, 0, -30);
	transform->Scale(0.075f, 0.075f, 0.075f);
	kachujin->PlayTweenMode(1, 1, 1.0f);

	transform = kachujin->AddTransform();
	transform->Position(-30, 0, -30);
	transform->Scale(0.075f, 0.075f, 0.075f);
	kachujin->PlayTweenMode(2, 2, 0.75f);

	transform = kachujin->AddTransform();
	transform->Position(15, 0, -30);
	transform->Scale(0.075f, 0.075f, 0.075f);
	kachujin->PlayBlendMode(3, 0, 1, 2);
	kachujin->SetBlendAlpha(3, 1.5f);

	transform = kachujin->AddTransform();
	transform->Position(30, 0, -32.5f);
	transform->Scale(0.075f, 0.075f, 0.075f);
	kachujin->PlayTweenMode(4, 4, 0.75f);

	kachujin->UpdateTransforms();

	animators.push_back(kachujin);
}

void InstancingFrameworkDemo::Pass(UINT mesh, UINT model, UINT anim)
{
	for (MeshRender* temp : meshes)
		temp->Pass(mesh);

	for (ModelRender* temp : models)
		temp->Pass(model);

	for (ModelAnimator* temp : animators)
		temp->Pass(anim);
}



---



Get Animation Bone Demo



GetAnimationBoneDemo.h

#pragma once
#include "Systems/IExecute.h"

class GetAnimationBoneDemo : public IExecute
{
public:
	virtual void Initialize() override;
	virtual void Ready() override {}
	virtual void Destroy() override {}
	virtual void Update() override;
	virtual void PreRender() override {}
	virtual void Render() override;
	virtual void PostRender() override {}
	virtual void ResizeScreen() override {}

private:
	void Mesh();
	void Airplane();
	void Kachujin();
	void KachujinCollider();//Kachujin 충돌체

	void Pass(UINT mesh, UINT model, UINT anim);

private:
	Shader* shader;

	CubeSky* sky;

	Material* floor;
	Material* stone;
	Material* brick;
	Material* wall;

	MeshRender* cube;
	MeshRender* cylinder;
	MeshRender* sphere;
	MeshRender* grid;

	ModelRender* airplane = NULL;

	ModelAnimator* kachujin = NULL;
	ColliderObject** colliders; //충돌체를 몇개 쓸지 모르니 2차 포인터 사용

	vector<MeshRender *> meshes;
	vector<ModelRender *> models;
	vector<ModelAnimator *> animators;
};





GetAnimationBoneDemo.cpp

#include "stdafx.h"
#include "GetAnimationBoneDemo.h"

void GetAnimationBoneDemo::Initialize()
{
	Context::Get()->GetCamera()->RotationDegree(20, 0, 0);
	Context::Get()->GetCamera()->Position(1, 36, -85);


	shader = new Shader(L"55_Render.fx");

	sky = new CubeSky(L"Environment/GrassCube1024.dds");

	Mesh();
	Airplane();
	Kachujin();
	KachujinCollider();
}

void GetAnimationBoneDemo::Update()
{
	sky->Update();

	cube->Update();
	grid->Update();
	cylinder->Update();
	sphere->Update();

	airplane->Update();
	kachujin->Update();

	//collider 계산
	for (UINT i = 0; i < kachujin->GetTransformCount(); i++)
	{
		Matrix attach;
		kachujin->GetAttachTransform(i, &attach);

		colliders[i]->Collider->GetTransform()->World(attach);
		colliders[i]->Collider->Update();
	}
}

void GetAnimationBoneDemo::Render()
{
	sky->Render();


	Pass(0, 1, 2);

	wall->Render();
	sphere->Render();

	brick->Render();
	cylinder->Render();

	stone->Render();
	cube->Render();

	floor->Render();
	grid->Render();

	airplane->Render();

	kachujin->Render();
	for (UINT i = 0; i < kachujin->GetTransformCount(); i++)
		colliders[i]->Collider->Render();
}

void GetAnimationBoneDemo::Mesh()
{
	//Create Material
	{
		floor = new Material(shader);
		floor->DiffuseMap("Floor.png");
		//floor->SpecularMap("Floor_Specular.png");
		//floor->NormalMap("Floor_Normal.png");
		//floor->Specular(1, 1, 1, 20);

		stone = new Material(shader);
		stone->DiffuseMap("Stones.png");
		//stone->SpecularMap("Stones_Specular.png");
		//stone->NormalMap("Stones_Normal.png");
		//stone->Specular(1, 1, 1, 20);

		brick = new Material(shader);
		brick->DiffuseMap("Bricks.png");
		//brick->SpecularMap("Bricks_Specular.png");
		//brick->NormalMap("Bricks_Normal.png");
		//brick->Specular(1, 0.3f, 0.3f, 20);

		wall = new Material(shader);
		wall->DiffuseMap("Wall.png");
		//wall->SpecularMap("Wall_Specular.png");
		//wall->NormalMap("Wall_Normal.png");
		//wall->Specular(1, 1, 1, 20);
	}

	//Create Mesh
	{
		Transform* transform = NULL;

		cube = new MeshRender(shader, new MeshCube());
		transform = cube->AddTransform();
		transform->Position(0, 5, 0);
		transform->Scale(20, 10, 20);

		grid = new MeshRender(shader, new MeshGrid(5, 5));
		transform = grid->AddTransform();
		transform->Position(0, 0, 0);
		transform->Scale(12, 1, 12);

		cylinder = new MeshRender(shader, new MeshCylinder(0.5f, 3.0f, 20, 20));
		sphere = new MeshRender(shader, new MeshSphere(0.5f, 20, 20));
		for (UINT i = 0; i < 5; i++)
		{
			transform = cylinder->AddTransform();
			transform->Position(-30, 6, -15.0f + (float)i * 15.0f);
			transform->Scale(5, 5, 5);

			transform = cylinder->AddTransform();
			transform->Position(30, 6, -15.0f + (float)i * 15.0f);
			transform->Scale(5, 5, 5);


			transform = sphere->AddTransform();
			transform->Position(-30, 15.5f, -15.0f + (float)i * 15.0f);
			transform->Scale(5, 5, 5);

			transform = sphere->AddTransform();
			transform->Position(30, 15.5f, -15.0f + (float)i * 15.0f);
			transform->Scale(5, 5, 5);
		}
	}

	sphere->UpdateTransforms();
	cylinder->UpdateTransforms();
	cube->UpdateTransforms();
	grid->UpdateTransforms();

	meshes.push_back(sphere);
	meshes.push_back(cylinder);
	meshes.push_back(cube);
	meshes.push_back(grid);
}

void GetAnimationBoneDemo::Airplane()
{
	airplane = new ModelRender(shader);
	airplane->ReadMesh(L"B787/Airplane");
	airplane->ReadMaterial(L"B787/Airplane");

	Transform* transform = airplane->AddTransform();
	transform->Position(2.0f, 9.91f, 2.0f);
	transform->Scale(0.004f, 0.004f, 0.004f);
	airplane->UpdateTransforms();

	models.push_back(airplane);
}

void GetAnimationBoneDemo::Kachujin()
{
	kachujin = new ModelAnimator(shader);
	kachujin->ReadMesh(L"Kachujin/Mesh");
	kachujin->ReadMaterial(L"Kachujin/Mesh");
	kachujin->ReadClip(L"Kachujin/Sword And Shield Idle");
	kachujin->ReadClip(L"Kachujin/Sword And Shield Walk");
	kachujin->ReadClip(L"Kachujin/Sword And Shield Run");
	kachujin->ReadClip(L"Kachujin/Sword And Shield Slash");
	kachujin->ReadClip(L"Kachujin/Salsa Dancing");


	Transform* transform = NULL;

	transform = kachujin->AddTransform();
	transform->Position(0, 0, -30);
	transform->Scale(0.075f, 0.075f, 0.075f);
	kachujin->PlayTweenMode(0, 0, 1.0f);

	transform = kachujin->AddTransform();
	transform->Position(-15, 0, -30);
	transform->Scale(0.075f, 0.075f, 0.075f);
	kachujin->PlayTweenMode(1, 1, 1.0f);

	transform = kachujin->AddTransform();
	transform->Position(-30, 0, -30);
	transform->Scale(0.075f, 0.075f, 0.075f);
	kachujin->PlayTweenMode(2, 2, 0.75f);

	transform = kachujin->AddTransform();
	transform->Position(15, 0, -30);
	transform->Scale(0.075f, 0.075f, 0.075f);
	kachujin->PlayBlendMode(3, 0, 1, 2);
	kachujin->SetBlendAlpha(3, 1.5f);

	transform = kachujin->AddTransform();
	transform->Position(30, 0, -32.5f);
	transform->Scale(0.075f, 0.075f, 0.075f);
	kachujin->PlayTweenMode(4, 4, 0.75f);

	kachujin->UpdateTransforms();
	kachujin->SetAttachTransform(40);//kachujin 오른손 Bone

	animators.push_back(kachujin);
}

void GetAnimationBoneDemo::KachujinCollider()
{
	UINT count = kachujin->GetTransformCount(); //Instancing 개수 가져옴.
	colliders = new  ColliderObject*[count]; //collider 할당. 2차 포인터로 생성해서 포인터 하나 들어간다.

	for (UINT i = 0; i < count; i++)
	{
		colliders[i] = new ColliderObject();

		colliders[i]->Init = new Transform();
		colliders[i]->Init->Position(0, 0, 0);
		colliders[i]->Init->Scale(10, 30, 10);

		colliders[i]->Transform = new Transform();
		colliders[i]->Collider = new Collider(colliders[i]->Transform, colliders[i]->Init);
	}
}

void GetAnimationBoneDemo::Pass(UINT mesh, UINT model, UINT anim)
{
	for (MeshRender* temp : meshes)
		temp->Pass(mesh);

	for (ModelRender* temp : models)
		temp->Pass(model);

	for (ModelAnimator* temp : animators)
		temp->Pass(anim);
}



---



Model Animator



ModelAnimator.h

#pragma once

class ModelAnimator
{
public:
	ModelAnimator(Shader* shader);
	~ModelAnimator();

	void Update();
private:
	void UpdateTweenMode(UINT index);
	void UpdateBlendMode(UINT index);

public:
	void Render();

public:
	void ReadMesh(wstring file);
	void ReadMaterial(wstring file);
	void ReadClip(wstring file);

	Model* GetModel() { return model; }

	void Pass(UINT pass);

	Transform* AddTransform();
	Transform* GetTransform(UINT index) { return transforms[index]; }
	void UpdateTransforms();
	UINT GetTransformCount() { return transforms.size(); }//Instancing 개수 가져옴.

	void PlayTweenMode(UINT index, UINT clip, float speed = 1.0f, float takeTime = 1.0f);
	void PlayBlendMode(UINT index, UINT clip, UINT clip1, UINT clip2);
	void SetBlendAlpha(UINT index, float alpha);

	void SetAttachTransform(UINT boneIndex);
	void GetAttachTransform(UINT instance, Matrix* outResult);

private:
	void CreateTexture();
	void CreateClipTransform(UINT index);
	void CreateComputeBuffer();

private:
	struct ClipTransform
	{
		Matrix** Transform;

		ClipTransform()
		{
			Transform = new Matrix*[MAX_MODEL_KEYFRAMES];

			for (UINT i = 0; i < MAX_MODEL_KEYFRAMES; i++)
				Transform[i] = new Matrix[MAX_MODEL_TRANSFORMS];
		}

		~ClipTransform()
		{
			for (UINT i = 0; i < MAX_MODEL_KEYFRAMES; i++)
				SafeDeleteArray(Transform[i]);

			SafeDeleteArray(Transform);
		}
	};
	ClipTransform* clipTransforms = NULL;

	ID3D11Texture2D* texture = NULL;
	ID3D11ShaderResourceView* srv = NULL;

private:
	struct KeyframeDesc
	{
		int Clip = 0;

		UINT CurrFrame = 0;
		UINT NextFrame = 0;

		float Time = 0.0f;
		float RunningTime = 0.0f;

		float Speed = 1.0f;

		Vector2 Padding;
	}; // keyframeDesc;

	struct TweenDesc
	{
		float TakeTime = 1.0f;
		float TweenTime = 0.0f;
		float ChangeTime = 0.0f;
		float Padding;

		KeyframeDesc Curr;
		KeyframeDesc Next;

		TweenDesc()
		{
			Curr.Clip = 0;
			Next.Clip = -1;
		}
	} tweenDesc[MAX_MODEL_INSTANCE];

	ConstantBuffer* tweenBuffer;
	ID3DX11EffectConstantBuffer* sTweenBuffer;

private:
	struct BlendDesc
	{
		UINT Mode = 0;
		float Alpha = 0;
		Vector2 Padding;

		KeyframeDesc Clip[3];
	} blendDesc[MAX_MODEL_INSTANCE];

	ConstantBuffer* blendBuffer;
	ID3DX11EffectConstantBuffer* sBlendBuffer;

private:
	Shader* shader;
	Model* model;

	vector<Transform *> transforms;
	Matrix worlds[MAX_MODEL_INSTANCE];

	VertexBuffer* instanceBuffer;

private:
	struct CS_InputDesc
	{
		Matrix Bone;
	};

	struct CS_OutputDesc
	{
		Matrix Result;
	};

	struct AttachDesc
	{
		UINT BoneIndex = 0;
		float Padding[3];
	} attachDesc;

private:
	Shader* computeShader;
	StructuredBuffer* computeBuffer = NULL;

	CS_InputDesc* csInput = NULL;
	CS_OutputDesc* csOutput = NULL;

	ID3DX11EffectShaderResourceVariable* sInputSRV;
	ID3DX11EffectUnorderedAccessViewVariable* sOutputUAV;


	ConstantBuffer* computeAttachBuffer;

	ID3DX11EffectConstantBuffer* sComputeAttachBuffer;
	ID3DX11EffectConstantBuffer* sComputeTweenBuffer;
	ID3DX11EffectConstantBuffer* sComputeBlendBuffer;
};





ModelAnimator.cpp

#include "Framework.h"
#include "ModelAnimator.h"

ModelAnimator::ModelAnimator(Shader * shader)
	: shader(shader)
{
	model = new Model();

	tweenBuffer = new ConstantBuffer(&tweenDesc, sizeof(TweenDesc) * MAX_MODEL_INSTANCE);
	sTweenBuffer = shader->AsConstantBuffer("CB_TweenFrame");

	blendBuffer = new ConstantBuffer(&blendDesc, sizeof(BlendDesc) * MAX_MODEL_INSTANCE);
	sBlendBuffer = shader->AsConstantBuffer("CB_BlendFrame");

	instanceBuffer = new VertexBuffer(worlds, MAX_MODEL_INSTANCE, sizeof(Matrix), 1, true);


	computeShader = new Shader(L"63_GetAnimationBone.fx");
	computeAttachBuffer = new ConstantBuffer(&attachDesc, sizeof(AttachDesc));

	sInputSRV = computeShader->AsSRV("Input");
	sOutputUAV = computeShader->AsUAV("Output");

	sComputeAttachBuffer = computeShader->AsConstantBuffer("CB_AttachBone");
	sComputeTweenBuffer = computeShader->AsConstantBuffer("CB_TweenFrame");
	sComputeBlendBuffer = computeShader->AsConstantBuffer("CB_BlendFrame");
}

ModelAnimator::~ModelAnimator()
{
	SafeDelete(model);

	SafeDeleteArray(clipTransforms);
	SafeRelease(texture);
	SafeRelease(srv);

	SafeDelete(tweenBuffer);
	SafeDelete(blendBuffer);

	SafeDelete(instanceBuffer);


	SafeDelete(computeShader);
	SafeDelete(computeBuffer);

	SafeDeleteArray(csInput);
	SafeDeleteArray(csOutput);

	SafeDelete(computeAttachBuffer);
}

void ModelAnimator::Update()
{
	if (texture == NULL)
	{
		for (ModelMesh* mesh : model->Meshes())
			mesh->SetShader(shader);

		CreateTexture();
		CreateComputeBuffer();
	}

	for (UINT i = 0; i < transforms.size(); i++)
		blendDesc[i].Mode == 0 ? UpdateTweenMode(i) : UpdateBlendMode(i);



	tweenBuffer->Render();
	blendBuffer->Render();

	//computeBuffer 정보를 넘긴다.
	if (computeBuffer != NULL)
	{
		computeAttachBuffer->Render();
		sComputeAttachBuffer->SetConstantBuffer(computeAttachBuffer->Buffer());
		sComputeTweenBuffer->SetConstantBuffer(tweenBuffer->Buffer());
		sComputeBlendBuffer->SetConstantBuffer(blendBuffer->Buffer());


		sInputSRV->SetResource(computeBuffer->SRV());
		sOutputUAV->SetUnorderedAccessView(computeBuffer->UAV());

		computeShader->Dispatch(0, 0, 1, 1, 1);
		computeBuffer->CopyFromOutput(csOutput);
	}


	for (ModelMesh* mesh : model->Meshes())
		mesh->Update();
}

void ModelAnimator::UpdateTweenMode(UINT index)
{
	TweenDesc& desc = tweenDesc[index];

	//현재 애니메이션
	{
		ModelClip* clip = model->ClipByIndex(desc.Curr.Clip);

		desc.Curr.RunningTime += Time::Delta();

		float time = 1.0f / clip->FrameRate() / desc.Curr.Speed;
		if (desc.Curr.Time >= 1.0f)
		{
			desc.Curr.RunningTime = 0;

			desc.Curr.CurrFrame = (desc.Curr.CurrFrame + 1) % clip->FrameCount();
			desc.Curr.NextFrame = (desc.Curr.CurrFrame + 1) % clip->FrameCount();
		}
		desc.Curr.Time = desc.Curr.RunningTime / time;
	}

	if (desc.Next.Clip > -1)
	{
		desc.ChangeTime += Time::Delta();
		desc.TweenTime = desc.ChangeTime / desc.TakeTime;

		if (desc.TweenTime >= 1.0f)
		{
			desc.Curr = desc.Next;

			desc.Next.Clip = -1;
			desc.Next.CurrFrame = 0;
			desc.Next.NextFrame = 0;
			desc.Next.Time = 0;
			desc.Next.RunningTime = 0.0f;

			desc.ChangeTime = 0.0f;
			desc.TweenTime = 0.0f;
		}
		else
		{
			ModelClip* clip = model->ClipByIndex(desc.Next.Clip);

			desc.Next.RunningTime += Time::Delta();

			float time = 1.0f / clip->FrameRate() / desc.Next.Speed;
			if (desc.Next.Time >= 1.0f)
			{
				desc.Next.RunningTime = 0;

				desc.Next.CurrFrame = (desc.Next.CurrFrame + 1) % clip->FrameCount();
				desc.Next.NextFrame = (desc.Next.CurrFrame + 1) % clip->FrameCount();
			}
			desc.Next.Time = desc.Next.RunningTime / time;
		}
	}
}

void ModelAnimator::UpdateBlendMode(UINT index)
{
	BlendDesc& desc = blendDesc[index];

	for (UINT i = 0; i < 3; i++)
	{
		ModelClip* clip = model->ClipByIndex(desc.Clip[i].Clip);

		desc.Clip[i].RunningTime += Time::Delta();

		float time = 1.0f / clip->FrameRate() / desc.Clip[i].Speed;
		if (desc.Clip[i].Time >= 1.0f)
		{
			desc.Clip[i].RunningTime = 0;

			desc.Clip[i].CurrFrame = (desc.Clip[i].CurrFrame + 1) % clip->FrameCount();
			desc.Clip[i].NextFrame = (desc.Clip[i].CurrFrame + 1) % clip->FrameCount();
		}
		desc.Clip[i].Time = desc.Clip[i].RunningTime / time;
	}
}

void ModelAnimator::Render()
{
	sTweenBuffer->SetConstantBuffer(tweenBuffer->Buffer());
	sBlendBuffer->SetConstantBuffer(blendBuffer->Buffer());


	instanceBuffer->Render();

	for (ModelMesh* mesh : model->Meshes())
		mesh->Render(transforms.size());
}

void ModelAnimator::ReadMesh(wstring file)
{
	model->ReadMesh(file);
}

void ModelAnimator::ReadMaterial(wstring file)
{
	model->ReadMaterial(file);
}

void ModelAnimator::ReadClip(wstring file)
{
	model->ReadClip(file);
}

void ModelAnimator::Pass(UINT pass)
{
	for (ModelMesh* mesh : model->Meshes())
		mesh->Pass(pass);
}

void ModelAnimator::PlayTweenMode(UINT index, UINT clip, float speed, float takeTime)
{
	blendDesc[index].Mode = 0;

	tweenDesc[index].TakeTime = takeTime;
	tweenDesc[index].Next.Clip = clip;
	tweenDesc[index].Next.Speed = speed;
}

void ModelAnimator::PlayBlendMode(UINT index, UINT clip, UINT clip1, UINT clip2)
{
	blendDesc[index].Mode = 1;

	blendDesc[index].Clip[0].Clip = clip;
	blendDesc[index].Clip[1].Clip = clip1;
	blendDesc[index].Clip[2].Clip = clip2;
}

void ModelAnimator::SetBlendAlpha(UINT index, float alpha)
{
	alpha = Math::Clamp(alpha, 0.0f, 2.0f);

	blendDesc[index].Alpha = alpha;
}

void ModelAnimator::SetAttachTransform(UINT boneIndex)
{
	attachDesc.BoneIndex = boneIndex;
}

void ModelAnimator::GetAttachTransform(UINT instance, Matrix * outResult)
{
	if (csOutput == NULL)
	{
		D3DXMatrixIdentity(outResult);

		return;
	}


	Matrix transform = model->BoneByIndex(attachDesc.BoneIndex)->Transform(); //기준 본 행렬
	Matrix result = csOutput[instance].Result; //애니메이션 행렬
	Matrix world = GetTransform(instance)->World();

	*outResult = transform * result * world; //기준에서 애니메이션이 얼마나 됬는지 모델이 얼마나 움직였는지
}

void ModelAnimator::CreateTexture()
{
	//Matrix matrix[MAX_MODEL_KEYFRAMES][MAX_MODEL_TRANSFORMS];

	clipTransforms = new ClipTransform[model->ClipCount()];
	for (UINT i = 0; i < model->ClipCount(); i++)
		CreateClipTransform(i);


	//Create Texture
	{
		D3D11_TEXTURE2D_DESC desc;
		ZeroMemory(&desc, sizeof(D3D11_TEXTURE2D_DESC));
		desc.Width = MAX_MODEL_TRANSFORMS * 4;
		desc.Height = MAX_MODEL_KEYFRAMES;
		desc.ArraySize = model->ClipCount();
		desc.Format = DXGI_FORMAT_R32G32B32A32_FLOAT; //16Byte * 4 = 64Byte
		desc.Usage = D3D11_USAGE_IMMUTABLE;
		desc.BindFlags = D3D11_BIND_SHADER_RESOURCE;
		desc.MipLevels = 1;
		desc.SampleDesc.Count = 1;

		UINT pageSize = MAX_MODEL_TRANSFORMS * 4 * 16 * MAX_MODEL_KEYFRAMES;
		//void* p = malloc(pageSize * model->ClipCount());
		void* p = VirtualAlloc(NULL, pageSize * model->ClipCount(), MEM_RESERVE, PAGE_READWRITE);

		//MEMORY_BASIC_INFORMATION, VirtualQuery

		for (UINT c = 0; c < model->ClipCount(); c++)
		{
			UINT start = c * pageSize;

			for (UINT k = 0; k < MAX_MODEL_KEYFRAMES; k++)
			{
				void* temp = (BYTE *)p + MAX_MODEL_TRANSFORMS * k * sizeof(Matrix) + start;

				VirtualAlloc(temp, MAX_MODEL_TRANSFORMS * sizeof(Matrix), MEM_COMMIT, PAGE_READWRITE);
				memcpy(temp, clipTransforms[c].Transform[k], MAX_MODEL_TRANSFORMS * sizeof(Matrix));
			}
		}//for(c)


		D3D11_SUBRESOURCE_DATA* subResources = new D3D11_SUBRESOURCE_DATA[model->ClipCount()];
		for (UINT c = 0; c < model->ClipCount(); c++)
		{
			void* temp = (BYTE *)p + c * pageSize;

			subResources[c].pSysMem = temp;
			subResources[c].SysMemPitch = MAX_MODEL_TRANSFORMS * sizeof(Matrix);
			subResources[c].SysMemSlicePitch = pageSize;
		}
		Check(D3D::GetDevice()->CreateTexture2D(&desc, subResources, &texture));


		SafeDeleteArray(subResources);
		VirtualFree(p, 0, MEM_RELEASE);
	}


	//Create SRV
	{
		D3D11_SHADER_RESOURCE_VIEW_DESC desc;
		ZeroMemory(&desc, sizeof(D3D11_SHADER_RESOURCE_VIEW_DESC));
		desc.Format = DXGI_FORMAT_R32G32B32A32_FLOAT;
		desc.ViewDimension = D3D11_SRV_DIMENSION_TEXTURE2DARRAY;
		desc.Texture2DArray.MipLevels = 1;
		desc.Texture2DArray.ArraySize = model->ClipCount();

		Check(D3D::GetDevice()->CreateShaderResourceView(texture, &desc, &srv));
	}

	for (ModelMesh* mesh : model->Meshes())
		mesh->TransformsSRV(srv);
}

void ModelAnimator::CreateClipTransform(UINT index)
{
	Matrix* bones = new Matrix[MAX_MODEL_TRANSFORMS];

	ModelClip* clip = model->ClipByIndex(index);
	for (UINT f = 0; f < clip->FrameCount(); f++)
	{
		for (UINT b = 0; b < model->BoneCount(); b++)
		{
			ModelBone* bone = model->BoneByIndex(b);


			Matrix parent;
			Matrix invGlobal = bone->Transform();
			D3DXMatrixInverse(&invGlobal, NULL, &invGlobal);

			int parentIndex = bone->ParentIndex();
			if (parentIndex < 0)
				D3DXMatrixIdentity(&parent);
			else
				parent = bones[parentIndex];


			Matrix animation;
			ModelKeyframe* frame = clip->Keyframe(bone->Name());

			if (frame != NULL)
			{
				ModelKeyframeData& data = frame->Transforms[f];

				Matrix S, R, T;
				D3DXMatrixScaling(&S, data.Scale.x, data.Scale.y, data.Scale.z);
				D3DXMatrixRotationQuaternion(&R, &data.Rotation);
				D3DXMatrixTranslation(&T, data.Translation.x, data.Translation.y, data.Translation.z);

				animation = S * R * T;
			}
			else
			{
				D3DXMatrixIdentity(&animation);
			}

			bones[b] = animation * parent;
			clipTransforms[index].Transform[f][b] = invGlobal * bones[b];
		}//for(b)
	}//for(f)
}

void ModelAnimator::CreateComputeBuffer()
{
	UINT clipCount = model->ClipCount();
	UINT inSize = clipCount * MAX_MODEL_KEYFRAMES * MAX_MODEL_TRANSFORMS;
	UINT outSize = MAX_MODEL_INSTANCE;

	csInput = new CS_InputDesc[inSize];


	UINT count = 0;
	for (UINT clipIndex = 0; clipIndex < clipCount; clipIndex++)
	{
		for (UINT frameIndex = 0; frameIndex < MAX_MODEL_KEYFRAMES; frameIndex++)
		{
			for (UINT boneIndex = 0; boneIndex < MAX_MODEL_TRANSFORMS; boneIndex++)
			{
				csInput[count].Bone = clipTransforms[clipIndex].Transform[frameIndex][boneIndex];

				count++;
			}
		}//for(frameIndex)
	}//for(clipIndex)


	computeBuffer = new StructuredBuffer(csInput, sizeof(CS_InputDesc), inSize, sizeof(CS_OutputDesc), outSize);

	csOutput = new CS_OutputDesc[outSize];

	//초기값이 없어서 Identity 시켜준다.
	for (UINT i = 0; i < outSize; i++)
		D3DXMatrixIdentity(&csOutput[i].Result);
}

Transform * ModelAnimator::AddTransform()
{
	Transform* transform = new Transform();
	transforms.push_back(transform);

	return transform;
}

void ModelAnimator::UpdateTransforms()
{
	for (UINT i = 0; i < transforms.size(); i++)
		memcpy(worlds[i], transforms[i]->World(), sizeof(Matrix));

	D3D11_MAPPED_SUBRESOURCE subResource;
	D3D::GetDC()->Map(instanceBuffer->Buffer(), 0, D3D11_MAP_WRITE_DISCARD, 0, &subResource);
	{
		memcpy(subResource.pData, worlds, sizeof(Matrix) * MAX_MESH_INSTANCE);
	}
	D3D::GetDC()->Unmap(instanceBuffer->Buffer(), 0);
}

• computeShader
• computeBuffer
• csInput
• csOutput
• computeAttachBuffer

void CreateTexture();
void CreateClipTransform(UINT index);
void CreateComputeBuffer();



---





Collider



Collider.h

#pragma once

struct ColliderObject
{
	class Transform* Init = NULL;
	class Transform* Transform = NULL;
	class Collider* Collider = NULL;
};

class Collider //충돌체
{
public:
	Collider(Transform* transform, Transform* init = NULL);
	~Collider();

	void Update();
	void Render(Color color = Color(0, 1, 0, 1)); //충돌체 녹색 설정

	Transform* GetTransform() { return transform; } //transform을 리턴하는 함수

private:
	Transform* init = NULL; //기준
	Transform* transform; //기준에서 얼마나 움직였는지

	Vector3 lines[8];
};





Collider.cpp

#include "Framework.h"
#include "Collider.h"

Collider::Collider(Transform * transform, Transform * init)
	: transform(transform), init(init)
{
	//육면체 //충돌작업에 0번과 7번을 사용할 것이다.
	lines[0] = Vector3(-0.5f, -0.5f, -0.5f);
	lines[1] = Vector3(-0.5f, +0.5f, -0.5f);
	lines[2] = Vector3(+0.5f, -0.5f, -0.5f);
	lines[3] = Vector3(+0.5f, +0.5f, -0.5f);
	lines[4] = Vector3(-0.5f, -0.5f, +0.5f);
	lines[5] = Vector3(-0.5f, +0.5f, +0.5f);
	lines[6] = Vector3(+0.5f, -0.5f, +0.5f);
	lines[7] = Vector3(+0.5f, +0.5f, +0.5f);
}

Collider::~Collider()
{
}

void Collider::Update()
{
}

void Collider::Render(Color color)
{
	Transform temp;
	temp.World(transform->World());

	if (init != NULL)
		temp.World(init->World() * transform->World());

	Matrix world = temp.World();


	Vector3 dest[8]; //선 8개 선언
	for (UINT i = 0; i < 8; i++)
		D3DXVec3TransformCoord(&dest[i], &lines[i], &world); //선의 위치를 그려준다.

	//Front
	DebugLine::Get()->RenderLine(dest[0], dest[1], color);
	DebugLine::Get()->RenderLine(dest[1], dest[3], color);
	DebugLine::Get()->RenderLine(dest[3], dest[2], color);
	DebugLine::Get()->RenderLine(dest[2], dest[0], color);

	//Backward
	DebugLine::Get()->RenderLine(dest[4], dest[5], color);
	DebugLine::Get()->RenderLine(dest[5], dest[7], color);
	DebugLine::Get()->RenderLine(dest[7], dest[6], color);
	DebugLine::Get()->RenderLine(dest[6], dest[4], color);

	//Side
	DebugLine::Get()->RenderLine(dest[0], dest[4], color);
	DebugLine::Get()->RenderLine(dest[1], dest[5], color);
	DebugLine::Get()->RenderLine(dest[2], dest[6], color);
	DebugLine::Get()->RenderLine(dest[3], dest[7], color);
}



---





Get Animation Bone Demo











---
