[UE] Character, GameMode

언리얼 C++에서 Gamemode(게임 모드)는 게임의 규칙과 플레이어들의 상호작용 방식을 정의하는 클래스다. Gamemode는 게임의 전반적인 진행 방식을 결정하며, 게임의 시작과 종료, 스코어 계산, 게임 오브젝트 생성 등을 담당한다.
Character & Gamemode
Gamemode는 C++ 클래스로 작성되며, 기본적으로 AGameModeBase 클래스를 상속하여 사용한다. Gamemode는 게임 내에서 하나의 인스턴스만 존재하며, 해당 인스턴스를 통해 게임의 전반적인 흐름을 제어한다.
Gamemode 클래스에서는 다음과 같은 기능을 구현할 수 있다.
게임 시작과 종료: Gamemode는 게임이 시작되었을 때와 종료될 때의 로직을 구현한다. 예를 들어, 게임이 시작될 때 플레이어들에게 초기화 작업을 하거나, 게임이 종료될 때 스코어를 계산하는 등의 작업을 수행한다.
게임 규칙: Gamemode는 게임의 규칙을 정의한다. 예를 들어, 게임에서 사용할 무기나 아이템의 종류, 각 플레이어의 생명력과 속도, 게임이 진행되는 지역의 크기와 형태 등을 설정할 수 있다.
플레이어 관리: Gamemode는 플레이어들의 관리를 담당한다. 예를 들어, 플레이어가 게임에 입장할 때의 초기화 작업, 플레이어가 게임에서 나갈 때의 처리, 각 플레이어의 스코어 계산 등을 수행한다.
게임 오브젝트 생성: Gamemode는 게임 오브젝트(게임 내의 모든 객체)의 생성과 소멸을 담당한다. 예를 들어, 적군을 생성하거나, 아이템이나 무기를 배치하는 등의 작업을 수행한다.
Gamemode는 게임의 규칙을 결정하고, 게임 오브젝트를 생성하며, 플레이어 관리를 담당하는 등 매우 중요한 역할을 한다. 게임 개발자는 Gamemode를 통해 게임의 전반적인 진행 방식을 구현할 수 있으며, 플레이어들이 게임을 즐길 수 있도록 만들어낼 수 있다.
01_Spawn | |
C01_Properties.h .cpp C02_Mesh C02_Mesh_Sphere C02_Mesh_Cone C03_Spawner.h .cpp |
|
02_Profiler | |
C01_Log.h .cpp C02_DrawDebug.h .cpp |
|
Utilities | |
CHelpers.h | |
CAnimInstance.h .cpp CGameMode.h .cpp CPlayer |
CHelpers.h
CHelpers.h
#pragma once #include "CoreMinimal.h" class U2212_03_API CHelpers { public: template<typename T> static void CreateComponent(AActor* InActor, T** OutComponent, FName InName, USceneComponent* InParent = nullptr) { *OutComponent = InActor->CreateDefaultSubobject<T>(InName); if (!!InParent) { (*OutComponent)->SetupAttachment(InParent); return; } InActor->SetRootComponent(*OutComponent); } template<typename T> static void GetAsset(T** OutObject, FString InPath) { ConstructorHelpers::FObjectFinder<T> asset(*InPath); *OutObject = asset.Object; } template<typename T> static void GetAssetDynamic(T** OutObject, FString InPath) { *OutObject = Cast<T>(StaticLoadObject(T::StaticClass(), nullptr, *InPath)); } template<typename T> static void GetClass(TSubclassOf<T>* OutClass, FString InPath) { ConstructorHelpers::FClassFinder<APawn> asset(*InPath); *OutClass = asset.Class; } };
static void CreateComponent.
- CreateComponent에 USceneComponent를 받아온다.
- USceneComponent* InParent = nullptr 초기값 설정
- if (!!InParent)
- 부모가 있다면(=null이 아니라면)
- (*OutComponent)->SetupAttachment(InParent)
- 부모에 *OutComponent를 붙여준다.
static void GetClass(TSubclassOf<T>* OutClass, FString InPath)
- F12로 들어가서 확인해보면 TSubclassOf도 템플릿으로 정의된 클래스타입이다. TClassType* Class이다. 포인터를 하나 가지고 있다.
- 따라서 TSubclassOf<T>* 는 2차 포인터가 된다.
- CHelper에서 GetClass()를 만든다. 다른곳에서 Class를 생성할 때 CHelper의 GetClass()를 사용하면 좀 더 편하게 생성할 수 있다.
CPlayer 생성
새 C++ 클래스 - Character - CPlayer 생성
캐릭터인 CPlayer를 생성한 후 SpringArm, Camera, Mesh(SK_Mannequin)를 추가한다.
CPlayer.h
#pragma once #include "CoreMinimal.h" #include "GameFramework/Character.h" #include "CPlayer.generated.h" UCLASS() class U2212_03_API ACPlayer : public ACharacter { GENERATED_BODY() private: UPROPERTY(VisibleAnywhere) class USpringArmComponent* SpringArm; UPROPERTY(VisibleAnywhere) class UCameraComponent* Camera; public: // Sets default values for this character's properties ACPlayer(); protected: // Called when the game starts or when spawned virtual void BeginPlay() override; public: // Called every frame virtual void Tick(float DeltaTime) override; // Called to bind functionality to input virtual void SetupPlayerInputComponent(class UInputComponent* PlayerInputComponent) override; private: void OnMoveForward(float InAxisValue); void OnMoveRight(float InAxisValue); void OnHorizontalLook(float InAxisValue); void OnVerticalLook(float InAxisValue); };
키 입력
- void OnMoveForward(float InAxisValue);
- void OnMoveRight(float InAxisValue);
- void OnHorizontalLook(float InAxisValue);
- void OnVerticalLook(float InAxisValue);
- ※코딩 컨벤션: 함수 포인터, 이벤트는 앞에 On을 붙여준다.
CPlayer.cpp
#include "CPlayer.h" #include "Global.h" #include "GameFramework/SpringArmComponent.h" #include "GameFramework/CharacterMovementComponent.h" #include "Camera/CameraComponent.h" #include "Components/CapsuleComponent.h" #include "Components/InputComponent.h" // Sets default values ACPlayer::ACPlayer() { // Set this character to call Tick() every frame. You can turn this off to improve performance if you don't need it. PrimaryActorTick.bCanEverTick = true; CHelpers::CreateComponent<USpringArmComponent>(this, &SpringArm, "SpringArm", GetCapsuleComponent()); CHelpers::CreateComponent<UCameraComponent>(this, &Camera, "Camera", SpringArm); USkeletalMesh* mesh; //SK_Mannequin을 레퍼런스 복사하여 경로를 넣어준다. CHelpers::GetAsset<USkeletalMesh>(&mesh, "SkeletalMesh'/Game/Character/Mesh/SK_Mannequin.SK_Mannequin'"); GetMesh()->SetSkeletalMesh(mesh); GetMesh()->SetRelativeLocation(FVector(0, 0, -90)); GetMesh()->SetRelativeRotation(FRotator(0, -90, 0)); bUseControllerRotationYaw = false; GetCharacterMovement()->bOrientRotationToMovement = true; //이동방향으로 회전 GetCharacterMovement()->MaxWalkSpeed = 400; SpringArm->SetRelativeLocation(FVector(0, 0, 60)); SpringArm->TargetArmLength = 200; SpringArm->bUsePawnControlRotation = true; SpringArm->bEnableCameraLag = true; } // Called when the game starts or when spawned void ACPlayer::BeginPlay() { Super::BeginPlay(); } // Called every frame void ACPlayer::Tick(float DeltaTime) { Super::Tick(DeltaTime); } // Called to bind functionality to input void ACPlayer::SetupPlayerInputComponent(UInputComponent* PlayerInputComponent) //입력 { Super::SetupPlayerInputComponent(PlayerInputComponent); PlayerInputComponent->BindAxis("MoveForward", this, &ACPlayer::OnMoveForward); PlayerInputComponent->BindAxis("MoveRight", this, &ACPlayer::OnMoveRight); PlayerInputComponent->BindAxis("HorizontalLook", this, &ACPlayer::OnHorizontalLook); PlayerInputComponent->BindAxis("VerticalLook", this, &ACPlayer::OnVerticalLook); } void ACPlayer::OnMoveForward(float InAxisValue) { FRotator rotator = FRotator(0, GetControlRotation().Yaw, 0); FVector direction = FQuat(rotator).GetForwardVector(); AddMovementInput(direction, InAxisValue); //이동 } void ACPlayer::OnMoveRight(float InAxisValue) { FRotator rotator = FRotator(0, GetControlRotation().Yaw, 0); FVector direction = FQuat(rotator).GetRightVector(); AddMovementInput(direction, InAxisValue); //이동 } void ACPlayer::OnHorizontalLook(float InAxisValue) { AddControllerYawInput(InAxisValue); } void ACPlayer::OnVerticalLook(float InAxisValue) { AddControllerPitchInput(InAxisValue); }
Component를 사용하기 위해 헤더를 삽입한다.
- #include "GameFramework/SpringArmComponent.h"
- #include "GameFramework/CharacterMovementComponent.h"
- #include "Camera/CameraComponent.h"
- #include "Components/CapsuleComponent.h"
- #include "Components/InputComponent.h"
void ACPlayer::SetupPlayerInputComponent(UInputComponent* PlayerInputComponent)
- PlayerInputComponent는입력을 관장한다.
- PlayerInputComponent의 헤더는 #include "Components/InputComponent.h"
- PlayerInputComponent.h 내부에 있는 BindAxis() 아래 참고.
언리얼 내에서의 회전
- FRotator: 0~360도
- FRotationMatrix: 3x3 행렬
- FQuat: 사원수Quatanium. 회전에 대한 비율을 다루기 때문에 오차가 발생하지 않는다. 짐벌락 현상만 조심하자.
- 언리얼에서는 1:1:1로 매칭되어 서로 바뀔 수 있다.
BindAxis
template<class UserClass> FInputAxisBinding& BindAxis( const FName AxisName, UserClass* Object, typename FInputAxisHandlerSignature::TUObjectMethodDelegate< UserClass >::FMethodPtr Func ) { FInputAxisBinding AB( AxisName ); AB.AxisDelegate.BindDelegate(Object, Func); AxisBindings.Emplace(MoveTemp(AB)); return AxisBindings.Last(); }

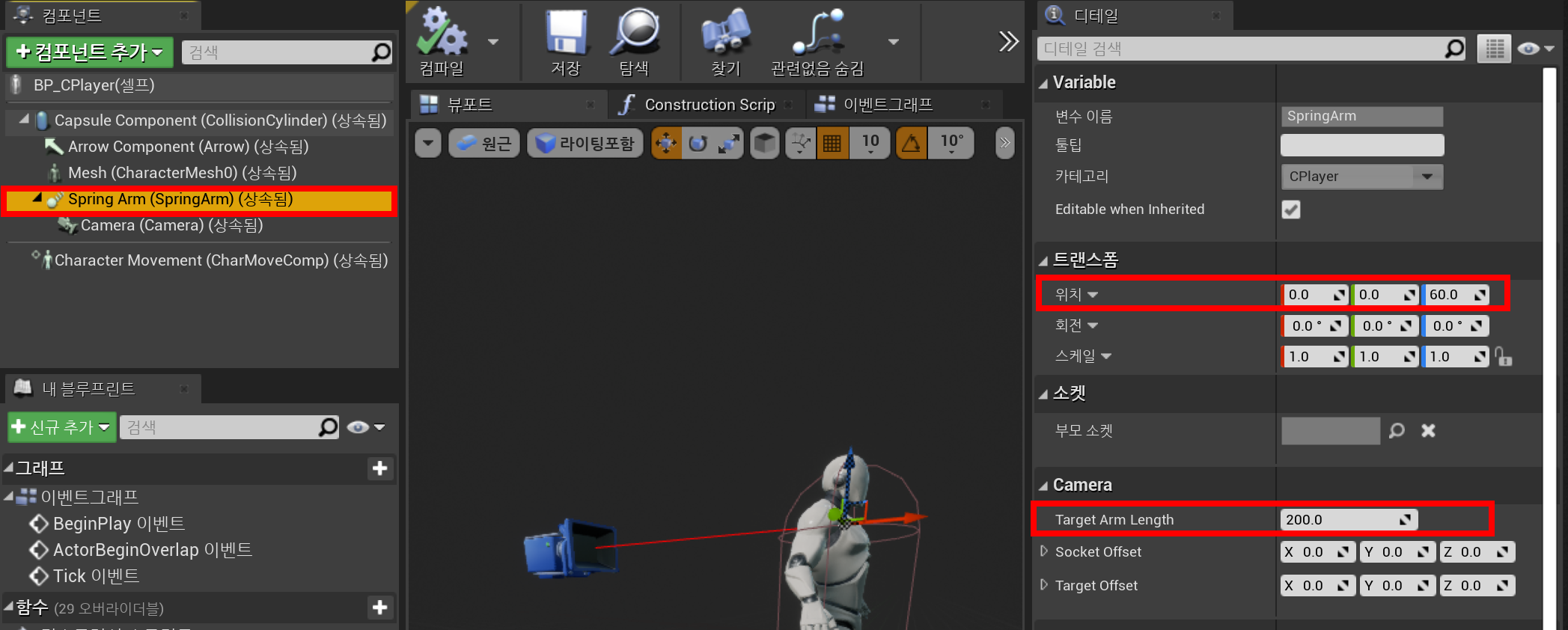

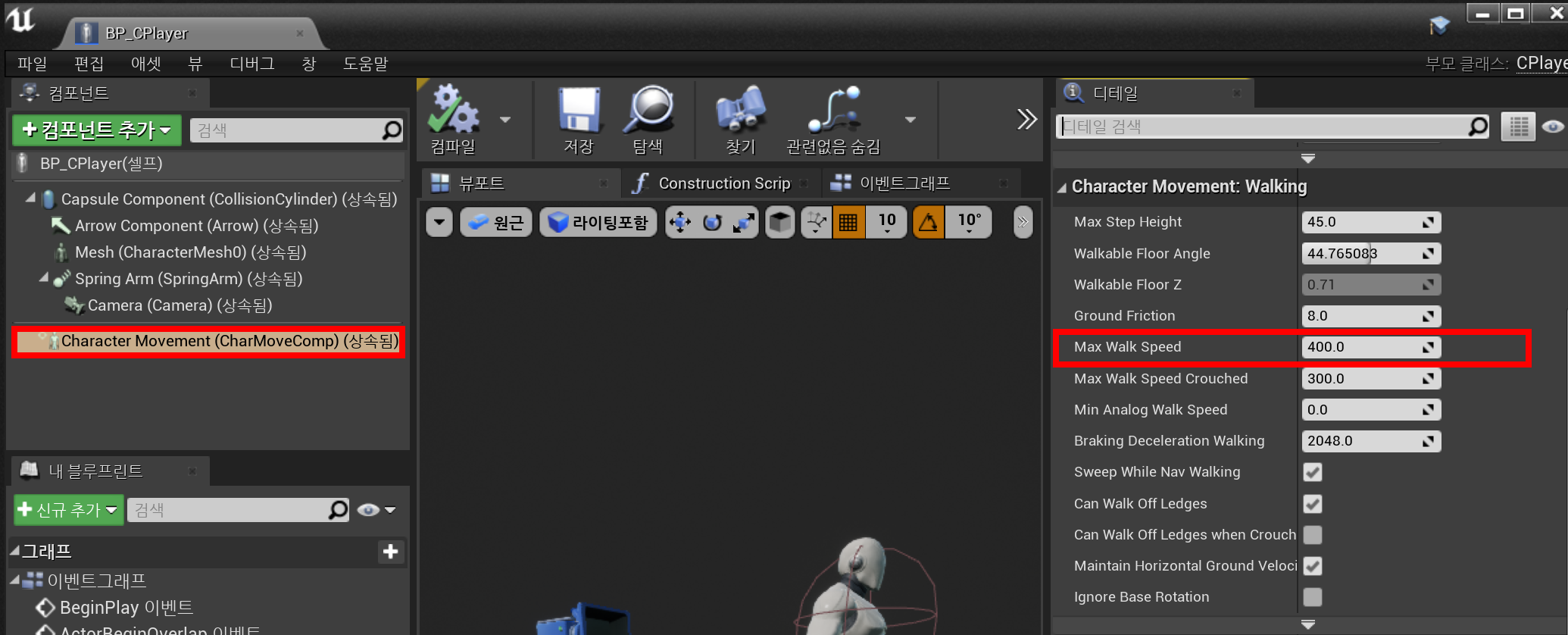

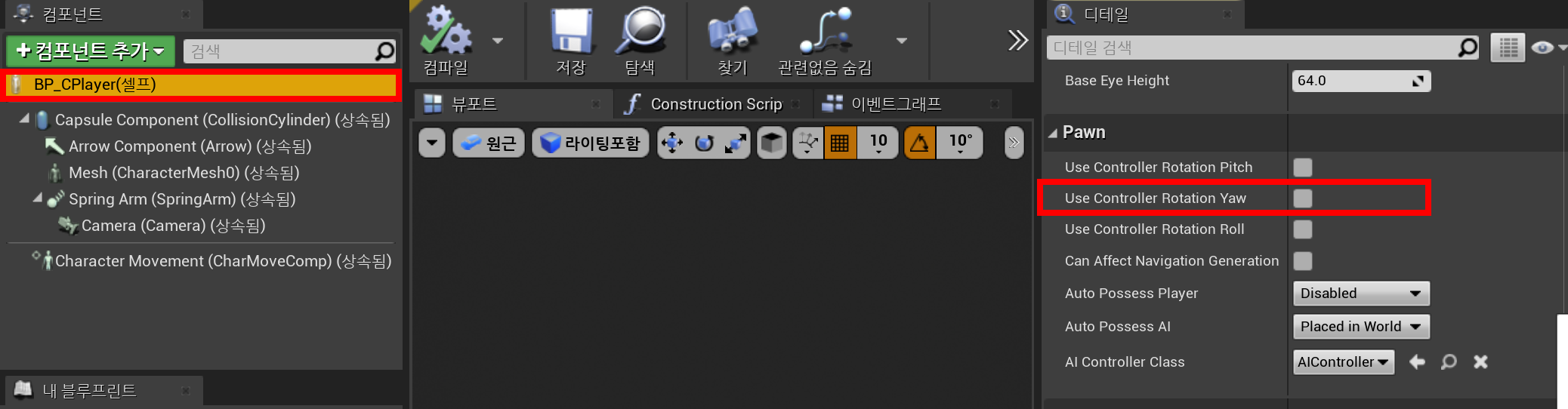

BP_Player



CPlayer에서 설정한 값들이 적용되서 들어간다.

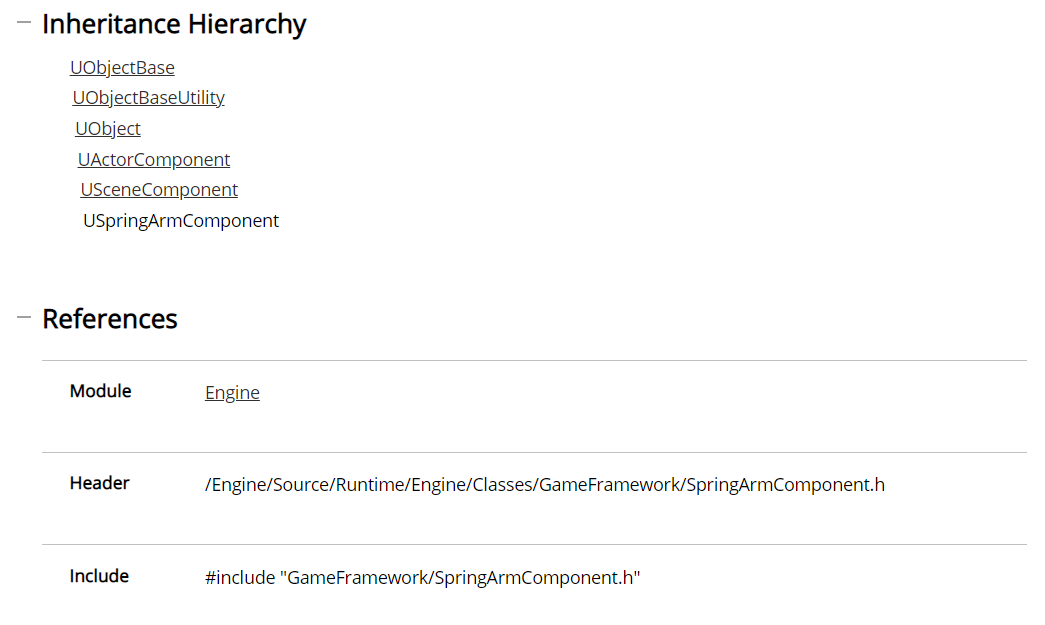

헤더명을 모르는 경우 구글에다 검색하여 언리얼 공식문서를 참고하자.

https://docs.unrealengine.com/4.26/en-US/API/Runtime/Engine/GameFramework/USpringArmComponent/
CGameMode
CGameMode.h
#pragma once #include "CoreMinimal.h" #include "GameFramework/GameModeBase.h" #include "CGameMode.generated.h" UCLASS() class U2212_03_API ACGameMode : public AGameModeBase { GENERATED_BODY() public: ACGameMode(); };
CGameMode.cpp
#include "CGameMode.h" #include "Global.h" ACGameMode::ACGameMode() { //CHelpers를 사용하지 않는 Class 생성 방법 //ConstructorHelpers::FClassFinder<APawn> asset(L"Blueprint'/Game/BP_CPlayer.BP_CPlayer_C'"); //if (asset.Succeeded()) // DefaultPawnClass = asset.Class; CHelpers::GetClass<APawn>(&DefaultPawnClass, "Blueprint'/Game/BP_CPlayer.BP_CPlayer_C'"); }
ClassType 경로명 작은따옴표(') 앞에 항상 _C를 붙여준다. ex. "Blueprint'/Game/BP_CPlayer.BP_CPlayer_C'"

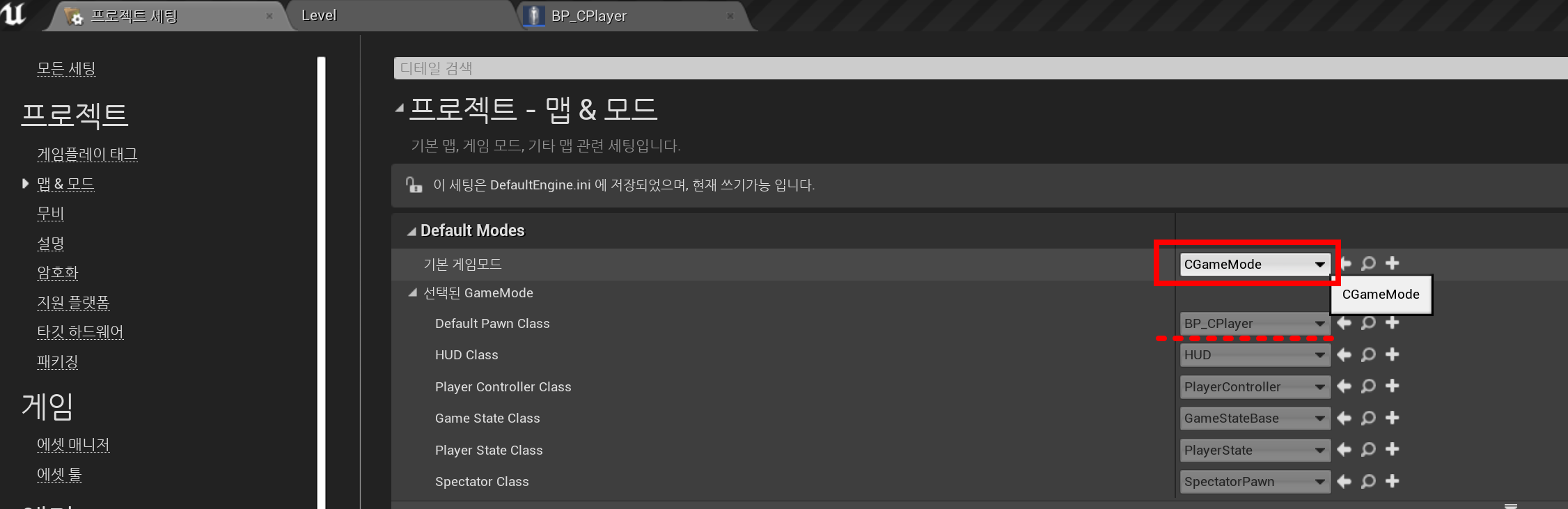

프로젝트 세팅 - 맵&모드 - 기본 게임모드 CGameMode로 변경.
CAnimInstance

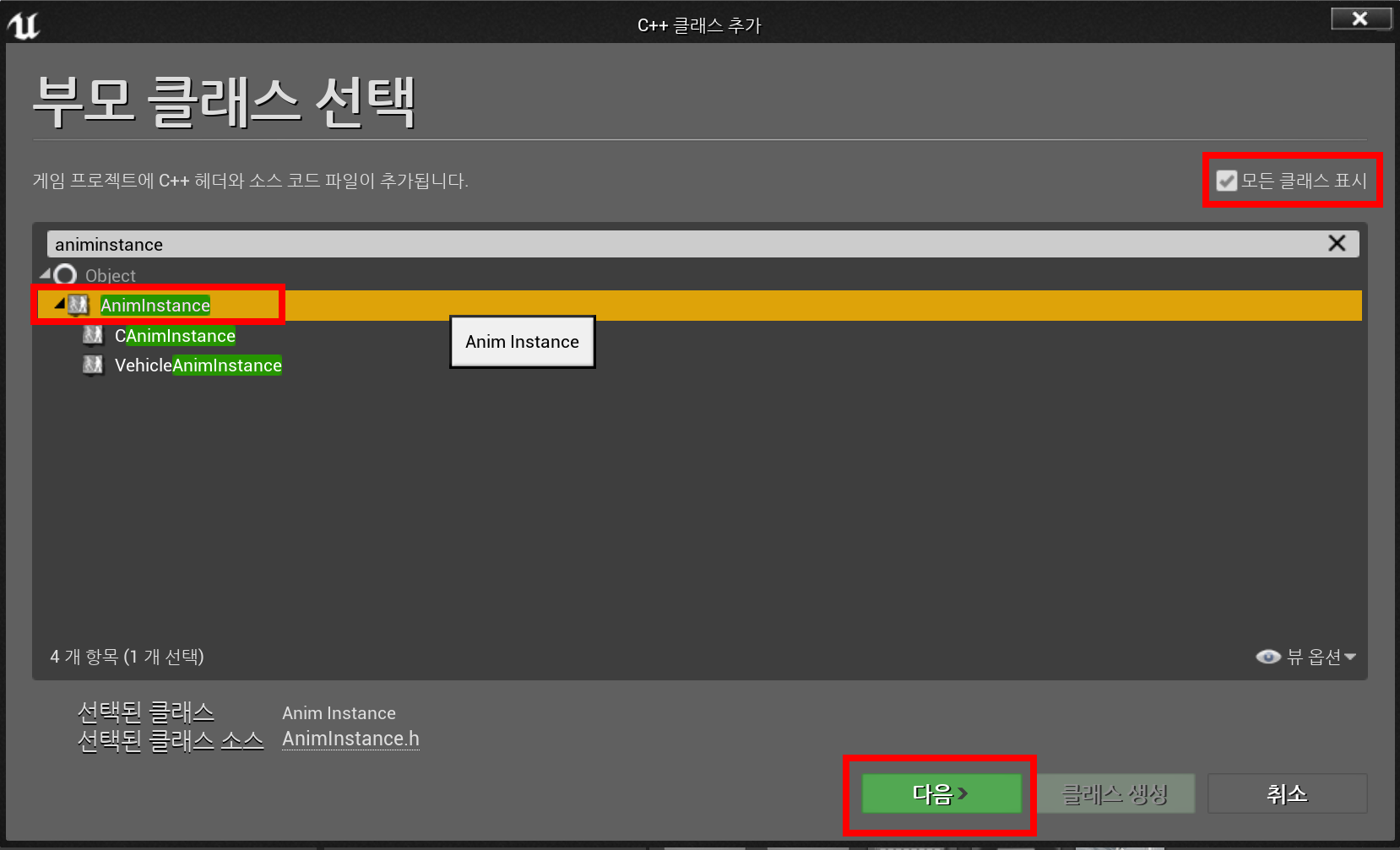

새C++ 클래스 - Anim Instance - CAnimInstance 생성

CAnimInstance.h
#pragma once #include "CoreMinimal.h" #include "Animation/AnimInstance.h" #include "CAnimInstance.generated.h" UCLASS() class U2212_03_API UCAnimInstance : public UAnimInstance { GENERATED_BODY() protected: UPROPERTY(BlueprintReadOnly, Category = "Animation") float Speed; public: //언리얼에서 오버라이딩 했으면 override 붙여준다. 의무사항 void NativeBeginPlay() override; void NativeUpdateAnimation(float DeltaSeconds) override; };
CAnimInstance.cpp
#include "CAnimInstance.h" void UCAnimInstance::NativeBeginPlay() { } void UCAnimInstance::NativeUpdateAnimation(float DeltaSeconds) { }

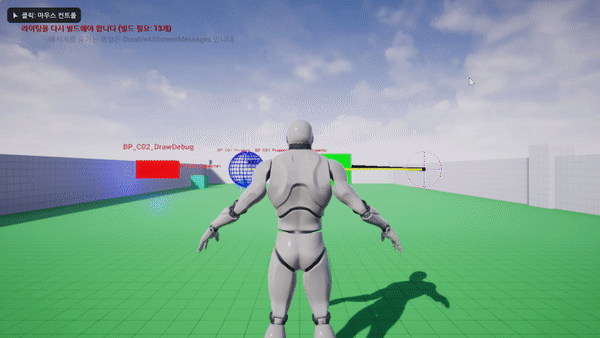

실행화면
