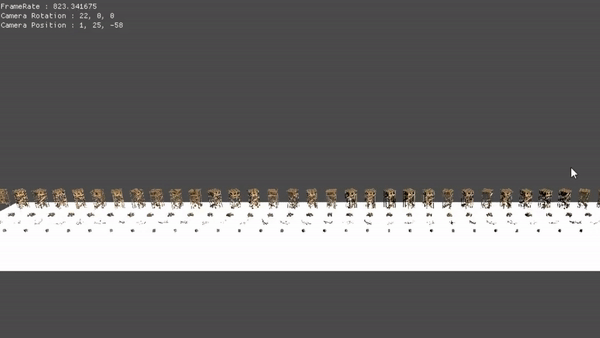

[DirectX11] 051~52 Instancing Mesh & Model



글의 요약 설명 부분. 150자를 적어주세요. 글의 요약 설명 부분. 150자를 적어주세요. 글의 요약 설명 부분. 150자를 적어주세요. 글의 요약 설명 부분. 150자를 적어주세요. 글의 요약 설명 부분. 150자를 적어주세요. 글의 요약 설명 부분. 150자입니다



목차





---







Instancing Mesh



Shader
	00_Global.fx 00_Render.fx 51_InstancingMesh
Framework
	Environment
	CubeSky.h .cpp
	Meshes
	Mesh.h .cpp MeshCube.h. cpp MeshCylinder.h .cpp MeshGrid.h .cpp MeshQuad.h .cpp MeshSphere.h .cpp MeshRender.h .cpp
	Model
	ModelMesh.h .cpp
ModelEditor
	Demo
	MeshDemo.h .cpp ModelDemo.h .cpp  하늘 제거
	Main.h .cpp





---



fx



00_Global.fx

cbuffer CB_PerFrame
{
    matrix View;
    matrix ViewInverse;//View의 역행렬
    matrix Projection;
    matrix VP;

    float4 Culling[4];
    float4 Clipping;

    float Time; //게임시간
};

cbuffer CB_World
{
    matrix World;
};

Texture2D DiffuseMap;
Texture2D SpecularMap;
Texture2D NormalMap;

TextureCube SkyCubeMap;

///////////////////////////////////////////////////////////////////////////////

static const float PI = 3.14159265f;

///////////////////////////////////////////////////////////////////////////////

float4 WorldPosition(float4 position)
{
    return mul(position, World);
}

float4 ViewProjection(float4 position)
{
    return mul(position, VP);

    //position = mul(position, View);
    //return mul(position, Projection);
}

float3 WorldNormal(float3 normal)
{
    return mul(normal, (float3x3) World);
}

float3 WorldTangent(float3 tangent)
{
    return mul(tangent, (float3x3) World);
}

float3 ViewPosition()
{
    return ViewInverse._41_42_43;
}

///////////////////////////////////////////////////////////////////////////////

struct Vertex
{
    float4 Position : Position;
};

struct VertexNormal
{
    float4 Position : Position;
    float3 Normal : Normal;
};

struct VertexColor
{
    float4 Position : Position;
    float4 Color : Color;
};

struct VertexColorNormal
{
    float4 Position : Position;
    float4 Color : Color;
    float3 Normal : Normal;
};

struct VertexTexture
{
    float4 Position : Position;
    float2 Uv : Uv;
};

struct VertexTextureNormal
{
    float4 Position : Position;
    float2 Uv : Uv;
    float3 Normal : Normal;
};


///////////////////////////////////////////////////////////////////////////////

struct MeshOutput
{
    float4 Position : SV_Position0; //Rasterizing Position
    float3 oPosition : Position1;   //Original Position

    float3 Normal : Normal;
    float2 Uv : Uv;
};

///////////////////////////////////////////////////////////////////////////////

SamplerState LinearSampler
{
    Filter = MIN_MAG_MIP_LINEAR;

    AddressU = Wrap;
    AddressV = Wrap;
};

SamplerState PointSampler
{
    Filter = MIN_MAG_MIP_POINT;

    AddressU = Wrap;
    AddressV = Wrap;
};

RasterizerState FrontCounterClockwise_True
{
    FrontCounterClockwise = true;
};

RasterizerState FillMode_WireFrame
{
    FillMode = WireFrame;
};

//RasterizerState CullMode_None
//{
//    CullMode = None;
//};

DepthStencilState DepthEnable_False
{
    DepthEnable = false;
};


///////////////////////////////////////////////////////////////////////////////


///////////////////////////////////////////////////////////////////////////////
// Vertex / Pixel
///////////////////////////////////////////////////////////////////////////////
#define P_VP(name, vs, ps) \
pass name \
{ \
    SetVertexShader(CompileShader(vs_5_0, vs())); \
    SetPixelShader(CompileShader(ps_5_0, ps())); \
}

#define P_RS_VP(name, rs, vs, ps) \
pass name \
{ \
    SetRasterizerState(rs); \
    SetVertexShader(CompileShader(vs_5_0, vs())); \
    SetPixelShader(CompileShader(ps_5_0, ps())); \
}

#define P_BS_VP(name, bs, vs, ps) \
pass name \
{ \
    SetBlendState(bs, float4(0, 0, 0, 0), 0xFF); \
    SetVertexShader(CompileShader(vs_5_0, vs())); \
    SetPixelShader(CompileShader(ps_5_0, ps())); \
}

#define P_DSS_VP(name, dss, vs, ps) \
pass name \
{ \
    SetDepthStencilState(dss, 1); \
    SetVertexShader(CompileShader(vs_5_0, vs())); \
    SetPixelShader(CompileShader(ps_5_0, ps())); \
}

#define P_RS_DSS_VP(name, rs, dss, vs, ps) \
pass name \
{ \
    SetRasterizerState(rs); \
    SetDepthStencilState(dss, 1); \
    SetVertexShader(CompileShader(vs_5_0, vs())); \
    SetPixelShader(CompileShader(ps_5_0, ps())); \
}

#define P_RS_BS_VP(name, rs, bs, vs, ps) \
pass name \
{ \
    SetRasterizerState(rs); \
    SetBlendState(bs, float4(0, 0, 0, 0), 0xFF); \
    SetVertexShader(CompileShader(vs_5_0, vs())); \
    SetPixelShader(CompileShader(ps_5_0, ps())); \
}

#define P_DSS_BS_VP(name, dss, bs, vs, ps) \
pass name \
{ \
    SetDepthStencilState(dss, 1); \
    SetBlendState(bs, float4(0, 0, 0, 0), 0xFF); \
    SetVertexShader(CompileShader(vs_5_0, vs())); \
    SetPixelShader(CompileShader(ps_5_0, ps())); \
}

///////////////////////////////////////////////////////////////////////////////
// Vertex / Geometry / Pixel
///////////////////////////////////////////////////////////////////////////////
#define P_VGP(name, vs, gs, ps) \
pass name \
{ \
    SetVertexShader(CompileShader(vs_5_0, vs())); \
    SetGeometryShader(CompileShader(gs_5_0, gs())); \
    SetPixelShader(CompileShader(ps_5_0, ps())); \
}

#define P_RS_VGP(name, rs, vs, gs, ps) \
pass name \
{ \
    SetRasterizerState(rs); \
    SetVertexShader(CompileShader(vs_5_0, vs())); \
    SetGeometryShader(CompileShader(gs_5_0, gs())); \
    SetPixelShader(CompileShader(ps_5_0, ps())); \
}

#define P_BS_VGP(name, bs, vs, gs, ps) \
pass name \
{ \
    SetBlendState(bs, float4(0, 0, 0, 0), 0xFF); \
    SetVertexShader(CompileShader(vs_5_0, vs())); \
    SetGeometryShader(CompileShader(gs_5_0, gs())); \
    SetPixelShader(CompileShader(ps_5_0, ps())); \
}

#define P_DSS_VGP(name, dss, vs, gs, ps) \
pass name \
{ \
    SetDepthStencilState(dss, 1); \
    SetVertexShader(CompileShader(vs_5_0, vs())); \
    SetGeometryShader(CompileShader(gs_5_0, gs())); \
    SetPixelShader(CompileShader(ps_5_0, ps())); \
}

#define P_RS_DSS_VGP(name, rs, dss, vs, gs, ps) \
pass name \
{ \
    SetRasterizerState(rs); \
    SetDepthStencilState(dss, 1); \
    SetVertexShader(CompileShader(vs_5_0, vs())); \
    SetGeometryShader(CompileShader(gs_5_0, gs())); \
    SetPixelShader(CompileShader(ps_5_0, ps())); \
}

#define P_RS_BS_VGP(name, rs, bs, vs, gs, ps) \
pass name \
{ \
    SetRasterizerState(rs); \
    SetBlendState(bs, float4(0, 0, 0, 0), 0xFF); \
    SetVertexShader(CompileShader(vs_5_0, vs())); \
    SetGeometryShader(CompileShader(gs_5_0, gs())); \
    SetPixelShader(CompileShader(ps_5_0, ps())); \
}

#define P_DSS_BS_VGP(name, dss, bs, vs, gs, ps) \
pass name \
{ \
    SetDepthStencilState(dss, 1); \
    SetBlendState(bs, float4(0, 0, 0, 0), 0xFF); \
    SetVertexShader(CompileShader(vs_5_0, vs())); \
    SetGeometryShader(CompileShader(gs_5_0, gs())); \
    SetPixelShader(CompileShader(ps_5_0, ps())); \
}


///////////////////////////////////////////////////////////////////////////////
// Vertex / Tessellation / Pixel
///////////////////////////////////////////////////////////////////////////////
#define P_VTP(name, vs, hs, ds, ps) \
pass name \
{ \
    SetVertexShader(CompileShader(vs_5_0, vs())); \
    SetHullShader(CompileShader(hs_5_0, hs())); \
    SetDomainShader(CompileShader(ds_5_0, ds())); \
    SetPixelShader(CompileShader(ps_5_0, ps())); \
}

#define P_RS_VTP(name, rs, vs, hs, ds, ps) \
pass name \
{ \
    SetRasterizerState(rs); \
    SetVertexShader(CompileShader(vs_5_0, vs())); \
    SetHullShader(CompileShader(hs_5_0, hs())); \
    SetDomainShader(CompileShader(ds_5_0, ds())); \
    SetPixelShader(CompileShader(ps_5_0, ps())); \
}

#define P_BS_VTP(name, bs, vs, hs, ds, ps) \
pass name \
{ \
    SetBlendState(bs, float4(0, 0, 0, 0), 0xFF); \
    SetVertexShader(CompileShader(vs_5_0, vs())); \
    SetHullShader(CompileShader(hs_5_0, hs())); \
    SetDomainShader(CompileShader(ds_5_0, ds())); \
    SetPixelShader(CompileShader(ps_5_0, ps())); \
}

#define P_DSS_VTP(name, dss, vs, hs, ds, ps) \
pass name \
{ \
    SetDepthStencilState(dss, 1); \
    SetVertexShader(CompileShader(vs_5_0, vs())); \
    SetHullShader(CompileShader(hs_5_0, hs())); \
    SetDomainShader(CompileShader(ds_5_0, ds())); \
    SetPixelShader(CompileShader(ps_5_0, ps())); \
}

#define P_RS_DSS_VTP(name, rs, dss, vs, hs, ds, ps) \
pass name \
{ \
    SetRasterizerState(rs); \
    SetDepthStencilState(dss, 1); \
    SetVertexShader(CompileShader(vs_5_0, vs())); \
    SetHullShader(CompileShader(hs_5_0, hs())); \
    SetDomainShader(CompileShader(ds_5_0, ds())); \
    SetPixelShader(CompileShader(ps_5_0, ps())); \
}

#define P_RS_BS_VTP(name, rs, bs, vs, hs, ds, ps) \
pass name \
{ \
    SetRasterizerState(rs); \
    SetBlendState(bs, float4(0, 0, 0, 0), 0xFF); \
    SetVertexShader(CompileShader(vs_5_0, vs())); \
    SetHullShader(CompileShader(hs_5_0, hs())); \
    SetDomainShader(CompileShader(ds_5_0, ds())); \
    SetPixelShader(CompileShader(ps_5_0, ps())); \
}

#define P_DSS_BS_VTP(name, dss, bs, vs, hs, ds, ps) \
pass name \
{ \
    SetDepthStencilState(dss, 1); \
    SetBlendState(bs, float4(0, 0, 0, 0), 0xFF); \
    SetVertexShader(CompileShader(vs_5_0, vs())); \
    SetHullShader(CompileShader(hs_5_0, hs())); \
    SetDomainShader(CompileShader(ds_5_0, ds())); \
    SetPixelShader(CompileShader(ps_5_0, ps())); \
}

#define P_RS_DSS_BS_VTP(name, rs, dss, bs, vs, hs, ds, ps) \
pass name \
{ \
    SetRasterizerState(rs); \
    SetDepthStencilState(dss, 1); \
    SetBlendState(bs, float4(0, 0, 0, 0), 0xFF); \
    SetVertexShader(CompileShader(vs_5_0, vs())); \
    SetHullShader(CompileShader(hs_5_0, hs())); \
    SetDomainShader(CompileShader(ds_5_0, ds())); \
    SetPixelShader(CompileShader(ps_5_0, ps())); \
}



00_Render.fx

float4 PS_Sky(MeshOutput input) : SV_Target
{
    return SkyCubeMap.Sample(LinearSampler, input.oPosition);
}
///////////////////////////////////////////////////////////////////////////////

struct VertexMesh
{
    float4 Position : Position;
    float2 Uv : Uv;
    float3 Normal : Normal;
    float3 Tangent : Tangent;

    matrix Transform : Inst1_Transform;
    float4 Color : Inst2_Color;
};

///////////////////////////////////////////////////////////////////////////////

#define VS_GENERATE \
output.oPosition = input.Position.xyz; \
\
output.Position = WorldPosition(input.Position); \
output.wPosition = output.Position.xyz; \
output.Position = ViewProjection(output.Position); \
output.wvpPosition = output.Position; \
output.wvpPosition_Sub = output.Position; \
\
output.sPosition = WorldPosition(input.Position); \
output.sPosition = mul(output.sPosition, ShadowView); \
output.sPosition = mul(output.sPosition, ShadowProjection); \
\
output.Normal = WorldNormal(input.Normal); \
output.Tangent = WorldTangent(input.Tangent); \
\
output.Uv = input.Uv; \
output.Color = input.Color;

///////////////////////////////////////////////////////////////////////////////

struct DepthOutput
{
    float4 Position : SV_Position;
    float4 sPosition : Position1;
};

float4 PS_Depth(DepthOutput input) : SV_Target
{
    float depth = input.Position.z / input.Position.w;

    return float4(depth, depth, depth, 1.0f);
}

#define VS_DEPTH_GENERATE \
output.Position = WorldPosition(input.Position); \
output.Position = mul(output.Position, ShadowView); \
output.Position = mul(output.Position, ShadowProjection); \
\
output.sPosition = output.Position;

///////////////////////////////////////////////////////////////////////////////

void SetMeshWorld(inout matrix world, VertexMesh input)
{
    world = input.Transform;
}

MeshOutput VS_Mesh(VertexMesh input)
{
    MeshOutput output;

    SetMeshWorld(World, input);
    VS_GENERATE

    return output;
}

DepthOutput VS_Depth_Mesh(VertexMesh input)
{
    DepthOutput output;

    SetMeshWorld(World, input);
    VS_DEPTH_GENERATE

    return output;
}

///////////////////////////////////////////////////////////////////////////////

struct VertexModel
{
    float4 Position : Position;
    float2 Uv : Uv;
    float3 Normal : Normal;
    float3 Tangent : Tangent;
    float4 BlendIndices : BlendIndices;
    float4 BlendWeights : BlendWeights;

    uint InstanceID : SV_InstanceID;

    matrix Transform : Inst1_Transform;
    float4 Color : Inst2_Color;
};

Texture2DArray TransformsMap;
#define MAX_MODEL_TRANSFORMS 250

cbuffer CB_Bone
{
    //matrix BoneTransforms[MAX_MODEL_TRANSFORMS];

    uint BoneIndex;
};

void SetModelWorld(inout matrix world, VertexModel input)
{
    //world = mul(BoneTransforms[BoneIndex], world);

    float4 m0 = TransformsMap.Load(int4(BoneIndex * 4 + 0, input.InstanceID, 0, 0));
    float4 m1 = TransformsMap.Load(int4(BoneIndex * 4 + 1, input.InstanceID, 0, 0));
    float4 m2 = TransformsMap.Load(int4(BoneIndex * 4 + 2, input.InstanceID, 0, 0));
    float4 m3 = TransformsMap.Load(int4(BoneIndex * 4 + 3, input.InstanceID, 0, 0));

    matrix transform = matrix(m0, m1, m2, m3);
    world = mul(transform, input.Transform);
}

MeshOutput VS_Model(VertexModel input)
{
    MeshOutput output;

    SetModelWorld(World, input);
    VS_GENERATE

    return output;
}

DepthOutput VS_Depth_Model(VertexModel input)
{
    DepthOutput output;

    SetModelWorld(World, input);
    VS_DEPTH_GENERATE

    return output;
}

///////////////////////////////////////////////////////////////////////////////

#define MAX_MODEL_KEYFRAMES 500
#define MAX_MODEL_INSTANCE 500

struct AnimationFrame
{
    int Clip;

    uint CurrFrame;
    uint NextFrame;

    float Time;
    float Running;

    float3 Padding;
};

struct TweenFrame
{
    float TakeTime;
    float TweenTime;
    float RunningTime;
    float Padding;

    AnimationFrame Curr;
    AnimationFrame Next;
};

cbuffer CB_TweenFrame
{
    TweenFrame TweenFrames[MAX_MODEL_INSTANCE];
};

void SetTweenWorld(inout matrix world, VertexModel input)
{
    float indices[4] = { input.BlendIndices.x, input.BlendIndices.y, input.BlendIndices.z, input.BlendIndices.w };
    float weights[4] = { input.BlendWeights.x, input.BlendWeights.y, input.BlendWeights.z, input.BlendWeights.w };


    int clip[2];
    int currFrame[2];
    int nextFrame[2];
    float time[2];

    clip[0] = TweenFrames[input.InstanceID].Curr.Clip;
    currFrame[0] = TweenFrames[input.InstanceID].Curr.CurrFrame;
    nextFrame[0] = TweenFrames[input.InstanceID].Curr.NextFrame;
    time[0] = TweenFrames[input.InstanceID].Curr.Time;

    clip[1] = TweenFrames[input.InstanceID].Next.Clip;
    currFrame[1] = TweenFrames[input.InstanceID].Next.CurrFrame;
    nextFrame[1] = TweenFrames[input.InstanceID].Next.NextFrame;
    time[1] = TweenFrames[input.InstanceID].Next.Time;



    float4 c0, c1, c2, c3;
    float4 n0, n1, n2, n3;

    matrix curr = 0, next = 0;
    matrix currAnim = 0;
    matrix nextAnim = 0;

    matrix transform = 0;

    [unroll(4)]
    for (int i = 0; i < 4; i++)
    {
        c0 = TransformsMap.Load(int4(indices[i] * 4 + 0, currFrame[0], clip[0], 0));
        c1 = TransformsMap.Load(int4(indices[i] * 4 + 1, currFrame[0], clip[0], 0));
        c2 = TransformsMap.Load(int4(indices[i] * 4 + 2, currFrame[0], clip[0], 0));
        c3 = TransformsMap.Load(int4(indices[i] * 4 + 3, currFrame[0], clip[0], 0));
        curr = matrix(c0, c1, c2, c3);

        n0 = TransformsMap.Load(int4(indices[i] * 4 + 0, nextFrame[0], clip[0], 0));
        n1 = TransformsMap.Load(int4(indices[i] * 4 + 1, nextFrame[0], clip[0], 0));
        n2 = TransformsMap.Load(int4(indices[i] * 4 + 2, nextFrame[0], clip[0], 0));
        n3 = TransformsMap.Load(int4(indices[i] * 4 + 3, nextFrame[0], clip[0], 0));
        next = matrix(n0, n1, n2, n3);

        currAnim = lerp(curr, next, time[0]);


        [flatten]
        if (clip[1] > -1)
        {
            c0 = TransformsMap.Load(int4(indices[i] * 4 + 0, currFrame[1], clip[1], 0));
            c1 = TransformsMap.Load(int4(indices[i] * 4 + 1, currFrame[1], clip[1], 0));
            c2 = TransformsMap.Load(int4(indices[i] * 4 + 2, currFrame[1], clip[1], 0));
            c3 = TransformsMap.Load(int4(indices[i] * 4 + 3, currFrame[1], clip[1], 0));
            curr = matrix(c0, c1, c2, c3);

            n0 = TransformsMap.Load(int4(indices[i] * 4 + 0, nextFrame[1], clip[1], 0));
            n1 = TransformsMap.Load(int4(indices[i] * 4 + 1, nextFrame[1], clip[1], 0));
            n2 = TransformsMap.Load(int4(indices[i] * 4 + 2, nextFrame[1], clip[1], 0));
            n3 = TransformsMap.Load(int4(indices[i] * 4 + 3, nextFrame[1], clip[1], 0));
            next = matrix(n0, n1, n2, n3);

            nextAnim = lerp(curr, next, time[1]);

            currAnim = lerp(currAnim, nextAnim, TweenFrames[input.InstanceID].TweenTime);
        }


        transform += mul(weights[i], currAnim);
    }

    world = mul(transform, input.Transform);
}

struct BlendFrame
{
    uint Mode;
    float Alpha;
    float2 Padding;

    AnimationFrame Clip[3];
};

cbuffer CB_BlendFrame
{
    BlendFrame BlendFrames[MAX_MODEL_INSTANCE];
};

void SetBlendWorld(inout matrix world, VertexModel input)
{
    float indices[4] = { input.BlendIndices.x, input.BlendIndices.y, input.BlendIndices.z, input.BlendIndices.w };
    float weights[4] = { input.BlendWeights.x, input.BlendWeights.y, input.BlendWeights.z, input.BlendWeights.w };


    float4 c0, c1, c2, c3;
    float4 n0, n1, n2, n3;

    matrix curr = 0, next = 0;
    matrix currAnim[3];
    matrix anim = 0;
    matrix transform = 0;

    BlendFrame frame = BlendFrames[input.InstanceID];

    [unroll(4)]
    for (int i = 0; i < 4; i++)
    {
        [unroll(3)]
        for (int k = 0; k < 3; k++)
        {
            c0 = TransformsMap.Load(int4(indices[i] * 4 + 0, frame.Clip[k].CurrFrame, frame.Clip[k].Clip, 0));
            c1 = TransformsMap.Load(int4(indices[i] * 4 + 1, frame.Clip[k].CurrFrame, frame.Clip[k].Clip, 0));
            c2 = TransformsMap.Load(int4(indices[i] * 4 + 2, frame.Clip[k].CurrFrame, frame.Clip[k].Clip, 0));
            c3 = TransformsMap.Load(int4(indices[i] * 4 + 3, frame.Clip[k].CurrFrame, frame.Clip[k].Clip, 0));
            curr = matrix(c0, c1, c2, c3);

            n0 = TransformsMap.Load(int4(indices[i] * 4 + 0, frame.Clip[k].NextFrame, frame.Clip[k].Clip, 0));
            n1 = TransformsMap.Load(int4(indices[i] * 4 + 1, frame.Clip[k].NextFrame, frame.Clip[k].Clip, 0));
            n2 = TransformsMap.Load(int4(indices[i] * 4 + 2, frame.Clip[k].NextFrame, frame.Clip[k].Clip, 0));
            n3 = TransformsMap.Load(int4(indices[i] * 4 + 3, frame.Clip[k].NextFrame, frame.Clip[k].Clip, 0));
            next = matrix(n0, n1, n2, n3);

            currAnim[k] = lerp(curr, next, frame.Clip[k].Time);
        }

        int clipA = (int) frame.Alpha;
        int clipB = clipA + 1;

        float alpha = frame.Alpha;
        if (alpha >= 1.0f)
        {
            alpha = frame.Alpha - 1.0f;

            if (frame.Alpha >= 2.0f)
            {
                clipA = 1;
                clipB = 2;
            }
        }

        anim = lerp(currAnim[clipA], currAnim[clipB], alpha);

        transform += mul(weights[i], anim);
    }

    world = mul(transform, input.Transform);
}

MeshOutput VS_Animation(VertexModel input)
{
    MeshOutput output;

    if (BlendFrames[input.InstanceID].Mode == 0)
        SetTweenWorld(World, input);
    else
        SetBlendWorld(World, input);

    VS_GENERATE

    return output;
}

DepthOutput VS_Depth_Animation(VertexModel input)
{
    DepthOutput output;

    if (BlendFrames[input.InstanceID].Mode == 0)
        SetTweenWorld(World, input);
    else
        SetBlendWorld(World, input);

    VS_DEPTH_GENERATE

    return output;
}





51_InstancingMesh

#include "00_Global.fx"
#include "00_Light.fx"
#include "00_Render.fx"

float4 PS(MeshOutput input) : SV_Target
{
    float3 normal = normalize(input.Normal);
    float3 light = -GlobalLight.Direction;

    return DiffuseMap.Sample(LinearSampler, input.Uv) * dot(light, normal);
}

technique11 T0
{
    P_VP(P0, VS_Mesh, PS)
}





---



Mesh



Mesh.h

#pragma once

class Mesh
{
public:
	typedef VertexTextureNormal MeshVertex;

public:
	Mesh();
	virtual ~Mesh();

	void SetShader(Shader* shader);
	void Pass(UINT val) { pass = val; }

	void Update();
	void Render(UINT drawCount);

protected:
	virtual void Create() = 0;

protected:
	Shader* shader;
	UINT pass = 0;

	PerFrame* perFrame = NULL;

	VertexBuffer* vertexBuffer = NULL;
	IndexBuffer* indexBuffer = NULL;

	MeshVertex* vertices;
	UINT* indices;

	UINT vertexCount, indexCount;
};





Mesh.cpp

#include "Framework.h"
#include "Mesh.h"

Mesh::Mesh()
{

}

Mesh::~Mesh()
{
	SafeDelete(perFrame);

	SafeDelete(vertexBuffer);
	SafeDelete(indexBuffer);

	SafeDeleteArray(vertices);
	SafeDeleteArray(indices);
}

void Mesh::SetShader(Shader * shader)
{
	this->shader = shader;

	SafeDelete(perFrame);
	perFrame = new PerFrame(shader);
}

void Mesh::Update()
{
	perFrame->Update();
}

void Mesh::Render(UINT drawCount)
{
	if (vertexBuffer == NULL || indexBuffer == NULL)
	{
		Create();

		vertexBuffer = new VertexBuffer(vertices, vertexCount, sizeof(MeshVertex));
		indexBuffer = new IndexBuffer(indices, indexCount);
	}

	perFrame->Render();
	vertexBuffer->Render();
	indexBuffer->Render();

	D3D::GetDC()->IASetPrimitiveTopology(D3D11_PRIMITIVE_TOPOLOGY_TRIANGLELIST);
	shader->DrawIndexedInstanced(0, pass, indexCount, drawCount);
}

• void Mesh::Render(UINT drawCoung)에서 그릴 개수를 정해준다.
  • DrawIndexedInstanced(0, pass, indexCount, drawCount)
    • drawCount = 그릴 개수
    • 들여온 정보를 인스턴싱화한다.





---



MeshCube, MeshCylinder, MeshGrid, MeshQuad, MeshSphere에서 shader 부분 삭제



MeshCube, MeshCylinder, MeshGrid, MeshQuad, MeshSphere에서 shader 부분을 삭제해준다.



---



MeshRender



MeshRender.h

#pragma once
#define MAX_MESH_INSTANCE 500

class MeshRender
{
public:
	MeshRender(Shader* shader, Mesh* mesh);
	~MeshRender();

	Mesh* GetMesh() { return mesh; }

	void Update();
	void Render();

	void Pass(UINT val) { mesh->Pass(val); }

	Transform* AddTransform();
	Transform* GetTransform(UINT index) { return transforms[index]; }
	void UpdateTransforms();

private:
	Mesh* mesh;

	vector<Transform *> transforms;
	Matrix worlds[MAX_MESH_INSTANCE];

	VertexBuffer* instanceBuffer;
};

• Transform 관련 삭제
  • Instancing을 통해 여러개를 그릴 예정이기 때문에 사용하지 않는다.
• bool bRead = False; 삭제
  • Texture를 넣기 때문에 Texture의 유무에 따라 데이터를 읽어들였음을 판단할 수 있음.





MeshRender.cpp

#include "Framework.h"
#include "MeshRender.h"

MeshRender::MeshRender(Shader * shader, Mesh * mesh)
	: mesh(mesh)
{
	Pass(0);
	mesh->SetShader(shader);

	for (UINT i = 0; i < MAX_MESH_INSTANCE; i++)
		D3DXMatrixIdentity(&worlds[i]);

	//
	instanceBuffer = new VertexBuffer(worlds, MAX_MESH_INSTANCE, sizeof(Matrix), 1, true);
}

MeshRender::~MeshRender()
{
	for (Transform* transform : transforms)
		SafeDelete(transform);

	SafeDelete(instanceBuffer);
	SafeDelete(mesh);
}

void MeshRender::Update()
{
	mesh->Update();
}

void MeshRender::Render()
{
	instanceBuffer->Render();

	mesh->Render(transforms.size());
}

Transform * MeshRender::AddTransform()
{
	Transform* transform = new Transform();
	transforms.push_back(transform);

	return transform;
}

void MeshRender::UpdateTransforms()
{
	for (UINT i = 0; i < transforms.size(); i++)
		memcpy(worlds[i], transforms[i]->World(), sizeof(Matrix));

	D3D11_MAPPED_SUBRESOURCE subResource;
	D3D::GetDC()->Map(instanceBuffer->Buffer(), 0, D3D11_MAP_WRITE_DISCARD, 0, &subResource);
	{
		memcpy(subResource.pData, worlds, sizeof(Matrix) * MAX_MESH_INSTANCE);
	}
	D3D::GetDC()->Unmap(instanceBuffer->Buffer(), 0);
}

• Transform 관련 삭제
  • Instancing을 통해 여러개를 그릴 예정이기 때문에 사용하지 않는다.
• instanceBuffer = new VertexBuffer(worlds, MAX_MESH_INSTANCE, sizeof(Matrix), 1, true);
  • sizeof(Matrix): 하나의 크기 할당.
  • 1: 1번 슬롯
  • true: CPU가 쓸 수 있도록 열어준다.
• CreateTexture();



---





ModelDemo, AnimationDemo 불필요한 곳 지우기



ModelDemo.h .cpp

하늘 지우기. pass 필요없으니 지우기.



AnimationDemo.h .cpp

테스트용으로 만든 ImGui와 이에 연결된 것들 지우기.





---







MeshDemo



ModelDemo.h

#pragma once
#include "Systems/IExecute.h"

class ModelDemo : public IExecute
{
public:
	virtual void Initialize() override;
	virtual void Ready() override {}
	virtual void Destroy() override {}
	virtual void Update() override;
	virtual void PreRender() override {}
	virtual void Render() override;
	virtual void PostRender() override {}
	virtual void ResizeScreen() override {}

private:
	void Airplane();
	void Tower();
	void Tank();
	void Kachujin();

private:
	Shader* shader;

	ModelRender* airplane = NULL;
	ModelRender* tower = NULL;
	ModelRender* tank = NULL;
};





ModelDemo.cpp

#include "stdafx.h"
#include "ModelDemo.h"
#include "Converter.h"

void ModelDemo::Initialize()
{
	Context::Get()->GetCamera()->RotationDegree(20, 0, 0);
	Context::Get()->GetCamera()->Position(1, 36, -85);


	shader = new Shader(L"52_InstancingModel.fx");

	Airplane();
	Tower();
	Tank();

}

void ModelDemo::Update()
{
	if (airplane != NULL) airplane->Update();
	if (tower != NULL) tower->Update();
	if (tank != NULL) tank->Update();
}

void ModelDemo::Render()
{
	if (airplane != NULL)
		airplane->Render();

	if (tower != NULL)
		tower->Render();

	if (tank != NULL)
		tank->Render();
}

void ModelDemo::Airplane()
{
	airplane = new ModelRender(shader);
	airplane->ReadMesh(L"B787/Airplane");
	airplane->ReadMaterial(L"B787/Airplane");

	for (float x = -50; x <= 50; x += 2.5f)
	{
		Transform* transform = airplane->AddTransform();

		transform->Position(Vector3(x, 0.0f, 2.5f));
		transform->RotationDegree(0, Math::Random(-180.0f, 180.0f), 0);
		transform->Scale(0.00025f, 0.00025f, 0.00025f);
	}
	airplane->UpdateTransforms();
	airplane->Pass(1);
}

void ModelDemo::Tower()
{
	tower = new ModelRender(shader);
	tower->ReadMesh(L"Tower/Tower");
	tower->ReadMaterial(L"Tower/Tower");

	for (float x = -50; x <= 50; x += 2.5f)
	{
		Transform* transform = tower->AddTransform();

		transform->Position(Vector3(x, 0.0f, 7.5f));
		transform->RotationDegree(0, Math::Random(-180.0f, 180.0f), 0);
		transform->Scale(0.003f, 0.003f, 0.003f);
	}
	tower->UpdateTransforms();
	tower->Pass(1);
}

void ModelDemo::Tank()
{
	tank = new ModelRender(shader);
	tank->ReadMesh(L"Tank/Tank");
	tank->ReadMaterial(L"Tank/Tank");

	for (float x = -50; x <= 50; x += 2.5f)
	{
		Transform* transform = tank->AddTransform();

		transform->Position(Vector3(x, 0.0f, 5.0f));
		transform->RotationDegree(0, Math::Random(-180.0f, 180.0f), 0);
		transform->Scale(0.1f, 0.1f, 0.1f);
	}
	tank->UpdateTransforms();
	tank->Pass(1);
}



---



CubeSky



MeshSphere를 MeshRender로 수정





---











Instancing Model



Shader
	00_Global.fx 00_Render.fx 51_InstancingMesh 52_InstancingModel
Framework
	Environment
	CubeSky.h .cpp
	Meshes
	Mesh.h .cpp MeshCube.h. cpp MeshCylinder.h .cpp MeshGrid.h .cpp MeshQuad.h .cpp MeshSphere.h .cpp MeshRender.h .cpp
	Model
	Model.h .cpp ModelMesh.h .cpp ModelRender.h .cpp
ModelEditor
	Demo
	MeshDemo.h .cpp ModelDemo.h .cpp
	Main.h .cpp





---



2차원 배열



2차원 배열 만들기

• 250 x 500 x 64 Byte

---



InstancingModel.fx



52_InstancingModel.fx

#include "00_Global.fx"
#include "00_Light.fx"
#include "00_Render.fx"

float4 PS(MeshOutput input) : SV_Target
{
    float3 normal = normalize(input.Normal);
    float3 light = -GlobalLight.Direction;

    return DiffuseMap.Sample(LinearSampler, input.Uv) * dot(light, normal);
}

technique11 T0
{
    P_VP(P0, VS_Mesh, PS)
    P_VP(P1, VS_Model, PS)
}



---





Model



Model.h

#pragma once
#define MAX_MODEL_TRANSFORMS 250
#define MAX_MODEL_KEYFRAMES 500
#define MAX_MODEL_INSTANCE 500

class ModelBone;
class ModelMesh;
class ModelClip;

class Model
{
public:
	typedef VertexTextureNormalTangentBlend ModelVertex;

public:
	Model();
	~Model();

	UINT BoneCount() { return bones.size(); }
	vector<ModelBone *>& Bones() { return bones; }
	ModelBone* BoneByIndex(UINT index) { return bones[index]; }
	ModelBone* BoneByName(wstring name);

	UINT MeshCount() { return meshes.size(); }
	vector<ModelMesh *>& Meshes() { return meshes; }
	ModelMesh* MeshByIndex(UINT index) { return meshes[index]; }
	ModelMesh* MeshByName(wstring name);

	UINT MaterialCount() { return materials.size(); }
	vector<Material *>& Materials() { return materials; }
	Material* MaterialByIndex(UINT index) { return materials[index]; }
	Material* MaterialByName(wstring name);

	UINT ClipCount() { return clips.size(); }
	vector<ModelClip *>& Clips() { return clips; }
	ModelClip* ClipByIndex(UINT index) { return clips[index]; }
	ModelClip* ClipByName(wstring name);

public:
	void ReadMesh(wstring file);
	void ReadMaterial(wstring file);
	void ReadClip(wstring file);

private:
	void BindBone();
	void BindMesh();

private:
	ModelBone* root;
	vector<ModelBone *> bones;
	vector<ModelMesh *> meshes;
	vector<Material *> materials;
	vector<ModelClip *> clips;
};





Model.cpp

#include "Framework.h"
#include "Model.h"
#include "Utilities/BinaryFile.h"
#include "Utilities/Xml.h"

Model::Model()
{
}

Model::~Model()
{
	for (ModelBone* bone : bones)
		SafeDelete(bone);

	for (ModelMesh* mesh : meshes)
		SafeDelete(mesh);

	for (Material* material : materials)
		SafeDelete(material);

	for (ModelClip* clip : clips)
		SafeDelete(clip);
}

ModelBone * Model::BoneByName(wstring name)
{
	for (ModelBone* bone : bones)
	{
		if (bone->Name() == name)
			return bone;
	}

	return NULL;
}

ModelMesh * Model::MeshByName(wstring name)
{
	for (ModelMesh* mesh : meshes)
	{
		if (mesh->Name() == name)
			return mesh;
	}

	return NULL;
}

Material * Model::MaterialByName(wstring name)
{
	for (Material* material : materials)
	{
		if (material->Name() == name)
			return material;
	}

	return NULL;
}

ModelClip * Model::ClipByName(wstring name)
{
	for (ModelClip* clip : clips)
	{
		if (clip->name == name)
			return clip;
	}

	return NULL;
}

void Model::ReadMesh(wstring file)
{
	file = L"../../_Models/" + file + L".mesh";


	BinaryReader* r = new BinaryReader();
	r->Open(file);

	UINT count = 0;
	count = r->UInt();
	for (UINT i = 0; i < count; i++)
	{
		ModelBone* bone = new ModelBone();
		bone->index = r->Int();
		bone->name = String::ToWString(r->String());
		bone->parentIndex = r->Int();
		bone->transform = r->Matrix();

		bones.push_back(bone);
	}

	count = r->UInt();
	for (UINT i = 0; i < count; i++)
	{
		ModelMesh* mesh = new ModelMesh();

		mesh->name = String::ToWString(r->String());
		mesh->boneIndex = r->Int();

		mesh->materialName = String::ToWString(r->String());

		//VertexData
		{
			UINT count = r->UInt();

			vector<Model::ModelVertex> vertices;
			vertices.assign(count, Model::ModelVertex());

			void* ptr = (void *)&(vertices[0]);
			r->Byte(&ptr, sizeof(Model::ModelVertex) * count);


			mesh->vertices = new Model::ModelVertex[count];
			mesh->vertexCount = count;
			copy
			(
				vertices.begin(), vertices.end(),
				stdext::checked_array_iterator<Model::ModelVertex *>(mesh->vertices, count)
			);
		}

		//IndexData
		{
			UINT count = r->UInt();

			vector<UINT> indices;
			indices.assign(count, UINT());

			void* ptr = (void *)&(indices[0]);
			r->Byte(&ptr, sizeof(UINT) * count);


			mesh->indices = new UINT[count];
			mesh->indexCount = count;
			copy
			(
				indices.begin(), indices.end(),
				stdext::checked_array_iterator<UINT *>(mesh->indices, count)
			);
		}

		meshes.push_back(mesh);
	}

	r->Close();
	SafeDelete(r);

	BindBone();
}

void Model::BindBone()
{
	root = bones[0];

	for (ModelBone* bone : bones)
	{
		if (bone->parentIndex > -1)
		{
			bone->parent = bones[bone->parentIndex];
			bone->parent->childs.push_back(bone);
		}
		else
		{
			bone->parent = NULL;
		}
	}
}

void Model::BindMesh()
{
	for (ModelMesh* mesh : meshes)
	{
		mesh->bone = bones[mesh->boneIndex];

		mesh->Binding(this);
	}
}

void Model::ReadMaterial(wstring file)
{
	file = L"../../_Textures/" + file + L".material";

	Xml::XMLDocument* document = new Xml::XMLDocument();
	Xml::XMLError error = document->LoadFile(String::ToString(file).c_str());
	assert(error == Xml::XML_SUCCESS);

	Xml::XMLElement* root = document->FirstChildElement();
	Xml::XMLElement* materialNode = root->FirstChildElement();

	do
	{
		Material* material = new Material();


		Xml::XMLElement* node = NULL;

		node = materialNode->FirstChildElement();
		material->Name(String::ToWString(node->GetText()));

		wstring directory = Path::GetDirectoryName(file);
		String::Replace(&directory, L"../../_Textures", L"");


		wstring texture = L"";

		node = node->NextSiblingElement();
		texture = String::ToWString(node->GetText());
		if (texture.length() > 0)
			material->DiffuseMap(directory + texture);

		node = node->NextSiblingElement();
		texture = String::ToWString(node->GetText());
		if (texture.length() > 0)
			material->SpecularMap(directory + texture);

		node = node->NextSiblingElement();
		texture = String::ToWString(node->GetText());
		if (texture.length() > 0)
			material->NormalMap(directory + texture);


		Color color;

		node = node->NextSiblingElement();
		color.r = node->FloatAttribute("R");
		color.g = node->FloatAttribute("G");
		color.b = node->FloatAttribute("B");
		color.a = node->FloatAttribute("A");
		material->Ambient(color);

		node = node->NextSiblingElement();
		color.r = node->FloatAttribute("R");
		color.g = node->FloatAttribute("G");
		color.b = node->FloatAttribute("B");
		color.a = node->FloatAttribute("A");
		material->Diffuse(color);

		node = node->NextSiblingElement();
		color.r = node->FloatAttribute("R");
		color.g = node->FloatAttribute("G");
		color.b = node->FloatAttribute("B");
		color.a = node->FloatAttribute("A");
		material->Specular(color);

		node = node->NextSiblingElement();
		color.r = node->FloatAttribute("R");
		color.g = node->FloatAttribute("G");
		color.b = node->FloatAttribute("B");
		color.a = node->FloatAttribute("A");
		material->Emissive(color);

		materials.push_back(material);

		materialNode = materialNode->NextSiblingElement();
	} while (materialNode != NULL);

	BindMesh();
}

void Model::ReadClip(wstring file)
{
	file = L"../../_Models/" + file + L".clip";

	BinaryReader* r = new BinaryReader();
	r->Open(file);


	ModelClip* clip = new ModelClip();

	clip->name = String::ToWString(r->String());
	clip->duration = r->Float();
	clip->frameRate = r->Float();
	clip->frameCount = r->UInt();

	UINT keyframesCount = r->UInt();
	for (UINT i = 0; i < keyframesCount; i++)
	{
		ModelKeyframe* keyframe = new ModelKeyframe();
		keyframe->BoneName = String::ToWString(r->String());


		UINT size = r->UInt();
		if (size > 0)
		{
			keyframe->Transforms.assign(size, ModelKeyframeData());

			void* ptr = (void *)&keyframe->Transforms[0];
			r->Byte(&ptr, sizeof(ModelKeyframeData) * size);
		}

		clip->keyframeMap[keyframe->BoneName] = keyframe;
	}

	r->Close();
	SafeDelete(r);

	clips.push_back(clip);
}



---





Model Mesh



ModelMesh.h

#pragma once

class ModelBone
{
public:
	friend class Model;

private:
	ModelBone();
	~ModelBone();

public:
	int Index() { return index; }

	int ParentIndex() { return parentIndex; }
	ModelBone* Parent() { return parent; }

	wstring Name() { return name; }

	Matrix& Transform() { return transform; }
	void Transform(Matrix& matrix) { transform = matrix; }

	vector<ModelBone *>& Childs() { return childs; }

private:
	int index;
	wstring name;

	int parentIndex;
	ModelBone* parent;

	Matrix transform;
	vector<ModelBone *> childs;
};

///////////////////////////////////////////////////////////////////////////////

class ModelMesh
{
public:
	friend class Model;

private:
	ModelMesh();
	~ModelMesh();

	void Binding(Model* model);

public:
	void Pass(UINT val) { pass = val; }
	void SetShader(Shader* shader);

	void Update();
	void Render();
	void Render(UINT drawCount);

	wstring Name() { return name; }

	int BoneIndex() { return boneIndex; }
	class ModelBone* Bone() { return bone; }

	void Transforms(Matrix* transforms);
	void SetTransform(Transform* transform);

	void TransformsSRV(ID3D11ShaderResourceView* srv) { transformsSRV = srv; }

private:
	struct BoneDesc
	{
		//Matrix Transforms[MAX_MODEL_TRANSFORMS];

		UINT Index;
		float Padding[3];
	} boneDesc;

private:
	wstring name;

	Shader* shader;
	UINT pass = 0;

	Transform* transform = NULL;
	PerFrame* perFrame = NULL;

	wstring materialName = L"";
	Material* material;

	int boneIndex;
	class ModelBone* bone;

	VertexBuffer* vertexBuffer;
	UINT vertexCount;
	Model::ModelVertex* vertices;

	IndexBuffer* indexBuffer;
	UINT indexCount;
	UINT* indices;

	ConstantBuffer* boneBuffer;
	ID3DX11EffectConstantBuffer* sBoneBuffer;

	ID3D11ShaderResourceView* transformsSRV = NULL;
	ID3DX11EffectShaderResourceVariable* sTransformsSRV;
};





ModelMesh.cpp

#include "Framework.h"
#include "ModelMesh.h"

ModelBone::ModelBone()
{

}

ModelBone::~ModelBone()
{

}

///////////////////////////////////////////////////////////////////////////////

ModelMesh::ModelMesh()
{
	boneBuffer = new ConstantBuffer(&boneDesc, sizeof(BoneDesc));
}

ModelMesh::~ModelMesh()
{
	SafeDelete(transform);
	SafeDelete(perFrame);

	SafeDelete(material);

	SafeDeleteArray(vertices);
	SafeDeleteArray(indices);

	SafeDelete(vertexBuffer);
	SafeDelete(indexBuffer);

	SafeDelete(boneBuffer);
}

void ModelMesh::Binding(Model * model)
{
	vertexBuffer = new VertexBuffer(vertices, vertexCount, sizeof(Model::ModelVertex));
	indexBuffer = new IndexBuffer(indices, indexCount);


	Material* srcMaterial = model->MaterialByName(materialName);

	material = new Material();
	material->CopyFrom(srcMaterial);
}

void ModelMesh::SetShader(Shader * shader)
{
	this->shader = shader;

	SafeDelete(transform);
	transform = new Transform(shader);

	SafeDelete(perFrame);
	perFrame = new PerFrame(shader);

	sBoneBuffer = shader->AsConstantBuffer("CB_Bone");

	material->SetShader(shader);

	sTransformsSRV = shader->AsSRV("TransformsMap");
}

void ModelMesh::Update()
{
	boneDesc.Index = boneIndex;

	perFrame->Update();
	transform->Update();
}

void ModelMesh::Render()
{
	boneBuffer->Render();
	sBoneBuffer->SetConstantBuffer(boneBuffer->Buffer());

	perFrame->Render();
	transform->Render();
	material->Render();

	vertexBuffer->Render();
	indexBuffer->Render();

	if (transformsSRV != NULL)
		sTransformsSRV->SetResource(transformsSRV);

	D3D::GetDC()->IASetPrimitiveTopology(D3D11_PRIMITIVE_TOPOLOGY_TRIANGLELIST);

	shader->DrawIndexed(0, pass, indexCount);
}

void ModelMesh::Render(UINT drawCount)
{
	boneBuffer->Render();
	sBoneBuffer->SetConstantBuffer(boneBuffer->Buffer());

	perFrame->Render();
	transform->Render();
	material->Render();

	vertexBuffer->Render();
	indexBuffer->Render();

	if (transformsSRV != NULL)
		sTransformsSRV->SetResource(transformsSRV);

	D3D::GetDC()->IASetPrimitiveTopology(D3D11_PRIMITIVE_TOPOLOGY_TRIANGLELIST);

	shader->DrawIndexedInstanced(0, pass, indexCount, drawCount);
}

void ModelMesh::Transforms(Matrix * transforms)
{
	//memcpy(boneDesc.Transforms, transforms, sizeof(Matrix) * MAX_MODEL_TRANSFORMS);
}

void ModelMesh::SetTransform(Transform * transform)
{
	this->transform->Set(transform);
}



---



Model Render



ModelRender.h

#pragma once

class ModelRender
{
public:
	ModelRender(Shader* shader);
	~ModelRender();

	void Update();
	void Render();

public:
	void ReadMesh(wstring file);
	void ReadMaterial(wstring file);

	Model* GetModel() { return model; }

	Transform* AddTransform();
	Transform* GetTransform(UINT index) { return transforms[index]; }
	void UpdateTransforms();

	void Pass(UINT pass);

	void UpdateTransform(UINT instanceId, UINT boneIndex, Transform& transform);

private:
	void CreateTexture();

private:
	Shader* shader;
	Model* model;

	vector<Transform *> transforms;
	Matrix worlds[MAX_MODEL_INSTANCE];

	VertexBuffer* instanceBuffer;

	Matrix boneTransforms[MAX_MODEL_INSTANCE][MAX_MODEL_TRANSFORMS];

	ID3D11Texture2D* texture = NULL;
	ID3D11ShaderResourceView* srv;
};





ModelRender.cpp

#include "Framework.h"
#include "ModelRender.h"

ModelRender::ModelRender(Shader * shader)
	: shader(shader)
{
	model = new Model();

	for (UINT i = 0; i < MAX_MODEL_INSTANCE; i++)
		D3DXMatrixIdentity(&worlds[i]);

	instanceBuffer = new VertexBuffer(worlds, MAX_MODEL_INSTANCE, sizeof(Matrix), 1, true);
}

ModelRender::~ModelRender()
{
	SafeDelete(model);

	for (Transform* transform : transforms)
		SafeDelete(transform);

	SafeDelete(instanceBuffer);

	SafeRelease(texture);
	SafeRelease(srv);
}

void ModelRender::Update()
{
	if (texture == NULL)
	{
		for (ModelMesh* mesh : model->Meshes())
			mesh->SetShader(shader);

		CreateTexture();
	}

	for (ModelMesh* mesh : model->Meshes())
		mesh->Update();
}

void ModelRender::Render()
{
	instanceBuffer->Render();

	for (ModelMesh* mesh : model->Meshes())
		mesh->Render(transforms.size());
}

void ModelRender::ReadMesh(wstring file)
{
	model->ReadMesh(file);
}

void ModelRender::ReadMaterial(wstring file)
{
	model->ReadMaterial(file);
}

void ModelRender::Pass(UINT pass)
{
	for (ModelMesh* mesh : model->Meshes())
		mesh->Pass(pass);
}

void ModelRender::CreateTexture()
{
	D3D11_TEXTURE2D_DESC desc;
	ZeroMemory(&desc, sizeof(D3D11_TEXTURE2D_DESC));
	desc.Width = MAX_MODEL_TRANSFORMS * 4;
	desc.Height = MAX_MODEL_INSTANCE;
	desc.ArraySize = 1;
	desc.Format = DXGI_FORMAT_R32G32B32A32_FLOAT;
	desc.Usage = D3D11_USAGE_DYNAMIC;
	desc.CPUAccessFlags = D3D11_CPU_ACCESS_WRITE;
	desc.BindFlags = D3D11_BIND_SHADER_RESOURCE;
	desc.MipLevels = 1;
	desc.SampleDesc.Count = 1;

	Matrix bones[MAX_MODEL_TRANSFORMS];
	for (UINT i = 0; i < MAX_MODEL_INSTANCE; i++)
	{
		for (UINT b = 0; b < model->BoneCount(); b++)
		{
			ModelBone* bone = model->BoneByIndex(b);

			Matrix parent;
			int parentIndex = bone->ParentIndex();

			if (parentIndex < 0) //Root인 경우
				D3DXMatrixIdentity(&parent);//Root의 부모는 Identity
			else
				parent = bones[parentIndex];//Root가 아닌 경우

			Matrix matrix = bone->Transform();
			bones[b] = parent;
			boneTransforms[i][b] = matrix * bones[b];
		}//for(b)
	}//for(i)

	D3D11_SUBRESOURCE_DATA subResource;
	subResource.pSysMem = boneTransforms;
	subResource.SysMemPitch = MAX_MODEL_TRANSFORMS * sizeof(Matrix);
	subResource.SysMemSlicePitch = MAX_MODEL_TRANSFORMS * sizeof(Matrix) * MAX_MODEL_INSTANCE;

	Check(D3D::GetDevice()->CreateTexture2D(&desc, &subResource, &texture));


	D3D11_SHADER_RESOURCE_VIEW_DESC srvDesc;
	ZeroMemory(&srvDesc, sizeof(D3D11_SHADER_RESOURCE_VIEW_DESC));
	srvDesc.ViewDimension = D3D11_SRV_DIMENSION_TEXTURE2D;
	srvDesc.Texture2D.MipLevels = 1;
	srvDesc.Format = desc.Format;

	Check(D3D::GetDevice()->CreateShaderResourceView(texture, &srvDesc, &srv));


	for (ModelMesh* mesh : model->Meshes())
		mesh->TransformsSRV(srv);
}

Transform * ModelRender::AddTransform()
{
	Transform* transform = new Transform();
	transforms.push_back(transform);

	return transform;
}

void ModelRender::UpdateTransforms()
{
	for (UINT i = 0; i < transforms.size(); i++)
		memcpy(worlds[i], transforms[i]->World(), sizeof(Matrix));

	D3D11_MAPPED_SUBRESOURCE subResource;
	D3D::GetDC()->Map(instanceBuffer->Buffer(), 0, D3D11_MAP_WRITE_DISCARD, 0, &subResource);
	{
		memcpy(subResource.pData, worlds, sizeof(Matrix) * MAX_MESH_INSTANCE);
	}
	D3D::GetDC()->Unmap(instanceBuffer->Buffer(), 0);
}

void ModelRender::UpdateTransform(UINT instanceId, UINT boneIndex, Transform& transform)
{
	Matrix destMatrix = transform.World();

	ModelBone* bone = model->BoneByIndex(boneIndex);
	boneTransforms[instanceId][boneIndex] = destMatrix * boneTransforms[instanceId][boneIndex];

	int tempBoneIndex = boneIndex;
	for (ModelBone* child : bone->Childs())
	{
		Matrix parent = boneTransforms[instanceId][boneIndex];

		Matrix invParent;
		D3DXMatrixInverse(&invParent, NULL, &parent);
		tempBoneIndex++;

		Matrix temp = boneTransforms[instanceId][tempBoneIndex] * invParent;
		boneTransforms[instanceId][tempBoneIndex] = temp * destMatrix * parent;
	}

	D3D11_MAPPED_SUBRESOURCE subResource;
	D3D::GetDC()->Map(texture, 0, D3D11_MAP_WRITE_DISCARD, 0, &subResource);
	{
		memcpy(subResource.pData, boneTransforms, MAX_MODEL_INSTANCE * MAX_MODEL_TRANSFORMS * sizeof(Matrix));
	}
	D3D::GetDC()->Unmap(texture, 0);
}



---



ModelDemo



ModelDemo.h

#pragma once
#include "Systems/IExecute.h"

class ModelDemo : public IExecute
{
public:
	virtual void Initialize() override;
	virtual void Ready() override {}
	virtual void Destroy() override {}
	virtual void Update() override;
	virtual void PreRender() override {}
	virtual void Render() override;
	virtual void PostRender() override {}
	virtual void ResizeScreen() override {}

private:
	void Airplane();
	void Tower();
	void Tank();
	void Kachujin();

private:
	Shader* shader;

	ModelRender* airplane = NULL;
	ModelRender* tower = NULL;
	ModelRender* tank = NULL;
};





ModelDemo.cpp

#include "stdafx.h"
#include "ModelDemo.h"
#include "Converter.h"

void ModelDemo::Initialize()
{
	Context::Get()->GetCamera()->RotationDegree(20, 0, 0);
	Context::Get()->GetCamera()->Position(1, 36, -85);


	shader = new Shader(L"52_InstancingModel.fx");

	Airplane();
	Tower();
	Tank();

}

void ModelDemo::Update()
{
	if (airplane != NULL) airplane->Update();
	if (tower != NULL) tower->Update();
	if (tank != NULL) tank->Update();
}

void ModelDemo::Render()
{
	if (airplane != NULL)
		airplane->Render();

	if (tower != NULL)
		tower->Render();

	if (tank != NULL)
		tank->Render();
}

void ModelDemo::Airplane()
{
	airplane = new ModelRender(shader);
	airplane->ReadMesh(L"B787/Airplane");
	airplane->ReadMaterial(L"B787/Airplane");

	for (float x = -50; x <= 50; x += 2.5f)
	{
		Transform* transform = airplane->AddTransform();

		transform->Position(Vector3(x, 0.0f, 2.5f));
		transform->RotationDegree(0, Math::Random(-180.0f, 180.0f), 0);
		transform->Scale(0.00025f, 0.00025f, 0.00025f);
	}
	airplane->UpdateTransforms();
	airplane->Pass(1);
}

void ModelDemo::Tower()
{
	tower = new ModelRender(shader);
	tower->ReadMesh(L"Tower/Tower");
	tower->ReadMaterial(L"Tower/Tower");

	for (float x = -50; x <= 50; x += 2.5f)
	{
		Transform* transform = tower->AddTransform();

		transform->Position(Vector3(x, 0.0f, 7.5f));
		transform->RotationDegree(0, Math::Random(-180.0f, 180.0f), 0);
		transform->Scale(0.003f, 0.003f, 0.003f);
	}
	tower->UpdateTransforms();
	tower->Pass(1);
}

void ModelDemo::Tank()
{
	tank = new ModelRender(shader);
	tank->ReadMesh(L"Tank/Tank");
	tank->ReadMaterial(L"Tank/Tank");

	for (float x = -50; x <= 50; x += 2.5f)
	{
		Transform* transform = tank->AddTransform();

		transform->Position(Vector3(x, 0.0f, 5.0f));
		transform->RotationDegree(0, Math::Random(-180.0f, 180.0f), 0);
		transform->Scale(0.1f, 0.1f, 0.1f);
	}
	tank->UpdateTransforms();
	tank->Pass(1);
}



---





실행화면
