[DirectX11] 034~36 Model Editor





목차





---





Framework



Framework 모델 불러오기, 모델 렌더링
UnitTest	Model Editor
Game Map Editor	Assimp에서 파일을 부름 원하는 형태의 변수에 저장 원하는 형태의 파일 형식으로 저장



Importer -> Scene





< Model Editor >

Scene이 가지고 있는 정보들

• Materials
• Meshes
• SceneRoot

  • body (- TransformMatrix - Material - Mesh - Vertice - Indice)
    • 바퀴
    • 바퀴
    • 포탑
      • 포신
• 재귀를 해서 찾으면 기본정보들을 찾아올 수 있다.
• 예시. Model - ModelBone - Model Mesh -> Render





https://github.com/assimp/assimp

GitHub - assimp/assimp: The official Open-Asset-Importer-Library Repository. Loads 40+ 3D-file-formats into one unified and clea







---

Framework 세팅



Framework 우클릭 - 속성 - 빌드이벤트 - 빌드 후 이벤트 - 명령줄 추가





---



Mesh 정보 저장 방법



Mesh 정보 저장 방법

• Mesh->text 파일 : 느리다.
• Mesh->Byte file 또는 Mesh->Binary file: 빠르다

---



ModelEditor 폴더 설정

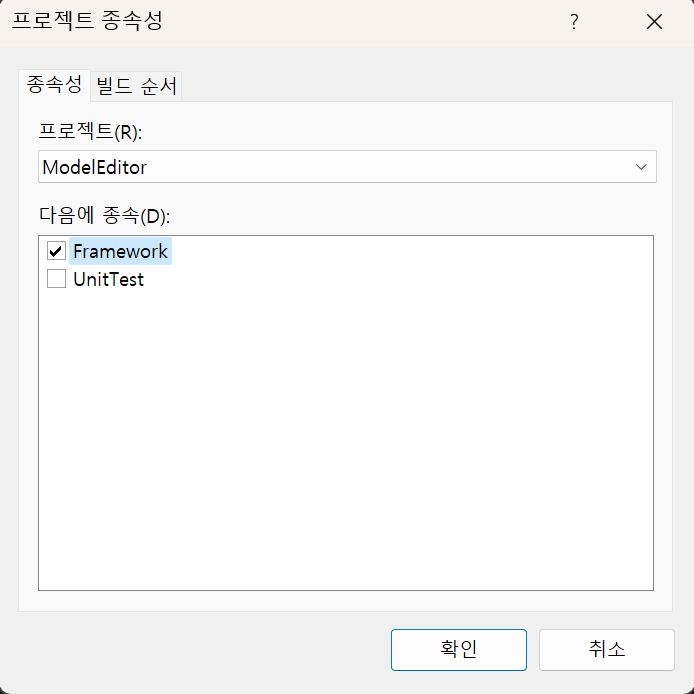

빌드종속성

• ModelEditor 폴더 우클릭 - 빌드종속성- 프로젝트 종속성
• Framework 체크하여 Framework가 먼저 빌드되게 설정

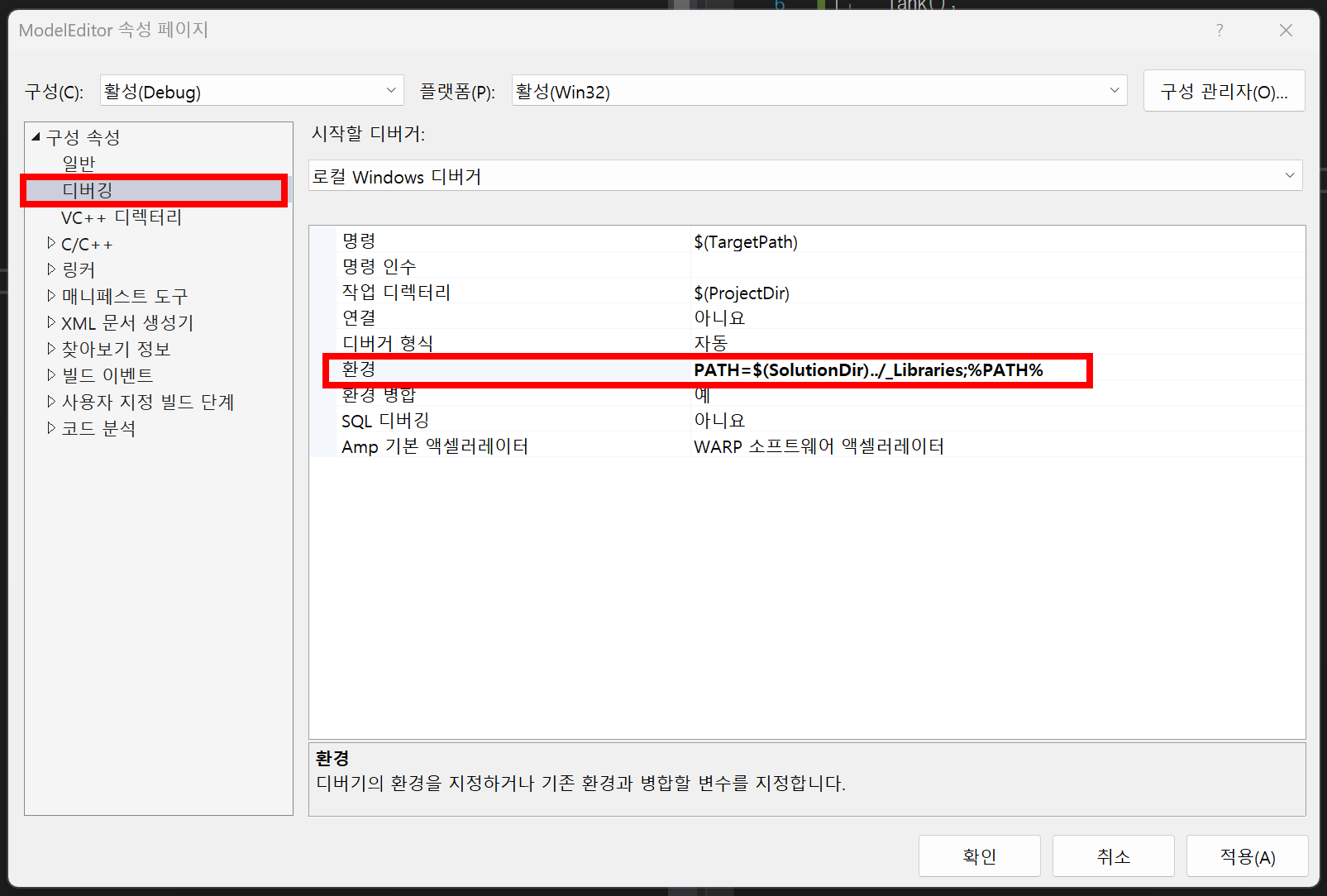

환경변수 설정

• ModelEditor 폴더 우클릭 - 빌드종속성- 프로젝트 종속성
• Framework 체크하여 Framework가 먼저 빌드되게 설정

---



stdafx.h



stdafx.h

#pragma once

#include "Framework.h"
#pragma comment(lib, "Framework.lib")

#include "Assimp/Importer.hpp"
#include "Assimp/scene.h"
#include "Assimp/postprocess.h"
#pragma comment(lib, "Assimp/assimp-vc140-mt.lib")



---



Type.h



Type.h

#pragma once
#include "stdafx.h"

struct asBone
{
	int Index;
	string Name;

	int Parent;
	Matrix Transform;
};

struct asMesh
{
	string Name;
	int BoneIndex;

	aiMesh* Mesh;

	string MaterialName;

	vector<Model::ModelVertex> Vertices;
	vector<UINT> Indices;
};





---



Model



Model.h

#pragma once

class Model
{
public:
	typedef VertexTextureNormalTangentBlend ModelVertex;

};



Model.cpp

#include "Framework.h"
#include "Model.h"



---



Converter



Converter.h

#pragma once
#include "stdafx.h"

class Converter
{
public:
	Converter();
	~Converter();

	void ReadFile(wstring file);

public:
	void ExportMesh(wstring savePath);

private:
	void ReadBoneData(aiNode* node, int index, int parent);
	void ReadMeshData(aiNode* node, int bone);
	void WriteMeshData(wstring savePath);

private:
	wstring file;

	Assimp::Importer* importer;
	const aiScene* scene;

	vector<struct asBone *> bones;
	vector<struct asMesh *> meshes;
};





Converter.cpp

#include "stdafx.h"
#include "Converter.h"
#include "Types.h"
#include "Utilities/BinaryFile.h"

Converter::Converter()
{
	importer = new Assimp::Importer();
}

Converter::~Converter()
{
	SafeDelete(importer);
}

void Converter::ReadFile(wstring file)
{
	this->file = L"../../_Assets/" + file;

	scene = importer->ReadFile
	(
		String::ToString(this->file),
		aiProcess_ConvertToLeftHanded
		| aiProcess_Triangulate
		| aiProcess_GenUVCoords
		| aiProcess_GenNormals
		| aiProcess_CalcTangentSpace
	);
	assert(scene != NULL);
}

void Converter::ExportMesh(wstring savePath)
{
	savePath = L"../../_Models/" + savePath + L".mesh";

	ReadBoneData(scene->mRootNode, -1, -1);
	WriteMeshData(savePath);
}

void Converter::ReadBoneData(aiNode * node, int index, int parent)
{
	asBone* bone = new asBone();
	bone->Index = index;
	bone->Parent = parent;
	bone->Name = node->mName.C_Str();


	Matrix transform(node->mTransformation[0]);
	D3DXMatrixTranspose(&bone->Transform, &transform);

	Matrix matParent;
	if (parent < 0)
		D3DXMatrixIdentity(&matParent);
	else
		matParent = bones[parent]->Transform;

	bone->Transform = bone->Transform * matParent;
	bones.push_back(bone);


	ReadMeshData(node, index);

	for (UINT i = 0; i < node->mNumChildren; i++)
		ReadBoneData(node->mChildren[i], bones.size(), index);
}

void Converter::ReadMeshData(aiNode * node, int bone)
{
	if (node->mNumMeshes < 1) return;

	asMesh* mesh = new asMesh();
	mesh->Name = node->mName.C_Str();
	mesh->BoneIndex = bone;

	for (UINT i = 0; i < node->mNumMeshes; i++)
	{
		UINT index = node->mMeshes[i];
		aiMesh* srcMesh = scene->mMeshes[index];

		aiMaterial* material = scene->mMaterials[srcMesh->mMaterialIndex];
		mesh->MaterialName = material->GetName().C_Str();


		UINT startVertex = mesh->Vertices.size();
		for (UINT v = 0; v < srcMesh->mNumVertices; v++)
		{
			Model::ModelVertex vertex;
			memcpy(&vertex.Position, &srcMesh->mVertices[v], sizeof(Vector3));

			if (srcMesh->HasTextureCoords(0))
				memcpy(&vertex.Uv, &srcMesh->mTextureCoords[0][v], sizeof(Vector2));

			if(srcMesh->HasNormals())
				memcpy(&vertex.Normal, &srcMesh->mNormals[v], sizeof(Vector3));

			mesh->Vertices.push_back(vertex);
		}

		for (UINT f = 0; f < srcMesh->mNumFaces; f++)
		{
			aiFace& face = srcMesh->mFaces[f];

			for (UINT k = 0; k < face.mNumIndices; k++)
				mesh->Indices.push_back(face.mIndices[k] + startVertex);
		}

		meshes.push_back(mesh);
	}
}

void Converter::WriteMeshData(wstring savePath)
{
	Path::CreateFolders(Path::GetDirectoryName(savePath));

	BinaryWriter* w = new BinaryWriter();
	w->Open(savePath);

	w->UInt(bones.size());
	for (asBone* bone : bones)
	{
		w->Int(bone->Index);
		w->String(bone->Name);
		w->Int(bone->Parent);
		w->Matrix(bone->Transform);

		SafeDelete(bone);
	}

	w->UInt(meshes.size());
	for (asMesh* meshData : meshes)
	{
		w->String(meshData->Name);
		w->Int(meshData->BoneIndex);

		w->String(meshData->MaterialName);

		w->UInt(meshData->Vertices.size());
		w->Byte(&meshData->Vertices[0], sizeof(Model::ModelVertex) * meshData->Vertices.size());

		w->UInt(meshData->Indices.size());
		w->Byte(&meshData->Indices[0], sizeof(UINT) * meshData->Indices.size());

		SafeDelete(meshData);
	}

	w->Close(); //Binary 닫아줌. 안 닫으면 파일 접근불가.
	SafeDelete(w);
}



---



ExportFile



ExporFile.h

#pragma once
#include "Systems/IExecute.h"

class ExportFile : public IExecute
{
public:
	virtual void Initialize() override;
	virtual void Ready() override {}
	virtual void Destroy() override {}
	virtual void Update() override {}
	virtual void PreRender() override {}
	virtual void Render() override {}
	virtual void PostRender() override {}
	virtual void ResizeScreen() override {}

private:
	void Tank();
};





ExporFile.cpp

#include "stdafx.h"
#include "ExportFile.h"
#include "Converter.h"

void ExportFile::Initialize()
{
	Tank();
}

void ExportFile::Tank()
{
	Converter* conv = new Converter();
	conv->ReadFile(L"Tank/Tank.fbx");
	conv->ExportMesh(L"Tank/Tank");
	SafeDelete(conv);
}
