[DirectX11] 033 Framework - CubeMap, CubeSky

Framework - CubeMap, CubeSky

fx

00_Global.fx

cbuffer CB_PerFrame
{
    matrix View;
    matrix ViewInverse;//View의 역행렬
    matrix Projection;
    matrix VP;

    float4 Culling[4];
    float4 Clipping;

    float Time; //게임시간
};

cbuffer CB_World
{
    matrix World;
};

Texture2D DiffuseMap;
Texture2D SpecularMap;
Texture2D NormalMap;

TextureCube SkyCubeMap;



static const float PI = 3.14159265f;



float4 WorldPosition(float4 position)
{
    return mul(position, World);
}

float4 ViewProjection(float4 position)
{
    return mul(position, VP);

    //position = mul(position, View);
    //return mul(position, Projection);
}

float3 WorldNormal(float3 normal)
{
    return mul(normal, (float3x3) World);
}

float3 WorldTangent(float3 tangent)
{
    return mul(tangent, (float3x3) World);
}

float3 ViewPosition()
{
    return ViewInverse._41_42_43;
}



struct Vertex
{
    float4 Position : Position;
};

struct VertexNormal
{
    float4 Position : Position;
    float3 Normal : Normal;
};

struct VertexColor
{
    float4 Position : Position;
    float4 Color : Color;
};

struct VertexColorNormal
{
    float4 Position : Position;
    float4 Color : Color;
    float3 Normal : Normal;
};

struct VertexTexture
{
    float4 Position : Position;
    float2 Uv : Uv;
};

struct VertexTextureNormal
{
    float4 Position : Position;
    float2 Uv : Uv;
    float3 Normal : Normal;
};




SamplerState LinearSampler
{
    Filter = MIN_MAG_MIP_LINEAR;

    AddressU = Wrap;
    AddressV = Wrap;
};

SamplerState PointSampler
{
    Filter = MIN_MAG_MIP_POINT;

    AddressU = Wrap;
    AddressV = Wrap;
};

RasterizerState FrontCounterClockwise_True
{
    FrontCounterClockwise = true;
};

RasterizerState FillMode_WireFrame
{
    FillMode = WireFrame;
};

//RasterizerState CullMode_None
//{
//    CullMode = None;
//};

DepthStencilState DepthEnable_False
{
    DepthEnable = false;
};



// Vertex / Pixel

#define P_VP(name, vs, ps) \
pass name \
{ \
    SetVertexShader(CompileShader(vs_5_0, vs())); \
    SetPixelShader(CompileShader(ps_5_0, ps())); \
}

#define P_RS_VP(name, rs, vs, ps) \
pass name \
{ \
    SetRasterizerState(rs); \
    SetVertexShader(CompileShader(vs_5_0, vs())); \
    SetPixelShader(CompileShader(ps_5_0, ps())); \
}

#define P_BS_VP(name, bs, vs, ps) \
pass name \
{ \
    SetBlendState(bs, float4(0, 0, 0, 0), 0xFF); \
    SetVertexShader(CompileShader(vs_5_0, vs())); \
    SetPixelShader(CompileShader(ps_5_0, ps())); \
}

#define P_DSS_VP(name, dss, vs, ps) \
pass name \
{ \
    SetDepthStencilState(dss, 1); \
    SetVertexShader(CompileShader(vs_5_0, vs())); \
    SetPixelShader(CompileShader(ps_5_0, ps())); \
}

#define P_RS_DSS_VP(name, rs, dss, vs, ps) \
pass name \
{ \
    SetRasterizerState(rs); \
    SetDepthStencilState(dss, 1); \
    SetVertexShader(CompileShader(vs_5_0, vs())); \
    SetPixelShader(CompileShader(ps_5_0, ps())); \
}

#define P_RS_BS_VP(name, rs, bs, vs, ps) \
pass name \
{ \
    SetRasterizerState(rs); \
    SetBlendState(bs, float4(0, 0, 0, 0), 0xFF); \
    SetVertexShader(CompileShader(vs_5_0, vs())); \
    SetPixelShader(CompileShader(ps_5_0, ps())); \
}

#define P_DSS_BS_VP(name, dss, bs, vs, ps) \
pass name \
{ \
    SetDepthStencilState(dss, 1); \
    SetBlendState(bs, float4(0, 0, 0, 0), 0xFF); \
    SetVertexShader(CompileShader(vs_5_0, vs())); \
    SetPixelShader(CompileShader(ps_5_0, ps())); \
}

///////////////////////////////////////////////////////////////////////////////
// Vertex / Geometry / Pixel
///////////////////////////////////////////////////////////////////////////////
#define P_VGP(name, vs, gs, ps) \
pass name \
{ \
    SetVertexShader(CompileShader(vs_5_0, vs())); \
    SetGeometryShader(CompileShader(gs_5_0, gs())); \
    SetPixelShader(CompileShader(ps_5_0, ps())); \
}

#define P_RS_VGP(name, rs, vs, gs, ps) \
pass name \
{ \
    SetRasterizerState(rs); \
    SetVertexShader(CompileShader(vs_5_0, vs())); \
    SetGeometryShader(CompileShader(gs_5_0, gs())); \
    SetPixelShader(CompileShader(ps_5_0, ps())); \
}

#define P_BS_VGP(name, bs, vs, gs, ps) \
pass name \
{ \
    SetBlendState(bs, float4(0, 0, 0, 0), 0xFF); \
    SetVertexShader(CompileShader(vs_5_0, vs())); \
    SetGeometryShader(CompileShader(gs_5_0, gs())); \
    SetPixelShader(CompileShader(ps_5_0, ps())); \
}

#define P_DSS_VGP(name, dss, vs, gs, ps) \
pass name \
{ \
    SetDepthStencilState(dss, 1); \
    SetVertexShader(CompileShader(vs_5_0, vs())); \
    SetGeometryShader(CompileShader(gs_5_0, gs())); \
    SetPixelShader(CompileShader(ps_5_0, ps())); \
}

#define P_RS_DSS_VGP(name, rs, dss, vs, gs, ps) \
pass name \
{ \
    SetRasterizerState(rs); \
    SetDepthStencilState(dss, 1); \
    SetVertexShader(CompileShader(vs_5_0, vs())); \
    SetGeometryShader(CompileShader(gs_5_0, gs())); \
    SetPixelShader(CompileShader(ps_5_0, ps())); \
}

#define P_RS_BS_VGP(name, rs, bs, vs, gs, ps) \
pass name \
{ \
    SetRasterizerState(rs); \
    SetBlendState(bs, float4(0, 0, 0, 0), 0xFF); \
    SetVertexShader(CompileShader(vs_5_0, vs())); \
    SetGeometryShader(CompileShader(gs_5_0, gs())); \
    SetPixelShader(CompileShader(ps_5_0, ps())); \
}

#define P_DSS_BS_VGP(name, dss, bs, vs, gs, ps) \
pass name \
{ \
    SetDepthStencilState(dss, 1); \
    SetBlendState(bs, float4(0, 0, 0, 0), 0xFF); \
    SetVertexShader(CompileShader(vs_5_0, vs())); \
    SetGeometryShader(CompileShader(gs_5_0, gs())); \
    SetPixelShader(CompileShader(ps_5_0, ps())); \
}


///////////////////////////////////////////////////////////////////////////////
// Vertex / Tessellation / Pixel
///////////////////////////////////////////////////////////////////////////////
#define P_VTP(name, vs, hs, ds, ps) \
pass name \
{ \
    SetVertexShader(CompileShader(vs_5_0, vs())); \
    SetHullShader(CompileShader(hs_5_0, hs())); \
    SetDomainShader(CompileShader(ds_5_0, ds())); \
    SetPixelShader(CompileShader(ps_5_0, ps())); \
}

#define P_RS_VTP(name, rs, vs, hs, ds, ps) \
pass name \
{ \
    SetRasterizerState(rs); \
    SetVertexShader(CompileShader(vs_5_0, vs())); \
    SetHullShader(CompileShader(hs_5_0, hs())); \
    SetDomainShader(CompileShader(ds_5_0, ds())); \
    SetPixelShader(CompileShader(ps_5_0, ps())); \
}

#define P_BS_VTP(name, bs, vs, hs, ds, ps) \
pass name \
{ \
    SetBlendState(bs, float4(0, 0, 0, 0), 0xFF); \
    SetVertexShader(CompileShader(vs_5_0, vs())); \
    SetHullShader(CompileShader(hs_5_0, hs())); \
    SetDomainShader(CompileShader(ds_5_0, ds())); \
    SetPixelShader(CompileShader(ps_5_0, ps())); \
}

#define P_DSS_VTP(name, dss, vs, hs, ds, ps) \
pass name \
{ \
    SetDepthStencilState(dss, 1); \
    SetVertexShader(CompileShader(vs_5_0, vs())); \
    SetHullShader(CompileShader(hs_5_0, hs())); \
    SetDomainShader(CompileShader(ds_5_0, ds())); \
    SetPixelShader(CompileShader(ps_5_0, ps())); \
}

#define P_RS_DSS_VTP(name, rs, dss, vs, hs, ds, ps) \
pass name \
{ \
    SetRasterizerState(rs); \
    SetDepthStencilState(dss, 1); \
    SetVertexShader(CompileShader(vs_5_0, vs())); \
    SetHullShader(CompileShader(hs_5_0, hs())); \
    SetDomainShader(CompileShader(ds_5_0, ds())); \
    SetPixelShader(CompileShader(ps_5_0, ps())); \
}

#define P_RS_BS_VTP(name, rs, bs, vs, hs, ds, ps) \
pass name \
{ \
    SetRasterizerState(rs); \
    SetBlendState(bs, float4(0, 0, 0, 0), 0xFF); \
    SetVertexShader(CompileShader(vs_5_0, vs())); \
    SetHullShader(CompileShader(hs_5_0, hs())); \
    SetDomainShader(CompileShader(ds_5_0, ds())); \
    SetPixelShader(CompileShader(ps_5_0, ps())); \
}

#define P_DSS_BS_VTP(name, dss, bs, vs, hs, ds, ps) \
pass name \
{ \
    SetDepthStencilState(dss, 1); \
    SetBlendState(bs, float4(0, 0, 0, 0), 0xFF); \
    SetVertexShader(CompileShader(vs_5_0, vs())); \
    SetHullShader(CompileShader(hs_5_0, hs())); \
    SetDomainShader(CompileShader(ds_5_0, ds())); \
    SetPixelShader(CompileShader(ps_5_0, ps())); \
}

#define P_RS_DSS_BS_VTP(name, rs, dss, bs, vs, hs, ds, ps) \
pass name \
{ \
    SetRasterizerState(rs); \
    SetDepthStencilState(dss, 1); \
    SetBlendState(bs, float4(0, 0, 0, 0), 0xFF); \
    SetVertexShader(CompileShader(vs_5_0, vs())); \
    SetHullShader(CompileShader(hs_5_0, hs())); \
    SetDomainShader(CompileShader(ds_5_0, ds())); \
    SetPixelShader(CompileShader(ps_5_0, ps())); \
}

25_Mesh.fx

#include "00_Global.fx"

float3 Direction;

struct VertexOutput
{
    float4 Position : SV_Position;
    float2 Uv : Uv;
    float3 Normal : Normal;
};

VertexOutput VS(VertexTextureNormal input)
{
    VertexOutput output;
    output.Position = WorldPosition(input.Position);
    output.Position = ViewProjection(output.Position);

    output.Normal = WorldNormal(input.Normal);

    output.Uv = input.Uv;

    return output;
}

float4 PS(VertexOutput input) : SV_Target
{
    float3 normal = normalize(input.Normal);
    float3 light = -Direction;

    return DiffuseMap.Sample(LinearSampler, input.Uv) * dot(light, normal);
}

technique11 T0
{
    P_VP(P0, VS, PS)
    P_RS_VP(P1, FillMode_WireFrame, VS, PS)

}

29_CubeMap.fx

#include "00_Global.fx"

TextureCube CubeMap;

struct VertexOutput
{
    float4 Position : SV_Position;
    float3 oPosition : Position1;
    float3 Normal : Normal;
};

VertexOutput VS(VertexTextureNormal input)
{
    VertexOutput output;

    output.oPosition = input.Position.xyz;

    input.Position.x += cos(Time) * 3.0f;
    output.Position = WorldPosition(input.Position);
    output.Position = ViewProjection(output.Position);
    output.Normal = WorldNormal(input.Normal);

    return output;
}

float4 PS(VertexOutput input) : SV_Target
{
    float4 color = float4(sin(Time * 3), 1, 1, 1); //구 색 변화

    return CubeMap.Sample(LinearSampler, input.oPosition) * color; //*color로 적용
}

technique11 T0
{
    P_VP(P0, VS, PS)
    P_RS_VP(P1, FillMode_WireFrame, VS, PS)
}

29_CubeSky.fx

#include "00_Global.fx"

struct VertexOutput
{
    float4 Position : SV_Position;
    float3 oPosition : Position1;
};

VertexOutput VS(Vertex input)
{
    VertexOutput output;

    output.oPosition = input.Position.xyz;

    output.Position = WorldPosition(input.Position);
    output.Position = ViewProjection(output.Position);

    return output;
}

Texture2D t;
float4 PS(VertexOutput input) : SV_Target
{
    return SkyCubeMap.Sample(LinearSampler, input.oPosition);

}

technique11 T0
{
    P_RS_DSS_VP(P0, FrontCounterClockwise_True, DepthEnable_False, VS, PS)
}

Renderer

Renderer.h

#pragma once

class Renderer
{
public:
	Renderer(Shader* shader);
	Renderer(wstring shaderFile);
	virtual ~Renderer();

	Shader* GetShader() { return shader; }

	UINT& Pass() { return pass; }
	void Pass(UINT val) { pass = val; }

	virtual void Update();
	virtual void Render();

	Transform* GetTransform() { return transform; }

private:
	void Initialize();

protected:
	void Topology(D3D11_PRIMITIVE_TOPOLOGY val) { topology = val; }

protected:
	Shader* shader;

	Transform* transform;
	VertexBuffer* vertexBuffer = NULL;
	IndexBuffer* indexBuffer = NULL;

	UINT vertexCount = 0;
	UINT indexCount = 0;

private:
	bool bCreateShader = false;

	D3D11_PRIMITIVE_TOPOLOGY topology = D3D11_PRIMITIVE_TOPOLOGY_TRIANGLELIST;
	UINT pass = 0;

	PerFrame* perFrame;
};

Renderer.cpp

#include "Framework.h"
#include "Renderer.h"

Renderer::Renderer(Shader * shader)
	: shader(shader)
{
	Initialize();
}

Renderer::Renderer(wstring shaderFile)
	: bCreateShader(true)
{
	shader = new Shader(shaderFile);

	Initialize();
}

void Renderer::Initialize()
{
	perFrame = new PerFrame(shader);
	transform = new Transform(shader);
}

Renderer::~Renderer()
{
	SafeDelete(perFrame);
	SafeDelete(transform);

	SafeDelete(vertexBuffer);
	SafeDelete(indexBuffer);

	if (bCreateShader == true)
		SafeDelete(shader);
}

void Renderer::Update()
{
	perFrame->Update();
	transform->Update();
}

void Renderer::Render()
{
	if (vertexBuffer != NULL)
	{
		vertexBuffer->Render();

		if (indexBuffer != NULL)
			indexBuffer->Render();
	}

	D3D::GetDC()->IASetPrimitiveTopology(topology);

	perFrame->Render();
	transform->Render();
}

Transform

Transform.h

#pragma once

class Transform
{
public:
	Transform();
	Transform(Shader* shader);
	~Transform();

	void Set(Transform* transform);

	void SetShader(Shader* shader);

	void Position(float x, float y, float z);
	void Position(Vector3& vec);
	void Position(Vector3* vec);

	void Scale(float x, float y, float z);
	void Scale(Vector3& vec);
	void Scale(Vector3* vec);

	void Rotation(float x, float y, float z);
	void Rotation(Vector3& vec);
	void Rotation(Vector3* vec);

	void RotationDegree(float x, float y, float z);
	void RotationDegree(Vector3& vec);
	void RotationDegree(Vector3* vec);

	Vector3 Forward();
	Vector3 Up();
	Vector3 Right();

	void World(Matrix& matrix);
	Matrix& World() { return bufferDesc.World; }

private:
	void UpdateWorld();

public:
	void Update();
	void Render();

private:
	struct BufferDesc
	{
		Matrix World;
	} bufferDesc;

private:
	Shader* shader;

	ConstantBuffer* buffer;
	ID3DX11EffectConstantBuffer* sBuffer;


	Vector3 position;
	Vector3 scale;
	Vector3 rotation;
};

Transform.cpp

#include "Framework.h"
#include "Transform.h"

Transform::Transform()
	: shader(NULL), buffer(NULL)
	, position(0, 0, 0), scale(1, 1, 1), rotation(0, 0, 0)
{
	D3DXMatrixIdentity(&bufferDesc.World);
}

Transform::Transform(Shader * shader)
	: position(0, 0, 0), scale(1, 1, 1), rotation(0, 0, 0)
{
	SetShader(shader);

	D3DXMatrixIdentity(&bufferDesc.World);
}

Transform::~Transform()
{
	SafeDelete(buffer);
}

void Transform::Set(Transform * transform)
{
	position = transform->position;
	scale = transform->scale;
	rotation = transform->rotation;

	UpdateWorld();
}

void Transform::SetShader(Shader* shader)
{
	this->shader = shader;

	buffer = new ConstantBuffer(&bufferDesc, sizeof(BufferDesc));
	sBuffer = shader->AsConstantBuffer("CB_World");
}

void Transform::Position(float x, float y, float z)
{
	Position(Vector3(x, y, z));
}

void Transform::Position(Vector3 & vec)
{
	position = vec;

	UpdateWorld();
}

void Transform::Position(Vector3 * vec)
{
	*vec = position;
}

void Transform::Scale(float x, float y, float z)
{
	Scale(Vector3(x, y, z));
}

void Transform::Scale(Vector3 & vec)
{
	scale = vec;

	UpdateWorld();
}

void Transform::Scale(Vector3 * vec)
{
	*vec = scale;
}

void Transform::Rotation(float x, float y, float z)
{
	Rotation(Vector3(x, y, z));
}

void Transform::Rotation(Vector3 & vec)
{
	rotation = vec;

	UpdateWorld();
}

void Transform::Rotation(Vector3 * vec)
{
	*vec = rotation;
}

void Transform::RotationDegree(float x, float y, float z)
{
	RotationDegree(Vector3(x, y, z));
}

void Transform::RotationDegree(Vector3 & vec)
{
	Vector3 temp;

	temp.x = Math::ToRadian(vec.x);
	temp.y = Math::ToRadian(vec.y);
	temp.z = Math::ToRadian(vec.z);

	Rotation(temp);
}

void Transform::RotationDegree(Vector3 * vec)
{
	Vector3 temp;

	temp.x = Math::ToDegree(rotation.x);
	temp.y = Math::ToDegree(rotation.y);
	temp.z = Math::ToDegree(rotation.z);

	*vec = temp;
}

Vector3 Transform::Forward()
{	//z방향
	return Vector3(bufferDesc.World._31, bufferDesc.World._32, bufferDesc.World._33);
}

Vector3 Transform::Up()
{	//y방향
	return Vector3(bufferDesc.World._21, bufferDesc.World._22, bufferDesc.World._23);
}

Vector3 Transform::Right()
{	//x방향
	return Vector3(bufferDesc.World._11, bufferDesc.World._12, bufferDesc.World._13);
}

void Transform::World(Matrix & matrix)
{
	Math::MatrixDecompose(matrix, scale, rotation, position); //엘리오트 컴포싯

	bufferDesc.World = matrix;
}

void Transform::UpdateWorld()
{
	Matrix S, R, T;
	D3DXMatrixScaling(&S, scale.x, scale.y, scale.z);
	D3DXMatrixRotationYawPitchRoll(&R, rotation.y, rotation.x, rotation.z);
	D3DXMatrixTranslation(&T, position.x, position.y, position.z);

	Matrix world = S * R * T;
	bufferDesc.World = world;
}

void Transform::Update()
{

}

void Transform::Render()
{
	if (shader == NULL)
		return;

	buffer->Render();
	sBuffer->SetConstantBuffer(buffer->Buffer());
}

Mesh

Mesh.h

#pragma once

class Mesh : public Renderer
{
public:
	typedef VertexTextureNormal MeshVertex;

public:
	Mesh(Shader* shader);
	virtual ~Mesh();

	void Update();
	void Render();

public:
	void DiffuseMap(wstring file);

protected:
	virtual void Create() = 0;

protected:
	MeshVertex* vertices = NULL;
	UINT* indices = NULL;

private:
	Texture* diffuseMap = NULL;
	ID3DX11EffectShaderResourceVariable* sDiffuseMap;
};

Mesh.cpp

#include "Framework.h"
#include "Mesh.h"

Mesh::Mesh(Shader * shader)
	: Renderer(shader)
{
	sDiffuseMap = shader->AsSRV("DiffuseMap");
}

Mesh::~Mesh()
{
	SafeDeleteArray(vertices);
	SafeDeleteArray(indices);

	SafeDelete(diffuseMap);
}

void Mesh::Update()
{
	Super::Update();//Super는 부모를 의미하는 키워드
}

void Mesh::Render()
{
	if (vertexBuffer == NULL && indexBuffer == NULL)
	{
		Create();

		vertexBuffer = new VertexBuffer(vertices, vertexCount, sizeof(MeshVertex));
		indexBuffer = new IndexBuffer(indices, indexCount);
	}

	Super::Render();

	if(diffuseMap != NULL)
		sDiffuseMap->SetResource(diffuseMap->SRV());

	shader->DrawIndexed(0, Pass(), indexCount);
}

void Mesh::DiffuseMap(wstring file)
{
	SafeDelete(diffuseMap);

	diffuseMap = new Texture(file);
}

CubeSky

CubeSky.h

#pragma once

class CubeSky
{
public:
	CubeSky(wstring file);
	~CubeSky();

	void Update();
	void Render();

private:
	Shader* shader;
	MeshSphere* sphere;

	ID3D11ShaderResourceView* srv;
	ID3DX11EffectShaderResourceVariable* sSrv;
};

CubeSky.cpp

#include "Framework.h"
#include "CubeSky.h"

CubeSky::CubeSky(wstring file)
{
	shader = new Shader(L"29_CubeSky.fx");

	sphere = new MeshSphere(shader, 0.5f);

	file = L"../../_Textures/" + file;
	Check(D3DX11CreateShaderResourceViewFromFile
	(
		D3D::GetDevice(), file.c_str(), NULL, NULL, &srv, NULL
	));

	sSrv = shader->AsSRV("SkyCubeMap");
}

CubeSky::~CubeSky()
{
	SafeDelete(shader);
	SafeDelete(sphere);

	SafeRelease(srv);
}

void CubeSky::Update()
{
	Vector3 position;
	Context::Get()->GetCamera()->Position(&position);

	sphere->GetTransform()->Position(position);
}

void CubeSky::Render()
{
	sSrv->SetResource(srv);
	sphere->Render();
}

CubeMap

CubeMap.h

#pragma once
#include "Systems/IExecute.h"

class CubeSkyDemo : public IExecute
{
public:
	virtual void Initialize() override;
	virtual void Ready() override {}
	virtual void Destroy() override;
	virtual void Update() override;
	virtual void PreRender() override {}
	virtual void Render() override;
	virtual void PostRender() override {}
	virtual void ResizeScreen() override {}

private:
	void CreateMesh();

private:
	Shader* shader;

	Vector3 direction = Vector3(-1, -1, 1);
	ID3DX11EffectVectorVariable* sDirection;

	CubeSky* sky;

	MeshCube* cube;
	MeshCylinder* cylinder[10];
	MeshSphere* sphere[10];
	MeshGrid* grid;

	Shader* cubeMapShader;
	CubeMap* cubeMap;
};

CubeMap.cpp

#include "Framework.h"
#include "CubeMap.h"

CubeMap::CubeMap(Shader * shader)
	: shader(shader)
{
	//mesh = new MeshCube(shader);
	mesh = new MeshSphere(shader, 0.5f);

	sSrv = shader->AsSRV("CubeMap");
}

CubeMap::~CubeMap()
{
	SafeDelete(mesh);

	SafeRelease(srv);
}

void CubeMap::Texture(wstring file)
{
	SafeRelease(srv);

	file = L"../../_Textures/" + file;
	Check(D3DX11CreateShaderResourceViewFromFile
	(
		D3D::GetDevice(), file.c_str(), NULL, NULL, &srv, NULL
	));
}

void CubeMap::Update()
{
	mesh->Update();
}

void CubeMap::Render()
{
	sSrv->SetResource(srv);

	mesh->Render();
}

CubeSkyDemo

CubeSkyDemo.h

#pragma once
#include "Systems/IExecute.h"

class CubeSkyDemo : public IExecute
{
public:
	virtual void Initialize() override;
	virtual void Ready() override {}
	virtual void Destroy() override;
	virtual void Update() override;
	virtual void PreRender() override {}
	virtual void Render() override;
	virtual void PostRender() override {}
	virtual void ResizeScreen() override {}

private:
	void CreateMesh();

private:
	Shader* shader;

	Vector3 direction = Vector3(-1, -1, 1);
	ID3DX11EffectVectorVariable* sDirection;

	CubeSky* sky;

	MeshCube* cube;
	MeshCylinder* cylinder[10];
	MeshSphere* sphere[10];
	MeshGrid* grid;

	Shader* cubeMapShader;
	CubeMap* cubeMap;
};

CubeSkyDemo.cpp

#include "stdafx.h"
#include "CubeSkyDemo.h"

void CubeSkyDemo::Initialize()
{
	Context::Get()->GetCamera()->RotationDegree(20, 0, 0);
	Context::Get()->GetCamera()->Position(1, 36, -85);


	shader = new Shader(L"25_Mesh.fx");
	sDirection = shader->AsVector("Direction");

	sky = new CubeSky(L"Environment/GrassCube1024.dds");

	CreateMesh();

	cubeMapShader = new Shader(L"29_CubeMap.fx");
	cubeMap = new CubeMap(cubeMapShader);
	//cubeMap->Texture(L"Environment/SunsetCube1024.dds");
	cubeMap->Texture(L"Environment/Earth.dds");
	cubeMap->GetTransform()->Position(0, 20, 0);
	cubeMap->GetTransform()->Scale(10, 10, 10);
}

void CubeSkyDemo::Destroy()
{
	SafeDelete(shader);
	SafeDelete(sky);

	SafeDelete(cube);
	SafeDelete(grid);

	for (int i = 0; i < 10; i++)
	{
		SafeDelete(cylinder[i]);
		SafeDelete(sphere[i]);
	}

	SafeDelete(cubeMapShader);
	SafeDelete(cubeMap);
}

void CubeSkyDemo::Update()
{
	sky->Update();

	cube->Update();
	grid->Update();

	for (int i = 0; i < 10; i++)
	{
		cylinder[i]->Update();
		sphere[i]->Update();
	}

	cubeMap->Update();
}

void CubeSkyDemo::Render()
{
	ImGui::SliderFloat3("Direction", direction, -1, +1);
	sDirection->SetFloatVector(direction);

	sky->Render();

	cube->Render();
	grid->Render();

	for (int i = 0; i < 10; i++)
	{
		cylinder[i]->Render();
		sphere[i]->Render();
	}

	cubeMap->Render();
}

void CubeSkyDemo::CreateMesh()
{
	cube = new MeshCube(shader);
	cube->GetTransform()->Position(0, 5, 0);
	cube->GetTransform()->Scale(20, 10, 20);
	cube->DiffuseMap(L"Stones.png");

	grid = new MeshGrid(shader, 6, 6);
	grid->GetTransform()->Scale(12, 1, 12);
	grid->DiffuseMap(L"Floor.png");


	for (UINT i = 0; i < 5; i++)
	{
		cylinder[i * 2] = new MeshCylinder(shader, 0.5f, 3.0f, 20, 20);
		cylinder[i * 2]->GetTransform()->Position(-30, 6, (float)i * 15.0f - 15.0f);
		cylinder[i * 2]->GetTransform()->Scale(5, 5, 5);
		cylinder[i * 2]->DiffuseMap(L"Bricks.png");

		cylinder[i * 2 + 1] = new MeshCylinder(shader, 0.5f, 3.0f, 20, 20);
		cylinder[i * 2 + 1]->GetTransform()->Position(30, 6, (float)i * 15.0f - 15.0f);
		cylinder[i * 2 + 1]->GetTransform()->Scale(5, 5, 5);
		cylinder[i * 2 + 1]->DiffuseMap(L"Bricks.png");


		sphere[i * 2] = new MeshSphere(shader, 0.5f, 20, 20);
		sphere[i * 2]->GetTransform()->Position(-30, 15.5f, (float)i * 15.0f - 15.0f);
		sphere[i * 2]->GetTransform()->Scale(5, 5, 5);
		sphere[i * 2]->DiffuseMap(L"Wall.png");

		sphere[i * 2 + 1] = new MeshSphere(shader, 0.5f, 20, 20);
		sphere[i * 2 + 1]->GetTransform()->Position(30, 15.5f, (float)i * 15.0f - 15.0f);
		sphere[i * 2 + 1]->GetTransform()->Scale(5, 5, 5);
		sphere[i * 2 + 1]->DiffuseMap(L"Wall.png");
	}
}

CubeMapDemo

CubeMapDemo.h

#pragma once
#include "Systems/IExecute.h"

class CubeMapDemo : public IExecute
{
public:
	virtual void Initialize() override;
	virtual void Ready() override {}
	virtual void Destroy() override;
	virtual void Update() override;
	virtual void PreRender() override {}
	virtual void Render() override;
	virtual void PostRender() override {}
	virtual void ResizeScreen() override {}

private:
	void CreateMesh();

private:
	Shader* shader;

	Vector3 direction = Vector3(-1, -1, 1);
	ID3DX11EffectVectorVariable* sDirection;

	MeshCube* cube;
	MeshCylinder* cylinder[10];
	MeshSphere* sphere[10];
	MeshGrid* grid;

	Shader* cubeMapShader;
	CubeMap* cubeMap;
};

CubeMapDemo.cpp

#include "stdafx.h"
#include "CubeMapDemo.h"

void CubeMapDemo::Initialize()
{
	Context::Get()->GetCamera()->RotationDegree(20, 0, 0);
	Context::Get()->GetCamera()->Position(1, 36, -85);


	shader = new Shader(L"25_Mesh.fx");
	sDirection = shader->AsVector("Direction");

	CreateMesh();

	cubeMapShader = new Shader(L"29_CubeMap.fx");
	cubeMap = new CubeMap(cubeMapShader);
	//cubeMap->Texture(L"Environment/SunsetCube1024.dds");
	cubeMap->Texture(L"Environment/Earth.dds");
	cubeMap->GetTransform()->Position(0, 20, 0);
	cubeMap->GetTransform()->Scale(10, 10, 10);
}

void CubeMapDemo::Destroy()
{
	SafeDelete(shader);

	SafeDelete(cube);
	SafeDelete(grid);

	for (int i = 0; i < 10; i++)
	{
		SafeDelete(cylinder[i]);
		SafeDelete(sphere[i]);
	}

	SafeDelete(cubeMapShader);
	SafeDelete(cubeMap);
}

void CubeMapDemo::Update()
{
	cube->Update();
	grid->Update();

	for (int i = 0; i < 10; i++)
	{
		cylinder[i]->Update();
		sphere[i]->Update();
	}

	cubeMap->Update();
}

void CubeMapDemo::Render()
{
	ImGui::SliderFloat3("Direction", direction, -1, +1);
	sDirection->SetFloatVector(direction);

	static int pass = 0;
	ImGui::InputInt("Pass", &pass);
	pass %= 2;


	cube->Render();
	grid->Render();

	for (int i = 0; i < 10; i++)
	{
		cylinder[i]->Pass(pass);
		cylinder[i]->Render();

		sphere[i]->Pass(pass);
		sphere[i]->Render();
	}

	cubeMap->Render();
}

void CubeMapDemo::CreateMesh()
{	//CubeSkyDemo부분과 동일
	cube = new MeshCube(shader);
	cube->GetTransform()->Position(0, 5, 0);
	cube->GetTransform()->Scale(20, 10, 20);
	cube->DiffuseMap(L"Stones.png");

	grid = new MeshGrid(shader, 6, 6);
	grid->GetTransform()->Scale(12, 1, 12);
	grid->DiffuseMap(L"Floor.png");


	for (UINT i = 0; i < 5; i++)
	{
		cylinder[i * 2] = new MeshCylinder(shader, 0.5f, 3.0f, 20, 20);
		cylinder[i * 2]->GetTransform()->Position(-30, 6, (float)i * 15.0f - 15.0f);
		cylinder[i * 2]->GetTransform()->Scale(5, 5, 5);
		cylinder[i * 2]->DiffuseMap(L"Bricks.png");

		cylinder[i * 2 + 1] = new MeshCylinder(shader, 0.5f, 3.0f, 20, 20);
		cylinder[i * 2 + 1]->GetTransform()->Position(30, 6, (float)i * 15.0f - 15.0f);
		cylinder[i * 2 + 1]->GetTransform()->Scale(5, 5, 5);
		cylinder[i * 2 + 1]->DiffuseMap(L"Bricks.png");


		sphere[i * 2] = new MeshSphere(shader, 0.5f, 20, 20);
		sphere[i * 2]->GetTransform()->Position(-30, 15.5f, (float)i * 15.0f - 15.0f);
		sphere[i * 2]->GetTransform()->Scale(5, 5, 5);
		sphere[i * 2]->DiffuseMap(L"Wall.png");

		sphere[i * 2 + 1] = new MeshSphere(shader, 0.5f, 20, 20);
		sphere[i * 2 + 1]->GetTransform()->Position(30, 15.5f, (float)i * 15.0f - 15.0f);
		sphere[i * 2 + 1]->GetTransform()->Scale(5, 5, 5);
		sphere[i * 2 + 1]->DiffuseMap(L"Wall.png");
	}
}

MeshDemo

MeshDemo.h

#pragma once
#include "Systems/IExecute.h"

class MeshDemo : public IExecute
{
public:
	virtual void Initialize() override;
	virtual void Ready() override {}
	virtual void Destroy() override;
	virtual void Update() override;
	virtual void PreRender() override {}
	virtual void Render() override;
	virtual void PostRender() override {}
	virtual void ResizeScreen() override {}

private:
	void CreateMesh();

private:
	Shader* shader;

	Vector3 direction = Vector3(-1, -1, 1);
	ID3DX11EffectVectorVariable* sDirection;

	MeshCube* cube;
	MeshCylinder* cylinder[10];
	MeshSphere* sphere[10];
	MeshGrid* grid;
};

MeshDemo.cpp

#include "stdafx.h"
#include "MeshDemo.h"

void MeshDemo::Initialize()
{
	Context::Get()->GetCamera()->RotationDegree(20, 0, 0);
	Context::Get()->GetCamera()->Position(1, 36, -85);


	shader = new Shader(L"25_Mesh.fx");
	sDirection = shader->AsVector("Direction");

	CreateMesh();
}

void MeshDemo::Destroy()
{
	SafeDelete(shader);

	SafeDelete(cube);
	SafeDelete(grid);

	for (int i = 0; i < 10; i++)
	{
		SafeDelete(cylinder[i]);
		SafeDelete(sphere[i]);
	}
}

void MeshDemo::Update()
{
	cube->Update();
	grid->Update();

	for (int i = 0; i < 10; i++)
	{
		cylinder[i]->Update();
		sphere[i]->Update();
	}
}

void MeshDemo::Render()
{
	ImGui::SliderFloat3("Direction", direction, -1, +1);
	sDirection->SetFloatVector(direction);

	static int pass = 0;
	ImGui::InputInt("Pass", &pass);
	pass %= 2;


	cube->Render();
	grid->Render();

	for (int i = 0; i < 10; i++)
	{
		cylinder[i]->Pass(pass);
		cylinder[i]->Render();

		sphere[i]->Pass(pass);
		sphere[i]->Render();
	}
}

void MeshDemo::CreateMesh()
{
	cube = new MeshCube(shader);
	cube->GetTransform()->Position(0, 5, 0);
	cube->GetTransform()->Scale(20, 10, 20);
	cube->DiffuseMap(L"Stones.png");

	grid = new MeshGrid(shader, 6, 6);
	grid->GetTransform()->Scale(12, 1, 12);
	grid->DiffuseMap(L"Floor.png");


	for (UINT i = 0; i < 5; i++)
	{
		cylinder[i * 2] = new MeshCylinder(shader, 0.5f, 3.0f, 20, 20);
		cylinder[i * 2]->GetTransform()->Position(-30, 6, (float)i * 15.0f - 15.0f);
		cylinder[i * 2]->GetTransform()->Scale(5, 5, 5);
		cylinder[i * 2]->DiffuseMap(L"Bricks.png");

		cylinder[i * 2 + 1] = new MeshCylinder(shader, 0.5f, 3.0f, 20, 20);
		cylinder[i * 2 + 1]->GetTransform()->Position(30, 6, (float)i * 15.0f - 15.0f);
		cylinder[i * 2 + 1]->GetTransform()->Scale(5, 5, 5);
		cylinder[i * 2 + 1]->DiffuseMap(L"Bricks.png");


		sphere[i * 2] = new MeshSphere(shader, 0.5f, 20, 20);
		sphere[i * 2]->GetTransform()->Position(-30, 15.5f, (float)i * 15.0f - 15.0f);
		sphere[i * 2]->GetTransform()->Scale(5, 5, 5);
		sphere[i * 2]->DiffuseMap(L"Wall.png");

		sphere[i * 2 + 1] = new MeshSphere(shader, 0.5f, 20, 20);
		sphere[i * 2 + 1]->GetTransform()->Position(30, 15.5f, (float)i * 15.0f - 15.0f);
		sphere[i * 2 + 1]->GetTransform()->Scale(5, 5, 5);
		sphere[i * 2 + 1]->DiffuseMap(L"Wall.png");
	}
}

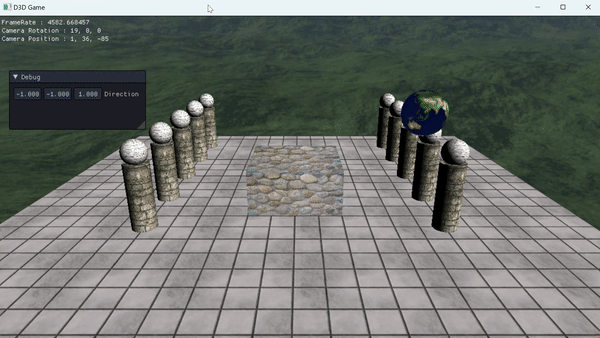

실행화면

'⭐ DirectX > DirectX11 3D' 카테고리의 다른 글

[DirectX11] 037 Model Reader (0)	2023.02.05
[DirectX11] 034~36 Model Editor (0)	2023.02.01
[DirectX11] 032 Renderer (0)	2023.01.31
[DirectX11] 031 Framework (0)	2023.01.30
[DirectX11] 029~30 Cube Map, Sphere Map (0)	2023.01.27

[DirectX11] 033 Framework - CubeMap, CubeSky

Framework - CubeMap, CubeSky

fx

Renderer

Transform

Mesh

CubeSky

CubeMap

CubeSkyDemo

CubeMapDemo

MeshDemo

실행화면

'⭐ DirectX > DirectX11 3D' 카테고리의 다른 글

댓글

이 글 공유하기

티스토리툴바

Framework - CubeMap, CubeSky

fx

Renderer

Transform

Mesh

CubeSky

CubeMap

CubeSkyDemo

CubeMapDemo

MeshDemo

실행화면

'⭐ DirectX > DirectX11 3D' 카테고리의 다른 글

댓글

이 글 공유하기

다른 글

[DirectX11] 037 Model Reader

[DirectX11] 034~36 Model Editor

[DirectX11] 032 Renderer

[DirectX11] 031 Framework

티스토리툴바
