Model Material





Shader
	25_Mesh.fx 38_Model.fx
Framework
	Model
	Model.h .cpp ModelMesh.h .cpp ModelRender.h .cpp
	Renders
	Material.h. cpp
ModelEditor
	Demo
	ModelDemo.h .cpp
	Writer
	Converter.h .cpp
	ExportFile.h .cpp Type.h





VS 단축키

• Ctrl + Space = 자동완성





https://assimp.sourceforge.net/lib_html/materials.html

Assimp: Material System

---



Type



Type.h 추가부분

#pragma once
#include "stdafx.h"

struct asBone
{
	int Index;
	string Name;

	int Parent;
	Matrix Transform;
};

struct asMesh
{
	string Name;
	int BoneIndex;

	aiMesh* Mesh;

	string MaterialName;

	vector<Model::ModelVertex> Vertices;
	vector<UINT> Indices;
};

struct asMaterial
{
	string Name;

	Color Ambient;
	Color Diffuse;
	Color Specular;
	Color Emissive;

	string DiffuseFile;
	string SpecularFile;
	string NormalFile;
};



struct asMaterial 부분 추가

struct asMaterial
{
	string Name;

	Color Ambient;
	Color Diffuse;
	Color Specular;
	Color Emissive;

	string DiffuseFile;
	string SpecularFile;
	string NormalFile;
};







---



Converter



Converter.h

#pragma once
#include "stdafx.h"

class Converter
{
public:
	Converter();
	~Converter();

	void ReadFile(wstring file);

public:
	void ExportMesh(wstring savePath);

private:
	void ReadBoneData(aiNode* node, int index, int parent);
	void ReadMeshData(aiNode* node, int bone);
	void WriteMeshData(wstring savePath);

public:
	void ExportMaterial(wstring savePath, bool bOverwrite = true);

private:
	void ReadMaterialData();
	void WriteMaterialData(wstring savePath);
	string WriteTexture(string saveFolder, string file);

private:
	wstring file;

	Assimp::Importer* importer;
	const aiScene* scene;

	vector<struct asBone *> bones;
	vector<struct asMesh *> meshes;
	vector<struct asMaterial *> materials;
};





Converter.cpp

#include "stdafx.h"
#include "Converter.h"
#include "Types.h"
#include "Utilities/BinaryFile.h"
#include "Utilities/Xml.h"

Converter::Converter()
{
	importer = new Assimp::Importer();
}

Converter::~Converter()
{
	SafeDelete(importer);
}

void Converter::ReadFile(wstring file)
{
	this->file = L"../../_Assets/" + file;

	scene = importer->ReadFile
	(
		String::ToString(this->file),
		aiProcess_ConvertToLeftHanded
		| aiProcess_Triangulate
		| aiProcess_GenUVCoords
		| aiProcess_GenNormals
		| aiProcess_CalcTangentSpace
	);
	assert(scene != NULL);
}

void Converter::ExportMesh(wstring savePath)
{
	savePath = L"../../_Models/" + savePath + L".mesh";

	ReadBoneData(scene->mRootNode, -1, -1);
	WriteMeshData(savePath);
}

void Converter::ReadBoneData(aiNode * node, int index, int parent)
{
	asBone* bone = new asBone();
	bone->Index = index;
	bone->Parent = parent;
	bone->Name = node->mName.C_Str();


	Matrix transform(node->mTransformation[0]);
	D3DXMatrixTranspose(&bone->Transform, &transform);

	Matrix matParent;
	if (parent < 0)
		D3DXMatrixIdentity(&matParent);
	else
		matParent = bones[parent]->Transform;

	bone->Transform = bone->Transform * matParent;
	bones.push_back(bone);


	ReadMeshData(node, index);

	for (UINT i = 0; i < node->mNumChildren; i++)
		ReadBoneData(node->mChildren[i], bones.size(), index);
}

void Converter::ReadMeshData(aiNode * node, int bone)
{
	if (node->mNumMeshes < 1) return;

	asMesh* mesh = new asMesh();
	mesh->Name = node->mName.C_Str();
	mesh->BoneIndex = bone;

	for (UINT i = 0; i < node->mNumMeshes; i++)
	{
		UINT index = node->mMeshes[i];
		aiMesh* srcMesh = scene->mMeshes[index];

		aiMaterial* material = scene->mMaterials[srcMesh->mMaterialIndex];
		mesh->MaterialName = material->GetName().C_Str();


		UINT startVertex = mesh->Vertices.size();
		for (UINT v = 0; v < srcMesh->mNumVertices; v++)
		{
			Model::ModelVertex vertex;
			memcpy(&vertex.Position, &srcMesh->mVertices[v], sizeof(Vector3));

			if (srcMesh->HasTextureCoords(0))
				memcpy(&vertex.Uv, &srcMesh->mTextureCoords[0][v], sizeof(Vector2));

			if(srcMesh->HasNormals())
				memcpy(&vertex.Normal, &srcMesh->mNormals[v], sizeof(Vector3));

			mesh->Vertices.push_back(vertex);
		}

		for (UINT f = 0; f < srcMesh->mNumFaces; f++)
		{
			aiFace& face = srcMesh->mFaces[f];

			for (UINT k = 0; k < face.mNumIndices; k++)
				mesh->Indices.push_back(face.mIndices[k] + startVertex);
		}

		meshes.push_back(mesh);
	}
}

void Converter::WriteMeshData(wstring savePath)
{
	Path::CreateFolders(Path::GetDirectoryName(savePath));

	BinaryWriter* w = new BinaryWriter();
	w->Open(savePath);

	w->UInt(bones.size());
	for (asBone* bone : bones)
	{
		w->Int(bone->Index);
		w->String(bone->Name);
		w->Int(bone->Parent);
		w->Matrix(bone->Transform);

		SafeDelete(bone);
	}

	w->UInt(meshes.size());
	for (asMesh* meshData : meshes)
	{
		w->String(meshData->Name);
		w->Int(meshData->BoneIndex);

		w->String(meshData->MaterialName);

		w->UInt(meshData->Vertices.size());
		w->Byte(&meshData->Vertices[0], sizeof(Model::ModelVertex) * meshData->Vertices.size());

		w->UInt(meshData->Indices.size());
		w->Byte(&meshData->Indices[0], sizeof(UINT) * meshData->Indices.size());

		SafeDelete(meshData);
	}

	w->Close(); //Binary 닫아줌. 안 닫으면 파일 접근불가.
	SafeDelete(w);
}

void Converter::ExportMaterial(wstring savePath, bool bOverwrite)
{
	savePath = L"../../_Texture/" + savePath + L".material";

	if (bOverwrite == false)
	{
		if (Path::ExistFile(savePath) == true)
			return; //파일이 있다면 밑의 코드를 수행하지 않겠다.
	}

	ReadMaterialData();
	WriteMaterialData(savePath);
}

void Converter::ReadMaterialData()
{
	for (UINT i = 0; i < scene->mNumMaterials; i++)
	{
		aiMaterial* srcMaterial = scene->mMaterials[i];
		asMaterial* material = new asMaterial();

		material->Name = srcMaterial->GetName().C_Str();

		aiColor3D color;

		srcMaterial->Get(AI_MATKEY_COLOR_AMBIENT, color);
		material->Ambient = Color(color.r, color.g, color.b, 1.0f);

		srcMaterial->Get(AI_MATKEY_COLOR_AMBIENT, color);
		material->Diffuse = Color(color.r, color.g, color.b, 1.0f);

		srcMaterial->Get(AI_MATKEY_COLOR_AMBIENT, color);
		material->Specular = Color(color.r, color.g, color.b, 1.0f);

		srcMaterial->Get(AI_MATKEY_SHININESS, material->Specular.a);
		material->Emissive = Color(color.r, color.g, color.b, 1.0f);

		aiString file;

		srcMaterial->GetTexture(aiTextureType_DIFFUSE, 0, &file);
		material->DiffuseFile = file.C_Str();


		srcMaterial->GetTexture(aiTextureType_SPECULAR, 0, &file);
		material->SpecularFile = file.C_Str();


		srcMaterial->GetTexture(aiTextureType_NORMALS, 0, &file);
		material->NormalFile = file.C_Str();

		materials.push_back(material);
	}

}

void Converter::WriteMaterialData(wstring savePath)
{
	string folder = String::ToString(Path::GetDirectoryName(savePath));//경로에서 Directory명만 빼와 String으로 변경
	string file = String::ToString(Path::GetFileName(savePath));//경로에서 File명만 빼워 String으로 변경

	Path::CreateFolders(folder);


	Xml::XMLDocument* document = new Xml::XMLDocument();

	Xml::XMLDeclaration* decl = document->NewDeclaration();
	document->LinkEndChild(decl);

	Xml::XMLElement* root = document->NewElement("Materials");
	root->SetAttribute("xmlns:xsi", "http://www.w3.org/2001/XMLSchema-instance");
	root->SetAttribute("xmlns:xsd", "http://www.w3.org/2001/XMLSchema");
	document->LinkEndChild(root);

	for (asMaterial* material : materials)
	{
		Xml::XMLElement* node = document->NewElement("Material");
		root->LinkEndChild(node);


		Xml::XMLElement* element = NULL;

		element = document->NewElement("Name");
		element->SetText(material->Name.c_str());
		node->LinkEndChild(element);

		element = document->NewElement("DiffuseFile");
		element->SetText(WriteTexture(folder, material->DiffuseFile).c_str());
		node->LinkEndChild(element);

		element = document->NewElement("SpecularFile");
		element->SetText(WriteTexture(folder, material->SpecularFile).c_str());
		node->LinkEndChild(element);

		element = document->NewElement("NormalFile");
		element->SetText(WriteTexture(folder, material->NormalFile).c_str());
		node->LinkEndChild(element);


		element = document->NewElement("Ambient");
		element->SetAttribute("R", material->Ambient.r);
		element->SetAttribute("G", material->Ambient.g);
		element->SetAttribute("B", material->Ambient.b);
		element->SetAttribute("A", material->Ambient.a);
		node->LinkEndChild(element);

		element = document->NewElement("Diffuse");
		element->SetAttribute("R", material->Diffuse.r);
		element->SetAttribute("G", material->Diffuse.g);
		element->SetAttribute("B", material->Diffuse.b);
		element->SetAttribute("A", material->Diffuse.a);
		node->LinkEndChild(element);

		element = document->NewElement("Specular");
		element->SetAttribute("R", material->Specular.r);
		element->SetAttribute("G", material->Specular.g);
		element->SetAttribute("B", material->Specular.b);
		element->SetAttribute("A", material->Specular.a);
		node->LinkEndChild(element);

		element = document->NewElement("Emissive");
		element->SetAttribute("R", material->Emissive.r);
		element->SetAttribute("G", material->Emissive.g);
		element->SetAttribute("B", material->Emissive.b);
		element->SetAttribute("A", material->Emissive.a);
		node->LinkEndChild(element);

		SafeDelete(material);
	}


	document->SaveFile((folder + file).c_str());
	SafeDelete(document);

}

string Converter::WriteTexture(string saveFolder, string file)
{
	if (file.length() < 1) return "";

	string fileName = Path::GetFileName(file);
	const aiTexture* texture = scene->GetEmbeddedTexture(file.c_str());

	string path = "";
	if (texture != NULL)
	{
		path = saveFolder + fileName;

		if (texture->mHeight < 1)
		{
			BinaryWriter w;
			w.Open(String::ToWString(path));
			w.Byte(texture->pcData, texture->mWidth);
			w.Close();
		}
		else
		{
			D3D11_TEXTURE2D_DESC destDesc;
			ZeroMemory(&destDesc, sizeof(D3D11_TEXTURE2D_DESC));
			destDesc.Width = texture->mWidth;
			destDesc.Height = texture->mHeight;
			destDesc.MipLevels = 1;
			destDesc.ArraySize = 1;
			destDesc.Format = DXGI_FORMAT_R8G8B8A8_UNORM;
			destDesc.SampleDesc.Count = 1;
			destDesc.SampleDesc.Quality = 0;
			destDesc.Usage = D3D11_USAGE_IMMUTABLE;

			D3D11_SUBRESOURCE_DATA subResource = { 0 };
			subResource.pSysMem = texture->pcData;


			ID3D11Texture2D* dest;

			HRESULT hr;
			hr = D3D::GetDevice()->CreateTexture2D(&destDesc, &subResource, &dest);
			assert(SUCCEEDED(hr));

			D3DX11SaveTextureToFileA(D3D::GetDC(), dest, D3DX11_IFF_PNG, saveFolder.c_str());
		}
	}
	else
	{
		string directory = Path::GetDirectoryName(String::ToString(this->file));
		string origin = directory + file;
		String::Replace(&origin, "\\", "/");

		if (Path::ExistFile(origin) == false)
			return "";

		path = saveFolder + fileName;
		CopyFileA(origin.c_str(), path.c_str(), FALSE);

		String::Replace(&path, "../../_Textures/", "");
	}

	return Path::GetFileName(path);
}



---



Kachujin 추가



ExportFile.h .cpp

ModelDemo.h .cpp

에 기존의 Airplane, Tower, Tank와 같이 추가





---

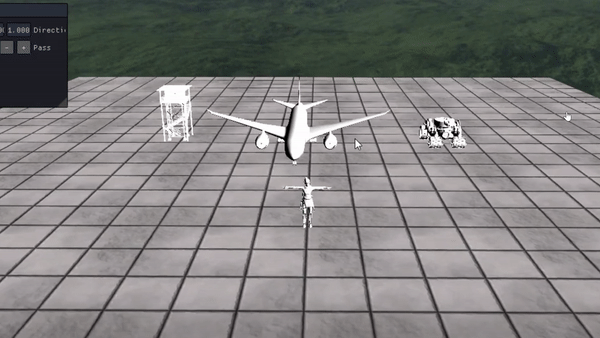

실행화면
