[DirectX11] 078~79 Point Lighting, HLSL [flatten] [branch]

Lighting

Shader
	Light.fx Lighting.fx PointLighting.fx
Framework
	Renders
	PerFrame .cpp
Shader
	Lighting
	PointLightingDemo.h .cpp

Point Light

DirectX 11에서 Point Light를 사용하기 위해서는 먼저 씬에서 조명을 설정하고 빛을 발산하는 위치를 지정해야 한다. 이 위치는 3D 공간에서 벡터로 표시된다.

그 다음 셰이더 프로그램에서 Point Light를 처리할 수 있는 코드를 작성해야 한다. 일반적으로 Point Light를 처리하기 위해 사용되는 기술은 Phong Lighting 모델이다. 이 모델은 조명, 재질, 노말 벡터, 카메라 위치 등의 요소를 고려하여 표면의 색상을 계산한다.

아래는 DirectX 11에서 Point Light를 사용하는 단계이다.

먼저, Point Light의 위치, 색상 및 반지름을 저장할 구조체나 함수를 정의한다.
다음으로, Point Light를 표시할 쉐이더를 작성한다. 이 쉐이더는 Point Light의 위치, 색상 및 반지름을 사용하여 조명을 만든다.

IA → VS → RS → PS

광원에서 해당 정점까지의 거리를 구하면 Point Light가 적용되는 범위와 세기를 적용할 수 있다.

HLSL에서의 [ flatten ] vs [ branch ]

[flatten]

최종적인 결과를 합친다.
- 따라서 분기를 하지 않는다.
- if를 쓴 후 else를 사용하지 않는다.
실행 속도를 높일 수 있다.

[branch]

둘 다 실행한 후 둘 중에 조건에 맞는것을 선택한다.
HLSL에서 아무것도 쓰지 않으면 [branch]로 실행된다.

Light.fx

Light.fx - 추가된 부분

 #define MAX_POINT_LIGHTS 256
struct PointLight
{
    float4 Ambient;
    float4 Diffuse;
    float4 Specular;
    float4 Emissive;

    float3 Position;
    float Range;

    float Intensity;
    float3 Padding;
};

cbuffer CB_PointLights
{
    uint PointLightCount;
    float3 CB_PointLights_Padding;

    PointLight PointLights[MAX_POINT_LIGHTS];
};

void ComputePointLight(inout MaterialDesc output, float3 normal, float3 wPosition)
{
    output = MakeMaterial();
    MaterialDesc result = MakeMaterial();

    for (uint i = 0; i < PointLightCount; i++)
    {
        float3 light = PointLights[i].Position - wPosition;
        float dist = length(light);


        [flatten]
        if(dist > PointLights[i].Range)
            continue;


        light /= dist; //Normalize

        result.Ambient = PointLights[i].Ambient * Material.Ambient;

        float NdotL = dot(light, normalize(normal));
        float3 E = normalize(ViewPosition() - wPosition);

        [flatten]
        if (NdotL > 0.0f)
        {
            result.Diffuse = Material.Diffuse * NdotL * PointLights[i].Diffuse;

            [flatten]
            if (Material.Specular.a > 0.0f)
            {
                float3 R = normalize(reflect(-light, normal));
                float RdotE = saturate(dot(R, E));

                float specular = pow(RdotE, Material.Specular.a);
                result.Specular = Material.Specular * specular * PointLights[i].Specular;
            }
        }

        [flatten]
        if (Material.Emissive.a > 0.0f)
        {
            float NdotE = dot(E, normalize(normal));
            float emissive = smoothstep(1.0f - Material.Emissive.a, 1.0f, 1.0f - saturate(NdotE));

            result.Emissive = Material.Emissive * emissive * PointLights[i].Emissive;
        }

        float temp = 1.0f / saturate(dist / PointLights[i].Range);
        float att = temp * temp * (1.0f / max(1.0f - PointLights[i].Intensity, 1e-8f));

        output.Ambient += result.Ambient * temp;
        output.Diffuse += result.Diffuse * att;
        output.Specular += result.Specular * att;
        output.Emissive += result.Emissive * att;
    }
}

dist > PointLights[i].Range

거리 > Point Light 적용 범위인 경우, 빛 적용이 안 되기 때문에 continue;로 통과.

Lighting.fx & PointLighting.fx

Lighting.fx

 #include "00_Global.fx"
#include "00_Light.fx"
#include "00_Render.fx"

float4 PS(MeshOutput input) : SV_Target
{
    Texture(Material.Diffuse, DiffuseMap, input.Uv);
    Texture(Material.Specular, SpecularMap, input.Uv);

    MaterialDesc output;
    ComputeLight(output, input.Normal, input.wPosition);

    return float4(MaterialToColor(output), 1.0f);
}

technique11 T0
{
    P_VP(P0, VS_Mesh, PS)
    P_VP(P1, VS_Model, PS)
    P_VP(P2, VS_Animation, PS)
}

PointLighting.fx

 #include "00_Global.fx"
#include "00_Light.fx"
#include "00_Render.fx"

float4 PS(MeshOutput input) : SV_Target
{
    Texture(Material.Diffuse, DiffuseMap, input.Uv);
    Texture(Material.Specular, SpecularMap, input.Uv);


    MaterialDesc output = MakeMaterial();
    MaterialDesc result = MakeMaterial();

    ComputeLight(output, input.Normal, input.wPosition);
    AddMaterial(result, output); //output을 result에 넣어준다.

    ComputePointLight(output, input.Normal, input.wPosition);
    AddMaterial(result, output);

    return float4(MaterialToColor(result), 1.0f); //result를 MaterialToColor에 넣어준 후 MaterialToColor에서 (result.Ambient + result.Diffuse + result.Specular + result.Emissive).rgb로 리턴한다.
}

technique11 T0
{
    P_VP(P0, VS_Mesh, PS)
    P_VP(P1, VS_Model, PS)
    P_VP(P2, VS_Animation, PS)
}

Lighting

Lighting.h

 #pragma once

#define MAX_POINT_LIGHTS 256
struct PointLight
{
	Color Ambient;
	Color Diffuse;
	Color Specular;
	Color Emissive;

	Vector3 Position;
	float Range;

	float Intensity;
	Vector3 Padding;
};

#define MAX_SPOT_LIGHTS 256
struct SpotLight
{
	Color Ambient;
	Color Diffuse;
	Color Specular;
	Color Emissive;

	Vector3 Position;
	float Range;

	Vector3 Direction;
	float Angle;

	float Intensity;
	float Padding[3];
};

class Lighting
{
public:
	//싱글톤 패턴
	static Lighting* Get();
	static void Create();
	static void Delete();

private:
	Lighting();
	~Lighting();

public:
	UINT PointLightCount() { return pointLightCount; }
	UINT PointLights(OUT PointLight* lights); //PointLight 전체를 리턴 받을때 배열로 받아 개수 리턴
	void AddPointLight(PointLight& light); //PointLight 추가
	PointLight& GetPointLight(UINT index); //PointLight 하나씩 가져올때 사용

public:
	UINT SpotLightCount() { return spotLightCount; }
	UINT SpotLights(OUT SpotLight* lights);
	void AddSpotLight(SpotLight& light);
	SpotLight& GetSpotLight(UINT index);

private:
	static Lighting* instance; //싱글톤 패턴

private:
	UINT pointLightCount = 0;
	PointLight pointLights[MAX_POINT_LIGHTS];

private:
	UINT spotLightCount = 0;
	SpotLight spotLights[MAX_SPOT_LIGHTS];
};

싱글톤 패턴

static Lighting* Get();
static void Create();
static void Delete();
static Lighting* instance;

Lighting.cpp

 #include "Framework.h"
#include "Lighting.h"

Lighting* Lighting::instance = NULL;

Lighting * Lighting::Get()
{
	assert(instance != NULL);

	return instance;
}

void Lighting::Create()
{
	assert(instance == NULL);

	instance = new Lighting();
}

void Lighting::Delete()
{
	SafeDelete(instance);
}

Lighting::Lighting()
{

}

Lighting::~Lighting()
{

}

UINT Lighting::PointLights(OUT PointLight * lights)
{
	memcpy(lights, pointLights, sizeof(PointLight) * pointLightCount);

	return pointLightCount;
}

void Lighting::AddPointLight(PointLight & light)
{
	pointLights[pointLightCount] = light;
	pointLightCount++;
}

PointLight & Lighting::GetPointLight(UINT index)
{
	return pointLights[index];
}

UINT Lighting::SpotLights(OUT SpotLight * lights)
{
	memcpy(lights, spotLights, sizeof(SpotLight) * spotLightCount);

	return spotLightCount;
}

void Lighting::AddSpotLight(SpotLight & light)
{
	spotLights[spotLightCount] = light;
	spotLightCount++;
}

SpotLight & Lighting::GetSpotLight(UINT index)
{
	return spotLights[index];
}

PerFrame

PerFrame.h

 #pragma once

class PerFrame
{
public:
	PerFrame(Shader* shader);
	~PerFrame();

	void Update();
	void Render();

private:
	struct Desc
	{
		Matrix View;
		Matrix ViewInverse;
		Matrix Projection;
		Matrix VP;

		Plane Culling[4];
		Plane Clipping;

		float Time;
		float Padding[3];
	} desc;

	struct LightDesc
	{
		Color Ambient;
		Color Specular;
		Vector3 Direction;
		float Padding;

		Vector3 Position;
		float Padding2;
	} lightDesc;

	struct PointLightDesc
	{
		UINT Count = 0;
		float Padding[3];

		PointLight Lights[MAX_POINT_LIGHTS];
	} pointLightDesc;

	struct SpotLightDesc
	{
		UINT Count = 0;
		float Padding[3];

		SpotLight Lights[MAX_SPOT_LIGHTS];
	} spotLightDesc;

private:
	Shader* shader;

	ConstantBuffer* buffer;
	ID3DX11EffectConstantBuffer* sBuffer;

	ConstantBuffer* lightBuffer;
	ID3DX11EffectConstantBuffer* sLightBuffer;

	ConstantBuffer* pointLightBuffer;
	ID3DX11EffectConstantBuffer* sPointLightBuffer;

	ConstantBuffer* spotLightBuffer;
	ID3DX11EffectConstantBuffer* sSpotLightBuffer;
};

PerFrame.cpp

 #include "Framework.h"
#include "PerFrame.h"

PerFrame::PerFrame(Shader * shader)
	: shader(shader)
{
	buffer = new ConstantBuffer(&desc, sizeof(Desc));
	sBuffer = shader->AsConstantBuffer("CB_PerFrame");

	lightBuffer = new ConstantBuffer(&lightDesc, sizeof(LightDesc));
	sLightBuffer = shader->AsConstantBuffer("CB_Light");

	pointLightBuffer = new ConstantBuffer(&pointLightDesc, sizeof(PointLightDesc));
	sPointLightBuffer = shader->AsConstantBuffer("CB_PointLights");

	spotLightBuffer = new ConstantBuffer(&spotLightDesc, sizeof(SpotLightDesc));
	sSpotLightBuffer = shader->AsConstantBuffer("CB_SpotLights");
}

PerFrame::~PerFrame()
{
	SafeDelete(buffer);
	SafeDelete(lightBuffer);
	SafeDelete(pointLightBuffer);
	SafeDelete(spotLightBuffer);
}

void PerFrame::Update()
{
	desc.Time = Time::Get()->Running();

	lightDesc.Ambient = Context::Get()->Ambient();
	lightDesc.Specular = Context::Get()->Specular();
	lightDesc.Direction = Context::Get()->Direction();
	lightDesc.Position = Context::Get()->Position();

	pointLightDesc.Count = Lighting::Get()->PointLights(pointLightDesc.Lights);
	spotLightDesc.Count = Lighting::Get()->SpotLights(spotLightDesc.Lights);
}

void PerFrame::Render()
{
	desc.View = Context::Get()->View();
	D3DXMatrixInverse(&desc.ViewInverse, NULL, &desc.View);

	desc.Projection = Context::Get()->Projection();
	desc.VP = desc.View * desc.Projection;

	buffer->Render();
	sBuffer->SetConstantBuffer(buffer->Buffer());

	lightBuffer->Render();
	sLightBuffer->SetConstantBuffer(lightBuffer->Buffer());

	pointLightBuffer->Render();
	sPointLightBuffer->SetConstantBuffer(pointLightBuffer->Buffer());

	spotLightBuffer->Render();
	sSpotLightBuffer->SetConstantBuffer(spotLightBuffer->Buffer());
}

PointLightingDemo

PointLightingDemo.h

 #pragma once
#include "Systems/IExecute.h"

class PointLightingDemo : public IExecute
{
public:
	virtual void Initialize() override;
	virtual void Ready() override {}
	virtual void Destroy() override {}
	virtual void Update() override;
	virtual void PreRender() override {}
	virtual void Render() override;
	virtual void PostRender() override {}
	virtual void ResizeScreen() override {}

private:
	void Mesh();
	void Airplane();
	void Kachujin();
	void KachujinCollider();
	void KachujinWeapon();
	void PointLighting();

	void Pass(UINT mesh, UINT model, UINT anim);

private:
	Shader* shader;

	CubeSky* sky;

	Material* floor;
	Material* stone;
	Material* brick;
	Material* wall;

	MeshRender* cube;
	MeshRender* cylinder;
	MeshRender* sphere;
	MeshRender* grid;

	ModelRender* airplane = NULL;


	ModelAnimator* kachujin = NULL;
	Transform* colliderInitTransforms;
	ColliderObject** colliders;

	ModelRender* weapon = NULL;
	Transform* weaponInitTransform;

	vector<MeshRender *> meshes;
	vector<ModelRender *> models;
	vector<ModelAnimator *> animators;
};

PointLightingDemo.cpp

 #include "stdafx.h"
#include "PointLightingDemo.h"

void PointLightingDemo::Initialize()
{
	Context::Get()->GetCamera()->RotationDegree(20, 0, 0);
	Context::Get()->GetCamera()->Position(1, 36, -85);


	//Performance perfomence;
	//perfomence.Start();
	//{
		shader = new Shader(L"78_PointLighting.fxo");
	//}
	//float t = perfomence.End();
	//MessageBox(D3D::GetDesc().Handle, to_wstring(t).c_str(), L"", MB_OK);


	sky = new CubeSky(L"Environment/GrassCube1024.dds");

	Mesh();
	Airplane();

	Kachujin();
	KachujinCollider();
	KachujinWeapon();

	PointLighting();
}

void PointLightingDemo::Update()
{
	PointLight& pointLight = Lighting::Get()->GetPointLight(0);
	ImGui::Begin("Point Lighting");
	{
		ImGui::ColorEdit3("Ambient", pointLight.Ambient);
		ImGui::ColorEdit3("Diffuse", pointLight.Diffuse);
		ImGui::ColorEdit3("Specular", pointLight.Specular);
		ImGui::ColorEdit3("Emissive", pointLight.Emissive);

		ImGui::SliderFloat3("Position", pointLight.Position, -50, 50);
		ImGui::SliderFloat("Range", &pointLight.Range, 0, 20);
		ImGui::SliderFloat("Intensity", &pointLight.Intensity, 0, 1);
	}
	ImGui::End();


	//Weapon
	{
		Vector3 position;
		weaponInitTransform->Position(&position);
		ImGui::SliderFloat3("Weapon Position", position, -20, 20);

		Vector3 scale;
		weaponInitTransform->Scale(&scale);
		ImGui::SliderFloat3("Weapon Scale", scale, 0.1f, 3.0f);

		Vector3 rotation;
		weaponInitTransform->Rotation(&rotation);
		ImGui::SliderFloat3("Weapon Rotation", rotation, -1.0f, 1.0f);

		weaponInitTransform->Position(position);
		weaponInitTransform->Scale(scale);
		weaponInitTransform->Rotation(rotation);
	}

	//Collider
	{
		Vector3 position;
		colliderInitTransforms->Position(&position);
		ImGui::SliderFloat3("Collider Position", position, -20, 20);

		Vector3 scale;
		colliderInitTransforms->Scale(&scale);
		ImGui::SliderFloat3("Collider Scale", scale, 10.0f, 100.0f);

		Vector3 rotation;
		colliderInitTransforms->Rotation(&rotation);
		ImGui::SliderFloat3("Collider Rotation", rotation, -1.0f, 1.0f);

		colliderInitTransforms->Position(position);
		colliderInitTransforms->Scale(scale);
		colliderInitTransforms->Rotation(rotation);
	}


	sky->Update();

	cube->Update();
	grid->Update();
	cylinder->Update();
	sphere->Update();

	airplane->Update();
	kachujin->Update();

	Matrix worlds[MAX_MODEL_TRANSFORMS];
	for (UINT i = 0; i < kachujin->GetTransformCount(); i++)
	{
		kachujin->GetAttachTransform(i, worlds);
		//colliders[i]->Collider->GetTransform()->World(worlds[40]);
		//colliders[i]->Collider->Update();

		weapon->GetTransform(i)->World(weaponInitTransform->World() * worlds[40]);
	}

	weapon->UpdateTransforms();
	weapon->Update();
}

void PointLightingDemo::Render()
{
	sky->Render();


	Pass(0, 1, 2);

	wall->Render();
	sphere->Render();

	brick->Render();
	cylinder->Render();

	stone->Render();
	cube->Render();

	floor->Render();
	grid->Render();

	airplane->Render();

	kachujin->Render();
	weapon->Render();
	//for (UINT i = 0; i < kachujin->GetTransformCount(); i++)
		//colliders[i]->Collider->Render();
}

void PointLightingDemo::Mesh()
{
	//Create Material
	{
		floor = new Material(shader);
		floor->DiffuseMap("Floor.png");
		floor->Specular(1, 1, 1, 20);
		floor->SpecularMap("Floor_Specular.png");
		//floor->NormalMap("Floor_Normal.png");

		stone = new Material(shader);
		stone->DiffuseMap("Stones.png");
		stone->Specular(1, 1, 1, 20);
		stone->SpecularMap("Stones_Specular.png");
		stone->Emissive(0.15f, 0.15f, 0.15f, 0.3f);
		//stone->NormalMap("Stones_Normal.png");


		brick = new Material(shader);
		brick->DiffuseMap("Bricks.png");
		brick->Specular(1, 0.3f, 0.3f, 20);
		brick->SpecularMap("Bricks_Specular.png");
		brick->Emissive(0.15f, 0.15f, 0.15f, 0.3f);
		//brick->NormalMap("Bricks_Normal.png");

		wall = new Material(shader);
		wall->DiffuseMap("Wall.png");
		wall->Specular(1, 1, 1, 20);
		wall->SpecularMap("Wall_Specular.png");
		wall->Emissive(0.15f, 0.15f, 0.15f, 0.3f);
		//wall->NormalMap("Wall_Normal.png");
	}

	//Create Mesh
	{
		Transform* transform = NULL;

		cube = new MeshRender(shader, new MeshCube());
		transform = cube->AddTransform();
		transform->Position(0, 5, 0);
		transform->Scale(20, 10, 20);

		grid = new MeshRender(shader, new MeshGrid(5, 5));
		transform = grid->AddTransform();
		transform->Position(0, 0, 0);
		transform->Scale(12, 1, 12);

		cylinder = new MeshRender(shader, new MeshCylinder(0.5f, 3.0f, 20, 20));
		sphere = new MeshRender(shader, new MeshSphere(0.5f, 20, 20));
		for (UINT i = 0; i < 5; i++)
		{
			transform = cylinder->AddTransform();
			transform->Position(-30, 6, -15.0f + (float)i * 15.0f);
			transform->Scale(5, 5, 5);

			transform = cylinder->AddTransform();
			transform->Position(30, 6, -15.0f + (float)i * 15.0f);
			transform->Scale(5, 5, 5);


			transform = sphere->AddTransform();
			transform->Position(-30, 15.5f, -15.0f + (float)i * 15.0f);
			transform->Scale(5, 5, 5);

			transform = sphere->AddTransform();
			transform->Position(30, 15.5f, -15.0f + (float)i * 15.0f);
			transform->Scale(5, 5, 5);
		}
	}

	sphere->UpdateTransforms();
	cylinder->UpdateTransforms();
	cube->UpdateTransforms();
	grid->UpdateTransforms();

	meshes.push_back(sphere);
	meshes.push_back(cylinder);
	meshes.push_back(cube);
	meshes.push_back(grid);
}

void PointLightingDemo::Airplane()
{
	airplane = new ModelRender(shader);
	airplane->ReadMesh(L"B787/Airplane");
	airplane->ReadMaterial(L"B787/Airplane");

	Transform* transform = airplane->AddTransform();
	transform->Position(2.0f, 9.91f, 2.0f);
	transform->Scale(0.004f, 0.004f, 0.004f);
	airplane->UpdateTransforms();

	models.push_back(airplane);
}

void PointLightingDemo::Kachujin()
{
	kachujin = new ModelAnimator(shader);
	kachujin->ReadMesh(L"Kachujin/Mesh");
	kachujin->ReadMaterial(L"Kachujin/Mesh");
	kachujin->ReadClip(L"Kachujin/Sword And Shield Idle");
	kachujin->ReadClip(L"Kachujin/Sword And Shield Walk");
	kachujin->ReadClip(L"Kachujin/Sword And Shield Run");
	kachujin->ReadClip(L"Kachujin/Sword And Shield Slash");
	kachujin->ReadClip(L"Kachujin/Salsa Dancing");


	Transform* transform = NULL;

	transform = kachujin->AddTransform();
	transform->Position(0, 0, -30);
	transform->Scale(0.075f, 0.075f, 0.075f);
	kachujin->PlayTweenMode(0, 0, 1.0f);

	transform = kachujin->AddTransform();
	transform->Position(-15, 0, -30);
	transform->Scale(0.075f, 0.075f, 0.075f);
	kachujin->PlayTweenMode(1, 1, 1.0f);

	transform = kachujin->AddTransform();
	transform->Position(-30, 0, -30);
	transform->Scale(0.075f, 0.075f, 0.075f);
	kachujin->PlayTweenMode(2, 2, 0.75f);

	transform = kachujin->AddTransform();
	transform->Position(15, 0, -30);
	transform->Scale(0.075f, 0.075f, 0.075f);
	kachujin->PlayBlendMode(3, 0, 1, 2);
	kachujin->SetBlendAlpha(3, 1.5f);

	transform = kachujin->AddTransform();
	transform->Position(30, 0, -32.5f);
	transform->Scale(0.075f, 0.075f, 0.075f);
	kachujin->PlayTweenMode(4, 4, 0.75f);

	kachujin->UpdateTransforms();

	animators.push_back(kachujin);
}

void PointLightingDemo::KachujinCollider()
{
	UINT count = kachujin->GetTransformCount();
	colliders = new  ColliderObject*[count];

	colliderInitTransforms = new Transform();
	colliderInitTransforms->Position(-2.9f, 1.45f, -50.0f);
	colliderInitTransforms->Scale(5, 5, 75);

	for (UINT i = 0; i < count; i++)
	{
		colliders[i] = new ColliderObject();

		//colliders[i]->Init = new Transform();
		//colliders[i]->Init->Position(0, 0, 0);
		//colliders[i]->Init->Scale(10, 30, 10);

		colliders[i]->Transform = new Transform();
		//colliders[i]->Collider = new Collider(colliders[i]->Transform, colliders[i]->Init);
		colliders[i]->Collider = new Collider(colliders[i]->Transform, colliderInitTransforms);
	}
}

void PointLightingDemo::KachujinWeapon()
{
	weapon = new ModelRender(shader);
	weapon->ReadMesh(L"Weapon/Sword");
	weapon->ReadMaterial(L"Weapon/Sword");

	UINT count = kachujin->GetTransformCount();
	for (UINT i = 0; i < count; i++)
		weapon->AddTransform();

	weapon->UpdateTransforms();
	models.push_back(weapon);


	weaponInitTransform = new Transform();
	weaponInitTransform->Position(-2.9f, 1.45f, -6.45f);
	weaponInitTransform->Scale(0.5f, 0.5f, 0.75f);
	weaponInitTransform->Rotation(0, 0, 1);
}

void PointLightingDemo::PointLighting()
{
	PointLight light;
	light =
	{
		Color(0.0f, 0.0f, 0.0f, 1.0f), //Ambient
		Color(0.0f, 0.0f, 1.0f, 1.0f), //Diffuse
		Color(0.0f, 0.0f, 0.7f, 1.0f), //Specular
		Color(0.0f, 0.0f, 0.7f, 1.0f), //Emissive
		Vector3(-30, 10, -30), 5.0f, 0.9f
	};
	Lighting::Get()->AddPointLight(light);

	light =
	{
		Color(0.0f, 0.0f, 0.0f, 1.0f),
		Color(1.0f, 0.0f, 0.0f, 1.0f),
		Color(0.6f, 0.2f, 0.0f, 1.0f),
		Color(0.6f, 0.3f, 0.0f, 1.0f),
		Vector3(15, 10, -30), 10.0f, 0.3f
	};
	Lighting::Get()->AddPointLight(light);

	light =
	{
		Color(0.0f, 0.0f, 0.0f, 1.0f), //Ambient
		Color(0.0f, 1.0f, 0.0f, 1.0f), //Diffuse
		Color(0.0f, 0.7f, 0.0f, 1.0f), //Specular
		Color(0.0f, 0.7f, 0.0f, 1.0f), //Emissive
		Vector3(-5, 1, -17.5f), 5.0f, 0.9f
	};
	Lighting::Get()->AddPointLight(light);

	light =
	{
		Color(0.0f, 0.0f, 0.0f, 1.0f),
		Color(0.0f, 0.0f, 1.0f, 1.0f),
		Color(0.0f, 0.0f, 0.7f, 1.0f),
		Color(0.0f, 0.0f, 0.7f, 1.0f),
		Vector3(-10, 1, -17.5f), 5.0f, 0.9f
	};
	Lighting::Get()->AddPointLight(light);
}

void PointLightingDemo::Pass(UINT mesh, UINT model, UINT anim)
{
	for (MeshRender* temp : meshes)
		temp->Pass(mesh);

	for (ModelRender* temp : models)
		temp->Pass(model);

	for (ModelAnimator* temp : animators)
		temp->Pass(anim);
}

PointLight부분 코드

 void PointLightingDemo::PointLighting()
{
	PointLight light;
	light =
	{
		Color(0.0f, 0.0f, 0.0f, 1.0f), //Ambient
		Color(0.0f, 0.0f, 1.0f, 1.0f), //Diffuse
		Color(0.0f, 0.0f, 0.7f, 1.0f), //Specular
		Color(0.0f, 0.0f, 0.7f, 1.0f), //Emissive
		Vector3(-30, 10, -30), 5.0f, 0.9f
	};
	Lighting::Get()->AddPointLight(light);
}

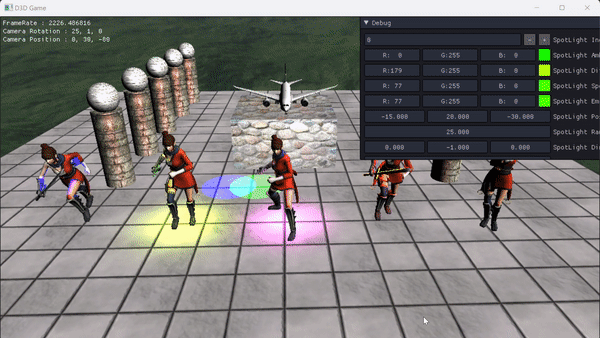

실행화면

'⭐ DirectX > DirectX11 3D' 카테고리의 다른 글

[DirectX11] 081~82 Normal Mapping (0)	2023.03.27
[DirectX11] 080 Spot Lighting (0)	2023.03.26
[DirectX11] 075~77 Lighting, HLSL (0)	2023.03.18
[DirectX11] 074 Instancing (0)	2023.03.18
[DirectX11] 071~73 Get MultiBones (0)	2023.03.15

다른 글

다른 글 더 둘러보기

내 블로그 - 관리자 홈 전환	`Q` `Q`
새 글 쓰기	`W` `W`

글 수정 (권한 있는 경우)	`E` `E`
댓글 영역으로 이동	`C` `C`

이 페이지의 URL 복사	`S` `S`
맨 위로 이동	`T` `T`
티스토리 홈 이동	`H` `H`
단축키 안내	`Shift` + `/` `⇧` + `/`

[DirectX11] 078~79 Point Lighting, HLSL [flatten] [branch]

Lighting

Point Light

HLSL에서의 [ flatten ] vs [ branch ]

Light.fx

Lighting.fx & PointLighting.fx

Lighting

PerFrame

PointLightingDemo

실행화면

'⭐ DirectX > DirectX11 3D' 카테고리의 다른 글

댓글

이 글 공유하기

티스토리툴바

단축키

내 블로그

블로그 게시글

모든 영역

Lighting

Point Light

HLSL에서의 [ flatten ] vs [ branch ]

Light.fx

Lighting.fx & PointLighting.fx

Lighting

PerFrame

PointLightingDemo

실행화면

'⭐ DirectX > DirectX11 3D' 카테고리의 다른 글

댓글

이 글 공유하기

다른 글

[DirectX11] 081~82 Normal Mapping

[DirectX11] 080 Spot Lighting

[DirectX11] 075~77 Lighting, HLSL

[DirectX11] 074 Instancing

티스토리툴바

단축키

내 블로그

블로그 게시글

모든 영역
