[DirectX11] 075~77 Lighting, HLSL

DirectX 11에서 Lighting을 구현하려면, HLSL(고수준 셰이더 언어)을 사용하여 셰이더 코드를 작성해야 한다. HLSL은 Direct3D에서 셰이더 프로그래밍을 위해 사용되는 언어로, 셰이더 코드를 작성하고 컴파일하여 GPU에서 실행할 수 있는 바이너리 코드로 변환한다.

Lighting

Lighting

Lighting을 구현하는 방법은 다양하지만, 일반적으로는 Phong 또는 Blinn-Phong Lighting 모델을 사용한다. 이 모델은 ambient, diffuse, specular lighting을 사용하여 표면의 색상을 계산한다. 각각의 조명 구성 요소는 다음과 같이 계산된다.

Ambient lighting

 float4 ambientColor = float4(0.2, 0.2, 0.2, 1.0); // ambient lighting의 색상값
float4 ambientLight = ambientColor * materialColor; //ambient lighting과 material color를 곱해서 계산

Diffuse lighting

 float3 lightDirection = normalize(float3(0.0, 1.0, 0.0)); // 조명의 방향 벡터
float4 diffuseColor = float4(1.0, 1.0, 1.0, 1.0); // diffuse lighting의 색상값
float4 diffuseLight = saturate(dot(surfaceNormal, lightDirection)) * diffuseColor * materialColor; //surface normal(표면 법선 벡터)와 조명의 방향 벡터의 내적, diffuse lighting과 material color를 곱해서 계산

Specular lighting

 float3 eyeDirection = normalize(eyePosition - surfacePosition); // 눈의 방향 벡터
float3 reflectDirection = reflect(-lightDirection, surfaceNormal); // 조명의 반사 방향 벡터
float4 specularColor = float4(1.0, 1.0, 1.0, 1.0); // specular lighting의 색상값
float4 specularLight = pow(saturate(dot(reflectDirection, eyeDirection)), materialShininess) * specularColor * materialColor; // 반사 방향 벡터와 눈의 방향 벡터의 내적, shininess(광택 정도)의 제곱, specular lighting과 material color를 곱해서 계산

이러한 Lighting 요소들은 조명과 재질(물체의 속성)에 따라 다양하게 계산될 수 있다. 이러한 HLSL 코드는 셰이더에서 조명과 재질을 계산하는 데 사용된다.

Shader
	Light.fx Lighting.fx
UnitTest
	Lighting
	LightingDemo.h .cpp 생성

빛 연산

Diffuse Color x Texture x NdotL(Lambert)

Specular Color x Texture x (Phong)

Light(광원에서 쏘아진 빛), Reflection(반사), Eye(시야로 가는선) 이 있을때

내적 dot(Reflection, Eye)를 구한 뒤
power(R dot E, 상수값) 를 구한다.
- pow(0.5, 10)이라면 0.5^10
- 상수값이 커질수록 원(=범위)은 커지지만 값을 흐려진다.
- 상수값이 작을수록 원(=범위)은 작아지지만 빛이 강해진다.

윤곽선 구하기

윤곽선(=외각선)을 구하는 방법

눈(Eye)의 방향
Normal의 방향
두 개를 사용하여 구할 수 있다.

바라보는 시점의 외각 = Normal 벡터와의 내적

Global.fx

Global.fx

 float3 ViewPosition()
{
    return ViewInverse._41_42_43; //카메라 변환되었던 값을 역행렬로 카메라 원래 위치를 구함
}

카메라의 원본 위치를 구한다.

Light.fx

Light.fx

 struct LightDesc
{
    float4 Ambient;
    float4 Specular;
    float3 Direction;
    float Padding;
    float3 Position;
};

cbuffer CB_Light
{
    LightDesc GlobalLight;
};


Texture2D DiffuseMap;
Texture2D SpecularMap;
Texture2D NormalMap;
TextureCube SkyCubeMap;
Texture2D ShadowMap;
SamplerComparisonState ShadowSampler;

struct MaterialDesc
{
    float4 Ambient;
    float4 Diffuse;
    float4 Specular;
    float4 Emissive;
};

cbuffer CB_Material
{
    MaterialDesc Material;
};

MaterialDesc MakeMaterial()
{
    MaterialDesc output;
    output.Ambient = float4(0, 0, 0, 0);
    output.Diffuse = float4(0, 0, 0, 0);
    output.Specular = float4(0, 0, 0, 0);
    output.Emissive = float4(0, 0, 0, 0);

    return output;
}

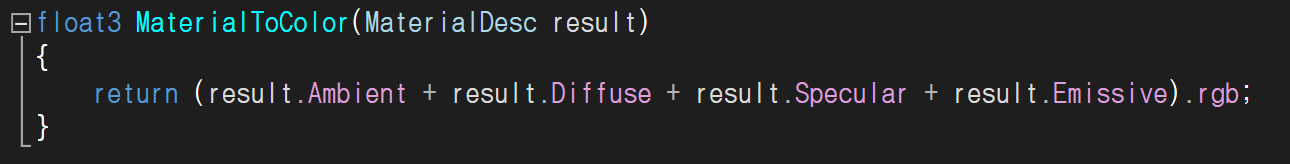

float3 MaterialToColor(MaterialDesc result)
{
    return (result.Ambient + result.Diffuse + result.Specular + result.Emissive).rgb;
}

void AddMaterial(inout MaterialDesc result, MaterialDesc val)
{
    result.Ambient += val.Ambient;
    result.Diffuse += val.Diffuse;
    result.Specular += val.Specular;
    result.Emissive += val.Emissive;
}

void Texture(inout float4 color, Texture2D t, float2 uv, SamplerState samp)
{
    float4 sampling = t.Sample(samp, uv);

    color = color * sampling;
}

void Texture(inout float4 color, Texture2D t, float2 uv)
{
    Texture(color, t, uv, LinearSampler);
}

void ComputeLight(out MaterialDesc output, float3 normal, float3 wPosition)
{
    output = MakeMaterial();

    float3 direction = -GlobalLight.Direction;
    float NdotL = dot(direction, normalize(normal));

    output.Ambient = GlobalLight.Ambient * Material.Ambient;
    float3 E = normalize(ViewPosition() - wPosition);

    [flatten]
    if(NdotL > 0.0f)
    {
        output.Diffuse = Material.Diffuse * NdotL;

        [flatten]
        if(Material.Specular.a > 0.0f)
        {
            float3 R = normalize(reflect(-direction, normal));
            float RdotE = saturate(dot(R, E));

            float specular = pow(RdotE, Material.Specular.a);
            output.Specular = Material.Specular * specular * GlobalLight.Specular;
        }
    }

    [flatten]
    if(Material.Emissive.a > 0.0f)
    {
        float NdotE = dot(E, normalize(normal));
        float emissive = smoothstep(1.0f - Material.Emissive.a, 1.0f, 1.0f - saturate(NdotE));

        output.Emissive = Material.Emissive * emissive;
    }
}

#define MAX_POINT_LIGHTS 256
struct PointLight
{
    float4 Ambient;
    float4 Diffuse;
    float4 Specular;
    float4 Emissive;

    float3 Position;
    float Range;

    float Intensity;
    float3 Padding;
};

cbuffer CB_PointLights
{
    uint PointLightCount;
    float3 CB_PointLights_Padding;

    PointLight PointLights[MAX_POINT_LIGHTS];
};

void ComputePointLight(inout MaterialDesc output, float3 normal, float3 wPosition)
{
    output = MakeMaterial();
    MaterialDesc result = MakeMaterial();

    for (uint i = 0; i < PointLightCount; i++) //PointLight 개수만큼 for문을 돈다.
    {
        float3 light = PointLights[i].Position - wPosition;
        float dist = length(light);


        [flatten]
        if(dist > PointLights[i].Range)
            continue;


        light /= dist; //Normalize

        result.Ambient = PointLights[i].Ambient * Material.Ambient;

        float NdotL = dot(light, normalize(normal));
        float3 E = normalize(ViewPosition() - wPosition);

        [flatten]
        if (NdotL > 0.0f)
        {
            result.Diffuse = Material.Diffuse * NdotL * PointLights[i].Diffuse;

            [flatten]
            if (Material.Specular.a > 0.0f)
            {
                float3 R = normalize(reflect(-light, normal));
                float RdotE = saturate(dot(R, E));

                float specular = pow(RdotE, Material.Specular.a);
                result.Specular = Material.Specular * specular * PointLights[i].Specular;
            }
        }

        [flatten]
        if (Material.Emissive.a > 0.0f)
        {
            float NdotE = dot(E, normalize(normal));
            float emissive = smoothstep(1.0f - Material.Emissive.a, 1.0f, 1.0f - saturate(NdotE));

            result.Emissive = Material.Emissive * emissive * PointLights[i].Emissive;
        }

        float temp = 1.0f / saturate(dist / PointLights[i].Range);
        float att = temp * temp * (1.0f / max(1.0f - PointLights[i].Intensity, 1e-8f));

        output.Ambient += result.Ambient * temp;
        output.Diffuse += result.Diffuse * att;
        output.Specular += result.Specular * att;
        output.Emissive += result.Emissive * att;
    }
}


#define MAX_SPOT_LIGHTS 256
struct SpotLight
{
    float4 Ambient;
    float4 Diffuse;
    float4 Specular;
    float4 Emissive;

    float3 Position;
    float Range;

    float3 Direction;
    float Angle;

    float Intensity;
    float3 Padding;
};

cbuffer CB_SpotLights
{
    uint SpotLightCount;
    float3 CB_SpotLights_Padding;

    SpotLight SpotLights[MAX_SPOT_LIGHTS];
};

void ComputeSpotLight(inout MaterialDesc output, float3 normal, float3 wPosition)
{
    output = MakeMaterial();
    MaterialDesc result = MakeMaterial();

    for (uint i = 0; i < SpotLightCount; i++)
    {
        float3 light = SpotLights[i].Position - wPosition;
        float dist = length(light);


        [flatten]
        if (dist > SpotLights[i].Range)
            continue;


        light /= dist; //Normalize

        result.Ambient = SpotLights[i].Ambient * Material.Ambient;

        float NdotL = dot(light, normalize(normal));
        float3 E = normalize(ViewPosition() - wPosition);

        [flatten]
        if (NdotL > 0.0f)
        {
            result.Diffuse = Material.Diffuse * NdotL * SpotLights[i].Diffuse;

            [flatten]
            if (Material.Specular.a > 0.0f)
            {
                float3 R = normalize(reflect(-light, normal));
                float RdotE = saturate(dot(R, E));

                float specular = pow(RdotE, Material.Specular.a);
                result.Specular = Material.Specular * specular * SpotLights[i].Specular;
            }
        }

        [flatten]
        if (Material.Emissive.a > 0.0f)
        {
            float NdotE = dot(E, normalize(normal));
            float emissive = smoothstep(1.0f - Material.Emissive.a, 1.0f, 1.0f - saturate(NdotE));

            result.Emissive = Material.Emissive * emissive * SpotLights[i].Emissive;
        }


        float temp = pow(saturate(dot(-light, SpotLights[i].Direction)), SpotLights[i].Angle);
        float att = temp * (1.0f / max(1.0f - SpotLights[i].Intensity, 1e-8f));

        output.Ambient += result.Ambient * temp;
        output.Diffuse += result.Diffuse * att;
        output.Specular += result.Specular * att;
        output.Emissive += result.Emissive * att;
    }
}


void NormalMapping(float2 uv, float3 normal, float3 tangent, SamplerState samp)
{
    float4 map = NormalMap.Sample(samp, uv);

    [flatten]
    if (any(map.rgb) == false)
        return;


    float3 coord = map.rgb * 2.0f - 1.0f; //-1 ~ +1


    //탄젠트 공간
    float3 N = normalize(normal); //Z
    float3 T = normalize(tangent - dot(tangent, N) * N); //X
    //float3 T = tangent;
    //float3 T = float3(1, 0, 0);
    float3 B = cross(N, T); //Y

    float3x3 TBN = float3x3(T, B, N);

    coord = mul(coord, TBN);

    Material.Diffuse *= saturate(dot(-GlobalLight.Direction, coord));
}

void NormalMapping(float2 uv, float3 normal, float3 tangent)
{
    NormalMapping(uv, normal, tangent, LinearSampler);
}


float4 PS_AllLight(MeshOutput input)
{
    NormalMapping(input.Uv, input.Normal, input.Tangent);

    Texture(Material.Diffuse, DiffuseMap, input.Uv);
    Texture(Material.Specular, SpecularMap, input.Uv);

    MaterialDesc output = MakeMaterial();
    MaterialDesc result = MakeMaterial();

    ComputeLight(output, input.Normal, input.wPosition);
    AddMaterial(result, output);

    ComputePointLight(output, input.Normal, input.wPosition);
    AddMaterial(result, output);

    ComputeSpotLight(output, input.Normal, input.wPosition);
    AddMaterial(result, output);

    return float4(MaterialToColor(result).rgb, 1.0f);
}


Texture2D ProjectorMap;

struct ProjectorDesc
{
    matrix View;
    matrix Projection;

    float4 Color;
};

cbuffer CB_Projector
{
    ProjectorDesc Projector;
};

void VS_Projector(inout float4 wvp, float4 oPosition)
{
    wvp = WorldPosition(oPosition);
    wvp = mul(wvp, Projector.View);
    wvp = mul(wvp, Projector.Projection);
}

void PS_Projector(inout float4 color, float4 wvp)
{
    float3 uvw = 0;

    uvw.x = wvp.x / wvp.w * 0.5f + 0.5f;
    uvw.y = -wvp.y / wvp.w * 0.5f + 0.5f;
    uvw.z = wvp.z / wvp.w;

    [flatten]
    if (saturate(uvw.x) == uvw.x && saturate(uvw.y) == uvw.y && saturate(uvw.z) == uvw.z)
    {
        float4 map = ProjectorMap.Sample(LinearSampler, uvw.xy);

        map.rgb *= Projector.Color.rgb;
        color = lerp(color, map, map.a);
    }
}


cbuffer CB_Shadow
{
    matrix ShadowView;
    matrix ShadowProjection;

    float2 ShadowMapSize;
    float ShadowBias;

    uint ShadowQuality;
};

ComputeLight 부분 - ComputePointLight, ComputeSpotLight도 같은 원리

 void ComputeLight(out MaterialDesc output, float3 normal, float3 wPosition)
{
    output = MakeMaterial();

    float3 direction = -GlobalLight.Direction;
    float NdotL = dot(direction, normalize(normal));

    output.Ambient = GlobalLight.Ambient * Material.Ambient;
    float3 E = normalize(ViewPosition() - wPosition);

    [flatten]
    if(NdotL > 0.0f)
    {
        output.Diffuse = Material.Diffuse * NdotL;

        [flatten]
        if(Material.Specular.a > 0.0f)
        {
            float3 R = normalize(reflect(-direction, normal));
            float RdotE = saturate(dot(R, E));

            float specular = pow(RdotE, Material.Specular.a);
            output.Specular = Material.Specular * specular * GlobalLight.Specular;
        }
    }

    [flatten]
    if(Material.Emissive.a > 0.0f)
    {
        float NdotE = dot(E, normalize(normal));
        float emissive = smoothstep(1.0f - Material.Emissive.a, 1.0f, 1.0f - saturate(NdotE));

        output.Emissive = Material.Emissive * emissive;
    }
}

Material를 Lighting.fx에 넘겨준다.

Lighting

Lighting.fx

 #include "00_Global.fx"
#include "00_Light.fx"
#include "00_Render.fx"

float4 PS(MeshOutput input) : SV_Target
{
    Texture(Material.Diffuse, DiffuseMap, input.Uv);
    Texture(Material.Specular, SpecularMap, input.Uv);

    MaterialDesc output;
    ComputeLight(output, input.Normal, input.wPosition);

    return float4(MaterialToColor(output), 1.0f);
}

technique11 T0
{
    P_VP(P0, VS_Mesh, PS)
    P_VP(P1, VS_Model, PS)
    P_VP(P2, VS_Animation, PS)
}

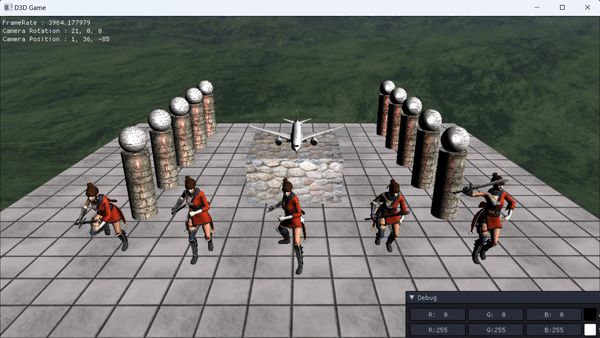

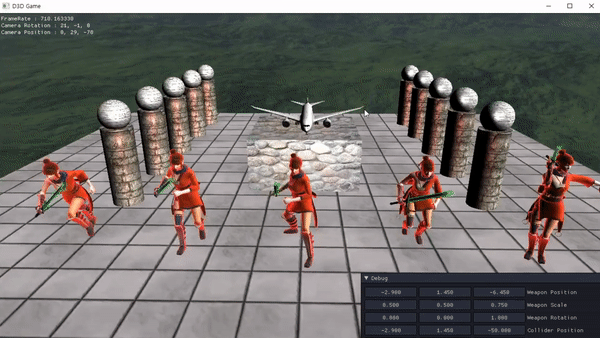

LightingDemo

LightingDemo.h

 #pragma once
#include "Systems/IExecute.h"

class LightingDemo : public IExecute
{
public:
	virtual void Initialize() override;
	virtual void Ready() override {}
	virtual void Destroy() override {}
	virtual void Update() override;
	virtual void PreRender() override {}
	virtual void Render() override;
	virtual void PostRender() override {}
	virtual void ResizeScreen() override {}

private:
	void Mesh();
	void Airplane();
	void Kachujin();
	void KachujinCollider();
	void KachujinWeapon();

	void Pass(UINT mesh, UINT model, UINT anim);

private:
	Shader* shader;

	CubeSky* sky;

	Material* floor;
	Material* stone;
	Material* brick;
	Material* wall;

	MeshRender* cube;
	MeshRender* cylinder;
	MeshRender* sphere;
	MeshRender* grid;

	ModelRender* airplane = NULL;


	ModelAnimator* kachujin = NULL;
	Transform* colliderInitTransforms;
	ColliderObject** colliders;

	ModelRender* weapon = NULL;
	Transform* weaponInitTransform;

	vector<MeshRender *> meshes;
	vector<ModelRender *> models;
	vector<ModelAnimator *> animators;
};

LightingDemo.cpp

 #include "stdafx.h"
#include "LightingDemo.h"

void LightingDemo::Initialize()
{
	Context::Get()->GetCamera()->RotationDegree(20, 0, 0);
	Context::Get()->GetCamera()->Position(1, 36, -85);


	//Performance perfomence;
	//perfomence.Start();
	//{
		shader = new Shader(L"75_Lighting.fxo");
	//}
	//float t = perfomence.End();
	//MessageBox(D3D::GetDesc().Handle, to_wstring(t).c_str(), L"", MB_OK);


	sky = new CubeSky(L"Environment/GrassCube1024.dds");

	Mesh();
	Airplane();

	Kachujin();
	KachujinCollider();
	KachujinWeapon();
}

void LightingDemo::Update()
{
	ImGui::ColorEdit3("Ambient", Context::Get()->Ambient());
	ImGui::ColorEdit3("Specular", Context::Get()->Specular());


	sky->Update();

	cube->Update();
	grid->Update();
	cylinder->Update();
	sphere->Update();

	airplane->Update();
	kachujin->Update();

	Matrix worlds[MAX_MODEL_TRANSFORMS];
	for (UINT i = 0; i < kachujin->GetTransformCount(); i++)
	{
		kachujin->GetAttachTransform(i, worlds);
		//colliders[i]->Collider->GetTransform()->World(worlds[40]);
		//colliders[i]->Collider->Update();

		weapon->GetTransform(i)->World(weaponInitTransform->World() * worlds[40]);
	}

	weapon->UpdateTransforms();
	weapon->Update();
}

void LightingDemo::Render()
{
	sky->Render();


	Pass(0, 1, 2);

	wall->Render();
	sphere->Render();

	brick->Render();
	cylinder->Render();

	stone->Render();
	cube->Render();

	floor->Render();
	grid->Render();

	airplane->Render();

	kachujin->Render();
	weapon->Render();
	//for (UINT i = 0; i < kachujin->GetTransformCount(); i++)
		//colliders[i]->Collider->Render();
}

void LightingDemo::Mesh()
{
	//Create Material
	{
		floor = new Material(shader);
		floor->DiffuseMap("Floor.png");
		floor->Ambient(0.2f, 0.2f, 0.2f, 20);
		floor->Specular(1, 1, 1, 20);
		floor->SpecularMap("Floor_Specular.png");
		//floor->NormalMap("Floor_Normal.png");

		stone = new Material(shader);
		stone->DiffuseMap("Stones.png");
		stone->Ambient(0.2f, 0.2f, 0.2f, 20);
		stone->Specular(1, 1, 1, 20);
		stone->SpecularMap("Stones_Specular.png");
		stone->Emissive(0.15f, 0.15f, 0.15f, 0.3f);
		//stone->NormalMap("Stones_Normal.png");


		brick = new Material(shader);
		brick->DiffuseMap("Bricks.png");
		brick->Ambient(0.2f, 0.2f, 0.2f, 20);
		brick->Specular(1, 0.3f, 0.3f, 20);
		brick->SpecularMap("Bricks_Specular.png");
		brick->Emissive(0.15f, 0.15f, 0.15f, 0.3f);
		//brick->NormalMap("Bricks_Normal.png");

		wall = new Material(shader);
		wall->DiffuseMap("Wall.png");
		wall->Ambient(0.2f, 0.2f, 0.2f, 20);
		wall->Specular(1, 1, 1, 20);
		wall->SpecularMap("Wall_Specular.png");
		wall->Emissive(0.15f, 0.15f, 0.15f, 0.3f);
		//wall->NormalMap("Wall_Normal.png");
	}

	//Create Mesh
	{
		Transform* transform = NULL;

		cube = new MeshRender(shader, new MeshCube());
		transform = cube->AddTransform();
		transform->Position(0, 5, 0);
		transform->Scale(20, 10, 20);

		grid = new MeshRender(shader, new MeshGrid(5, 5));
		transform = grid->AddTransform();
		transform->Position(0, 0, 0);
		transform->Scale(12, 1, 12);

		cylinder = new MeshRender(shader, new MeshCylinder(0.5f, 3.0f, 20, 20));
		sphere = new MeshRender(shader, new MeshSphere(0.5f, 20, 20));
		for (UINT i = 0; i < 5; i++)
		{
			transform = cylinder->AddTransform();
			transform->Position(-30, 6, -15.0f + (float)i * 15.0f);
			transform->Scale(5, 5, 5);

			transform = cylinder->AddTransform();
			transform->Position(30, 6, -15.0f + (float)i * 15.0f);
			transform->Scale(5, 5, 5);


			transform = sphere->AddTransform();
			transform->Position(-30, 15.5f, -15.0f + (float)i * 15.0f);
			transform->Scale(5, 5, 5);

			transform = sphere->AddTransform();
			transform->Position(30, 15.5f, -15.0f + (float)i * 15.0f);
			transform->Scale(5, 5, 5);
		}
	}

	sphere->UpdateTransforms();
	cylinder->UpdateTransforms();
	cube->UpdateTransforms();
	grid->UpdateTransforms();

	meshes.push_back(sphere);
	meshes.push_back(cylinder);
	meshes.push_back(cube);
	meshes.push_back(grid);
}

void LightingDemo::Airplane()
{
	airplane = new ModelRender(shader);
	airplane->ReadMesh(L"B787/Airplane");
	airplane->ReadMaterial(L"B787/Airplane");

	Transform* transform = airplane->AddTransform();
	transform->Position(2.0f, 9.91f, 2.0f);
	transform->Scale(0.004f, 0.004f, 0.004f);
	airplane->UpdateTransforms();

	models.push_back(airplane);
}

void LightingDemo::Kachujin()
{
	kachujin = new ModelAnimator(shader);
	kachujin->ReadMesh(L"Kachujin/Mesh");
	kachujin->ReadMaterial(L"Kachujin/Mesh");
	kachujin->ReadClip(L"Kachujin/Sword And Shield Idle");
	kachujin->ReadClip(L"Kachujin/Sword And Shield Walk");
	kachujin->ReadClip(L"Kachujin/Sword And Shield Run");
	kachujin->ReadClip(L"Kachujin/Sword And Shield Slash");
	kachujin->ReadClip(L"Kachujin/Salsa Dancing");


	Transform* transform = NULL;

	transform = kachujin->AddTransform();
	transform->Position(0, 0, -30);
	transform->Scale(0.075f, 0.075f, 0.075f);
	kachujin->PlayTweenMode(0, 0, 1.0f);

	transform = kachujin->AddTransform();
	transform->Position(-15, 0, -30);
	transform->Scale(0.075f, 0.075f, 0.075f);
	kachujin->PlayTweenMode(1, 1, 1.0f);

	transform = kachujin->AddTransform();
	transform->Position(-30, 0, -30);
	transform->Scale(0.075f, 0.075f, 0.075f);
	kachujin->PlayTweenMode(2, 2, 0.75f);

	transform = kachujin->AddTransform();
	transform->Position(15, 0, -30);
	transform->Scale(0.075f, 0.075f, 0.075f);
	kachujin->PlayBlendMode(3, 0, 1, 2);
	kachujin->SetBlendAlpha(3, 1.5f);

	transform = kachujin->AddTransform();
	transform->Position(30, 0, -32.5f);
	transform->Scale(0.075f, 0.075f, 0.075f);
	kachujin->PlayTweenMode(4, 4, 0.75f);

	kachujin->UpdateTransforms();

	animators.push_back(kachujin);
}

void LightingDemo::KachujinCollider()
{
	UINT count = kachujin->GetTransformCount();
	colliders = new  ColliderObject*[count];

	colliderInitTransforms = new Transform();
	colliderInitTransforms->Position(-2.9f, 1.45f, -50.0f);
	colliderInitTransforms->Scale(5, 5, 75);

	for (UINT i = 0; i < count; i++)
	{
		colliders[i] = new ColliderObject();

		//colliders[i]->Init = new Transform();
		//colliders[i]->Init->Position(0, 0, 0);
		//colliders[i]->Init->Scale(10, 30, 10);

		colliders[i]->Transform = new Transform();
		//colliders[i]->Collider = new Collider(colliders[i]->Transform, colliders[i]->Init);
		colliders[i]->Collider = new Collider(colliders[i]->Transform, colliderInitTransforms);
	}
}

void LightingDemo::KachujinWeapon()
{
	weapon = new ModelRender(shader);
	weapon->ReadMesh(L"Weapon/Sword");
	weapon->ReadMaterial(L"Weapon/Sword");

	UINT count = kachujin->GetTransformCount();
	for (UINT i = 0; i < count; i++)
		weapon->AddTransform();

	weapon->UpdateTransforms();
	models.push_back(weapon);


	weaponInitTransform = new Transform();
	weaponInitTransform->Position(-2.9f, 1.45f, -6.45f);
	weaponInitTransform->Scale(0.5f, 0.5f, 0.75f);
	weaponInitTransform->Rotation(0, 0, 1);
}

void LightingDemo::Pass(UINT mesh, UINT model, UINT anim)
{
	for (MeshRender* temp : meshes)
		temp->Pass(mesh);

	for (ModelRender* temp : models)
		temp->Pass(model);

	for (ModelAnimator* temp : animators)
		temp->Pass(anim);
}

실행화면

Specular를 조정한 결과

윤곽선 효과를 적용한 결과

'⭐ DirectX > DirectX11 3D' 카테고리의 다른 글

[DirectX11] 080 Spot Lighting (0)	2023.03.26
[DirectX11] 078~79 Point Lighting, HLSL [flatten] [branch] (0)	2023.03.21
[DirectX11] 074 Instancing (0)	2023.03.18
[DirectX11] 071~73 Get MultiBones (0)	2023.03.15
[DirectX11] 070 OBB(Oriented Bounding Box) collision (4)	2023.03.14

내 블로그 - 관리자 홈 전환	`Q` `Q`
새 글 쓰기	`W` `W`

글 수정 (권한 있는 경우)	`E` `E`
댓글 영역으로 이동	`C` `C`

이 페이지의 URL 복사	`S` `S`
맨 위로 이동	`T` `T`
티스토리 홈 이동	`H` `H`
단축키 안내	`Shift` + `/` `⇧` + `/`

[DirectX11] 075~77 Lighting, HLSL

Lighting

빛 연산

윤곽선 구하기

Global.fx

Light.fx

Lighting

LightingDemo

실행화면

'⭐ DirectX > DirectX11 3D' 카테고리의 다른 글

댓글

이 글 공유하기

티스토리툴바

단축키

내 블로그

블로그 게시글

모든 영역

Lighting

빛 연산

윤곽선 구하기

Global.fx

Light.fx

Lighting

LightingDemo

실행화면

'⭐ DirectX > DirectX11 3D' 카테고리의 다른 글

댓글

이 글 공유하기

다른 글

[DirectX11] 080 Spot Lighting

[DirectX11] 078~79 Point Lighting, HLSL [flatten] [branch]

[DirectX11] 074 Instancing

[DirectX11] 071~73 Get MultiBones

티스토리툴바

단축키

내 블로그

블로그 게시글

모든 영역
