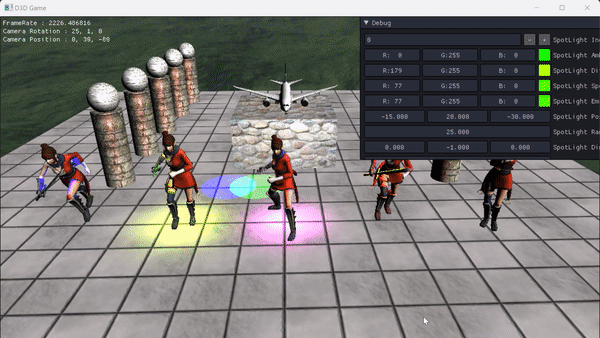

    8. 실행화면

DirectX 11에서 Point Light를 사용하기 위해서는 먼저 씬에서 조명을 설정하고 빛을 발산하는 위치를 지정해야 한다. 이 위치는 3D 공간에서 벡터로 표시된다. 그 다음 셰이더 프로그램에서 Point Light를 처리할 수 있는 코드를 작성해야 한다. 일반적으로 Point Light를 처리하기 위해 사용되는 기술은 Phong Lighting 모델이다.



목차







Lighting



Shader
  Light.fx
Lighting.fx
PointLighting.fx
Framework
  Renders
  PerFrame .cpp
Shader
  Lighting
  PointLightingDemo.h .cpp









Point Light



DirectX 11에서 Point Light를 사용하기 위해서는 먼저 씬에서 조명을 설정하고 빛을 발산하는 위치를 지정해야 한다. 이 위치는 3D 공간에서 벡터로 표시된다.

그 다음 셰이더 프로그램에서 Point Light를 처리할 수 있는 코드를 작성해야 한다. 일반적으로 Point Light를 처리하기 위해 사용되는 기술은 Phong Lighting 모델이다. 이 모델은 조명, 재질, 노말 벡터, 카메라 위치 등의 요소를 고려하여 표면의 색상을 계산한다.

아래는 DirectX 11에서 Point Light를 사용하는 단계이다.

  1. 먼저, Point Light의 위치, 색상 및 반지름을 저장할 구조체나 함수를 정의한다.
  2. 다음으로, Point Light를 표시할 쉐이더를 작성한다. 이 쉐이더는 Point Light의 위치, 색상 및 반지름을 사용하여 조명을 만든다.





IA → VS → RS → PS



광원에서 해당 정점까지의 거리를 구하면 Point Light가 적용되는 범위와 세기를 적용할 수 있다.







HLSL에서의 [ flatten ] vs [ branch ]



[flatten]

  • 최종적인 결과를 합친다.
    • 따라서 분기를 하지 않는다.
    • if를 쓴 후 else를 사용하지 않는다.
  • 실행 속도를 높일 수 있다.



[branch]

  • 둘 다 실행한 후 둘 중에 조건에 맞는것을 선택한다.
  • HLSL에서 아무것도 쓰지 않으면 [branch]로 실행된다.







Light.fx



Light.fx - 추가된 부분

더보기
#define MAX_POINT_LIGHTS 256
struct PointLight
{
    float4 Ambient;
    float4 Diffuse;
    float4 Specular;
    float4 Emissive;

    float3 Position;
    float Range;

    float Intensity;
    float3 Padding;
};

cbuffer CB_PointLights
{
    uint PointLightCount;
    float3 CB_PointLights_Padding;

    PointLight PointLights[MAX_POINT_LIGHTS];
};

void ComputePointLight(inout MaterialDesc output, float3 normal, float3 wPosition)
{
    output = MakeMaterial();
    MaterialDesc result = MakeMaterial();

    for (uint i = 0; i < PointLightCount; i++)
    {
        float3 light = PointLights[i].Position - wPosition;
        float dist = length(light);


        [flatten]
        if(dist > PointLights[i].Range)
            continue;


        light /= dist; //Normalize

        result.Ambient = PointLights[i].Ambient * Material.Ambient;

        float NdotL = dot(light, normalize(normal));
        float3 E = normalize(ViewPosition() - wPosition);

        [flatten]
        if (NdotL > 0.0f)
        {
            result.Diffuse = Material.Diffuse * NdotL * PointLights[i].Diffuse;

            [flatten]
            if (Material.Specular.a > 0.0f)
            {
                float3 R = normalize(reflect(-light, normal));
                float RdotE = saturate(dot(R, E));

                float specular = pow(RdotE, Material.Specular.a);
                result.Specular = Material.Specular * specular * PointLights[i].Specular;
            }
        }

        [flatten]
        if (Material.Emissive.a > 0.0f)
        {
            float NdotE = dot(E, normalize(normal));
            float emissive = smoothstep(1.0f - Material.Emissive.a, 1.0f, 1.0f - saturate(NdotE));

            result.Emissive = Material.Emissive * emissive * PointLights[i].Emissive;
        }

        float temp = 1.0f / saturate(dist / PointLights[i].Range);
        float att = temp * temp * (1.0f / max(1.0f - PointLights[i].Intensity, 1e-8f));

        output.Ambient += result.Ambient * temp;
        output.Diffuse += result.Diffuse * att;
        output.Specular += result.Specular * att;
        output.Emissive += result.Emissive * att;
    }
}

dist > PointLights[i].Range

  • 거리 > Point Light 적용 범위인 경우, 빛 적용이 안 되기 때문에 continue;로 통과.











Lighting.fx & PointLighting.fx



Lighting.fx

더보기
#include "00_Global.fx"
#include "00_Light.fx"
#include "00_Render.fx"

float4 PS(MeshOutput input) : SV_Target
{
    Texture(Material.Diffuse, DiffuseMap, input.Uv);
    Texture(Material.Specular, SpecularMap, input.Uv);

    MaterialDesc output;
    ComputeLight(output, input.Normal, input.wPosition);

    return float4(MaterialToColor(output), 1.0f);
}

technique11 T0
{
    P_VP(P0, VS_Mesh, PS)
    P_VP(P1, VS_Model, PS)
    P_VP(P2, VS_Animation, PS)
}





PointLighting.fx

더보기
#include "00_Global.fx"
#include "00_Light.fx"
#include "00_Render.fx"

float4 PS(MeshOutput input) : SV_Target
{
    Texture(Material.Diffuse, DiffuseMap, input.Uv);
    Texture(Material.Specular, SpecularMap, input.Uv);


    MaterialDesc output = MakeMaterial();
    MaterialDesc result = MakeMaterial();

    ComputeLight(output, input.Normal, input.wPosition);
    AddMaterial(result, output); //output을 result에 넣어준다.

    ComputePointLight(output, input.Normal, input.wPosition);
    AddMaterial(result, output);

    return float4(MaterialToColor(result), 1.0f); //result를 MaterialToColor에 넣어준 후 MaterialToColor에서 (result.Ambient + result.Diffuse + result.Specular + result.Emissive).rgb로 리턴한다.
}

technique11 T0
{
    P_VP(P0, VS_Mesh, PS)
    P_VP(P1, VS_Model, PS)
    P_VP(P2, VS_Animation, PS)
}









Lighting



Lighting.h

더보기
#pragma once

#define MAX_POINT_LIGHTS 256
struct PointLight
{
	Color Ambient;
	Color Diffuse;
	Color Specular;
	Color Emissive;

	Vector3 Position;
	float Range;

	float Intensity;
	Vector3 Padding;
};

#define MAX_SPOT_LIGHTS 256
struct SpotLight
{
	Color Ambient;
	Color Diffuse;
	Color Specular;
	Color Emissive;

	Vector3 Position;
	float Range;

	Vector3 Direction;
	float Angle;

	float Intensity;
	float Padding[3];
};

class Lighting
{
public:
	//싱글톤 패턴
	static Lighting* Get();
	static void Create();
	static void Delete();

private:
	Lighting();
	~Lighting();

public:
	UINT PointLightCount() { return pointLightCount; }
	UINT PointLights(OUT PointLight* lights); //PointLight 전체를 리턴 받을때 배열로 받아 개수 리턴
	void AddPointLight(PointLight& light); //PointLight 추가
	PointLight& GetPointLight(UINT index); //PointLight 하나씩 가져올때 사용

public:
	UINT SpotLightCount() { return spotLightCount; }
	UINT SpotLights(OUT SpotLight* lights);
	void AddSpotLight(SpotLight& light);
	SpotLight& GetSpotLight(UINT index);

private:
	static Lighting* instance; //싱글톤 패턴

private:
	UINT pointLightCount = 0;
	PointLight pointLights[MAX_POINT_LIGHTS];

private:
	UINT spotLightCount = 0;
	SpotLight spotLights[MAX_SPOT_LIGHTS];
};

싱글톤 패턴

  • static Lighting* Get();
  • static void Create();
  • static void Delete();
  • static Lighting* instance;







Lighting.cpp

더보기
#include "Framework.h"
#include "Lighting.h"

Lighting* Lighting::instance = NULL;

Lighting * Lighting::Get()
{
	assert(instance != NULL);

	return instance;
}

void Lighting::Create()
{
	assert(instance == NULL);

	instance = new Lighting();
}

void Lighting::Delete()
{
	SafeDelete(instance);
}

Lighting::Lighting()
{

}

Lighting::~Lighting()
{

}

UINT Lighting::PointLights(OUT PointLight * lights)
{
	memcpy(lights, pointLights, sizeof(PointLight) * pointLightCount);

	return pointLightCount;
}

void Lighting::AddPointLight(PointLight & light)
{
	pointLights[pointLightCount] = light;
	pointLightCount++;
}

PointLight & Lighting::GetPointLight(UINT index)
{
	return pointLights[index];
}

UINT Lighting::SpotLights(OUT SpotLight * lights)
{
	memcpy(lights, spotLights, sizeof(SpotLight) * spotLightCount);

	return spotLightCount;
}

void Lighting::AddSpotLight(SpotLight & light)
{
	spotLights[spotLightCount] = light;
	spotLightCount++;
}

SpotLight & Lighting::GetSpotLight(UINT index)
{
	return spotLights[index];
}







PerFrame



PerFrame.h

더보기
#pragma once

class PerFrame
{
public:
	PerFrame(Shader* shader);
	~PerFrame();

	void Update();
	void Render();

private:
	struct Desc
	{
		Matrix View;
		Matrix ViewInverse;
		Matrix Projection;
		Matrix VP;

		Plane Culling[4];
		Plane Clipping;

		float Time;
		float Padding[3];
	} desc;

	struct LightDesc
	{
		Color Ambient;
		Color Specular;
		Vector3 Direction;
		float Padding;

		Vector3 Position;
		float Padding2;
	} lightDesc;

	struct PointLightDesc
	{
		UINT Count = 0;
		float Padding[3];

		PointLight Lights[MAX_POINT_LIGHTS];
	} pointLightDesc;

	struct SpotLightDesc
	{
		UINT Count = 0;
		float Padding[3];

		SpotLight Lights[MAX_SPOT_LIGHTS];
	} spotLightDesc;

private:
	Shader* shader;

	ConstantBuffer* buffer;
	ID3DX11EffectConstantBuffer* sBuffer;

	ConstantBuffer* lightBuffer;
	ID3DX11EffectConstantBuffer* sLightBuffer;

	ConstantBuffer* pointLightBuffer;
	ID3DX11EffectConstantBuffer* sPointLightBuffer;

	ConstantBuffer* spotLightBuffer;
	ID3DX11EffectConstantBuffer* sSpotLightBuffer;
};





PerFrame.cpp

더보기
#include "Framework.h"
#include "PerFrame.h"

PerFrame::PerFrame(Shader * shader)
	: shader(shader)
{
	buffer = new ConstantBuffer(&desc, sizeof(Desc));
	sBuffer = shader->AsConstantBuffer("CB_PerFrame");

	lightBuffer = new ConstantBuffer(&lightDesc, sizeof(LightDesc));
	sLightBuffer = shader->AsConstantBuffer("CB_Light");

	pointLightBuffer = new ConstantBuffer(&pointLightDesc, sizeof(PointLightDesc));
	sPointLightBuffer = shader->AsConstantBuffer("CB_PointLights");

	spotLightBuffer = new ConstantBuffer(&spotLightDesc, sizeof(SpotLightDesc));
	sSpotLightBuffer = shader->AsConstantBuffer("CB_SpotLights");
}

PerFrame::~PerFrame()
{
	SafeDelete(buffer);
	SafeDelete(lightBuffer);
	SafeDelete(pointLightBuffer);
	SafeDelete(spotLightBuffer);
}

void PerFrame::Update()
{
	desc.Time = Time::Get()->Running();

	lightDesc.Ambient = Context::Get()->Ambient();
	lightDesc.Specular = Context::Get()->Specular();
	lightDesc.Direction = Context::Get()->Direction();
	lightDesc.Position = Context::Get()->Position();

	pointLightDesc.Count = Lighting::Get()->PointLights(pointLightDesc.Lights);
	spotLightDesc.Count = Lighting::Get()->SpotLights(spotLightDesc.Lights);
}

void PerFrame::Render()
{
	desc.View = Context::Get()->View();
	D3DXMatrixInverse(&desc.ViewInverse, NULL, &desc.View);

	desc.Projection = Context::Get()->Projection();
	desc.VP = desc.View * desc.Projection;

	buffer->Render();
	sBuffer->SetConstantBuffer(buffer->Buffer());

	lightBuffer->Render();
	sLightBuffer->SetConstantBuffer(lightBuffer->Buffer());

	pointLightBuffer->Render();
	sPointLightBuffer->SetConstantBuffer(pointLightBuffer->Buffer());

	spotLightBuffer->Render();
	sSpotLightBuffer->SetConstantBuffer(spotLightBuffer->Buffer());
}









PointLightingDemo



PointLightingDemo.h

더보기
#pragma once
#include "Systems/IExecute.h"

class PointLightingDemo : public IExecute
{
public:
	virtual void Initialize() override;
	virtual void Ready() override {}
	virtual void Destroy() override {}
	virtual void Update() override;
	virtual void PreRender() override {}
	virtual void Render() override;
	virtual void PostRender() override {}
	virtual void ResizeScreen() override {}

private:
	void Mesh();
	void Airplane();
	void Kachujin();
	void KachujinCollider();
	void KachujinWeapon();
	void PointLighting();

	void Pass(UINT mesh, UINT model, UINT anim);

private:
	Shader* shader;

	CubeSky* sky;

	Material* floor;
	Material* stone;
	Material* brick;
	Material* wall;

	MeshRender* cube;
	MeshRender* cylinder;
	MeshRender* sphere;
	MeshRender* grid;

	ModelRender* airplane = NULL;


	ModelAnimator* kachujin = NULL;
	Transform* colliderInitTransforms;
	ColliderObject** colliders;

	ModelRender* weapon = NULL;
	Transform* weaponInitTransform;

	vector<MeshRender *> meshes;
	vector<ModelRender *> models;
	vector<ModelAnimator *> animators;
};





PointLightingDemo.cpp

더보기
#include "stdafx.h"
#include "PointLightingDemo.h"

void PointLightingDemo::Initialize()
{
	Context::Get()->GetCamera()->RotationDegree(20, 0, 0);
	Context::Get()->GetCamera()->Position(1, 36, -85);


	//Performance perfomence;
	//perfomence.Start();
	//{
		shader = new Shader(L"78_PointLighting.fxo");
	//}
	//float t = perfomence.End();
	//MessageBox(D3D::GetDesc().Handle, to_wstring(t).c_str(), L"", MB_OK);


	sky = new CubeSky(L"Environment/GrassCube1024.dds");

	Mesh();
	Airplane();

	Kachujin();
	KachujinCollider();
	KachujinWeapon();

	PointLighting();
}

void PointLightingDemo::Update()
{
	PointLight& pointLight = Lighting::Get()->GetPointLight(0);
	ImGui::Begin("Point Lighting");
	{
		ImGui::ColorEdit3("Ambient", pointLight.Ambient);
		ImGui::ColorEdit3("Diffuse", pointLight.Diffuse);
		ImGui::ColorEdit3("Specular", pointLight.Specular);
		ImGui::ColorEdit3("Emissive", pointLight.Emissive);

		ImGui::SliderFloat3("Position", pointLight.Position, -50, 50);
		ImGui::SliderFloat("Range", &pointLight.Range, 0, 20);
		ImGui::SliderFloat("Intensity", &pointLight.Intensity, 0, 1);
	}
	ImGui::End();


	//Weapon
	{
		Vector3 position;
		weaponInitTransform->Position(&position);
		ImGui::SliderFloat3("Weapon Position", position, -20, 20);

		Vector3 scale;
		weaponInitTransform->Scale(&scale);
		ImGui::SliderFloat3("Weapon Scale", scale, 0.1f, 3.0f);

		Vector3 rotation;
		weaponInitTransform->Rotation(&rotation);
		ImGui::SliderFloat3("Weapon Rotation", rotation, -1.0f, 1.0f);

		weaponInitTransform->Position(position);
		weaponInitTransform->Scale(scale);
		weaponInitTransform->Rotation(rotation);
	}

	//Collider
	{
		Vector3 position;
		colliderInitTransforms->Position(&position);
		ImGui::SliderFloat3("Collider Position", position, -20, 20);

		Vector3 scale;
		colliderInitTransforms->Scale(&scale);
		ImGui::SliderFloat3("Collider Scale", scale, 10.0f, 100.0f);

		Vector3 rotation;
		colliderInitTransforms->Rotation(&rotation);
		ImGui::SliderFloat3("Collider Rotation", rotation, -1.0f, 1.0f);

		colliderInitTransforms->Position(position);
		colliderInitTransforms->Scale(scale);
		colliderInitTransforms->Rotation(rotation);
	}


	sky->Update();

	cube->Update();
	grid->Update();
	cylinder->Update();
	sphere->Update();

	airplane->Update();
	kachujin->Update();

	Matrix worlds[MAX_MODEL_TRANSFORMS];
	for (UINT i = 0; i < kachujin->GetTransformCount(); i++)
	{
		kachujin->GetAttachTransform(i, worlds);
		//colliders[i]->Collider->GetTransform()->World(worlds[40]);
		//colliders[i]->Collider->Update();

		weapon->GetTransform(i)->World(weaponInitTransform->World() * worlds[40]);
	}

	weapon->UpdateTransforms();
	weapon->Update();
}

void PointLightingDemo::Render()
{
	sky->Render();


	Pass(0, 1, 2);

	wall->Render();
	sphere->Render();

	brick->Render();
	cylinder->Render();

	stone->Render();
	cube->Render();

	floor->Render();
	grid->Render();

	airplane->Render();

	kachujin->Render();
	weapon->Render();
	//for (UINT i = 0; i < kachujin->GetTransformCount(); i++)
		//colliders[i]->Collider->Render();
}

void PointLightingDemo::Mesh()
{
	//Create Material
	{
		floor = new Material(shader);
		floor->DiffuseMap("Floor.png");
		floor->Specular(1, 1, 1, 20);
		floor->SpecularMap("Floor_Specular.png");
		//floor->NormalMap("Floor_Normal.png");

		stone = new Material(shader);
		stone->DiffuseMap("Stones.png");
		stone->Specular(1, 1, 1, 20);
		stone->SpecularMap("Stones_Specular.png");
		stone->Emissive(0.15f, 0.15f, 0.15f, 0.3f);
		//stone->NormalMap("Stones_Normal.png");


		brick = new Material(shader);
		brick->DiffuseMap("Bricks.png");
		brick->Specular(1, 0.3f, 0.3f, 20);
		brick->SpecularMap("Bricks_Specular.png");
		brick->Emissive(0.15f, 0.15f, 0.15f, 0.3f);
		//brick->NormalMap("Bricks_Normal.png");

		wall = new Material(shader);
		wall->DiffuseMap("Wall.png");
		wall->Specular(1, 1, 1, 20);
		wall->SpecularMap("Wall_Specular.png");
		wall->Emissive(0.15f, 0.15f, 0.15f, 0.3f);
		//wall->NormalMap("Wall_Normal.png");
	}

	//Create Mesh
	{
		Transform* transform = NULL;

		cube = new MeshRender(shader, new MeshCube());
		transform = cube->AddTransform();
		transform->Position(0, 5, 0);
		transform->Scale(20, 10, 20);

		grid = new MeshRender(shader, new MeshGrid(5, 5));
		transform = grid->AddTransform();
		transform->Position(0, 0, 0);
		transform->Scale(12, 1, 12);

		cylinder = new MeshRender(shader, new MeshCylinder(0.5f, 3.0f, 20, 20));
		sphere = new MeshRender(shader, new MeshSphere(0.5f, 20, 20));
		for (UINT i = 0; i < 5; i++)
		{
			transform = cylinder->AddTransform();
			transform->Position(-30, 6, -15.0f + (float)i * 15.0f);
			transform->Scale(5, 5, 5);

			transform = cylinder->AddTransform();
			transform->Position(30, 6, -15.0f + (float)i * 15.0f);
			transform->Scale(5, 5, 5);


			transform = sphere->AddTransform();
			transform->Position(-30, 15.5f, -15.0f + (float)i * 15.0f);
			transform->Scale(5, 5, 5);

			transform = sphere->AddTransform();
			transform->Position(30, 15.5f, -15.0f + (float)i * 15.0f);
			transform->Scale(5, 5, 5);
		}
	}

	sphere->UpdateTransforms();
	cylinder->UpdateTransforms();
	cube->UpdateTransforms();
	grid->UpdateTransforms();

	meshes.push_back(sphere);
	meshes.push_back(cylinder);
	meshes.push_back(cube);
	meshes.push_back(grid);
}

void PointLightingDemo::Airplane()
{
	airplane = new ModelRender(shader);
	airplane->ReadMesh(L"B787/Airplane");
	airplane->ReadMaterial(L"B787/Airplane");

	Transform* transform = airplane->AddTransform();
	transform->Position(2.0f, 9.91f, 2.0f);
	transform->Scale(0.004f, 0.004f, 0.004f);
	airplane->UpdateTransforms();

	models.push_back(airplane);
}

void PointLightingDemo::Kachujin()
{
	kachujin = new ModelAnimator(shader);
	kachujin->ReadMesh(L"Kachujin/Mesh");
	kachujin->ReadMaterial(L"Kachujin/Mesh");
	kachujin->ReadClip(L"Kachujin/Sword And Shield Idle");
	kachujin->ReadClip(L"Kachujin/Sword And Shield Walk");
	kachujin->ReadClip(L"Kachujin/Sword And Shield Run");
	kachujin->ReadClip(L"Kachujin/Sword And Shield Slash");
	kachujin->ReadClip(L"Kachujin/Salsa Dancing");


	Transform* transform = NULL;

	transform = kachujin->AddTransform();
	transform->Position(0, 0, -30);
	transform->Scale(0.075f, 0.075f, 0.075f);
	kachujin->PlayTweenMode(0, 0, 1.0f);

	transform = kachujin->AddTransform();
	transform->Position(-15, 0, -30);
	transform->Scale(0.075f, 0.075f, 0.075f);
	kachujin->PlayTweenMode(1, 1, 1.0f);

	transform = kachujin->AddTransform();
	transform->Position(-30, 0, -30);
	transform->Scale(0.075f, 0.075f, 0.075f);
	kachujin->PlayTweenMode(2, 2, 0.75f);

	transform = kachujin->AddTransform();
	transform->Position(15, 0, -30);
	transform->Scale(0.075f, 0.075f, 0.075f);
	kachujin->PlayBlendMode(3, 0, 1, 2);
	kachujin->SetBlendAlpha(3, 1.5f);

	transform = kachujin->AddTransform();
	transform->Position(30, 0, -32.5f);
	transform->Scale(0.075f, 0.075f, 0.075f);
	kachujin->PlayTweenMode(4, 4, 0.75f);

	kachujin->UpdateTransforms();

	animators.push_back(kachujin);
}

void PointLightingDemo::KachujinCollider()
{
	UINT count = kachujin->GetTransformCount();
	colliders = new  ColliderObject*[count];

	colliderInitTransforms = new Transform();
	colliderInitTransforms->Position(-2.9f, 1.45f, -50.0f);
	colliderInitTransforms->Scale(5, 5, 75);

	for (UINT i = 0; i < count; i++)
	{
		colliders[i] = new ColliderObject();

		//colliders[i]->Init = new Transform();
		//colliders[i]->Init->Position(0, 0, 0);
		//colliders[i]->Init->Scale(10, 30, 10);

		colliders[i]->Transform = new Transform();
		//colliders[i]->Collider = new Collider(colliders[i]->Transform, colliders[i]->Init);
		colliders[i]->Collider = new Collider(colliders[i]->Transform, colliderInitTransforms);
	}
}

void PointLightingDemo::KachujinWeapon()
{
	weapon = new ModelRender(shader);
	weapon->ReadMesh(L"Weapon/Sword");
	weapon->ReadMaterial(L"Weapon/Sword");

	UINT count = kachujin->GetTransformCount();
	for (UINT i = 0; i < count; i++)
		weapon->AddTransform();

	weapon->UpdateTransforms();
	models.push_back(weapon);


	weaponInitTransform = new Transform();
	weaponInitTransform->Position(-2.9f, 1.45f, -6.45f);
	weaponInitTransform->Scale(0.5f, 0.5f, 0.75f);
	weaponInitTransform->Rotation(0, 0, 1);
}

void PointLightingDemo::PointLighting()
{
	PointLight light;
	light =
	{
		Color(0.0f, 0.0f, 0.0f, 1.0f), //Ambient
		Color(0.0f, 0.0f, 1.0f, 1.0f), //Diffuse
		Color(0.0f, 0.0f, 0.7f, 1.0f), //Specular
		Color(0.0f, 0.0f, 0.7f, 1.0f), //Emissive
		Vector3(-30, 10, -30), 5.0f, 0.9f
	};
	Lighting::Get()->AddPointLight(light);

	light =
	{
		Color(0.0f, 0.0f, 0.0f, 1.0f),
		Color(1.0f, 0.0f, 0.0f, 1.0f),
		Color(0.6f, 0.2f, 0.0f, 1.0f),
		Color(0.6f, 0.3f, 0.0f, 1.0f),
		Vector3(15, 10, -30), 10.0f, 0.3f
	};
	Lighting::Get()->AddPointLight(light);

	light =
	{
		Color(0.0f, 0.0f, 0.0f, 1.0f), //Ambient
		Color(0.0f, 1.0f, 0.0f, 1.0f), //Diffuse
		Color(0.0f, 0.7f, 0.0f, 1.0f), //Specular
		Color(0.0f, 0.7f, 0.0f, 1.0f), //Emissive
		Vector3(-5, 1, -17.5f), 5.0f, 0.9f
	};
	Lighting::Get()->AddPointLight(light);

	light =
	{
		Color(0.0f, 0.0f, 0.0f, 1.0f),
		Color(0.0f, 0.0f, 1.0f, 1.0f),
		Color(0.0f, 0.0f, 0.7f, 1.0f),
		Color(0.0f, 0.0f, 0.7f, 1.0f),
		Vector3(-10, 1, -17.5f), 5.0f, 0.9f
	};
	Lighting::Get()->AddPointLight(light);
}

void PointLightingDemo::Pass(UINT mesh, UINT model, UINT anim)
{
	for (MeshRender* temp : meshes)
		temp->Pass(mesh);

	for (ModelRender* temp : models)
		temp->Pass(model);

	for (ModelAnimator* temp : animators)
		temp->Pass(anim);
}



PointLight부분 코드

더보기
void PointLightingDemo::PointLighting()
{
	PointLight light;
	light =
	{
		Color(0.0f, 0.0f, 0.0f, 1.0f), //Ambient
		Color(0.0f, 0.0f, 1.0f, 1.0f), //Diffuse
		Color(0.0f, 0.0f, 0.7f, 1.0f), //Specular
		Color(0.0f, 0.0f, 0.7f, 1.0f), //Emissive
		Vector3(-30, 10, -30), 5.0f, 0.9f
	};
	Lighting::Get()->AddPointLight(light);
}







실행화면





'⭐ DirectX > DirectX11 3D' 카테고리의 다른 글

[DirectX11] 081~82 Normal Mapping  (0) 2023.03.27
[DirectX11] 080 Spot Lighting  (0) 2023.03.26
[DirectX11] 075~77 Lighting, HLSL  (0) 2023.03.18
[DirectX11] 074 Instancing  (0) 2023.03.18
[DirectX11] 071~73 Get MultiBones  (0) 2023.03.15

다른 글

다른 글 더 둘러보기

티스토리툴바
