[DirectX11] 095 Particle Editor

DirectX11의 Particle Editor는 DirectX11 응용 프로그램에서 사용할 입자 효과를 만들고 관리하는 데 사용되는 소프트웨어 도구이다. 그것은 개발자들이 개별 입자의 행동과 모양을 제어함으로써 연기, 화재, 물, 폭발과 같은 복잡하고 역동적인 효과를 만들 수 있게 한다.



목차





---

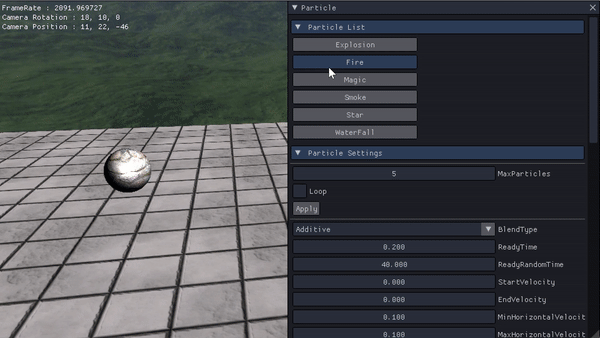

Particle Editor



파티클 편집기에는 일반적으로 개발자가 파티클 시스템을 시각적으로 만들고 수정할 수 있는 시각적 편집기가 포함되어 있다. 일반적으로 크기, 색상, 불투명도 및 수명과 같은 입자 속성에 대한 제어를 제공하며 개발자가 입자 시스템의 동작 및 모양을 실시간으로 조정할 수 있다. 또한 DirectX11의 Particle Editor는 개발자가 입자에 이미지를 적용할 수 있는 텍스처 매핑 및 고급 물리 시뮬레이션과 같은 기능을 제공하여 보다 현실적인 입자 효과를 생성할 수 있다.

파티클 시스템이 생성되면 XML 또는 JSON과 같은 다양한 파일 형식으로 내보낼 수 있으며, DirectX11 응용 프로그램에서 쉽게 로드하고 사용할 수 있다. 내보낸 입자 시스템은 개발자가 고급 입자 효과를 효율적으로 구현할 수 있는 Direct3D 11 Compute Shader와 같은 DirectX11의 입자 시스템 API를 사용하여 애플리케이션에 통합할 수 있다.





Shaders
	Particle.fx
Framework
	Particle
	ParticleData.h ParticleSystem.h .cpp
ParticleEditor
	Editor.h .cpp 생성 Viewer.h. cpp Main.h .cpp





---



ParticleSystem



ParticleSystem.h

#pragma once

class ParticleSystem : public Renderer
{
public:
	ParticleSystem(wstring file);
	~ParticleSystem();

	void Reset(); //초기화 함수
	void Add(Vector3& position); //외부에서 추가

public:
	void Update();//업데이트 함수. 외부에서 Update를 콜할때 사용

private:
	void MapVertices();
	void Activate();
	void Deactivate();

public:
	void Render();

	ParticleData& GetData() { return data; }
	void SetTexture(wstring file);


private:
	void ReadFile(wstring file);

private:
	struct VertexParticle
	{
		Vector3 Position;
		Vector2 Corner; //(-1 ~ +1)
		Vector3 Velocity; //파티클이 움직이는 속도
		Vector4 Random; //x:주기, y:크기, z:회전, w:색상
		float Time; //현재 속도
	};

private:
	struct Desc
	{
		Color MinColor;
		Color MaxColor;

		Vector3 Gravity;
		float EndVelocity;

		Vector2 StartSize;
		Vector2 EndSize;

		Vector2 RotateSpeed;
		float ReadyTime;
		float ReadyRandomTime;

		float ColorAmount;
		float CurrentTime;
		float Padding[2];
	} desc;

private:
	ParticleData data; //파티클 정보

	Texture* map = NULL;
	ID3DX11EffectShaderResourceVariable* sMap;

	ConstantBuffer* buffer;
	ID3DX11EffectConstantBuffer* sBuffer;


	VertexParticle* vertices = NULL;
	UINT* indices = NULL;

	float currentTime = 0.0f; //현재 시간
	float lastAddTime = 0.0f; //마지막 파티클이 추가된 시간

	UINT leadCount = 0;
	UINT gpuCount = 0;
	UINT activeCount = 0;
	UINT deactiveCount = 0;
};







ParticleSystem.cpp

#include "Framework.h"
#include "ParticleSystem.h"
#include "Utilities/Xml.h"

ParticleSystem::ParticleSystem(wstring file)
	: Renderer(L"89_Particle.fxo")
{
	ReadFile(L"../../_Textures/Particles/" + file + L".xml");//.xml파일을 읽는다.

	buffer = new ConstantBuffer(&desc, sizeof(Desc));
	sBuffer = shader->AsConstantBuffer("CB_Particle");

	sMap = shader->AsSRV("ParticleMap");

	Reset();
}

ParticleSystem::~ParticleSystem()
{
	SafeDelete(map);
	SafeDelete(buffer);

	SafeDeleteArray(vertices);
	SafeDeleteArray(indices);
}

void ParticleSystem::Reset()
{
	currentTime = 0.0f;
	lastAddTime = Time::Get()->Running();
	gpuCount = leadCount = activeCount = deactiveCount = 0;


	SafeDeleteArray(vertices);
	SafeDeleteArray(indices);

	SafeDelete(vertexBuffer);
	SafeDelete(indexBuffer);

	vertices = new VertexParticle[data.MaxParticles * 4];
	for (UINT i = 0; i < data.MaxParticles; i++)
	{
		vertices[i * 4 + 0].Corner = Vector2(-1, -1);
		vertices[i * 4 + 1].Corner = Vector2(-1, +1);
		vertices[i * 4 + 2].Corner = Vector2(+1, -1);
		vertices[i * 4 + 3].Corner = Vector2(+1, +1);
	}

	indices = new UINT[data.MaxParticles * 6];
	for (UINT i = 0; i < data.MaxParticles; i++)
	{
		indices[i * 6 + 0] = i * 4 + 0;
		indices[i * 6 + 1] = i * 4 + 1;
		indices[i * 6 + 2] = i * 4 + 2;
		indices[i * 6 + 3] = i * 4 + 2;
		indices[i * 6 + 4] = i * 4 + 1;
		indices[i * 6 + 5] = i * 4 + 3;
	}

	vertexBuffer = new VertexBuffer(vertices, data.MaxParticles * 4, sizeof(VertexParticle), 0, true); //정점 버퍼
	indexBuffer = new IndexBuffer(indices, data.MaxParticles * 6); //인덱스 버퍼
}

void ParticleSystem::Add(Vector3 & position)
{
	if (Time::Get()->Running() - lastAddTime < 60.0f / 1000.0f) //60프레임 제한
		return;

	lastAddTime = Time::Get()->Running();


	UINT count = leadCount + 1; //시작해서 갈 카운트

	if (count >= data.MaxParticles)
	{
		if (data.bLoop == true)
		{
			count = 0;
		}
		else
		{
			count = data.MaxParticles;

			return;
		}
	}


	if (count == deactiveCount)
		return;


	Vector3 velocity = Vector3(1, 1, 1); //기본 속도이자 방향
	velocity *= data.StartVelocity;

	float horizontalVelocity = Math::Lerp(data.MinHorizontalVelocity, data.MaxHorizontalVelocity, Math::Random(0.0f, 1.0f));//수평이동 속도를 선형보간으로 만든다.
	float horizontalAngle = Math::PI * 2.0f * Math::Random(0.0f, 1.0f);//z방향 회전

	velocity.x += horizontalVelocity * cosf(horizontalAngle);//x속도
	velocity.y += horizontalVelocity * sinf(horizontalAngle);//y속도
	velocity.z += Math::Lerp(data.MinHorizontalVelocity, data.MaxHorizontalVelocity, Math::Random(0.0f, 1.0f));//z속도


	Vector4 random = Math::RandomVec4(0.0f, 1.0f);

	for (UINT i = 0; i < 4; i++)
	{
		vertices[leadCount * 4 + i].Position = position;
		vertices[leadCount * 4 + i].Velocity = velocity;
		vertices[leadCount * 4 + i].Random = random;
		vertices[leadCount * 4 + i].Time = currentTime;
	}

	leadCount = count;
}

void ParticleSystem::Update()
{
	Super::Update();

	currentTime += Time::Delta();

	MapVertices();
	Activate();
	Deactivate();

	if (activeCount == leadCount)
		currentTime = 0.0f;


	desc.MinColor = data.MinColor;
	desc.MaxColor = data.MaxColor;
	desc.ColorAmount = data.ColorAmount;

	desc.Gravity = data.Gravity;
	desc.EndVelocity = data.EndVelocity;

	desc.RotateSpeed = Vector2(data.MinRotateSpeed, data.MaxRotateSpeed);
	desc.StartSize = Vector2(data.MinStartSize, data.MaxStartSize);
	desc.EndSize = Vector2(data.MinEndSize, data.MaxEndSize);

	desc.ReadyTime = data.ReadyTime;
	desc.ReadyRandomTime = data.ReadyRandomTime;
}

void ParticleSystem::MapVertices()
{
	if (gpuCount == leadCount) return;

	D3D11_MAPPED_SUBRESOURCE subResource;

	if (leadCount > gpuCount)
	{
		D3D::GetDC()->Map(vertexBuffer->Buffer(), 0, D3D11_MAP_WRITE_NO_OVERWRITE, 0, &subResource);
		{
			UINT start = gpuCount * 4;
			UINT size = (leadCount - gpuCount) * sizeof(VertexParticle) * 4;
			UINT offset = gpuCount * sizeof(VertexParticle) * 4;

			BYTE* p = (BYTE *)subResource.pData + offset;
			memcpy(p, vertices + start, size);
		}
		D3D::GetDC()->Unmap(vertexBuffer->Buffer(), 0);
	}
	else //(leadCount < gpuCount)인 경우
	{
		D3D::GetDC()->Map(vertexBuffer->Buffer(), 0, D3D11_MAP_WRITE_NO_OVERWRITE, 0, &subResource);
		{
			UINT start = gpuCount * 4;
			UINT size = (data.MaxParticles - gpuCount) * sizeof(VertexParticle) * 4;
			UINT offset = gpuCount * sizeof(VertexParticle) * 4;

			BYTE* p = (BYTE *)subResource.pData + offset;
			memcpy(p, vertices + start, size);
		}

		if (leadCount > 0)
		{
			UINT size = leadCount * sizeof(VertexParticle) * 4;

			memcpy(subResource.pData, vertices, size);
		}

		D3D::GetDC()->Unmap(vertexBuffer->Buffer(), 0);
	}

	gpuCount = leadCount;
}

void ParticleSystem::Activate()
{
	while (activeCount != gpuCount)
	{
		float age = currentTime - vertices[activeCount * 4].Time;

		if (age < data.ReadyTime)
			return;

		vertices[activeCount * 4].Time = currentTime;
		activeCount++;

		if (activeCount >= data.MaxParticles)
			activeCount = (data.bLoop == true) ? 0 : data.MaxParticles;
	}
}

void ParticleSystem::Deactivate()
{
	while (activeCount != deactiveCount)
	{
		float age = currentTime - vertices[deactiveCount * 4].Time;

		if (age > data.ReadyTime)
			return;

		deactiveCount++;

		if (deactiveCount >= data.MaxParticles)
			deactiveCount = (data.bLoop == true) ? 0 : data.MaxParticles;
	}
}

void ParticleSystem::Render()
{
	Super::Render();


	desc.CurrentTime = currentTime;

	buffer->Render();
	sBuffer->SetConstantBuffer(buffer->Buffer());

	sMap->SetResource(map->SRV());

	if (leadCount == activeCount)
		return;


	UINT pass = (UINT)data.Type;
	if (leadCount > activeCount)
	{
		shader->DrawIndexed(0, pass, (leadCount - activeCount) * 6, activeCount * 6);
	}
	else
	{
		shader->DrawIndexed(0, pass, (data.MaxParticles - activeCount) * 6, activeCount * 6);

		if (leadCount > 0)
			shader->DrawIndexed(0, pass, leadCount * 6);
	}
}

void ParticleSystem::SetTexture(wstring file)
{
	SafeDelete(map);

	map = new Texture(file);
}

void ParticleSystem::ReadFile(wstring file)
{
	Xml::XMLDocument* document = new Xml::XMLDocument();
	Xml::XMLError error = document->LoadFile(String::ToString(file).c_str());
	assert(error == Xml::XML_SUCCESS);

	Xml::XMLElement* root = document->FirstChildElement();

	Xml::XMLElement* node = root->FirstChildElement();
	data.Type = (ParticleData::BlendType)node->IntText();

	node = node->NextSiblingElement();
	data.bLoop = node->BoolText();

	node = node->NextSiblingElement();
	wstring textureFile = String::ToWString(node->GetText());
	data.TextureFile = L"Particles/" + textureFile;
	map = new Texture(data.TextureFile);


	node = node->NextSiblingElement();
	data.MaxParticles = node->IntText();

	node = node->NextSiblingElement();
	data.ReadyTime = node->FloatText();

	node = node->NextSiblingElement();
	data.ReadyRandomTime = node->FloatText();

	node = node->NextSiblingElement();
	data.StartVelocity = node->FloatText();

	node = node->NextSiblingElement();
	data.EndVelocity = node->FloatText();

	node = node->NextSiblingElement();
	data.MinHorizontalVelocity = node->FloatText();

	node = node->NextSiblingElement();
	data.MaxHorizontalVelocity = node->FloatText();

	node = node->NextSiblingElement();
	data.MinVerticalVelocity = node->FloatText();

	node = node->NextSiblingElement();
	data.MaxVerticalVelocity = node->FloatText();

	node = node->NextSiblingElement();
	data.Gravity.x = node->FloatAttribute("X");
	data.Gravity.y = node->FloatAttribute("Y");
	data.Gravity.z = node->FloatAttribute("Z");

	node = node->NextSiblingElement();
	data.ColorAmount = node->FloatText();

	node = node->NextSiblingElement();
	data.MinColor.r = node->FloatAttribute("R");
	data.MinColor.g = node->FloatAttribute("G");
	data.MinColor.b = node->FloatAttribute("B");
	data.MinColor.a = node->FloatAttribute("A");

	node = node->NextSiblingElement();
	data.MaxColor.r = node->FloatAttribute("R");
	data.MaxColor.g = node->FloatAttribute("G");
	data.MaxColor.b = node->FloatAttribute("B");
	data.MaxColor.a = node->FloatAttribute("A");

	node = node->NextSiblingElement();
	data.MinRotateSpeed = node->FloatText();

	node = node->NextSiblingElement();
	data.MaxRotateSpeed = node->FloatText();

	node = node->NextSiblingElement();
	data.MinStartSize = node->FloatText();

	node = node->NextSiblingElement();
	data.MaxStartSize = node->FloatText();

	node = node->NextSiblingElement();
	data.MinEndSize = node->FloatText();

	node = node->NextSiblingElement();
	data.MaxEndSize = node->FloatText();

	SafeDelete(document);
}





---





Editor



Editor.h

#pragma once
#include "Systems/IExecute.h"

class Editor : public IExecute
{
public:
	virtual void Initialize() override;
	virtual void Ready() override {}
	virtual void Destroy() override;
	virtual void Update() override;
	virtual void PreRender() override {}
	virtual void Render() override;
	virtual void PostRender() override {}
	virtual void ResizeScreen() override {}

private:
	void Mesh();

private:
	void UpdateParticleList();
	void UpdateTextureList();

	void OnGUI();
	void OnGUI_List();
	void OnGUI_Settings();
	void OnGUI_Write();

	void WriteFile(wstring file);

private:
	Shader* shader;
	CubeSky* sky;


	float windowWidth = 500; //윈도우 창 너비

	bool bLoop = false; //루프
	UINT maxParticle = 0;

	vector<wstring> particleList;
	vector<wstring> textureList; //particle 폴더 안의 textureList

	wstring file = L""; //선택한 파일명을 저장하는 변수

	ParticleSystem* particleSystem = NULL;


	Material* floor;
	Material* stone;

	MeshRender* sphere;
	MeshRender* grid;
};





Editor.cpp

#include "stdafx.h"
#include "Editor.h"
#include "Utilities/Xml.h"

void Editor::Initialize()
{
	Context::Get()->GetCamera()->RotationDegree(20, 0, 0);
	Context::Get()->GetCamera()->Position(1, 36, -85);
	((Freedom *)Context::Get()->GetCamera())->Speed(50, 2);


	shader = new Shader(L"82_NormalMapping.fxo");
	sky = new CubeSky(L"Environment/GrassCube1024.dds");

	Mesh();


	UpdateParticleList(); //ParticleList 갱신
	UpdateTextureList(); //TextureList 갱신
}

void Editor::Destroy()
{

}

void Editor::Update()
{
	OnGUI();


	sky->Update();

	sphere->Update();
	grid->Update();


	Vector3 position;
	sphere->GetTransform(0)->Position(&position);

	if (Keyboard::Get()->Press('L'))
		position.x += 20 * Time::Delta();
	else if (Keyboard::Get()->Press('J'))
		position.x -= 20 * Time::Delta();

	if (Keyboard::Get()->Press('I'))
		position.z += 20 * Time::Delta();
	else if (Keyboard::Get()->Press('K'))
		position.z -= 20 * Time::Delta();

	if (Keyboard::Get()->Press('O'))
		position.y += 20 * Time::Delta();
	else if (Keyboard::Get()->Press('U'))
		position.y -= 20 * Time::Delta();

	sphere->GetTransform(0)->Position(position);
	sphere->UpdateTransforms();

	if (particleSystem != NULL)
	{
		particleSystem->Add(position);
		particleSystem->Update();
	}
}

void Editor::Render()
{
	sky->Render();

	stone->Render();
	sphere->Render();

	floor->Render();
	grid->Render();

	if (particleSystem != NULL)
		particleSystem->Render();
}

void Editor::Mesh()
{
	floor = new Material(shader);
	floor->DiffuseMap("Floor.png");
	floor->Specular(1, 1, 1, 20);
	floor->SpecularMap("Floor_Specular.png");
	floor->NormalMap("Floor_Normal.png");

	stone = new Material(shader);
	stone->DiffuseMap("Stones.png");
	stone->Specular(1, 1, 1, 20);
	stone->SpecularMap("Stones_Specular.png");
	stone->Emissive(0.15f, 0.15f, 0.15f, 0.3f);
	stone->NormalMap("Stones_Normal.png");


	Transform* transform = NULL;

	grid = new MeshRender(shader, new MeshGrid(5, 5));
	transform = grid->AddTransform();
	transform->Position(0, 0, 0);
	transform->Scale(12, 1, 12);
	grid->UpdateTransforms();

	sphere = new MeshRender(shader, new MeshSphere(0.5f, 20, 20));
	transform = sphere->AddTransform();
	transform->Position(0, 5, 0);
	transform->Scale(5, 5, 5);
	sphere->UpdateTransforms();
}

void Editor::UpdateParticleList()
{
	particleList.clear();
	Path::GetFiles(&particleList, L"../../_Textures/Particles/", L"*.xml", false); //Particles폴더 내의 .xml 파일들을 가져온다. 이때 자식폴더는 검색하지 않는다.

	for (wstring& file : particleList)
		file = Path::GetFileNameWithoutExtension(file); //파일을 확장자 제거하여 가져온다.
}

void Editor::UpdateTextureList()
{
	textureList.clear();

	vector<wstring> files;
	Path::GetFiles(&files, L"../../_Textures/Particles/", L"*.*", false);

	for (wstring file : files)
	{
		wstring ext = Path::GetExtension(file);
		transform(ext.begin(), ext.end(), ext.begin(), toupper);

		file = Path::GetFileName(file);
		if (ext == L"PNG" || ext == L"TGA" || ext == L"JPG")
			textureList.push_back(file); //png, tga, jpg이면 가져와서 넣어준다.
	}
}

void Editor::OnGUI()
{
	float width = D3D::Width();
	float height = D3D::Height();

	bool bOpen = true;
	bOpen = ImGui::Begin("Particle", &bOpen);
	ImGui::SetWindowPos(ImVec2(width - windowWidth, 0));
	ImGui::SetWindowSize(ImVec2(windowWidth, height));
	{
		OnGUI_List();
		OnGUI_Settings();
	}
	ImGui::End();
}

void Editor::OnGUI_List()
{
	if (ImGui::CollapsingHeader("Particle List", ImGuiTreeNodeFlags_DefaultOpen))//CollapsingHeader는 눌러서 펼치게 해주는 역할
	{
		for (UINT i = 0; i < particleList.size(); i++)
		{
			if (ImGui::Button(String::ToString(particleList[i]).c_str(), ImVec2(200, 0)))
			{
				SafeDelete(particleSystem);//파티클 지움

				file = particleList[i];//선택한 파일 저장
				particleSystem = new ParticleSystem(particleList[i]);

				bLoop = particleSystem->GetData().bLoop;
				maxParticle = particleSystem->GetData().MaxParticles;
			}
		}//for(i)
	}//ImGui::CollapsingHeader
}

void Editor::OnGUI_Settings()
{
	if (particleSystem == NULL) return;

	ImGui::Spacing();

	if (ImGui::CollapsingHeader("Particle Settings", ImGuiTreeNodeFlags_DefaultOpen))
	{
		ImGui::Separator();

		ImGui::SliderInt("MaxParticles", (int *)&maxParticle, 1, 1000);
		ImGui::Checkbox("Loop", &bLoop);

		if (ImGui::Button("Apply"))
		{
			particleSystem->GetData().bLoop = bLoop;
			particleSystem->GetData().MaxParticles = maxParticle;
			particleSystem->Reset();
		}


		ImGui::Separator();

		const char* types[] = { "Opaque", "Additive", "AlphaBlend" };
		ImGui::Combo("BlendType", (int *)&particleSystem->GetData().Type, types, 3);

		ImGui::SliderFloat("ReadyTime", &particleSystem->GetData().ReadyTime, 0.1f, 10.0f);
		ImGui::SliderFloat("ReadyRandomTime", &particleSystem->GetData().ReadyRandomTime, 0.0f, 100.0f);

		ImGui::SliderFloat("StartVelocity", &particleSystem->GetData().StartVelocity, 0.0f, 10.0f);
		ImGui::SliderFloat("EndVelocity", &particleSystem->GetData().EndVelocity, -100.0f, 100.0f);

		ImGui::SliderFloat("MinHorizontalVelocity", &particleSystem->GetData().MinHorizontalVelocity, -100.0f, 100.0f);
		ImGui::SliderFloat("MaxHorizontalVelocity", &particleSystem->GetData().MaxHorizontalVelocity, -100.0f, 100.0f);

		ImGui::SliderFloat("MinVerticalVelocity", &particleSystem->GetData().MinVerticalVelocity, -100.0f, 100.0f);
		ImGui::SliderFloat("MaxVerticalVelocity", &particleSystem->GetData().MaxVerticalVelocity, -100.0f, 100.0f);

		ImGui::SliderFloat3("Gravity", particleSystem->GetData().Gravity, -100, 100);

		ImGui::SliderFloat("Color Amount", &particleSystem->GetData().ColorAmount, 0.1f, 5.0f);

		ImGui::ColorEdit4("MinColor", particleSystem->GetData().MinColor);
		ImGui::ColorEdit4("MaxColor", particleSystem->GetData().MaxColor);

		ImGui::SliderFloat("MinRotateSpeed", &particleSystem->GetData().MinRotateSpeed, -10, 10);
		ImGui::SliderFloat("MaxRotateSpeed", &particleSystem->GetData().MaxRotateSpeed, -10, 10);

		ImGui::SliderFloat("MinStartSize", &particleSystem->GetData().MinStartSize, 0, 500);
		ImGui::SliderFloat("MaxStartSize", &particleSystem->GetData().MaxStartSize, 0, 500);

		ImGui::SliderFloat("MinEndSize", &particleSystem->GetData().MinEndSize, 0, 500);
		ImGui::SliderFloat("MaxEndSize", &particleSystem->GetData().MaxEndSize, 0, 500);

		ImGui::Spacing();
		OnGUI_Write();


		ImGui::Spacing();
		ImGui::Separator();
		if (ImGui::CollapsingHeader("TextureList", ImGuiTreeNodeFlags_DefaultOpen))
		{
			for (wstring textureFile : textureList)
			{
				if (ImGui::Button(String::ToString(textureFile).c_str(), ImVec2(200, 0)))
				{
					particleSystem->GetData().TextureFile = textureFile;
					particleSystem->SetTexture(L"Particles/" + textureFile);
				}
			}//for(i)
		}
	}
}

void Editor::OnGUI_Write()
{
	ImGui::Separator();

	if (ImGui::Button("WriteParticle"))
	{
		D3DDesc desc = D3D::GetDesc();

		Path::SaveFileDialog
		(
			file, L"Particle file\0*.xml", L"../../_Textures/Particles",
			bind(&Editor::WriteFile, this, placeholders::_1),
			desc.Handle
		);
	}
}

void Editor::WriteFile(wstring file)
{
	Xml::XMLDocument* document = new Xml::XMLDocument();

	Xml::XMLDeclaration* decl = document->NewDeclaration();
	document->LinkEndChild(decl);

	Xml::XMLElement* root = document->NewElement("Particle");
	root->SetAttribute("xmlns:xsi", "http://www.w3.org/2001/XMLSchema-instance");
	root->SetAttribute("xmlns:xsd", "http://www.w3.org/2001/XMLSchema");
	document->LinkEndChild(root);


	Xml::XMLElement* node = NULL;

	node = document->NewElement("BlendState");
	node->SetText((int)particleSystem->GetData().Type);
	root->LinkEndChild(node);


	string textureFile = String::ToString(particleSystem->GetData().TextureFile);
	String::Replace(&textureFile, "Particles/", "");

	node = document->NewElement("Loop");
	node->SetText(particleSystem->GetData().bLoop);
	root->LinkEndChild(node);

	node = document->NewElement("TextureFile");
	node->SetText(textureFile.c_str());
	root->LinkEndChild(node);


	node = document->NewElement("MaxParticles");
	node->SetText(particleSystem->GetData().MaxParticles);
	root->LinkEndChild(node);


	node = document->NewElement("ReadyTime");
	node->SetText(particleSystem->GetData().ReadyTime);
	root->LinkEndChild(node);

	node = document->NewElement("ReadyRandomTime");
	node->SetText(particleSystem->GetData().ReadyRandomTime);
	root->LinkEndChild(node);

	node = document->NewElement("StartVelocity");
	node->SetText(particleSystem->GetData().StartVelocity);
	root->LinkEndChild(node);

	node = document->NewElement("EndVelocity");
	node->SetText(particleSystem->GetData().EndVelocity);
	root->LinkEndChild(node);


	node = document->NewElement("MinHorizontalVelocity");
	node->SetText(particleSystem->GetData().MinHorizontalVelocity);
	root->LinkEndChild(node);

	node = document->NewElement("MaxHorizontalVelocity");
	node->SetText(particleSystem->GetData().MaxHorizontalVelocity);
	root->LinkEndChild(node);

	node = document->NewElement("MinVerticalVelocity");
	node->SetText(particleSystem->GetData().MinVerticalVelocity);
	root->LinkEndChild(node);

	node = document->NewElement("MaxVerticalVelocity");
	node->SetText(particleSystem->GetData().MaxVerticalVelocity);
	root->LinkEndChild(node);


	node = document->NewElement("Gravity");
	node->SetAttribute("X", particleSystem->GetData().Gravity.x);
	node->SetAttribute("Y", particleSystem->GetData().Gravity.y);
	node->SetAttribute("Z", particleSystem->GetData().Gravity.z);
	root->LinkEndChild(node);

	node = document->NewElement("ColorAmount");
	node->SetText(particleSystem->GetData().ColorAmount);
	root->LinkEndChild(node);

	node = document->NewElement("MinColor");
	node->SetAttribute("R", particleSystem->GetData().MinColor.r);
	node->SetAttribute("G", particleSystem->GetData().MinColor.g);
	node->SetAttribute("B", particleSystem->GetData().MinColor.b);
	node->SetAttribute("A", particleSystem->GetData().MinColor.a);
	root->LinkEndChild(node);

	node = document->NewElement("MaxColor");
	node->SetAttribute("R", particleSystem->GetData().MaxColor.r);
	node->SetAttribute("G", particleSystem->GetData().MaxColor.g);
	node->SetAttribute("B", particleSystem->GetData().MaxColor.b);
	node->SetAttribute("A", particleSystem->GetData().MaxColor.a);
	root->LinkEndChild(node);


	node = document->NewElement("MinRotateSpeed");
	node->SetText(particleSystem->GetData().MinRotateSpeed);
	root->LinkEndChild(node);

	node = document->NewElement("MaxRotateSpeed");
	node->SetText(particleSystem->GetData().MaxRotateSpeed);
	root->LinkEndChild(node);

	node = document->NewElement("MinStartSize");
	node->SetText((int)particleSystem->GetData().MinStartSize);
	root->LinkEndChild(node);

	node = document->NewElement("MaxStartSize");
	node->SetText((int)particleSystem->GetData().MaxStartSize);
	root->LinkEndChild(node);

	node = document->NewElement("MinEndSize");
	node->SetText((int)particleSystem->GetData().MinEndSize);
	root->LinkEndChild(node);

	node = document->NewElement("MaxEndSize");
	node->SetText((int)particleSystem->GetData().MaxEndSize);
	root->LinkEndChild(node);

	wstring folder = Path::GetDirectoryName(file);
	wstring fileName = Path::GetFileNameWithoutExtension(file);

	document->SaveFile(String::ToString(folder + fileName + L".xml").c_str());
	SafeDelete(document);

	UpdateParticleList();
}



---





실행화면
