[DirectX11] 099~102 Render Target, Post Effect(Color Tone)

DirectX11에서 Post Effect를 적용하여 장면을 새로운 텍스처로 렌더링하고, 새로운 셰이더 세트를 사용하여 효과를 적용한다. Post Effect는 Diffuse, Inverse, Greyscale, Saturation, Sharpness, Sephia, Lens Distortion, Interace, Blur, Vignette, Wiggle 등 적용하려는 효과에 따라 달라질 수 있다.

Color Tone

DirectX

IA → VS → GS →SO → RS → PS → OM (RTV를 구하여 Texture에 사용)
IA → VS → GS →SO → RS → PS (Post Effect 적용) → OM

Shaders
	ColorTone.fx 생성
Framework
	Viewer
	DepthStencil.h .cpp 생성 RenderTarget.h .cpp 생성
	Object
	PostEffect .cpp 생성
UnitTest
	PostEffects
	ColorToneDemo.h .cpp 생성

ColorTone.fx

ColorTone.fx

#include "00_Global.fx"
#include "00_Light.fx"

float2 PixelSize;

struct VertexOutput
{
    float4 Position : SV_Position;
    float2 Uv : Uv;
};

VertexOutput VS(float4 Position : Position)
{
    VertexOutput output;

    output.Position = Position;
    output.Uv.x = Position.x * 0.5f + 0.5f;
    output.Uv.y = -Position.y * 0.5f + 0.5f;

    return output;
}

float4 PS_Diffuse(VertexOutput input) : SV_Target
{
    return DiffuseMap.Sample(LinearSampler, input.Uv);
}

//색상 반전
float4 PS_Inverse(VertexOutput input) : SV_Target
{
    return float4(1.0f - DiffuseMap.Sample(LinearSampler, input.Uv).rgb, 1.0f);
}

//이론상 흑백 효과
float4 PS_Grayscale(VertexOutput input) : SV_Target
{
    float4 color = float4(DiffuseMap.Sample(LinearSampler, input.Uv));
    float average = (color.r + color.g + color.b) / 3.0f;

    return float4(average, average, average, 1.0f);
}

//실제 주로 쓰이는 흑백 효과
float4 PS_Grayscale2(VertexOutput input) : SV_Target
{
    float4 color = float4(DiffuseMap.Sample(LinearSampler, input.Uv));
    float3 grayscale = float3(0.2627f, 0.6780f, 0.0593f); //사람들이 느끼는 흑백

    float average = dot(color.rgb, grayscale);

    return float4(average, average, average, 1.0f);
}


float Saturation = 0;
//Saturation = 0 : grayscale
//0 < Saturation < 1 : desaturation
//Saturation = 1 : original
//Saturation > 1 : satuaration

float4 PS_Saturation(VertexOutput input) : SV_Target
{
    float4 color = float4(DiffuseMap.Sample(LinearSampler, input.Uv));
    float3 grayscale = float3(0.2627f, 0.6780f, 0.0593f);

    float temp = dot(color.rgb, grayscale);

    color.rgb = lerp(temp, color.rgb, Saturation);
    color.a = 1.0f;

    return color;
}

//외곽선 효과
float Sharpness = 0;
float4 PS_Sharpness(VertexOutput input) : SV_Target
{
    float4 center = DiffuseMap.Sample(LinearSampler, input.Uv);//PixelShader가 처리하고 있는 현재 픽셀
    float4 top = DiffuseMap.Sample(LinearSampler, input.Uv + float2(0, -PixelSize.y));//-PixelSize.y는 바로 위 픽셀
    float4 bottom = DiffuseMap.Sample(LinearSampler, input.Uv + float2(0, +PixelSize.y));//-PixelSize.y는 바로 아래 픽셀
    float4 left = DiffuseMap.Sample(LinearSampler, input.Uv + float2(-PixelSize.x, 0));//-PixelSize.y는 바로 왼쪽 픽셀
    float4 right = DiffuseMap.Sample(LinearSampler, input.Uv + float2(+PixelSize.x, 0)); //-PixelSize.y는 바로 오른쪽 픽셀

    float edge = center * 4 - top - bottom - left - right;

    return (center + Sharpness) * edge;
}


float4x4 ColorToSepiaMatrix = float4x4
(
    0.393, 0.769, 0.189, 0,
    0.349, 0.686, 0.168, 0,
    0.272, 0.534, 0.131, 0,
    0, 0, 0, 1
);

float4 PS_Sepia(VertexOutput input) : SV_Target
{
    float4 color = DiffuseMap.Sample(LinearSampler, input.Uv);

    return mul(ColorToSepiaMatrix, color);
}


float Power = 2; //1 - Linear, 1 > Non-Linear
float2 Scale = float2(2, 2);

float4 PS_Vignette(VertexOutput input) : SV_Target
{
    float4 color = DiffuseMap.Sample(LinearSampler, input.Uv);

    float radius = length((input.Uv - 0.5f) * 2 / Scale);
    float vignette = pow(abs(radius + 0.0001f), Power);

    return saturate(1 - vignette) * color;
}


float LensPower = 1;
float3 Distortion = -0.02f;

float4 PS_LensDistortion(VertexOutput input) : SV_Target
{
    float2 uv = input.Uv * 2 - 1;

    float2 vpSize = float2(1.0f / PixelSize.x, 1.0f / PixelSize.y);
    float aspect = vpSize.x / vpSize.y;
    float radiusSquared = aspect * aspect + uv.x * uv.x + uv.y * uv.y;
    float radius = sqrt(radiusSquared);

    float3 f = Distortion * pow(abs(radius + 1e-6f), LensPower) + 1;

    float2 r = (f.r * uv + 1) * 0.5f;
    float2 g = (f.g * uv + 1) * 0.5f;
    float2 b = (f.b * uv + 1) * 0.5f;

    float4 color = 0;
    color.r = DiffuseMap.Sample(LinearSampler, r).r;
    color.ga = DiffuseMap.Sample(LinearSampler, g).ga;
    color.b = DiffuseMap.Sample(LinearSampler, b).b;

    return color;
}

float Strength = 1.0f;
int interaceValue = 2;

float4 PS_Interace(VertexOutput input) : SV_Target
{
    float4 color = DiffuseMap.Sample(LinearSampler, input.Uv);
    float height = 1.0f / PixelSize.y;

    int value = (int) ((floor(input.Uv.y * height) % interaceValue) / (interaceValue / 2));

    [flatten]
    if (value)
    {
        float3 grayScale = float3(0.2126f, 0.7152f, 0.0722f);
        float luminance = dot(color.rgb, grayScale);

        luminance = min(0.999f, luminance);

        color.rgb = lerp(color.rgb, color.rgb * luminance, Strength);
    }
    return color;
}

float2 ScaleSourceSize;
float4 PS_Blur(VertexOutput input) : SV_Target
{
    float2 size = 1.0f / ScaleSourceSize;

    float4 s0 = DiffuseMap.Sample(LinearSampler, input.Uv + float2(-size.x, -size.y));
    float4 s1 = DiffuseMap.Sample(LinearSampler, input.Uv + float2(+size.x, -size.y));
    float4 s2 = DiffuseMap.Sample(LinearSampler, input.Uv + float2(-size.x, +size.y));
    float4 s3 = DiffuseMap.Sample(LinearSampler, input.Uv + float2(+size.x, +size.y));

    return (s0 + s1 + s2 + s3) / 4;
}

float2 WiggleOffset = float2(10, 10);
float2 WiggleAmount = float2(0.01f, 0.01f);
float4 PS_Wiggle(VertexOutput input) : SV_Target
{
    float2 uv = input.Uv;
    uv.x += sin(Time + uv.x * WiggleOffset.x) * WiggleAmount.x;
    uv.y += cos(Time + uv.y * WiggleOffset.y) * WiggleAmount.y;

    return DiffuseMap.Sample(LinearSampler, uv);
}

technique11 T0
{
    P_VP(P0, VS, PS_Diffuse)
    P_VP(P1, VS, PS_Inverse)
    P_VP(P2, VS, PS_Grayscale)
    P_VP(P3, VS, PS_Grayscale2)
    P_VP(P4, VS, PS_Saturation)
    P_VP(P5, VS, PS_Sharpness)
    P_VP(P6, VS, PS_Sepia)
    P_VP(P7, VS, PS_Vignette)
    P_VP(P8, VS, PS_LensDistortion)
    P_VP(P9, VS, PS_Interace)
    P_VP(P10, VS, PS_Blur)
    P_VP(P11, VS, PS_Wiggle)
}

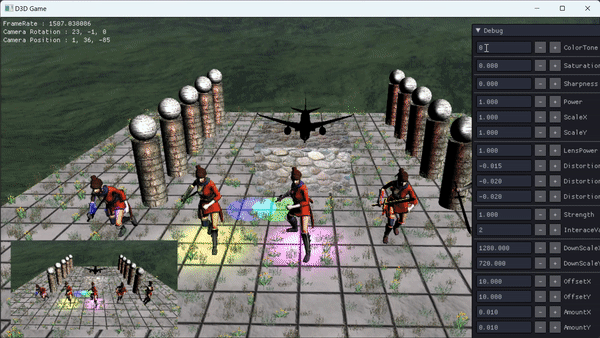

Post Effect 효과 넣기

0: Diffuse
1: Inverse 색상 반전
2: Greyscale 흑백 효과
3: Greyscale 2 실제 많이 쓰이는 흑백 효과
4: Saturation
5: Sharpness 외곽선 효과
6: Sephia
7: Vignetting
8: LensDistortion 렌즈 왜곡 효과
9: Interace
10: Blur
11: Wiggle

RenderTarget

RenderTarget.h

#pragma once

class RenderTarget
{
public:
	RenderTarget(UINT width = 0, UINT height = 0, DXGI_FORMAT format = DXGI_FORMAT_R8G8B8A8_UNORM);
	~RenderTarget();

	ID3D11RenderTargetView* RTV() { return rtv; }
	ID3D11ShaderResourceView* SRV() { return srv; }

	void SaveTexture(wstring file);

	void PreRender(class DepthStencil* depthStencil);

private:
	UINT width, height;
	DXGI_FORMAT format;

	ID3D11Texture2D* texture;
	ID3D11RenderTargetView* rtv;
	ID3D11ShaderResourceView* srv;
};

RenderTarget.cpp

#include "Framework.h"
#include "RenderTarget.h"

RenderTarget::RenderTarget(UINT width, UINT height, DXGI_FORMAT format)
	: format(format)
{
	this->width = (width < 1) ? (UINT)D3D::Width() : width;
	this->height = (height < 1) ? (UINT)D3D::Height() : height;


	D3D11_TEXTURE2D_DESC textureDesc;
	ZeroMemory(&textureDesc, sizeof(D3D11_TEXTURE2D_DESC));
	textureDesc.Width = this->width;
	textureDesc.Height = this->height;
	textureDesc.ArraySize = 1;
	textureDesc.Format = format;
	textureDesc.BindFlags = D3D11_BIND_SHADER_RESOURCE | D3D11_BIND_RENDER_TARGET;
	textureDesc.MipLevels = 1;
	textureDesc.SampleDesc.Count = 1;
	Check(D3D::GetDevice()->CreateTexture2D(&textureDesc, NULL, &texture));

	D3D11_RENDER_TARGET_VIEW_DESC rtvDesc;
	ZeroMemory(&rtvDesc, sizeof(D3D11_RENDER_TARGET_VIEW_DESC));
	rtvDesc.Format = format;
	rtvDesc.ViewDimension = D3D11_RTV_DIMENSION_TEXTURE2D;
	Check(D3D::GetDevice()->CreateRenderTargetView(texture, &rtvDesc, &rtv));

	D3D11_SHADER_RESOURCE_VIEW_DESC srvDesc;
	ZeroMemory(&srvDesc, sizeof(D3D11_SHADER_RESOURCE_VIEW_DESC));
	srvDesc.Format = format;
	srvDesc.ViewDimension = D3D11_SRV_DIMENSION_TEXTURE2D;
	srvDesc.Texture2D.MipLevels = 1;
	Check(D3D::GetDevice()->CreateShaderResourceView(texture, &srvDesc, &srv));

}

RenderTarget::~RenderTarget()
{
	SafeRelease(texture);
	SafeRelease(rtv);
	SafeRelease(srv);
}

void RenderTarget::SaveTexture(wstring file)
{
	Check(D3DX11SaveTextureToFile(D3D::GetDC(), texture, D3DX11_IFF_PNG, file.c_str()));
}

void RenderTarget::PreRender(DepthStencil * depthStencil)
{
	D3D::GetDC()->OMSetRenderTargets(1, &rtv, depthStencil->DSV());
	D3D::Get()->Clear(Color(0, 0, 0, 1), rtv, depthStencil->DSV());
}

DepthStiencil

DepthStiencil.h

#pragma once

class DepthStencil
{
public:
	DepthStencil(UINT width = 0, UINT height = 0, bool bUseStencil = false);
	~DepthStencil();

	ID3D11ShaderResourceView* SRV() { return srv; }
	void SaveTexture(wstring saveFile);

	ID3D11DepthStencilView* DSV() { return dsv; }

private:
	bool bUseStencil;
	UINT width, height;

	ID3D11Texture2D* texture;
	ID3D11DepthStencilView* dsv;
	ID3D11ShaderResourceView* srv;
};

DepthStiencil.cpp

#include "Framework.h"
#include "DepthStencil.h"

DepthStencil::DepthStencil(UINT width, UINT height, bool bUseStencil)
{
	this->width = (width < 1) ? (UINT)D3D::Width() : width;
	this->height = (height < 1) ? (UINT)D3D::Height() : height;

	//Create Texture
	{
		D3D11_TEXTURE2D_DESC desc;
		ZeroMemory(&desc, sizeof(D3D11_TEXTURE2D_DESC));
		desc.Width = this->width;
		desc.Height = this->height;
		desc.MipLevels = 1;
		desc.ArraySize = 1;
		desc.Format = bUseStencil ? DXGI_FORMAT_R24G8_TYPELESS : DXGI_FORMAT_R32_TYPELESS;
		desc.SampleDesc.Count = 1;
		desc.BindFlags = D3D11_BIND_SHADER_RESOURCE | D3D11_BIND_DEPTH_STENCIL;
		Check(D3D::GetDevice()->CreateTexture2D(&desc, NULL, &texture));
	}

	//Create DSV
	{
		D3D11_DEPTH_STENCIL_VIEW_DESC desc;
		ZeroMemory(&desc, sizeof(D3D11_DEPTH_STENCIL_VIEW_DESC));
		desc.Format = bUseStencil ? DXGI_FORMAT_D24_UNORM_S8_UINT : DXGI_FORMAT_D32_FLOAT;
		desc.ViewDimension = D3D11_DSV_DIMENSION_TEXTURE2D;
		Check(D3D::GetDevice()->CreateDepthStencilView(texture, &desc, &dsv));
	}

	//Create SRV
	{
		D3D11_SHADER_RESOURCE_VIEW_DESC desc;
		ZeroMemory(&desc, sizeof(D3D11_SHADER_RESOURCE_VIEW_DESC));
		desc.Format = bUseStencil ? DXGI_FORMAT_R24_UNORM_X8_TYPELESS : DXGI_FORMAT_R32_FLOAT;
		desc.ViewDimension = D3D11_SRV_DIMENSION_TEXTURE2D;
		desc.Texture2D.MipLevels = 1;
		Check(D3D::GetDevice()->CreateShaderResourceView(texture, &desc, &srv));
	}
}

DepthStencil::~DepthStencil()
{
	SafeRelease(texture);
	SafeRelease(dsv);
	SafeRelease(srv);
}

void DepthStencil::SaveTexture(wstring saveFile)
{
	Check(D3DX11SaveTextureToFile
	(
		D3D::GetDC(), texture, D3DX11_IFF_PNG, saveFile.c_str()
	));
}

PostEffect

PostEffect.h

#pragma once

class PostEffect : public Renderer
{
public:
	PostEffect(wstring shaderFile);
	~PostEffect();

	void Update();
	void Render();

	void SRV(ID3D11ShaderResourceView* srv);

private:
	//struct Desc
	//{
	//	Matrix View;
	//	Matrix Projection;
	//} desc;

private:
	//ConstantBuffer* buffer;
	ID3DX11EffectShaderResourceVariable* sDiffuseMap;
};

PostEffect.cpp

#include "Framework.h"
#include "PostEffect.h"

PostEffect::PostEffect(wstring shaderFile)
	: Renderer(shaderFile)
{
	//buffer = new ConstantBuffer(&desc, sizeof(Desc));
	//shader->AsConstantBuffer("CB_PostEffect")->SetConstantBuffer(buffer->Buffer());

	Vertex vertices[6];
	vertices[0].Position = Vector3(-1.0f, -1.0f, 0.0f);
	vertices[1].Position = Vector3(-1.0f, +1.0f, 0.0f);
	vertices[2].Position = Vector3(+1.0f, -1.0f, 0.0f);
	vertices[3].Position = Vector3(+1.0f, -1.0f, 0.0f);
	vertices[4].Position = Vector3(-1.0f, +1.0f, 0.0f);
	vertices[5].Position = Vector3(+1.0f, +1.0f, 0.0f);

	vertexBuffer = new VertexBuffer(vertices, 6, sizeof(Vertex));
	sDiffuseMap = shader->AsSRV("DiffuseMap");

	transform->Scale(D3D::Width(), D3D::Height(), 1);
	transform->Position(D3D::Width() * 0.5f, D3D::Height() * 0.5f, 0);
}

PostEffect::~PostEffect()
{

}

void PostEffect::Update()
{
	Super::Update();
}

void PostEffect::Render()
{
	Super::Render();

	//buffer->Render();
	shader->Draw(0, Pass(), 6);
}

void PostEffect::SRV(ID3D11ShaderResourceView * srv)
{
	sDiffuseMap->SetResource(srv);
}

ColorToneDemo

ColorToneDemo.h

#pragma once
#include "Systems/IExecute.h"

class ColorToneDemo : public IExecute
{
public:
	virtual void Initialize() override;
	virtual void Ready() override {}
	virtual void Destroy() override {}
	virtual void Update() override;
	virtual void PreRender() override;
	virtual void Render() override;
	virtual void PostRender() override;
	virtual void ResizeScreen() override {}

private:
	void Billboards();
	void Mesh();
	void Airplane();
	void Kachujin();
	void KachujinCollider();
	void KachujinWeapon();
	void PointLighting();
	void SpotLighting();

	void Pass(UINT mesh, UINT model, UINT anim);

private:
	Shader* shader;

	RenderTarget* renderTarget;
	DepthStencil* depthStencil;
	Viewport* viewport;
	Render2D* render2D;
	PostEffect* postEffect;

	Billboard* billboard;

	CubeSky* sky;

	Material* floor;
	Material* stone;
	Material* brick;
	Material* wall;

	MeshRender* cube;
	MeshRender* cylinder;
	MeshRender* sphere;
	MeshRender* grid;

	ModelRender* airplane = NULL;


	ModelAnimator* kachujin = NULL;
	Transform* colliderInitTransforms;
	ColliderObject** colliders;

	ModelRender* weapon = NULL;
	Transform* weaponInitTransform;

	vector<MeshRender *> meshes;
	vector<ModelRender *> models;
	vector<ModelAnimator *> animators;
};

ColorToneDemo.cpp

#include "stdafx.h"
#include "ColorToneDemo.h"

void ColorToneDemo::Initialize()
{
	Context::Get()->GetCamera()->RotationDegree(20, 0, 0);
	Context::Get()->GetCamera()->Position(1, 36, -85);
	((Freedom *)Context::Get()->GetCamera())->Speed(50, 2);


	shader = new Shader(L"96_Billboard.fxo");


	float width = D3D::Width(), height = D3D::Height();
	width = height = 4096;

	renderTarget = new RenderTarget((UINT)width, (UINT)height);
	depthStencil = new DepthStencil((UINT)width, (UINT)height);
	viewport = new Viewport(width, height);


	render2D = new Render2D();
	render2D->GetTransform()->Scale(355, 200, 1);
	render2D->GetTransform()->Position(200, 120, 0);
	render2D->SRV(renderTarget->SRV());

	postEffect = new PostEffect(L"100_ColorTone.fxo");
	postEffect->SRV(renderTarget->SRV());


	sky = new CubeSky(L"Environment/GrassCube1024.dds");

	Billboards();

	Mesh();
	Airplane();

	Kachujin();
	KachujinCollider();
	KachujinWeapon();

	PointLighting();
	SpotLighting();
}

void ColorToneDemo::Update()
{
	static UINT Pass = postEffect->GetShader()->PassCount() - 1;
	ImGui::InputInt("ColorTone Pass", (int *)&Pass);
	Pass %= postEffect->GetShader()->PassCount();
	postEffect->Pass(Pass);


	Vector2 PixelSize = Vector2(1.0f / D3D::Width(), 1.0f / D3D::Height());
	postEffect->GetShader()->AsVector("PixelSize")->SetFloatVector(PixelSize);


	//Saturation
	{
		ImGui::Separator();

		static float Saturation = 0.0f;
		ImGui::InputFloat("Saturation", &Saturation, 0.1f);
		postEffect->GetShader()->AsScalar("Saturation")->SetFloat(Saturation);
	}

	//Sharpness
	{
		ImGui::Separator();

		static float Sharpness = 0.0f;
		ImGui::InputFloat("Sharpness", &Sharpness, 0.1f);
		postEffect->GetShader()->AsScalar("Sharpness")->SetFloat(Sharpness);
	}

	//Vignette
	{
		ImGui::Separator();

		static float Power = 1.0f;
		ImGui::InputFloat("Power", &Power, 0.1f);
		postEffect->GetShader()->AsScalar("Power")->SetFloat(Power);

		static float ScaleX = 1.0f;
		ImGui::InputFloat("ScaleX", &ScaleX, 0.1f);

		static float ScaleY = 1.0f;
		ImGui::InputFloat("ScaleY", &ScaleY, 0.1f);
		postEffect->GetShader()->AsVector("Scale")->SetFloatVector(Vector2(ScaleX, ScaleY));
	}

	//LensDistortion
	{
		ImGui::Separator();

		static float LensPower = 1.0f;
		ImGui::InputFloat("LensPower", &LensPower, 0.01f);
		postEffect->GetShader()->AsScalar("LensPower")->SetFloat(LensPower);

		static Vector3 Distortion = Vector3(-0.02f, -0.02f, -0.02f);
		ImGui::InputFloat("DistortionX", &Distortion.x, 0.001f);
		ImGui::InputFloat("DistortionY", &Distortion.y, 0.001f);
		ImGui::InputFloat("DistortionZ", &Distortion.z, 0.001f);
		postEffect->GetShader()->AsVector("Distortion")->SetFloatVector(Distortion);
	}

	//Interace
	{
		ImGui::Separator();

		static float Strength = 1.0f;
		ImGui::InputFloat("Strength", &Strength, 0.01f);
		postEffect->GetShader()->AsScalar("Strength")->SetFloat(Strength);

		static int InteraceValue = 2;
		ImGui::InputInt("InteraceValue", &InteraceValue);
		postEffect->GetShader()->AsScalar("interaceValue")->SetInt(InteraceValue);
	}

	//Down Scale
	{
		ImGui::Separator();

		static float ScaleX = D3D::Width();
		ImGui::InputFloat("DownScaleX", &ScaleX, 1.0f);

		static float ScaleY = D3D::Height();
		ImGui::InputFloat("DownScaleY", &ScaleY, 1.0f);
		postEffect->GetShader()->AsVector("ScaleSourceSize")->SetFloatVector(Vector2(ScaleX, ScaleY));
	}

	//Wiggle
	{
		ImGui::Separator();

		static float OffsetX = 10;
		ImGui::InputFloat("OffsetX", &OffsetX, 0.1f);

		static float OffsetY = 10;
		ImGui::InputFloat("OffsetY", &OffsetY, 0.1f);
		postEffect->GetShader()->AsVector("WiggleOffset")->SetFloatVector(Vector2(OffsetX, OffsetY));

		static float AmountX = 0.01f;
		ImGui::InputFloat("AmountX", &AmountX, 0.001f);

		static float AmountY = 0.01f;
		ImGui::InputFloat("AmountY", &AmountY, 0.001f);
		postEffect->GetShader()->AsVector("WiggleAmount")->SetFloatVector(Vector2(AmountX, AmountY));
	}


	sky->Update();

	cube->Update();
	grid->Update();
	cylinder->Update();
	sphere->Update();

	airplane->Update();
	kachujin->Update();

	Matrix worlds[MAX_MODEL_TRANSFORMS];
	for (UINT i = 0; i < kachujin->GetTransformCount(); i++)
	{
		kachujin->GetAttachTransform(i, worlds);
		weapon->GetTransform(i)->World(weaponInitTransform->World() * worlds[40]);
	}

	weapon->UpdateTransforms();
	weapon->Update();

	billboard->Update();

	render2D->Update();
	postEffect->Update();
}

void ColorToneDemo::PreRender()
{
	renderTarget->PreRender(depthStencil);
	viewport->RSSetViewport();


	//Render
	{
		sky->Render();


		Pass(0, 1, 2);

		wall->Render();
		sphere->Render();

		brick->Render();
		cylinder->Render();

		stone->Render();
		cube->Render();

		floor->Render();
		grid->Render();

		airplane->Render();

		kachujin->Render();
		weapon->Render();

		billboard->Render();
	}
}

void ColorToneDemo::Render()
{

}

void ColorToneDemo::PostRender()
{
	postEffect->Render();

	render2D->Render();
}

void ColorToneDemo::Billboards()
{
	billboard = new Billboard(shader);
	//billboard->Pass(3);
	billboard->Pass(4);

	billboard->AddTexture(L"Terrain/grass_14.tga");
	billboard->AddTexture(L"Terrain/grass_07.tga");
	billboard->AddTexture(L"Terrain/grass_11.tga");

	for (UINT i = 0; i < 1200; i++)
	{
		Vector2 scale = Math::RandomVec2(1, 3);
		Vector2 position = Math::RandomVec2(-60, 60);

		billboard->Add(Vector3(position.x, scale.y * 0.5f, position.y), scale, 0);
	}

	for (UINT i = 0; i < 300; i++)
	{
		Vector2 scale = Math::RandomVec2(1, 3);
		Vector2 position = Math::RandomVec2(-60, 60);

		billboard->Add(Vector3(position.x, scale.y * 0.5f, position.y), scale, 1);
	}

	for (UINT i = 0; i < 700; i++)
	{
		Vector2 scale = Math::RandomVec2(1, 3);
		Vector2 position = Math::RandomVec2(-60, 60);

		billboard->Add(Vector3(position.x, scale.y * 0.5f, position.y), scale, 2);
	}
}

void ColorToneDemo::Mesh()
{
	//Create Material
	{
		floor = new Material(shader);
		floor->DiffuseMap("Floor.png");
		floor->Specular(1, 1, 1, 20);
		floor->SpecularMap("Floor_Specular.png");
		floor->NormalMap("Floor_Normal.png");

		stone = new Material(shader);
		stone->DiffuseMap("Stones.png");
		stone->Specular(1, 1, 1, 20);
		stone->SpecularMap("Stones_Specular.png");
		stone->Emissive(0.15f, 0.15f, 0.15f, 0.3f);
		stone->NormalMap("Stones_Normal.png");


		brick = new Material(shader);
		brick->DiffuseMap("Bricks.png");
		brick->Specular(1, 0.3f, 0.3f, 20);
		brick->SpecularMap("Bricks_Specular.png");
		brick->Emissive(0.15f, 0.15f, 0.15f, 0.3f);
		brick->NormalMap("Bricks_Normal.png");

		wall = new Material(shader);
		wall->DiffuseMap("Wall.png");
		wall->Specular(1, 1, 1, 20);
		wall->SpecularMap("Wall_Specular.png");
		wall->Emissive(0.15f, 0.15f, 0.15f, 0.3f);
		wall->NormalMap("Wall_Normal.png");
	}

	//Create Mesh
	{
		Transform* transform = NULL;

		cube = new MeshRender(shader, new MeshCube());
		transform = cube->AddTransform();
		transform->Position(0, 5, 0);
		transform->Scale(20, 10, 20);

		grid = new MeshRender(shader, new MeshGrid(5, 5));
		transform = grid->AddTransform();
		transform->Position(0, 0, 0);
		transform->Scale(12, 1, 12);

		cylinder = new MeshRender(shader, new MeshCylinder(0.5f, 3.0f, 20, 20));
		sphere = new MeshRender(shader, new MeshSphere(0.5f, 20, 20));
		for (UINT i = 0; i < 5; i++)
		{
			transform = cylinder->AddTransform();
			transform->Position(-30, 6, -15.0f + (float)i * 15.0f);
			transform->Scale(5, 5, 5);

			transform = cylinder->AddTransform();
			transform->Position(30, 6, -15.0f + (float)i * 15.0f);
			transform->Scale(5, 5, 5);


			transform = sphere->AddTransform();
			transform->Position(-30, 15.5f, -15.0f + (float)i * 15.0f);
			transform->Scale(5, 5, 5);

			transform = sphere->AddTransform();
			transform->Position(30, 15.5f, -15.0f + (float)i * 15.0f);
			transform->Scale(5, 5, 5);
		}
	}

	sphere->UpdateTransforms();
	cylinder->UpdateTransforms();
	cube->UpdateTransforms();
	grid->UpdateTransforms();

	meshes.push_back(sphere);
	meshes.push_back(cylinder);
	meshes.push_back(cube);
	meshes.push_back(grid);
}

void ColorToneDemo::Airplane()
{
	airplane = new ModelRender(shader);
	airplane->ReadMesh(L"B787/Airplane");
	airplane->ReadMaterial(L"B787/Airplane");

	Transform* transform = airplane->AddTransform();
	transform->Position(2.0f, 9.91f, 2.0f);
	transform->Scale(0.004f, 0.004f, 0.004f);
	airplane->UpdateTransforms();

	models.push_back(airplane);
}

void ColorToneDemo::Kachujin()
{
	kachujin = new ModelAnimator(shader);
	kachujin->ReadMesh(L"Kachujin/Mesh");
	kachujin->ReadMaterial(L"Kachujin/Mesh");
	kachujin->ReadClip(L"Kachujin/Sword And Shield Idle");
	kachujin->ReadClip(L"Kachujin/Sword And Shield Walk");
	kachujin->ReadClip(L"Kachujin/Sword And Shield Run");
	kachujin->ReadClip(L"Kachujin/Sword And Shield Slash");
	kachujin->ReadClip(L"Kachujin/Salsa Dancing");


	Transform* transform = NULL;

	transform = kachujin->AddTransform();
	transform->Position(0, 0, -30);
	transform->Scale(0.075f, 0.075f, 0.075f);
	kachujin->PlayTweenMode(0, 0, 1.0f);

	transform = kachujin->AddTransform();
	transform->Position(-15, 0, -30);
	transform->Scale(0.075f, 0.075f, 0.075f);
	kachujin->PlayTweenMode(1, 1, 1.0f);

	transform = kachujin->AddTransform();
	transform->Position(-30, 0, -30);
	transform->Scale(0.075f, 0.075f, 0.075f);
	kachujin->PlayTweenMode(2, 2, 0.75f);

	transform = kachujin->AddTransform();
	transform->Position(15, 0, -30);
	transform->Scale(0.075f, 0.075f, 0.075f);
	kachujin->PlayBlendMode(3, 0, 1, 2);
	kachujin->SetBlendAlpha(3, 1.5f);

	transform = kachujin->AddTransform();
	transform->Position(30, 0, -32.5f);
	transform->Scale(0.075f, 0.075f, 0.075f);
	kachujin->PlayTweenMode(4, 4, 0.75f);

	kachujin->UpdateTransforms();

	animators.push_back(kachujin);
}

void ColorToneDemo::KachujinCollider()
{
	UINT count = kachujin->GetTransformCount();
	colliders = new  ColliderObject*[count];

	colliderInitTransforms = new Transform();
	colliderInitTransforms->Position(-2.9f, 1.45f, -50.0f);
	colliderInitTransforms->Scale(5, 5, 75);

	for (UINT i = 0; i < count; i++)
	{
		colliders[i] = new ColliderObject();

		//colliders[i]->Init = new Transform();
		//colliders[i]->Init->Position(0, 0, 0);
		//colliders[i]->Init->Scale(10, 30, 10);

		colliders[i]->Transform = new Transform();
		//colliders[i]->Collider = new Collider(colliders[i]->Transform, colliders[i]->Init);
		colliders[i]->Collider = new Collider(colliders[i]->Transform, colliderInitTransforms);
	}
}

void ColorToneDemo::KachujinWeapon()
{
	weapon = new ModelRender(shader);
	weapon->ReadMesh(L"Weapon/Sword");
	weapon->ReadMaterial(L"Weapon/Sword");

	UINT count = kachujin->GetTransformCount();
	for (UINT i = 0; i < count; i++)
		weapon->AddTransform();

	weapon->UpdateTransforms();
	models.push_back(weapon);


	weaponInitTransform = new Transform();
	weaponInitTransform->Position(-2.9f, 1.45f, -6.45f);
	weaponInitTransform->Scale(0.5f, 0.5f, 0.75f);
	weaponInitTransform->Rotation(0, 0, 1);
}

void ColorToneDemo::PointLighting()
{
	PointLight light;
	light =
	{
		Color(0.0f, 0.0f, 0.0f, 1.0f), //Ambient
		Color(0.0f, 0.0f, 1.0f, 1.0f), //Diffuse
		Color(0.0f, 0.0f, 0.7f, 1.0f), //Specular
		Color(0.0f, 0.0f, 0.7f, 1.0f), //Emissive
		Vector3(-30, 10, -30), 5.0f, 0.9f
	};
	Lighting::Get()->AddPointLight(light);

	light =
	{
		Color(0.0f, 0.0f, 0.0f, 1.0f),
		Color(1.0f, 0.0f, 0.0f, 1.0f),
		Color(0.6f, 0.2f, 0.0f, 1.0f),
		Color(0.6f, 0.3f, 0.0f, 1.0f),
		Vector3(15, 10, -30), 10.0f, 0.3f
	};
	Lighting::Get()->AddPointLight(light);

	light =
	{
		Color(0.0f, 0.0f, 0.0f, 1.0f), //Ambient
		Color(0.0f, 1.0f, 0.0f, 1.0f), //Diffuse
		Color(0.0f, 0.7f, 0.0f, 1.0f), //Specular
		Color(0.0f, 0.7f, 0.0f, 1.0f), //Emissive
		Vector3(-5, 1, -17.5f), 5.0f, 0.9f
	};
	Lighting::Get()->AddPointLight(light);

	light =
	{
		Color(0.0f, 0.0f, 0.0f, 1.0f),
		Color(0.0f, 0.0f, 1.0f, 1.0f),
		Color(0.0f, 0.0f, 0.7f, 1.0f),
		Color(0.0f, 0.0f, 0.7f, 1.0f),
		Vector3(-10, 1, -17.5f), 5.0f, 0.9f
	};
	Lighting::Get()->AddPointLight(light);
}

void ColorToneDemo::SpotLighting()
{
	SpotLight light;
	light =
	{
		Color(0.3f, 1.0f, 0.0f, 1.0f),
		Color(0.7f, 1.0f, 0.0f, 1.0f),
		Color(0.3f, 1.0f, 0.0f, 1.0f),
		Color(0.3f, 1.0f, 0.0f, 1.0f),
		Vector3(-15, 20, -30), 25.0f,
		Vector3(0, -1, 0), 30.0f, 0.4f
	};
	Lighting::Get()->AddSpotLight(light);

	light =
	{
		Color(1.0f, 0.2f, 0.9f, 1.0f),
		Color(1.0f, 0.2f, 0.9f, 1.0f),
		Color(1.0f, 0.2f, 0.9f, 1.0f),
		Color(1.0f, 0.2f, 0.9f, 1.0f),
		Vector3(0, 20, -30), 30.0f,
		Vector3(0, -1, 0), 40.0f, 0.55f
	};
	Lighting::Get()->AddSpotLight(light);
}

void ColorToneDemo::Pass(UINT mesh, UINT model, UINT anim)
{
	for (MeshRender* temp : meshes)
		temp->Pass(mesh);

	for (ModelRender* temp : models)
		temp->Pass(model);

	for (ModelAnimator* temp : animators)
		temp->Pass(anim);
}

실행화면

'⭐ DirectX > DirectX11 3D' 카테고리의 다른 글

[DirectX11] 104-105 Blur, Gaussian Blur (0)	2023.04.28
[DirectX11] 103 MRT(Multiple Render Targets) (0)	2023.04.27
[DirectX11] 096~98 Geometry Shader (0)	2023.04.12
[DirectX11] 095 Particle Editor (0)	2023.04.12
[DirectX11] 089~94 Particle System (0)	2023.04.04

[DirectX11] 099~102 Render Target, Post Effect(Color Tone)

Color Tone

ColorTone.fx

RenderTarget

DepthStiencil

PostEffect

ColorToneDemo

실행화면

'⭐ DirectX > DirectX11 3D' 카테고리의 다른 글

댓글

이 글 공유하기

티스토리툴바

Color Tone

ColorTone.fx

RenderTarget

DepthStiencil

PostEffect

ColorToneDemo

실행화면

'⭐ DirectX > DirectX11 3D' 카테고리의 다른 글

댓글

이 글 공유하기

다른 글

[DirectX11] 104-105 Blur, Gaussian Blur

[DirectX11] 103 MRT(Multiple Render Targets)

[DirectX11] 096~98 Geometry Shader

[DirectX11] 095 Particle Editor

티스토리툴바
