[UE GAS] 어트리뷰트와 UI 연동 Integration with Attribute and UI

어트리뷰트와 연동되는 체력바 구현과 기간형 게임플레이 이펙트의 활용

GAS와 연동하는 UI 시스템 구현 방법의 학습
액터 컴포넌트에서 GAS에서 필요한 이벤트만 받아 처리하는 방법의 학습
일정 기간동안 유지되는 기간형 게임플레이 이펙트의 다양한 활용

인프런 이득우님의 '언리얼 프로그래밍 Part4 - 게임플레이 어빌리티 시스템' 강의를 참고하였습니다.
😎 [이득우의 언리얼 프로그래밍 Part4 - 게임플레이 어빌리티 시스템] 강의 들으러 가기!

기획

신규 기능 기획

현재 체력 퍼센티지를 표시해주는 체력바 UI의 추가

체력이 떨어지면 죽는 기능의 구현

발동 기간동안 들어오면 데미지를 모두 무효화하는 무적 버프의 구현

공격 명중 시 공격 반경이 넓어지는, 최대 4단계까지 중첩되는 버프의 구현

핵심 컴포넌트

캐릭터 상단 HP바의 구현

ABGASWidgetComponent 생성

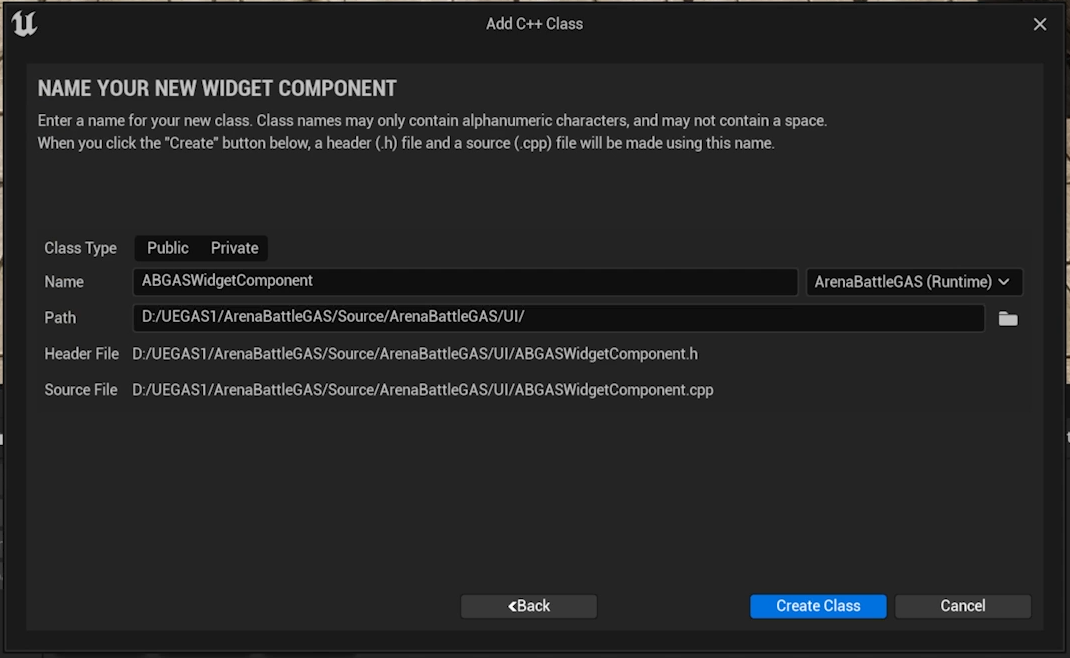

WidgetComponent - ABGASWidgetComponent 생성

ABGASWidgetComponent.h

 #pragma once
#include "CoreMinimal.h"
#include "Components/WidgetComponent.h"
#include "ABGASWidgetComponent.generated.h"

UCLASS()
class ARENABATTLEGAS_API UABGASWidgetComponent : public UWidgetComponent
{
	GENERATED_BODY()

protected:
	virtual void InitWidget() override;
};

ABGASWidgetComponent.cpp

 #include "UI/ABGASWidgetComponent.h"
#include "UI/ABGASUserWidget.h"

void UABGASWidgetComponent::InitWidget()
{
	Super::InitWidget();

	UABGASUserWidget* GASUserWidget = Cast<UABGASUserWidget>(GetWidget());
	if (GASUserWidget)
	{
		GASUserWidget->SetAbilitySystemComponent(GetOwner()); // WidgetComponent를 소유하고 있는 액터인 GetOwner()값을 넘겨 해당 액터의 ASC를 가져오게 된다
	}
}

ABGASUserWidget 생성

UserWidget - ABGASUserWidget 생성

ABGASUserWidget.h

 #pragma once
#include "CoreMinimal.h"
#include "Blueprint/UserWidget.h"
#include "AbilitySystemInterface.h"
#include "ABGASUserWidget.generated.h"

UCLASS()
class ARENABATTLEGAS_API UABGASUserWidget : public UUserWidget, public IAbilitySystemInterface
{
	GENERATED_BODY()

public:
	virtual void SetAbilitySystemComponent(AActor* InOwner);
	virtual class UAbilitySystemComponent* GetAbilitySystemComponent() const override;

protected:
	UPROPERTY(EditAnywhere, Category = GAS)
	TObjectPtr<class UAbilitySystemComponent> ASC;
};

ABGASUserWidget.cpp

 #include "UI/ABGASUserWidget.h"
#include "AbilitySystemBlueprintLibrary.h"

void UABGASUserWidget::SetAbilitySystemComponent(AActor* InOwner)
{
	if (IsValid(InOwner))
	{
		ASC = UAbilitySystemBlueprintLibrary::GetAbilitySystemComponent(InOwner);
	}
}

UAbilitySystemComponent* UABGASUserWidget::GetAbilitySystemComponent() const
{
	return ASC;
}

ABGASHpBarUserWidget 생성

ABGASUserWidget - ABGASHpBarUserWidget 생성

ABGASHpBarUserWidget.h

 #pragma once
#include "CoreMinimal.h"
#include "UI/ABGASUserWidget.h"
#include "GameplayEffectTypes.h"
#include "ABGASHpBarUserWidget.generated.h"

UCLASS()
class ARENABATTLEGAS_API UABGASHpBarUserWidget : public UABGASUserWidget
{
	GENERATED_BODY()

protected:
	virtual void SetAbilitySystemComponent(AActor* InOwner) override;

	virtual void OnHealthChanged(const FOnAttributeChangeData& ChangeData);
	virtual void OnMaxHealthChanged(const FOnAttributeChangeData& ChangeData);
	virtual void OnInvinsibleTagChanged(const FGameplayTag CallbackTag, int32 NewCount);

	void UpdateHpBar(); // 체력바를 업데이트 하는 함수

protected:
	UPROPERTY(meta = (BindWidget))
	TObjectPtr<class UProgressBar> PbHpBar;

	UPROPERTY(meta = (BindWidget))
	TObjectPtr<class UTextBlock> TxtHpStat;

	float CurrentHealth = 0.0f;
	float CurrentMaxHealth = 0.1f;

	FLinearColor HealthColor = FLinearColor::Red; // 평상시 체력바 빨간색
	FLinearColor InvinsibleColor = FLinearColor::Blue; // 무적상태시 체력바 파란색
};

ABGASHpBarUserWidget.cpp

 #include "UI/ABGASHpBarUserWidget.h"
#include "AbilitySystemComponent.h"
#include "Attribute/ABCharacterAttributeSet.h"
#include "ArenaBattleGAS.h"
#include "Components/ProgressBar.h"
#include "Components/TextBlock.h"
#include "Tag/ABGameplayTag.h"

void UABGASHpBarUserWidget::SetAbilitySystemComponent(AActor* InOwner)
{
	Super::SetAbilitySystemComponent(InOwner);

	if (ASC)
	{
		//** Delegate 설정
		ASC->GetGameplayAttributeValueChangeDelegate(UABCharacterAttributeSet::GetHealthAttribute()).AddUObject(this, &UABGASHpBarUserWidget::OnHealthChanged);
		ASC->GetGameplayAttributeValueChangeDelegate(UABCharacterAttributeSet::GetMaxHealthAttribute()).AddUObject(this, &UABGASHpBarUserWidget::OnMaxHealthChanged);
		ASC->RegisterGameplayTagEvent(ABTAG_CHARACTER_INVINSIBLE, EGameplayTagEventType::NewOrRemoved).AddUObject(this, &UABGASHpBarUserWidget::OnInvinsibleTagChanged);
		PbHpBar->SetFillColorAndOpacity(HealthColor);

		const UABCharacterAttributeSet* CurrentAttributeSet = ASC->GetSet<UABCharacterAttributeSet>();
		if (CurrentAttributeSet)
		{
			CurrentHealth = CurrentAttributeSet->GetHealth();
			CurrentMaxHealth = CurrentAttributeSet->GetMaxHealth();

			if (CurrentMaxHealth > 0.0f)
			{
				UpdateHpBar();
			}
		}
	}
}

void UABGASHpBarUserWidget::OnHealthChanged(const FOnAttributeChangeData& ChangeData)
{
	CurrentHealth = ChangeData.NewValue;
	UpdateHpBar();
}

void UABGASHpBarUserWidget::OnMaxHealthChanged(const FOnAttributeChangeData& ChangeData)
{
	CurrentMaxHealth = ChangeData.NewValue;
	UpdateHpBar();
}

void UABGASHpBarUserWidget::OnInvinsibleTagChanged(const FGameplayTag CallbackTag, int32 NewCount)
{
	if (NewCount > 0)
	{
		PbHpBar->SetFillColorAndOpacity(InvinsibleColor); // 무적상태시 체력바 파란색
		PbHpBar->SetPercent(1.0f);
	}
	else
	{
		PbHpBar->SetFillColorAndOpacity(HealthColor); // 평상시 체력바 빨간색
		UpdateHpBar();
	}
}

void UABGASHpBarUserWidget::UpdateHpBar()
{
	if (PbHpBar)
	{
		PbHpBar->SetPercent(CurrentHealth / CurrentMaxHealth);
	}

	if (TxtHpStat)
	{
		TxtHpStat->SetText(FText::FromString(FString::Printf(TEXT("%.0f/%0.f"), CurrentHealth, CurrentMaxHealth)));
	}
}

ABGASCharacterPlayer 수정

ABGASCharacterPlayer.h

 #pragma once
#include "CoreMinimal.h"
#include "Character/ABCharacterPlayer.h"
#include "AbilitySystemInterface.h"
#include "ABGASCharacterPlayer.generated.h"

UCLASS()
class ARENABATTLEGAS_API AABGASCharacterPlayer : public AABCharacterPlayer, public IAbilitySystemInterface
{
	GENERATED_BODY()

public:
	AABGASCharacterPlayer();

	virtual class UAbilitySystemComponent* GetAbilitySystemComponent() const override;
	virtual void PossessedBy(AController* NewController) override;
	virtual void SetupPlayerInputComponent(class UInputComponent* PlayerInputComponent) override;

protected:
	void SetupGASInputComponent();
	void GASInputPressed(int32 InputId);
	void GASInputReleased(int32 InputId);

	UFUNCTION()
	virtual void OnOutOfHealth();

protected:
	UPROPERTY(EditAnywhere, Category = GAS)
	TObjectPtr<class UAbilitySystemComponent> ASC;

	UPROPERTY(EditAnywhere, Category = GAS)
	TArray<TSubclassOf<class UGameplayAbility>> StartAbilities;

	UPROPERTY(EditAnywhere, Category = GAS)
	TMap<int32, TSubclassOf<class UGameplayAbility>> StartInputAbilities;

	UPROPERTY(VisibleAnywhere)
	TObjectPtr<class UABGASWidgetComponent> HpBar;
};

변수 추가

UPROPERTY(VisibleAnywhere)
TObjectPtr<class UABGASWidgetComponent> HpBar;

ABGASCharacterPlayer.cpp

 #include "Character/ABGASCharacterPlayer.h"
#include "AbilitySystemComponent.h"
#include "Player/ABGASPlayerState.h"
#include "EnhancedInputComponent.h"
#include "UI/ABGASWidgetComponent.h"
#include "UI/ABGASUserWidget.h"
#include "Attribute/ABCharacterAttributeSet.h"

AABGASCharacterPlayer::AABGASCharacterPlayer()
{
	ASC = nullptr;

	static ConstructorHelpers::FObjectFinder<UAnimMontage> ComboActionMontageRef(TEXT("/Script/Engine.AnimMontage'/Game/ArenaBattleGAS/Animation/AM_ComboAttack.AM_ComboAttack'"));
	if (ComboActionMontageRef.Object)
	{
		ComboActionMontage = ComboActionMontageRef.Object;
	}

	HpBar = CreateDefaultSubobject<UABGASWidgetComponent>(TEXT("Widget"));
	HpBar->SetupAttachment(GetMesh());
	HpBar->SetRelativeLocation(FVector(0.0f, 0.0f, 180.0f));
	static ConstructorHelpers::FClassFinder<UUserWidget> HpBarWidgetRef(TEXT("/Game/ArenaBattle/UI/WBP_HpBar.WBP_HpBar_C"));
	if (HpBarWidgetRef.Class)
	{
		HpBar->SetWidgetClass(HpBarWidgetRef.Class);
		HpBar->SetWidgetSpace(EWidgetSpace::Screen);
		HpBar->SetDrawSize(FVector2D(200.0f, 20.f));
		HpBar->SetCollisionEnabled(ECollisionEnabled::NoCollision);
	}
}

UAbilitySystemComponent* AABGASCharacterPlayer::GetAbilitySystemComponent() const
{
	return ASC;
}

void AABGASCharacterPlayer::PossessedBy(AController* NewController)
{
	Super::PossessedBy(NewController);

	AABGASPlayerState* GASPS = GetPlayerState<AABGASPlayerState>();
	if (GASPS)
	{
		ASC = GASPS->GetAbilitySystemComponent();
		ASC->InitAbilityActorInfo(GASPS, this);

		const UABCharacterAttributeSet* CurrentAttributeSet = ASC->GetSet<UABCharacterAttributeSet>();
		if (CurrentAttributeSet)
		{
			CurrentAttributeSet->OnOutOfHealth.AddDynamic(this, &ThisClass::OnOutOfHealth);
		}

		for (const auto& StartAbility : StartAbilities)
		{
			FGameplayAbilitySpec StartSpec(StartAbility);
			ASC->GiveAbility(StartSpec);
		}

		for (const auto& StartInputAbility : StartInputAbilities)
		{
			FGameplayAbilitySpec StartSpec(StartInputAbility.Value);
			StartSpec.InputID = StartInputAbility.Key;
			ASC->GiveAbility(StartSpec);
		}

		SetupGASInputComponent();

		APlayerController* PlayerController = CastChecked<APlayerController>(NewController);
		PlayerController->ConsoleCommand(TEXT("showdebug abilitysystem"));
	}
}

void AABGASCharacterPlayer::SetupPlayerInputComponent(UInputComponent* PlayerInputComponent)
{
	Super::SetupPlayerInputComponent(PlayerInputComponent);

	SetupGASInputComponent();
}

void AABGASCharacterPlayer::SetupGASInputComponent()
{
	if (IsValid(ASC) && IsValid(InputComponent))
	{
		UEnhancedInputComponent* EnhancedInputComponent = CastChecked<UEnhancedInputComponent>(InputComponent);

		EnhancedInputComponent->BindAction(JumpAction, ETriggerEvent::Triggered, this, &AABGASCharacterPlayer::GASInputPressed, 0);
		EnhancedInputComponent->BindAction(JumpAction, ETriggerEvent::Completed, this, &AABGASCharacterPlayer::GASInputReleased, 0);
		EnhancedInputComponent->BindAction(AttackAction, ETriggerEvent::Triggered, this, &AABGASCharacterPlayer::GASInputPressed, 1);
	}
}

void AABGASCharacterPlayer::GASInputPressed(int32 InputId)
{
	FGameplayAbilitySpec* Spec = ASC->FindAbilitySpecFromInputID(InputId);
	if (Spec)
	{
		Spec->InputPressed = true;
		if (Spec->IsActive())
		{
			ASC->AbilitySpecInputPressed(*Spec);
		}
		else
		{
			ASC->TryActivateAbility(Spec->Handle);
		}
	}
}

void AABGASCharacterPlayer::GASInputReleased(int32 InputId)
{
	FGameplayAbilitySpec* Spec = ASC->FindAbilitySpecFromInputID(InputId);
	if (Spec)
	{
		Spec->InputPressed = false;
		if (Spec->IsActive())
		{
			ASC->AbilitySpecInputReleased(*Spec);
		}
	}
}

void AABGASCharacterPlayer::OnOutOfHealth()
{
	SetDead();
}

AABGASCharacterPlayer::AABGASCharacterPlayer()

WidgetComponent 생성
UserWidget 생성

void AABGASCharacterPlayer::PossessedBy(AController* NewController)

AABGASPlayerState* GASPS = GetPlayerState<AABGASPlayerState>();
if (GASPS)
{
ASC = GASPS->GetAbilitySystemComponent();
ASC->InitAbilityActorInfo(GASPS, this);
}
const UABCharacterAttributeSet* CurrentAttributeSet = ASC->GetSet<UABCharacterAttributeSet>();
if (CurrentAttributeSet)
{
CurrentAttributeSet->OnOutOfHealth.AddDynamic(this, &ThisClass::OnOutOfHealth);
}

캐릭터 사망 구현하기

ABCharacterAttributeSet 생성

ABCharacterAttributeSet.h

 #pragma once
#include "CoreMinimal.h"
#include "AttributeSet.h"
#include "AbilitySystemComponent.h"
#include "ABCharacterAttributeSet.generated.h"

#define ATTRIBUTE_ACCESSORS(ClassName, PropertyName) \
	GAMEPLAYATTRIBUTE_PROPERTY_GETTER(ClassName, PropertyName) \
	GAMEPLAYATTRIBUTE_VALUE_GETTER(PropertyName) \
	GAMEPLAYATTRIBUTE_VALUE_SETTER(PropertyName) \
	GAMEPLAYATTRIBUTE_VALUE_INITTER(PropertyName)

DECLARE_DYNAMIC_MULTICAST_DELEGATE(FOutOfHealthDelegate); // delegate 등록

UCLASS()
class ARENABATTLEGAS_API UABCharacterAttributeSet : public UAttributeSet
{
	GENERATED_BODY()

public:
	UABCharacterAttributeSet();

	ATTRIBUTE_ACCESSORS(UABCharacterAttributeSet, AttackRange);
	ATTRIBUTE_ACCESSORS(UABCharacterAttributeSet, MaxAttackRange);
	ATTRIBUTE_ACCESSORS(UABCharacterAttributeSet, AttackRadius);
	ATTRIBUTE_ACCESSORS(UABCharacterAttributeSet, MaxAttackRadius);
	ATTRIBUTE_ACCESSORS(UABCharacterAttributeSet, AttackRate);
	ATTRIBUTE_ACCESSORS(UABCharacterAttributeSet, MaxAttackRate);
	ATTRIBUTE_ACCESSORS(UABCharacterAttributeSet, Health);
	ATTRIBUTE_ACCESSORS(UABCharacterAttributeSet, MaxHealth);
	ATTRIBUTE_ACCESSORS(UABCharacterAttributeSet, Damage);

	virtual void PreAttributeChange(const FGameplayAttribute& Attribute, float& NewValue) override;
	//virtual void PostAttributeChange(const FGameplayAttribute& Attribute, float OldValue, float NewValue) override;
	virtual bool PreGameplayEffectExecute(struct FGameplayEffectModCallbackData& Data) override;
	virtual void PostGameplayEffectExecute(const struct FGameplayEffectModCallbackData& Data) override;

	mutable FOutOfHealthDelegate OnOutOfHealth; // 아래 설명 참조

protected:
	UPROPERTY(BlueprintReadOnly, Category="Attack", Meta = (AllowPrivateAccess = true))
	FGameplayAttributeData AttackRange;
	UPROPERTY(BlueprintReadOnly, Category = "Attack", Meta = (AllowPrivateAccess = true))
	FGameplayAttributeData MaxAttackRange;
	UPROPERTY(BlueprintReadOnly, Category = "Attack", Meta = (AllowPrivateAccess = true))
	FGameplayAttributeData AttackRadius;
	UPROPERTY(BlueprintReadOnly, Category = "Attack", Meta = (AllowPrivateAccess = true))
	FGameplayAttributeData MaxAttackRadius;
	UPROPERTY(BlueprintReadOnly, Category = "Attack", Meta = (AllowPrivateAccess = true))
	FGameplayAttributeData AttackRate;
	UPROPERTY(BlueprintReadOnly, Category = "Attack", Meta = (AllowPrivateAccess = true))
	FGameplayAttributeData MaxAttackRate;
	UPROPERTY(BlueprintReadOnly, Category = "Health", Meta = (AllowPrivateAccess = true))
	FGameplayAttributeData Health;
	UPROPERTY(BlueprintReadOnly, Category = "Attack", Meta = (AllowPrivateAccess = true))
	FGameplayAttributeData MaxHealth;
	UPROPERTY(BlueprintReadOnly, Category = "Attack", Meta = (AllowPrivateAccess = true))
	FGameplayAttributeData Damage;

	bool bOutOfHealth = false; // 추가

	friend class UABGE_AttackDamage;
};

델리게이트 추가

DECLARE_DYNAMIC_MULTICAST_DELEGATE(FOutOfHealthDelegate);

변수 추가

mutable FOutOfHealthDelegate OnOutOfHealth;
- ASC에서 특정 Attribute를 접근할 때 가져오는 Get함수와 Set 함수는 const로 선언되어 있다. 그래서 delegate에 연동하려고 하면 constness를 위반하게 된다.
- 이것을 const_cast로 다시 캐스팅하기보다는 지금 이 delegate에 대해서 mutable 키워드를 붙여서 아예 const에서 이 부분을 열외를 시키도록 설정하는 것이다.
- 이렇게되면 Get함수 또는 Set함수로 포인터를 가져온 후에 OnOutOfHealth delegate를 이전과 동일하게 추가할 수 있다.
bool bOutOfHealth = false;

ABCharacterAttributeSet.cpp

 #include "Attribute/ABCharacterAttributeSet.h"
#include "ArenaBattleGAS.h"
#include "GameplayEffectExtension.h"
#include "Tag/ABGameplayTag.h"

UABCharacterAttributeSet::UABCharacterAttributeSet() :
	AttackRange(100.0f),
	MaxAttackRange(300.0f),
	AttackRadius(50.f),
	MaxAttackRadius(150.0f),
	AttackRate(30.0f),
	MaxAttackRate(100.0f),
	MaxHealth(100.0f),
	Damage(0.0f)
{
	InitHealth(GetMaxHealth());
}

void UABCharacterAttributeSet::PreAttributeChange(const FGameplayAttribute& Attribute, float& NewValue)
{
	if (Attribute == GetDamageAttribute())
	{
		NewValue = NewValue < 0.0f ? 0.0f : NewValue;
	}
}

bool UABCharacterAttributeSet::PreGameplayEffectExecute(FGameplayEffectModCallbackData& Data)
{
	if (!Super::PreGameplayEffectExecute(Data))
	{
		return false;
	}

	if (Data.EvaluatedData.Attribute == GetDamageAttribute())
	{
		if (Data.EvaluatedData.Magnitude > 0.0f) // 데미지값이 0 초과라면
		{
			if (Data.Target.HasMatchingGameplayTag(ABTAG_CHARACTER_INVINSIBLE)) // 타겟의 AsC가 무적상태 태그를 가지고 있다면
			{
				Data.EvaluatedData.Magnitude = 0.0f; // 데미지값을 0으로 설정
				return false;
			}
		}
	}

	return true;
}

void UABCharacterAttributeSet::PostGameplayEffectExecute(const FGameplayEffectModCallbackData& Data)
{
	Super::PostGameplayEffectExecute(Data);

	float MinimumHealth = 0.0f;

	if (Data.EvaluatedData.Attribute == GetHealthAttribute())
	{
		ABGAS_LOG(LogABGAS, Warning, TEXT("Direct Health Access : %f"), GetHealth());
		SetHealth(FMath::Clamp(GetHealth(), MinimumHealth, GetMaxHealth()));
	}
	else if (Data.EvaluatedData.Attribute == GetDamageAttribute())
	{
		ABGAS_LOG(LogABGAS, Log, TEXT("Damage : %f"), GetDamage());
		SetHealth(FMath::Clamp(GetHealth() - GetDamage(), MinimumHealth, GetMaxHealth()));
		SetDamage(0.0f);
	}

	if ((GetHealth() <= 0.0f) && !bOutOfHealth)
	{
		Data.Target.AddLooseGameplayTag(ABTAG_CHARACTER_ISDEAD);
		OnOutOfHealth.Broadcast(); // delegate Broadcast
	}

	bOutOfHealth = (GetHealth() <= 0.0f);
}

//void UABCharacterAttributeSet::PostAttributeChange(const FGameplayAttribute& Attribute, float OldValue, float NewValue)
//{
//	if (Attribute == GetHealthAttribute())
//	{
//		ABGAS_LOG(LogABGAS, Log, TEXT("Health : %f -> %f"), OldValue, NewValue);
//	}
//}

void UABCharacterAttributeSet::PostGameplayEffectExecute(const FGameplayEffectModCallbackData& Data)

if ((GetHealth() <= 0.0f) && !bOutOfHealth)
{
Data.Target.AddLooseGameplayTag(ABTAG_CHARACTER_ISDEAD);
OnOutOfHealth.Broadcast();
}
bOutOfHealth = (GetHealth() <= 0.0f);

ABGASCharacterNonPlayer

ABGASCharacterNonPlayer.h

 #pragma once
#include "CoreMinimal.h"
#include "Character/ABCharacterNonPlayer.h"
#include "AbilitySystemInterface.h"
#include "ABGASCharacterNonPlayer.generated.h"

UCLASS()
class ARENABATTLEGAS_API AABGASCharacterNonPlayer : public AABCharacterNonPlayer, public IAbilitySystemInterface
{
	GENERATED_BODY()

public:
	AABGASCharacterNonPlayer();
	virtual class UAbilitySystemComponent* GetAbilitySystemComponent() const override;
	virtual void PossessedBy(AController* NewController) override;

	UFUNCTION()
	virtual void OnOutOfHealth();

protected:
	UPROPERTY(EditAnywhere, Category = GAS)
	TObjectPtr<class UAbilitySystemComponent> ASC;

	UPROPERTY()
	TObjectPtr<class UABCharacterAttributeSet> AttributeSet;

	UPROPERTY(EditAnywhere, Category = GAS)
	TSubclassOf<class UGameplayEffect> InitStatEffect;

	UPROPERTY(EditAnywhere, Category = GAS)
	float Level;

	UPROPERTY(VisibleAnywhere)
	TObjectPtr<class UABGASWidgetComponent> HpBar;
};

변수 추가

UPROPERTY(VisibleAnywhere)
TObjectPtr<class UABGASWidgetComponent> HpBar;

ABGASCharacterNonPlayer.cpp

 #include "Character/ABGASCharacterNonPlayer.h"
#include "AbilitySystemComponent.h"
#include "Attribute/ABCharacterAttributeSet.h"
#include "UI/ABGASWidgetComponent.h"
#include "UI/ABGASUserWidget.h"

AABGASCharacterNonPlayer::AABGASCharacterNonPlayer()
{
	ASC = CreateDefaultSubobject<UAbilitySystemComponent>(TEXT("ASC"));
	AttributeSet = CreateDefaultSubobject<UABCharacterAttributeSet>(TEXT("AttributeSet"));

	HpBar = CreateDefaultSubobject<UABGASWidgetComponent>(TEXT("Widget"));
	HpBar->SetupAttachment(GetMesh());
	HpBar->SetRelativeLocation(FVector(0.0f, 0.0f, 180.0f));
	static ConstructorHelpers::FClassFinder<UUserWidget> HpBarWidgetRef(TEXT("/Game/ArenaBattle/UI/WBP_HpBar.WBP_HpBar_C"));
	if (HpBarWidgetRef.Class)
	{
		HpBar->SetWidgetClass(HpBarWidgetRef.Class);
		HpBar->SetWidgetSpace(EWidgetSpace::Screen);
		HpBar->SetDrawSize(FVector2D(200.0f, 20.f));
		HpBar->SetCollisionEnabled(ECollisionEnabled::NoCollision);
	}

	Level = 1;
}

UAbilitySystemComponent* AABGASCharacterNonPlayer::GetAbilitySystemComponent() const
{
	return ASC;
}

void AABGASCharacterNonPlayer::PossessedBy(AController* NewController)
{
	Super::PossessedBy(NewController);

	ASC->InitAbilityActorInfo(this, this);
	AttributeSet->OnOutOfHealth.AddDynamic(this, &ThisClass::OnOutOfHealth);

	FGameplayEffectContextHandle EffectContextHandle = ASC->MakeEffectContext();
	EffectContextHandle.AddSourceObject(this);
	FGameplayEffectSpecHandle EffectSpecHandle = ASC->MakeOutgoingSpec(InitStatEffect, Level, EffectContextHandle);
	if (EffectSpecHandle.IsValid())
	{
		ASC->BP_ApplyGameplayEffectSpecToSelf(EffectSpecHandle);
	}
}

void AABGASCharacterNonPlayer::OnOutOfHealth()
{
	SetDead();
}

void AABGASCharacterNonPlayer::PossessedBy(AController* NewController)

ASC->InitAbilityActorInfo(this, this);
AttributeSet->OnOutOfHealth.AddDynamic(this, &ThisClass::OnOutOfHealth);

void AABGASCharacterNonPlayer::OnOutOfHealth()

SetDead();

기간형 게임플레이 이펙트를 사용하여 무적 상태 만들기

기간형 게임플레이 이펙트 Duration / Infinite Gameplay Effect

Duration / Infinite Gameplay Effect

instant 타입이 아닌 Gameplay Effect
- Duration : 지정한 시간 동안 동작하는 Gameplay Effect
- Inifinite : 명시적으로 종료하지 않으면 계속 동작하는 Gameplay Effect
instant 타입은 한 프레임에 종료되기 때문에, 상태를 가질 수 없음
기간형 Gameplay Effect는 유효 기간동안 태그와 같은 상태를 가질 수 있음
기간형 Gameplay Effect는 중첩(Stack)이 가능하도록 설정이 가능함
모디파이어를 설정하지 않아도 다양하게 활용 가능함
instant 는 Base값을 변경하지만 기간형은 Current값을 변경하고 원래대로 돌려놓음.

기간형 Gameplay Effect만 잘 활용하면
다양한 종류의 스킬, 버프 효과를 코딩 없이 구현하는 것이 가능

BPGE_Invincible

BPGA_Invincible

BP_ABGASCharacterNonPlayer

BPGE_AttackHitBuff 생성

GameplayEffect - BPGE_AttackHitBuff 생성

ABGA_AttackHitCheck 수정

ABGA_AttackHitCheck.h

 #pragma once
#include "CoreMinimal.h"
#include "Abilities/GameplayAbility.h"
#include "ABGA_AttackHitCheck.generated.h"

UCLASS()
class ARENABATTLEGAS_API UABGA_AttackHitCheck : public UGameplayAbility
{
	GENERATED_BODY()

public:
	UABGA_AttackHitCheck();
	virtual void ActivateAbility(const FGameplayAbilitySpecHandle Handle, const FGameplayAbilityActorInfo* ActorInfo, const FGameplayAbilityActivationInfo ActivationInfo, const FGameplayEventData* TriggerEventData) override;

protected:
	UFUNCTION()
	void OnTraceResultCallback(const FGameplayAbilityTargetDataHandle& TargetDataHandle);

	UPROPERTY(EditAnywhere, Category = "GAS")
	TSubclassOf<class UGameplayEffect> AttackDamageEffect;

	UPROPERTY(EditAnywhere, Category = "GAS")
	TSubclassOf<class UGameplayEffect> AttackBuffEffect;

	float CurrentLevel;
};

공격을 성공하면 Buff를 주는 Effect 변수 추가

UPROPERTY(EditAnywhere, Category = "GAS")
TSubclassOf<class UGameplayEffect> AttackBuffEffect;

ABGA_AttackHitCheck.cpp

 #include "GA/ABGA_AttackHitCheck.h"
#include "ArenaBattleGAS.h"
#include "AbilitySystemBlueprintLibrary.h"
#include "GA/AT/ABAT_Trace.h"
#include "GA/TA/ABTA_Trace.h"
#include "Attribute/ABCharacterAttributeSet.h"
#include "ArenaBattleGAS.h"
#include "Tag/ABGameplayTag.h"

UABGA_AttackHitCheck::UABGA_AttackHitCheck()
{
	InstancingPolicy = EGameplayAbilityInstancingPolicy::InstancedPerActor;
}

void UABGA_AttackHitCheck::ActivateAbility(const FGameplayAbilitySpecHandle Handle, const FGameplayAbilityActorInfo* ActorInfo, const FGameplayAbilityActivationInfo ActivationInfo, const FGameplayEventData* TriggerEventData)
{
	Super::ActivateAbility(Handle, ActorInfo, ActivationInfo, TriggerEventData);

	CurrentLevel = TriggerEventData->EventMagnitude;

	UABAT_Trace* AttackTraceTask = UABAT_Trace::CreateTask(this, AABTA_Trace::StaticClass());
	AttackTraceTask->OnComplete.AddDynamic(this, &UABGA_AttackHitCheck::OnTraceResultCallback);
	AttackTraceTask->ReadyForActivation();
}

void UABGA_AttackHitCheck::OnTraceResultCallback(const FGameplayAbilityTargetDataHandle& TargetDataHandle)
{
	if (UAbilitySystemBlueprintLibrary::TargetDataHasHitResult(TargetDataHandle, 0))
	{
		FHitResult HitResult = UAbilitySystemBlueprintLibrary::GetHitResultFromTargetData(TargetDataHandle, 0);
		ABGAS_LOG(LogABGAS, Log, TEXT("Target %s Detected"), *(HitResult.GetActor()->GetName()));

		UAbilitySystemComponent* SourceASC = GetAbilitySystemComponentFromActorInfo_Checked();

		const UABCharacterAttributeSet* SourceAttribute = SourceASC->GetSet<UABCharacterAttributeSet>();

		FGameplayEffectSpecHandle EffectSpecHandle = MakeOutgoingGameplayEffectSpec(AttackDamageEffect, CurrentLevel);
		if (EffectSpecHandle.IsValid())
		{
			//EffectSpecHandle.Data->SetSetByCallerMagnitude(ABTAG_DATA_DAMAGE, -SourceAttribute->GetAttackRate());
			ApplyGameplayEffectSpecToTarget(CurrentSpecHandle, CurrentActorInfo, CurrentActivationInfo, EffectSpecHandle, TargetDataHandle);
		}

		FGameplayEffectSpecHandle BuffEffectSpecHandle = MakeOutgoingGameplayEffectSpec(AttackBuffEffect);
		if (BuffEffectSpecHandle.IsValid())
		{
			ApplyGameplayEffectSpecToOwner(CurrentSpecHandle, CurrentActorInfo, CurrentActivationInfo, BuffEffectSpecHandle);
		}
	}

	bool bReplicatedEndAbility = true;
	bool bWasCancelled = false;
	EndAbility(CurrentSpecHandle, CurrentActorInfo, CurrentActivationInfo, bReplicatedEndAbility, bWasCancelled);
}

Buff 이펙트

void UABGA_AttackHitCheck::OnTraceResultCallback(const FGameplayAbilityTargetDataHandle& TargetDataHandle)
- if (UAbilitySystemBlueprintLibrary::TargetDataHasHitResult(TargetDataHandle, 0))
  - FGameplayEffectSpecHandle BuffEffectSpecHandle = MakeOutgoingGameplayEffectSpec(AttackBuffEffect);
    if (BuffEffectSpecHandle.IsValid())
    {
    ApplyGameplayEffectSpecToOwner(CurrentSpecHandle, CurrentActorInfo, CurrentActivationInfo, BuffEffectSpecHandle);
    }

BPGA_AttackHitCheck

실행화면

정리

어트리뷰트와 UI 변동

어트리뷰트와 직접 연동하는 캐릭터 UI 시스템의 구현
죽는 상태의 구현과 게임플레이 태그의 수동 설정
일정 기간동안 무적이 되는 이펙트의 구현과 무적 상태일 때의 어트리뷰트 처리
명중할수록 최대 4단계까지 공격 반경이 늘어나는 중첩 이펙트의 구현

'⭐ Unreal Engine > UE Game Ability System(GAS)' 카테고리의 다른 글

[UE GAS] 캐릭터의 광역 스킬 구현 (0)	2024.03.10
[UE GAS] 아이템 상자 구현 (0)	2024.03.10
[UE GAS] 게임플레이 이펙트의 활용 Applying Gameplay Effect (0)	2024.03.08
[UE GAS] 캐릭터 어트리뷰트 설정 (0)	2024.03.07
[UE GAS] 공격 판정 시스템의 구현 (0)	2024.03.06

다른 글

다른 글 더 둘러보기

내 블로그 - 관리자 홈 전환	`Q` `Q`
새 글 쓰기	`W` `W`

글 수정 (권한 있는 경우)	`E` `E`
댓글 영역으로 이동	`C` `C`

이 페이지의 URL 복사	`S` `S`
맨 위로 이동	`T` `T`
티스토리 홈 이동	`H` `H`
단축키 안내	`Shift` + `/` `⇧` + `/`

[UE GAS] 어트리뷰트와 UI 연동 Integration with Attribute and UI

기획

신규 기능 기획

핵심 컴포넌트

캐릭터 상단 HP바의 구현

ABGASWidgetComponent 생성

ABGASUserWidget 생성

ABGASHpBarUserWidget 생성

ABGASCharacterPlayer 수정

캐릭터 사망 구현하기

ABCharacterAttributeSet 생성

ABGASCharacterNonPlayer

기간형 게임플레이 이펙트를 사용하여 무적 상태 만들기

기간형 게임플레이 이펙트 Duration / Infinite Gameplay Effect

BPGE_Invincible

BPGA_Invincible

BP_ABGASCharacterNonPlayer

BPGE_AttackHitBuff 생성

ABGA_AttackHitCheck 수정

BPGA_AttackHitCheck

실행화면

정리

'⭐ Unreal Engine > UE Game Ability System(GAS)' 카테고리의 다른 글

댓글

이 글 공유하기

티스토리툴바

단축키

내 블로그

블로그 게시글

모든 영역

기획

신규 기능 기획

핵심 컴포넌트

캐릭터 상단 HP바의 구현

ABGASWidgetComponent 생성

ABGASUserWidget 생성

ABGASHpBarUserWidget 생성

ABGASCharacterPlayer 수정

캐릭터 사망 구현하기

ABCharacterAttributeSet 생성

ABGASCharacterNonPlayer

기간형 게임플레이 이펙트를 사용하여 무적 상태 만들기

기간형 게임플레이 이펙트 Duration / Infinite Gameplay Effect

BPGE_Invincible

BPGA_Invincible

BP_ABGASCharacterNonPlayer

BPGE_AttackHitBuff 생성

ABGA_AttackHitCheck 수정

BPGA_AttackHitCheck

실행화면

정리

'⭐ Unreal Engine > UE Game Ability System(GAS)' 카테고리의 다른 글

댓글

이 글 공유하기

다른 글

[UE GAS] 캐릭터의 광역 스킬 구현

[UE GAS] 아이템 상자 구현

[UE GAS] 게임플레이 이펙트의 활용 Applying Gameplay Effect

[UE GAS] 캐릭터 어트리뷰트 설정

티스토리툴바

단축키

내 블로그

블로그 게시글

모든 영역
