[UE] TPS Weapon - Weapon Framework 짜기

Weapon - Framework 짜기


Characters
	CAnimInstance.h .cpp CPlayer.h .cpp
Utilities
	CHelpers.h CLog.h .cpp
Weapons
	CWeapon.h .cpp 생성 CWeapon_AR4.h .cpp 생성 CWeaponComponent.h .cpp 생성
CGameMode.h .cpp Global.h

https://designerd.tistory.com/entry/Unreal-20230111-10%EA%B0%95-%EB%AC%B4%EA%B8%B0%EA%B4%80%EB%A6%AC

[Unreal] (2023.01.11) 10강 - 무기관리

목차 무기 관리 BP: Blueprint Class BS: Blend Space ABP: Animation Blueprint AN: Blueprint Class AnimNotify ANS: Blueprint Class - AnimNotifyState E: Enum 열거형 DT: Data Table UE2212_01 01_Blueprints Level - LEVEL BP_01_Variable 02_Player 02_Playe

designerd.tistory.com

Service Locator

Weapon Component (이 패턴을 Service Locator. 응집도를 높이는 패턴)

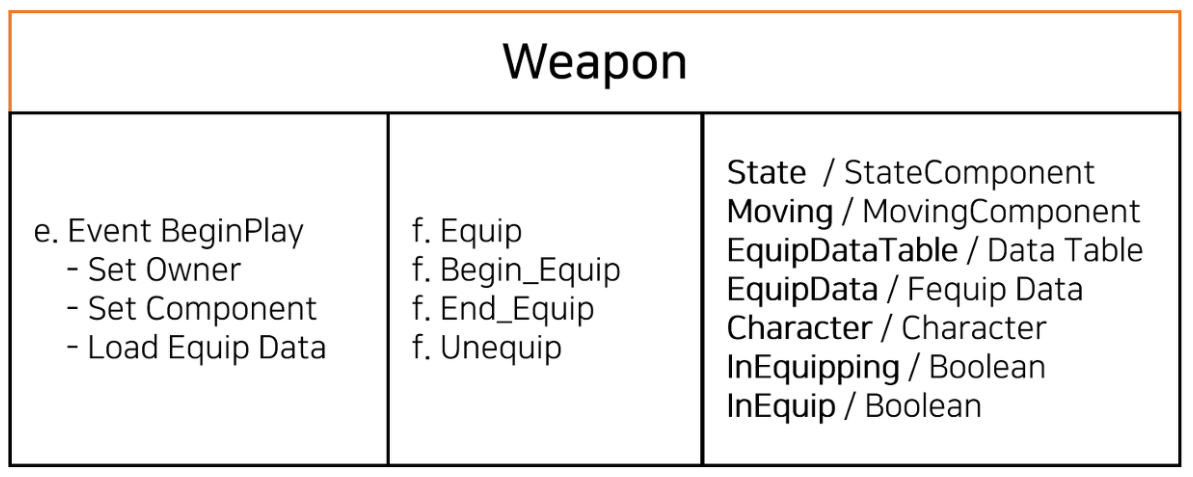

Weapon

SOLID

단일책임 원칙
개방페쇄 원칙:
- 추가에는 열려있고 수정에는 닫혀있어야 한다는 원칙. 기능을 추가하는 것만 열려있다.
리스콥프 치환 원칙:
- 부모에 있는 것을 자식으로 내렸을때 정상적으로 작동해야한다.
- 부모는 공통적인 것만 들어가야 한다.
df
의존역전 원칙:

응집도는 높이고 결합도는 낮추는 방향으로 프로그래밍해야 한다.

조건 체크 방식 - bool CanEquip()

class A
{
	virtual bool CanEquip() { } //조건 체크를 여기서 한다.

    virtual void Equip()
    {
    	if(CanEquip()) //조건체크
        {
        }
    }
}

class A : B
{
	bool CanEquip() { }  //부모꺼 체크

    void Equip() //자기꺼 체크
    {
    	Super::Equip();

        if(CanEquip())
        {
        }

    }

}

부모 클래스에서 virtual bool CanEquip()으로 조건 체크를 한다.

자식 클래스에서 부모의 CanEquip()을 체크한다.
자식 클래스에서 필요한 내용을 재정의한다.
자식은 '부모 조건 체크 + 자기꺼 조건 체크'

CWeapon

새 C++ 클래스 생성 - Actor - CWeapon 생성

CWeapon.h

#pragma once
#include "CoreMinimal.h"
#include "GameFramework/Actor.h"
#include "CWeapon.generated.h"

//abstract를 쓰면 Unreal Editor에서 추상 베이스 클래스로 취급하겠다는 의미. 추상이되면 배치시킬 수 없다.
UCLASS(abstract)
class U2212_04_API ACWeapon : public AActor
{
	GENERATED_BODY()

protected:
	UPROPERTY(EditDefaultsOnly, Category = "Equip")
		FName HolsterSocketName;

private:
	UPROPERTY(VisibleAnywhere)
		class USceneComponent* Root;

protected:
	UPROPERTY(VisibleAnywhere)
		class USkeletalMeshComponent* Mesh;

public:
	ACWeapon();

protected:
	virtual void BeginPlay() override;

public:
	virtual void Tick(float DeltaTime) override;

public:
	bool CanEquip();
	void Equip();
	void Begin_Equip();
	void End_Equip();

	bool CanUnequip();
	void Unequip();

private:
	class ACPlayer* Owner;
};

모든 Weapon의 부모 클래스가 될 CWeapon에

bool CanEquip();
void Equip();
void Begin_Equip();
void End_Equip();
bool CanUnequip();
void Unequip();

을 정의한다.

CWeapon.cpp

#include "Weapons/CWeapon.h"
#include "Global.h"
#include "Character/CPlayer.h"
#include "Components/SkeletalMeshComponent.h"

ACWeapon::ACWeapon()
{
	PrimaryActorTick.bCanEverTick = true;

	CHelpers::CreateComponent<USceneComponent>(this, &Root, "Root");
	CHelpers::CreateComponent<USkeletalMeshComponent>(this, &Mesh, "Mesh", Root);
}

void ACWeapon::BeginPlay()
{
	Super::BeginPlay();

	Owner = Cast<ACPlayer>(GetOwner());

	if (HolsterSocketName.IsValid())
		AttachToComponent(Owner->GetMesh(), FAttachmentTransformRules(EAttachmentRule::KeepRelative, true), HolsterSocketName);
}

void ACWeapon::Tick(float DeltaTime)
{
	Super::Tick(DeltaTime);

}

bool ACWeapon::CanEquip()
{
	return true;
}

void ACWeapon::Equip()
{
}

void ACWeapon::Begin_Equip()
{
}

void ACWeapon::End_Equip()
{
}

bool ACWeapon::CanUnequip()
{
	return true;
}

void ACWeapon::Unequip()
{
}

추후에 코드 추가 예정.

위의 BP 노드를 Unreal C++ 코드로 작성하면 다음과 같다.
AttachToComponent(Owner->GetMesh(), FAttachmentTransformRules EAttachmentRule::KeepRelative, true), HolsterSocketName);

CWeapon_AR4

Weapon의 자식 클래스 생성 - Actor - CWeapon_AR4 생성

CWeapon_AR4.h

#pragma once
#include "CoreMinimal.h"
#include "Weapons/CWeapon.h"
#include "CWeapon_AR4.generated.h"

UCLASS()
class U2212_04_API ACWeapon_AR4 : public ACWeapon
{
	GENERATED_BODY()

public:
	ACWeapon_AR4();
};

CWeapon_AR4.cpp

#include "Weapons/CWeapon_AR4.h"
#include "Global.h"
#include "Components/SkeletalMeshComponent.h"

ACWeapon_AR4::ACWeapon_AR4()
{
	USkeletalMesh* mesh;
	CHelpers::GetAsset<USkeletalMesh>(&mesh, "SkeletalMesh'/Game/FPS_Weapon_Bundle/Weapons/Meshes/AR4/SK_AR4.SK_AR4'");
	Mesh->SetSkeletalMesh(mesh);

	//Equip
	{
		HolsterSocketName = "Rifle_AR4_Holster";
	}
}

CWeaponComponent

새 C++ 클래스 생성 - ActorComponent - CWeaponComponent 생성

CWeaponComponent.h

#pragma once

#include "CoreMinimal.h"
#include "Components/ActorComponent.h"
#include "CWeaponComponent.generated.h"

//BlueprintType을 써서 BP에서 공개되게 한다. 추후에 Animation BP에서 다루어야 한다. 추후에 switch로 Weapon Blending을 할 것이다.
UENUM(BlueprintType)
enum class EWeaponType : uint8
{
	AR4, AK47, Pistol, Max,
};

DECLARE_DYNAMIC_MULTICAST_DELEGATE_TwoParams(FWeaponTypeChanged, EWeaponType, InPrevType, EWeaponType, InNewType);


UCLASS( ClassGroup=(Custom), meta=(BlueprintSpawnableComponent) )
class U2212_04_API UCWeaponComponent : public UActorComponent
{
	GENERATED_BODY()

private:
	UPROPERTY(EditAnywhere, Category = "Settings")
		TArray<TSubclassOf<class ACWeapon>> WeaponClasses; //Spawn시킬 때 class 타입을 TSubclassOf로 명시해준다. TArray는 그것에 대한 배열이다.

public:
	FORCEINLINE bool IsUnarmedMode() { return Type == EWeaponType::Max; }//Max는 아무것도 선택안한 상황.
	FORCEINLINE bool IsAR4Mode() { return Type == EWeaponType::AR4; }
	FORCEINLINE bool IsAK47Mode() { return Type == EWeaponType::AK47; }
	FORCEINLINE bool IsPistolMode() { return Type == EWeaponType::Pistol; }

public:
	// Sets default values for this component's properties
	UCWeaponComponent();

protected:
	// Called when the game starts
	virtual void BeginPlay() override;

public:
	// Called every frame
	virtual void TickComponent(float DeltaTime, ELevelTick TickType, FActorComponentTickFunction* ThisTickFunction) override;

private:
	class ACWeapon* GetCurrWeapon();//현재 무기를 리턴

public:
	void SetUnarmedMode();
	void SetAR4Mode();
	//void SetAK47Mode();
	//void SetPistolMode();

private:
	void SetMode(EWeaponType InType);
	void ChangeType(EWeaponType InType);

public:
	FWeaponTypeChanged OnWeaponTypeChanged;

private:
	EWeaponType Type = EWeaponType::Max; //Max는 아무것도 선택안한 상황.

private:
	class ACPlayer* Owner; //플레이어 변수
	TArray<class ACWeapon*> Weapons; //무기 배열 변수
};

CWeaponComponent.cpp

#include "Weapons/CWeaponComponent.h"
#include "Global.h"
#include "CWeapon.h"
#include "Character/CPlayer.h"

// Sets default values for this component's properties
UCWeaponComponent::UCWeaponComponent()
{
	// Set this component to be initialized when the game starts, and to be ticked every frame.  You can turn these features
	// off to improve performance if you don't need them.
	PrimaryComponentTick.bCanEverTick = true;
}

void UCWeaponComponent::BeginPlay()
{
	Super::BeginPlay();

	Owner = Cast<ACPlayer>(GetOwner());
	CheckNull(Owner);

	FActorSpawnParameters params;
	params.Owner = Owner;
	params.SpawnCollisionHandlingOverride = ESpawnActorCollisionHandlingMethod::AlwaysSpawn;

	//받은 타입을 Spawn 시킨다.
	for(TSubclassOf<ACWeapon> weaponClass : WeaponClasses)
	{
		if(!!weaponClass)
		{
			ACWeapon* weapon = Owner->GetWorld()->SpawnActor<ACWeapon>(weaponClass, params);//weaponClass 타입으로 Spawn시킨다.
			Weapons.Add(weapon);
		}
	}
}


// Called every frame
void UCWeaponComponent::TickComponent(float DeltaTime, ELevelTick TickType, FActorComponentTickFunction* ThisTickFunction)
{
	Super::TickComponent(DeltaTime, TickType, ThisTickFunction);

}

ACWeapon* UCWeaponComponent::GetCurrWeapon()
{
	CheckTrueResult(IsUnarmedMode(), nullptr);//IsUnarmedMode가 true면 무기 리턴해줄수 없으므로 nullptr로 리턴

	return Weapons[(int32)Type]; //BP의 to int //현재 선택된 Weapon을 리턴해준다.
}

void UCWeaponComponent::SetUnarmedMode()
{
	CheckFalse(GetCurrWeapon()->CanUnequip());//현재 무기가 해제될 수 있는지 체크

	GetCurrWeapon()->Unequip(); //무기 해제
	ChangeType(EWeaponType::Max);//현재 무기를 Max로 바꾸어줌(Max는 아무것도 선택안한 상태)
}

void UCWeaponComponent::SetAR4Mode()
{
	SetMode(EWeaponType::AR4);
}

void UCWeaponComponent::SetMode(EWeaponType InType)
{
	if(Type == InType) //현재 무기와 장착하려는 무기가 같은 경우
	{
		SetUnarmedMode(); //무기 장착 해제

		return; //무기 장착 해제 후 리턴
	}
	else if (IsUnarmedMode() == false)
	{
		CheckFalse(GetCurrWeapon()->CanUnequip());//현재 무기가 해제될 수 있는지 체크

		GetCurrWeapon()->Unequip(); //무기 해제
	}

	CheckNull(Weapons[(int32)InType]); //장착될 무기가 있는지 체크
	CheckFalse(Weapons[(int32)InType]->CanEquip());//장착될 무기가 장착될 수 있는 상황인지 체크

	Weapons[(int32)InType]->Equip(); // 무기 장착

	ChangeType(InType); //무기 변경 알려줌

}

void UCWeaponComponent::ChangeType(EWeaponType InType)
{
	EWeaponType type = Type;
	Type = InType; //기존의 무기 타입에서 바뀐 무기 타입을 넣어줌.

	if (OnWeaponTypeChanged.IsBound())
		OnWeaponTypeChanged.Broadcast(type, InType);//기존 무기 타입, 바뀐 무기 타입

}

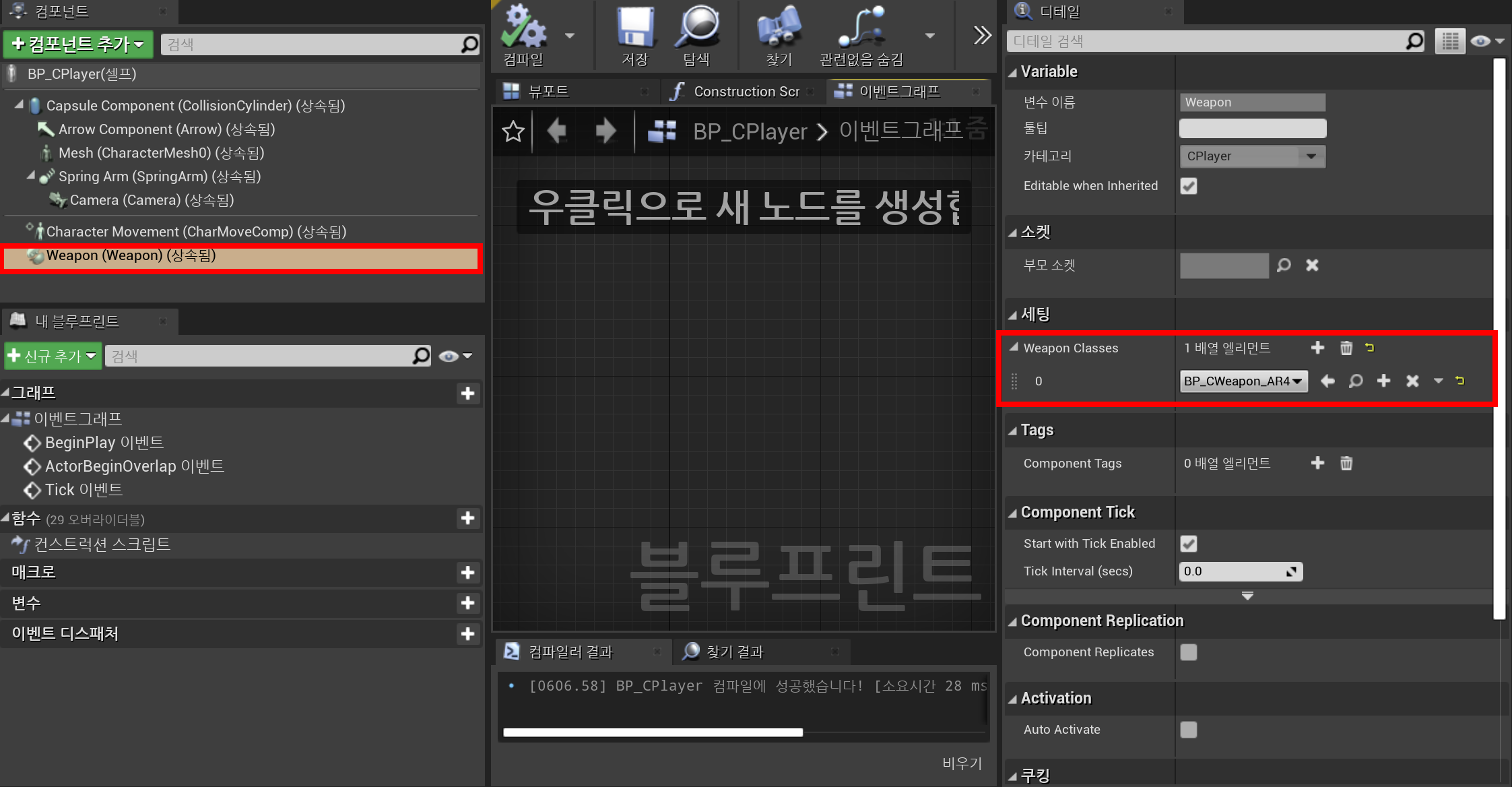

Player 부분 추가

Skel_Mannequin

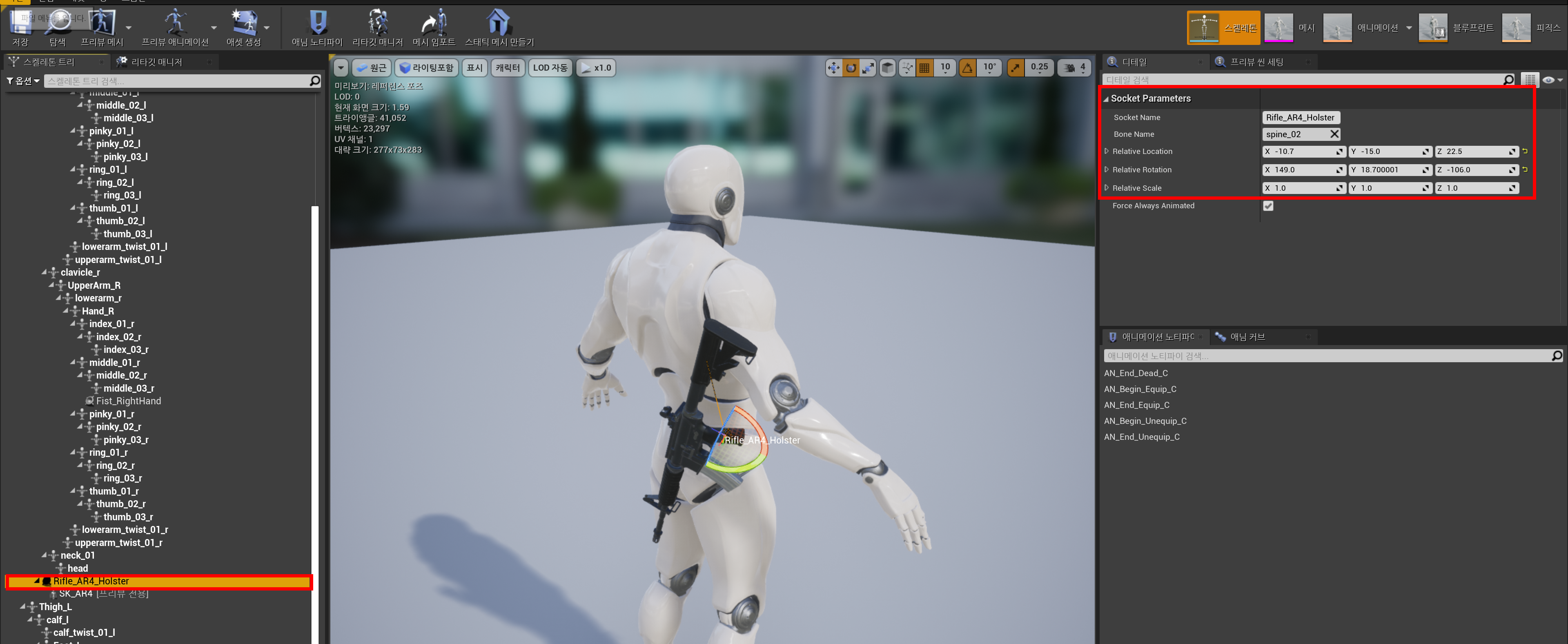

소켓 추가

CHelper

CHelper.h

#pragma once

#include "CoreMinimal.h"

#define CheckTrue(x) { if(x == true) return; }
#define CheckTrueResult(x, y) { if(x == true) return y; }

#define CheckFalse(x) { if(x == false) return;}
#define CheckFalseResult(x, y) { if(x == false) return y;}

#define CheckNull(x) { if(x == nullptr) return;}
#define CheckNullResult(x, y) { if(x == nullptr) return y;}


#define CreateTextRender()\
{\
	CHelpers::CreateComponent<UTextRenderComponent>(this, &Text, "Tex", Root);\
	Text->SetRelativeLocation(FVector(0, 0, 100));\
	Text->SetRelativeRotation(FRotator(0, 180, 0));\
	Text->SetRelativeScale3D(FVector(2));\
	Text->TextRenderColor = FColor::Red;\
	Text->HorizontalAlignment = EHorizTextAligment::EHTA_Center;\
	Text->Text = FText::FromString(GetName().Replace(L"Default__", L""));\
}


class U2212_04_API CHelpers
{
public:
	template<typename T>
	static void CreateComponent(AActor* InActor, T** OutComponent, FName InName, USceneComponent* InParent = nullptr)
	{
		*OutComponent = InActor->CreateDefaultSubobject<T>(InName);

		if (!!InParent)
		{
			(*OutComponent)->SetupAttachment(InParent);

			return;
		}

		InActor->SetRootComponent(*OutComponent);
	}

	//CreateActorComponent 추가
	template<typename T>
	static void CreateActorComponent(AActor* InActor, T** OutComponent, FName InName)
	{
		*OutComponent = InActor->CreateDefaultSubobject<T>(InName);
	}

	template<typename T>
	static void GetAsset(T** OutObject, FString InPath)
	{
		ConstructorHelpers::FObjectFinder<T> asset(*InPath);
		*OutObject = asset.Object;
	}

	template<typename T>
	static void GetAssetDynamic(T** OutObject, FString InPath)
	{
		*OutObject = Cast<T>(StaticLoadObject(T::StaticClass(), nullptr, *InPath));
	}

	template<typename T>
	static void GetClass(TSubclassOf<T>* OutClass, FString InPath)
	{
		ConstructorHelpers::FClassFinder<T> asset(*InPath);
		*OutClass = asset.Class;
	}

	template<typename T>
	static T* FindActor(UWorld* InWorld)
	{
		for (AActor* actor : InWorld->GetCurrentLevel()->Actors)
		{
			if (!!actor && actor->IsA<T>())
				return Cast<T>(actor);
		}

		return nullptr;
	}

	template<typename T>
	static void FindActors(UWorld* InWorld, TArray<T*>& OutActors)
	{
		for (AActor* actor : InWorld->GetCurrentLevel()->Actors)
		{
			if (!!actor && actor->IsA<T>())
				OutActors.Add(Cast<T>(actor));
		}
	}

	template<typename T>
	static T* GetComponent(AActor* InActor)
	{
		return Cast<T>(InActor->GetComponentByClass(T::StaticClass()));
	}

	template<typename T>
	static T* GetComponent(AActor* InActor, const FString& InName)
	{
		TArray<T*> components;
		InActor->GetComponents<T>(components);

		for (T* component : components)
		{
			if (component->GetName() == InName)
				return component;
		}

		return nullptr;
	}

};

추가된 부분

template<typename T>
static void CreateActorComponent(AActor* InActor, T** OutComponent, FName InName)
{
    *OutComponent = InActor->CreateDefaultSubobject<T>(InName);
}

template<typename T>
static T* GetComponent(AActor* InActor, const FString& InName)
{
    TArray<T*> components;
    InActor->GetComponents<T>(components);

    for (T* component : components)
    {
        if (component->GetName() == InName)
            return component;
    }

    return nullptr;
}

CPlayer

CPlayer.h

#pragma once

#include "CoreMinimal.h"
#include "GameFramework/Character.h"
#include "CPlayer.generated.h"

UCLASS()
class U2212_04_API ACPlayer : public ACharacter
{
	GENERATED_BODY()

private:
	UPROPERTY(VisibleAnywhere)
		class USpringArmComponent* SpringArm;

	UPROPERTY(VisibleAnywhere)
		class UCameraComponent* Camera;

private:
	UPROPERTY(VisibleAnywhere)
		class UCWeaponComponent* Weapon;

public:
	ACPlayer();

protected:
	virtual void BeginPlay() override;

public:
	virtual void Tick(float DeltaTime) override;
	virtual void SetupPlayerInputComponent(class UInputComponent* PlayerInputComponent) override;

private:
	void OnMoveForward(float InAxisValue);
	void OnMoveRight(float InAxisValue);
	void OnHorizontalLook(float InAxisValue);
	void OnVerticalLook(float InAxisValue);

private:
	void OnRun();
	void OffRun();
};

CPlayer에 WeaponComponent를 넣어준다.

CPlayer.cpp

#include "CPlayer.h"
#include "Global.h"
#include "CAnimInstance.h"
#include "Weapons/CWeaponComponent.h"
#include "GameFramework/SpringArmComponent.h"
#include "GameFramework/CharacterMovementComponent.h"
#include "Camera/CameraComponent.h"
#include "Components/CapsuleComponent.h"
#include "Components/InputComponent.h"
#include "Materials/MaterialInstanceDynamic.h"

ACPlayer::ACPlayer()
{
	PrimaryActorTick.bCanEverTick = true;

	CHelpers::CreateComponent<USpringArmComponent>(this, &SpringArm, "SpringArm", GetCapsuleComponent());
	CHelpers::CreateComponent<UCameraComponent>(this, &Camera, "Camera", SpringArm);

	CHelpers::CreateActorComponent<UCWeaponComponent>(this, &Weapon, "Weapon");

	USkeletalMesh* mesh;
	CHelpers::GetAsset<USkeletalMesh>(&mesh, "SkeletalMesh'/Game/Character/Mesh/SK_Mannequin.SK_Mannequin'");
	GetMesh()->SetSkeletalMesh(mesh);
	GetMesh()->SetRelativeLocation(FVector(0, 0, -90));
	GetMesh()->SetRelativeRotation(FRotator(0, -90, 0));


	TSubclassOf<UCAnimInstance> animInstance;
	CHelpers::GetClass<UCAnimInstance>(&animInstance, "AnimBlueprint'/Game/Player/ABP_Player.ABP_Player_C'");
	GetMesh()->SetAnimClass(animInstance);

	bUseControllerRotationYaw = false;
	GetCharacterMovement()->bOrientRotationToMovement = true;
	GetCharacterMovement()->MaxWalkSpeed = 400;


	SpringArm->SetRelativeLocation(FVector(0, 0, 60));
	SpringArm->TargetArmLength = 200;
	SpringArm->bUsePawnControlRotation = true;
	SpringArm->bEnableCameraLag = true;

}

void ACPlayer::BeginPlay()
{
	Super::BeginPlay(); //Super가 BP의 BeginPlay를 콜한다.

}

void ACPlayer::Tick(float DeltaTime)
{
	Super::Tick(DeltaTime);

}

void ACPlayer::SetupPlayerInputComponent(UInputComponent* PlayerInputComponent)
{
	Super::SetupPlayerInputComponent(PlayerInputComponent);

	PlayerInputComponent->BindAxis("MoveForward", this, &ACPlayer::OnMoveForward);
	PlayerInputComponent->BindAxis("MoveRight", this, &ACPlayer::OnMoveRight);
	PlayerInputComponent->BindAxis("HorizontalLook", this, &ACPlayer::OnHorizontalLook);
	PlayerInputComponent->BindAxis("VerticalLook", this, &ACPlayer::OnVerticalLook);

	PlayerInputComponent->BindAction("Run", EInputEvent::IE_Pressed, this, &ACPlayer::OnRun);
	PlayerInputComponent->BindAction("Run", EInputEvent::IE_Released, this, &ACPlayer::OffRun);

	PlayerInputComponent->BindAction("AR4", EInputEvent::IE_Pressed, Weapon, &UCWeaponComponent::SetAR4Mode);//Object를 Weapon으로 받는다.
}

void ACPlayer::OnMoveForward(float InAxisValue)
{
	FRotator rotator = FRotator(0, GetControlRotation().Yaw, 0);
	FVector direction = FQuat(rotator).GetForwardVector();

	AddMovementInput(direction, InAxisValue);
}

void ACPlayer::OnMoveRight(float InAxisValue)
{
	FRotator rotator = FRotator(0, GetControlRotation().Yaw, 0);
	FVector direction = FQuat(rotator).GetRightVector();

	AddMovementInput(direction, InAxisValue);
}

void ACPlayer::OnHorizontalLook(float InAxisValue)
{
	AddControllerYawInput(InAxisValue);
}

void ACPlayer::OnVerticalLook(float InAxisValue)
{
	AddControllerPitchInput(InAxisValue);
}

void ACPlayer::OnRun()
{
	GetCharacterMovement()->MaxWalkSpeed = 600;
}

void ACPlayer::OffRun()
{
	GetCharacterMovement()->MaxWalkSpeed = 400;
}

BP_CPlayer

Weapon - 세팅 - Weapon Classes - 추가
- 0번에 BP_CWeapon_AR4 할당

ABP_Player - 동작 할당

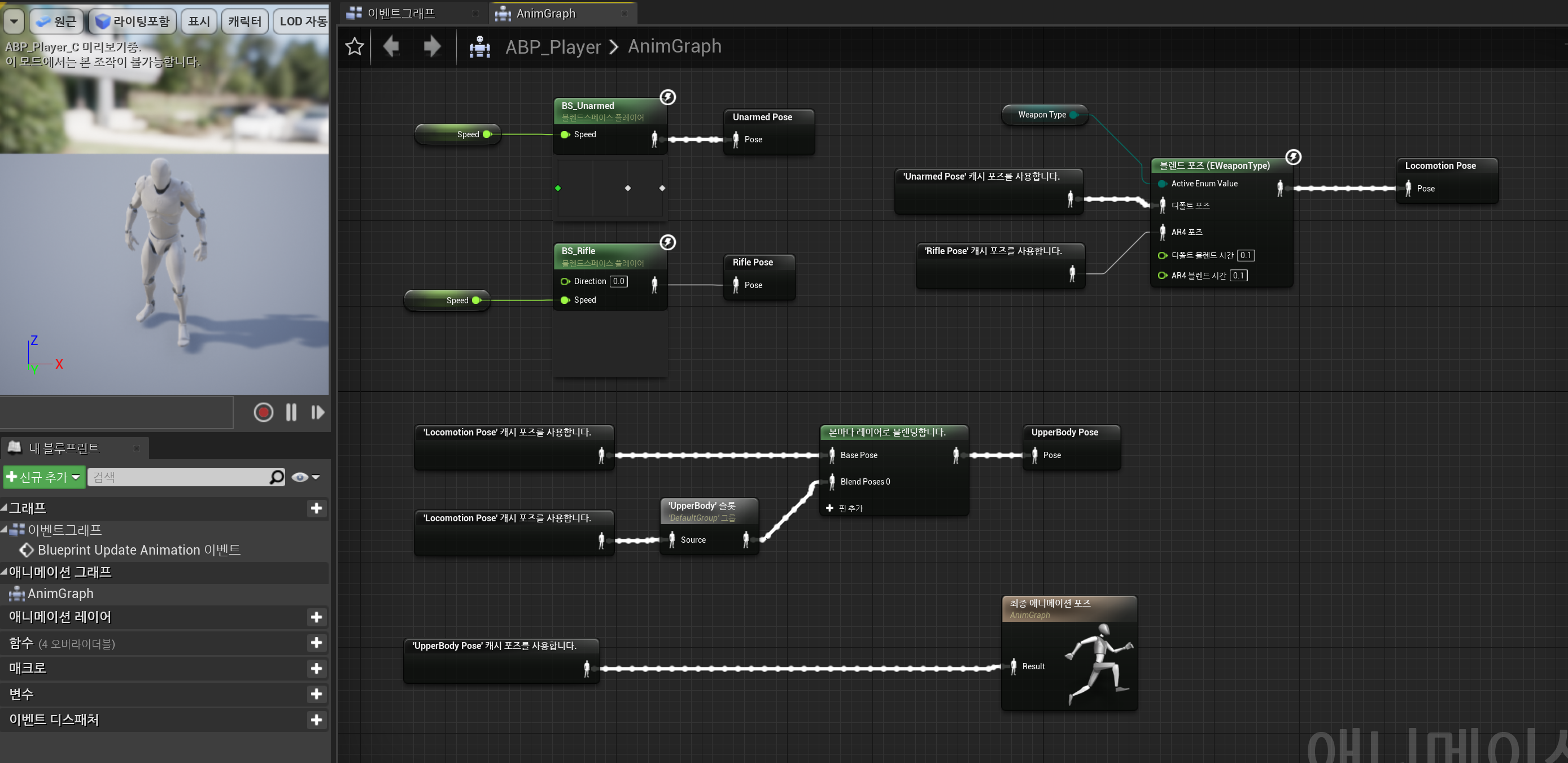

AnimGraph

WeaponType에 따른 블랜드 포즈 할당.

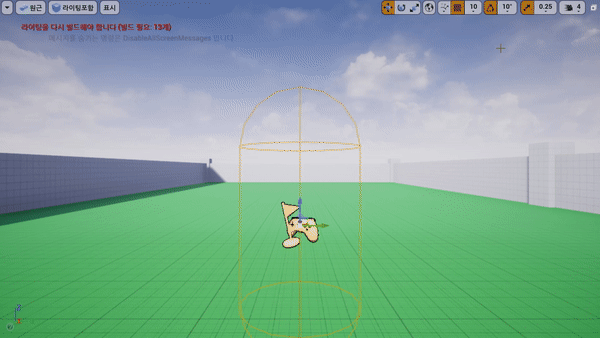

실행화면

'⭐ Unreal Engine > UE FPS TPS' 카테고리의 다른 글

[UE] Hand IK, AnimInstance, Fire (0)	2023.03.21
[UE] TPS Weapon, AnimNotify, Aim (0)	2023.03.17
[UE] Line Trace, Multi Trace, TPS 기본 세팅 (0)	2023.03.15
[UE] Collision(Override), BP와 C++ 실행순서 (0)	2023.03.14
[UE] Collsion(trigger, MultiTrigger, Explosion) (0)	2023.03.13

[UE] TPS Weapon - Weapon Framework 짜기

Weapon - Framework 짜기

Service Locator

조건 체크 방식 - bool CanEquip()

CWeapon

CWeapon_AR4

CWeaponComponent

Player 부분 추가

Skel_Mannequin

CHelper

CPlayer

ABP_Player - 동작 할당

실행화면

'⭐ Unreal Engine > UE FPS TPS' 카테고리의 다른 글

댓글

이 글 공유하기

티스토리툴바

Weapon - Framework 짜기

Service Locator

조건 체크 방식 - bool CanEquip()

CWeapon

CWeapon_AR4

CWeaponComponent

Player 부분 추가

Skel_Mannequin

CHelper

CPlayer

ABP_Player - 동작 할당

실행화면

'⭐ Unreal Engine > UE FPS TPS' 카테고리의 다른 글

댓글

이 글 공유하기

다른 글

[UE] Hand IK, AnimInstance, Fire

[UE] TPS Weapon, AnimNotify, Aim

[UE] Line Trace, Multi Trace, TPS 기본 세팅

[UE] Collision(Override), BP와 C++ 실행순서

티스토리툴바
