Animation, AimOffset, BlendSpace, Montage 작업



---

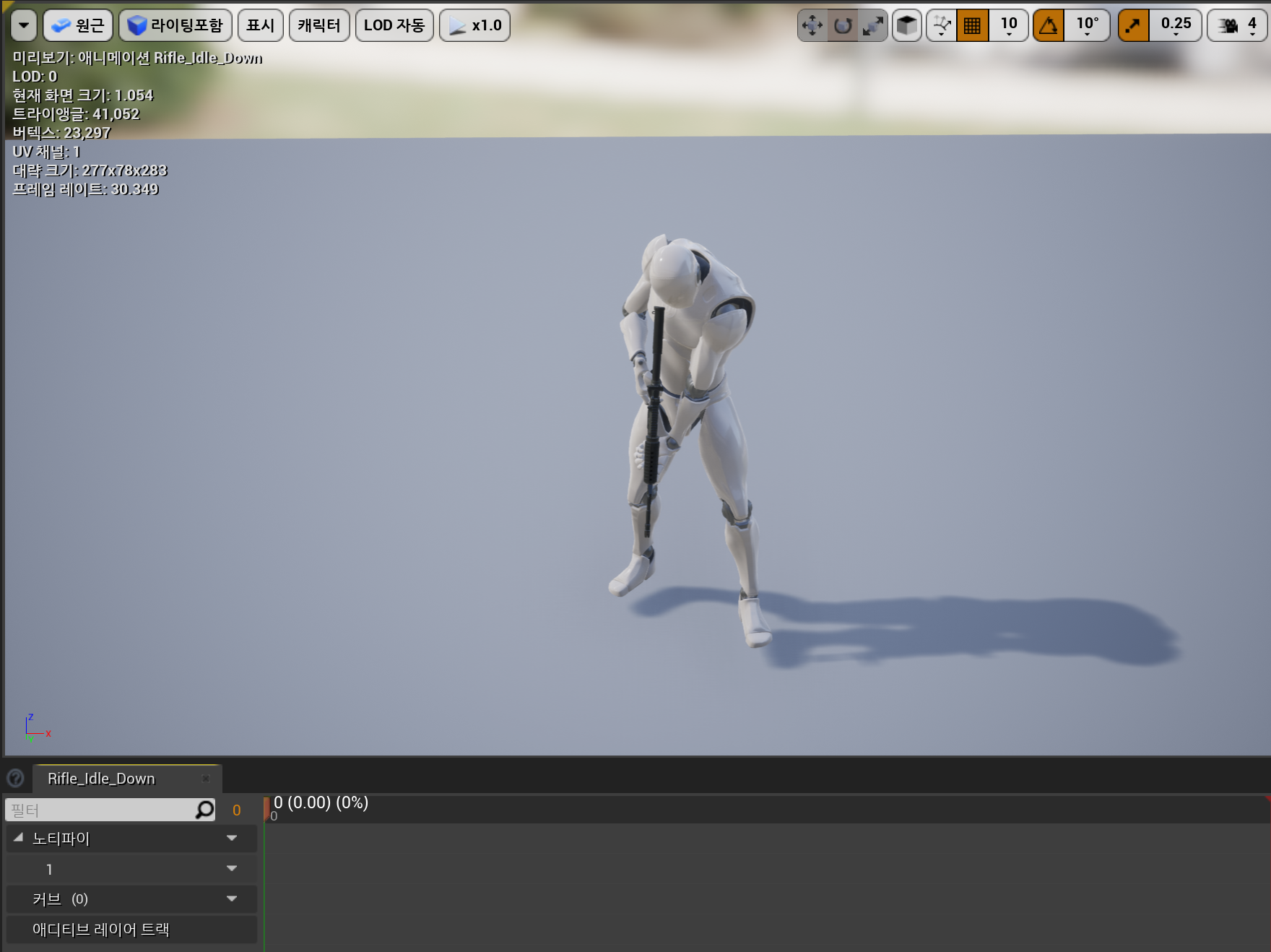

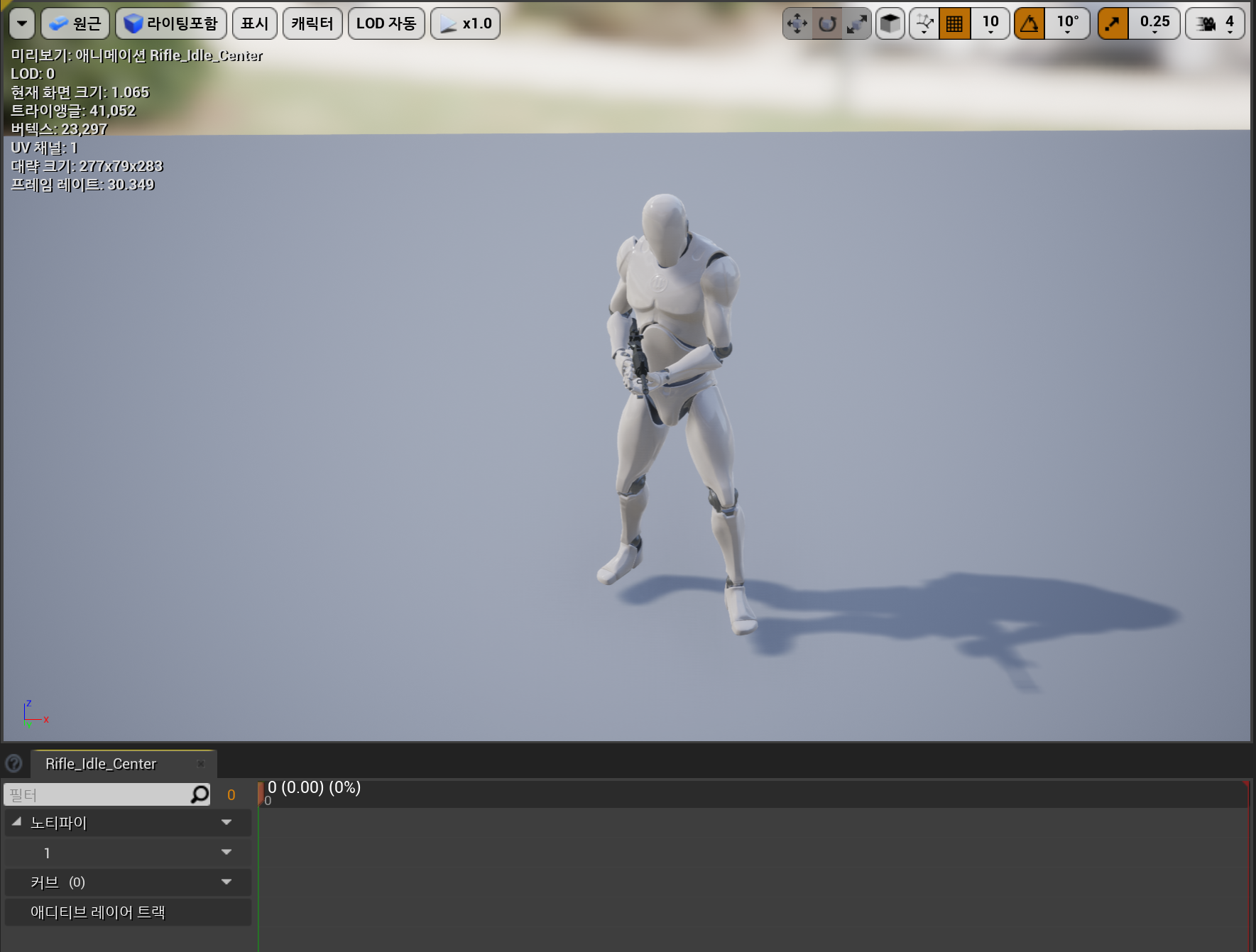

Rifle_Idle_AO에서 Rifle_Idle_Center, Up, Down 생성



AO, Center, Up, Down



모든 동작이 존재하는 Rifle_Idle_AO를 복사해서 파일 3개를 만든다.

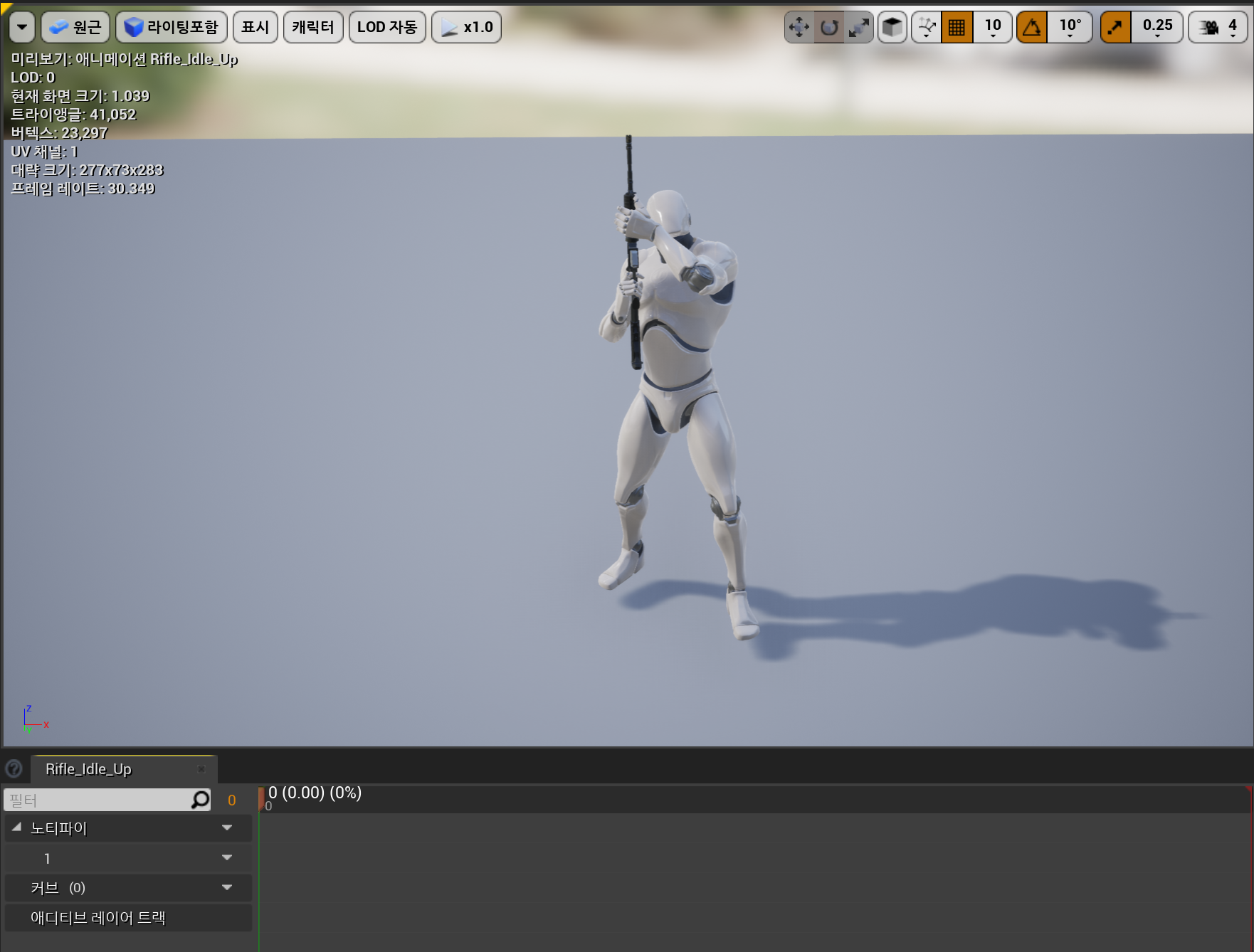

Center, Up, Down에 해당하는 프레임 하나를 남기고 다 지운다. 이렇게 만든 Rifle_Idle_Center, Up, Down은 AO_Idle를 만들 때 쓰인다.

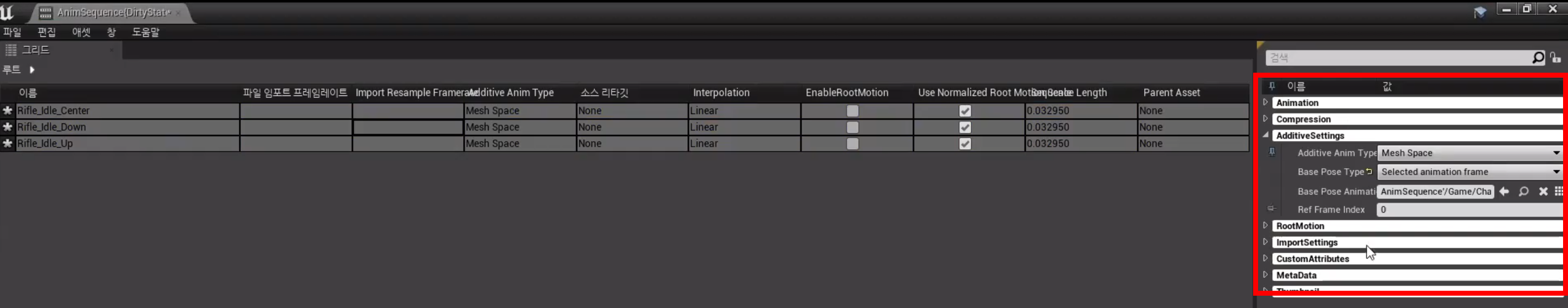

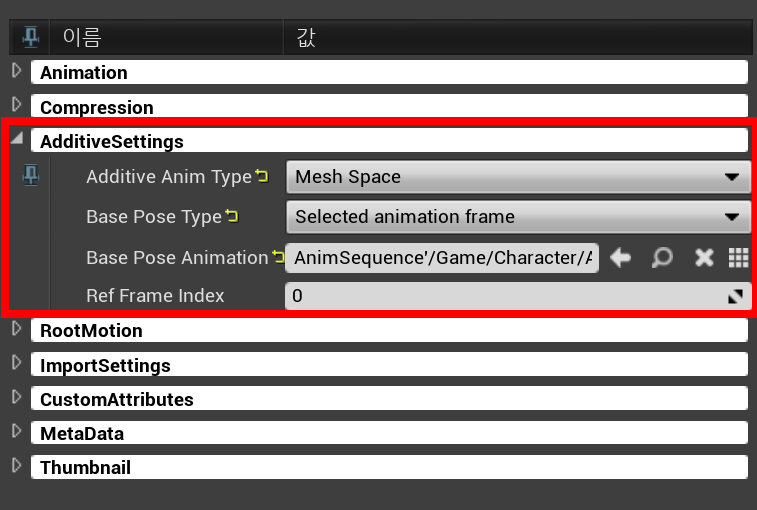

Additive Anim Type

• Local Space: 수정 불가.
• Mesh Space: 언리얼엔진 옵션으로 수정.
• Component Space: 프로그램 영역에서 수정.

Base Pose Type

• Skeleton Referenc Pose: A포즈
• Selected animation scaled: 애니메이션 커졌다 작아졌다 할 때 주로 쓰인다.
• Selected animation frame: 매 프레임 단위로 섞어준다. (주로 사용되는 옵션이다).

Base Pose Animation

• 기준이 되는 애니메이션. 여기서는 Rifle_Idle로 설정하였다.



---





AO_Rifle_Idle 생성

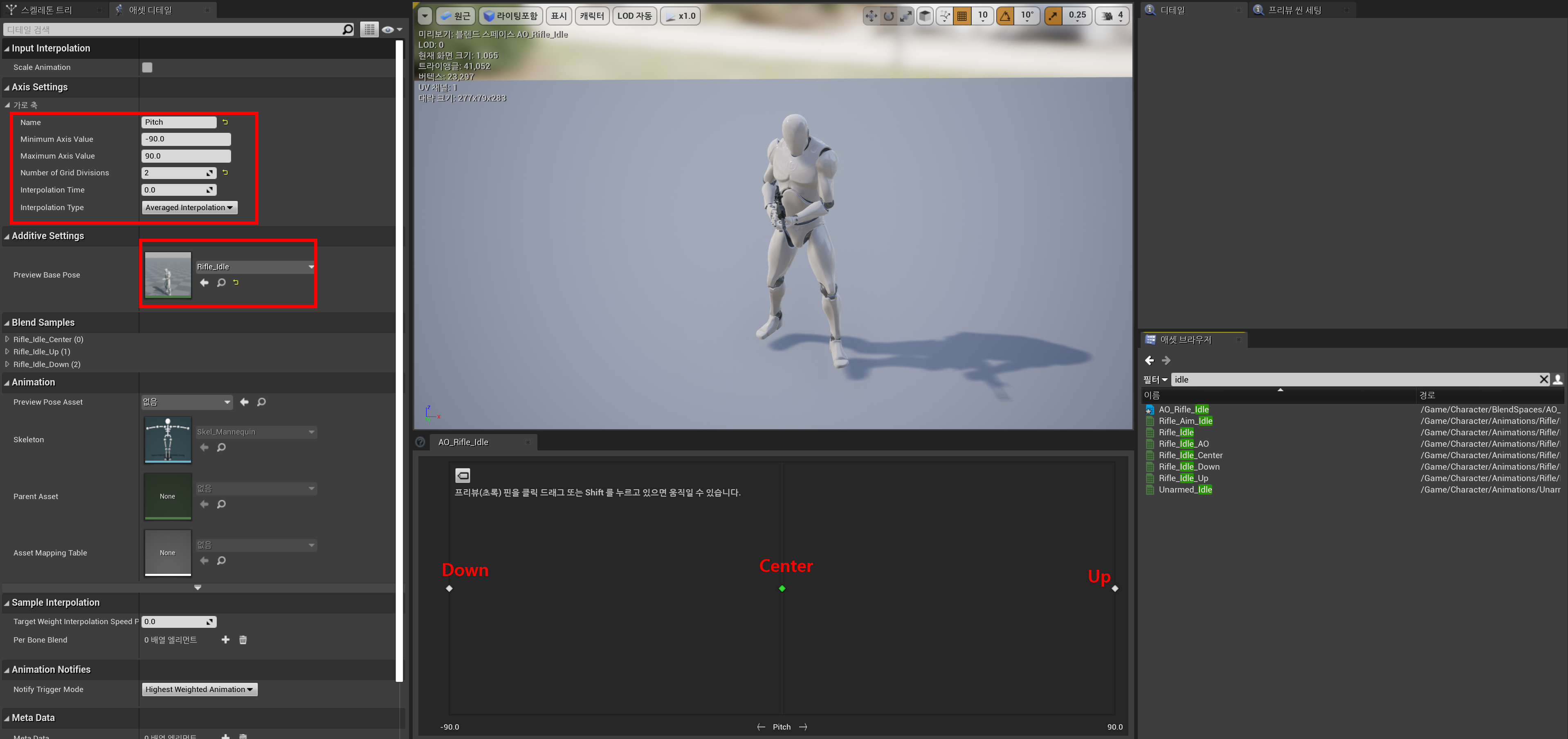

애니메이션 - 에임 오프셋 1D - AO_Rifle_Idle 생성

Rifle_Idle_Center, Up, Down 할당.



---









Rifle_Aim_AO에서 Rifle_Aim_Center, Up, Down 생성

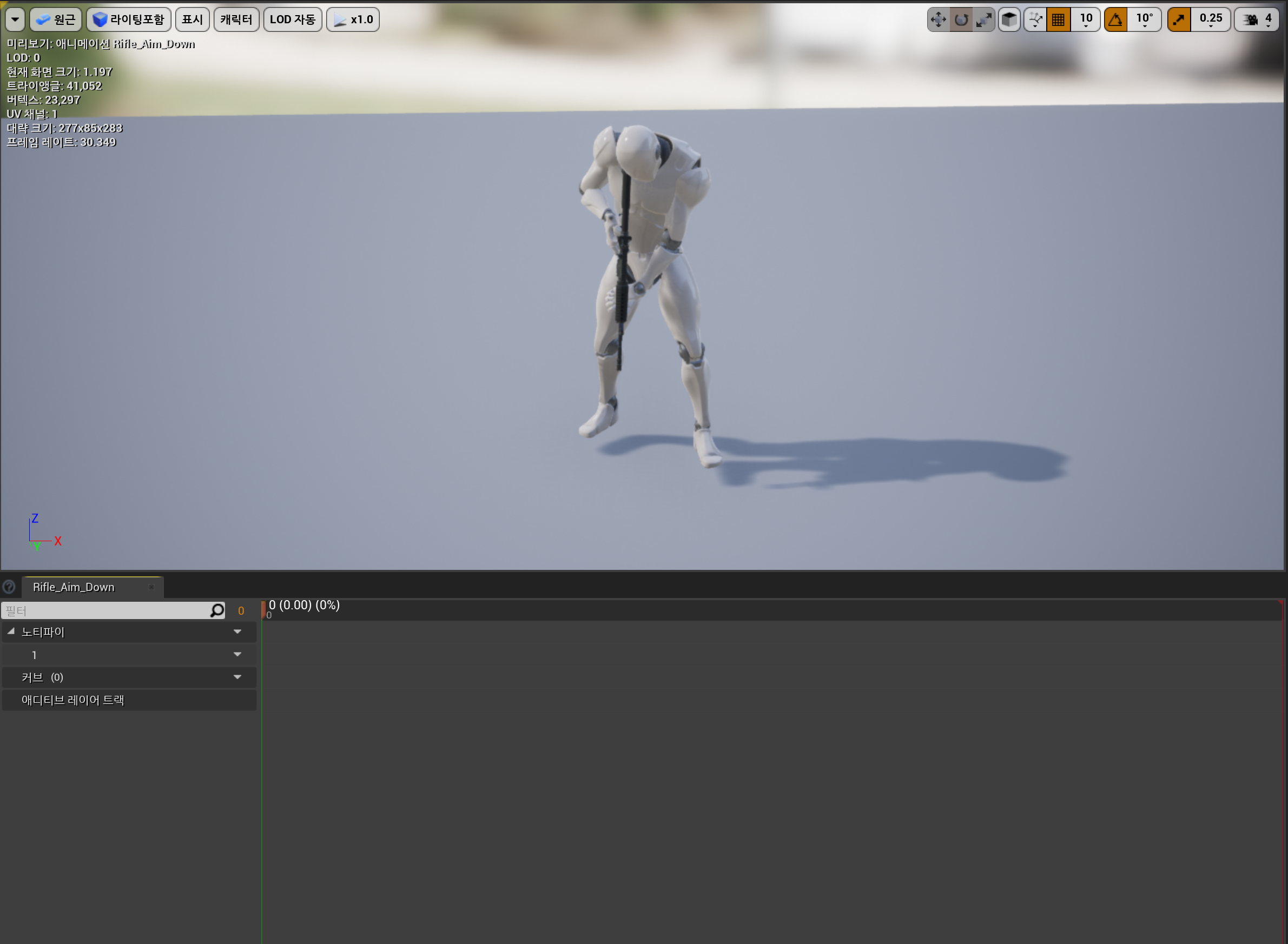

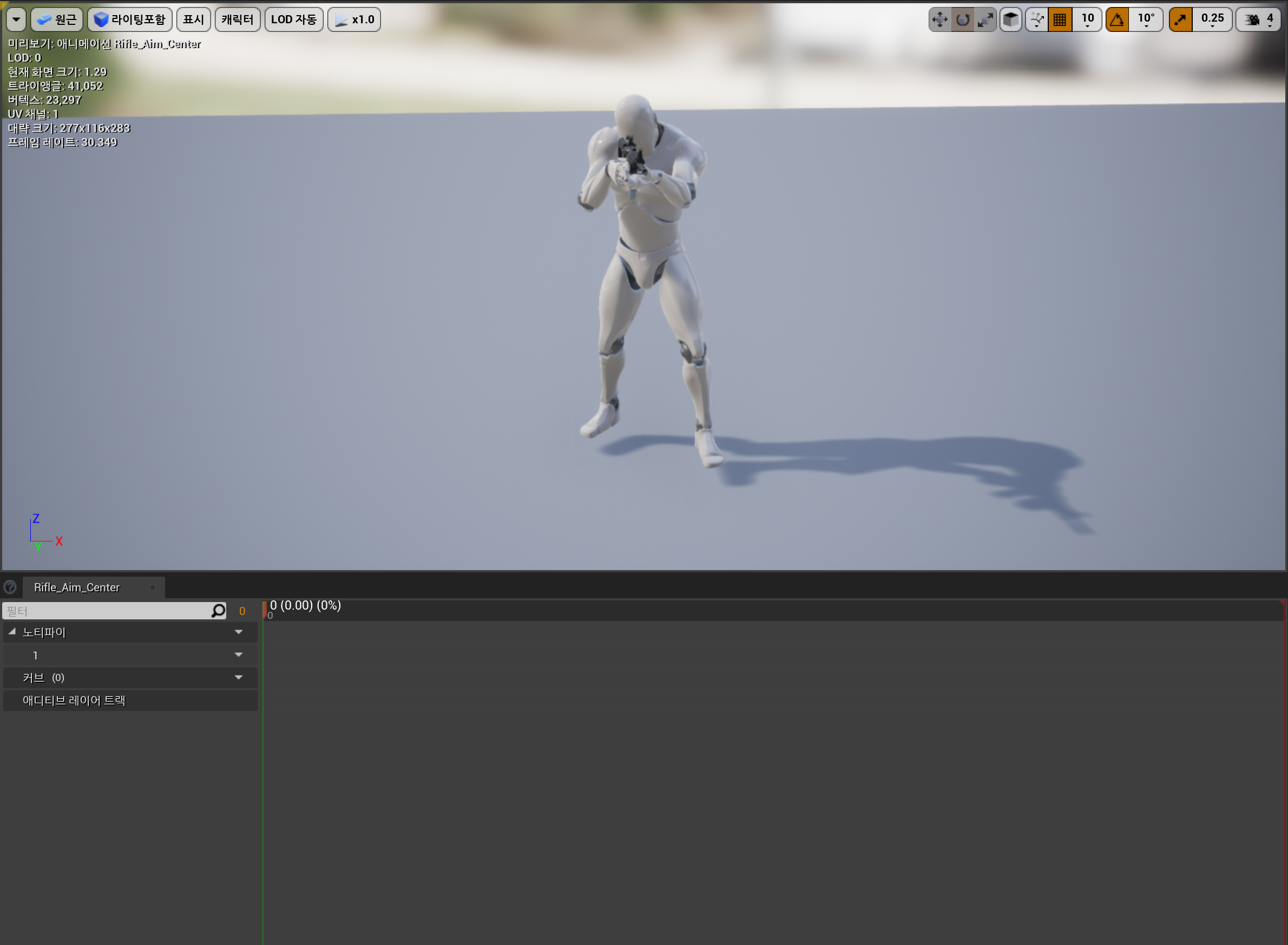

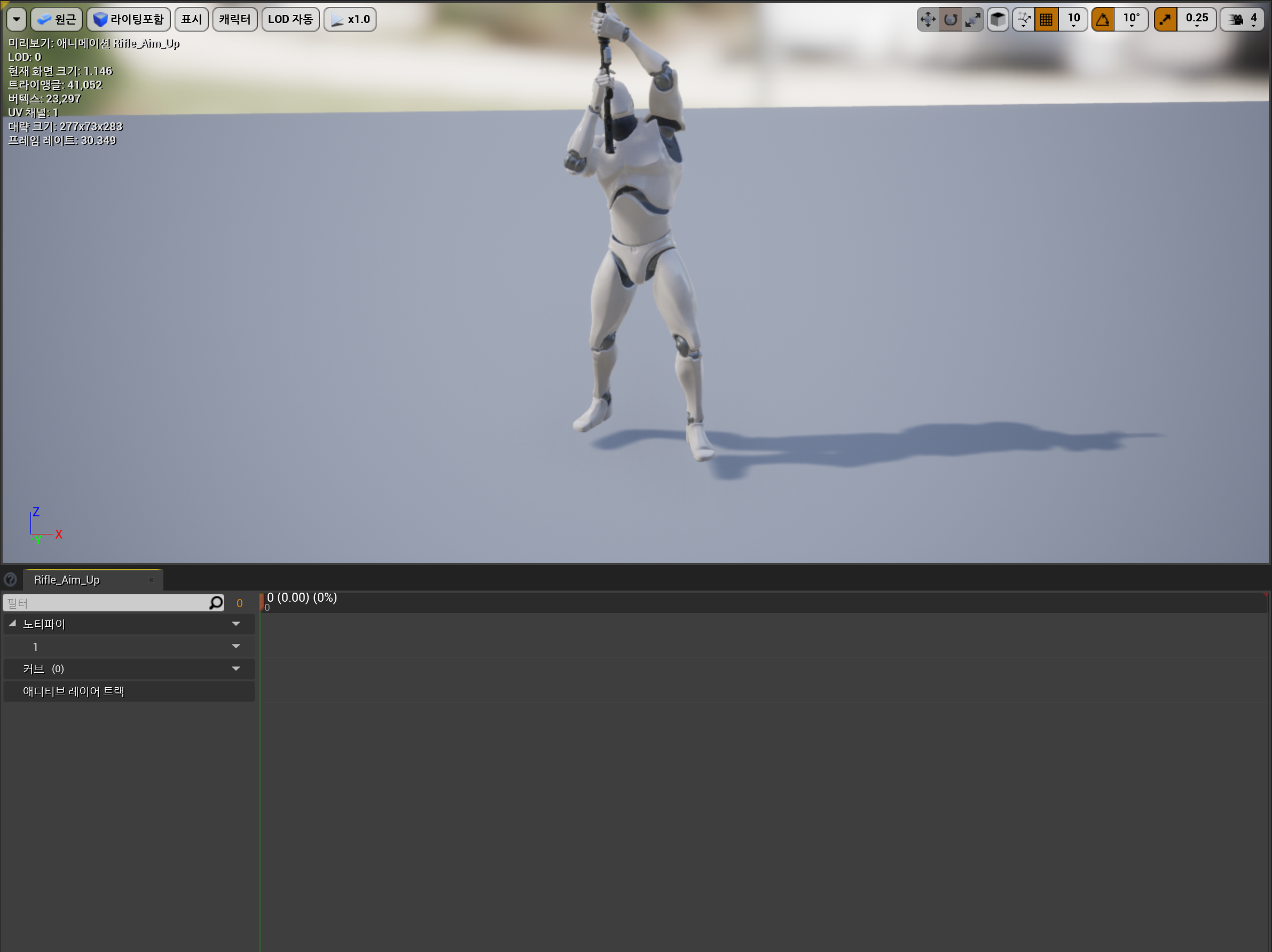

위와 같은 방법으로 Rifle_Aim_Center, Up, Down 생성

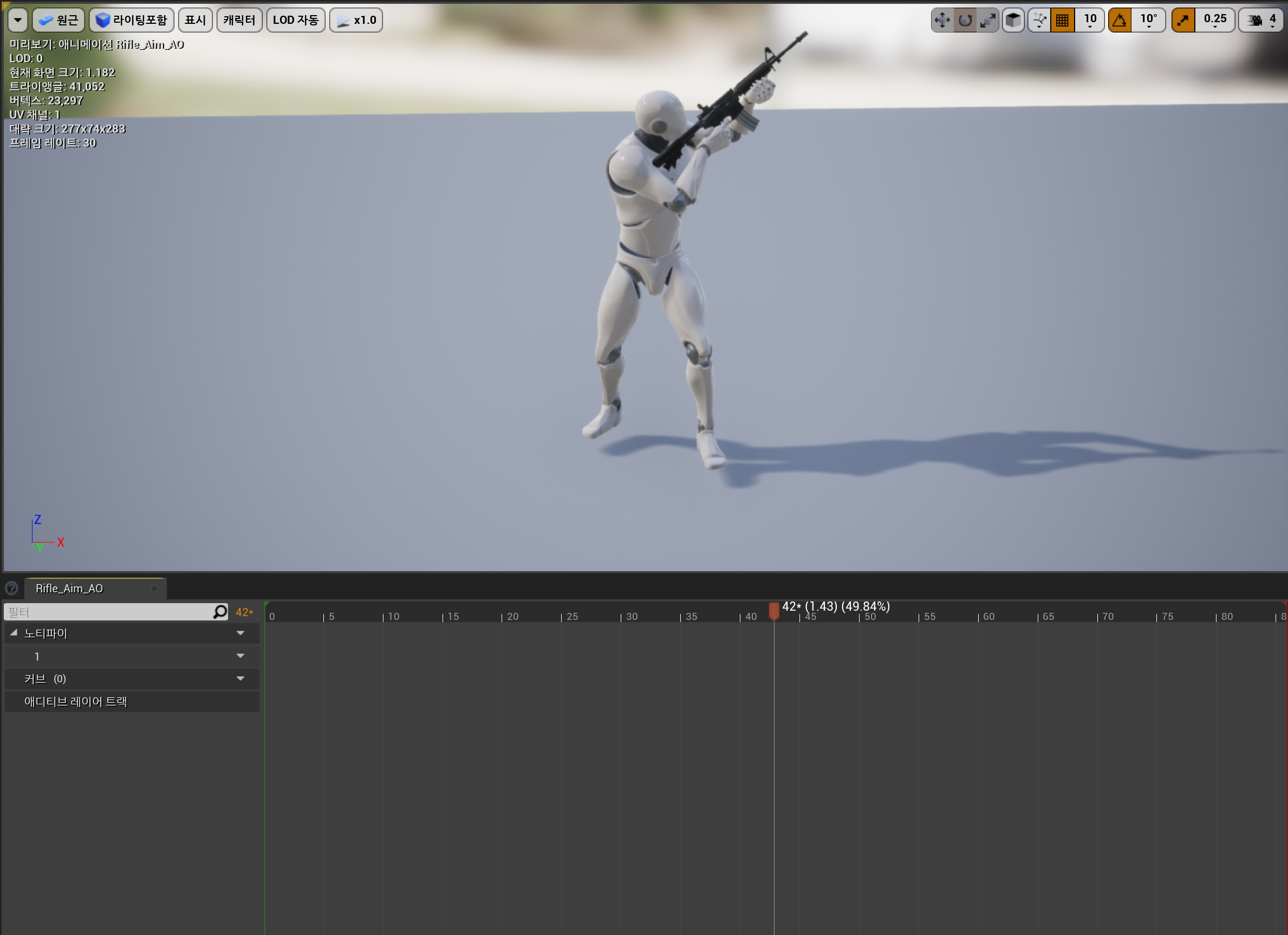

모든 동작이 존재하는 Rifle_Aim_AO를 복사해서 파일 3개를 만든다.

Center, Up, Down에 해당하는 프레임 하나를 남기고 다 지운다. 이렇게 만든 Rifle_Idle_Center, Up, Down은 AO_Rifle_Aim을 만들 때 쓰인다.





Idle에서 사용한 세팅값과 같이 넣어준다.























---





AO_Rifle_Aim 생성



애니메이션 - 에임 오프셋 1D - AO_Rifle_Aim 생성

Aim_Idle_Center, Up, Down 할당.



---



BS_Rifle_Aim 생성



Blend Space를 만든다.

BS_Rifle를 복사하여 BS_Rifle_Aim 생성





---







Rifle_Aim_Fixed 생성



Rifle_Aim_Idle 애니메이션을 복사하여 Rifle_Aim_Fixed 생성

0 프레임을 제외한 나머지 프레임 삭제하여 정지된 프레임으로 만들어준다.





---





Rifle_Equip_Montage - 커브 추가

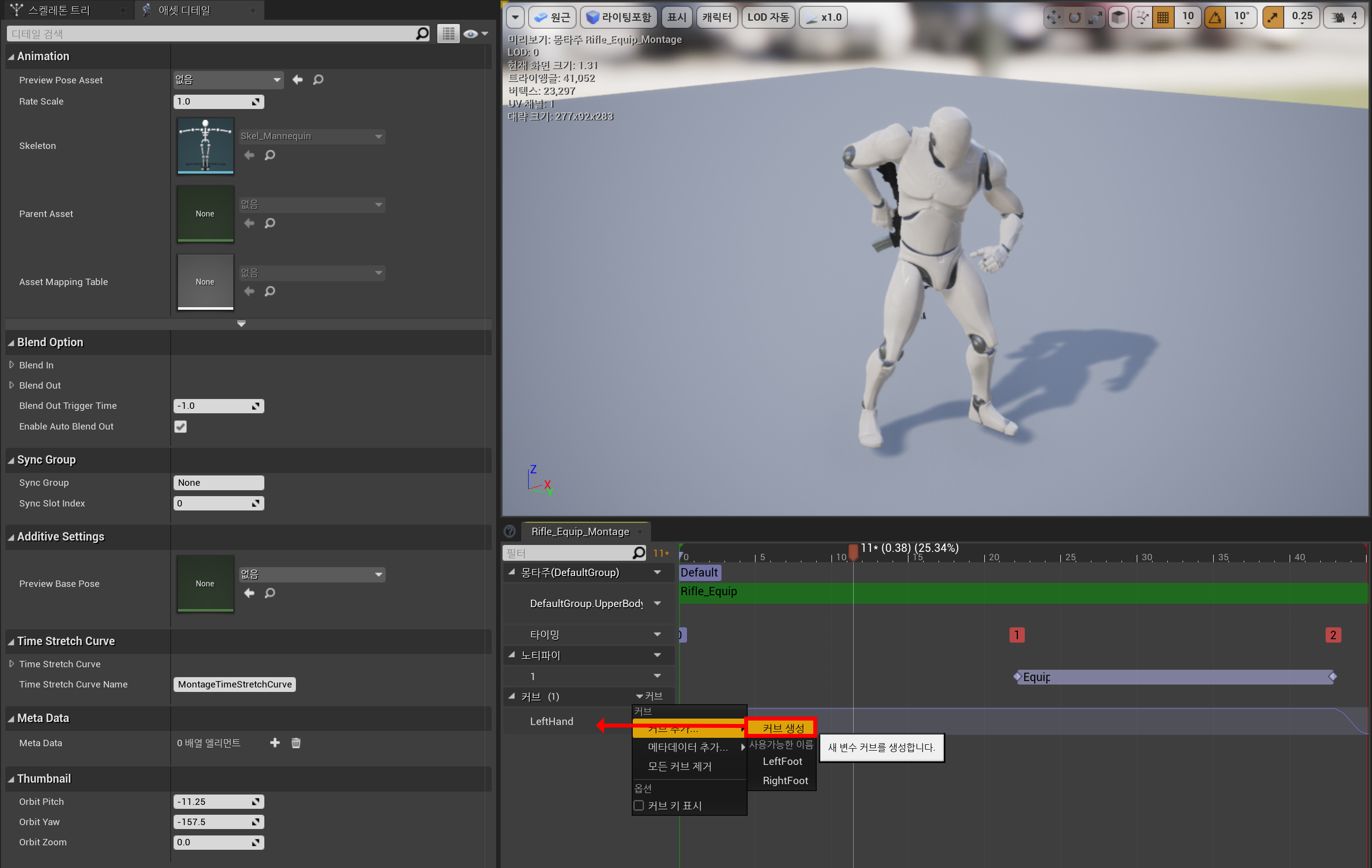

커브 - 커브 추가 - 커브 생성 - LeftHand 생성

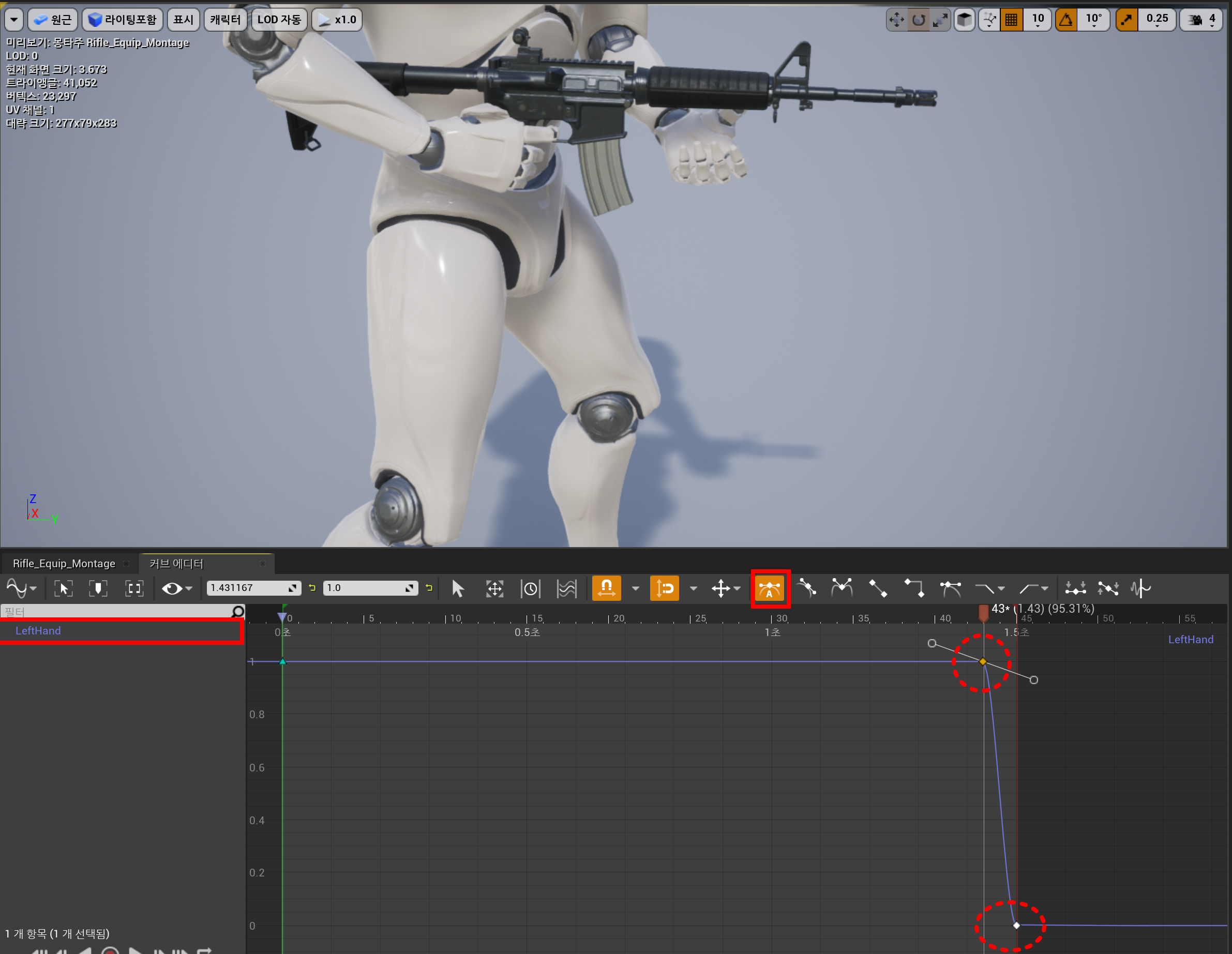

• 값 추가 - (0, 1), (1.421167, 1), (1.5, 0)



---





CAnimInstance



CAnimInstance.h

#pragma once
#include "CoreMinimal.h"
#include "Animation/AnimInstance.h"
#include "Weapons/CWeaponComponent.h"
#include "CAnimInstance.generated.h"

UCLASS()
class U2212_04_API UCAnimInstance : public UAnimInstance
{
	GENERATED_BODY()

protected:
	UPROPERTY(BlueprintReadOnly, EditAnywhere, Category = "Animation")
		float Speed;

	UPROPERTY(BlueprintReadOnly, EditAnywhere, Category = "Animation")
		float Pitch;

	UPROPERTY(BlueprintReadOnly, EditAnywhere, Category = "Animation")
		float Direction;

protected:
	UPROPERTY(BlueprintReadOnly, EditAnywhere, Category = "Weapons")
		EWeaponType WeaponType = EWeaponType::Max; //기본값 Max

	UPROPERTY(BlueprintReadOnly, EditAnywhere, Category = "Weapons")
		bool bInAim;

	UPROPERTY(BlueprintReadOnly, EditAnywhere, Category = "Weapons")
		bool bUseIK;

	UPROPERTY(BlueprintReadOnly, EditAnywhere, Category = "Weapons")
		FVector LeftHandLocation;

public:
	void NativeBeginPlay() override;
	void NativeUpdateAnimation(float DeltaSeconds) override;

private:
	UFUNCTION()
		void OnWeaponTypeChanged(EWeaponType InPrevType, EWeaponType InNewType);//?

private:
	class ACPlayer* OwnerCharacter;
	class UCWeaponComponent* Weapon;

private:
	FRotator PrevRotation; //이전 값 저장
};

변수 생성

• Animation 카테고리:  bool Pitch, float Direction
• Weapons 카테고리:  bool bUseIK, FVector LeftHandLocation
• FRotator PrevRotation; //이전 값 저장





CAnimInstance.cpp

#include "CAnimInstance.h"
#include "Global.h"
#include "CPlayer.h"

void UCAnimInstance::NativeBeginPlay()
{
	Super::NativeBeginPlay();

	OwnerCharacter = Cast<ACPlayer>(TryGetPawnOwner());
	CheckNull(OwnerCharacter);

	Weapon = CHelpers::GetComponent<UCWeaponComponent>(OwnerCharacter);
	CheckNull(Weapon);

	Weapon->OnWeaponTypeChanged.AddDynamic(this, &UCAnimInstance::OnWeaponTypeChanged);
}

void UCAnimInstance::NativeUpdateAnimation(float DeltaSeconds)
{
	Super::NativeUpdateAnimation(DeltaSeconds);
	CheckNull(OwnerCharacter);

	Speed = OwnerCharacter->GetVelocity().Size2D();

	FRotator rotator = OwnerCharacter->GetVelocity().ToOrientationRotator();
	FRotator rotator2 = OwnerCharacter->GetControlRotation();
	FRotator delta = UKismetMathLibrary::NormalizedDeltaRotator(rotator, rotator2);
	PrevRotation = UKismetMathLibrary::RInterpTo(PrevRotation, delta, DeltaSeconds, 25); //선형보간 사용.

	Pitch = UKismetMathLibrary::FInterpTo(Pitch, OwnerCharacter->GetBaseAimRotation().Pitch, DeltaSeconds, 25);
	Direction = PrevRotation.Yaw;

	bInAim = Weapon->IsInAim();
	bUseIK = Weapon->IsUnarmedMode() == false;
	LeftHandLocation = Weapon->GetLeftHandLocation();
}

void UCAnimInstance::OnWeaponTypeChanged(EWeaponType InPrevType, EWeaponType InNewType)
{
	WeaponType = InNewType;
}

NativeUpdateAnimation(float DeltaSeconds)에서 헤더에서 생성한 변수에 값을 넣어준다.

•   rotator, rotator2를 구하여 delta로 두 값을 Normalize 한다.
  • FRotator delta = UKismetMathLibrary::NormalizedDeltaRotator(rotator, rotator2);
• Direction
  • Direction = PrevRotation.Yaw  (방향을 이전 Rotation의 Yaw값 사용)



---





CPlayer



CPlayer.h

#pragma once
#include "CoreMinimal.h"
#include "GameFramework/Character.h"
#include "CPlayer.generated.h"

UCLASS()
class U2212_04_API ACPlayer : public ACharacter
{
	GENERATED_BODY()

private:
	UPROPERTY(EditDefaultsOnly, Category = "Camera")
		FVector2D PitchRange = FVector2D(-40, +40);

private:
	UPROPERTY(VisibleAnywhere)
		class USpringArmComponent* SpringArm;

	UPROPERTY(VisibleAnywhere)
		class UCameraComponent* Camera;

private:
	UPROPERTY(VisibleAnywhere)
		class UCWeaponComponent* Weapon;

public:
	ACPlayer();

protected:
	virtual void BeginPlay() override;

public:
	virtual void Tick(float DeltaTime) override;
	virtual void SetupPlayerInputComponent(class UInputComponent* PlayerInputComponent) override;

private:
	void OnMoveForward(float InAxisValue);
	void OnMoveRight(float InAxisValue);
	void OnHorizontalLook(float InAxisValue);
	void OnVerticalLook(float InAxisValue);

private:
	void OnRun();
	void OffRun();
};

플레이어의 시야각을 제한하기 위해 PitchRange 변수를 생성하고 Default값을 설정한다.

•  FVector 2D PitchRange = FVector2D(-40, +40)





CPlayer.cpp

#include "CPlayer.h"
#include "Global.h"
#include "CAnimInstance.h"
#include "Weapons/CWeaponComponent.h"
#include "GameFramework/SpringArmComponent.h"
#include "GameFramework/CharacterMovementComponent.h"
#include "Camera/CameraComponent.h"
#include "Components/CapsuleComponent.h"
#include "Components/InputComponent.h"
#include "Materials/MaterialInstanceDynamic.h"

ACPlayer::ACPlayer()
{
	PrimaryActorTick.bCanEverTick = true;

	CHelpers::CreateComponent<USpringArmComponent>(this, &SpringArm, "SpringArm", GetCapsuleComponent());
	CHelpers::CreateComponent<UCameraComponent>(this, &Camera, "Camera", SpringArm);

	CHelpers::CreateActorComponent<UCWeaponComponent>(this, &Weapon, "Weapon");

	USkeletalMesh* mesh;
	CHelpers::GetAsset<USkeletalMesh>(&mesh, "SkeletalMesh'/Game/Character/Mesh/SK_Mannequin.SK_Mannequin'");
	GetMesh()->SetSkeletalMesh(mesh);
	GetMesh()->SetRelativeLocation(FVector(0, 0, -90));
	GetMesh()->SetRelativeRotation(FRotator(0, -90, 0));


	TSubclassOf<UCAnimInstance> animInstance;
	CHelpers::GetClass<UCAnimInstance>(&animInstance, "AnimBlueprint'/Game/Player/ABP_Player.ABP_Player_C'");
	GetMesh()->SetAnimClass(animInstance);


	GetCharacterMovement()->MaxWalkSpeed = 400;


	SpringArm->SetRelativeLocation(FVector(0, 0, 60));
	SpringArm->TargetArmLength = 200;
	SpringArm->bUsePawnControlRotation = true;
	SpringArm->bEnableCameraLag = true;

}

void ACPlayer::BeginPlay()
{
	Super::BeginPlay(); //Super가 BP의 BeginPlay를 콜한다.

	GetController<APlayerController>()->PlayerCameraManager->ViewPitchMin = PitchRange.X; //각 제한 걸기
	GetController<APlayerController>()->PlayerCameraManager->ViewPitchMax = PitchRange.Y; //각 제한 걸기
}

void ACPlayer::Tick(float DeltaTime)
{
	Super::Tick(DeltaTime);

}

void ACPlayer::SetupPlayerInputComponent(UInputComponent* PlayerInputComponent)
{
	Super::SetupPlayerInputComponent(PlayerInputComponent);

	PlayerInputComponent->BindAxis("MoveForward", this, &ACPlayer::OnMoveForward);
	PlayerInputComponent->BindAxis("MoveRight", this, &ACPlayer::OnMoveRight);
	PlayerInputComponent->BindAxis("HorizontalLook", this, &ACPlayer::OnHorizontalLook);
	PlayerInputComponent->BindAxis("VerticalLook", this, &ACPlayer::OnVerticalLook);

	PlayerInputComponent->BindAction("Run", EInputEvent::IE_Pressed, this, &ACPlayer::OnRun);
	PlayerInputComponent->BindAction("Run", EInputEvent::IE_Released, this, &ACPlayer::OffRun);

	PlayerInputComponent->BindAction("AR4", EInputEvent::IE_Pressed, Weapon, &UCWeaponComponent::SetAR4Mode);//Object를 Weapon으로 받는다.

	PlayerInputComponent->BindAction("Aim", EInputEvent::IE_Pressed, Weapon, &UCWeaponComponent::Begin_Aim);
	PlayerInputComponent->BindAction("Aim", EInputEvent::IE_Released, Weapon, &UCWeaponComponent::End_Aim);

	PlayerInputComponent->BindAction("Fire", EInputEvent::IE_Pressed, Weapon, &UCWeaponComponent::Begin_Fire);
	PlayerInputComponent->BindAction("Fire", EInputEvent::IE_Released, Weapon, &UCWeaponComponent::End_Fire);
}

void ACPlayer::OnMoveForward(float InAxisValue)
{
	FRotator rotator = FRotator(0, GetControlRotation().Yaw, 0);
	FVector direction = FQuat(rotator).GetForwardVector();

	AddMovementInput(direction, InAxisValue);
}

void ACPlayer::OnMoveRight(float InAxisValue)
{
	FRotator rotator = FRotator(0, GetControlRotation().Yaw, 0);
	FVector direction = FQuat(rotator).GetRightVector();

	AddMovementInput(direction, InAxisValue);
}

void ACPlayer::OnHorizontalLook(float InAxisValue)
{
	AddControllerYawInput(InAxisValue);
}

void ACPlayer::OnVerticalLook(float InAxisValue)
{
	AddControllerPitchInput(InAxisValue);
}

void ACPlayer::OnRun()
{
	GetCharacterMovement()->MaxWalkSpeed = 600;
}

void ACPlayer::OffRun()
{
	GetCharacterMovement()->MaxWalkSpeed = 400;
}

BeginPlay()

• GetController<APlayerController>()->PlayerCameraManager->ViewPitchMin = PitchRange.X; //각 제한 걸기
• GetController<APlayerController>()->PlayerCameraManager->ViewPitchMax = PitchRange.Y;



SetupPlayerInputComponent(UInputComponent* PlayerInputComponent)

• PlayerInputComponent-> BindAction("Fire", EInputEvent::IE_Pressed, Weapon, &UCWeaponComponent::Begin_Fire);
• PlayerInputComponent-> BindAction("Fire", EInputEvent::IE_Released, Weapon, &UCWeaponComponent::End_Fire);
• Fire 입력키값 지정.



---

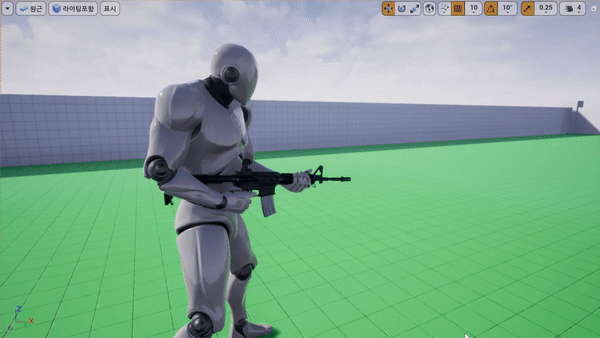

IK - Left Hand





---





IK (Inverse Kinetic) 3가지 종류



Two Bone IK



CCD(Cyclic Coordinate Descent) IK



FABR(Forward and Backward Reaching) IK

• 상대간격을 구한 후 사용한다.



---







ABP_Player

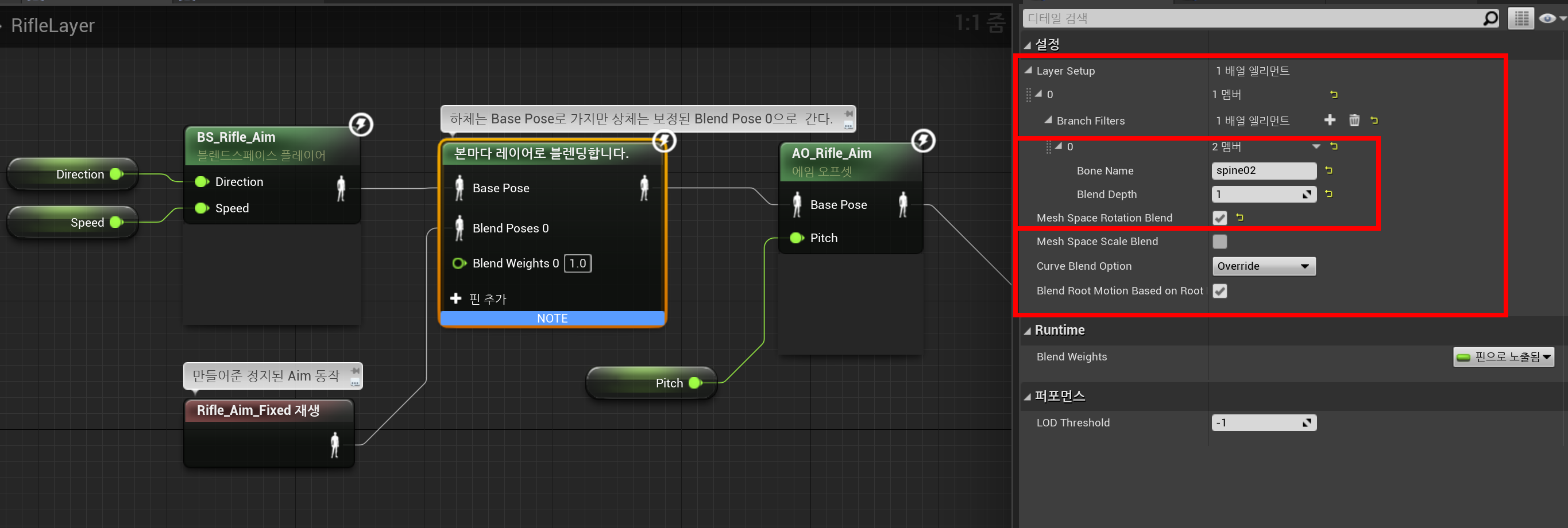

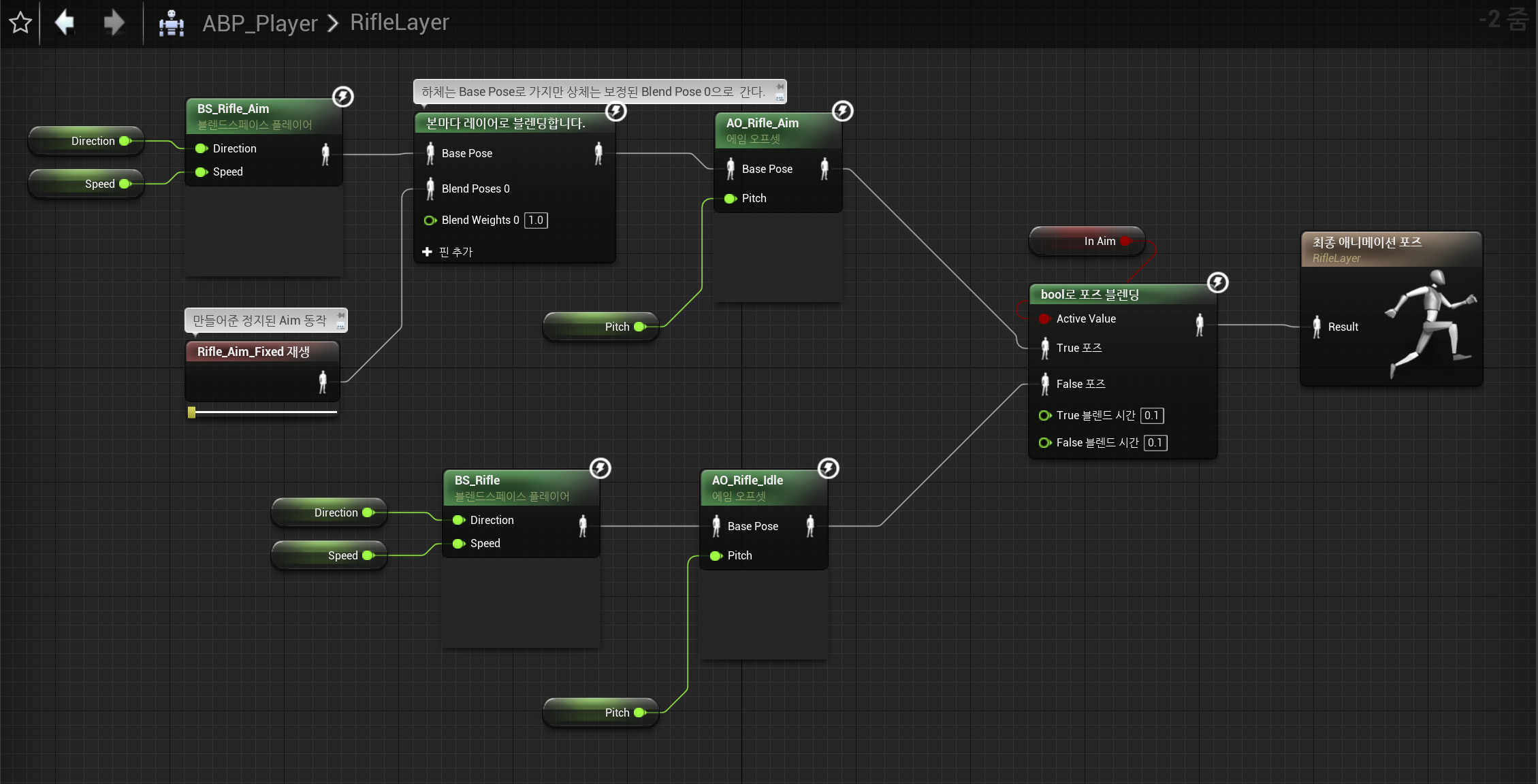

Rifle Layer

Zoom In

• Root Bone: 어디까지 Bone이 움직일 것인가.
• Precision: 정밀도
• Max Iterations: 정밀도를 높이기위해 몇번이나 반복해서 계산할 것인가. 높을수록 정밀도가 높지만 연산량이 많아진다.

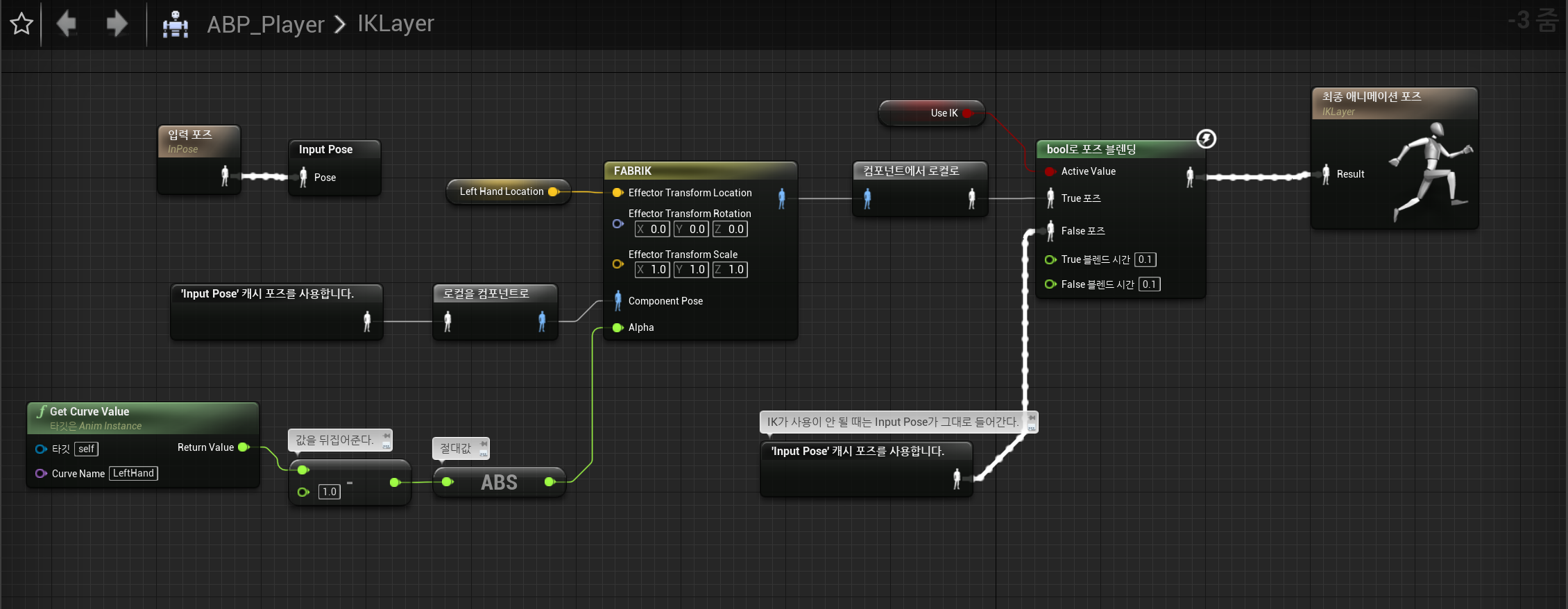

IK Layer

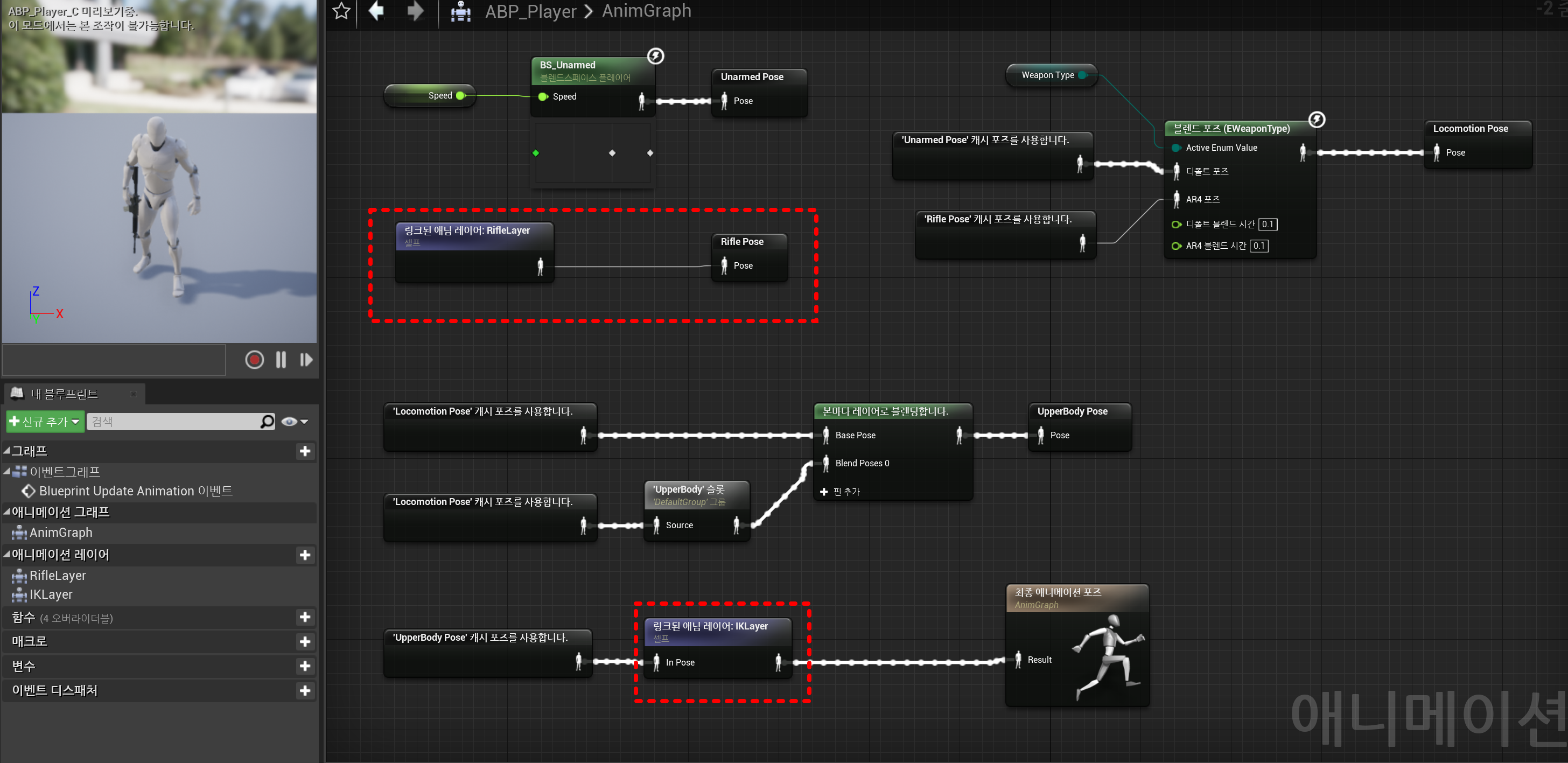

AnimGraph









---



CWeapon



CWeapon.h

#pragma once
#include "CoreMinimal.h"
#include "GameFramework/Actor.h"
#include "CWeapon.generated.h"

//직렬화 해야하는 struct는 클래스 사이에 선언해야 한다.
USTRUCT()
struct FWeaponAimData
{
	GENERATED_BODY()

public:
	UPROPERTY(EditAnywhere)
		float TargetArmLength;

	UPROPERTY(EditAnywhere)
		FVector SocketOffset;

	UPROPERTY(EditAnywhere)
		float FieldOfView;

public:
	void SetData(class ACharacter* InOwner);
	void SetDataByNoneCurve(class ACharacter* InOwner);

};

//abstract를 쓰면 Unreal Editor에서 추상 베이스 클래스로 취급하겠다는 의미. 추상이되면 배치시킬 수 없다.
UCLASS(abstract)
class U2212_04_API ACWeapon : public AActor
{
	GENERATED_BODY()


protected:
	UPROPERTY(EditDefaultsOnly, Category = "Equip")
		FName HolsterSocketName;

	UPROPERTY(EditDefaultsOnly, Category = "Equip")
		class UAnimMontage* EquipMontage;

	UPROPERTY(EditDefaultsOnly, Category = "Equip")
		float EquipMontage_PlayRate;

	UPROPERTY(EditDefaultsOnly, Category = "Equip")
		FName RightHandSocketName;

	UPROPERTY(EditDefaultsOnly, Category = "Equip")
		FVector LeftHandLocation;

protected:
	UPROPERTY(EditDefaultsOnly, Category = "Aim")
		FWeaponAimData BaseData;

	UPROPERTY(EditDefaultsOnly, Category = "Aim")
		FWeaponAimData AimData;

	UPROPERTY(EditDefaultsOnly, Category = "Aim")
		class UCurveFloat* AimCurve;

	UPROPERTY(EditDefaultsOnly, Category = "Aim")
		float AimingSpeed = 200;

protected:
	UPROPERTY(EditDefaultsOnly, Category = "Hit")
		float HitDistance = 3000;

private:
	UPROPERTY(VisibleAnywhere)
		class USceneComponent* Root;

protected:
	UPROPERTY(VisibleAnywhere)
		class USkeletalMeshComponent* Mesh;

private:
	UPROPERTY(VisibleAnywhere)
		class UTimelineComponent* Timeline;

public:
	FORCEINLINE bool IsInAim() { return bInAim; }
	FORCEINLINE FVector GetLeftHandLocation() { return LeftHandLocation; }

public:
	ACWeapon();

protected:
	virtual void BeginPlay() override;

public:
	virtual void Tick(float DeltaTime) override;

public:
	bool CanEquip();
	void Equip();
	void Begin_Equip();
	void End_Equip();

	bool CanUnequip();
	void Unequip();

public:
	bool CanAim();
	void Begin_Aim();
	void End_Aim();

private:
	UFUNCTION()
		void OnAiming(float Output); //조준

public:
	bool CanFire();
	void Begin_Fire();
	void End_Fire();

private:
	UFUNCTION()
		void OnFiring(); //연사

private:
	bool bEquipping;
	bool bInAim;
	bool bFiring;
	bool bReload;
	bool bAutoFire = true;

private:
	class ACPlayer* Owner;
};

변수 생성

• FName RightHandSocketName;
• FVector LeftHandLocation;
  • CWeapon_AR4에서 LeftHandLocation 값을 넣어준다.





Weapon.cpp

#include "Weapons/CWeapon.h"
#include "Global.h"
#include "Character/CPlayer.h"
#include "Components/SkeletalMeshComponent.h"
#include "Components/TimelineComponent.h"
#include "GameFramework/SpringArmComponent.h"
#include "Camera/CameraComponent.h"

void FWeaponAimData::SetData(ACharacter* InOwner)
{
	USpringArmComponent* springArm = CHelpers::GetComponent<USpringArmComponent>(InOwner);
	springArm->TargetArmLength = TargetArmLength;
	springArm->SocketOffset = SocketOffset;
}

void FWeaponAimData::SetDataByNoneCurve(ACharacter* InOwner)
{
	USpringArmComponent* springArm = CHelpers::GetComponent<USpringArmComponent>(InOwner);
	springArm->TargetArmLength = TargetArmLength;
	springArm->SocketOffset = SocketOffset;

	UCameraComponent* camera = CHelpers::GetComponent<UCameraComponent>(InOwner);
	camera->FieldOfView = FieldOfView; //curve를 이용하여 FieldOfView를 만들어준다.
}

///////////////////////////////////////////////////////////////////////////////

ACWeapon::ACWeapon()
{
	PrimaryActorTick.bCanEverTick = true;

	CHelpers::CreateComponent<USceneComponent>(this, &Root, "Root");
	CHelpers::CreateComponent<USkeletalMeshComponent>(this, &Mesh, "Mesh", Root);

	CHelpers::CreateActorComponent<UTimelineComponent>(this, &Timeline, "Timeline");
	//CurveFloat
	CHelpers::GetAsset<UCurveFloat>(&AimCurve, "CurveFloat'/Game/Character/Weapons/Curve_Aim.Curve_Aim'");
}

void ACWeapon::BeginPlay()
{
	Super::BeginPlay();

	Owner = Cast<ACPlayer>(GetOwner());

	if (HolsterSocketName.IsValid())
		CHelpers::AttachTo(this, Owner->GetMesh(), HolsterSocketName);

	BaseData.SetDataByNoneCurve(Owner);

	if(!!AimCurve)
	{
		FOnTimelineFloat timeline;
		timeline.BindUFunction(this, "OnAiming");

		Timeline->AddInterpFloat(AimCurve, timeline); //이벤트 객체를 다룸.
		Timeline->SetLooping(false);
		Timeline->SetPlayRate(AimingSpeed);
	}

}

void ACWeapon::Tick(float DeltaTime)
{
	Super::Tick(DeltaTime);

}

bool ACWeapon::CanEquip()
{
	bool b = false;
	//3개 다 false일 때 b = false
	//3개 중 하나라도 true면 b = true
	b |= bEquipping;
	b |= bReload;
	b |= bFiring;

	return !b; //b = false일 때 True를 리턴
}

void ACWeapon::Equip()
{
	bEquipping = true;

	if (!!EquipMontage)
		Owner->PlayAnimMontage(EquipMontage, EquipMontage_PlayRate);
}

void ACWeapon::Begin_Equip()
{
	if (RightHandSocketName.IsValid())
		CHelpers::AttachTo(this, Owner->GetMesh(), RightHandSocketName);
}

void ACWeapon::End_Equip()
{
	bEquipping = false;
}

bool ACWeapon::CanUnequip()
{
	bool b = false;
	b |= bEquipping;
	b |= bReload;
	b |= bFiring;

	return !b;
}

void ACWeapon::Unequip()
{
	if (HolsterSocketName.IsValid())
		CHelpers::AttachTo(this, Owner->GetMesh(), HolsterSocketName);
}

bool ACWeapon::CanAim()
{
	bool b = false;
	b |= bEquipping;
	b |= bReload;
	b |= bInAim;

	return !b;
}

void ACWeapon::Begin_Aim()
{
	bInAim = true;

	//우리는 생성자 ACWeapon()에서 AimCurve를 가져왔다.
	if (!!AimCurve) //AimCurve가 있으면 true, 없으면 nullptr이기 때문에 false
	{
		Timeline->PlayFromStart();
		AimData.SetData(Owner);

		return;
	}

	AimData.SetDataByNoneCurve(Owner);
}

void ACWeapon::End_Aim()
{
	CheckFalse(bInAim);
	bInAim = false;

	if (!!AimCurve)
	{
		Timeline->ReverseFromEnd();
		BaseData.SetData(Owner);

		return;
	}

	BaseData.SetDataByNoneCurve(Owner);

}

void ACWeapon::OnAiming(float Output)
{
	UCameraComponent* camera = CHelpers::GetComponent<UCameraComponent>(Owner);
	camera->FieldOfView = FMath::Lerp(AimData.FieldOfView, BaseData.FieldOfView, Output);
}

bool ACWeapon::CanFire()
{
	bool b = false;
	b |= bEquipping;
	b |= bReload;
	b |= bFiring; //발사하고 있는지

	return !b;
}

void ACWeapon::Begin_Fire()
{
	bFiring = true;

	OnFiring();
}

void ACWeapon::End_Fire()
{
	CheckFalse(bFiring);

	bFiring = false;
}

void ACWeapon::OnFiring()
{
	UCameraComponent* camera = CHelpers::GetComponent<UCameraComponent>(Owner);
	FVector direction = camera->GetForwardVector();
	FTransform transform = camera->GetComponentToWorld();

	FVector start = transform.GetLocation() + direction; //눈알 안보다 앞쪽으로 설정하기 때문에 쏘는 방향쪽으로 조금 더해준다.
	FVector end = transform.GetLocation() + direction * HitDistance;

	DrawDebugLine(GetWorld(), start, end, FColor::Red, true, 5);
}



---



CWeapon_AR4



CWeapon_AR4.h

#pragma once
#include "CoreMinimal.h"
#include "Weapons/CWeapon.h"
#include "CWeapon_AR4.generated.h"

UCLASS()
class U2212_04_API ACWeapon_AR4 : public ACWeapon
{
	GENERATED_BODY()

public:
	ACWeapon_AR4();
};

변경사항 없음





CWeapon_AR4.cpp

#include "Weapons/CWeapon_AR4.h"
#include "Global.h"
#include "Components/SkeletalMeshComponent.h"
#include "Animation/AnimMontage.h"

ACWeapon_AR4::ACWeapon_AR4()
{
	USkeletalMesh* mesh;
	CHelpers::GetAsset<USkeletalMesh>(&mesh, "SkeletalMesh'/Game/FPS_Weapon_Bundle/Weapons/Meshes/AR4/SK_AR4.SK_AR4'");
	Mesh->SetSkeletalMesh(mesh);

	//Equip
	{
		HolsterSocketName = "Rifle_AR4_Holster";
		CHelpers::GetAsset<UAnimMontage>(&EquipMontage, "AnimMontage'/Game/Character/Animations/Rifle_Equip_Montage.Rifle_Equip_Montage'");
		EquipMontage_PlayRate = 2.0f;
		RightHandSocketName = "Rifle_AR4_RightHand";
		LeftHandLocation = FVector(-32.5f, 15.5f, 7.0f);
	}

	//Aim
	{
		BaseData.TargetArmLength = 200;
		BaseData.SocketOffset = FVector(0, 50, 15);
		BaseData.FieldOfView = 90;

		AimData.TargetArmLength = 80;
		AimData.SocketOffset = FVector(0, 55, 10);
		AimData.FieldOfView = 65;
	}
}

LeftHandLocation에 Default값을 넣어준다.

• LeftHandLocation = FVector(-32.5f, 15.5f, 7.0f);



---

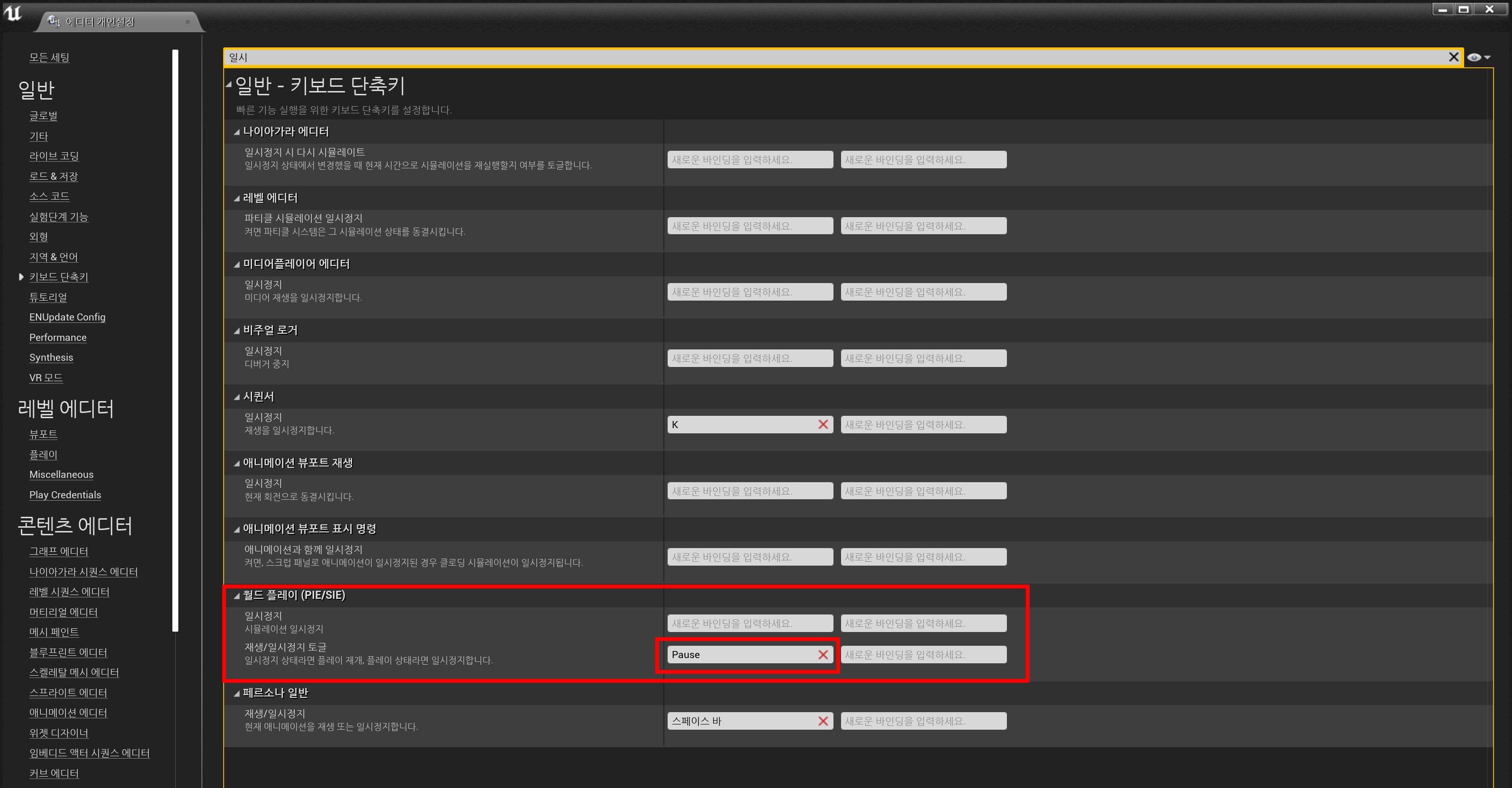

참고) 에디터 개인설정 - 키보드 단축키 - 월드 플레이 일시정지





---



실행화면



Hand IK가 적용되었다.





---















ABP: Animation Blueprint
AN: Blueprint Class AnimNotify
ANS: Blueprint Class - AnimNotifyState

AO: Aim Offset

BP: Blueprint Class
BS: Blend Space

BF: Blueprint Function Library
CS: Matinee Camera Shake
E: Enum 열거형
DT: Data Table
F: 구조체

I: Blueprint Interface

WB: Widget Bluepprint



UE2212_04

	Level - LEVEL
Character	Animation	Rifle
		Unarmed
		Rifle_Equip_Montage
	BlendSpaces	AO_Rifle_Aim AO_Rifle_Idle BS_Rifle BS_Rifle_Aim BS_Unarme
	Materials	MaterialLayers
		M_UE4Man_Body M_UE4Man_ChestLogo
	Mesh	SK_Mannequin SK_MAnnequin_PhysicsAsset Skel_Mannequin
	Montages
	Textures	UE4_LOGO_CARD UE4_Mannequin__normals UE4_Mannequin_MAT_MASKA UE4Man_Logo_N
	Weapons	Elven Bow
		Greate Hammer
		Sword
Environment	Materials	Textures
	Meshes
	Obstacle
FPS_Weapon_Bundle	Weapons	Material
		Meshes
		Textures
Materials	M_Mesh M_White_Inst M_Red_Inst M_Green_Inst M_Blue_Inst M_UE4Man_Body_Inst M_UE4Man_ChesLogo_Inst
Meshes	Cone_2 Cube_2 Cylinder_2 Sphere_2
Player	ABP_Player BP_Player
Textures	Crosshair
Weapons	BP_CWeapon_AR4
