지난번에 구현한 주먹 난타 스킬에 충돌이 적용되게 코드를 추가해보자. 마지막 공격에 적이 주먹에 맞아 나가떨어지는 모습을 보이도록 구현해보자. 주먹 스킬 외에 검 스킬도 추가하자. 오늘은 전진하면서 검으로 찌르는 일섬 스킬을 구현해볼 것이다.



목차










    Plugins

      Weapon

        Resource

        Source

          Weapon
          SWeaponCheckBoxes.h .cpp
    SWeaponDetailsView.h .cpp
    SWeaponDoActionData.h .cpp
    SWeaponEquipmentData.h .cpp
    SWeaponHitData.h .cpp
    SWeaponLeftArea.h .cpp
    Weapon.Build.cs
    WeaponAssetEditor.h .cpp
    WeaponAssetFactory.h .cpp
    WeaponCommand.h .cpp
    WeaponContextMenu.h .cpp
    WeaponModule.h .cpp
    WeaponStyle.h .cpp





    Source
      U2212_06
        Characters
        CAnimInstance.h .cpp
    CEnemy.h .cpp
    CPlayer.h .cpp
    ICharacter.h .cpp
        Components
        CMontagesComponent.h .cpp
    CMovementComponent.h .cpp
    CStateComponent.h .cpp
    CStatusComponent.h .cpp
    CWeaponComponent.h .cpp
        Notifies
        CAnimNotifyState_BeginAction.h .cpp
    CAnimNotify_CameraShake.h .cpp
    CAnimNotifyState_EndAction.h .cpp
    CAnimNotify_EndState.h .cpp
    CAnimNotifyState.h .cpp
    CAnimNotifyState_CameraAnim.h .cpp
    CAnimNotifyState_Collision.h .cpp
    CAnimNotifyState_Combo.h .cpp
    CAnimNotifyState_Equip.h .cpp
    CAnimNotifyState_SubAction.h .cpp
        Utilities
        CHelper.h
    CLog.h .cpp
        Weapons
        CCamerModifier.h .cpp
    CGhostTrail.h .cpp
    CDoAction_Combo.h .cpp
    CSubAction_Fist.h .cpp
    CSubAction_Sword.h .cpp 생성
    CAttachment.h .cpp
    CDoAction.h .cpp
    CEquipment.h .cpp
    CSubAction.h .cpp
    CWeaponAsset.h .cpp
    CWeaponStructures.h .cpp
        Global.h
    CGameMode.h .cpp
    U2212_06.Build.cs
        U2212_06.uproject












    주먹 난타 스킬 충돌처리(SubAction_Fist - Hit)



    CAttachment에 충돌처리를 위한 DELEGATE들을 넣었다.

    • DECLARE_DYNAMIC_MULTICAST_DELEGATE(FAttachmentBeginCollision);
    • DECLARE_DYNAMIC_MULTICAST_DELEGATE(FAttachmentEndCollision);

    • DECLARE_DYNAMIC_MULTICAST_DELEGATE_ThreeParams(FAttachmentBeginOverlap, class ACharacter*, InAttacker, AActor*, InAttackCauser, class ACharacter*, InOther);
    • DECLARE_DYNAMIC_MULTICAST_DELEGATE_TwoParams(FAttachmentEndOverlap, class ACharacter*, InAttacker, class ACharacter*, InOther);





    SubAction은 자기 스스로가 HIt Data를 가지고 자기가 충돌했을때 Hit Data를 사용한다.







    Collision이 끝났을 때

    • FAttachmentEndCollision이 끝났을 때 중복된 객체를 제거해주고 Hit 카운트를 올려준다.





    CSubAction_Fist





    CSubAction_Fist.h

    더보기
    #pragma once
#include "CoreMinimal.h"
#include "Weapons/CSubAction.h"
#include "Weapons/CWeaponStructures.h"
#include "CSubAction_Fist.generated.h"

UCLASS(Blueprintable)//블루프린트화해서 설정할 수 있도록 Blueprintable 명시
class U2212_06_API UCSubAction_Fist : public UCSubAction
{
	GENERATED_BODY()

public:
	UPROPERTY(EditAnywhere, Category = "Action")
		FDoActionData ActionData;

	UPROPERTY(EditAnywhere, Category = "Action")
		TArray<FHitData> HitDatas;

	UPROPERTY(EditAnywhere, Category = "Action")
		TSubclassOf<class ACGhostTrail> GhostTrailClass;

public:
	void Pressed() override;

	void Begin_SubAction_Implementation() override;
	void End_SubAction_Implementation() override;

private:
	UFUNCTION()
		void OnAttachmentEndCollision();

	UFUNCTION()
		void OnAttachmentBeginOverlap(class ACharacter* InAttacker, AActor* InAttackCauser, class ACharacter* InOther);

private:
	TArray<class ACharacter *> Hitted;
	int32 HitIndex;//Hit Montage를 카운팅하기 위한 변수

private:
	class ACGhostTrail* GhostTrail;
};

    SubAction에서 상속받은 함수 오버라이드

    • void Begin_SubAction_Implementation() override;



    함수 추가

    • UFUNCTION()
      void OnAttachmentEndCollision();
    • UFUNCTION()
      void OnAttachmentBeginOverlap(class ACharacter* InAttacker, AActor* InAttackCauser, class ACharacter* InOther);





    CSubAction_Fist.cpp

    더보기
    #include "Weapons/SubActions/CSubAction_Fist.h"
#include "Global.h"
#include "GameFramework/Character.h"
#include "Components/CStateComponent.h"
#include "Components/CMovementComponent.h"
#include "Weapons/CAttachment.h"
#include "Weapons/CDoAction.h"
#include "Weapons/AddOns/CGhostTrail.h"

void UCSubAction_Fist::Pressed()
{
	CheckFalse(State->IsIdleMode());
	CheckTrue(State->IsSubActionMode());

	Super::Pressed();

	State->SetActionMode();
	State->OnSubActionMode();

	GhostTrail = CHelpers::Play_GhostTrail(GhostTrailClass, Owner);//GhostTrail 플레이.

	ActionData.DoAction(Owner);
}

void UCSubAction_Fist::Begin_SubAction_Implementation()
{
	Super::Begin_SubAction_Implementation();

	//DoAction의 충돌 이벤트 연결 제거(=DELEGATE 연결 제거)
	Attachment->OnAttachmentEndCollision.Remove(DoAction, "OnAttachmentEndCollision");
	Attachment->OnAttachmentBeginOverlap.Remove(DoAction, "OnAttachmentBeginOverlap");

	//SubAction의 충돌 이벤트 연결(=DELEGATE 연결)
	Attachment->OnAttachmentEndCollision.AddDynamic(this, &UCSubAction_Fist::OnAttachmentEndCollision);
	Attachment->OnAttachmentBeginOverlap.AddDynamic(this, &UCSubAction_Fist::OnAttachmentBeginOverlap);
}

void UCSubAction_Fist::End_SubAction_Implementation()
{
	Super::End_SubAction_Implementation();

	//SubAction의 충돌 이벤트 연결 제거(=DELEGATE 연결 제거)
	Attachment->OnAttachmentEndCollision.Remove(this, "OnAttachmentEndCollision");
	Attachment->OnAttachmentBeginOverlap.Remove(this, "OnAttachmentBeginOverlap");

	//DoAction의 충돌 이벤트 다시 연결(=DELEGATE 연결)
	Attachment->OnAttachmentEndCollision.AddDynamic(DoAction, &UCDoAction::OnAttachmentEndCollision);
	Attachment->OnAttachmentBeginOverlap.AddDynamic(DoAction, &UCDoAction::OnAttachmentBeginOverlap);

	//원래 상태로 돌려준다.
	State->SetIdleMode();
	State->OffSubActionMode();

	Movement->Move();
	Movement->DisableFixedCamera();

	GhostTrail->Destroy();//GhostTrail를 지워준다.

	HitIndex = 0;//HitIndex 초기화
}

void UCSubAction_Fist::OnAttachmentBeginOverlap(ACharacter* InAttacker, AActor* InAttackCauser, ACharacter* InOther)
{
	CheckNull(InOther);

	for (ACharacter* character : Hitted)
		CheckTrue(character == InOther);

	Hitted.AddUnique(InOther);

	CheckTrue(HitIndex >= HitDatas.Num());
	HitDatas[HitIndex].SendDamage(Owner, InAttackCauser, InOther);
}


void UCSubAction_Fist::OnAttachmentEndCollision()
{
	Hitted.Empty();//사용이 끝난 Hit Data는 비워준다.

	HitIndex++;//다음 Hit Montage가 나오도록 인덱스를 카운팅하여 다음 Hit Data로 넘어간다.
}

    함수 정의

    • void UCSubAction_Fist::Begin_SubAction_Implementation()



    함수 정의

    • void UCSubAction_Fist::OnAttachmentBeginOverlap(ACharacter* InAttacker, AActor* InAttackCauser, ACharacter* InOther)
    • void UCSubAction_Fist::OnAttachmentEndCollision()
      • Hitted.Empty();
        • 사용이 끝난 Hit Data는 비워준다.
      • HitIndex++;
        • 다음 Hit Data로 넘어간다.

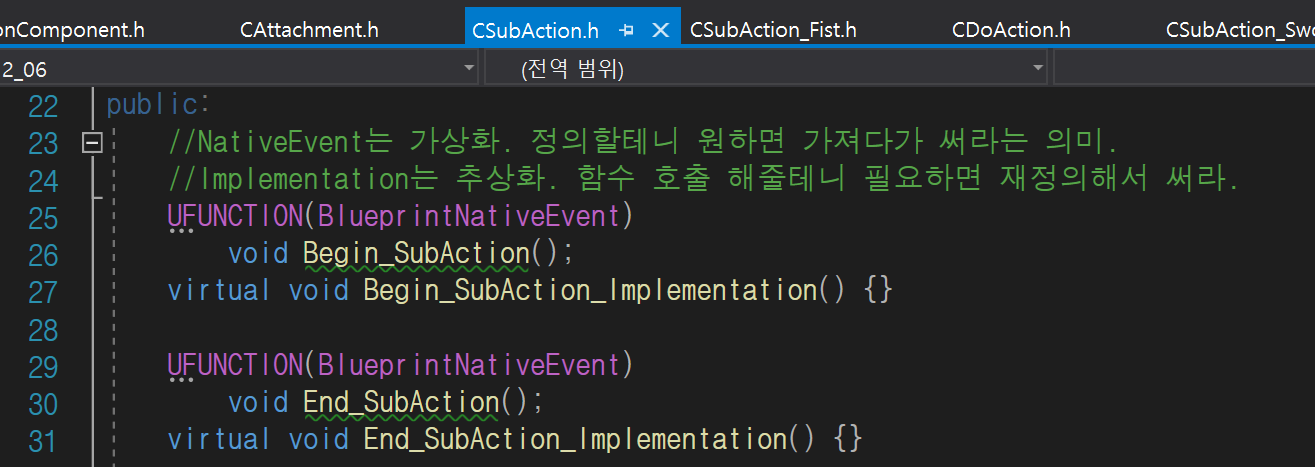

    ※ 참고:

    CSubAction_Fist에

    CSubAction에 있는void Begin_SubAction_Implementation()와 End_SubAction_Implementation()를  오버라이드하여 사용하였다.







    BP_CSubAction_Fist에  Hit Data 넣어주기



    BP_CSubAction_Fist

    Hit Data 넣어주기

    • 주먹 난타 스킬의 주먹과 발차기가 5번이기 때문에 HitData를 5개 넣어준다.



    Ghost Trail Class

    • BP_CGhostTrail를 넣어준다.

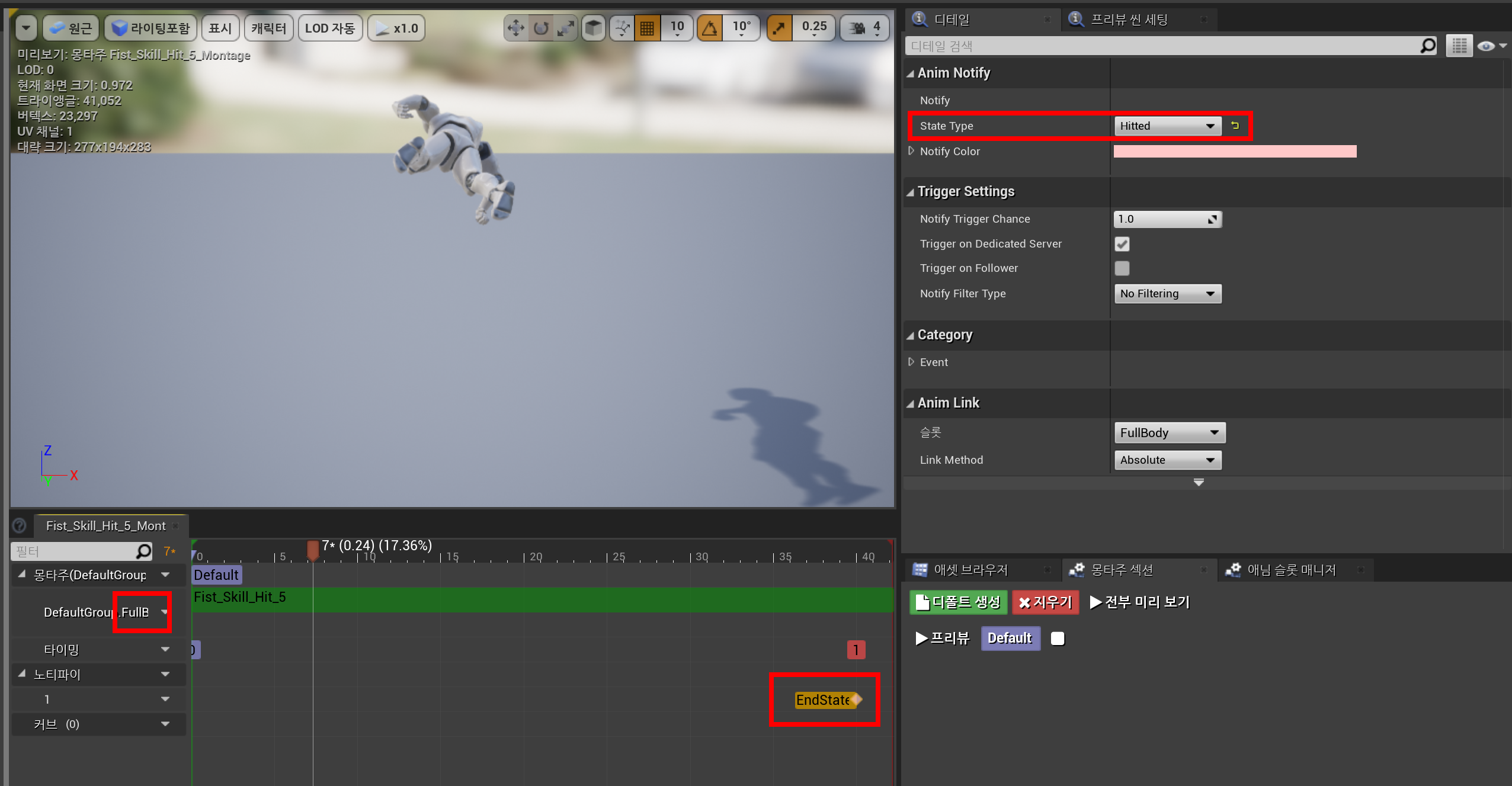

    Fist_Skill_Hit_5_Montage



    Fist_Skill_Hit_5_Montage

    스킬 마지막 Hit Montage로 사용할 몽타주를 생성하고 프레임 마지막 부분에 End State을 추가한다.

    State Type은 Hitted로 설정해준다.







    Fist_Skill_Montage



    Fist_Skill_Montage

    노티파이 트랙 추가

    • 새로 만든 노티파이 트랙에 Collision을 추가해준다.

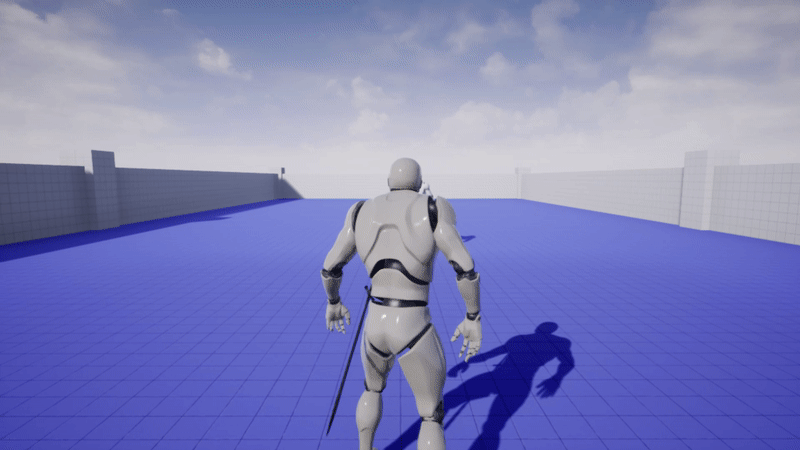

    실행화면

















    전진 일섬 스킬 구현하기







    WeaponComponent



    WeaponComponent.h

    더보기
    #pragma once
#include "CoreMinimal.h"
#include "Components/ActorComponent.h"
#include "CWeaponComponent.generated.h"

UENUM(BlueprintType)
enum class EWeaponType : uint8
{
	Fist, Sword, Hammer, Warp, Around, Bow, Max,
};
DECLARE_DYNAMIC_MULTICAST_DELEGATE_TwoParams(FWeaponTypeChanged, EWeaponType, InPrevType, EWeaponType, InNewType);

UCLASS(ClassGroup = (Custom), meta = (BlueprintSpawnableComponent))
class U2212_06_API UCWeaponComponent : public UActorComponent
{
	GENERATED_BODY()

private://DataAsset을 받아온다.
	UPROPERTY(EditAnywhere, Category = "DataAsset")
		class UCWeaponAsset* DataAssets[(int32)EWeaponType::Max];

public: //무기 Type이 맞는지 확인해주는 함수들
	FORCEINLINE bool IsUnarmedMode() { return Type == EWeaponType::Max; }
	FORCEINLINE bool IsFistMode() { return Type == EWeaponType::Fist; }
	FORCEINLINE bool IsSwordMode() { return Type == EWeaponType::Sword; }
	FORCEINLINE bool IsHammerMode() { return Type == EWeaponType::Hammer; }
	FORCEINLINE bool IsWarpMode() { return Type == EWeaponType::Warp; }
	FORCEINLINE bool IsAroundMode() { return Type == EWeaponType::Around; }
	FORCEINLINE bool IsBowMode() { return Type == EWeaponType::Bow; }

public:
	UCWeaponComponent();

protected:
	virtual void BeginPlay() override;

public:
	virtual void TickComponent(float DeltaTime, ELevelTick TickType, FActorComponentTickFunction* ThisTickFunction) override;

private:
	bool IsIdleMode();//StateComponent, WeaponComponent 둘 다 같은 레벨이다. 서로 소유할 수 없는 관계이기 때문에 참조만해서 리턴받기 위해 IsIdleMode를 사용한다.

public:
	class ACAttachment* GetAttachment();
	class UCEquipment* GetEquipment();
	class UCDoAction* GetDoAction();
	class UCSubAction* GetSubAction();

public: //무기 세팅
	void SetUnarmedMode();
	void SetFistMode();
	void SetSwordMode();
	void SetHammerMode();
	void SetWarpMode();
	void SetAroundMode();
	void SetBowMode();

	void DoAction();
	void SubAction_Pressed();
	void SubAction_Released();

private:
	void SetMode(EWeaponType InType);
	void ChangeType(EWeaponType InType);

public: //무기가 바뀌었을때 통보해줄 delegate
	FWeaponTypeChanged OnWeaponTypeChange;

private:
	class ACharacter* OwnerCharacter;

	EWeaponType Type = EWeaponType::Max;
};

    Tick을 실행시켜주는 코드

    • UCWeaponComponent::UCWeaponComponent() {
          PrimaryComponentTick.bCanEverTick = true; }



    함수 추가

    • virtual void TickComponent(float DeltaTime, ELevelTick TickType, FActorComponentTickFunction* ThisTickFunction) override;





    WeaponComponent.cpp

    더보기
    #include "Components/CWeaponComponent.h"
#include "Global.h"
#include "CStateComponent.h"
#include "GameFramework/Character.h"
#include "Weapons/CWeaponAsset.h"
#include "Weapons/CAttachment.h"
#include "Weapons/CEquipment.h"
#include "Weapons/CDoAction.h"
#include "Weapons/CSubAction.h"

UCWeaponComponent::UCWeaponComponent()
{
	//Tick을 실행시켜주는 코드
	PrimaryComponentTick.bCanEverTick = true;
}

void UCWeaponComponent::BeginPlay()
{
	Super::BeginPlay();

	OwnerCharacter = Cast<ACharacter>(GetOwner());
	for (int32 i=0; i < (int32)EWeaponType::Max; i++)
	{
		if (!!DataAssets[i]) //DataAssets[i]이 있다면(=무기가 할당되어 있다면)
			DataAssets[i]->BeginPlay(OwnerCharacter);//BeginPla y 시 OwnerCharacter에 Spawn시켜준다.
	}
}

void UCWeaponComponent::TickComponent(float DeltaTime, ELevelTick TickType, FActorComponentTickFunction* ThisTickFunction)
{
	Super::TickComponent(DeltaTime, TickType, ThisTickFunction);

	if (!!GetSubAction())//SubAction이 있다면
		GetSubAction()->Tick(DeltaTime);//SubAction의 Tick을 콜 해준다.
}

bool UCWeaponComponent::IsIdleMode()
{
	return CHelpers::GetComponent<UCStateComponent>(OwnerCharacter)->IsIdleMode();
}

ACAttachment* UCWeaponComponent::GetAttachment()
{
	CheckTrueResult(IsUnarmedMode(), nullptr);
	CheckFalseResult(!!DataAssets[(int32)Type], nullptr);

	return DataAssets[(int32)Type]->GetAttachment();
}

UCEquipment* UCWeaponComponent::GetEquipment()
{
	CheckTrueResult(IsUnarmedMode(), nullptr);
	CheckFalseResult(!!DataAssets[(int32)Type], nullptr);

	return DataAssets[(int32)Type]->GetEquipment();
}

UCDoAction* UCWeaponComponent::GetDoAction()
{
	CheckTrueResult(IsUnarmedMode(), nullptr);
	CheckFalseResult(!!DataAssets[(int32)Type], nullptr);

	return DataAssets[(int32)Type]->GetDoAction();
}

UCSubAction* UCWeaponComponent::GetSubAction()
{
	CheckTrueResult(IsUnarmedMode(), nullptr);
	CheckFalseResult(!!DataAssets[(int32)Type], nullptr);

	return DataAssets[(int32)Type]->GetSubAction();
}

void UCWeaponComponent::SetUnarmedMode()
{
	GetEquipment()->Unequip();

	ChangeType(EWeaponType::Max);
}

void UCWeaponComponent::SetFistMode()
{
	CheckFalse(IsIdleMode());

	SetMode(EWeaponType::Fist);
}

void UCWeaponComponent::SetSwordMode()
{
	CheckFalse(IsIdleMode());

	SetMode(EWeaponType::Sword);
}

void UCWeaponComponent::SetHammerMode()
{
	CheckFalse(IsIdleMode());

	SetMode(EWeaponType::Hammer);
}

void UCWeaponComponent::SetWarpMode()
{
	CheckFalse(IsIdleMode());

	SetMode(EWeaponType::Warp);
}

void UCWeaponComponent::SetAroundMode()
{
	CheckFalse(IsIdleMode());

	SetMode(EWeaponType::Around);
}

void UCWeaponComponent::SetBowMode()
{
	CheckFalse(IsIdleMode());

	SetMode(EWeaponType::Bow);
}

void UCWeaponComponent::SetMode(EWeaponType InType)
{
	if (Type == InType)
	{
		SetUnarmedMode();

		return;
	}
	else if (IsUnarmedMode() == false)
	{
		GetEquipment()->Unequip();
	}

	if (!!DataAssets[(int32)InType])
	{
		DataAssets[(int32)InType]->GetEquipment()->Equip();

		ChangeType(InType);
	}
}

void UCWeaponComponent::ChangeType(EWeaponType InType)
{
	EWeaponType prevType = Type;
	Type = InType;

	if (OnWeaponTypeChange.IsBound())
		OnWeaponTypeChange.Broadcast(prevType, InType);
}

void UCWeaponComponent::DoAction()
{
	if (!!GetDoAction())
		GetDoAction()->DoAction();
}

void UCWeaponComponent::SubAction_Pressed()
{
	if (!!GetSubAction())
		GetSubAction()->Pressed();
}

void UCWeaponComponent::SubAction_Released()
{
	if (!!GetSubAction())
		GetSubAction()->Released();
}

    Tick 실행

    • UCWeaponComponent::UCWeaponComponent() {
          PrimaryComponentTick.bCanEverTick = true;
      }



    함수 정의

    • void UCWeaponComponent::TickComponent(float DeltaTime, ELevelTick TickType, FActorComponentTickFunction* ThisTickFunction)







    CSubAction_Sword 생성



    새 C++ 클래스  - CSubAction - CSubAction_Sword 생성





    CSubAction_Sword .h

    더보기
    #pragma once
#include "CoreMinimal.h"
#include "Weapons/CSubAction.h"
#include "Weapons/CWeaponStructures.h"
#include "Kismet/KismetSystemLibrary.h"
#include "CSubAction_Sword.generated.h"

UCLASS(Blueprintable)
class U2212_06_API UCSubAction_Sword : public UCSubAction
{
	GENERATED_BODY()

private:
    UPROPERTY(EditDefaultsOnly, Category = "Trace")
        float Distance = 1000.0;//이동거리

    UPROPERTY(EditDefaultsOnly, Category = "Trace")
        float Speed = 200;//속도

    UPROPERTY(EditDefaultsOnly, Category = "Trace")
        TEnumAsByte<EDrawDebugTrace::Type> DrawDebug;//디버그용

private:
    UPROPERTY(EditDefaultsOnly, Category = "Action")
        FDoActionData ActionData;

    UPROPERTY(EditDefaultsOnly, Category = "Action")
        FHitData HitData;

private:
    UPROPERTY(EditAnywhere, Category = "Add-On")
        TSubclassOf<class ACGhostTrail> GhostTrailClass;

public:
    void Pressed() override;
    void Begin_SubAction_Implementation() override;
    void End_SubAction_Implementation() override;
    void Tick_Implementation(float InDeltaTime) override;

private:
    bool bMoving;

    FVector Start;
    FVector End;

private:
    class ACGhostTrail* GhostTrail;
};







    CSubAction_Sword .cpp

    더보기
    #include "Weapons/SubActions/CSubAction_Sword.h"
#include "Global.h"
#include "Weapons/CAttachment.h"
#include "Weapons/CDoAction.h"
#include "GameFramework/Character.h"
#include "Components/CapsuleComponent.h"
#include "Components/CStateComponent.h"
#include "Components/CMovementComponent.h"
#include "Components/CapsuleComponent.h"
#include "Weapons/AddOns/CGhostTrail.h"

void UCSubAction_Sword::Pressed()
{
	CheckFalse(State->IsIdleMode());
	CheckTrue(State->IsSubActionMode());

	Super::Pressed();


	State->SetActionMode();
	State->OnSubActionMode();

	GhostTrail = CHelpers::Play_GhostTrail(GhostTrailClass, Owner);

	ActionData.DoAction(Owner);
}

void UCSubAction_Sword::Begin_SubAction_Implementation()
{
	Super::Begin_SubAction_Implementation();

	bMoving = true;//이동할 수 있게 설정해준다.

	Start = Owner->GetActorLocation();//시작 위치 = Owner의 위치
	End = Start + Owner->GetActorForwardVector() * Distance;//끝 위치 = 시작 위치 + Owner의 앞 방향으로 (헤더에서 기본값 설정한)Distance 거리

	//Draw Debug
	if (DrawDebug == EDrawDebugTrace::ForDuration)
		DrawDebugDirectionalArrow(Owner->GetWorld(), Start, End, 25, FColor::Green, true, 5, 0, 3);
}

void UCSubAction_Sword::End_SubAction_Implementation()
{
	Super::End_SubAction_Implementation();

	bMoving = false;//동작이 끝났으니 이동하지 못하게 false로 만들어준다.

	State->SetIdleMode();
	State->OffSubActionMode();

	Movement->Move();
	Movement->DisableFixedCamera();

	if (!!GhostTrail)
		GhostTrail->Destroy();//GhostTrail를 없앤다.
}

void UCSubAction_Sword::Tick_Implementation(float InDeltaTime)
{
	Super::Tick_Implementation(InDeltaTime);
	CheckFalse(bMoving);

	FVector location = Owner->GetActorLocation();
	float radius = Owner->GetCapsuleComponent()->GetScaledCapsuleRadius();

	//location이 radius 오차값 내에서 End와 같다면
	//Owner(여기서는 Player)의 위치가 radius 오차값 내의 End 위치에 도달했다면
	if(location.Equals(End, radius))
	{
		bMoving = false;//일섬 공격이 끝났으니 이동하지 못하게 false로 만들어준다.
		Start = End = Owner->GetActorLocation();//시작과 끝 위치를 현재 Owner의 위치로 설정해준다. 초기화.

		return;
	}

	FVector direction = (End - Start).GetSafeNormal2D();
	Owner->AddActorWorldOffset(direction * Speed, true);
}













    BP_CSubAction_Sword 생성

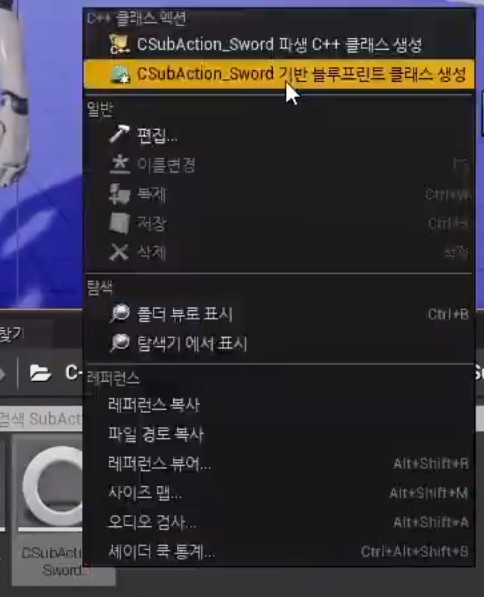

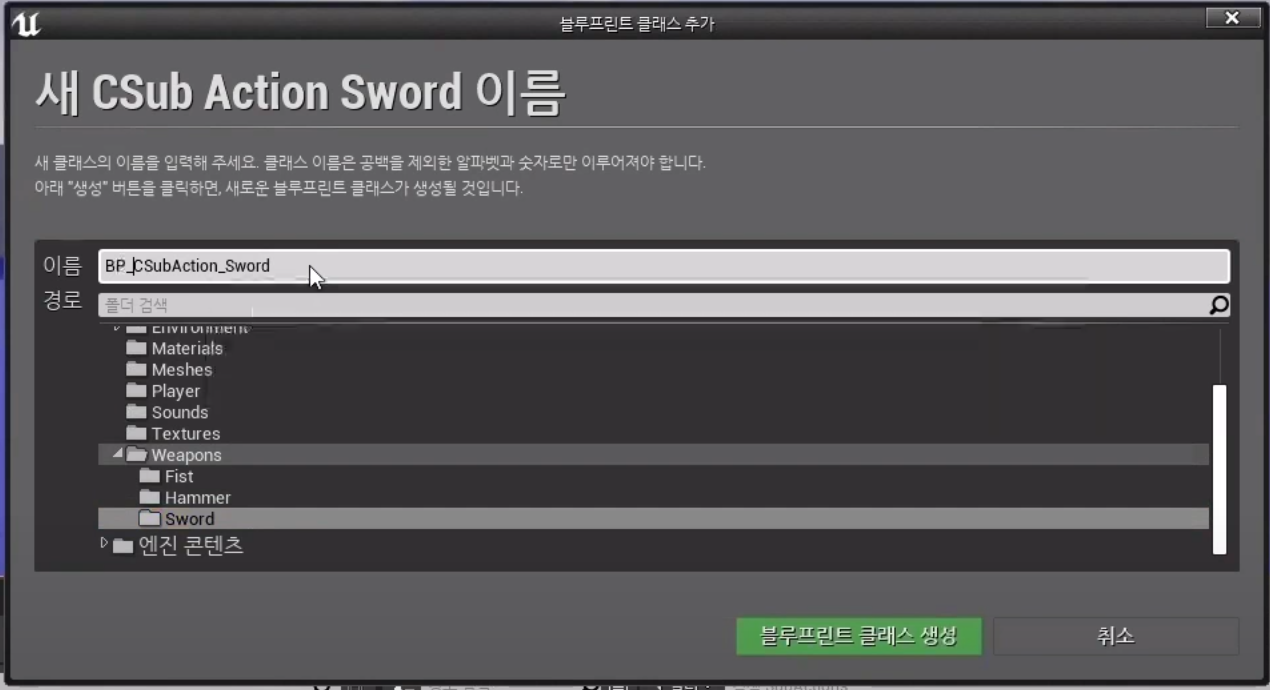

    CSubAction_Sword 기반 블루프린트 클래스 생성 - BP_CSubAction_Sword 생성







    코드로 설정한 Trace 데이터가 들어온다.



    Action Data를 설정해준다.



    Hit Data를 설정해준다.



    Ghost Trail Class를 BP_CGhostTrail_Sword로 설정한다.

















    Sword_Skill_Montage 생성



    노트파이 트랙 추가

    • SubAction 추가
    • Collision 추가





    BP_CGhostTrail_Sword 생성





    BP_CGhostTrail 복제 - BP_CGhostTrail_Sword 생성







































    실행화면







    '⭐ Unreal Engine > UE RPG Skill' 카테고리의 다른 글

    [UE] 해머 스킬 만들기  (0) 2023.06.27
    [UE] 일섬 스킬 충돌, 해머 스킬 만들기  (0) 2023.06.26
    [UE] 잔상효과 구현하기  (0) 2023.06.22
    [UE] 카메라 애니메이션 구현하기  (0) 2023.06.21
    [UE] 주먹 난타 스킬 구현하기  (0) 2023.06.20

    티스토리툴바
