[DirectX11] 009 World Matrix



목차





---





World Matrix



---



View Projection 행렬



4x4 행렬

Identity

1  0  0  0

0  1  0  0

0  0  1  0

0  0  0  1



---

World.fx 코드



08_World.fx

matrix World;
matrix View;
matrix Projection;

struct VertexInput
{
    float4 Position : Position;
};

struct VertexOutput
{
    float4 Position : SV_Position;
};

float4 VS(VertexInput input) : SV_Position
{
	// float4의 위치(=input.Position)에 W V P를 곱하여 output.Position 반환
    VertexOutput output;
    output.Position = mul(input.Position, World);
    output.Position = mul(output.Position, View);
    output.Position = mul(output.Position, Projection);

    return output;
}

float4 PS_R(VertexOutput input) : SV_Target
{
    return float4(1, 0, 0, 1);
}

RasterizerState FillMode_Wireframe
{
    FillMode = Wireframe;
};

technique11 T0
{
    pass P0
    {
        SetVertexShader(CompileShader(vs_5_0, VS()));
        SetPixelShader(CompileShader(ps_5_0, PS_R()));
    }

    pass P1
    {
        SetRasterizerState(FillMode_Wireframe);

        SetVertexShader(CompileShader(vs_5_0, VS()));
        SetPixelShader(CompileShader(ps_5_0, PS_R()));
    }
}

---



WorldDemo 코드



WorldDemo.h

#pragma once
#include "Systems/IExecute.h"

class WorldDemo : public IExecute
{
public:
	virtual void Initialize() override;
	virtual void Ready() override {}
	virtual void Destroy() override;
	virtual void Update() override;
	virtual void PreRender() override {}
	virtual void Render() override;
	virtual void PostRender() override {}
	virtual void ResizeScreen() override {}

private:
	Shader* shader;

	Vertex vertices[6];
	ID3D11Buffer* vertexBuffer;

	Matrix world;
};



WorldDemo.cpp

#include "stdafx.h"
#include "WorldDemo.h"

void WorldDemo::Initialize()
{
	shader = new Shader(L"08_World.fx");

	vertices[0].Position = Vector3(+0.0f, +0.0f, 0.0f);
	vertices[1].Position = Vector3(+0.0f, +0.5f, 0.0f);
	vertices[2].Position = Vector3(+0.5f, +0.0f, 0.0f);

	vertices[3].Position = Vector3(+0.5f, +0.0f, 0.0f);
	vertices[4].Position = Vector3(+0.0f, +0.5f, 0.0f);
	vertices[5].Position = Vector3(+0.5f, +0.5f, 0.0f);


	D3D11_BUFFER_DESC desc;
	ZeroMemory(&desc, sizeof(D3D11_BUFFER_DESC));
	desc.ByteWidth = sizeof(Vertex) * 6;
	desc.BindFlags = D3D11_BIND_VERTEX_BUFFER;

	D3D11_SUBRESOURCE_DATA subResource = { 0 };
	subResource.pSysMem = vertices;

	Check(D3D::GetDevice()->CreateBuffer(&desc, &subResource, &vertexBuffer));

	D3DXMatrixIdentity(&world);
}

void WorldDemo::Destroy()
{
	SafeDelete(shader);
	SafeRelease(vertexBuffer);
}

void WorldDemo::Update()
{
	if (Keyboard::Get()->Press(VK_RIGHT))
	{
		world._11 += 2.0f * Time::Delta();
		world._22 += 2.0f * Time::Delta();
	}
	else if (Keyboard::Get()->Press(VK_LEFT))
	{
		world._11 -= 2.0f * Time::Delta();
		world._22 -= 2.0f * Time::Delta();
	}
}

void WorldDemo::Render()
{
	shader->AsMatrix("World")->SetMatrix(world);
	shader->AsMatrix("View")->SetMatrix(Context::Get()->View());
	shader->AsMatrix("Projection")->SetMatrix(Context::Get()->Projection());

	UINT stride = sizeof(Vertex);
	UINT offset = 0;

	D3D::GetDC()->IASetVertexBuffers(0, 1, &vertexBuffer, &stride, &offset);
	D3D::GetDC()->IASetPrimitiveTopology(D3D11_PRIMITIVE_TOPOLOGY_TRIANGLELIST);

	shader->Draw(0, 0, 6);
}



Main.cpp

#include "stdafx.h"
#include "Main.h"
#include "Systems/Window.h"

#include "WorldDemo.h"
#include "UserInterfaceDemo.h"
#include "TriangleList.h"
#include "Vertex_Line2.h"
#include "Vertex_Line.h"

void Main::Initialize()
{
	Push(new WorldDemo());
}

void Main::Ready()
{

}

void Main::Destroy()
{
	for (IExecute* exe : executes)
	{
		exe->Destroy();
		SafeDelete(exe);
	}
}

void Main::Update()
{
	for (IExecute* exe : executes)
		exe->Update();
}

void Main::PreRender()
{
	for (IExecute* exe : executes)
		exe->PreRender();
}

void Main::Render()
{
	for (IExecute* exe : executes)
		exe->Render();
}

void Main::PostRender()
{
	for (IExecute* exe : executes)
		exe->PostRender();
}

void Main::ResizeScreen()
{
	for (IExecute* exe : executes)
		exe->ResizeScreen();
}

void Main::Push(IExecute * execute)
{
	executes.push_back(execute);

	execute->Initialize();
}

int WINAPI WinMain(HINSTANCE instance, HINSTANCE prevInstance, LPSTR param, int command)
{
	D3DDesc desc;
	desc.AppName = L"D3D Game";
	desc.Instance = instance;
	desc.bFullScreen = false;
	desc.bVsync = false;
	desc.Handle = NULL;
	desc.Width = 1280;
	desc.Height = 720;
	desc.Background = Color(0.3f, 0.3f, 0.3f, 1.0f);
	D3D::SetDesc(desc);

	Main* main = new Main();
	WPARAM wParam = Window::Run(main);

	SafeDelete(main);

	return wParam;
}

---

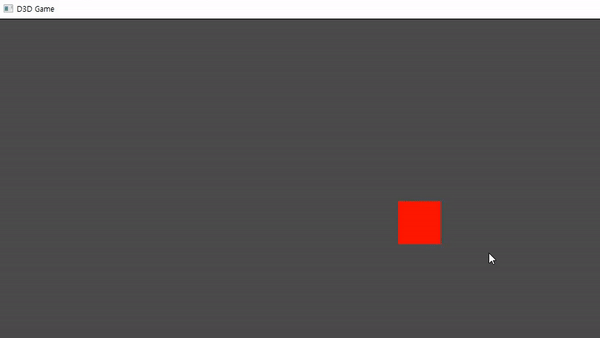

실행화면



---
