[DirectX11] 006~007 사각형 띄우기



목차





---





Vertex Buffer 세팅





---

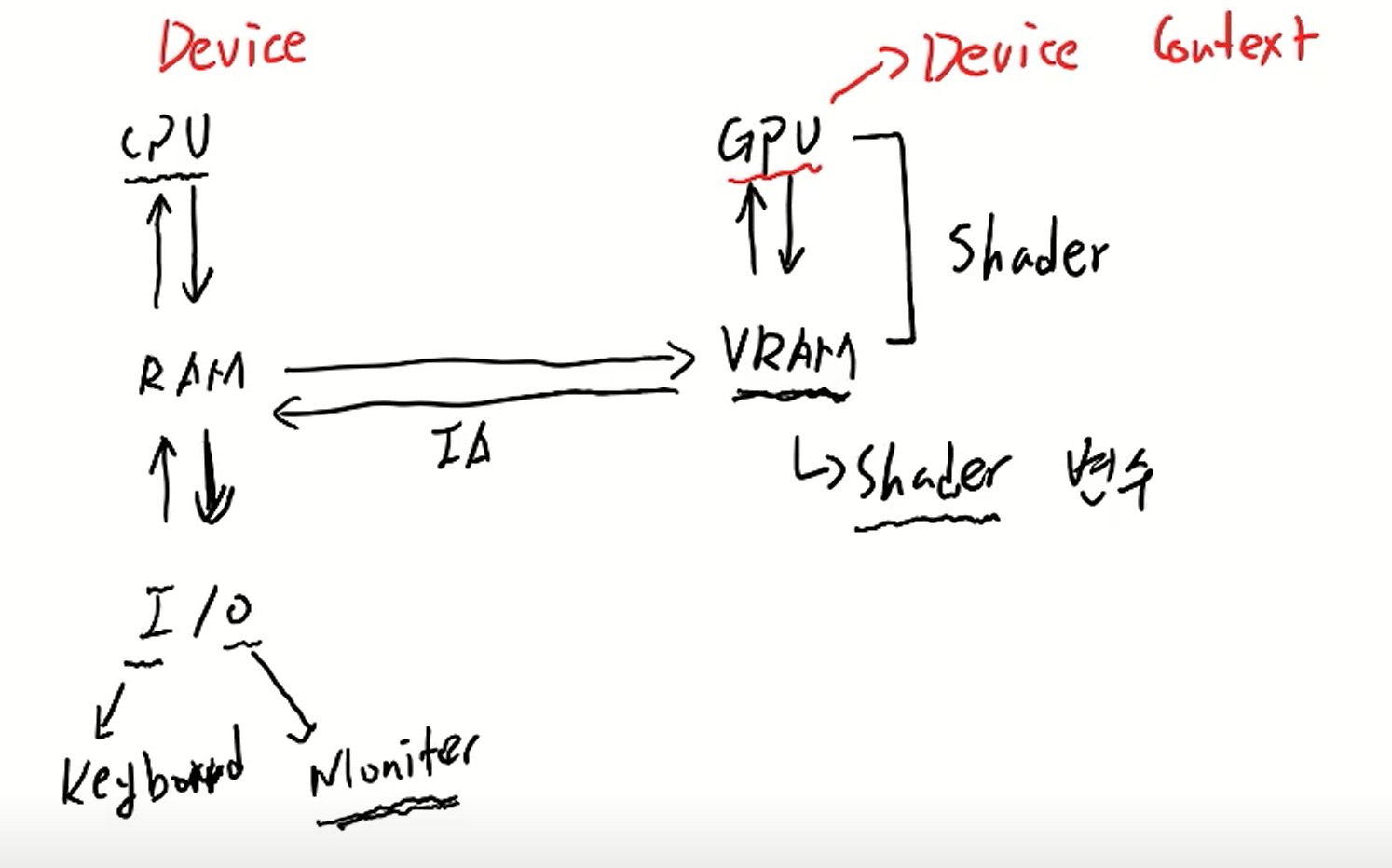

디바이스 구조 기초







---



두르기 순서



왼손 좌표계의 경우 시계 방향으로 감긴다. 반면에 오른손 좌표계의 경우 반시계 방향으로 감긴다.



DX9 - 왼손 좌표계

Unreal, Unity - 왼손 좌표계



DX10, 11, 12, GL - 오른손 좌표계이지만 기존의 컨벤션을 유지하기 위해 왼손 좌표계 방식으로 코팅을 한다.



---

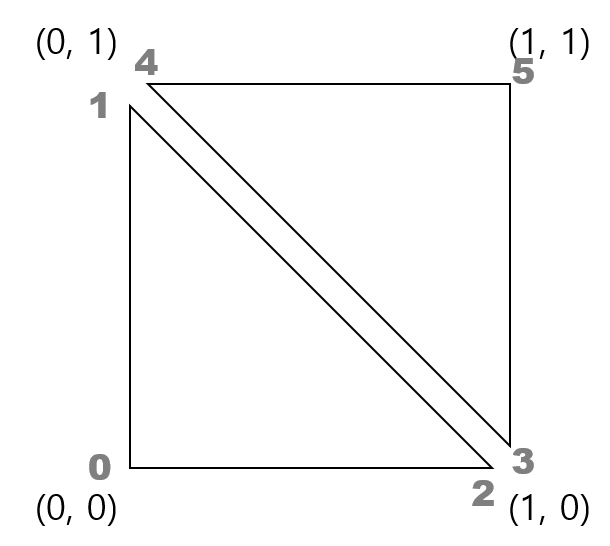

사각형 출력하기



07_Rect.fx

struct VertexInput
{
    float4 Position : Position;
};

struct VertexOutput
{
    float4 Position : SV_Position;
};

VertexOutput VS(VertexInput input)
{
    VertexOutput output;
    output.Position = input.Position;

    return output;
}

float4 PS_R(VertexOutput input) : SV_Target
{
    return float4(1, 0, 0, 1);
}

RasterizerState FillMode_Wireframe
{
    FillMode = Wireframe;
};

technique11 T0
{
    pass P0
    {
        SetVertexShader(CompileShader(vs_5_0, VS()));
        SetPixelShader(CompileShader(ps_5_0, PS_R()));
    }

    pass P1
    {
        SetRasterizerState(FillMode_Wireframe);

        SetVertexShader(CompileShader(vs_5_0, VS()));
        SetPixelShader(CompileShader(ps_5_0, PS_R()));
    }
}



RectDemo.h

#pragma once
#include "Systems/IExecute.h"

class RectDemo : public IExecute
{
public:
	virtual void Initialize() override;
	virtual void Ready() override {}
	virtual void Destroy() override;
	virtual void Update() override;
	virtual void PreRender() override {}
	virtual void Render() override;
	virtual void PostRender() override {}
	virtual void ResizeScreen() override {}

private:
	Shader* shader;

	Vertex vertices[6];
	ID3D11Buffer* vertexBuffer;
};



RectDemo.cpp

#include "stdafx.h"
#include "RectDemo.h"

void RectDemo::Initialize()
{
	shader = new Shader(L"07_Rect.fx");

	vertices[0].Position = Vector3(+0.0f, +0.0f, 0.0f);
	vertices[1].Position = Vector3(+0.0f, +0.5f, 0.0f);
	vertices[2].Position = Vector3(+0.5f, +0.0f, 0.0f);

	vertices[3].Position = Vector3(+0.5f, +0.0f, 0.0f);
	vertices[4].Position = Vector3(+0.0f, +0.5f, 0.0f);
	vertices[5].Position = Vector3(+0.5f, +0.5f, 0.0f);


	D3D11_BUFFER_DESC desc;
	ZeroMemory(&desc, sizeof(D3D11_BUFFER_DESC));
	desc.ByteWidth = sizeof(Vertex) * 6;
	desc.BindFlags = D3D11_BIND_VERTEX_BUFFER;

	D3D11_SUBRESOURCE_DATA subResource = { 0 };
	subResource.pSysMem = vertices;

	Check(D3D::GetDevice()->CreateBuffer(&desc, &subResource, &vertexBuffer));
}

void RectDemo::Destroy()
{
	SafeDelete(shader);

	SafeRelease(vertexBuffer);
}

void RectDemo::Update()
{

}

void RectDemo::Render()
{
	UINT stride = sizeof(Vertex);
	UINT offset = 0;

	D3D::GetDC()->IASetVertexBuffers(0, 1, &vertexBuffer, &stride, &offset);
	D3D::GetDC()->IASetPrimitiveTopology(D3D11_PRIMITIVE_TOPOLOGY_TRIANGLELIST);

	shader->Draw(0, 1, 6);
}







---



실행화면
