[DirectX11] 025~26 Mesh







목차





---





Mesh



짐벌락 현상

•  x축과 z축이 겹쳐서 돌다가 정상적으로 Rendering되지 않고 사라져버린다.



짐벌락 해결방법 2가지

• 3DXMatrixRotationYawPitchRoll
• 사원수



---

참고사항



copy(v.begin(), v.end(), stdext::checked_array_iterator <MeshVertex *>(vertices, vertexCount));

벡터의 시작주소, 끝주소,  복사받을 배열의 <자료형> 시작주소, 갯수





---



Mesh.fx



Mesh.fx

matrix World;
matrix View;
matrix Projection;
float4 Index;
Texture2D DiffuseMap;
float3 Direction;

struct VertexInput
{
    float4 Position : Position;
    float2 Uv : Uv;
    float3 Normal : Normal;
};

struct VertexOutput
{
    float4 Position : SV_Position;
    float2 Uv : Uv;
    float3 Normal : Normal;
};

VertexOutput VS(VertexInput input)
{
    VertexOutput output;
    output.Position = mul(input.Position, World);
    output.Position = mul(output.Position, View);
    output.Position = mul(output.Position, Projection);

    output.Normal = mul(input.Normal, (float3x3) World);

    output.Uv = input.Uv;

    return output;
}

SamplerState LinearSampler
{
    Filter = MIN_MAG_MIP_LINEAR;
    AddressU = Wrap;
    AddressV = Wrap;
};

float4 PS(VertexOutput input) : SV_Target
{
    float3 normal = normalize(input.Normal);
    float3 light = -Direction;

    return DiffuseMap.Sample(LinearSampler, input.Uv) * dot(light, normal);
}

RasterizerState FillMode_Wireframe
{
    FillMode = Wireframe;
};

technique11 T0
{
    pass P0
    {
        SetVertexShader(CompileShader(vs_5_0, VS()));
        SetPixelShader(CompileShader(ps_5_0, PS()));
    }

    pass P1
    {
        SetRasterizerState(FillMode_Wireframe);

        SetVertexShader(CompileShader(vs_5_0, VS()));
        SetPixelShader(CompileShader(ps_5_0, PS()));
    }
}



---



Mesh



Mesh.h

#pragma once

class Mesh
{
public:
	typedef VertexTextureNormal MeshVertex;

public:
	Mesh(Shader* shader);
	virtual ~Mesh();

	void Update();
	void Render();

public:
	void Pass(UINT val) { pass = val; }

	void Position(float x, float y, float z);
	void Position(Vector3& vec);
	void Position(Vector3* vec);

	void Rotation(float x, float y, float z);
	void Rotation(Vector3& vec);
	void Rotation(Vector3* vec);

	void RotationDegree(float x, float y, float z);
	void RotationDegree(Vector3& vec);
	void RotationDegree(Vector3* vec);

	void Scale(float x, float y, float z);
	void Scale(Vector3& vec);
	void Scale(Vector3* vec);

	Matrix World() { return world; }

	Vector3 Forward();
	Vector3 Up();
	Vector3 Right();

	void DiffuseMap(wstring file);

protected:
	virtual void Create() = 0; //자식에서 재정의하면서 자식의 정점들이 들어갈 예정.
	void CreateBuffer();

private:
	void UpdateWorld();

protected:
	MeshVertex* vertices = NULL;
	UINT* indices = NULL;

	UINT vertexCount;
	UINT indexCount;

private:
	Shader* shader;
	UINT pass = 0;

	Vector3 position = Vector3(0, 0, 0);
	Vector3 scale = Vector3(1, 1, 1);
	Vector3 rotation = Vector3(0, 0, 0);

	Matrix world;

	ID3D11Buffer* vertexBuffer = NULL;
	ID3D11Buffer* indexBuffer = NULL;

	ID3DX11EffectMatrixVariable* sWorld, *sView, *sProjection;

	Texture* diffuseMap = NULL;
	ID3DX11EffectShaderResourceVariable* sDiffuseMap;
};





Mesh.cpp

#include "Framework.h"
#include "Mesh.h"

Mesh::Mesh(Shader * shader)
	: shader(shader)
{
	D3DXMatrixIdentity(&world);

	sWorld = shader->AsMatrix("World");
	sView = shader->AsMatrix("View");
	sProjection = shader->AsMatrix("Projection");

	sDiffuseMap = shader->AsSRV("DiffuseMap");
}

Mesh::~Mesh()
{
	SafeDeleteArray(vertices);
	SafeDeleteArray(indices);

	SafeRelease(vertexBuffer);
	SafeRelease(indexBuffer);

	SafeDelete(diffuseMap);
}

void Mesh::Update()
{
}

void Mesh::Render()
{
	if (vertexBuffer == NULL && indexBuffer == NULL)
	{
		Create(); //Create()함수를 자식이 재정의하면 재정의된 Create()이 호출된다.
		CreateBuffer();
	}

	UINT stride = sizeof(MeshVertex);
	UINT offset = 0;

	D3D::GetDC()->IASetVertexBuffers(0, 1, &vertexBuffer, &stride, &offset);
	D3D::GetDC()->IASetIndexBuffer(indexBuffer, DXGI_FORMAT_R32_UINT, 0);
	D3D::GetDC()->IASetPrimitiveTopology(D3D11_PRIMITIVE_TOPOLOGY_TRIANGLELIST);

	sWorld->SetMatrix(world);
	sView->SetMatrix(Context::Get()->View());
	sProjection->SetMatrix(Context::Get()->Projection());

	sDiffuseMap->SetResource(diffuseMap->SRV());

	shader->DrawIndexed(0, pass, indexCount);
}


void Mesh::Position(float x, float y, float z)
{
	Position(Vector3(x, y, z));
}

void Mesh::Position(Vector3 & vec)
{
	position = vec;

	UpdateWorld();
}

void Mesh::Position(Vector3 * vec)
{
	*vec = position;
}

void Mesh::Rotation(float x, float y, float z)
{
	Rotation(Vector3(x, y, z));
}

void Mesh::Rotation(Vector3 & vec)
{
	rotation = vec;

	UpdateWorld();
}

void Mesh::Rotation(Vector3 * vec)
{
	*vec = rotation;
}

void Mesh::RotationDegree(float x, float y, float z)
{
	RotationDegree(Vector3(x, y, z));
}

void Mesh::RotationDegree(Vector3 & vec)
{
	rotation = vec * Math::PI / 180.0f;

	UpdateWorld();
}

void Mesh::RotationDegree(Vector3 * vec)
{
	*vec = rotation * 180.0f / Math::PI;
}

void Mesh::Scale(float x, float y, float z)
{
	Scale(Vector3(x, y, z));
}

void Mesh::Scale(Vector3 & vec)
{
	scale = vec;

	UpdateWorld();
}

void Mesh::Scale(Vector3 * vec)
{
	*vec = scale;
}

Vector3 Mesh::Forward()
{   //z방향
	return Vector3(world._31, world._32, world._33);
}

Vector3 Mesh::Up()
{   //y방향
	return Vector3(world._21, world._22, world._23);
}

Vector3 Mesh::Right()
{   //x방향
	return Vector3(world._11, world._12, world._13);
}

void Mesh::DiffuseMap(wstring file)
{
	SafeDelete(diffuseMap);

	diffuseMap = new Texture(file);
}

void Mesh::CreateBuffer()
{
	//Create Vertex Buffer
	{
		D3D11_BUFFER_DESC desc;
		ZeroMemory(&desc, sizeof(D3D11_BUFFER_DESC));
		desc.ByteWidth = sizeof(MeshVertex) * vertexCount;
		desc.BindFlags = D3D11_BIND_VERTEX_BUFFER;

		D3D11_SUBRESOURCE_DATA data = { 0 };
		data.pSysMem = vertices;

		Check(D3D::GetDevice()->CreateBuffer(&desc, &data, &vertexBuffer));
	}

	//Create Index Buffer
	{
		D3D11_BUFFER_DESC desc;
		ZeroMemory(&desc, sizeof(D3D11_BUFFER_DESC));
		desc.ByteWidth = sizeof(UINT) * indexCount;
		desc.BindFlags = D3D11_BIND_INDEX_BUFFER;

		D3D11_SUBRESOURCE_DATA data = { 0 };
		data.pSysMem = indices;

		Check(D3D::GetDevice()->CreateBuffer(&desc, &data, &indexBuffer));
	}
}

void Mesh::UpdateWorld()
{
	Matrix S, R, T;
	D3DXMatrixScaling(&S, scale.x, scale.y, scale.z);
	D3DXMatrixRotationYawPitchRoll(&R, rotation.y, rotation.x, rotation.z);
	D3DXMatrixTranslation(&T, position.x, position.y, position.z);

	world = S * R * T;
}







---



MeshQuad



MeshQuad.h

#pragma once

class MeshQuad : public Mesh
{
public:
	MeshQuad(Shader* shader);
	~MeshQuad();

private:
	void Create() override; //Mesh.h에 있는 Create() 재정의
};





MeshQuad.h

#include "Framework.h"
#include "MeshQuad.h"

MeshQuad::MeshQuad(Shader* shader)
	: Mesh(shader)
{
}

MeshQuad::~MeshQuad()
{
}

void MeshQuad::Create()
{
	float w = 0.5f;
	float h = 0.5f;

	vector<MeshVertex> v;
	v.push_back(MeshVertex(-w, -h, 0, 0, 1, 0, 0, -1));
	v.push_back(MeshVertex(-w, +h, 0, 0, 0, 0, 0, -1));
	v.push_back(MeshVertex(+w, -h, 0, 1, 1, 0, 0, -1));
	v.push_back(MeshVertex(+w, +h, 0, 1, 0, 0, 0, -1));

	vertices = new MeshVertex[v.size()];
	vertexCount = v.size();

	copy(v.begin(), v.end(), stdext::checked_array_iterator <MeshVertex *>(vertices, vertexCount));

	indexCount = 6;
	indices = new UINT[indexCount]{ 0, 1, 2, 2, 1, 3 };
}



---



MeshDemo



MeshDemo.h

#pragma once
#include "Systems/IExecute.h"

class MeshDemo : public IExecute
{
public:
	virtual void Initialize() override;
	virtual void Ready() override {}
	virtual void Destroy() override;
	virtual void Update() override;
	virtual void PreRender() override {}
	virtual void Render() override;
	virtual void PostRender() override {}
	virtual void ResizeScreen() override {}

private:
	Shader* shader;

	Vector3 direction = Vector3(-1, -1, 1);
	ID3DX11EffectVectorVariable* sDirection;

	MeshQuad* quad;
};





MeshDemo.cpp

#include "stdafx.h"
#include "MeshDemo.h"

void MeshDemo::Initialize()
{
	Context::Get()->GetCamera()->RotationDegree(0, 0, 0);
	Context::Get()->GetCamera()->Position(0, 0, -10);


	shader = new Shader(L"25_Mesh.fx");
	sDirection = shader->AsVector("Direction");

	quad = new MeshQuad(shader);
	quad->Scale(2, 2, 2);
	quad->DiffuseMap(L"Box.png");
}

void MeshDemo::Destroy()
{
	SafeDelete(shader);
	SafeDelete(quad);
}

void MeshDemo::Update()
{
	Vector3 scale;
	quad->Scale(&scale);

	ImGui::SliderFloat2("Scale", scale, -3, 3);
	quad->Scale(scale);

	quad->Update();
}

void MeshDemo::Render()
{
	sDirection->SetFloatVector(direction);

	quad->Render();
}



---

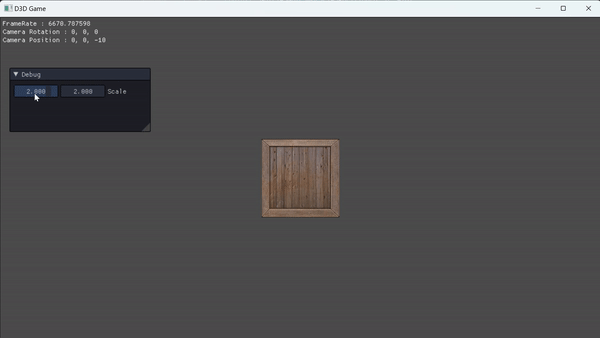

실행화면
