[DirectX11] 024 Vertical Raycast

그리드의 크기가 일정하지 않는 경우. 두 지면의 크기가 다른 경우. 다음과 같은 지형들을 구현할 때 사용하는 방식에 대해 알아보자. 삼각형 충돌 방식. 실제 게임에서 이 방법이 더 많이 쓰인다.



목차





---





Vertical Raycast



수식 -> 반직선 삼각형 충돌



D3DXIntersection 사용

• start
• direction
• 두 요소가 필요하다.
• 삼각형의 위치를 구한다.



용어 정의

• Picking: 무언가를 선택하겠다. 여기서 무언가는 플레이어가 위치하고 있는 삼각형.
• Raycast: 반직선을 쏴서 선택했다



팁 TIP!

Window에서 대문자 TRUE, FALSE는 int형으로 1, 0 취급한다. 0이 아닌 값이 나왔을 때 왜 TRUE가 나왔는지 각각 파악하기 위해 0이 아닌 값을 TRUE를 만들어주는 대신에 1만 TRUE로 잡아준다. 예를 들어 3이란 값이 나오면 왜 TRUE인지 따로 처리해준다.











---

Terrain



float GetVerticalRaycast(Vector3& position); 생성





Terrain.h

#pragma once

class Terrain
{
public:
	typedef VertexNormal TerrainVertex;

public:
	Terrain(Shader* shader, wstring heightFile);
	~Terrain();

	void Update();
	void Render();

	void Pass(UINT val) { pass = val; }

	float GetHeight(Vector3& position);
	float GetVerticalRaycast(Vector3& position);

private:
	void CreateVertexData();
	void CreateIndexData();
	void CreateNormalData();
	void CreateBuffer();

private:
	UINT pass = 0;
	Shader* shader;

	Texture* heightMap;

	UINT width, height;

	UINT vertexCount;
	TerrainVertex* vertices;
	ID3D11Buffer* vertexBuffer;

	UINT indexCount;
	UINT* indices;
	ID3D11Buffer* indexBuffer;
};



Terrain.cpp

#include "Framework.h"
#include "Terrain.h"

Terrain::Terrain(Shader * shader, wstring heightFile)
	: shader(shader)
{
	heightMap = new Texture(heightFile);

	CreateVertexData();
	CreateIndexData();
	CreateNormalData();

	CreateBuffer();
}

Terrain::~Terrain()
{
	SafeDelete(heightMap);

	SafeDeleteArray(vertices);
	SafeDeleteArray(indices);

	SafeRelease(vertexBuffer);
	SafeRelease(indexBuffer);
}

void Terrain::Update()
{
	static Vector3 direction = Vector3(-1, -1, 1);
	ImGui::SliderFloat3("Direction", direction, -1, 1);
	shader->AsVector("Direction")->SetFloatVector(direction);


	Matrix world;
	D3DXMatrixIdentity(&world);

	shader->AsMatrix("World")->SetMatrix(world);
	shader->AsMatrix("View")->SetMatrix(Context::Get()->View());
	shader->AsMatrix("Projection")->SetMatrix(Context::Get()->Projection());
}

void Terrain::Render()
{
	//for (int i = 0; i < vertexCount; i++)
	//{
	//	Vector3 start = vertices[i].Position;
	//	Vector3 end = vertices[i].Position + vertices[i].Normal * 2;

	//	DebugLine::Get()->RenderLine(start, end, Color(0, 1, 0, 1));
	//}


	UINT stride = sizeof(TerrainVertex);
	UINT offset = 0;

	D3D::GetDC()->IASetPrimitiveTopology(D3D11_PRIMITIVE_TOPOLOGY_TRIANGLELIST);
	D3D::GetDC()->IASetVertexBuffers(0, 1, &vertexBuffer, &stride, &offset);
	D3D::GetDC()->IASetIndexBuffer(indexBuffer, DXGI_FORMAT_R32_UINT, 0);

	shader->DrawIndexed(0, pass, indexCount);
}

float Terrain::GetHeight(Vector3 & position)
{
	UINT x = (UINT)position.x;
	UINT z = (UINT)position.z;

	if (x < 0 || x > width) return FLT_MIN;
	if (z < 0 || z > height) return FLT_MIN;


	UINT index[4];
	index[0] = width * z + x;
	index[1] = width * (z + 1) + x;
	index[2] = width * z + x + 1;
	index[3] = width * (z + 1) + x + 1;

	Vector3 v[4];
	for (int i = 0; i < 4; i++)
		v[i] = vertices[index[i]].Position;


	float ddx = (position.x - v[0].x) / 1.0f;
	float ddz = (position.z - v[0].z) / 1.0f;

	Vector3 result;

	if(ddx + ddz <= 1.0f)
		result = v[0] + (v[2] - v[0]) * ddx + (v[1] - v[0]) * ddz;
	else
	{
		//값을 뒤집어준다.
		ddx = 1.0f - ddx;
		ddz = 1.0f - ddz;

		result = v[3] + (v[1] - v[3]) * ddx + (v[2] - v[3]) * ddz;
	}

	return result.y;
}

float Terrain::GetVerticalRaycast(Vector3 & position)
{
	UINT x = (UINT)position.x;
	UINT z = (UINT)position.z;

	if (x < 0 || x > width) return FLT_MIN;
	if (z < 0 || z > height) return FLT_MIN;


	UINT index[4];
	index[0] = width * z + x;
	index[1] = width * (z + 1) + x;
	index[2] = width * z + x + 1;
	index[3] = width * (z + 1) + x + 1;

	Vector3 p[4];
	for (int i = 0; i < 4; i++)
		p[i] = vertices[index[i]].Position;

	Vector3 start(position.x, 50, position.z);
	Vector3 direction(0, -1, 0);

	float u, v, distance; //distance는 기준점으로부터 충돌된 지점까지의 거리
	Vector3 result(-1, FLT_MIN, -1);

	if (D3DXIntersectTri(&p[0], &p[1], &p[2], &start, &direction, &u, &v, &distance) == TRUE)
		result = p[0] + (p[1] - p[0]) * u + (p[2] - p[0]) * v;

	if (D3DXIntersectTri(&p[3], &p[1], &p[2], &start, &direction, &u, &v, &distance) == TRUE)
		result = p[3] + (p[1] - p[3]) * u + (p[2] - p[3]) * v;

	return result.y;
}

void Terrain::CreateVertexData()
{
	vector<Color> heights;
	heightMap->ReadPixel(DXGI_FORMAT_R8G8B8A8_UNORM, &heights);

	width = heightMap->GetWidth();
	height = heightMap->GetHeight();


	vertexCount = width * height;
	vertices = new TerrainVertex[vertexCount];
	for (UINT z = 0; z < height; z++)
	{
		for (UINT x = 0; x < width; x++)
		{
			UINT index = width * z + x;
			UINT pixel = width * (height - 1 - z) + x;

			vertices[index].Position.x = (float)x;
			vertices[index].Position.y = heights[pixel].r * 255.0f / 10.0f;
			vertices[index].Position.z = (float)z;
		}
	}
}

void Terrain::CreateIndexData()
{
	indexCount = (width - 1) * (height - 1) * 6;
	indices = new UINT[indexCount];

	UINT index = 0;
	for (UINT y = 0; y < height - 1; y++)
	{
		for (UINT x = 0; x < width - 1; x++)
		{
			indices[index + 0] = width * y + x;
			indices[index + 1] = width * (y + 1) + x;
			indices[index + 2] = width * y + x + 1;
			indices[index + 3] = width * y + x + 1;
			indices[index + 4] = width * (y + 1) + x;
			indices[index + 5] = width * (y + 1) + x + 1;

			index += 6;
		}
	}
}

void Terrain::CreateNormalData()
{
	for (UINT i = 0; i < indexCount / 3; i++)
	{
		UINT index0 = indices[i * 3 + 0];
		UINT index1 = indices[i * 3 + 1];
		UINT index2 = indices[i * 3 + 2];

		TerrainVertex v0 = vertices[index0];
		TerrainVertex v1 = vertices[index1];
		TerrainVertex v2 = vertices[index2];


		Vector3 a = v1.Position - v0.Position;
		Vector3 b = v2.Position - v0.Position;

		Vector3 normal;
		D3DXVec3Cross(&normal, &a, &b);

		vertices[index0].Normal += normal;
		vertices[index1].Normal += normal;
		vertices[index2].Normal += normal;
	}

	for (UINT i = 0; i < vertexCount; i++)
		D3DXVec3Normalize(&vertices[i].Normal, &vertices[i].Normal);
}

void Terrain::CreateBuffer()
{
	//Create Vertex Buffer
	{
		D3D11_BUFFER_DESC desc;
		ZeroMemory(&desc, sizeof(D3D11_BUFFER_DESC));
		desc.ByteWidth = sizeof(TerrainVertex) * vertexCount;
		desc.BindFlags = D3D11_BIND_VERTEX_BUFFER;

		D3D11_SUBRESOURCE_DATA subResource = { 0 };
		subResource.pSysMem = vertices;

		Check(D3D::GetDevice()->CreateBuffer(&desc, &subResource, &vertexBuffer));
	}

	//Create Index Buffer
	{
		D3D11_BUFFER_DESC desc;
		ZeroMemory(&desc, sizeof(D3D11_BUFFER_DESC));
		desc.ByteWidth = sizeof(UINT) * indexCount;
		desc.BindFlags = D3D11_BIND_INDEX_BUFFER;

		D3D11_SUBRESOURCE_DATA subResource = { 0 };
		subResource.pSysMem = indices;

		Check(D3D::GetDevice()->CreateBuffer(&desc, &subResource, &indexBuffer));
	}
}





메인코드

float Terrain::GetVerticalRaycast(Vector3 & position)
{
	UINT x = (UINT)position.x;
	UINT z = (UINT)position.z;

	if (x < 0 || x > width) return FLT_MIN;
	if (z < 0 || z > height) return FLT_MIN;


	UINT index[4];
	index[0] = width * z + x;
	index[1] = width * (z + 1) + x;
	index[2] = width * z + x + 1;
	index[3] = width * (z + 1) + x + 1;

	Vector3 p[4];
	for (int i = 0; i < 4; i++)
		p[i] = vertices[index[i]].Position;

	Vector3 start(position.x, 50, position.z);
	Vector3 direction(0, -1, 0);

	float u, v, distance; //distance는 기준점으로부터 충돌된 지점까지의 거리
	Vector3 result(-1, FLT_MIN, -1);

	if (D3DXIntersectTri(&p[0], &p[1], &p[2], &start, &direction, &u, &v, &distance) == TRUE)
		result = p[0] + (p[1] - p[0]) * u + (p[2] - p[0]) * v;

	if (D3DXIntersectTri(&p[3], &p[1], &p[2], &start, &direction, &u, &v, &distance) == TRUE)
		result = p[3] + (p[1] - p[3]) * u + (p[2] - p[3]) * v;

	return result.y;
}







---



Vertical Raycast



GetVerticalRaycast.h

#pragma once
#include "Systems/IExecute.h"

class GetVerticalRaycast : public IExecute
{
public:
	virtual void Initialize() override;
	virtual void Ready() override {}
	virtual void Destroy() override;
	virtual void Update() override;
	virtual void PreRender() override {}
	virtual void Render() override;
	virtual void PostRender() override {}
	virtual void ResizeScreen() override {}

private:
	Shader* shader;
	Terrain* terrain;

	Vector3 position = Vector3(0, 0, 0);

	Shader* triShader;
	ID3D11Buffer* vertexBuffer;
};





GetVerticalRaycast.cpp

#include "stdafx.h"
#include "GetVerticalRaycast.h"

void GetVerticalRaycast::Initialize()
{
	Context::Get()->GetCamera()->RotationDegree(12, 0, 0);
	Context::Get()->GetCamera()->Position(35, 10, -55);
	((Freedom *)Context::Get()->GetCamera())->Speed(20);

	shader = new Shader(L"19_Terrain.fx");

	terrain = new Terrain(shader, L"Terrain/Gray256.png");
	terrain->Pass(1);


	triShader = new Shader(L"09_World.fx");

	Vertex vertices[3];
	vertices[0].Position = Vector3(+0, +1, 0);
	vertices[1].Position = Vector3(-1, +0, 0);
	vertices[2].Position = Vector3(+1, +0, 0);

	//Create Vertex Buffer
	{
		D3D11_BUFFER_DESC desc;
		ZeroMemory(&desc, sizeof(D3D11_BUFFER_DESC));
		desc.ByteWidth = sizeof(Vertex) * 3;
		desc.BindFlags = D3D11_BIND_VERTEX_BUFFER;

		D3D11_SUBRESOURCE_DATA subResource = { 0 };
		subResource.pSysMem = vertices;

		Check(D3D::GetDevice()->CreateBuffer(&desc, &subResource, &vertexBuffer));
	}
}

void GetVerticalRaycast::Destroy()
{
	SafeDelete(shader);
	SafeDelete(terrain);

	SafeDelete(triShader);
	SafeRelease(vertexBuffer);
}

void GetVerticalRaycast::Update()
{
	terrain->Update();


	if (Keyboard::Get()->Press(VK_RIGHT))
		position.x += 20.0f * Time::Delta();
	else if (Keyboard::Get()->Press(VK_LEFT))
		position.x -= 20.0f * Time::Delta();

	if (Keyboard::Get()->Press(VK_UP))
		position.z += 20.0f * Time::Delta();
	else if (Keyboard::Get()->Press(VK_DOWN))
		position.z -= 20.0f * Time::Delta();

	//float Terrain::GetHeight()에서 return result.y값을 가져다쓴다.
	//기준점인 vertices[0].Position = Vector3(0, 1, 0). 기준점 y값이 1이므로 1.0f를 더해준다.
	position.y = terrain->GetHeight(position) + 1.0f;

	Vector3 start(position.x, 50, position.z);
	Vector3 end = Vector3(position.x, 0.0f, position.z);

	DebugLine::Get()->RenderLine(start, end, Color(0, 1, 0, 1));


	Matrix R, T;
	D3DXMatrixRotationX(&R, Math::ToRadian(180));
	D3DXMatrixTranslation(&T, position.x, position.y, position.z);

	Matrix world = R * T;

	triShader->AsMatrix("World")->SetMatrix(world);
	triShader->AsMatrix("View")->SetMatrix(Context::Get()->View());
	triShader->AsMatrix("Projection")->SetMatrix(Context::Get()->Projection());
}

void GetVerticalRaycast::Render()
{
	terrain->Render();


	UINT stride = sizeof(Vertex);
	UINT offset = 0;

	D3D::GetDC()->IASetPrimitiveTopology(D3D11_PRIMITIVE_TOPOLOGY_TRIANGLELIST);
	D3D::GetDC()->IASetVertexBuffers(0, 1, &vertexBuffer, &stride, &offset);

	triShader->Draw(0, 0, 3);


	string str = to_string(position.x) + ", " + to_string(position.y) + ", " + to_string(position.z);
	Gui::Get()->RenderText(5, 60, str);
}





추가부분

Vector3 start(position.x, 50, position.z);
	Vector3 end = Vector3(position.x, 0.0f, position.z);

	DebugLine::Get()->RenderLine(start, end, Color(0, 1, 0, 1));







---

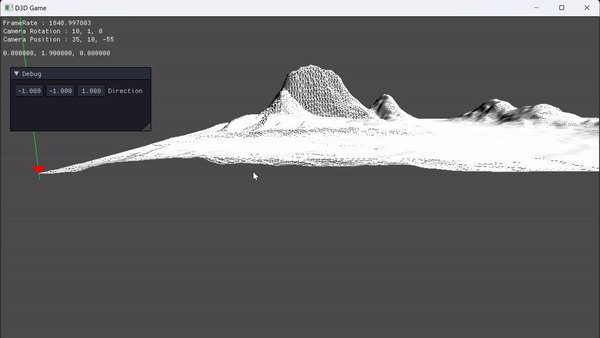

실행화면
