[DirectX11] 028 Mesh Sphere, Mesh Cylinder + 구면 좌표계, 원통 좌표계

 #pragma once

class MeshSphere : public Mesh
{
public:
	MeshSphere(Shader* shader, float radius, UINT stackCount = 20, UINT sliceCount = 20);
	~MeshSphere();

private:
	void Create() override;

	float radius; //구를 그릴 반지름

	UINT stackCount; //몇개로 분할해서 그리는가. 높을수록 정밀
	UINT sliceCount; //몇개로 분할해서 그리는가. 높을수록 정밀
};

MeshSphere.cpp

 #include "Framework.h"
#include "MeshSphere.h"

MeshSphere::MeshSphere(Shader * shader, float radius, UINT stackCount, UINT sliceCount)
	: Mesh(shader), radius(radius), stackCount(stackCount), sliceCount(sliceCount)
{
}

MeshSphere::~MeshSphere()
{
}

void MeshSphere::Create()
{
	//구면 좌표계
	vector<MeshVertex> v;
	v.push_back(MeshVertex(0, radius, 0, 0, 0, 0, 1, 0));//맨 위점

	float phiStep = Math::PI / stackCount; // 180도/분할카운트
	float thetaStep = Math::PI * 2.0f / sliceCount; // 360도/분할카운트

	for (UINT i = 1; i <= stackCount - 1; i++) //맨 위점과 맨 밑점을 제외한 나머지
	{
		float phi = i * phiStep;

		for (UINT k = 0; k <= sliceCount; k++)
		{
			float theta = k * thetaStep;

			Vector3 p = Vector3
			(
				(radius * sinf(phi) * cosf(theta)),
				(radius * cos(phi)),
				(radius * sinf(phi) * sinf(theta))
			);

			Vector3 n;
			D3DXVec3Normalize(&n, &p); //위치를 Normalize해서 크기를 1로 만들어 방향 벡터로 사용.

			Vector2 uv = Vector2(theta / (Math::PI * 2), phi / Math::PI);

			v.push_back(MeshVertex(p.x, p.y, p.z, uv.x, uv.y, n.x, n.y, n.z));
		}
	}
	v.push_back(MeshVertex(0, -radius, 0, 0, 0, 0, -1, 0));//맨 밑점


	vertices = new MeshVertex[v.size()];
	vertexCount = v.size();

	copy(v.begin(), v.end(), stdext::checked_array_iterator<MeshVertex *>(vertices, vertexCount));



	vector<UINT> i;
	for (UINT k = 1; k <= sliceCount; k++)
	{
		i.push_back(0);
		i.push_back(k + 1);
		i.push_back(k);
	}

	UINT baseIndex = 1;
	UINT ringVertexCount = sliceCount + 1;
	for (UINT k = 0; k < stackCount - 2; k++)
	{
		for (UINT j = 0; j < sliceCount; j++)
		{
			i.push_back(baseIndex + k * ringVertexCount + j);
			i.push_back(baseIndex + k * ringVertexCount + j + 1);
			i.push_back(baseIndex + (k + 1) * ringVertexCount + j);

			i.push_back(baseIndex + (k + 1) * ringVertexCount + j);
			i.push_back(baseIndex + k * ringVertexCount + j + 1);
			i.push_back(baseIndex + (k + 1) * ringVertexCount + j + 1);
		}
	}

	UINT southPoleIndex = v.size() - 1;
	baseIndex = southPoleIndex - ringVertexCount;

	for (UINT k = 0; k < sliceCount; k++)
	{
		i.push_back(southPoleIndex);
		i.push_back(baseIndex + k);
		i.push_back(baseIndex + k + 1);
	}

	indices = new UINT[i.size()];
	indexCount = i.size();

	copy(i.begin(), i.end(), stdext::checked_array_iterator<UINT *>(indices, indexCount));

	int a = 0;
}

원통 좌표계

https://blog.naver.com/qio910/221498312675

원통 좌표계(Cylindrical Coordinate System)

이전 공부 다음 공부 원통 좌표계(cylindrical coordinate system)는 3차원 공간의 한 점을 (r, θ, z)로 ...

blog.naver.com

https://www.youtube.com/watch?v=Y69CuegZIro

Mesh Cylinder

MeshCylinder.h

 #pragma once

class MeshCylinder : public Mesh
{
public:
	MeshCylinder(Shader* shader, float radius, float height, UINT stackCount, UINT sliceCount); //위,아래 반지름이 같은 경우 그리기
	MeshCylinder(Shader* shader, float topRadius, float bottomRadius, float height, UINT stackCount, UINT sliceCount); //위,아래 반지름이 다른 경우 그리기
	~MeshCylinder();

private:
	void Create() override;

private:
	void BuildTopCap(vector<MeshVertex>& vertices, vector<UINT>& indices);
	void BuildBottomCap(vector<MeshVertex>& vertices, vector<UINT>& indices);

private:
	float topRadius;   //원통 상단 반지름
	float bottomRadius;//원통 하단 반지름
	float height;

	UINT stackCount; //몇개로 분할해서 그리는가. 높을수록 정밀
	UINT sliceCount; //몇개로 분할해서 그리는가. 높을수록 정밀
};

MeshCylinder.cpp

 #include "Framework.h"
#include "MeshCylinder.h"

MeshCylinder::MeshCylinder(Shader * shader, float radius, float height, UINT stackCount, UINT sliceCount)
	: Mesh(shader), topRadius(radius), bottomRadius(radius), height(height), stackCount(stackCount), sliceCount(sliceCount)
{

}

MeshCylinder::MeshCylinder(Shader * shader, float topRadius, float bottomRadius, float height, UINT stackCount, UINT sliceCount)
	: Mesh(shader), topRadius(topRadius), bottomRadius(bottomRadius), height(height), stackCount(stackCount), sliceCount(sliceCount)
{

}

MeshCylinder::~MeshCylinder()
{

}

void MeshCylinder::Create()
{
	vector<MeshVertex> v;

	float stackHeight = height / (float)stackCount;
	float radiusStep = (topRadius - bottomRadius) / (float)stackCount;

	UINT ringCount = stackCount + 1;
	for (UINT i = 0; i < ringCount; i++)
	{
		float y = -0.5f * height + i * stackHeight;
		float r = bottomRadius + i * radiusStep;
		float theta = 2.0f * Math::PI / (float)sliceCount;

		for (UINT k = 0; k <= sliceCount; k++)
		{
			float c = cosf(k * theta);
			float s = sinf(k * theta);


			MeshVertex vertex;
			vertex.Position = Vector3(r * c, y, r * s);
			vertex.Uv = Vector2((float)k / (float)sliceCount, 1.0f - (float)i / (float)stackCount);


			Vector3 tangent = Vector3(-s, 0.0f, c);

			float dr = bottomRadius - topRadius;
			Vector3 biTangent = Vector3(dr * c, -height, dr * s);

			D3DXVec3Cross(&vertex.Normal, &tangent, &biTangent);
			D3DXVec3Normalize(&vertex.Normal, &vertex.Normal);

			v.push_back(vertex);
		}
	}

	vector<UINT> i;
	UINT ringVertexCount = sliceCount + 1;
	for (UINT y = 0; y < stackCount; y++)
	{
		for (UINT x = 0; x < sliceCount; x++)
		{
			i.push_back(y * ringVertexCount + x);
			i.push_back((y + 1) * ringVertexCount + x);
			i.push_back((y + 1) * ringVertexCount + (x + 1));

			i.push_back(y * ringVertexCount + x);
			i.push_back((y + 1) * ringVertexCount + x + 1);
			i.push_back(y * ringVertexCount + x + 1);
		}
	}


	BuildTopCap(v, i);
	BuildBottomCap(v, i);


	vertices = new MeshVertex[v.size()];
	vertexCount = v.size();
	copy(v.begin(), v.end(), stdext::checked_array_iterator<MeshVertex *>(vertices, vertexCount));

	indices = new UINT[i.size()];
	indexCount = i.size();
	copy(i.begin(), i.end(), stdext::checked_array_iterator<UINT *>(indices, indexCount));
}

void MeshCylinder::BuildTopCap(vector<MeshVertex>& vertices, vector<UINT>& indices)
{   //원통 상단
	float y = 0.5f * height;
	float theta = 2.0f * Math::PI / (float)sliceCount;

	for (UINT i = 0; i <= sliceCount; i++)
	{
		float x = topRadius * cosf(i * theta);
		float z = topRadius * sinf(i * theta);

		float u = x / height + 0.5f;
		float v = z / height + 0.5f;

		vertices.push_back(MeshVertex(x, y, z, u, v, 0, 1, 0));
	}
	vertices.push_back(MeshVertex(0, y, 0, 0.5f, 0.5f, 0, 1, 0));


	UINT baseIndex = vertices.size() - sliceCount - 2;
	UINT centerIndex = vertices.size() - 1;

	for (UINT i = 0; i < sliceCount; i++)
	{
		indices.push_back(centerIndex);
		indices.push_back(baseIndex + i + 1);
		indices.push_back(baseIndex + i);
	}
}

void MeshCylinder::BuildBottomCap(vector<MeshVertex>& vertices, vector<UINT>& indices)
{   //원통 하단
	float y = -0.5f * height;
	float theta = 2.0f * Math::PI / (float)sliceCount;

	for (UINT i = 0; i <= sliceCount; i++)
	{
		float x = bottomRadius * cosf(i * theta);
		float z = bottomRadius * sinf(i * theta);

		float u = x / height + 0.5f;
		float v = z / height + 0.5f;

		vertices.push_back(MeshVertex(x, y, z, u, v, 0, -1, 0));
	}
	vertices.push_back(MeshVertex(0, y, 0, 0.5f, 0.5f, 0, -1, 0));


	UINT baseIndex = vertices.size() - sliceCount - 2;
	UINT centerIndex = vertices.size() - 1;

	for (UINT i = 0; i < sliceCount; i++)
	{
		indices.push_back(centerIndex);
		indices.push_back(baseIndex + i);
		indices.push_back(baseIndex + i + 1);
	}
}

Mesh Demo

MeshDemo.h

 #pragma once
#include "Systems/IExecute.h"

class MeshDemo : public IExecute
{
public:
	virtual void Initialize() override;
	virtual void Ready() override {}
	virtual void Destroy() override;
	virtual void Update() override;
	virtual void PreRender() override {}
	virtual void Render() override;
	virtual void PostRender() override {}
	virtual void ResizeScreen() override {}

private:
	void CreateMesh();

private:
	Shader* shader;

	Vector3 direction = Vector3(-1, -1, 1);
	ID3DX11EffectVectorVariable* sDirection;

	MeshCube* cube;
	MeshCylinder* cylinder[10];
	MeshSphere* sphere[10];
	MeshGrid* grid;
};

MeshDemo.cpp

 #include "stdafx.h"
#include "MeshDemo.h"

void MeshDemo::Initialize()
{
	Context::Get()->GetCamera()->RotationDegree(20, 0, 0);
	Context::Get()->GetCamera()->Position(1, 36, -85);


	shader = new Shader(L"25_Mesh.fx");
	sDirection = shader->AsVector("Direction");

	CreateMesh();
}

void MeshDemo::Destroy()
{
	SafeDelete(shader);

	SafeDelete(cube);
	SafeDelete(grid);

	for (int i = 0; i < 10; i++)
	{
		SafeDelete(cylinder[i]);
		SafeDelete(sphere[i]);
	}
}

void MeshDemo::Update()
{
	cube->Update();
	grid->Update();

	for (int i = 0; i < 10; i++)
	{
		cylinder[i]->Update();
		sphere[i]->Update();
	}
}

void MeshDemo::Render()
{
	ImGui::SliderFloat3("Direction", direction, -1, +1);
	sDirection->SetFloatVector(direction);

	static int pass = 0;
	ImGui::InputInt("Pass", &pass);
	pass %= 2;


	cube->Render();
	grid->Render();

	for (int i = 0; i < 10; i++)
	{
		cylinder[i]->Pass(pass);
		cylinder[i]->Render();

		sphere[i]->Pass(pass);
		sphere[i]->Render();
	}
}

void MeshDemo::CreateMesh()
{
	cube = new MeshCube(shader);
	cube->Position(0, 5, 0);
	cube->Scale(20, 10, 20);
	cube->DiffuseMap(L"Stones.png");

	grid = new MeshGrid(shader, 6, 6);
	grid->Scale(12, 1, 12);
	grid->DiffuseMap(L"Floor.png");

	//원통 10개, 구 10개 그리기
	for (UINT i = 0; i < 5; i++)
	{
		cylinder[i * 2] = new MeshCylinder(shader, 0.5f, 3.0f, 20, 20);
		cylinder[i * 2]->Position(-30, 6, (float)i * 15.0f - 15.0f);
		cylinder[i * 2]->Scale(5, 5, 5);
		cylinder[i * 2]->DiffuseMap(L"Bricks.png");

		cylinder[i * 2 + 1] = new MeshCylinder(shader, 0.5f, 3.0f, 20, 20);
		cylinder[i * 2 + 1]->Position(30, 6, (float)i * 15.0f - 15.0f);
		cylinder[i * 2 + 1]->Scale(5, 5, 5);
		cylinder[i * 2 + 1]->DiffuseMap(L"Bricks.png");

		sphere[i * 2] = new MeshSphere(shader, 0.5f, 20, 20);
		sphere[i * 2]->Position(-30, 15.5f, (float)i * 15.0f - 15.0f);
		sphere[i * 2]->Scale(5, 5, 5);
		sphere[i * 2]->DiffuseMap(L"Wall.png");

		sphere[i * 2 + 1] = new MeshSphere(shader, 0.5f, 20, 20);
		sphere[i * 2 + 1]->Position(30, 15.5f, (float)i * 15.0f - 15.0f);
		sphere[i * 2 + 1]->Scale(5, 5, 5);
		sphere[i * 2 + 1]->DiffuseMap(L"Wall.png");
	}
}

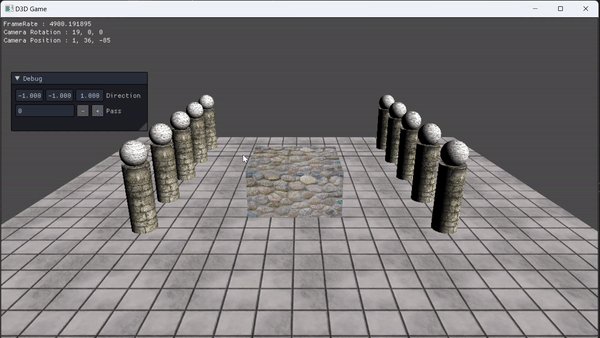

실행화면
