    Cube Map





    CubeMap.fx



    CubeMap.fx

    더보기
    matrix World;
matrix View;
matrix Projection;

TextureCube CubeMap;

struct VertexInput
{
    float4 Position : Position;
    float2 Uv : Uv;
    float3 Normal : Normal;
};

struct VertexOutput
{
    float4 Position : SV_Position;
    float3 oPosition : Position1;
    float2 Uv : Uv;
    float3 Normal : Normal;
};

VertexOutput VS(VertexInput input)
{
    VertexOutput output;

    output.oPosition = input.Position.xyz;

    output.Position = mul(input.Position, World);
    output.Position = mul(output.Position, View);
    output.Position = mul(output.Position, Projection);

    output.Normal = mul(input.Normal, (float3x3) World);

    output.Uv = input.Uv;

    return output;
}

SamplerState LinearSampler
{
    Filter = MIN_MAG_MIP_LINEAR;
    AddressU = Wrap;
    AddressV = Wrap;
};

Texture2D t;
float4 PS(VertexOutput input) : SV_Target
{
    return CubeMap.Sample(LinearSampler, input.oPosition);

}

RasterizerState FillMode_Wireframe
{
    FillMode = Wireframe;
};

technique11 T0
{
    pass P0
    {
        SetVertexShader(CompileShader(vs_5_0, VS()));
        SetPixelShader(CompileShader(ps_5_0, PS()));
    }

    pass P1
    {
        SetRasterizerState(FillMode_Wireframe);

        SetVertexShader(CompileShader(vs_5_0, VS()));
        SetPixelShader(CompileShader(ps_5_0, PS()));
    }
}





    Cube Map





    CubeMap.h

    더보기
    #pragma once

class CubeMap
{
public:
	CubeMap(Shader* shader);
	~CubeMap();

	void Texture(wstring file);

	void Update();
	void Render();

	void Pass(UINT val) { pass = val; }

	void Position(float x, float y, float z);
	void Position(Vector3& vec);
	void Position(Vector3* vec);

	void Rotation(float x, float y, float z);
	void Rotation(Vector3& vec);
	void Rotation(Vector3* vec);

	void RotationDegree(float x, float y, float z);
	void RotationDegree(Vector3& vec);
	void RotationDegree(Vector3* vec);

	void Scale(float x, float y, float z);
	void Scale(Vector3& vec);
	void Scale(Vector3* vec);

private:
	Shader* shader;
	UINT pass = 0;

	//MeshCube* cube; //Cube모양
	MeshSphere* cube;

	ID3D11ShaderResourceView* srv = NULL;
	ID3DX11EffectShaderResourceVariable* sSrv;
};





    CubeMap.cpp

    더보기
     #include "Framework.h"
#include "CubeMap.h"

CubeMap::CubeMap(Shader * shader)
	: shader(shader)
{
	//cube = new MeshCube(shader); //Cube모양
	cube = new MeshSphere(shader, 0.5f);  //Sphere모양

	sSrv = shader->AsSRV("CubeMap");
}

CubeMap::~CubeMap()
{
	SafeDelete(cube);

	SafeRelease(srv);
}

void CubeMap::Texture(wstring file)
{
	SafeRelease(srv);

	file = L"../../_Textures/" + file;
	Check(D3DX11CreateShaderResourceViewFromFile
	(
		D3D::GetDevice(), file.c_str(), NULL, NULL, &srv, NULL
	));
}

void CubeMap::Update()
{
	cube->Update();
}

void CubeMap::Render()
{
	sSrv->SetResource(srv);

	cube->Render();
}

void CubeMap::Position(float x, float y, float z)
{
	cube->Position(x, y, z);
}

void CubeMap::Position(Vector3 & vec)
{
	cube->Position(vec);
}

void CubeMap::Position(Vector3 * vec)
{
	cube->Position(vec);
}

void CubeMap::Rotation(float x, float y, float z)
{
	cube->Rotation(x, y, z);
}

void CubeMap::Rotation(Vector3 & vec)
{
	cube->Rotation(vec);
}

void CubeMap::Rotation(Vector3 * vec)
{
	cube->Rotation(vec);
}

void CubeMap::RotationDegree(float x, float y, float z)
{
	cube->RotationDegree(x, y, z);
}

void CubeMap::RotationDegree(Vector3 & vec)
{
	cube->RotationDegree(vec);
}

void CubeMap::RotationDegree(Vector3 * vec)
{
	cube->RotationDegree(vec);
}

void CubeMap::Scale(float x, float y, float z)
{
	cube->Scale(x, y, z);
}

void CubeMap::Scale(Vector3 & vec)
{
	cube->Scale(vec);
}

void CubeMap::Scale(Vector3 * vec)
{
	cube->Scale(vec);
}





    Cube Map Demo





    CubeMapDemo.h

    더보기
    #pragma once
#include "Systems/IExecute.h"

class CubeMapDemo : public IExecute
{
public:
	virtual void Initialize() override;
	virtual void Ready() override {}
	virtual void Destroy() override;
	virtual void Update() override;
	virtual void PreRender() override {}
	virtual void Render() override;
	virtual void PostRender() override {}
	virtual void ResizeScreen() override {}

private:
	void CreateMesh();

private:
	Shader* shader;

	Vector3 direction = Vector3(-1, -1, 1);
	ID3DX11EffectVectorVariable* sDirection;

	MeshCube* cube;
	MeshCylinder* cylinder[10];
	MeshSphere* sphere[10];
	MeshGrid* grid;

	Shader* cubeMapShader;
	CubeMap* cubeMap;
};





    CubeMapDemo.cpp

    더보기
    #include "stdafx.h"
#include "CubeMapDemo.h"

void CubeMapDemo::Initialize()
{
	Context::Get()->GetCamera()->RotationDegree(20, 0, 0);
	Context::Get()->GetCamera()->Position(1, 36, -85);


	shader = new Shader(L"25_Mesh.fx");
	sDirection = shader->AsVector("Direction");

	CreateMesh();

	cubeMapShader = new Shader(L"29_CubeMap.fx");
	cubeMap = new CubeMap(cubeMapShader);
	//cubeMap->Texture(L"Environment/SunsetCube1024.dds");
	cubeMap->Texture(L"Environment/Earth.dds");
	cubeMap->Position(0, 20, 0);
	cubeMap->Scale(10, 10, 10);
}

void CubeMapDemo::Destroy()
{
	SafeDelete(shader);

	SafeDelete(cube);
	SafeDelete(grid);

	for (int i = 0; i < 10; i++)
	{
		SafeDelete(cylinder[i]);
		SafeDelete(sphere[i]);
	}

	SafeDelete(cubeMapShader);
	SafeDelete(cubeMap);
}

void CubeMapDemo::Update()
{
	cube->Update();
	grid->Update();

	for (int i = 0; i < 10; i++)
	{
		cylinder[i]->Update();
		sphere[i]->Update();
	}

	cubeMap->Update();
}

void CubeMapDemo::Render()
{
	ImGui::SliderFloat3("Direction", direction, -1, +1);
	sDirection->SetFloatVector(direction);

	static int pass = 0;
	ImGui::InputInt("Pass", &pass);
	pass %= 2;


	cube->Render();
	grid->Render();

	for (int i = 0; i < 10; i++)
	{
		cylinder[i]->Pass(pass);
		cylinder[i]->Render();

		sphere[i]->Pass(pass);
		sphere[i]->Render();
	}

	cubeMap->Render();
}

void CubeMapDemo::CreateMesh()
{
	cube = new MeshCube(shader);
	cube->Position(0, 5, 0);
	cube->Scale(20, 10, 20);
	cube->DiffuseMap(L"Stones.png");

	grid = new MeshGrid(shader, 6, 6);
	grid->Scale(12, 1, 12);
	grid->DiffuseMap(L"Floor.png");


	for (UINT i = 0; i < 5; i++)
	{
		cylinder[i * 2] = new MeshCylinder(shader, 0.5f, 3.0f, 20, 20);
		cylinder[i * 2]->Position(-30, 6, (float)i * 15.0f - 15.0f);
		cylinder[i * 2]->Scale(5, 5, 5);
		cylinder[i * 2]->DiffuseMap(L"Bricks.png");

		cylinder[i * 2 + 1] = new MeshCylinder(shader, 0.5f, 3.0f, 20, 20);
		cylinder[i * 2 + 1]->Position(30, 6, (float)i * 15.0f - 15.0f);
		cylinder[i * 2 + 1]->Scale(5, 5, 5);
		cylinder[i * 2 + 1]->DiffuseMap(L"Bricks.png");


		sphere[i * 2] = new MeshSphere(shader, 0.5f, 20, 20);
		sphere[i * 2]->Position(-30, 15.5f, (float)i * 15.0f - 15.0f);
		sphere[i * 2]->Scale(5, 5, 5);
		sphere[i * 2]->DiffuseMap(L"Wall.png");

		sphere[i * 2 + 1] = new MeshSphere(shader, 0.5f, 20, 20);
		sphere[i * 2 + 1]->Position(30, 15.5f, (float)i * 15.0f - 15.0f);
		sphere[i * 2 + 1]->Scale(5, 5, 5);
		sphere[i * 2 + 1]->DiffuseMap(L"Wall.png");
	}
}

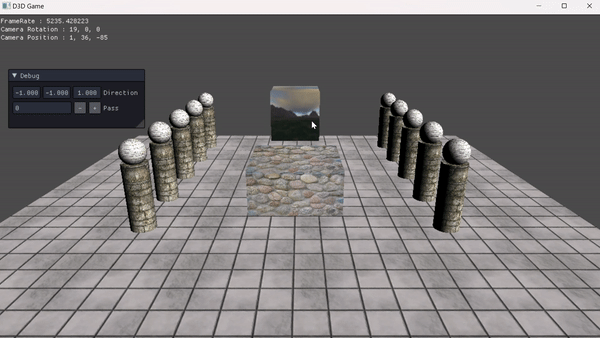

    실행화면









    Cube Sky



    구의 위치 = 카메라 위치를 기준으로 잡는다.



    반시계 방향



    Rasterizer 시계 방향 -> 반시계 방향으로 변환





    CubeSky.fx





    CubeSky.fx

    더보기
    matrix World;
matrix View;
matrix Projection;

TextureCube SkyCubeMap;

struct VertexInput
{
    float4 Position : Position;
    float2 Uv : Uv;
    float3 Normal : Normal;
};

struct VertexOutput
{
    float4 Position : SV_Position;
    float3 oPosition : Position1;
    float2 Uv : Uv;
    float3 Normal : Normal;
};

VertexOutput VS(VertexInput input)
{
    VertexOutput output;

    output.oPosition = input.Position.xyz;

    output.Position = mul(input.Position, World);
    output.Position = mul(output.Position, View);
    output.Position = mul(output.Position, Projection);

    output.Normal = mul(input.Normal, (float3x3) World);

    output.Uv = input.Uv;

    return output;
}

SamplerState LinearSampler
{
    Filter = MIN_MAG_MIP_LINEAR;
    AddressU = Wrap;
    AddressV = Wrap;
};

RasterizerState FrontCounterClockWise_True
{
    FrontCounterClockWise = True;
};

DepthStencilState DepthEnable_False
{
    DepthEnable = false;
};

Texture2D t;
float4 PS(VertexOutput input) : SV_Target
{
    return SkyCubeMap.Sample(LinearSampler, input.oPosition);

}

technique11 T0
{
    pass P0
    {
        SetRasterizerState(FrontCounterClockWise_True);
        SetDepthStencilState(DepthEnable_False, 0);

        SetVertexShader(CompileShader(vs_5_0, VS()));
        SetPixelShader(CompileShader(ps_5_0, PS()));
    }
}



    깊이off 하늘을 그리고 그 후 깊이on 물체를 그리고 그 후에 깊이off UI를 그린다.







    Cube Sky





    CubeSky.h

    더보기
    #pragma once

class CubeSky
{
public:
	CubeSky(wstring file);
	~CubeSky();

	void Update();
	void Render();

private:
	Shader* shader;
	MeshSphere* sphere;

	ID3D11ShaderResourceView* srv;
	ID3DX11EffectShaderResourceVariable* sSrv;
};





    CubeSky.cpp

    더보기
    #include "Framework.h"
#include "CubeSky.h"

CubeSky::CubeSky(wstring file)
{
	shader = new Shader(L"29_CubeSky.fx");

	sphere = new MeshSphere(shader, 0.5f);

	file = L"../../_Textures/" + file;
	Check(D3DX11CreateShaderResourceViewFromFile
	(
		D3D::GetDevice(), file.c_str(), NULL, NULL, &srv, NULL
	));

	sSrv = shader->AsSRV("SkyCubeMap");
}

CubeSky::~CubeSky()
{
	SafeDelete(shader);
	SafeDelete(sphere);

	SafeRelease(srv);
}

void CubeSky::Update()
{
	Vector3 position;
	Context::Get()->GetCamera()->Position(&position);

	sphere->Position(position);
}

void CubeSky::Render()
{
	sSrv->SetResource(srv);
	sphere->Render();
}







    Cube Sky Demo





    CubeSkyDemo.h

    더보기
    #pragma once
#include "Systems/IExecute.h"

class CubeSkyDemo : public IExecute
{
public:
	virtual void Initialize() override;
	virtual void Ready() override {}
	virtual void Destroy() override;
	virtual void Update() override;
	virtual void PreRender() override {}
	virtual void Render() override;
	virtual void PostRender() override {}
	virtual void ResizeScreen() override {}

private:
	void CreateMesh();

private:
	Shader* shader;

	Vector3 direction = Vector3(-1, -1, 1);
	ID3DX11EffectVectorVariable* sDirection;

	CubeSky* sky;

	MeshCube* cube;
	MeshCylinder* cylinder[10];
	MeshSphere* sphere[10];
	MeshGrid* grid;

	Shader* cubeMapShader;
	CubeMap* cubeMap;
};





    CubeSkyDemo.cpp

    더보기
    #include "stdafx.h"
#include "CubeSkyDemo.h"

void CubeSkyDemo::Initialize()
{
	Context::Get()->GetCamera()->RotationDegree(20, 0, 0);
	Context::Get()->GetCamera()->Position(1, 36, -85);


	shader = new Shader(L"25_Mesh.fx");
	sDirection = shader->AsVector("Direction");

	sky = new CubeSky(L"Environment/GrassCube1024.dds");

	CreateMesh();

	cubeMapShader = new Shader(L"29_CubeMap.fx");
	cubeMap = new CubeMap(cubeMapShader);
	//cubeMap->Texture(L"Environment/SunsetCube1024.dds");
	cubeMap->Texture(L"Environment/Earth.dds");
	cubeMap->Position(0, 20, 0);
	cubeMap->Scale(10, 10, 10);
}

void CubeSkyDemo::Destroy()
{
	SafeDelete(shader);
	SafeDelete(sky);

	SafeDelete(cube);
	SafeDelete(grid);

	for (int i = 0; i < 10; i++)
	{
		SafeDelete(cylinder[i]);
		SafeDelete(sphere[i]);
	}

	SafeDelete(cubeMapShader);
	SafeDelete(cubeMap);
}

void CubeSkyDemo::Update()
{
	sky->Update();

	cube->Update();
	grid->Update();

	for (int i = 0; i < 10; i++)
	{
		cylinder[i]->Update();
		sphere[i]->Update();
	}

	cubeMap->Update();
}

void CubeSkyDemo::Render()
{
	ImGui::SliderFloat3("Direction", direction, -1, +1);
	sDirection->SetFloatVector(direction);

	sky->Render();

	cube->Render();
	grid->Render();

	for (int i = 0; i < 10; i++)
	{
		cylinder[i]->Render();
		sphere[i]->Render();
	}

	cubeMap->Render();
}

void CubeSkyDemo::CreateMesh()
{
	cube = new MeshCube(shader);
	cube->Position(0, 5, 0);
	cube->Scale(20, 10, 20);
	cube->DiffuseMap(L"Stones.png");

	grid = new MeshGrid(shader, 6, 6);
	grid->Scale(12, 1, 12);
	grid->DiffuseMap(L"Floor.png");


	for (UINT i = 0; i < 5; i++)
	{
		cylinder[i * 2] = new MeshCylinder(shader, 0.5f, 3.0f, 20, 20);
		cylinder[i * 2]->Position(-30, 6, (float)i * 15.0f - 15.0f);
		cylinder[i * 2]->Scale(5, 5, 5);
		cylinder[i * 2]->DiffuseMap(L"Bricks.png");

		cylinder[i * 2 + 1] = new MeshCylinder(shader, 0.5f, 3.0f, 20, 20);
		cylinder[i * 2 + 1]->Position(30, 6, (float)i * 15.0f - 15.0f);
		cylinder[i * 2 + 1]->Scale(5, 5, 5);
		cylinder[i * 2 + 1]->DiffuseMap(L"Bricks.png");


		sphere[i * 2] = new MeshSphere(shader, 0.5f, 20, 20);
		sphere[i * 2]->Position(-30, 15.5f, (float)i * 15.0f - 15.0f);
		sphere[i * 2]->Scale(5, 5, 5);
		sphere[i * 2]->DiffuseMap(L"Wall.png");

		sphere[i * 2 + 1] = new MeshSphere(shader, 0.5f, 20, 20);
		sphere[i * 2 + 1]->Position(30, 15.5f, (float)i * 15.0f - 15.0f);
		sphere[i * 2 + 1]->Scale(5, 5, 5);
		sphere[i * 2 + 1]->DiffuseMap(L"Wall.png");
	}
}









    실행화면















    Tips









    HLSL에 줄번호 추가하는 방법



    방법1. HLSL 줄 번호





    방법2. 모든 언어 줄 번호











    Texture 편집 + Texture 다운받을 수 있는 사이트



    DxTex.exe 실행

    • C:\Program Files (x86)\Microsoft DirectX SDK (June 2010)\Utilities\bin\x86
    • 해당 위치의 DxTex.exd 실행





    Cubemap Texture 다운받을 수 있는 사이트



    https://humus.name/



    Humus

    "If there's one thing worse than a program that doesn't work when it should, it's a program that does work when it shouldn't." - Bob Archer More pages: 1 2 3 4 5 6 ... 11 ... 21 ... 31 ... 41 ... 48 Another Metaballs2 updateFriday, October 25, 2019 | Perma

    humus.name



    '⭐ DirectX > DirectX11 3D' 카테고리의 다른 글

    [DirectX11] 032 Renderer  (0) 2023.01.31
    [DirectX11] 031 Framework  (0) 2023.01.30
    [DirectX11] 028 Mesh Sphere, Mesh Cylinder + 구면 좌표계, 원통 좌표계  (0) 2023.01.26
    [DirectX11] 027 Mesh Cube  (0) 2023.01.25
    [DirectX11] 025~26 Mesh  (0) 2023.01.21

    티스토리툴바
