Animaton Read Clip

Character 3D 모델을 다운받을 때는 T-pose로 다운받는게 좋다.

Character 3D 모델의 Bone이름과 Animation에 내장된 Bone이름이 매칭되어야 한다. Mixamo에는 매칭되어져 있다.

Model Bone

↑

Model Mesh: Model Bone을 참조하여 Model Bone의 위치를 가져다 그린다.

교육용으로 매 프레임마다 Bone이 움직이든 말든 모든 Bone 정보 저장

3D Asset을 다운받을 수 있는 웹사이트

www.mixamo.com/

assetstore.unity.com

Shader
	25_Mesh.fx 38_Model.fx
Framework
	Model
	Model.h .cpp ModelClip.h .cpp ModelMesh.h .cpp ModelRender.h .cpp
	Renders
	Material.h. cpp
ModelEditor
	Demo
	ModelDemo.h .cpp
	Writer
	Converter.h .cpp
	ExportFile.h .cpp Type.h

Animation Retargeting

Animation Retargeting은 하나의 캐릭터 리그를 위해 만들어진 애니메이션을 다른 리그와 함께 작동하도록 조정하는 과정입니다. DirectX 11에서 애니메이션 리타겟팅은 새로운 캐릭터 리그에 맞게 오리지널 애니메이션의 기본 골격과 관절을 조정하여 새로운 리그에서 올바르게 작동하도록 하면서 오리지널 애니메이션의 전반적인 동작과 스타일을 보존함으로써 달성할 수 있습니다.

DirectX 11에서 Animation Retargeting을 구현하려면 골격 애니메이션이 어떻게 작동하는지에 대한 기본적인 이해가 필요합니다. DirectX 11에서 애니메이션은 특정 시점에서 캐릭터의 리그에 있는 뼈의 위치와 방향을 설명하는 일련의 키 프레임으로 표현됩니다. 새 리그의 골격과 일치하도록 키 프레임을 조정하여 새 캐릭터 모델과 올바르게 작동하는 적응형 애니메이션을 만들 수 있습니다.

DirectX 11에서 Animation Retargeting을 위해 사용할 수 있는 다양한 알고리즘과 도구가 있으며, 간단한 수동 리타겟팅 방법에서부터 머신러닝과 기타 고급 기술을 활용하는 복잡한 자동화 솔루션에 이르기까지 다양하다.

사용된 방법과 상관없이, DirectX 11에서 애니메이션 리타겟팅의 목표는 원본 애니메이션의 모션과 스타일을 최대한 보존하면서 결과 애니메이션이 자연스럽고 신뢰할 수 있는 것처럼 보이고 느껴지도록 하는 것입니다.

Type

Type.h

#pragma once
#include "stdafx.h"

struct asBone
{
	int Index;
	string Name;

	int Parent;
	Matrix Transform;
};

struct asMesh
{
	string Name;
	int BoneIndex;

	aiMesh* Mesh;

	string MaterialName;

	vector<Model::ModelVertex> Vertices;
	vector<UINT> Indices;
};

struct asMaterial
{
	string Name;

	Color Ambient;
	Color Diffuse;
	Color Specular;
	Color Emissive;

	string DiffuseFile;
	string SpecularFile;
	string NormalFile;
};


struct asBlendWeight
{
	Vector4 Indices = Vector4(0, 0, 0, 0);
	Vector4 Weights = Vector4(0, 0, 0, 0);

	void Set(UINT index, UINT boneIndex, float weight)
	{
		float i = (float)boneIndex;
		float w = weight;

		switch (index)
		{
		case 0: Indices.x = i; Weights.x = w; break;
		case 1: Indices.y = i; Weights.y = w; break;
		case 2: Indices.z = i; Weights.z = w; break;
		case 3: Indices.w = i; Weights.w = w; break;
		}
	}
};

struct asBoneWeights
{
private:
	typedef pair<int, float> Pair;
	vector<Pair> BoneWeights;

public:
	void AddWeights(UINT boneIndex, float boneWeights)
	{
		if (boneWeights <= 0.0f) return;

		bool bInsert = false;
		vector<Pair>::iterator it = BoneWeights.begin();
		while (it != BoneWeights.end())
		{   //받은 boneWeights가 기존보다 작다면 삽입. 이전보다 크면 굳이 넣을필요가 없다
			if (boneWeights > it->second)
			{
				BoneWeights.insert(it, Pair(boneIndex, boneWeights));
				bInsert = true;

				break;
			}

			it++;
		} // while(it)

		if (bInsert == false)
			BoneWeights.push_back(Pair(boneIndex, boneWeights));
	}

	void GetBlendWeights(asBlendWeight& blendWeights)
	{
		for (UINT i = 0; i < BoneWeights.size(); i++)
		{
			if (i >= 4) return;

			blendWeights.Set(i, BoneWeights[i].first, BoneWeights[i].second);
		}
	}
	//크기를 1로 만듬
	void Normalize()
	{
		float totalWeight = 0.0f;

		int i = 0;
		vector<Pair>::iterator it = BoneWeights.begin();
		while (it != BoneWeights.end())
		{
			if (i < 4)
			{
				totalWeight += it->second;
				i++; it++;
			}
			else
				it = BoneWeights.erase(it);
		}

		float scale = 1.0f / totalWeight;

		it = BoneWeights.begin();
		while (it != BoneWeights.end())
		{
			it->second *= scale;
			it++;
		}
	}
};

//////////////////////////////////
//실제로 데이터 쓰여질 구조체
struct asKeyframeData
{
	float Time;//프레임 수

	Vector3 Scale;
	Quaternion Rotation;
	Vector3 Translation;
};

struct asKeyframe
{
	string BoneName;
	vector<asKeyframeData> Transforms;
};

struct asClip
{
	string Name;

	UINT FrameCount;
	float FrameRate;
	float Duration;

	vector<asKeyframe *> Keyframes;
};
/////////////////////////////////

//aniNode의 원본 키프레임 저장
struct asClipNode
{
	aiString Name; //Bone 이름
	vector<asKeyframeData> Keyframe;//해당 Bone의 Keyframe에 해당하는 srt값이 저장
};

struct asKeyframeData
struct asKeyframe
struct asClip
위의 3개가 실제로 데이터가 쓰여질 구조체

struct asClipNode
- aniNode의 원본 키프레임 저장

Model.h

Model.h

#pragma once
#define MAX_MODEL_TRANSFORMS 250
#define MAX_MODEL_KEYFRAMES 500

class ModelBone;
class ModelMesh;
class ModelClip;

class Model
{
public:
	typedef VertexTextureNormalTangentBlend ModelVertex;

public:
	Model();
	~Model();

	UINT BoneCount() { return bones.size(); }
	vector<ModelBone *>& Bones() { return bones; }
	ModelBone* BoneByIndex(UINT index) { return bones[index]; }
	ModelBone* BoneByName(wstring name);

	UINT MeshCount() { return meshes.size(); }
	vector<ModelMesh *>& Meshes() { return meshes; }
	ModelMesh* MeshByIndex(UINT index) { return meshes[index]; }
	ModelMesh* MeshByName(wstring name);

	UINT MaterialCount() { return materials.size(); }
	vector<Material *>& Materials() { return materials; }
	Material* MaterialByIndex(UINT index) { return materials[index]; }
	Material* MaterialByName(wstring name);

	UINT ClipCount() { return clips.size(); }
	vector<ModelClip *>& Clips() { return clips; }
	ModelClip* ClipByIndex(UINT index) { return clips[index]; }
	ModelClip* ClipByName(wstring name);

public:
	void ReadMesh(wstring file);
	void ReadMaterial(wstring file);
	void ReadClip(wstring file);

private:
	void BindBone();
	void BindMesh();

private:
	ModelBone* root;
	vector<ModelBone *> bones;
	vector<ModelMesh *> meshes;
	vector<Material *> materials;
	vector<ModelClip *> clips;
};

Model.cpp

#include "Framework.h"
#include "Model.h"
#include "Utilities/BinaryFile.h"
#include "Utilities/Xml.h"

Model::Model()
{
}

Model::~Model()
{
	for (ModelBone* bone : bones)
		SafeDelete(bone);

	for (ModelMesh* mesh : meshes)
		SafeDelete(mesh);

	for (Material* material : materials)
		SafeDelete(material);

	for (ModelClip* clip : clips)
		SafeDelete(clip);
}

ModelBone * Model::BoneByName(wstring name)
{
	for (ModelBone* bone : bones)
	{
		if (bone->Name() == name)
			return bone;
	}

	return NULL;
}

ModelMesh * Model::MeshByName(wstring name)
{
	for (ModelMesh* mesh : meshes)
	{
		if (mesh->Name() == name)
			return mesh;
	}

	return NULL;
}

Material * Model::MaterialByName(wstring name)
{
	for (Material* material : materials)
	{
		if (material->Name() == name)
			return material;
	}

	return NULL;
}

ModelClip * Model::ClipByName(wstring name)
{
	for (ModelClip* clip : clips)
	{
		if (clip->name == name)
			return clip;
	}

	return NULL;
}

void Model::ReadMesh(wstring file)
{
	file = L"../../_Models/" + file + L".mesh";


	BinaryReader* r = new BinaryReader();
	r->Open(file);

	UINT count = 0;
	count = r->UInt();
	for (UINT i = 0; i < count; i++)
	{
		ModelBone* bone = new ModelBone();
		bone->index = r->Int();
		bone->name = String::ToWString(r->String());
		bone->parentIndex = r->Int();
		bone->transform = r->Matrix();

		bones.push_back(bone);
	}

	count = r->UInt();
	for (UINT i = 0; i < count; i++)
	{
		ModelMesh* mesh = new ModelMesh();

		mesh->name = String::ToWString(r->String());
		mesh->boneIndex = r->Int();

		mesh->materialName = String::ToWString(r->String());

		//VertexData
		{
			UINT count = r->UInt();

			vector<Model::ModelVertex> vertices;
			vertices.assign(count, Model::ModelVertex());

			void* ptr = (void *)&(vertices[0]);
			r->Byte(&ptr, sizeof(Model::ModelVertex) * count);


			mesh->vertices = new Model::ModelVertex[count];
			mesh->vertexCount = count;
			copy
			(
				vertices.begin(), vertices.end(),
				stdext::checked_array_iterator<Model::ModelVertex *>(mesh->vertices, count)
			);
		}

		//IndexData
		{
			UINT count = r->UInt();

			vector<UINT> indices;
			indices.assign(count, UINT());

			void* ptr = (void *)&(indices[0]);
			r->Byte(&ptr, sizeof(UINT) * count);


			mesh->indices = new UINT[count];
			mesh->indexCount = count;
			copy
			(
				indices.begin(), indices.end(),
				stdext::checked_array_iterator<UINT *>(mesh->indices, count)
			);
		}

		meshes.push_back(mesh);
	}

	r->Close();
	SafeDelete(r);

	BindBone();
}

void Model::BindBone()
{
	root = bones[0];

	for (ModelBone* bone : bones)
	{
		if (bone->parentIndex > -1)
		{
			bone->parent = bones[bone->parentIndex];
			bone->parent->childs.push_back(bone);
		}
		else
		{
			bone->parent = NULL;
		}
	}
}

void Model::BindMesh()
{
	for (ModelMesh* mesh : meshes)
	{
		mesh->bone = bones[mesh->boneIndex];

		mesh->Binding(this);
	}
}

void Model::ReadMaterial(wstring file)
{
	file = L"../../_Textures/" + file + L".material";

	Xml::XMLDocument* document = new Xml::XMLDocument();
	Xml::XMLError error = document->LoadFile(String::ToString(file).c_str());
	assert(error == Xml::XML_SUCCESS);

	Xml::XMLElement* root = document->FirstChildElement();
	Xml::XMLElement* materialNode = root->FirstChildElement();

	do
	{
		Material* material = new Material();


		Xml::XMLElement* node = NULL;

		node = materialNode->FirstChildElement();
		material->Name(String::ToWString(node->GetText()));

		wstring directory = Path::GetDirectoryName(file);
		String::Replace(&directory, L"../../_Textures", L"");


		wstring texture = L"";

		node = node->NextSiblingElement();
		texture = String::ToWString(node->GetText());
		if (texture.length() > 0)
			material->DiffuseMap(directory + texture);

		node = node->NextSiblingElement();
		texture = String::ToWString(node->GetText());
		if (texture.length() > 0)
			material->SpecularMap(directory + texture);

		node = node->NextSiblingElement();
		texture = String::ToWString(node->GetText());
		if (texture.length() > 0)
			material->NormalMap(directory + texture);


		Color color;

		node = node->NextSiblingElement();
		color.r = node->FloatAttribute("R");
		color.g = node->FloatAttribute("G");
		color.b = node->FloatAttribute("B");
		color.a = node->FloatAttribute("A");
		material->Ambient(color);

		node = node->NextSiblingElement();
		color.r = node->FloatAttribute("R");
		color.g = node->FloatAttribute("G");
		color.b = node->FloatAttribute("B");
		color.a = node->FloatAttribute("A");
		material->Diffuse(color);

		node = node->NextSiblingElement();
		color.r = node->FloatAttribute("R");
		color.g = node->FloatAttribute("G");
		color.b = node->FloatAttribute("B");
		color.a = node->FloatAttribute("A");
		material->Specular(color);

		node = node->NextSiblingElement();
		color.r = node->FloatAttribute("R");
		color.g = node->FloatAttribute("G");
		color.b = node->FloatAttribute("B");
		color.a = node->FloatAttribute("A");
		material->Emissive(color);

		materials.push_back(material);

		materialNode = materialNode->NextSiblingElement();
	} while (materialNode != NULL);

	BindMesh();
}

void Model::ReadClip(wstring file)
{
	file = L"../../_Models/" + file + L".clip";

	BinaryReader* r = new BinaryReader();
	r->Open(file);


	ModelClip* clip = new ModelClip();

	clip->name = String::ToWString(r->String());
	clip->duration = r->Float();
	clip->frameRate = r->Float();
	clip->frameCount = r->UInt();

	UINT keyframesCount = r->UInt();
	for (UINT i = 0; i < keyframesCount; i++)
	{
		ModelKeyframe* keyframe = new ModelKeyframe();
		keyframe->BoneName = String::ToWString(r->String());


		UINT size = r->UInt();
		if (size > 0)
		{
			keyframe->Transforms.assign(size, ModelKeyframeData());

			void* ptr = (void *)&keyframe->Transforms[0];
			r->Byte(&ptr, sizeof(ModelKeyframeData) * size);
		}

		clip->keyframeMap[keyframe->BoneName] = keyframe;
	}

	r->Close();
	SafeDelete(r);

	clips.push_back(clip);
}

ModelClip.h

ModelClip.h

#pragma once

struct ModelKeyframeData
{
	float Time;

	Vector3 Scale;
	Quaternion Rotation;
	Vector3 Translation;
};

struct ModelKeyframe
{
	wstring BoneName;
	vector<ModelKeyframeData> Transforms;
};

class ModelClip
{
public:
	friend class Model;

private:
	ModelClip();
	~ModelClip();

public:
	float Duration() { return duration; }
	float FrameRate() { return frameRate; }
	UINT FrameCount() { return frameCount; }

	ModelKeyframe* Keyframe(wstring name);

private:
	wstring name;

	float duration;
	float frameRate;
	UINT frameCount;

	//unordered_map은 해쉬코드 사용. 해쉬변환만 일어나서 찾는게 빨라서 사용.
	unordered_map<wstring, ModelKeyframe *> keyframeMap;
};

ModelClip.cpp

#include "Framework.h"
#include "ModelClip.h"

ModelClip::ModelClip()
{

}

ModelClip::~ModelClip()
{

}

ModelKeyframe * ModelClip::Keyframe(wstring name)
{
	if (keyframeMap.count(name) < 1)
		return NULL;

	return keyframeMap[name];
}

Converter

Converter.h

#pragma once

class Converter
{
public:
	Converter();
	~Converter();

	void ReadFile(wstring file);

public:
	void ExportMesh(wstring savePath);

private:
	void ReadBoneData(aiNode* node, int index, int parent);
	void ReadMeshData(aiNode* node, int bone);
	void ReadSkinData();
	void WriteMeshData(wstring savePath);

public:
	void ExportMaterial(wstring savePath, bool bOverwrite = true);

private:
	void ReadMaterialData();
	void WriteMaterialData(wstring savePath);
	string WriteTexture(string saveFolder, string file);

public:
	void ClipList(vector<wstring>* list);
	void ExportAnimClip(UINT index, wstring savePath);

private:
	struct asClip* ReadClipData(aiAnimation* animation);//animation clip 읽어들임.
	void ReadKeyframeData(struct asClip* clip, aiNode* node, vector<struct asClipNode>& aiNodeInfos);
	void WriteClipData(struct asClip* clip, wstring savePath);//읽어들인 clip 사용.

private:
	wstring file;

	Assimp::Importer* importer;
	const aiScene* scene;

	vector<struct asBone *> bones;
	vector<struct asMesh *> meshes;
	vector<struct asMaterial *> materials;
};

Converter.cpp

#include "stdafx.h"
#include "Converter.h"
#include "Types.h"
#include "Utilities/BinaryFile.h"
#include "Utilities/Xml.h"

Converter::Converter()
{
	importer = new Assimp::Importer();
}

Converter::~Converter()
{
	SafeDelete(importer);
}

void Converter::ReadFile(wstring file)
{
	this->file = L"../../_Assets/" + file;

	scene = importer->ReadFile
	(
		String::ToString(this->file),
		aiProcess_ConvertToLeftHanded
		| aiProcess_Triangulate
		| aiProcess_GenUVCoords
		| aiProcess_GenNormals
		| aiProcess_CalcTangentSpace
	);
	assert(scene != NULL);
}

void Converter::ExportMesh(wstring savePath)
{
	savePath = L"../../_Models/" + savePath + L".mesh";

	ReadBoneData(scene->mRootNode, -1, -1);
	ReadSkinData();

	//Write CSV File
	{
		FILE* file;
		fopen_s(&file, "../Vertices.csv", "w");

		for (asBone* bone : bones)
		{
			string name = bone->Name;
			fprintf(file, "%d,%s\n", bone->Index, bone->Name.c_str());
		}


		fprintf(file, "\n");
		for (asMesh* mesh : meshes)
		{
			string name = mesh->Name;
			printf("%s\n", name.c_str());

			for (UINT i = 0; i < mesh->Vertices.size(); i++)
			{
				Vector3 p = mesh->Vertices[i].Position;
				Vector4 indices = mesh->Vertices[i].BlendIndices;
				Vector4 weights = mesh->Vertices[i].BlendWeights;

				fprintf(file, "%f,%f,%f,", p.x, p.y, p.z);
				fprintf(file, "%f,%f,%f,%f,", indices.x, indices.y, indices.z, indices.w);
				fprintf(file, "%f,%f,%f,%f\n", weights.x, weights.y, weights.z, weights.w);
			}
		}

		fclose(file);
	}


	WriteMeshData(savePath);
}

void Converter::ReadBoneData(aiNode * node, int index, int parent)
{
	asBone* bone = new asBone();
	bone->Index = index;
	bone->Parent = parent;
	bone->Name = node->mName.C_Str();


	Matrix transform(node->mTransformation[0]);
	D3DXMatrixTranspose(&bone->Transform, &transform);

	Matrix matParent;
	if (parent < 0)
		D3DXMatrixIdentity(&matParent);
	else
		matParent = bones[parent]->Transform;

	bone->Transform = bone->Transform * matParent;
	bones.push_back(bone);


	ReadMeshData(node, index);

	for (UINT i = 0; i < node->mNumChildren; i++)
		ReadBoneData(node->mChildren[i], bones.size(), index);
}

void Converter::ReadMeshData(aiNode * node, int bone)
{
	if (node->mNumMeshes < 1) return;

	asMesh* mesh = new asMesh();
	mesh->Name = node->mName.C_Str();
	mesh->BoneIndex = bone;

	for (UINT i = 0; i < node->mNumMeshes; i++)
	{
		UINT index = node->mMeshes[i];
		aiMesh* srcMesh = scene->mMeshes[index];

		aiMaterial* material = scene->mMaterials[srcMesh->mMaterialIndex];
		mesh->MaterialName = material->GetName().C_Str();


		UINT startVertex = mesh->Vertices.size();
		for (UINT v = 0; v < srcMesh->mNumVertices; v++)
		{
			Model::ModelVertex vertex;
			memcpy(&vertex.Position, &srcMesh->mVertices[v], sizeof(Vector3));

			if (srcMesh->HasTextureCoords(0))
				memcpy(&vertex.Uv, &srcMesh->mTextureCoords[0][v], sizeof(Vector2));

			if(srcMesh->HasNormals())
				memcpy(&vertex.Normal, &srcMesh->mNormals[v], sizeof(Vector3));

			mesh->Vertices.push_back(vertex);
		}

		for (UINT f = 0; f < srcMesh->mNumFaces; f++)
		{
			aiFace& face = srcMesh->mFaces[f];

			for (UINT k = 0; k < face.mNumIndices; k++)
				mesh->Indices.push_back(face.mIndices[k] + startVertex);
		}

		meshes.push_back(mesh);
	}
}

void Converter::ReadSkinData()
{
	for (UINT i = 0; i < scene->mNumAnimations; i++)
	{
		aiMesh* aiMesh = scene->mMeshes[i];
		if (aiMesh->HasBones() == false) continue;

		asMesh* mesh = meshes[i];

		vector<asBoneWeights> boneWeights;
		boneWeights.assign(mesh->Vertices.size(), asBoneWeights());

		for (UINT b = 0; b < aiMesh->mNumBones; b++)
		{
			aiBone* aiMeshBone = aiMesh->mBones[b];

			UINT boneIndex = 0;
			for (asBone* bone : bones)
			{
				if (bone->Name == (string)aiMeshBone->mName.C_Str())
				{
					boneIndex = bone->Index;

					break;
				}
			}//for(bone)

			for (UINT w = 0; w < aiMeshBone->mNumWeights; w++)
			{
				UINT index = aiMeshBone->mWeights[w].mVertexId;
				float weight = aiMeshBone->mWeights[w].mWeight;

				boneWeights[index].AddWeights(boneIndex, weight);
			}
		}//for(b)

		for (UINT w = 0; w < boneWeights.size(); w++)
		{
			boneWeights[i].Normalize();

			asBlendWeight blendWeight;
			boneWeights[w].GetBlendWeights(blendWeight);//x,y,z,w값 써줌

			mesh->Vertices[w].BlendIndices = blendWeight.Indices;
			mesh->Vertices[w].BlendWeights = blendWeight.Weights;
		}

	}
}

void Converter::WriteMeshData(wstring savePath)
{
	Path::CreateFolders(Path::GetDirectoryName(savePath));

	BinaryWriter* w = new BinaryWriter();
	w->Open(savePath);

	w->UInt(bones.size());
	for (asBone* bone : bones)
	{
		w->Int(bone->Index);
		w->String(bone->Name);
		w->Int(bone->Parent);
		w->Matrix(bone->Transform);

		SafeDelete(bone);
	}

	w->UInt(meshes.size());
	for (asMesh* meshData : meshes)
	{
		w->String(meshData->Name);
		w->Int(meshData->BoneIndex);

		w->String(meshData->MaterialName);

		w->UInt(meshData->Vertices.size());
		w->Byte(&meshData->Vertices[0], sizeof(Model::ModelVertex) * meshData->Vertices.size());

		w->UInt(meshData->Indices.size());
		w->Byte(&meshData->Indices[0], sizeof(UINT) * meshData->Indices.size());

		SafeDelete(meshData);
	}

	w->Close();
	SafeDelete(w);
}

void Converter::ExportMaterial(wstring savePath, bool bOverwrite)
{
	savePath = L"../../_Textures/" + savePath + L".material";

	if (bOverwrite == false)
	{
		if (Path::ExistFile(savePath) == true)
			return;
	}

	ReadMaterialData();
	WriteMaterialData(savePath);
}

void Converter::ReadMaterialData()
{
	for (UINT i = 0; i < scene->mNumMaterials; i++)
	{
		aiMaterial* srcMaterial = scene->mMaterials[i];
		asMaterial* material = new asMaterial();

		material->Name = srcMaterial->GetName().C_Str();


		aiColor3D color;

		srcMaterial->Get(AI_MATKEY_COLOR_AMBIENT, color);
		material->Ambient = Color(color.r, color.g, color.b, 1.0f);

		srcMaterial->Get(AI_MATKEY_COLOR_DIFFUSE, color);
		material->Diffuse = Color(color.r, color.g, color.b, 1.0f);

		srcMaterial->Get(AI_MATKEY_COLOR_SPECULAR, color);
		material->Specular = Color(color.r, color.g, color.b, 1.0f);

		srcMaterial->Get(AI_MATKEY_SHININESS, material->Specular.a);

		srcMaterial->Get(AI_MATKEY_COLOR_EMISSIVE, color);
		material->Emissive = Color(color.r, color.g, color.b, 1.0f);


		aiString file;

		srcMaterial->GetTexture(aiTextureType_DIFFUSE, 0, &file);
		material->DiffuseFile = file.C_Str();

		srcMaterial->GetTexture(aiTextureType_SPECULAR, 0, &file);
		material->SpecularFile = file.C_Str();

		srcMaterial->GetTexture(aiTextureType_NORMALS, 0, &file);
		material->NormalFile = file.C_Str();


		materials.push_back(material);
	}
}

void Converter::WriteMaterialData(wstring savePath)
{
	string folder = String::ToString(Path::GetDirectoryName(savePath));
	string file = String::ToString(Path::GetFileName(savePath));

	Path::CreateFolders(folder);


	Xml::XMLDocument* document = new Xml::XMLDocument();

	Xml::XMLDeclaration* decl = document->NewDeclaration();
	document->LinkEndChild(decl);

	Xml::XMLElement* root = document->NewElement("Materials");
	root->SetAttribute("xmlns:xsi", "http://www.w3.org/2001/XMLSchema-instance");
	root->SetAttribute("xmlns:xsd", "http://www.w3.org/2001/XMLSchema");
	document->LinkEndChild(root);

	for (asMaterial* material : materials)
	{
		Xml::XMLElement* node = document->NewElement("Material");
		root->LinkEndChild(node);


		Xml::XMLElement* element = NULL;

		element = document->NewElement("Name");
		element->SetText(material->Name.c_str());
		node->LinkEndChild(element);

		element = document->NewElement("DiffuseFile");
		element->SetText(WriteTexture(folder, material->DiffuseFile).c_str());
		node->LinkEndChild(element);

		element = document->NewElement("SpecularFile");
		element->SetText(WriteTexture(folder, material->SpecularFile).c_str());
		node->LinkEndChild(element);

		element = document->NewElement("NormalFile");
		element->SetText(WriteTexture(folder, material->NormalFile).c_str());
		node->LinkEndChild(element);


		element = document->NewElement("Ambient");
		element->SetAttribute("R", material->Ambient.r);
		element->SetAttribute("G", material->Ambient.g);
		element->SetAttribute("B", material->Ambient.b);
		element->SetAttribute("A", material->Ambient.a);
		node->LinkEndChild(element);

		element = document->NewElement("Diffuse");
		element->SetAttribute("R", material->Diffuse.r);
		element->SetAttribute("G", material->Diffuse.g);
		element->SetAttribute("B", material->Diffuse.b);
		element->SetAttribute("A", material->Diffuse.a);
		node->LinkEndChild(element);

		element = document->NewElement("Specular");
		element->SetAttribute("R", material->Specular.r);
		element->SetAttribute("G", material->Specular.g);
		element->SetAttribute("B", material->Specular.b);
		element->SetAttribute("A", material->Specular.a);
		node->LinkEndChild(element);

		element = document->NewElement("Emissive");
		element->SetAttribute("R", material->Emissive.r);
		element->SetAttribute("G", material->Emissive.g);
		element->SetAttribute("B", material->Emissive.b);
		element->SetAttribute("A", material->Emissive.a);
		node->LinkEndChild(element);

		SafeDelete(material);
	}


	document->SaveFile((folder + file).c_str());
	SafeDelete(document);
}

string Converter::WriteTexture(string saveFolder, string file)
{
	if (file.length() < 1) return "";

	string fileName = Path::GetFileName(file);
	const aiTexture* texture = scene->GetEmbeddedTexture(file.c_str());

	string path = "";
	if (texture != NULL)
	{
		path = saveFolder + fileName;

		if (texture->mHeight < 1)
		{
			BinaryWriter w;
			w.Open(String::ToWString(path));
			w.Byte(texture->pcData, texture->mWidth);
			w.Close();
		}
		else
		{
			D3D11_TEXTURE2D_DESC destDesc;
			ZeroMemory(&destDesc, sizeof(D3D11_TEXTURE2D_DESC));
			destDesc.Width = texture->mWidth;
			destDesc.Height = texture->mHeight;
			destDesc.MipLevels = 1;
			destDesc.ArraySize = 1;
			destDesc.Format = DXGI_FORMAT_R8G8B8A8_UNORM;
			destDesc.SampleDesc.Count = 1;
			destDesc.SampleDesc.Quality = 0;
			destDesc.Usage = D3D11_USAGE_IMMUTABLE;

			D3D11_SUBRESOURCE_DATA subResource = { 0 };
			subResource.pSysMem = texture->pcData;


			ID3D11Texture2D* dest;

			HRESULT hr;
			hr = D3D::GetDevice()->CreateTexture2D(&destDesc, &subResource, &dest);
			assert(SUCCEEDED(hr));

			D3DX11SaveTextureToFileA(D3D::GetDC(), dest, D3DX11_IFF_PNG, saveFolder.c_str());
		}
	}
	else
	{
		string directory = Path::GetDirectoryName(String::ToString(this->file));
		string origin = directory + file;
		String::Replace(&origin, "\\", "/");

		if (Path::ExistFile(origin) == false)
			return "";

		path = saveFolder + fileName;
		CopyFileA(origin.c_str(), path.c_str(), FALSE);

		String::Replace(&path, "../../_Textures/", "");
	}

	return Path::GetFileName(path);
}

void Converter::ClipList(vector<wstring>* list)
{
	for (UINT i = 0; i < scene->mNumAnimations; i++)
	{
		aiAnimation* anim = scene->mAnimations[i];

		list->push_back(String::ToWString(anim->mName.C_Str()));
	}
}

void Converter::ExportAnimClip(UINT index, wstring savePath)
{
	savePath = L"../../_Models/" + savePath + L".clip";

	asClip* clip = ReadClipData(scene->mAnimations[index]);
	WriteClipData(clip, savePath);
}

asClip * Converter::ReadClipData(aiAnimation * animation)
{
	asClip* clip = new asClip();
	clip->Name = animation->mName.C_Str();
	clip->FrameRate = (float)animation->mTicksPerSecond;
	clip->FrameCount = (UINT)animation->mDuration + 1;

	vector<asClipNode> aniNodeInfos;
	for (UINT i = 0; i < animation->mNumChannels; i++)
	{
		aiNodeAnim* aniNode = animation->mChannels[i];

		asClipNode aniNodeInfo;
		aniNodeInfo.Name = aniNode->mNodeName;

		//SRT 중 가장 큰 Key 개수를 구한다.
		UINT keyCount = max(aniNode->mNumPositionKeys, aniNode->mNumScalingKeys);
		keyCount = max(keyCount, aniNode->mNumRotationKeys);

		for (UINT k = 0; k < keyCount; k++)
		{
			asKeyframeData frameData;

			bool bFound = false;
			UINT t = aniNodeInfo.Keyframe.size();

			//키값들을 찾는다
			//mTime은 변화된 시간
			//D3DX_16F_EPSILON = 1e-6. nearly 0의 용도로 사용한다.
			if (fabsf((float)aniNode->mPositionKeys[k].mTime - (float)t) <= D3DX_16F_EPSILON)
			{
				aiVectorKey key = aniNode->mPositionKeys[k];
				frameData.Time = (float)key.mTime;
				memcpy_s(&frameData.Translation, sizeof(Vector3), &key.mValue, sizeof(aiVector3D));

				bFound = true;
			}

			if (fabsf((float)aniNode->mRotationKeys[k].mTime - (float)t) <= D3DX_16F_EPSILON)
			{
				aiQuatKey key = aniNode->mRotationKeys[k];
				frameData.Time = (float)key.mTime;

				frameData.Rotation.x = key.mValue.x;
				frameData.Rotation.y = key.mValue.y;
				frameData.Rotation.z = key.mValue.z;
				frameData.Rotation.w = key.mValue.w;

				bFound = true;
			}

			if (fabsf((float)aniNode->mScalingKeys[k].mTime - (float)t) <= D3DX_16F_EPSILON)
			{
				aiVectorKey key = aniNode->mScalingKeys[k];
				frameData.Time = (float)key.mTime;
				memcpy_s(&frameData.Scale, sizeof(Vector3), &key.mValue, sizeof(aiVector3D));

				bFound = true;
			}


			if (bFound == true)
				aniNodeInfo.Keyframe.push_back(frameData);//frameData를 넣는다.
		}//for(k)

		//우리가 저장한 키프레임 사이즈가 실제 클립이 가지고 있는 프레임수 보다 적다면
		if (aniNodeInfo.Keyframe.size() < clip->FrameCount)
		{
			UINT count = clip->FrameCount - aniNodeInfo.Keyframe.size();
			asKeyframeData keyFrame = aniNodeInfo.Keyframe.back();

			for (UINT n = 0; n < count; n++)
				aniNodeInfo.Keyframe.push_back(keyFrame);
		}
		clip->Duration = max(clip->Duration, aniNodeInfo.Keyframe.back().Time);//aniNodeInfo.Keyframe.back().Time = 마지막 프레임의 시간

		aniNodeInfos.push_back(aniNodeInfo);//aniNodeInfo에 Bone별로 키프레임이 들어간다.
	}

	ReadKeyframeData(clip, scene->mRootNode, aniNodeInfos);


	return clip;
}

void Converter::ReadKeyframeData(asClip * clip, aiNode * node, vector<struct asClipNode>& aiNodeInfos)
{
	//Retargeting 작업. Bone 이름과 Animation Bone 이름을 맞춰준다.
	asKeyframe* keyframe = new asKeyframe();
	keyframe->BoneName = node->mName.C_Str();

	//for문을 돌면서 각 Bone 마다 해당 Bone 이름과 매칭되는 이름이 있는지 찾는다.
	for (UINT i = 0; i < clip->FrameCount; i++)
	{
		asClipNode* asClipNode = NULL;

		for (UINT n = 0; n < aiNodeInfos.size(); n++)
		{
			if (aiNodeInfos[n].Name == node->mName)
			{
				asClipNode = &aiNodeInfos[n];

				break;
			}
		}//for(n)

		asKeyframeData frameData;
		//없으면 Bone이 가지고 있던 transform을 넣어준다.
		//원래 있던 매쉬 모양데로 부모를 따라 움직인다.
		if (asClipNode == NULL)
		{
			Matrix transform(node->mTransformation[0]);
			D3DXMatrixTranspose(&transform, &transform);

			frameData.Time = (float)i;
			D3DXMatrixDecompose(&frameData.Scale, &frameData.Rotation, &frameData.Translation, &transform);
		}
		//있다면 넣음.
		else
		{
			frameData = asClipNode->Keyframe[i];
		}

		keyframe->Transforms.push_back(frameData);
	}

	clip->Keyframes.push_back(keyframe);

	//재귀. 모든 Bone에 작업 수행.
	for (UINT i = 0; i < node->mNumChildren; i++)
		ReadKeyframeData(clip, node->mChildren[i], aiNodeInfos);
}

void Converter::WriteClipData(asClip * clip, wstring savePath)
{
	Path::CreateFolders(Path::GetDirectoryName(savePath));

	BinaryWriter* w = new BinaryWriter();
	w->Open(savePath);

	w->String(clip->Name);
	w->Float(clip->Duration);
	w->Float(clip->FrameRate);
	w->UInt(clip->FrameCount);

	w->UInt(clip->Keyframes.size());
	for (asKeyframe* keyframe : clip->Keyframes)
	{
		w->String(keyframe->BoneName);

		w->UInt(keyframe->Transforms.size());
		w->Byte(&keyframe->Transforms[0], sizeof(asKeyframeData) * keyframe->Transforms.size());

		SafeDelete(keyframe);
	}

	w->Close();
	SafeDelete(w);
}

ExportFile

ExportFile.h

#pragma once
#include "Systems/IExecute.h"

class ExportFile : public IExecute
{
public:
	virtual void Initialize() override;
	virtual void Ready() override {}
	virtual void Destroy() override {}
	virtual void Update() override {}
	virtual void PreRender() override {}
	virtual void Render() override {}
	virtual void PostRender() override {}
	virtual void ResizeScreen() override {}

private:
	void Airplane();
	void Tower();
	void Tank();
	void Kachujin();
};

이전과 동일

ExportFile.cpp

#include "stdafx.h"
#include "ExportFile.h"
#include "Converter.h"

void ExportFile::Initialize()
{
	Airplane();
	Tower();
	Tank();
	Kachujin();
}

void ExportFile::Airplane()
{
	Converter* conv = new Converter();
	conv->ReadFile(L"B787/Airplane.fbx");
	conv->ExportMesh(L"B787/Airplane");
	conv->ExportMaterial(L"B787/Airplane");
	SafeDelete(conv);
}

void ExportFile::Tower()
{
	Converter* conv = new Converter();
	conv->ReadFile(L"Tower/Tower.fbx");
	conv->ExportMesh(L"Tower/Tower");
	conv->ExportMaterial(L"Tower/Tower");
	SafeDelete(conv);
}

void ExportFile::Tank()
{
	Converter* conv = new Converter();
	conv->ReadFile(L"Tank/Tank.fbx");
	conv->ExportMesh(L"Tank/Tank");
	conv->ExportMaterial(L"Tank/Tank", false);
	SafeDelete(conv);
}

void ExportFile::Kachujin()
{
	Converter* conv = NULL;

	conv = new Converter();
	conv->ReadFile(L"Kachujin/Mesh.fbx");
	conv->ExportMesh(L"Kachujin/Mesh");
	conv->ExportMaterial(L"Kachujin/Mesh");
	SafeDelete(conv);

	conv = new Converter();
	conv->ReadFile(L"Kachujin/Sword And Shield Idle.fbx");
	conv->ExportAnimClip(0, L"Kachujin/Sword And Shield Idle");
	SafeDelete(conv);

	conv = new Converter();
	conv->ReadFile(L"Kachujin/Sword And Shield Run.fbx");
	conv->ExportAnimClip(0, L"Kachujin/Sword And Shield Run");
	SafeDelete(conv);

	conv = new Converter();
	conv->ReadFile(L"Kachujin/Sword And Shield Slash.fbx");
	conv->ExportAnimClip(0, L"Kachujin/Sword And Shield Slash");
	SafeDelete(conv);

	conv = new Converter();
	conv->ReadFile(L"Kachujin/Salsa Dancing.fbx");
	conv->ExportAnimClip(0, L"Kachujin/Salsa Dancing");
	SafeDelete(conv);

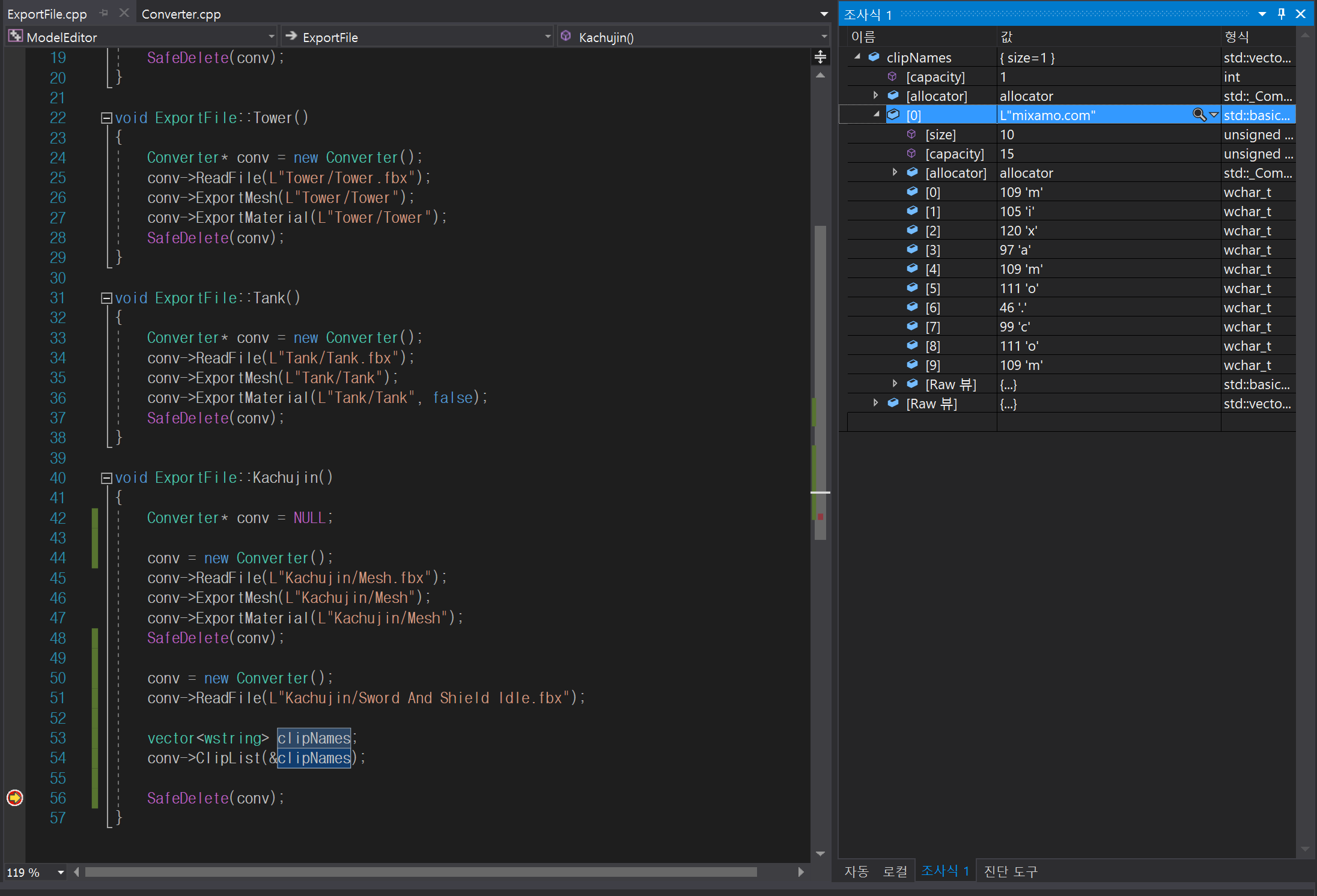

	//clipNames확인용
	//vector<wstring> clipNames;
	//conv->ClipList(&clipNames);

}

clipName을 조사식에 들어가서 보면 L"mixamo.com"에서 가져온 clip들이 보인다.

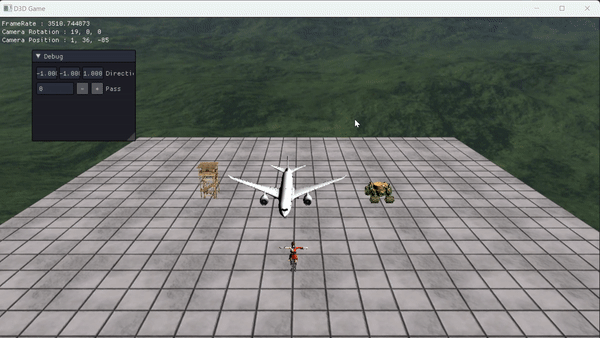

실행화면

Map vs. Unordered Map

'⭐ DirectX > DirectX11 3D' 카테고리의 다른 글

[DirectX11] 048 Play Animation (0)	2023.02.16
[DirectX11] 045 Model Animator (0)	2023.02.13
PDB 파일을 찾거나 열 수 없습니다. 오류 해결 (0)	2023.02.08
[DirectX11] 041 Animation Skinning (0)	2023.02.08
[DirectX11] 039~40 Model Material (0)	2023.02.07

[DirectX11] 042~44 Animaton Read Clip

Animaton Read Clip

Animation Retargeting

Type

Model.h

ModelClip.h

Converter

ExportFile

실행화면

Map vs. Unordered Map

'⭐ DirectX > DirectX11 3D' 카테고리의 다른 글

댓글

이 글 공유하기

티스토리툴바

Animaton Read Clip

Animation Retargeting

Type

Model.h

ModelClip.h

Converter

ExportFile

실행화면

Map vs. Unordered Map

'⭐ DirectX > DirectX11 3D' 카테고리의 다른 글

댓글

이 글 공유하기

다른 글

[DirectX11] 048 Play Animation

[DirectX11] 045 Model Animator

PDB 파일을 찾거나 열 수 없습니다. 오류 해결

[DirectX11] 041 Animation Skinning

티스토리툴바
