[DirectX11] 103 MRT(Multiple Render Targets)

MRT(Multiple Render Targets)는 한 번의 추첨 통화에서 둘 이상의 렌더 대상에 렌더링할 수 있는 기능을 말한다. 기존 렌더링 파이프라인에서는 하나의 렌더링 대상(백 버퍼)만 사용하여 화면에 최종 결과를 표시한다. 그러나 복잡한 후 처리 효과를 구현하거나 지연된 렌더링 기법을 구현하거나 섀도 매핑을 수행하는 경우와 같이 여러 렌더 대상에 동시에 렌더링해야 하는 상황이 있다.



목차





---







MRT(Multiple Render Targets)



MRT(Multiple Render Targets)는 한 번의 추첨 통화에서 둘 이상의 렌더 대상에 렌더링할 수 있는 기능을 말한다.

기존 렌더링 파이프라인에서는 하나의 렌더링 대상(백 버퍼)만 사용하여 화면에 최종 결과를 표시한다. 그러나 복잡한 후 처리 효과를 구현하거나 지연된 렌더링 기법을 구현하거나 섀도 매핑을 수행하는 경우와 같이 여러 렌더 대상에 동시에 렌더링해야 하는 상황이 있다.

MRT를 사용하면 RTV(Render Target View)를 그래픽 파이프라인의 출력 병합 단계에 바인딩할 때 여러 렌더 대상을 지정할 수 있다. 렌더링 시 픽셀 셰이더의 출력이 지정된 모든 렌더링 대상에 동시에 기록된다. 이를 통해 특정 효과를 달성하는 데 필요한 추첨 통화 수를 크게 줄여 성능을 향상시킬 수 있다.

DirectX11에서 MRT를 사용하려면 원하는 렌더 대상 수에 대해 여러 렌더 대상 뷰를 만들어야 한다. 그런 다음 ID3D11 DeviceContext:를 사용하여 이러한 렌더 대상 뷰를 출력 병합 단계로 설정한다. 렌더링 시 픽셀 셰이더의 출력을 셰이더 코드의 SV_Target 의미를 사용하여 지정된 렌더 대상에 쓸 수 있다.

MRT는복잡한 장면과 후처리 효과를 보다 효율적으로 렌더링할 수 있다.





Shaders
	Mrt.fx 생성
Framework
	Viewer
	RenderTarget.h .cpp
UnitTest
	PostEffects
	MrtDemo.h .cpp 생성



---







Mrt.fx



Mrt.fx

#include "00_Global.fx"
#include "00_Light.fx"

float2 PixelSize;

struct VertexOutput
{
    float4 Position : SV_Position;
    float2 Uv : Uv;
};

VertexOutput VS(float4 Position : Position)
{
    VertexOutput output;

    output.Position = Position;
    output.Uv.x = Position.x * 0.5f + 0.5f;
    output.Uv.y = -Position.y * 0.5f + 0.5f;

    return output;
}


struct PixelOutput
{
    float4 Color0 : SV_Target0;
    float4 Color1 : SV_Target1;
    float4 Color2 : SV_Target2;
};

PixelOutput PS_Mrt(VertexOutput input)
{
    PixelOutput output;

    output.Color0 = DiffuseMap.Sample(LinearSampler, input.Uv);
    output.Color1 = 1 - DiffuseMap.Sample(LinearSampler, input.Uv);

    float3 color = DiffuseMap.Sample(LinearSampler, input.Uv).rgb;
    float average = (color.r + color.g + color.b) / 3.0f;
    output.Color2 = float4(average, average, average, 1.0f);

    return output;
}

float4 PS(VertexOutput input) : SV_Target
{
    return DiffuseMap.Sample(LinearSampler, input.Uv);;
}

technique11 T0
{
    P_VP(P0, VS, PS_Mrt)
    P_VP(P1, VS, PS)
}







---



RenderTarget



RenderTarget.h

#pragma once

class RenderTarget
{
public:
	RenderTarget(UINT width = 0, UINT height = 0, DXGI_FORMAT format = DXGI_FORMAT_R8G8B8A8_UNORM);
	~RenderTarget();

	ID3D11RenderTargetView* RTV() { return rtv; }
	ID3D11ShaderResourceView* SRV() { return srv; }

	void SaveTexture(wstring file);

	void PreRender(class DepthStencil* depthStencil);
	static void PreRender(RenderTarget** targets, UINT count, class DepthStencil* depthStencil);

private:
	UINT width, height;
	DXGI_FORMAT format;

	ID3D11Texture2D* texture;
	ID3D11RenderTargetView* rtv;
	ID3D11ShaderResourceView* srv;
};

함수 추가

• static void PreRender(RenderTarget** targets, UINT count, class DepthStencil* depthStencil)





RenderTarget.cpjp

#include "Framework.h"
#include "RenderTarget.h"

RenderTarget::RenderTarget(UINT width, UINT height, DXGI_FORMAT format)
	: format(format)
{
	this->width = (width < 1) ? (UINT)D3D::Width() : width;
	this->height = (height < 1) ? (UINT)D3D::Height() : height;


	D3D11_TEXTURE2D_DESC textureDesc;
	ZeroMemory(&textureDesc, sizeof(D3D11_TEXTURE2D_DESC));
	textureDesc.Width = this->width;
	textureDesc.Height = this->height;
	textureDesc.ArraySize = 1;
	textureDesc.Format = format;
	textureDesc.BindFlags = D3D11_BIND_SHADER_RESOURCE | D3D11_BIND_RENDER_TARGET;
	textureDesc.MipLevels = 1;
	textureDesc.SampleDesc.Count = 1;
	Check(D3D::GetDevice()->CreateTexture2D(&textureDesc, NULL, &texture));

	D3D11_RENDER_TARGET_VIEW_DESC rtvDesc;
	ZeroMemory(&rtvDesc, sizeof(D3D11_RENDER_TARGET_VIEW_DESC));
	rtvDesc.Format = format;
	rtvDesc.ViewDimension = D3D11_RTV_DIMENSION_TEXTURE2D;
	Check(D3D::GetDevice()->CreateRenderTargetView(texture, &rtvDesc, &rtv));

	D3D11_SHADER_RESOURCE_VIEW_DESC srvDesc;
	ZeroMemory(&srvDesc, sizeof(D3D11_SHADER_RESOURCE_VIEW_DESC));
	srvDesc.Format = format;
	srvDesc.ViewDimension = D3D11_SRV_DIMENSION_TEXTURE2D;
	srvDesc.Texture2D.MipLevels = 1;
	Check(D3D::GetDevice()->CreateShaderResourceView(texture, &srvDesc, &srv));

}

RenderTarget::~RenderTarget()
{
	SafeRelease(texture);
	SafeRelease(rtv);
	SafeRelease(srv);
}

void RenderTarget::SaveTexture(wstring file)
{
	Check(D3DX11SaveTextureToFile(D3D::GetDC(), texture, D3DX11_IFF_PNG, file.c_str()));
}

void RenderTarget::PreRender(DepthStencil * depthStencil)
{
	D3D::GetDC()->OMSetRenderTargets(1, &rtv, depthStencil->DSV());
	D3D::Get()->Clear(Color(0, 0, 0, 1), rtv, depthStencil->DSV());
}

void RenderTarget::PreRender(RenderTarget ** targets, UINT count, DepthStencil * depthStencil)
{
	vector<ID3D11RenderTargetView *> rtvs;
	for (UINT i = 0; i < count; i++)
	{
		ID3D11RenderTargetView* rtv = targets[i]->RTV();
		rtvs.push_back(rtv);

		D3D::GetDC()->ClearRenderTargetView(rtv, Color(0, 0, 0, 1));
	}

	D3D::GetDC()->ClearDepthStencilView(depthStencil->DSV(), D3D11_CLEAR_DEPTH | D3D11_CLEAR_STENCIL, 1, 0);
	D3D::GetDC()->OMSetRenderTargets(rtvs.size(), &rtvs[0], depthStencil->DSV());
}

함수 정의

• void RenderTarget::PreRender(RenderTarget ** targets, UINT count, DepthStencil * depthStencil)







---



MrtDemo



MrtDemo.h

#pragma once
#include "Systems/IExecute.h"

class MrtDemo : public IExecute
{
public:
	virtual void Initialize() override;
	virtual void Ready() override {}
	virtual void Destroy() override {}
	virtual void Update() override;
	virtual void PreRender() override;
	virtual void Render() override;
	virtual void PostRender() override;
	virtual void ResizeScreen() override {}

private:
	void Billboards();
	void Mesh();
	void Airplane();
	void Kachujin();
	void KachujinCollider();
	void KachujinWeapon();
	void PointLighting();
	void SpotLighting();

	void Pass(UINT mesh, UINT model, UINT anim);

private:
	Shader* shader;

	RenderTarget* renderTarget;
	RenderTarget* mrt[3];
	DepthStencil* depthStencil;
	Viewport* viewport;
	Render2D* render2D;
	PostEffect* postEffect;

	Billboard* billboard;

	CubeSky* sky;

	Material* floor;
	Material* stone;
	Material* brick;
	Material* wall;

	MeshRender* cube;
	MeshRender* cylinder;
	MeshRender* sphere;
	MeshRender* grid;

	ModelRender* airplane = NULL;


	ModelAnimator* kachujin = NULL;
	Transform* colliderInitTransforms;
	ColliderObject** colliders;

	ModelRender* weapon = NULL;
	Transform* weaponInitTransform;

	vector<MeshRender *> meshes;
	vector<ModelRender *> models;
	vector<ModelAnimator *> animators;
};







MrtDemo.cpp

#include "stdafx.h"
#include "MrtDemo.h"

void MrtDemo::Initialize()
{
	Context::Get()->GetCamera()->RotationDegree(20, 0, 0);
	Context::Get()->GetCamera()->Position(1, 36, -85);
	((Freedom *)Context::Get()->GetCamera())->Speed(50, 2);


	shader = new Shader(L"96_Billboard.fxo");


	float width = D3D::Width(), height = D3D::Height();
	width = height = 4096;

	renderTarget = new RenderTarget((UINT)width, (UINT)height);

	mrt[0] = new RenderTarget((UINT)width, (UINT)height);
	mrt[1] = new RenderTarget((UINT)width, (UINT)height);
	mrt[2] = new RenderTarget((UINT)width, (UINT)height);

	depthStencil = new DepthStencil((UINT)width, (UINT)height);
	viewport = new Viewport(width, height);


	render2D = new Render2D();
	render2D->GetTransform()->Scale(355, 200, 1);
	render2D->GetTransform()->Position(200, 120, 0);

	postEffect = new PostEffect(L"103_Mrt.fxo");
	postEffect->SRV(renderTarget->SRV());


	sky = new CubeSky(L"Environment/GrassCube1024.dds");

	Billboards();

	Mesh();
	Airplane();

	Kachujin();
	KachujinCollider();
	KachujinWeapon();

	PointLighting();
	SpotLighting();
}

void MrtDemo::Update()
{
	sky->Update();

	cube->Update();
	grid->Update();
	cylinder->Update();
	sphere->Update();

	airplane->Update();
	kachujin->Update();

	Matrix worlds[MAX_MODEL_TRANSFORMS];
	for (UINT i = 0; i < kachujin->GetTransformCount(); i++)
	{
		kachujin->GetAttachTransform(i, worlds);
		weapon->GetTransform(i)->World(weaponInitTransform->World() * worlds[40]);
	}

	weapon->UpdateTransforms();
	weapon->Update();

	billboard->Update();

	render2D->Update();
	postEffect->Update();
}

void MrtDemo::PreRender()
{
	renderTarget->PreRender(depthStencil);
	viewport->RSSetViewport();


	//Render
	{
		sky->Render();


		Pass(0, 1, 2);

		wall->Render();
		sphere->Render();

		brick->Render();
		cylinder->Render();

		stone->Render();
		cube->Render();

		floor->Render();
		grid->Render();

		airplane->Render();

		kachujin->Render();
		weapon->Render();

		billboard->Render();
	}

	//Mrt
	{
		RenderTarget::PreRender(mrt, 3, depthStencil);
		viewport->RSSetViewport();

		postEffect->SRV(renderTarget->SRV());
		postEffect->Render();
	}
}

void MrtDemo::Render()
{

}

void MrtDemo::PostRender()
{
	static UINT index = 0;
	ImGui::InputInt("Mrt Index", (int *)&index);
	index %= 3;

	postEffect->SRV(mrt[index]->SRV());
	postEffect->Render();

	render2D->SRV(renderTarget->SRV());
	render2D->Render();
}

void MrtDemo::Billboards()
{
	billboard = new Billboard(shader);
	//billboard->Pass(3);
	billboard->Pass(4);

	billboard->AddTexture(L"Terrain/grass_14.tga");
	billboard->AddTexture(L"Terrain/grass_07.tga");
	billboard->AddTexture(L"Terrain/grass_11.tga");

	for (UINT i = 0; i < 1200; i++)
	{
		Vector2 scale = Math::RandomVec2(1, 3);
		Vector2 position = Math::RandomVec2(-60, 60);

		billboard->Add(Vector3(position.x, scale.y * 0.5f, position.y), scale, 0);
	}

	for (UINT i = 0; i < 300; i++)
	{
		Vector2 scale = Math::RandomVec2(1, 3);
		Vector2 position = Math::RandomVec2(-60, 60);

		billboard->Add(Vector3(position.x, scale.y * 0.5f, position.y), scale, 1);
	}

	for (UINT i = 0; i < 700; i++)
	{
		Vector2 scale = Math::RandomVec2(1, 3);
		Vector2 position = Math::RandomVec2(-60, 60);

		billboard->Add(Vector3(position.x, scale.y * 0.5f, position.y), scale, 2);
	}
}

void MrtDemo::Mesh()
{
	//Create Material
	{
		floor = new Material(shader);
		floor->DiffuseMap("Floor.png");
		floor->Specular(1, 1, 1, 20);
		floor->SpecularMap("Floor_Specular.png");
		floor->NormalMap("Floor_Normal.png");

		stone = new Material(shader);
		stone->DiffuseMap("Stones.png");
		stone->Specular(1, 1, 1, 20);
		stone->SpecularMap("Stones_Specular.png");
		stone->Emissive(0.15f, 0.15f, 0.15f, 0.3f);
		stone->NormalMap("Stones_Normal.png");


		brick = new Material(shader);
		brick->DiffuseMap("Bricks.png");
		brick->Specular(1, 0.3f, 0.3f, 20);
		brick->SpecularMap("Bricks_Specular.png");
		brick->Emissive(0.15f, 0.15f, 0.15f, 0.3f);
		brick->NormalMap("Bricks_Normal.png");

		wall = new Material(shader);
		wall->DiffuseMap("Wall.png");
		wall->Specular(1, 1, 1, 20);
		wall->SpecularMap("Wall_Specular.png");
		wall->Emissive(0.15f, 0.15f, 0.15f, 0.3f);
		wall->NormalMap("Wall_Normal.png");
	}

	//Create Mesh
	{
		Transform* transform = NULL;

		cube = new MeshRender(shader, new MeshCube());
		transform = cube->AddTransform();
		transform->Position(0, 5, 0);
		transform->Scale(20, 10, 20);

		grid = new MeshRender(shader, new MeshGrid(5, 5));
		transform = grid->AddTransform();
		transform->Position(0, 0, 0);
		transform->Scale(12, 1, 12);

		cylinder = new MeshRender(shader, new MeshCylinder(0.5f, 3.0f, 20, 20));
		sphere = new MeshRender(shader, new MeshSphere(0.5f, 20, 20));
		for (UINT i = 0; i < 5; i++)
		{
			transform = cylinder->AddTransform();
			transform->Position(-30, 6, -15.0f + (float)i * 15.0f);
			transform->Scale(5, 5, 5);

			transform = cylinder->AddTransform();
			transform->Position(30, 6, -15.0f + (float)i * 15.0f);
			transform->Scale(5, 5, 5);


			transform = sphere->AddTransform();
			transform->Position(-30, 15.5f, -15.0f + (float)i * 15.0f);
			transform->Scale(5, 5, 5);

			transform = sphere->AddTransform();
			transform->Position(30, 15.5f, -15.0f + (float)i * 15.0f);
			transform->Scale(5, 5, 5);
		}
	}

	sphere->UpdateTransforms();
	cylinder->UpdateTransforms();
	cube->UpdateTransforms();
	grid->UpdateTransforms();

	meshes.push_back(sphere);
	meshes.push_back(cylinder);
	meshes.push_back(cube);
	meshes.push_back(grid);
}

void MrtDemo::Airplane()
{
	airplane = new ModelRender(shader);
	airplane->ReadMesh(L"B787/Airplane");
	airplane->ReadMaterial(L"B787/Airplane");

	Transform* transform = airplane->AddTransform();
	transform->Position(2.0f, 9.91f, 2.0f);
	transform->Scale(0.004f, 0.004f, 0.004f);
	airplane->UpdateTransforms();

	models.push_back(airplane);
}

void MrtDemo::Kachujin()
{
	kachujin = new ModelAnimator(shader);
	kachujin->ReadMesh(L"Kachujin/Mesh");
	kachujin->ReadMaterial(L"Kachujin/Mesh");
	kachujin->ReadClip(L"Kachujin/Sword And Shield Idle");
	kachujin->ReadClip(L"Kachujin/Sword And Shield Walk");
	kachujin->ReadClip(L"Kachujin/Sword And Shield Run");
	kachujin->ReadClip(L"Kachujin/Sword And Shield Slash");
	kachujin->ReadClip(L"Kachujin/Salsa Dancing");


	Transform* transform = NULL;

	transform = kachujin->AddTransform();
	transform->Position(0, 0, -30);
	transform->Scale(0.075f, 0.075f, 0.075f);
	kachujin->PlayTweenMode(0, 0, 1.0f);

	transform = kachujin->AddTransform();
	transform->Position(-15, 0, -30);
	transform->Scale(0.075f, 0.075f, 0.075f);
	kachujin->PlayTweenMode(1, 1, 1.0f);

	transform = kachujin->AddTransform();
	transform->Position(-30, 0, -30);
	transform->Scale(0.075f, 0.075f, 0.075f);
	kachujin->PlayTweenMode(2, 2, 0.75f);

	transform = kachujin->AddTransform();
	transform->Position(15, 0, -30);
	transform->Scale(0.075f, 0.075f, 0.075f);
	kachujin->PlayBlendMode(3, 0, 1, 2);
	kachujin->SetBlendAlpha(3, 1.5f);

	transform = kachujin->AddTransform();
	transform->Position(30, 0, -32.5f);
	transform->Scale(0.075f, 0.075f, 0.075f);
	kachujin->PlayTweenMode(4, 4, 0.75f);

	kachujin->UpdateTransforms();

	animators.push_back(kachujin);
}

void MrtDemo::KachujinCollider()
{
	UINT count = kachujin->GetTransformCount();
	colliders = new  ColliderObject*[count];

	colliderInitTransforms = new Transform();
	colliderInitTransforms->Position(-2.9f, 1.45f, -50.0f);
	colliderInitTransforms->Scale(5, 5, 75);

	for (UINT i = 0; i < count; i++)
	{
		colliders[i] = new ColliderObject();

		//colliders[i]->Init = new Transform();
		//colliders[i]->Init->Position(0, 0, 0);
		//colliders[i]->Init->Scale(10, 30, 10);

		colliders[i]->Transform = new Transform();
		//colliders[i]->Collider = new Collider(colliders[i]->Transform, colliders[i]->Init);
		colliders[i]->Collider = new Collider(colliders[i]->Transform, colliderInitTransforms);
	}
}

void MrtDemo::KachujinWeapon()
{
	weapon = new ModelRender(shader);
	weapon->ReadMesh(L"Weapon/Sword");
	weapon->ReadMaterial(L"Weapon/Sword");

	UINT count = kachujin->GetTransformCount();
	for (UINT i = 0; i < count; i++)
		weapon->AddTransform();

	weapon->UpdateTransforms();
	models.push_back(weapon);


	weaponInitTransform = new Transform();
	weaponInitTransform->Position(-2.9f, 1.45f, -6.45f);
	weaponInitTransform->Scale(0.5f, 0.5f, 0.75f);
	weaponInitTransform->Rotation(0, 0, 1);
}

void MrtDemo::PointLighting()
{
	PointLight light;
	light =
	{
		Color(0.0f, 0.0f, 0.0f, 1.0f), //Ambient
		Color(0.0f, 0.0f, 1.0f, 1.0f), //Diffuse
		Color(0.0f, 0.0f, 0.7f, 1.0f), //Specular
		Color(0.0f, 0.0f, 0.7f, 1.0f), //Emissive
		Vector3(-30, 10, -30), 5.0f, 0.9f
	};
	Lighting::Get()->AddPointLight(light);

	light =
	{
		Color(0.0f, 0.0f, 0.0f, 1.0f),
		Color(1.0f, 0.0f, 0.0f, 1.0f),
		Color(0.6f, 0.2f, 0.0f, 1.0f),
		Color(0.6f, 0.3f, 0.0f, 1.0f),
		Vector3(15, 10, -30), 10.0f, 0.3f
	};
	Lighting::Get()->AddPointLight(light);

	light =
	{
		Color(0.0f, 0.0f, 0.0f, 1.0f), //Ambient
		Color(0.0f, 1.0f, 0.0f, 1.0f), //Diffuse
		Color(0.0f, 0.7f, 0.0f, 1.0f), //Specular
		Color(0.0f, 0.7f, 0.0f, 1.0f), //Emissive
		Vector3(-5, 1, -17.5f), 5.0f, 0.9f
	};
	Lighting::Get()->AddPointLight(light);

	light =
	{
		Color(0.0f, 0.0f, 0.0f, 1.0f),
		Color(0.0f, 0.0f, 1.0f, 1.0f),
		Color(0.0f, 0.0f, 0.7f, 1.0f),
		Color(0.0f, 0.0f, 0.7f, 1.0f),
		Vector3(-10, 1, -17.5f), 5.0f, 0.9f
	};
	Lighting::Get()->AddPointLight(light);
}

void MrtDemo::SpotLighting()
{
	SpotLight light;
	light =
	{
		Color(0.3f, 1.0f, 0.0f, 1.0f),
		Color(0.7f, 1.0f, 0.0f, 1.0f),
		Color(0.3f, 1.0f, 0.0f, 1.0f),
		Color(0.3f, 1.0f, 0.0f, 1.0f),
		Vector3(-15, 20, -30), 25.0f,
		Vector3(0, -1, 0), 30.0f, 0.4f
	};
	Lighting::Get()->AddSpotLight(light);

	light =
	{
		Color(1.0f, 0.2f, 0.9f, 1.0f),
		Color(1.0f, 0.2f, 0.9f, 1.0f),
		Color(1.0f, 0.2f, 0.9f, 1.0f),
		Color(1.0f, 0.2f, 0.9f, 1.0f),
		Vector3(0, 20, -30), 30.0f,
		Vector3(0, -1, 0), 40.0f, 0.55f
	};
	Lighting::Get()->AddSpotLight(light);
}

void MrtDemo::Pass(UINT mesh, UINT model, UINT anim)
{
	for (MeshRender* temp : meshes)
		temp->Pass(mesh);

	for (ModelRender* temp : models)
		temp->Pass(model);

	for (ModelAnimator* temp : animators)
		temp->Pass(anim);
}





---

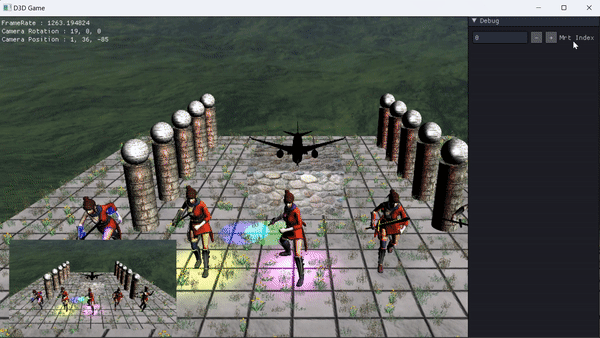

실행화면
