[UE] 활 시위에 손 맞추기

지난 시간에는 활 시위를 구부러뜨리는것을 구현하였다. 오늘은 활 시위를 플레이어 손에 붙였다가 화살 발사 시 손에 떨어뜨리는 것을 구현할 것이다. CDo_Action_Bow를 만들어 발사 시점과 끝난 시점을 구분지어 줄 것이다. CAnimNotifyState_BowString 만들어 손에서 떨어진 활 시위를 다시 붙여주는 시점에 몽타주에 삽입할 것이다.


Plugins
	Weapon
		Resource
			Icon128.png weapon_thumbnail_icon.png
		Source
			Weapon
			SWeaponCheckBoxes.h .cpp SWeaponDetailsView.h .cpp SWeaponDoActionData.h .cpp SWeaponEquipmentData.h .cpp SWeaponHitData.h .cpp SWeaponLeftArea.h .cpp Weapon.Build.cs WeaponAssetEditor.h .cpp WeaponAssetFactory.h .cpp WeaponCommand.h .cpp WeaponContextMenu.h .cpp WeaponModule.h .cpp WeaponStyle.h .cpp


Source
	U2212_06
		Characters
		CAnimInstance.h .cpp CEnemy.h .cpp CPlayer.h .cpp ICharacter.h .cpp
		Components
		CMontagesComponent.h .cpp CMovementComponent.h .cpp CStateComponent.h .cpp CStatusComponent.h .cpp CWeaponComponent.h .cpp
		Notifies
		CAnimNotifyState_BeginAction.h .cpp CAnimNotifyState_BowString.h .cpp 생성 CAnimNotify_CameraShake.h .cpp CAnimNotifyState_EndAction.h .cpp CAnimNotify_EndState.h .cpp CAnimNotifyState.h .cpp CAnimNotifyState_CameraAnim.h .cpp CAnimNotifyState_Collision.h .cpp CAnimNotifyState_Combo.h .cpp CAnimNotifyState_Equip.h .cpp CAnimNotifyState_SubAction.h .cpp
		Utilities
		CHelper.h CLog.h .cpp
		Weapons
		CAura.h .cpp CCamerModifier.h .cpp CGhostTrail.h .cpp CRotate_Object.h .cpp CThornObject.h .cpp CAnimInstance_Bow.h .cpp CAttachment_Bow.h .cpp CDoAction_Around.h .cpp CDoAction_Bow.h .cpp 생성 CDoAction_Combo.h .cpp CDoAction_Warp.h .cpp CSubAction_Around.h .cpp CSubAction_Bow.h .cpp CSubAction_Fist.h .cpp CSubAction_Hammer.h .cpp CSubAction_Sword.h .cpp CDoAction_Warp.h .cpp CAttachment.h .cpp CDoAction.h .cpp CEquipment.h .cpp CSubAction.h .cpp CWeaponAsset.h .cpp CWeaponStructures.h .cpp
		Global.h CGameMode.h .cpp U2212_06.Build.cs
		U2212_06.uproject

활 시위에 손 맞추기

CAttachment_Bow - 캡처를 삭제하고 Do_Action_Bow쪽으로 옮긴다.

CAttachment_Bow.h

#pragma once
#include "CoreMinimal.h"
#include "Weapons/CAttachment.h"
#include "CAttachment_Bow.generated.h"

UCLASS()
class U2212_06_API ACAttachment_Bow : public ACAttachment
{
    GENERATED_BODY()

private:
    UPROPERTY(EditDefaultsOnly, Category = "View")
        FVector2D ViewPitchRange = FVector2D(-40, +30);//Pitch 제한각 설정

private:
    UPROPERTY(VisibleAnywhere)
        class USkeletalMeshComponent* SkeletalMesh;

    UPROPERTY(VisibleAnywhere)
        class UPoseableMeshComponent* PoseableMesh;

public:
    float* GetBend();

public:
    ACAttachment_Bow();

protected:
    virtual void BeginPlay() override;

public:
    virtual void Tick(float DeltaTime) override;

public:
    void OnBeginEquip_Implementation() override;
    void OnUnequip_Implementation() override;

private:
    FVector2D OriginViewPitchRange;
};

변경사항 없음

CAttachment_Bow.h

#include "Weapons/Attachments/CAttachment_Bow.h"
#include "Global.h"
#include "Weapons/AnimInstances/CAnimInstance_Bow.h"
#include "Components/SkeletalMeshComponent.h"
#include "Components/PoseableMeshComponent.h"

ACAttachment_Bow::ACAttachment_Bow()
{
	PrimaryActorTick.bCanEverTick = true;//실시간 적용이 되도록 넣어준다. 안 넣어주면 활 시위가 구부러지는것이 업데이트 되지 않을 수도 있다.

	CHelpers::CreateComponent<USkeletalMeshComponent>(this, &SkeletalMesh, "SkeletalMesh", Root);
	CHelpers::CreateComponent<UPoseableMeshComponent>(this, &PoseableMesh, "PoseableMesh", Root);


	USkeletalMesh* mesh;
	CHelpers::GetAsset<USkeletalMesh>(&mesh, "SkeletalMesh'/Game/Character/Weapons/ElvenBow/SK_ElvenBow.SK_ElvenBow'");
	SkeletalMesh->SetSkeletalMesh(mesh);
	SkeletalMesh->SetCollisionProfileName("NoCollision");

	TSubclassOf<UCAnimInstance_Bow> animInstance;
	CHelpers::GetClass<UCAnimInstance_Bow>(&animInstance, "AnimBlueprint'/Game/Weapons/Bow/ABP_ElvenBow.ABP_ElvenBow_C'");//ABP_ElvenBow 레퍼런스 복사하여 생성.
	SkeletalMesh->SetAnimInstanceClass(animInstance);
}

void ACAttachment_Bow::BeginPlay()
{
	Super::BeginPlay();

	AttachTo("Holster_Bow");

	SkeletalMesh->SetVisibility(false);

	PoseableMesh->SetSkeletalMesh(SkeletalMesh->SkeletalMesh);//SkeletalMesh 내의 SkeletalMesh 사용.
	PoseableMesh->CopyPoseFromSkeletalComponent(SkeletalMesh);//포즈를 캡처해둔다.
}

void ACAttachment_Bow::Tick(float DeltaTime)
{
	Super::Tick(DeltaTime);

	//캡처를 Do_Action_Bow쪽으로 옮긴다.
	//PoseableMesh->CopyPoseFromSkeletalComponent(SkeletalMesh);
}

void ACAttachment_Bow::OnBeginEquip_Implementation()
{
	Super::OnBeginEquip_Implementation();

	AttachTo("Hand_Bow_Left");//Hand_Bow_Left 소켓에 장착.


	APlayerController* controller = OwnerCharacter->GetController<APlayerController>();
	if (!!controller)
	{
		OriginViewPitchRange.X = controller->PlayerCameraManager->ViewPitchMin;
		OriginViewPitchRange.Y = controller->PlayerCameraManager->ViewPitchMax;

		controller->PlayerCameraManager->ViewPitchMin = ViewPitchRange.X;
		controller->PlayerCameraManager->ViewPitchMax = ViewPitchRange.Y;
	}
}

void ACAttachment_Bow::OnUnequip_Implementation()
{
	Super::OnUnequip_Implementation();

	AttachTo("Holster_Bow");//Holster_Bow 소켓에 장착.


	APlayerController* controller = OwnerCharacter->GetController<APlayerController>();
	if (!!controller)
	{
		controller->PlayerCameraManager->ViewPitchMin = OriginViewPitchRange.X;
		controller->PlayerCameraManager->ViewPitchMax = OriginViewPitchRange.Y;
	}
}

float* ACAttachment_Bow::GetBend()
{
	return Cast<UCAnimInstance_Bow>(SkeletalMesh->GetAnimInstance())->GetBend();//UCAnimInstance_Bow 안의 GetBend() 함수로 Bend값 리턴. UCAnimInstance_Bow 안의 Bend값을 사용한다.
}

void ACAttachment_Bow::Tick(float DeltaTime)

PoseableMesh->CopyPoseFromSkeletalComponent(SkeletalMesh);
- 캡처를 삭제(위의 코드 삭제)하고 Do_Action_Bow쪽으로 옮긴다.

CDoAction - OnBegineEquip(), OnUnequip() 함수 추가

CDoAction.h

#pragma once

#include "CoreMinimal.h"
#include "UObject/NoExportTypes.h"
#include "Weapons/CWeaponStructures.h"
#include "CDoAction.generated.h"

UCLASS(Abstract)//DoAction 그 자체로는 객체화되면 안 되기 때문에 Abstract을 붙여준다.
class U2212_06_API UCDoAction : public UObject
{
	GENERATED_BODY()

public:
	UCDoAction();

	virtual void BeginPlay //재정의 할 수 있도록 virtual로 만든다.
	(
		class ACAttachment* InAttachment,
		class UCEquipment* InEquipment,
		class ACharacter* InOwner,
		const TArray<FDoActionData>& InDoActionDatas,//CWeaponStucture내의 FDoActionData
		const TArray<FHitData>& InHitDatas //CWeaponStucture내의 FHitData
	);
	virtual void Tick(float InDeltaTime) { }

public:
	//재정의 할 수 있도록 virtual로 만든다.
	virtual void DoAction();
	virtual void Begin_DoAction();
	virtual void End_DoAction();

public:
	//BeginEquip될 때와 Unequip될 때 충돌체를 제거해줘야 한다.
	//CDoAction_Bow에서 재정의 시키기위해 virtual로 만든다.
	UFUNCTION()
		virtual void OnBeginEquip() { }

	UFUNCTION()
		virtual void OnUnequip() { }

public:
	UFUNCTION()
		virtual void OnAttachmentBeginCollision() {}

	UFUNCTION()
		virtual void OnAttachmentEndCollision() {}

	UFUNCTION()
		virtual void OnAttachmentBeginOverlap(class ACharacter* InAttacker, AActor* InAttackCauser, class ACharacter* InOther) { }

	UFUNCTION()
		virtual void OnAttachmentEndOverlap(class ACharacter* InAttacker, class ACharacter* InOther) { }

protected:
	bool bInAction;
	bool bBeginAction;

	class ACharacter* OwnerCharacter;
	class UWorld* World;

	class UCMovementComponent* Movement;
	class UCStateComponent* State;

	TArray<FDoActionData> DoActionDatas;
	TArray<FHitData> HitDatas;
};

자식 클래스인 CDo_Action_Bow에서 재정의할 함수 추가

UFUNCTION()
virtual void OnBeginEquip() { }
UFUNCTION()
virtual void OnUnequip() { }

CDoAction_Bow에서 재정의 시키기위해 virtual로 만든다. BeginEquip될 때와 Unequip될 때 충돌체를 제거해줘야 한다. 따라서 CDoAction_Bow에서 재정의할 때 OnBeginEquip()에 충돌을 꺼주고 OnUnequip() 시 충돌을 켜준다.

CDoAction.cpp

#include "Weapons/CDoAction.h"
#include "Global.h"
#include "CAttachment.h"
#include "CEquipment.h"
#include "GameFramework/Character.h"
#include "Components/CStateComponent.h"
#include "Components/CMovementComponent.h"

UCDoAction::UCDoAction()
{
}

void UCDoAction::BeginPlay(ACAttachment* InAttachment, UCEquipment* InEquipment, ACharacter* InOwner, const TArray<FDoActionData>& InDoActionDatas, const TArray<FHitData>& InHitDatas)
{
	OwnerCharacter = InOwner;
	World = OwnerCharacter->GetWorld();

	State = CHelpers::GetComponent<UCStateComponent>(OwnerCharacter);
	Movement = CHelpers::GetComponent<UCMovementComponent>(OwnerCharacter);

	DoActionDatas = InDoActionDatas;
	HitDatas = InHitDatas;
}

void UCDoAction::DoAction()
{
	bInAction = true;

	State->SetActionMode();
}

void UCDoAction::Begin_DoAction()
{
	bBeginAction = true;
}

void UCDoAction::End_DoAction()
{
	bInAction = false;
	bBeginAction = false;

	State->SetIdleMode();

	Movement->Move();
	Movement->DisableFixedCamera();
}

변경사항 없음.

CDoAction_Bow 생성

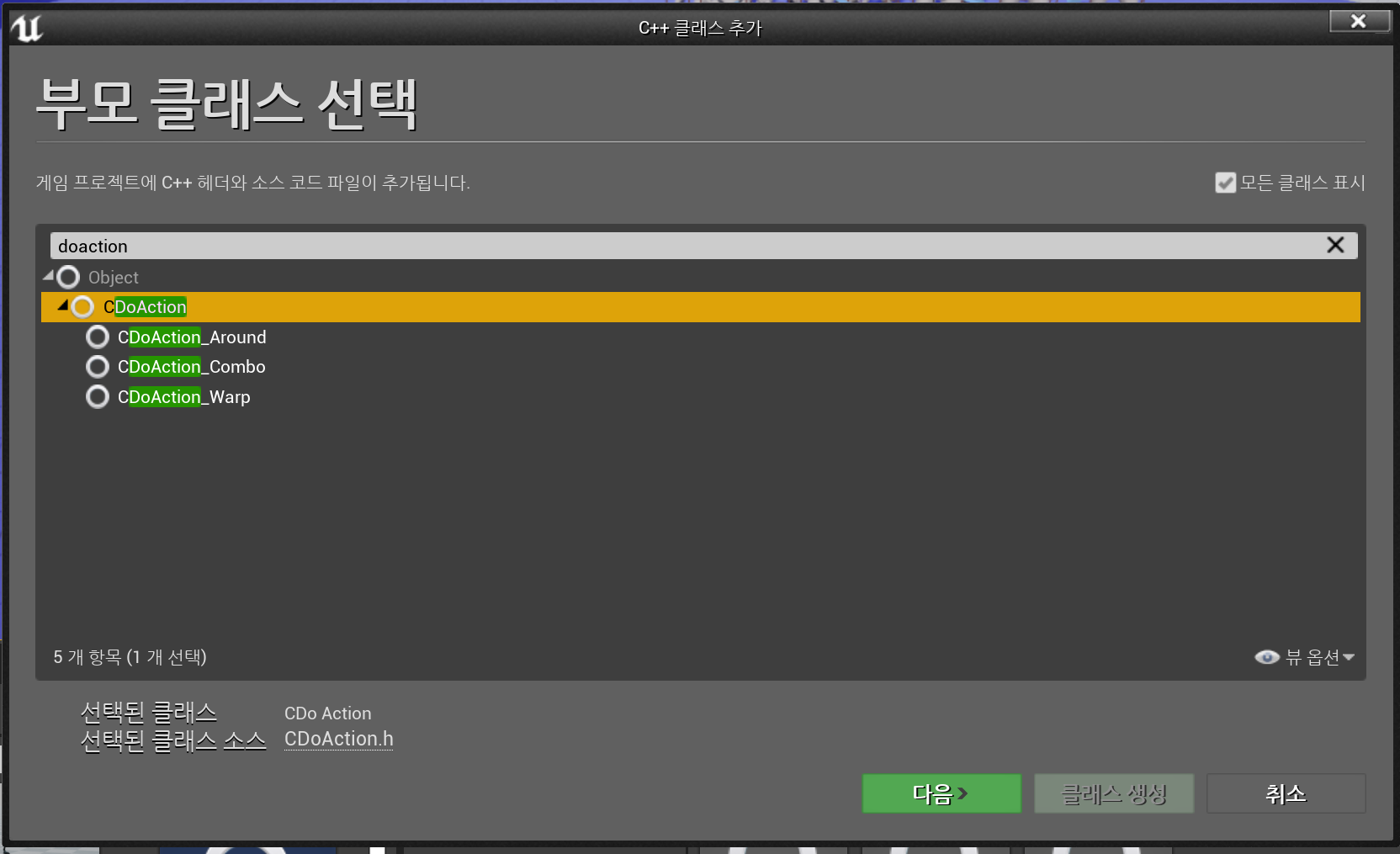

새 C++ 클래스 - CDoAction - CDoAction_Bow 생성

CDoAction_Bow.h

#pragma once
#include "CoreMinimal.h"
#include "Weapons/CDoAction.h"
#include "CDoAction_Bow.generated.h"

UCLASS(Blueprintable)
class U2212_06_API UCDoAction_Bow : public UCDoAction
{
	GENERATED_BODY()

public:
    UCDoAction_Bow();

    void BeginPlay
    (
        class ACAttachment* InAttachment,
        class UCEquipment* InEquipment,
        class ACharacter* InOwner,
        const TArray<FDoActionData>& InDoActionData,
        const TArray<FHitData>& InHitData
    ) override;

    void DoAction() override;
    void Begin_DoAction() override;
    void End_DoAction() override;

    void OnBeginEquip() override;
    void OnUnequip() override;

    void Tick(float InDeltaTime) override;

public:
    void End_BowString();//AnimNotify_BowString의 Notify에서 콜하여 사용한다.

private:
    class USkeletalMeshComponent* SkeletalMesh;
    class UPoseableMeshComponent* PoseableMesh;

private:
    float* Bending;

private:
    FVector OriginLocation;//처음 위치
    bool bAttachedString = true;//true면 활 시위가 손에 붙는다.

private:
    const bool* bEquipped;
};

CDoAction_Bow.cpp

#include "Weapons/DoActions/CDoAction_Bow.h"
#include "Global.h"
#include "Weapons/CEquipment.h"
#include "Weapons/Attachments/CAttachment_Bow.h"
#include "GameFramework/Character.h"
#include "Components/PoseableMeshComponent.h"
#include "Components/CStateComponent.h"
#include "Components/CMovementComponent.h"

UCDoAction_Bow::UCDoAction_Bow()
{

}

void UCDoAction_Bow::BeginPlay(ACAttachment* InAttachment, UCEquipment* InEquipment, ACharacter* InOwner, const TArray<FDoActionData>& InDoActionData, const TArray<FHitData>& InHitData)
{
	Super::BeginPlay(InAttachment, InEquipment, InOwner, InDoActionData, InHitData);

	SkeletalMesh = CHelpers::GetComponent<USkeletalMeshComponent>(InAttachment);
	PoseableMesh = CHelpers::GetComponent<UPoseableMeshComponent>(InAttachment);

	//CAnimInstance.h의 Bend변수를 CAttachment_Bow의 GetBend()함수를 거쳐 여기로 가져와서 사용한다.
	ACAttachment_Bow* bow = Cast<ACAttachment_Bow>(InAttachment);
	Bending = bow->GetBend();

	OriginLocation = PoseableMesh->GetBoneLocationByName("bow_string_mid", EBoneSpaces::ComponentSpace);

	bEquipped = InEquipment->GetEquipped();//헤더에 만든 bEquipped변수에 장착 상태를 받아와서 넣어준다.
}

void UCDoAction_Bow::DoAction()
{
	CheckFalse(State->IsIdleMode());
	CheckFalse(State->IsSubActionMode());

	Super::DoAction();

	DoActionDatas[0].DoAction(OwnerCharacter);
}

void UCDoAction_Bow::Begin_DoAction()//활 발사
{
	Super::Begin_DoAction();

	bAttachedString = false;//발사하면 활 시위가 손에서 떨어지도록 false로 만들어준다.


	*Bending = 0;//활 구부림 0으로 만들어준다.
	PoseableMesh->SetBoneLocationByName("bow_string_mid", OriginLocation, EBoneSpaces::ComponentSpace);//활 시위를 처음 위치로 돌아가게 만들어준다.
}

void UCDoAction_Bow::End_DoAction()
{
	Super::End_DoAction();

}

void UCDoAction_Bow::OnBeginEquip()
{
	Super::OnBeginEquip();

	OwnerCharacter->GetMesh()->SetCollisionEnabled(ECollisionEnabled::NoCollision);//충돌을 꺼준다.
}

void UCDoAction_Bow::OnUnequip()
{
	Super::OnUnequip();

	*Bending = 0;//활 시위 휘어지는 Bending을 0으로 만든다.
	OwnerCharacter->GetMesh()->SetCollisionEnabled(ECollisionEnabled::QueryOnly);//충돌을 켜준다.

	PoseableMesh->SetBoneLocationByName("bow_string_mid", OriginLocation, EBoneSpaces::ComponentSpace);//활 시위를 처음 상태로 돌려준다.
}

void UCDoAction_Bow::Tick(float InDeltaTime)
{
	Super::Tick(InDeltaTime);

	PoseableMesh->CopyPoseFromSkeletalComponent(SkeletalMesh);

	bool bCheck = true;
	bCheck &= (*bEquipped == true);//장착 상태여야 한다.
	bCheck &= (bBeginAction == false);//BeginAction이면(활 발사) 활 시위가 붙으면 안되므로 false여야 한다.
	bCheck &= (bAttachedString == true);//활 시위 붙는게 true여야 한다.

	CheckFalse(bCheck);

	FVector handLocation = OwnerCharacter->GetMesh()->GetSocketLocation("Hand_Bow_Right");
	PoseableMesh->SetBoneLocationByName("bow_string_mid", handLocation, EBoneSpaces::WorldSpace);
}

void UCDoAction_Bow::End_BowString()
{
	*Bending = 100;//활 시위를 땡겨 다시 휘어지게 만들어진다.
	bAttachedString = true;//활 시위가 손에 붙는다.
}

AR_ShootAndDraw_Montage 생성

AR_ShootAndDraw

AR_ShootAndDraw_Montage

Begin DoAction: 활 발사

End_DoAction: 활 시위가 안 휘어지게 Bend를 0으로 만든다. 활 시위와 손이 떨어지게 만든다.

End_BowString: 활 시위가 휘어지게 Bend를 100으로 만든다. 활 시위를 손에 붙인다.

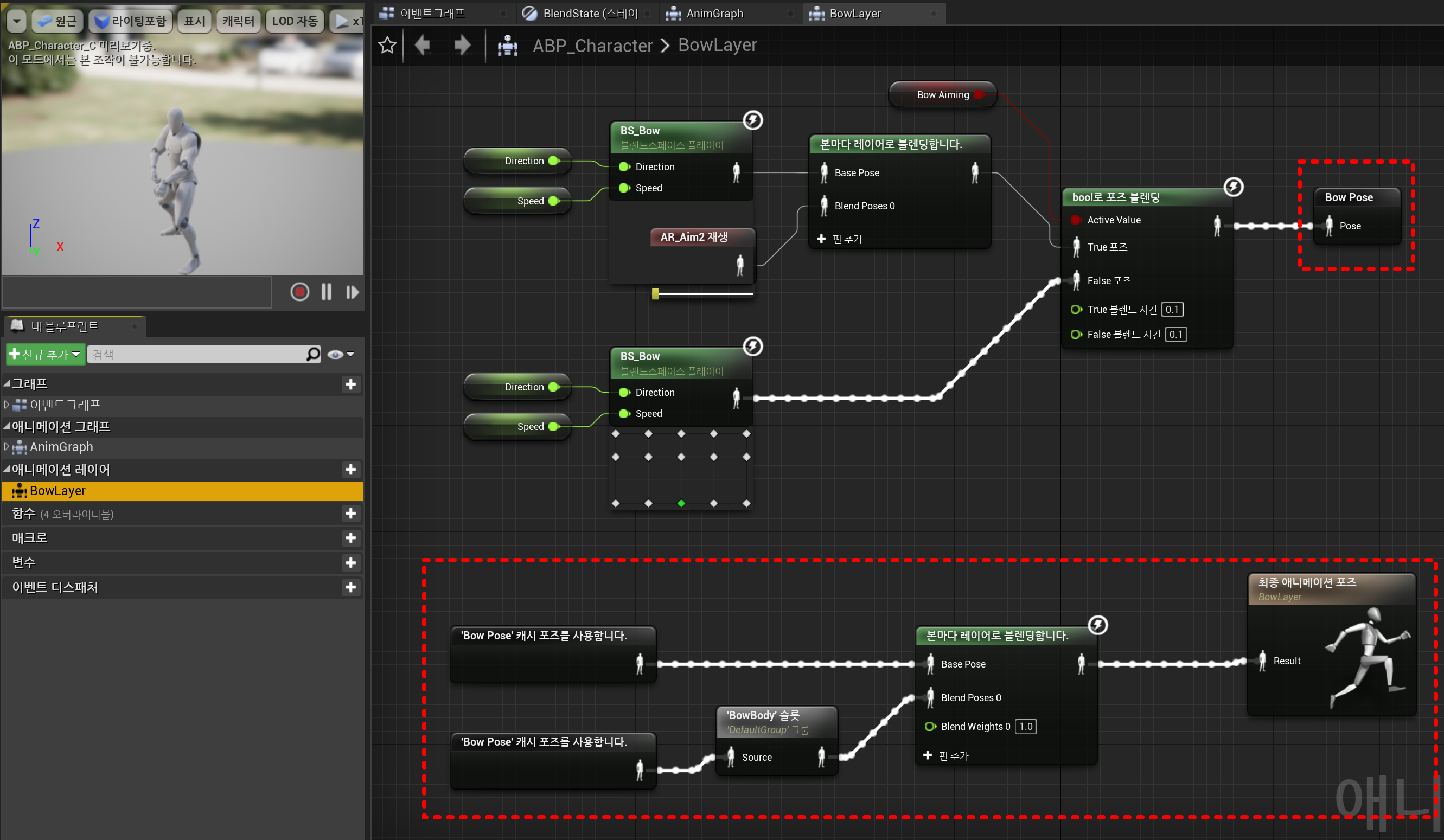

ABP_Character

기존에 만든부분을 Bose Pose로 저장한다.

BowBody 슬롯을 만든다.

'본마다 레이어로 블랜딩합니다'으로 구분한다.

DA_Bow에 DoAction Class와 DoAction Data 할당

CEquipment - 델리게이트 추가

CEquipment.h

#pragma once
#include "CoreMinimal.h"
#include "UObject/NoExportTypes.h"
#include "Weapons/CWeaponStructures.h"
#include "CEquipment.generated.h"

//직렬화하여 BP에서 사용가능하도록 DYNAMIC, 여러함수를 받을 수 있도록 MULTICAST 사용.
DECLARE_DYNAMIC_MULTICAST_DELEGATE(FEquipmentEquip);
DECLARE_DYNAMIC_MULTICAST_DELEGATE(FEquipmentBeginEquip);
DECLARE_DYNAMIC_MULTICAST_DELEGATE(FEquipmentUnequip);

UCLASS()
class U2212_06_API UCEquipment : public UObject
{
	GENERATED_BODY()

public:
	//실시간으로 bEquipped로 가져온다. 주소로 가져온다.
	FORCEINLINE const bool* GetEquipped() { return &bEquipped; }

public:
	void BeginPlay(class ACharacter* InOwner, const FEquipmentData& InData);

public:
	UFUNCTION(BlueprintNativeEvent)//필요시 BP에서 재정의하기 위해 BlueprintNativeEvent사용.
		void Equip();
		void Equip_Implementation();

	UFUNCTION(BlueprintNativeEvent)
		void Begin_Equip();
		void Begin_Equip_Implementation();

	UFUNCTION(BlueprintNativeEvent)
		void End_Equip();
		void End_Equip_Implementation();

	UFUNCTION(BlueprintNativeEvent)
		void Unequip();
		void Unequip_Implementation();

public:
	FEquipmentEquip OnEquipmentEquip;//DECLARE_DYNAMIC_MULTICAST_DELEGATE 하였다.
	FEquipmentBeginEquip OnEquipmentBeginEquip;//DECLARE_DYNAMIC_MULTICAST_DELEGATE 하였다.
	FEquipmentUnequip OnEquipmentUnequip;//DECLARE_DYNAMIC_MULTICAST_DELEGATE 하였다.

private:
	class ACharacter* OwnerCharacter;
	FEquipmentData Data;

private:
	class UCMovementComponent* Movement;
	class UCStateComponent* State;

private:
	bool bBeginEquip;//Equip이 시작되었는가 확인
	bool bEquipped;  //Equip이 완료되었는지 확인
};

델리게이트 추가

DECLARE_DYNAMIC_MULTICAST_DELEGATE(FEquipmentEquip);
- 직렬화하여 BP에서 사용가능하도록 DYNAMIC, 여러함수를 받을 수 있도록 MULTICAST 사용.

변수 추가

FEquipmentEquip OnEquipmentEquip;
- 위에 추가한 DECLARE_DYNAMIC_MULTICAST_DELEGATE에 변수로 사용하였다.

인라인 함수 추가

FORCEINLINE const bool* GetEquipped() { return &bEquipped; }
- 실시간으로 bEquipped로 가져온다. 주소로 가져온다.

CEquipment.cpp

#include "Weapons/CEquipment.h"
#include "Global.h"
#include "GameFramework/Character.h"
#include "Components/CMovementComponent.h"
#include "Components/CStateComponent.h"
#include "CEquipment.h"

void UCEquipment::BeginPlay(ACharacter* InOwner, const FEquipmentData& InData)
{
	OwnerCharacter = InOwner;
	Data = InData;

	Movement = CHelpers::GetComponent<UCMovementComponent>(InOwner);
	State = CHelpers::GetComponent<UCStateComponent>(InOwner);
}

void UCEquipment::Equip_Implementation()
{
	State->SetEquipMode();

	if (OnEquipmentEquip.IsBound())//활 장착 확인?
		OnEquipmentEquip.Broadcast();

	if (Data.bCanMove == false)
		Movement->Stop();

	if (Data.bUseControlRotation)
		Movement->EnableControlRotation();

	if (!!Data.Montage)
	{
		OwnerCharacter->PlayAnimMontage(Data.Montage, Data.PlayRate);
	}
	else
	{
		Begin_Equip();
		End_Equip();
	}
}

void UCEquipment::Begin_Equip_Implementation()
{
	bBeginEquip = true;

	if (OnEquipmentBeginEquip.IsBound())
		OnEquipmentBeginEquip.Broadcast();
}

void UCEquipment::End_Equip_Implementation()
{
	bBeginEquip = false;
	bEquipped = true;

	Movement->Move();
	State->SetIdleMode();
}

void UCEquipment::Unequip_Implementation()
{
	bEquipped = false;
	Movement->DisableControlRotation();

	if (OnEquipmentUnequip.IsBound())
		OnEquipmentUnequip.Broadcast();
}

void UCEquipment::Equip_Implementation()

if (OnEquipmentEquip.IsBound())
OnEquipmentEquip.Broadcast();
- isBound() 함수는 delegate가 현재 bind되어 있는지 확인하는 함수이고, broadcast() 함수는 delegate를 호출하는 함수다.

CWeaponAsset

CWeaponAsset.h

#pragma once
#include "CoreMinimal.h"
#include "Engine/DataAsset.h"
#include "Weapons/CWeaponStructures.h"
#include "CWeaponAsset.generated.h"

UCLASS()
class U2212_06_API UCWeaponAsset : public UDataAsset
{
	GENERATED_BODY()

private:
	UPROPERTY(EditAnywhere)
		TSubclassOf<class ACAttachment> AttachmentClass;

	UPROPERTY(EditAnywhere)
		FEquipmentData EquipmentData;

	UPROPERTY(EditAnywhere)
		TSubclassOf<class UCEquipment> EquipmentClass;

	UPROPERTY(EditAnywhere)
		TSubclassOf<class UCDoAction> DoActionClass;

	UPROPERTY(EditAnywhere)
		TArray<FDoActionData> DoActionDatas; //CWeaopnStructure내의 FDoActionData

	UPROPERTY(EditAnywhere)
		TArray<FHitData> HitDatas; //CWeaopnStructure내의 FHitData

	UPROPERTY(EditAnywhere)
		TSubclassOf<class UCSubAction> SubActionClass;

public:
	FORCEINLINE class ACAttachment* GetAttachment() { return Attachment; }//외부에 생성된 것을 리턴해줌.
	FORCEINLINE class UCEquipment* GetEquipment() { return Equipment; }//외부에 생성된 것을 리턴해줌.
	FORCEINLINE class UCDoAction* GetDoAction() { return DoAction; }//외부에 생성된 것을 리턴해줌.
	FORCEINLINE class UCSubAction* GetSubAction() { return SubAction; }//외부에 생성된 것을 리턴해줌.

public:
	UCWeaponAsset();

	void BeginPlay(class ACharacter* InOwner);

private:
	//UPROPERTY를 붙여 가비지 콜렉터가 제거하기 전까지 물고 있게 만든다.
	//UWeaponAsset은 UObject로부터 상속받아 Actor의 생성주기에 영향을 받지 않아 가비지 콜렉터에 영향을 받는다.
	UPROPERTY()
		class ACAttachment* Attachment;

	UPROPERTY()
		class UCEquipment* Equipment;

	UPROPERTY()
		class UCDoAction* DoAction;

	UPROPERTY()
		class UCSubAction* SubAction;

#if WITH_EDITOR //Editor 내에서만 수행
	void PostEditChangeChainProperty(struct FPropertyChangedChainEvent& PropertyChangedEvent) override;
#endif
};

변경사항 없음

CWeaponAsset.cpp

#include "Weapons/CWeaponAsset.h"
#include "Global.h"
#include "CAttachment.h"
#include "CEquipment.h"
#include "CDoAction.h"
#include "CSubAction.h"
#include "GameFramework/Character.h"

UCWeaponAsset::UCWeaponAsset()
{
	AttachmentClass = ACAttachment::StaticClass();//기본값
	EquipmentClass = UCEquipment::StaticClass();//기본값
}

void UCWeaponAsset::BeginPlay(ACharacter* InOwner)
{
	if (!!AttachmentClass)//AttachmentClass가 선택되어 있다면
	{
		FActorSpawnParameters params;
		params.Owner = InOwner;

		Attachment = InOwner->GetWorld()->SpawnActor<ACAttachment>(AttachmentClass, params);
	}

	if (!!EquipmentClass)//EquipmentClass가 선택되어 있다면
	{
		Equipment = NewObject<UCEquipment>(this, EquipmentClass);
		Equipment->BeginPlay(InOwner, EquipmentData);

		if (!!Attachment)//Attachment가 있다면
		{
			Equipment->OnEquipmentBeginEquip.AddDynamic(Attachment, &ACAttachment::OnBeginEquip);
			Equipment->OnEquipmentUnequip.AddDynamic(Attachment, &ACAttachment::OnUnequip);
		}
	}

	if(!!DoActionClass)
	{
		DoAction = NewObject<UCDoAction>(this, DoActionClass);
		DoAction->BeginPlay(Attachment, Equipment, InOwner, DoActionDatas, HitDatas);

		if (!!Attachment)
		{
			Attachment->OnAttachmentBeginCollision.AddDynamic(DoAction, &UCDoAction::OnAttachmentBeginCollision);
			Attachment->OnAttachmentEndCollision.AddDynamic(DoAction, &UCDoAction::OnAttachmentEndCollision);

			Attachment->OnAttachmentBeginOverlap.AddDynamic(DoAction, &UCDoAction::OnAttachmentBeginOverlap);
			Attachment->OnAttachmentEndOverlap.AddDynamic(DoAction, &UCDoAction::OnAttachmentEndOverlap);
		}

		if (!!Equipment)//Bow_String 작업
		{
			Equipment->OnEquipmentBeginEquip.AddDynamic(DoAction, &UCDoAction::OnBeginEquip);
			Equipment->OnEquipmentUnequip.AddDynamic(DoAction, &UCDoAction::OnUnequip);
		}
	}

	if(!!SubActionClass)
	{
		SubAction = NewObject<UCSubAction>(this, SubActionClass);
		SubAction->BeginPlay(InOwner, Attachment, DoAction);
	}
}

#if WITH_EDITOR //Editor 내에서만 수행
void UCWeaponAsset::PostEditChangeChainProperty(FPropertyChangedChainEvent& PropertyChangedEvent)
{
	Super::PostEditChangeChainProperty(PropertyChangedEvent);
	CheckTrue(FApp::IsGame());//게임이 실행중이면 실행하면 안 되기 때문에 체크

	bool bRefresh = false;
	bRefresh |= PropertyChangedEvent.GetPropertyName().Compare("DoActionDatas") == 0;
	bRefresh |= PropertyChangedEvent.GetPropertyName().Compare("HitDatas") == 0;//수정하려는 변수명 == 0 이면 이름이 동일하다는 의미.

	if (bRefresh)
	{
		bool bCheck = false;
		bCheck |= PropertyChangedEvent.ChangeType == EPropertyChangeType::ArrayAdd;
		bCheck |= PropertyChangedEvent.ChangeType == EPropertyChangeType::ArrayRemove;
		bCheck |= PropertyChangedEvent.ChangeType == EPropertyChangeType::ArrayClear;
		bCheck |= PropertyChangedEvent.ChangeType == EPropertyChangeType::Duplicate;

		if (bCheck)
		{
			FPropertyEditorModule& prop = FModuleManager::LoadModuleChecked<FPropertyEditorModule>("PropertyEditor");//WITH_EDITOR로 Editor 내에서 수행하기 때문에 사용 가능.
			TSharedPtr<IDetailsView> detailsView = prop.FindDetailView("WeaponAssetEditorDetailsView");//WeaponAssetEditor.cpp에서 설정한 arg.ViewIdentifier이름 WeaponAssetEditorDetailsView 사용. WeaponAssetEditorDetailsView를 찾는다.

			if (detailsView.IsValid())//detailsView 창이 그려졌다면
				detailsView->ForceRefresh();//새로고침
		}
	}
}
#endif

함수 내용 추가

void UCWeaponAsset::BeginPlay(ACharacter* InOwner)

if(!!DoActionClass) //DoAction 클래스가 있다면
- if (!!Equipment) //Equipment가 true라면
  - Equipment->OnEquipmentBeginEquip.AddDynamic(DoAction, &UCDoAction::OnBeginEquip);
  - Equipment->OnEquipmentUnequip.AddDynamic(DoAction, &UCDoAction::OnUnequip);
  - OnBegineEquip과 OnUnequip함수를 델리게이트 연결처리해준다.

CAnimNotify_BowString 생성

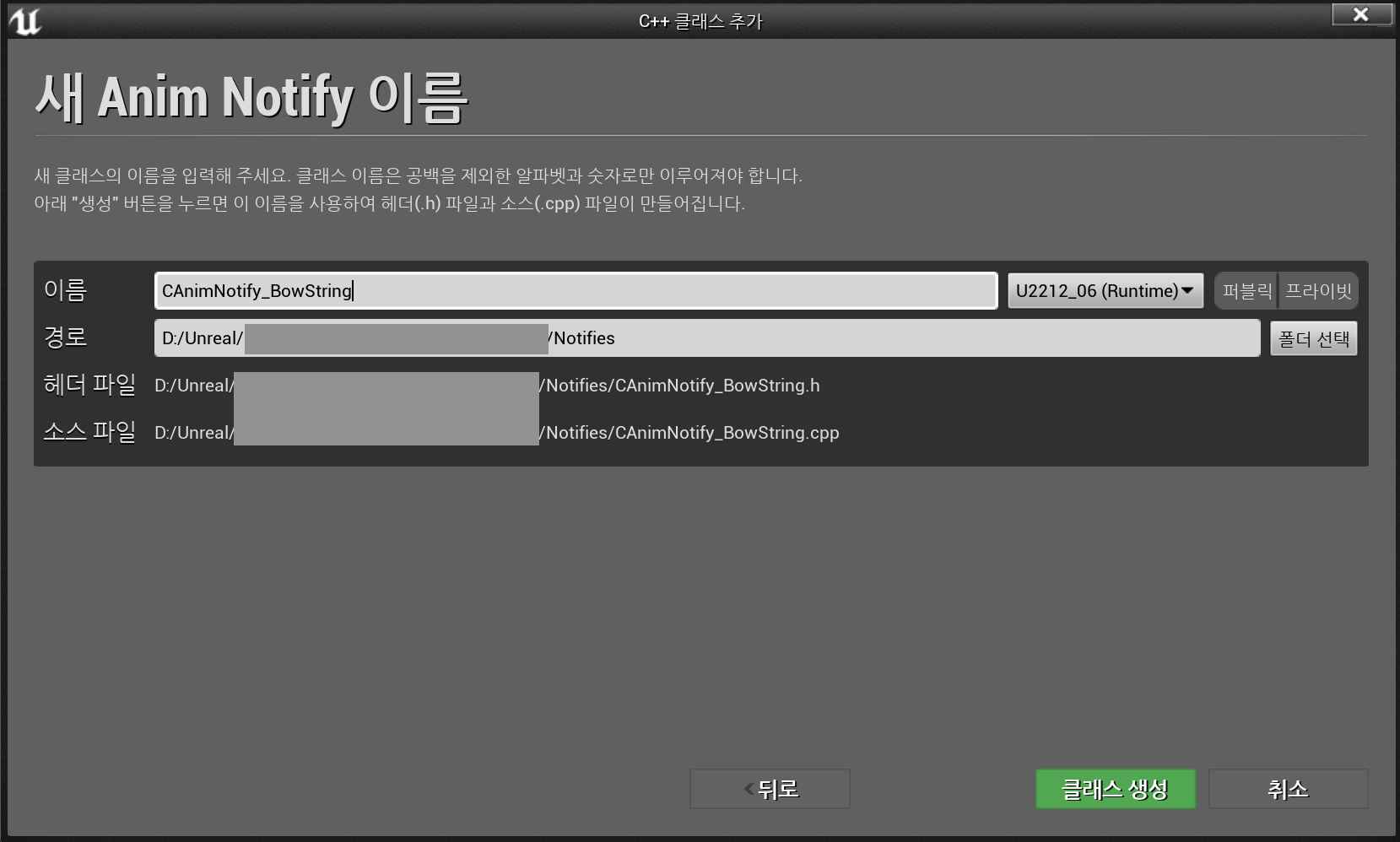

새 C++ 클래스- AnimNotify - CAnimNotify_BowString 생성

CAnimNotify_BowString.h

#pragma once
#include "CoreMinimal.h"
#include "Animation/AnimNotifies/AnimNotify.h"
#include "CAnimNotify_BowString.generated.h"

UCLASS()
class U2212_06_API UCAnimNotify_BowString : public UAnimNotify
{
	GENERATED_BODY()

public:
	FString GetNotifyName_Implementation() const override;

	void Notify(USkeletalMeshComponent* MeshComp, UAnimSequenceBase* Animation) override;
};

CAnimNotify_BowString.cpp

#include "Notifies/CAnimNotify_BowString.h"
#include "Global.h"
#include "Components/CWeaponComponent.h"
#include "Weapons/DoActions/CDoAction_Bow.h"

FString UCAnimNotify_BowString::GetNotifyName_Implementation() const
{
	return "End_BowString";
}

void UCAnimNotify_BowString::Notify(USkeletalMeshComponent* MeshComp, UAnimSequenceBase* Animation)
{
	Super::Notify(MeshComp, Animation);
	CheckNull(MeshComp);
	CheckNull(MeshComp->GetOwner());

	UCWeaponComponent* weapon = CHelpers::GetComponent<UCWeaponComponent>(MeshComp->GetOwner());
	CheckNull(weapon);
	CheckNull(weapon->GetDoAction());

	UCDoAction_Bow* bow = Cast<UCDoAction_Bow>(weapon->GetDoAction());
	CheckNull(bow);

	bow->End_BowString();//CDoAction_Bow의 End_BowString을 콜하여 활 시위를 휘게 만들고 손에 붙인다.
}

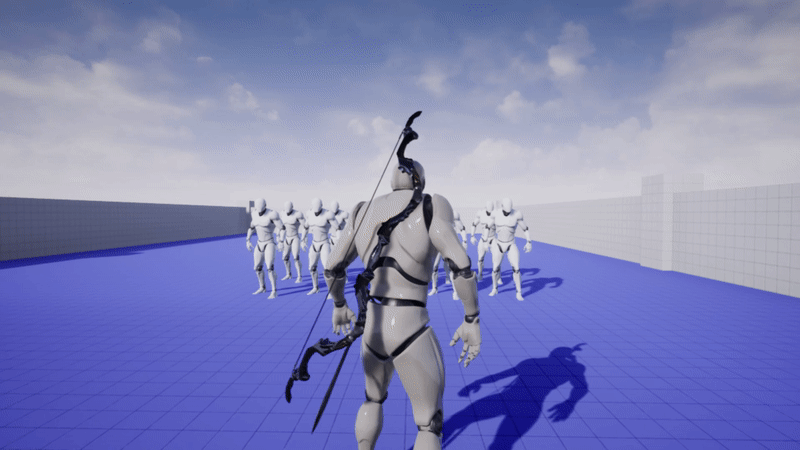

실행화면

'⭐ Unreal Engine > UE RPG Skill' 카테고리의 다른 글

[UE] 파쿠르 구현하기 (0)	2023.07.18
[UE] 화살 (0)	2023.07.13
[UE] 활 시위 당기기 (0)	2023.07.07
[UE] 활 조준 (0)	2023.07.06
[UE] 활 구현하기 (0)	2023.07.05

[UE] 활 시위에 손 맞추기

활 시위에 손 맞추기

CAttachment_Bow - 캡처를 삭제하고 Do_Action_Bow쪽으로 옮긴다.

CDoAction - OnBegineEquip(), OnUnequip() 함수 추가

CDoAction_Bow 생성

AR_ShootAndDraw_Montage 생성

ABP_Character

DA_Bow에 DoAction Class와 DoAction Data 할당

CEquipment - 델리게이트 추가

CWeaponAsset

CAnimNotify_BowString 생성

실행화면

'⭐ Unreal Engine > UE RPG Skill' 카테고리의 다른 글

댓글

이 글 공유하기

티스토리툴바

활 시위에 손 맞추기

CAttachment_Bow - 캡처를 삭제하고 Do_Action_Bow쪽으로 옮긴다.

CDoAction - OnBegineEquip(), OnUnequip() 함수 추가

CDoAction_Bow 생성

AR_ShootAndDraw_Montage 생성

ABP_Character

DA_Bow에 DoAction Class와 DoAction Data 할당

CEquipment - 델리게이트 추가

CWeaponAsset

CAnimNotify_BowString 생성

실행화면

'⭐ Unreal Engine > UE RPG Skill' 카테고리의 다른 글

댓글

이 글 공유하기

다른 글

[UE] 파쿠르 구현하기

[UE] 화살

[UE] 활 시위 당기기

[UE] 활 조준

티스토리툴바
