[UE] 활 구현하기

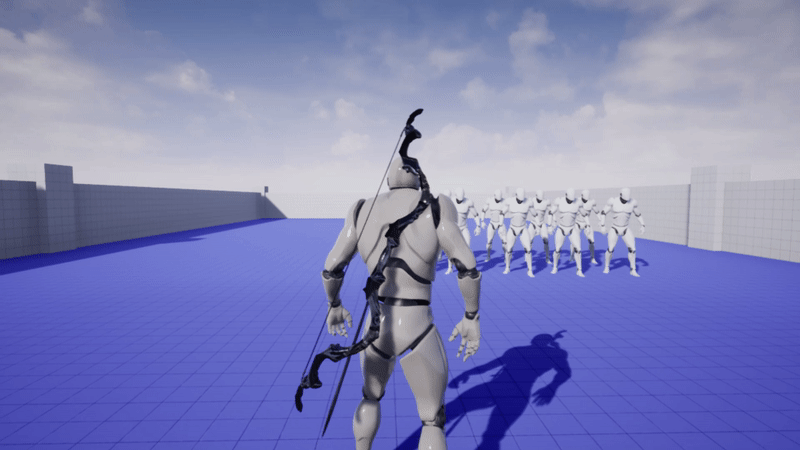

이전에 만든 Attachment을 구조를 활용하여 활 무기를 추가해보자. CAttachment_Bow를 생성하여 활용하여 활은 만든다. BlendSpace와 Curve를 활용하여 활이 구부러지는 것을 구현한다.


Plugins
	Weapon
		Resource
			Icon128.png weapon_thumbnail_icon.png
		Source
			Weapon
			SWeaponCheckBoxes.h .cpp SWeaponDetailsView.h .cpp SWeaponDoActionData.h .cpp SWeaponEquipmentData.h .cpp SWeaponHitData.h .cpp SWeaponLeftArea.h .cpp Weapon.Build.cs WeaponAssetEditor.h .cpp WeaponAssetFactory.h .cpp WeaponCommand.h .cpp WeaponContextMenu.h .cpp WeaponModule.h .cpp WeaponStyle.h .cpp


Source
	U2212_06
		Characters
		CAnimInstance.h .cpp CEnemy.h .cpp CPlayer.h .cpp ICharacter.h .cpp
		Components
		CMontagesComponent.h .cpp CMovementComponent.h .cpp CStateComponent.h .cpp CStatusComponent.h .cpp CWeaponComponent.h .cpp
		Notifies
		CAnimNotifyState_BeginAction.h .cpp CAnimNotify_CameraShake.h .cpp CAnimNotifyState_EndAction.h .cpp CAnimNotify_EndState.h .cpp CAnimNotifyState.h .cpp CAnimNotifyState_CameraAnim.h .cpp CAnimNotifyState_Collision.h .cpp CAnimNotifyState_Combo.h .cpp CAnimNotifyState_Equip.h .cpp CAnimNotifyState_SubAction.h .cpp
		Utilities
		CHelper.h CLog.h .cpp
		Weapons
		CAura.h .cpp CCamerModifier.h .cpp CGhostTrail.h .cpp CRotate_Object.h .cpp CThornObject.h .cpp CAttachment_Bow.h .cpp 생성 CDoAction_Around.h .cpp CDoAction_Combo.h .cpp CDoAction_Warp.h .cpp CSubAction_Around.h .cpp CSubAction_Bow.h .cpp 생성 CSubAction_Fist.h .cpp CSubAction_Hammer.h .cpp CSubAction_Sword.h .cpp CDoAction_Warp.h .cpp CAttachment.h .cpp CDoAction.h .cpp CEquipment.h .cpp CSubAction.h .cpp CWeaponAsset.h .cpp CWeaponStructures.h .cpp
		Global.h CGameMode.h .cpp U2212_06.Build.cs
		U2212_06.uproject

활 구현하기

CPlayer.cpp - 키 맵핑 (Bow)

CPlayer.cpp

 #include "Characters/CPlayer.h"
#include "Global.h"
#include "CAnimInstance.h"
#include "GameFramework/SpringArmComponent.h"
#include "GameFramework/CharacterMovementComponent.h"
#include "Camera/CameraComponent.h"
#include "Components/SkeletalMeshComponent.h"
#include "Components/InputComponent.h"
#include "Components/CMontagesComponent.h"
#include "Components/CMovementComponent.h"
#include "Components/CWeaponComponent.h"

ACPlayer::ACPlayer()
{
	CHelpers::CreateComponent<USpringArmComponent>(this, &SpringArm, "SpringArm", GetMesh());
	CHelpers::CreateComponent<UCameraComponent>(this, &Camera, "Camera", SpringArm);

	CHelpers::CreateActorComponent<UCWeaponComponent>(this, &Weapon, "Weapon");
	CHelpers::CreateActorComponent<UCMontagesComponent>(this, &Montages, "Montages");
	CHelpers::CreateActorComponent<UCMovementComponent>(this, &Movement, "Movement");
	CHelpers::CreateActorComponent<UCStateComponent>(this, &State, "State");

	GetMesh()->SetRelativeLocation(FVector(0, 0, -90));
	GetMesh()->SetRelativeRotation(FRotator(0, -90, 0));

	USkeletalMesh* mesh;
	CHelpers::GetAsset<USkeletalMesh>(&mesh, "SkeletalMesh'/Game/Character/Mesh/SK_Mannequin.SK_Mannequin'");
	GetMesh()->SetSkeletalMesh(mesh);

	TSubclassOf<UCAnimInstance> animInstance;
	CHelpers::GetClass<UCAnimInstance>(&animInstance, "AnimBlueprint'/Game/ABP_Character.ABP_Character_C'");
	GetMesh()->SetAnimClass(animInstance);

	SpringArm->SetRelativeLocation(FVector(0, 0, 140));
	SpringArm->SetRelativeRotation(FRotator(0, 90, 0));
	SpringArm->TargetArmLength = 200;
	SpringArm->bDoCollisionTest = false;
	SpringArm->bUsePawnControlRotation = true;
	SpringArm->bEnableCameraLag = true;

	GetCharacterMovement()->RotationRate = FRotator(0, 720, 0);

}

void ACPlayer::BeginPlay()
{
	Super::BeginPlay();

	Movement->OnRun(); //Movement의 기본을 Run으로 설정
	Movement->DisableControlRotation();//Movement의 기본을 DisableControlRotation으로 설정

	State->OnStateTypeChanged.AddDynamic(this, &ACPlayer::OnStateTypeChanged);
}

void ACPlayer::SetupPlayerInputComponent(UInputComponent* PlayerInputComponent)
{
	Super::SetupPlayerInputComponent(PlayerInputComponent);

	PlayerInputComponent->BindAxis("MoveForward", Movement, &UCMovementComponent::OnMoveForward);
	PlayerInputComponent->BindAxis("MoveRight", Movement, &UCMovementComponent::OnMoveRight);
	PlayerInputComponent->BindAxis("VerticalLook", Movement, &UCMovementComponent::OnVerticalLook);
	PlayerInputComponent->BindAxis("HorizontalLook", Movement, &UCMovementComponent::OnHorizontalLook);

	PlayerInputComponent->BindAction("Sprint", EInputEvent::IE_Pressed, Movement, &UCMovementComponent::OnSprint);
	PlayerInputComponent->BindAction("Sprint", EInputEvent::IE_Released, Movement, &UCMovementComponent::OnRun);

	PlayerInputComponent->BindAction("Avoid", EInputEvent::IE_Pressed, this, &ACPlayer::OnAvoid);

	PlayerInputComponent->BindAction("Fist", EInputEvent::IE_Pressed, Weapon, &UCWeaponComponent::SetFistMode);
	PlayerInputComponent->BindAction("Sword", EInputEvent::IE_Pressed, Weapon, &UCWeaponComponent::SetSwordMode);
	PlayerInputComponent->BindAction("Hammer", EInputEvent::IE_Pressed, Weapon, &UCWeaponComponent::SetHammerMode);
	PlayerInputComponent->BindAction("Warp", EInputEvent::IE_Pressed, Weapon, &UCWeaponComponent::SetWarpMode);
	PlayerInputComponent->BindAction("Around", EInputEvent::IE_Pressed, Weapon, &UCWeaponComponent::SetAroundMode);
	PlayerInputComponent->BindAction("Bow", EInputEvent::IE_Pressed, Weapon, &UCWeaponComponent::SetBowMode);

	PlayerInputComponent->BindAction("Action", EInputEvent::IE_Pressed, Weapon, &UCWeaponComponent::DoAction);

	PlayerInputComponent->BindAction("SubAction", EInputEvent::IE_Pressed, Weapon, &UCWeaponComponent::SubAction_Pressed);
	PlayerInputComponent->BindAction("SubAction", EInputEvent::IE_Released, Weapon, &UCWeaponComponent::SubAction_Released);
}

void ACPlayer::OnStateTypeChanged(EStateType InPrevType, EStateType InNewType)
{
	switch (InNewType)
	{
		case EStateType::BackStep: BackStep(); break;
	}
}

void ACPlayer::OnAvoid()
{
	CheckFalse(State->IsIdleMode());
	CheckFalse(Movement->CanMove());

	CheckTrue(InputComponent->GetAxisValue("MoveForward") >= 0.0f);//뒷방향을 입력했다면

	State->SetBackStepMode();//State을 BackStepMode로 변경한다.
}

void ACPlayer::BackStep()
{
	Movement->EnableControlRotation();//정면을 바라본 상태로 뒤로 뛰어야하기 때문에 EnableControlRotation으로 만들어준다.

	Montages->PlayBackStepMode();//PlayBackStepMode()를 통해 몽타주 재생.
}

void ACPlayer::End_BackStep()
{
	Movement->DisableControlRotation();//Backstep이 끝나면 원래대로 돌려준다.

	State->SetIdleMode();//Idle상태로 돌려줌.
}

키 맵핑 void ACPlayer::SetupPlayerInputComponent(UInputComponent* PlayerInputComponent)

PlayerInputComponent->BindAction("Bow", EInputEvent::IE_Pressed, Weapon, &UCWeaponComponent::SetBowMode);

CAttachment

CAttachment.h

 #pragma once

#include "CoreMinimal.h"
#include "GameFramework/Actor.h"
#include "CAttachment.generated.h"

DECLARE_DYNAMIC_MULTICAST_DELEGATE(FAttachmentBeginCollision);
DECLARE_DYNAMIC_MULTICAST_DELEGATE(FAttachmentEndCollision);

DECLARE_DYNAMIC_MULTICAST_DELEGATE_ThreeParams(FAttachmentBeginOverlap, class ACharacter*, InAttacker, AActor*, InAttackCauser, class ACharacter*, InOther);
DECLARE_DYNAMIC_MULTICAST_DELEGATE_TwoParams(FAttachmentEndOverlap, class ACharacter*, InAttacker, class ACharacter*, InOther);

UCLASS()
class U2212_06_API ACAttachment : public AActor
{
	GENERATED_BODY()

protected:
	UPROPERTY(BlueprintReadOnly, VisibleAnywhere)
		class USceneComponent* Root;

public:
	ACAttachment();

protected:
	virtual void BeginPlay() override;

public:
	UFUNCTION(BlueprintNativeEvent)
		void OnBeginEquip();
	virtual void OnBeginEquip_Implementation() {}

	UFUNCTION(BlueprintNativeEvent)
		void OnUnequip();
	virtual void OnUnequip_Implementation() {}

	//위에걸로 수정하였다.
	/*UFUNCTION(BlueprintImplementableEvent)
		void OnBeginEquip();

	UFUNCTION(BlueprintImplementableEvent)
		void OnUnequip();*/

public:
	void OnCollisions(); //Collision 켜기
	void OffCollisions();//Collision 끄기

private:
	UFUNCTION()
		void OnComponentBeginOverlap(UPrimitiveComponent* OverlappedComponent, AActor* OtherActor, UPrimitiveComponent* OtherComp, int32 OtherBodyIndex, bool bFromSweep, const FHitResult& SweepResult);

	UFUNCTION()
		void OnComponentEndOverlap(UPrimitiveComponent* OverlappedComponent, AActor* OtherActor, UPrimitiveComponent* OtherComp, int32 OtherBodyIndex);

protected:
	UFUNCTION(BlueprintCallable, Category = "Attach")
		void AttachTo(FName InSocketName);

	UFUNCTION(BlueprintCallable, Category = "Attach")
		void AttachToCollision(FName InCollisionName);

public:
	FAttachmentBeginCollision OnAttachmentBeginCollision;
	FAttachmentEndCollision OnAttachmentEndCollision;

	FAttachmentBeginOverlap OnAttachmentBeginOverlap;
	FAttachmentEndOverlap OnAttachmentEndOverlap;

protected:
	UPROPERTY(BlueprintReadOnly, Category = "Game")
		class ACharacter* OwnerCharacter;

	//UShapeComponent는 UBox,Capsule,SphereComponent의 상위클래스
	UPROPERTY(BlueprintReadOnly, Category = "Game")
		TArray<class UShapeComponent*> Collisions;
};

수정 전

UFUNCTION(BlueprintImplementableEvent)
void OnBeginEquip();
UFUNCTION(BlueprintImplementableEvent)
void OnUnequip()

수정 후

UFUNCTION(BlueprintNativeEvent)
void OnBeginEquip();
virtual void OnBeginEquip_Implementation() {}
UFUNCTION(BlueprintNativeEvent)
void OnUnequip();
virtual void OnUnequip_Implementation() {}

CAttachment_Bow 생성

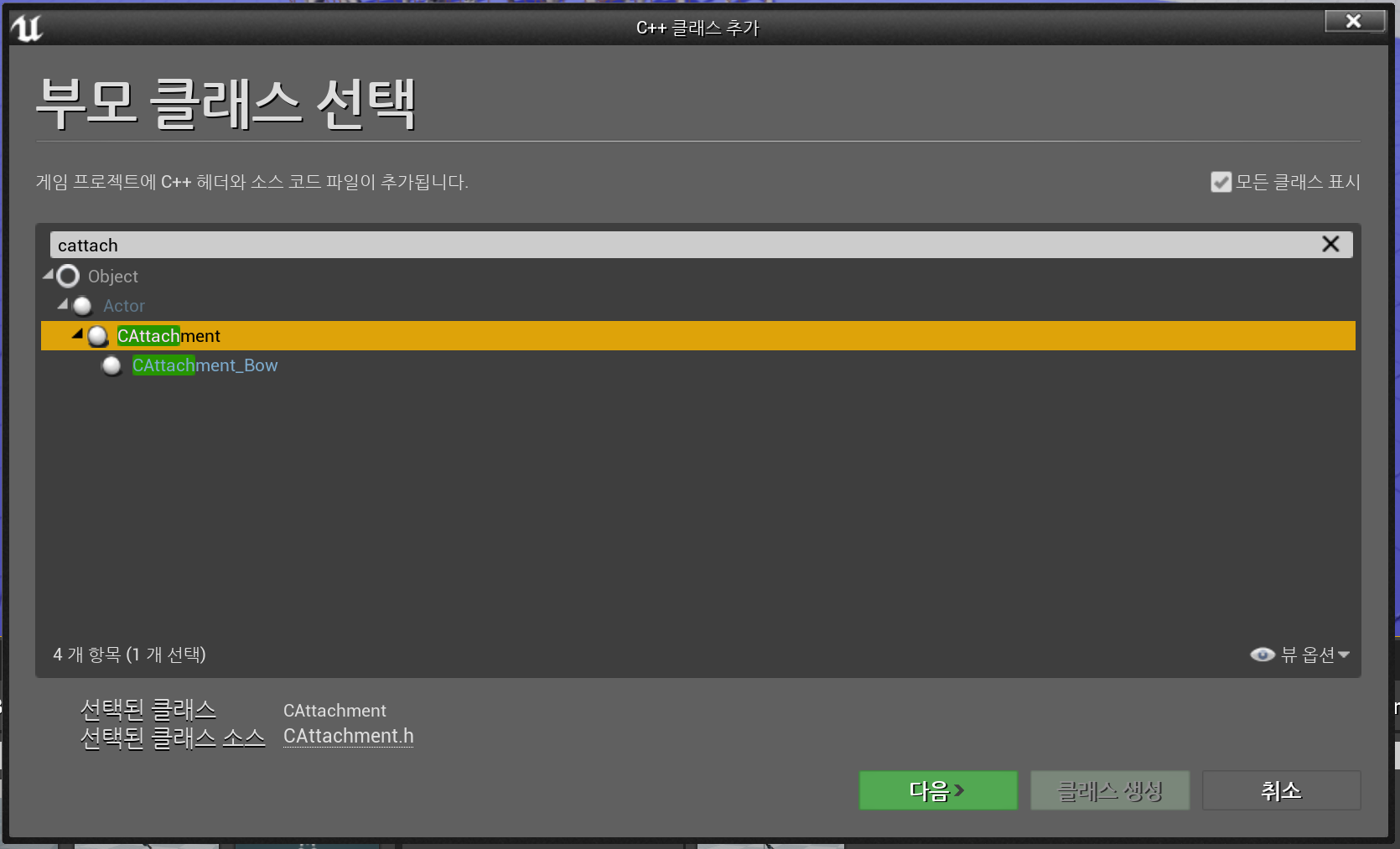

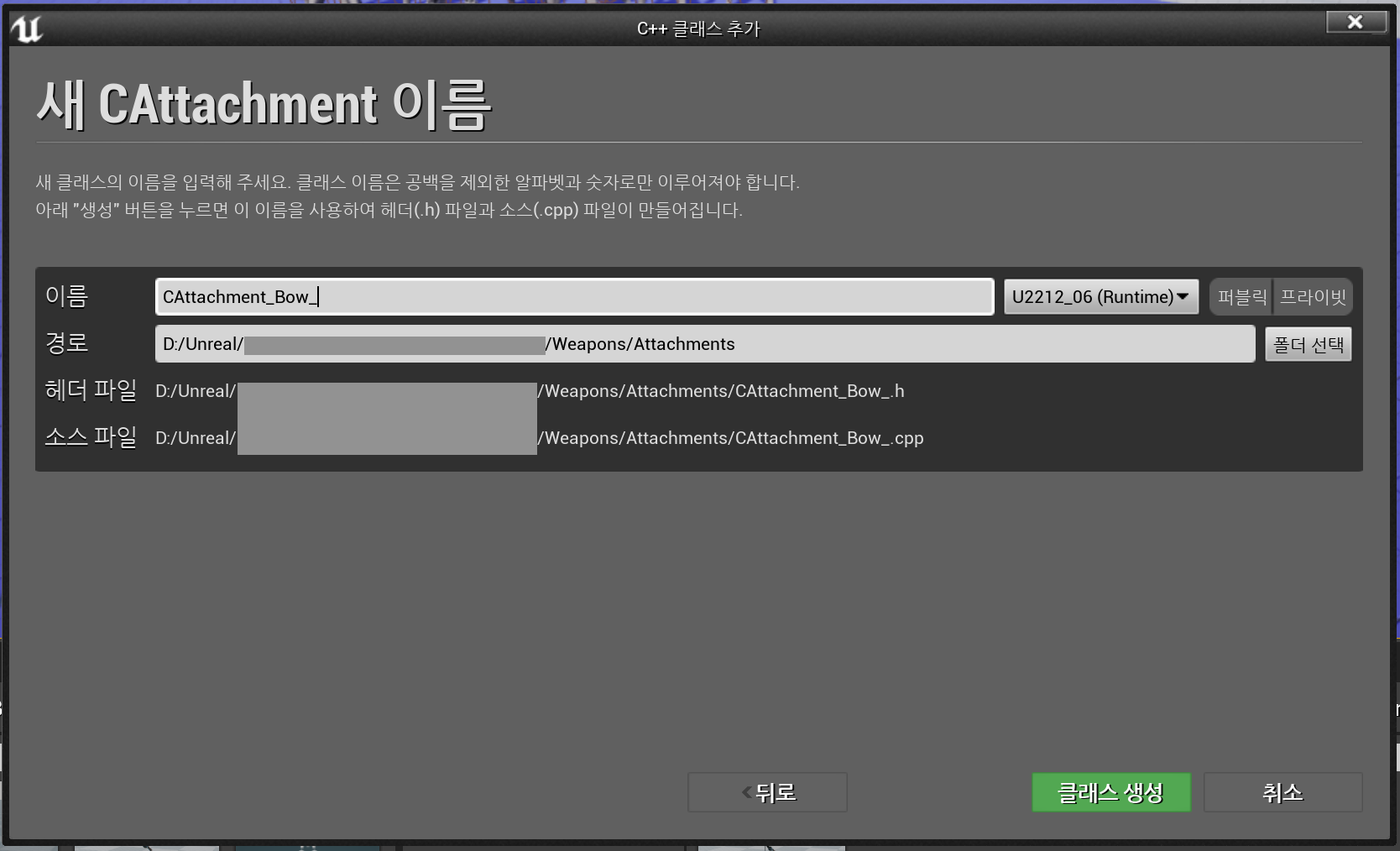

새 C++ 클래스 생성 - CAttachment - CAttachment_Bow 생성

CAttachment_Bow.h

 #pragma once
#include "CoreMinimal.h"
#include "Weapons/CAttachment.h"
#include "CAttachment_Bow.generated.h"

UCLASS()
class U2212_06_API ACAttachment_Bow : public ACAttachment
{
    GENERATED_BODY()

private:
    UPROPERTY(EditDefaultsOnly, Category = "View")
        FVector2D ViewPitchRange = FVector2D(-40, +30);//Pitch 제한각 설정

private:
    UPROPERTY(VisibleAnywhere)
        class USkeletalMeshComponent* SkeletalMesh;

    UPROPERTY(VisibleAnywhere)
        class UPoseableMeshComponent* PoseableMesh;

public:
    ACAttachment_Bow();

protected:
    virtual void BeginPlay() override;

public:
    virtual void Tick(float DeltaTime) override;

public:
    void OnBeginEquip_Implementation() override;
    void OnUnequip_Implementation() override;

private:
    FVector2D OriginViewPitchRange;
};

CAttachment_Bow.cpp

 #include "Weapons/Attachments/CAttachment_Bow.h"
#include "Global.h"
#include "Global.h"
//#include "Characters/CAnimInstance_Bow.h"
#include "Components/SkeletalMeshComponent.h"
#include "Components/PoseableMeshComponent.h"

ACAttachment_Bow::ACAttachment_Bow()
{
	CHelpers::CreateComponent<USkeletalMeshComponent>(this, &SkeletalMesh, "SkeletalMesh", Root);
	CHelpers::CreateComponent<UPoseableMeshComponent>(this, &PoseableMesh, "PoseableMesh", Root);


	USkeletalMesh* mesh;
	CHelpers::GetAsset<USkeletalMesh>(&mesh, "SkeletalMesh'/Game/Character/Weapons/ElvenBow/SK_ElvenBow.SK_ElvenBow'");
	SkeletalMesh->SetSkeletalMesh(mesh);
	SkeletalMesh->SetCollisionProfileName("NoCollision");
}

void ACAttachment_Bow::BeginPlay()
{
	Super::BeginPlay();

	AttachTo("Holster_Bow");

	SkeletalMesh->SetVisibility(false);

	PoseableMesh->SetSkeletalMesh(SkeletalMesh->SkeletalMesh);//SkeletalMesh 내의 SkeletalMesh 사용.
	PoseableMesh->CopyPoseFromSkeletalComponent(SkeletalMesh);//포즈를 캡처해둔다.
}

void ACAttachment_Bow::Tick(float DeltaTime)
{
	Super::Tick(DeltaTime);

	PoseableMesh->CopyPoseFromSkeletalComponent(SkeletalMesh);
}

void ACAttachment_Bow::OnBeginEquip_Implementation()
{
	Super::OnBeginEquip_Implementation();

	AttachTo("Hand_Bow_Left");//Hand_Bow_Left 소켓에 장착.


	APlayerController* controller = OwnerCharacter->GetController<APlayerController>();
	if (!!controller)
	{
		OriginViewPitchRange.X = controller->PlayerCameraManager->ViewPitchMin;
		OriginViewPitchRange.Y = controller->PlayerCameraManager->ViewPitchMax;

		controller->PlayerCameraManager->ViewPitchMin = ViewPitchRange.X;
		controller->PlayerCameraManager->ViewPitchMax = ViewPitchRange.Y;
	}
}

void ACAttachment_Bow::OnUnequip_Implementation()
{
	Super::OnUnequip_Implementation();

	AttachTo("Holster_Bow");//Holster_Bow 소켓에 장착.


	APlayerController* controller = OwnerCharacter->GetController<APlayerController>();
	if (!!controller)
	{
		controller->PlayerCameraManager->ViewPitchMin = OriginViewPitchRange.X;
		controller->PlayerCameraManager->ViewPitchMax = OriginViewPitchRange.Y;
	}
}

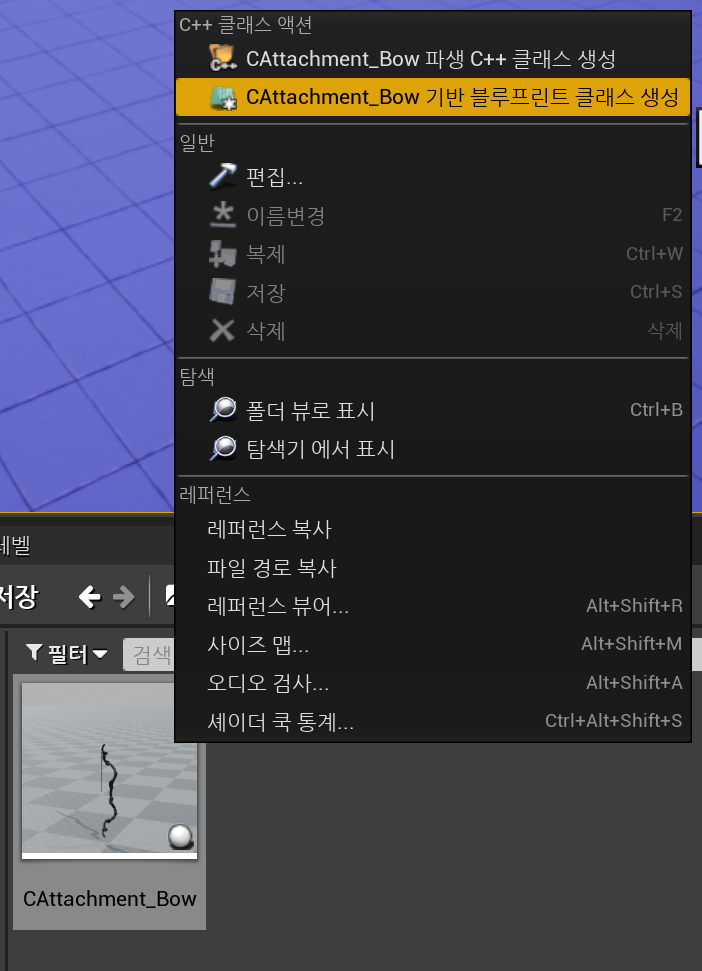

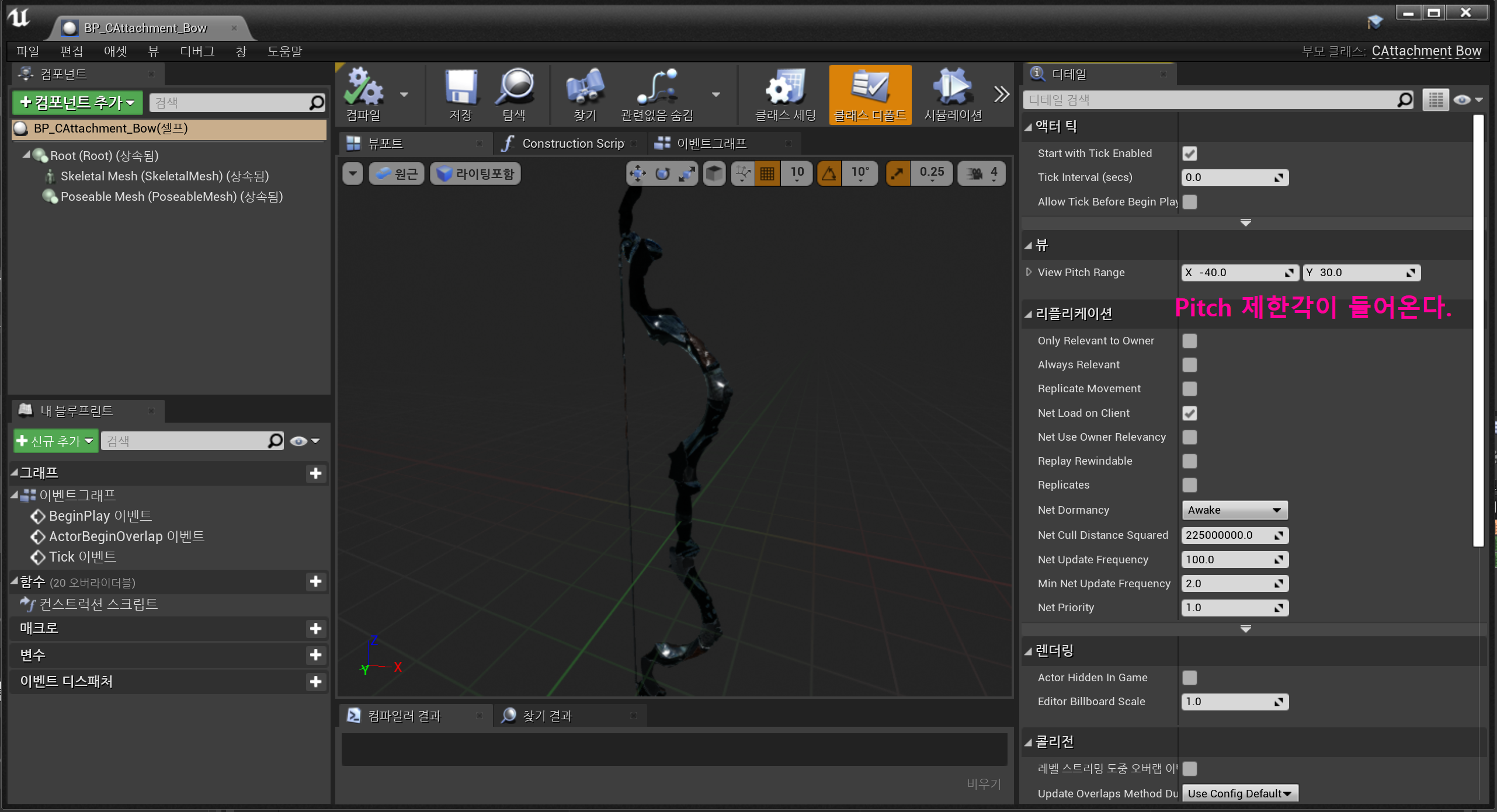

BP_CAttachment_Bow 생성

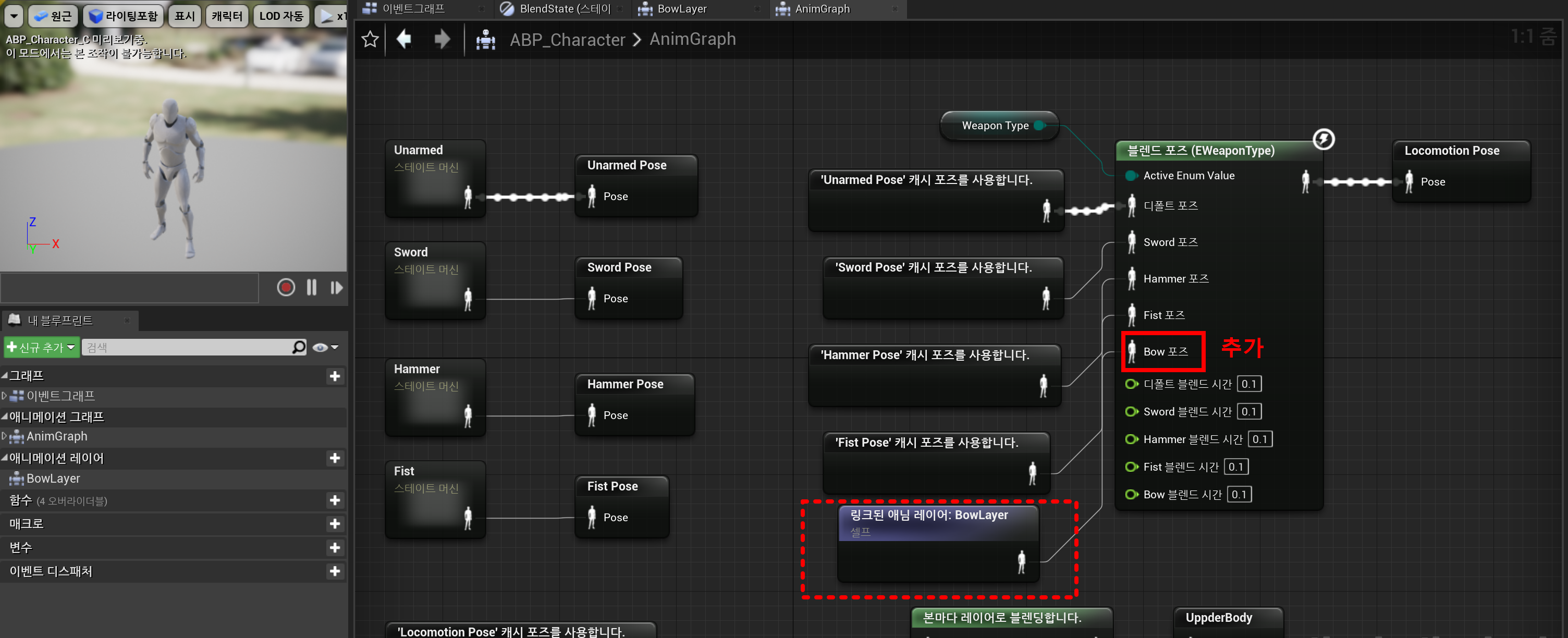

ABP_Character - Bow 동작 추가하기

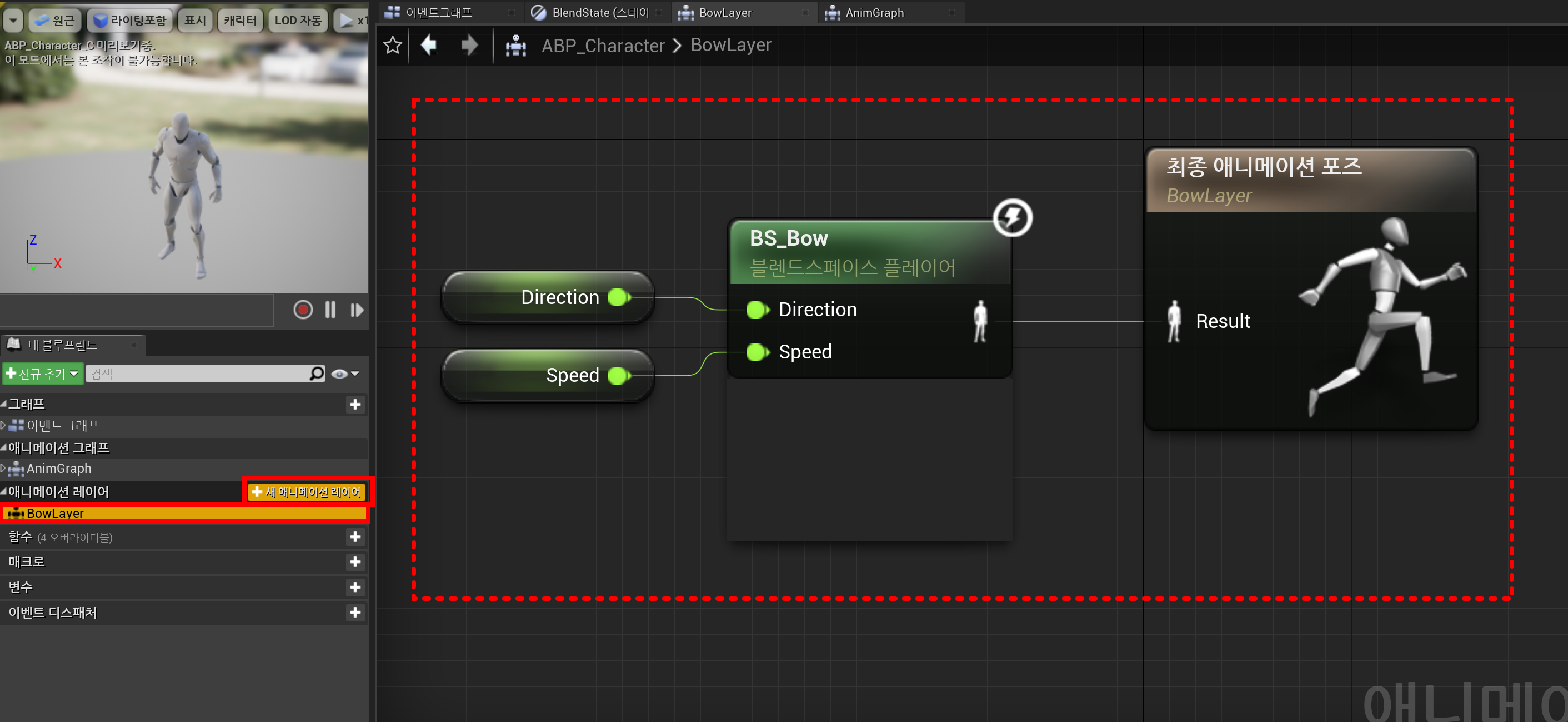

새 애니메이션 레이어 - BowLayer 생성

AnimGraph

블랜드 포즈 (EWeaponType)에 Bow 포즈 추가

링크된 애님 레이어 생성 - 방금 전에 만든 BowLayer 설정하고 이어준다.

CSubAction_Bow 생성

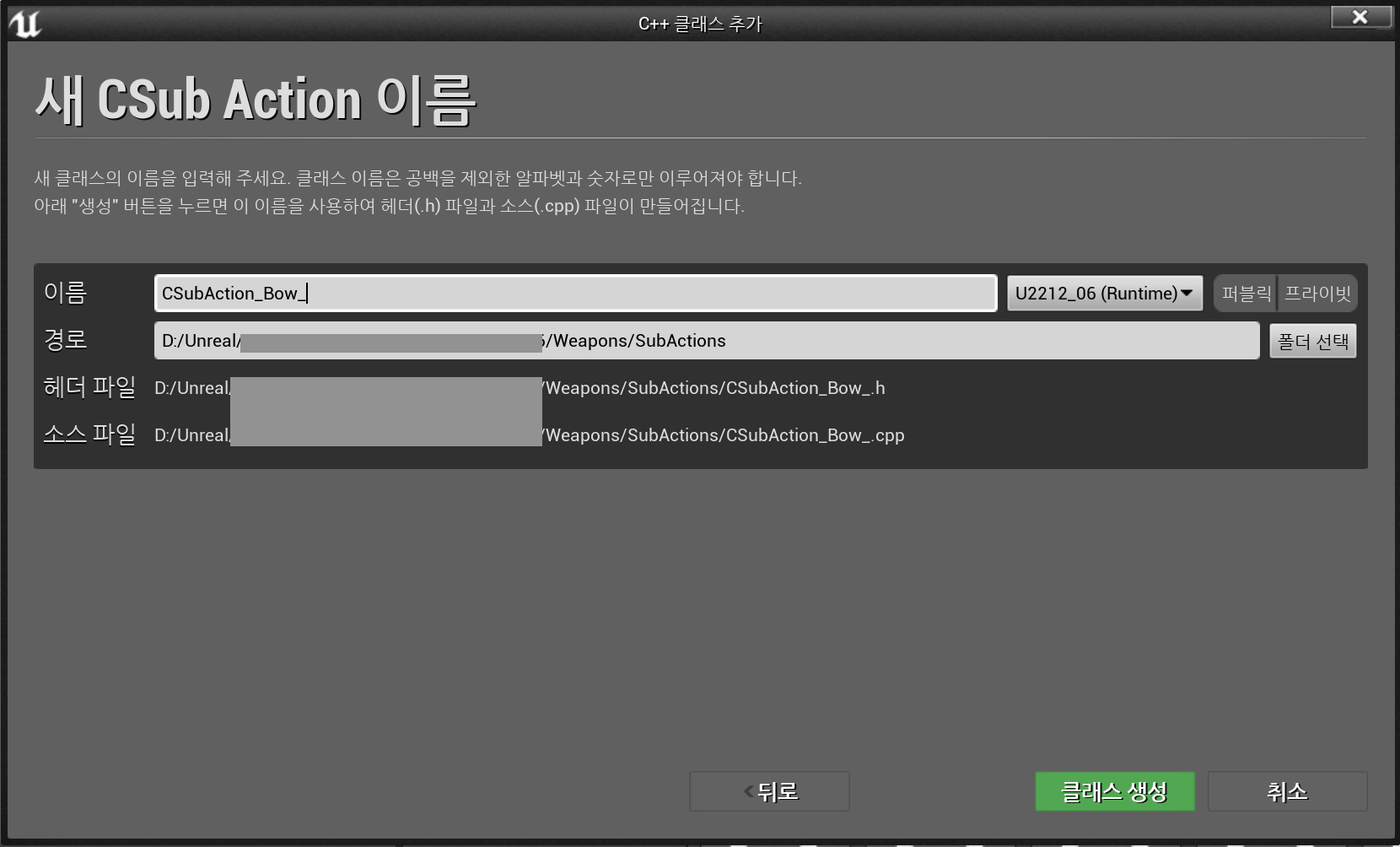

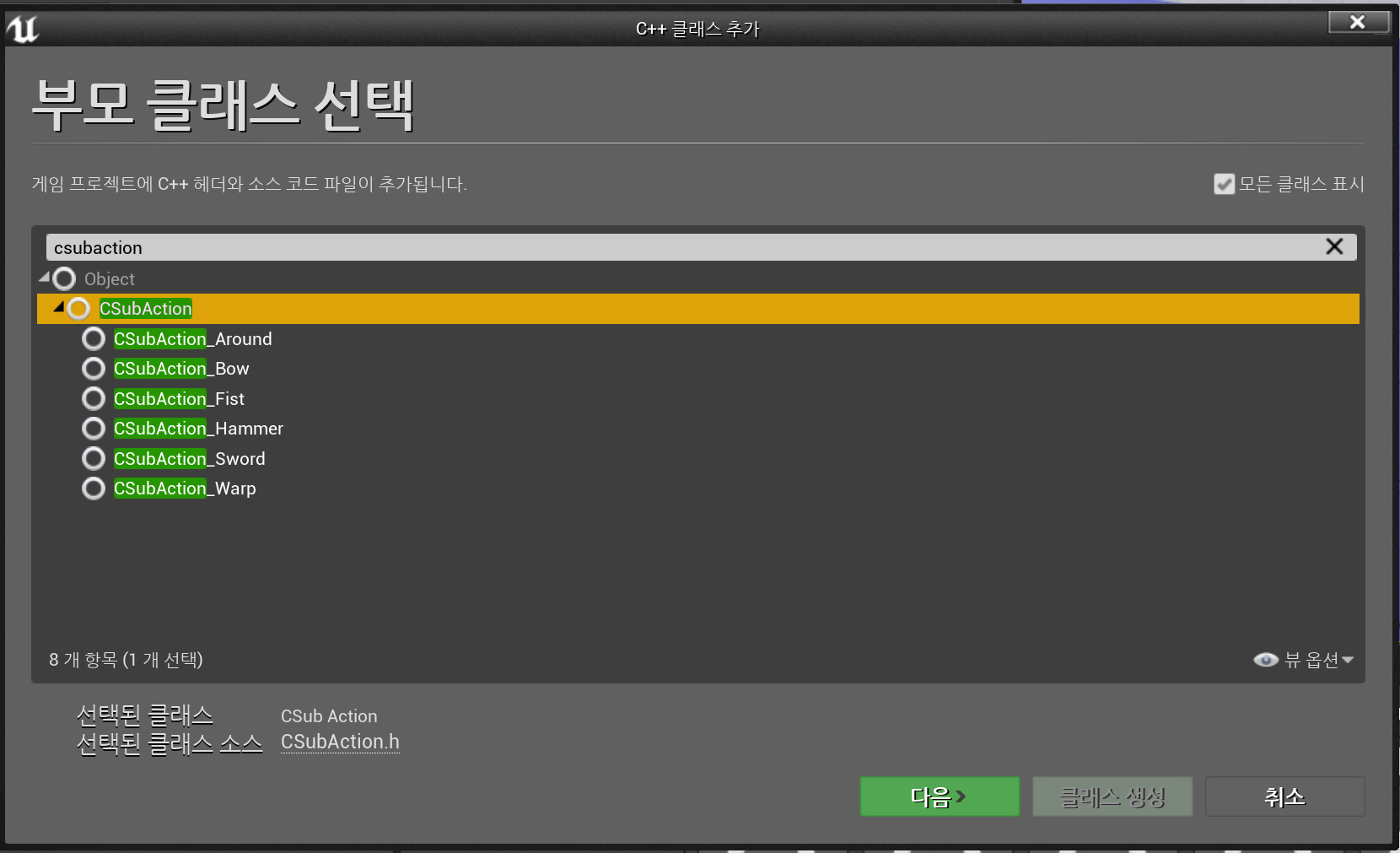

새 C++ 클래스 생성 - CSubAction - CSubAction_Bow 생성

CSubAction_Bow.h

 #pragma once

#include "CoreMinimal.h"
#include "Weapons/CSubAction.h"
#include "Components/TimelineComponent.h"
#include "CSubAction_Bow.generated.h"

USTRUCT()
struct FAimData
{
    GENERATED_BODY()

public:
    UPROPERTY(EditAnywhere)
        float TargetArmLength = 100;

    UPROPERTY(EditAnywhere)
        FVector SocketOffset = FVector(0, 30, 10);

    UPROPERTY(EditAnywhere)
        bool bEnableCameraLag;

    UPROPERTY(EditAnywhere)
        FVector CameraLocation;
};

UCLASS(Blueprintable)
class U2212_06_API UCSubAction_Bow : public UCSubAction
{
	GENERATED_BODY()

private:
    UPROPERTY(EditAnywhere, Category = "Aiming")
        class UCurveVector* Curve;

    UPROPERTY(EditAnywhere, Category = "Aiming")
        FAimData AimData;

    UPROPERTY(EditAnywhere, Category = "Aiming")
        float AimingSpeed = 200;

public:
    UCSubAction_Bow();

public:
    //virtual void Pressed() override;
    //virtual void Released() override;

public:
    void BeginPlay(class ACharacter* InOwner, class ACAttachment* InAttachment, class UCDoAction* InDoAction) override;

public:
    void Tick_Implementation(float InDeltaTime) override;

private:
    UFUNCTION()
        void onAiming(FVector Output);

private:
    class USpringArmComponent* SpringArm;
    class UCameraComponent* Camera;

private:

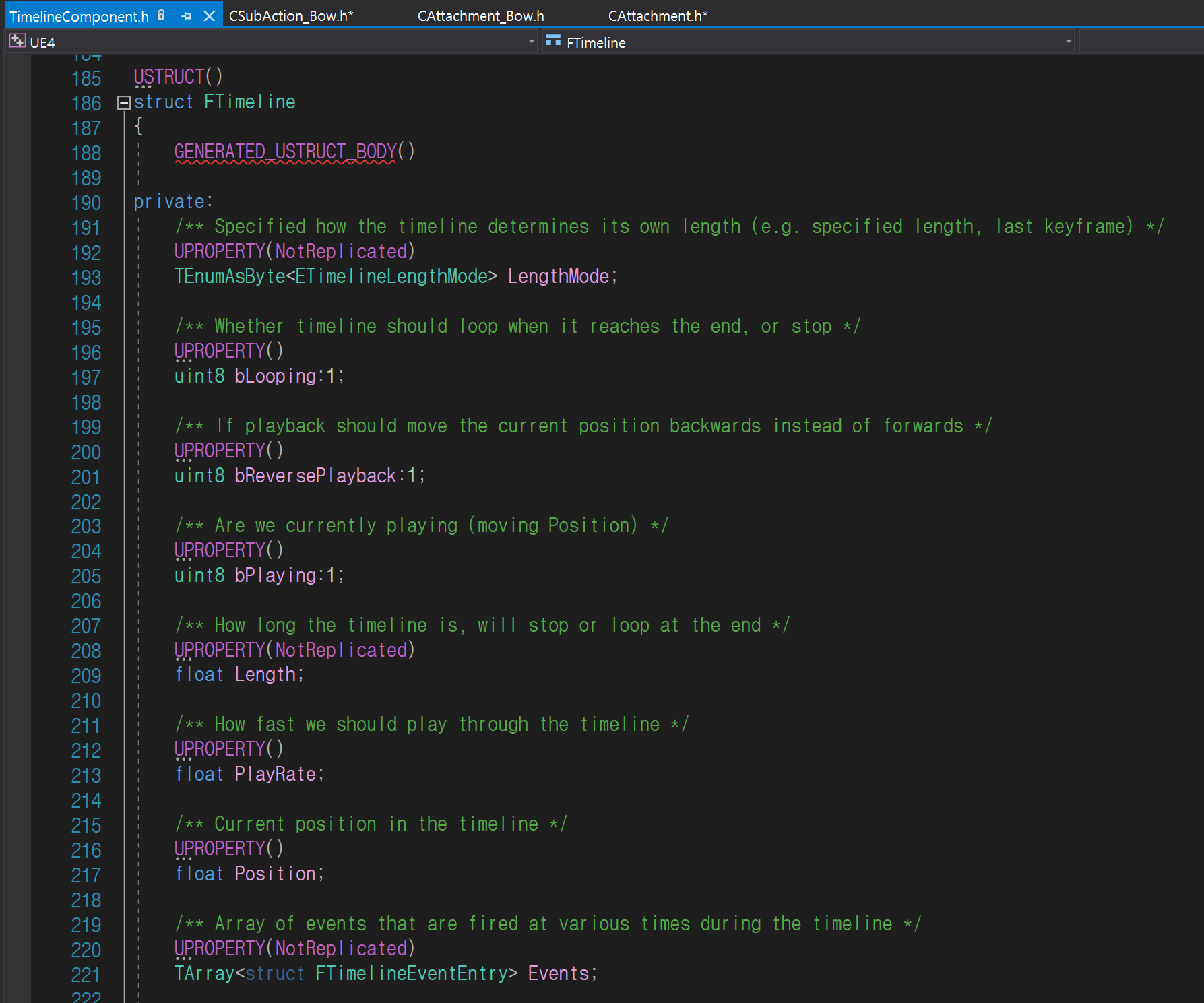

    FTimeline Timeline;
};
//SubAction는 Actor가 아니기 때문에 Component를 가질 수 없다. SubAction은 UObject 상속이다.
//그래서 TimelineComponent가 아닌 Timeline으로 작업한다.

CSubAction_Bow.cpp

 #include "Weapons/SubActions/CSubAction_Bow.h"
#include "Global.h"
#include "GameFramework/Character.h"
#include "GameFramework/PlayerController.h"
#include "GameFramework/SpringArmComponent.h"
#include "Camera/CameraComponent.h"
#include "Components/CStateComponent.h"
#include "Weapons/Attachments/CAttachment_Bow.h"

UCSubAction_Bow::UCSubAction_Bow()
{
	CHelpers::GetAsset<UCurveVector>(&Curve, "CurveVector'/Game/Weapons/Bow/Curve_Aiming.Curve_Aiming'");//Editor에서 만든 CurveVector를 할당한다.
}

void UCSubAction_Bow::BeginPlay(ACharacter* InOwner, ACAttachment* InAttachment, UCDoAction* InDoAction)
{
	Super::BeginPlay(InOwner, InAttachment, InDoAction);

	SpringArm = CHelpers::GetComponent<USpringArmComponent>(InOwner);
	Camera = CHelpers::GetComponent<UCameraComponent>(InOwner);


	FOnTimelineVector timeline;
	timeline.BindUFunction(this, "OnAiming");

	Timeline.AddInterpVector(Curve, timeline);
	Timeline.SetPlayRate(AimingSpeed);
}

void UCSubAction_Bow::Tick_Implementation(float InDeltaTime)
{
	Super::Tick_Implementation(InDeltaTime);

	//TimelineComponent로 사용하는 경우 자기자신이 Tick이 있기 때문에 아래 작업을 안 해도 상관없으나 CSubAction_Bow의 경우 TimelineComponent가 없기 때문에 Tick을 반드시 넣어주어야 한다.
	Timeline.TickTimeline(InDeltaTime);
}

void UCSubAction_Bow::onAiming(FVector Output)
{
}

※참고: TimelineComponent.h

BS_Aiming 생성

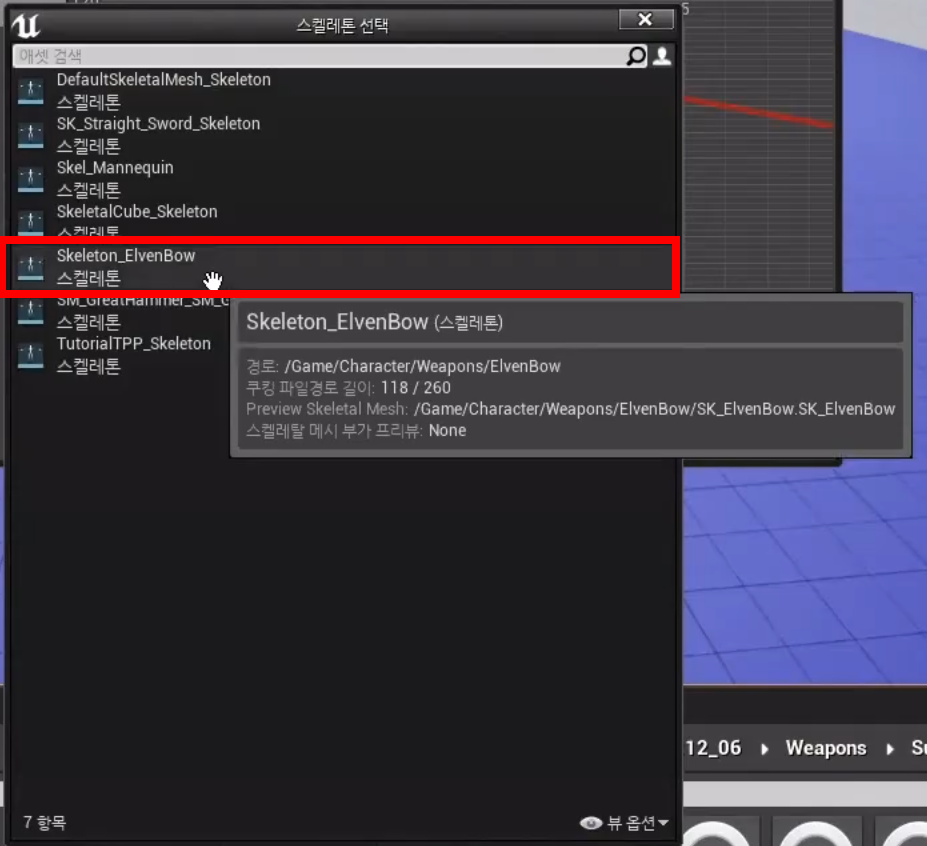

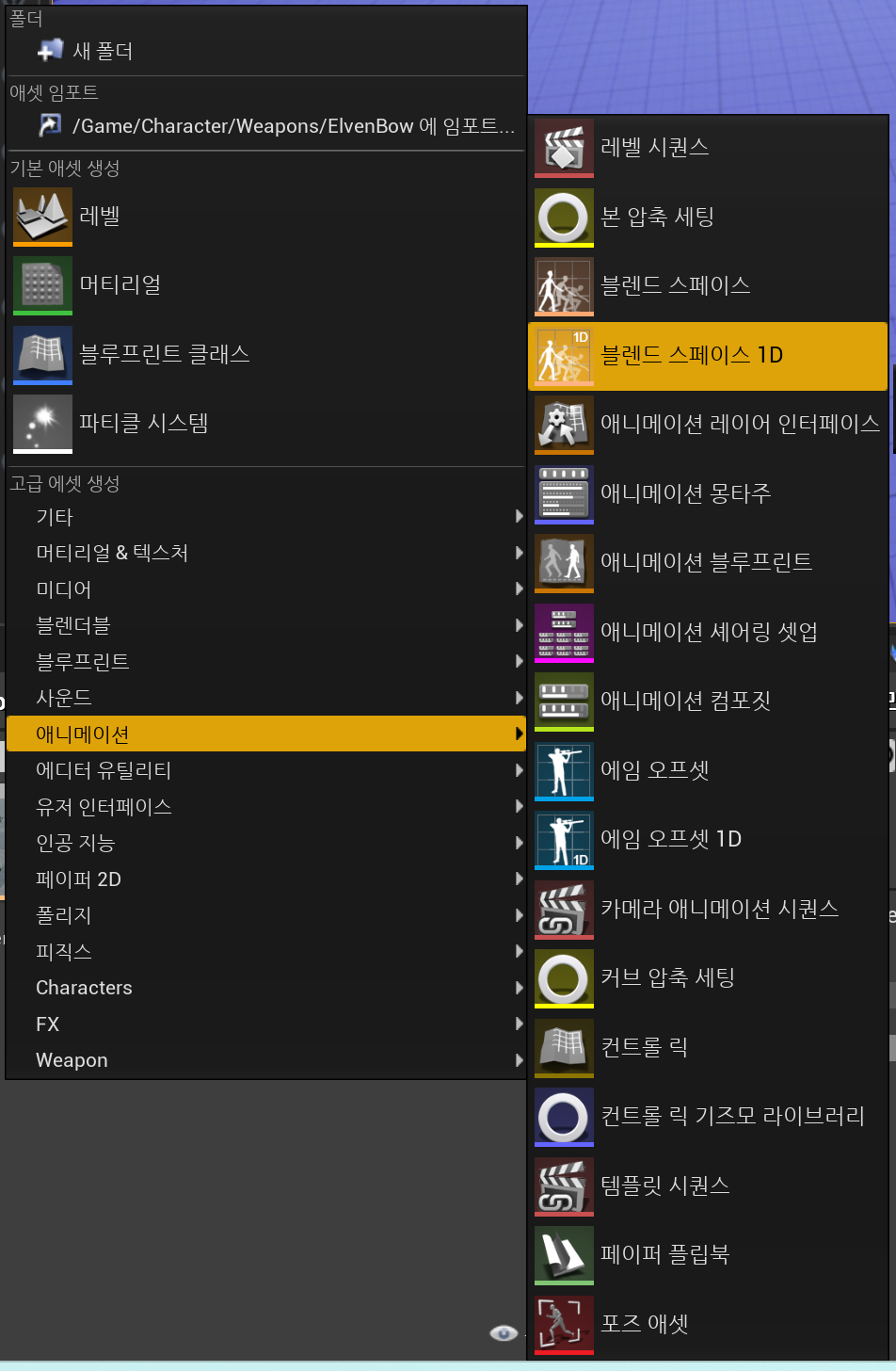

애니메이션 - 블래드 스페이스 1D - Skeleton_ElvenBow 선택 - BS_Aiming 생성

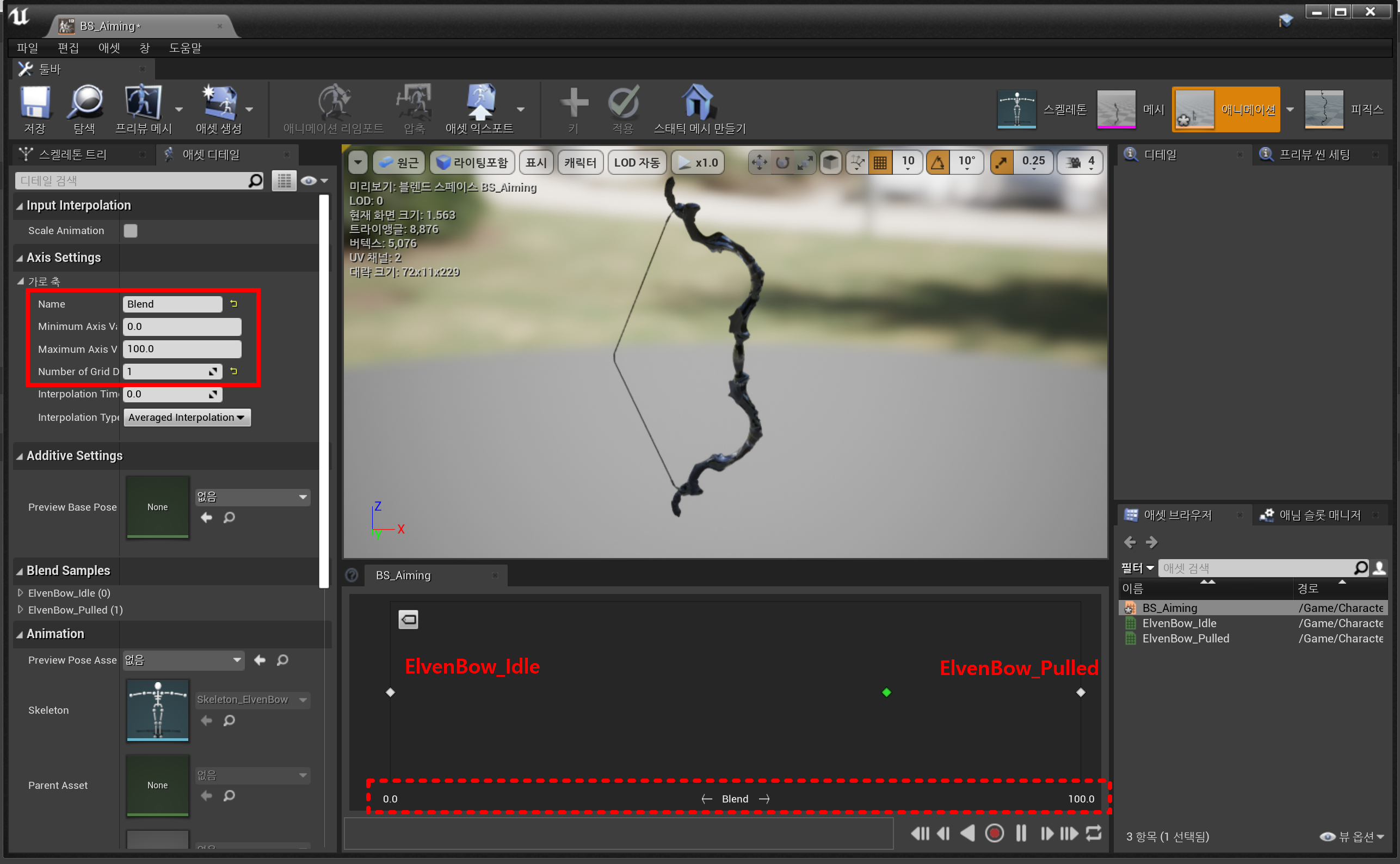

Axis Settings

가로 축
- Name: Blend
- Minimum Axis Value: 0.0
- Maximum Axis Value: 100.0
- Number of Grid Divisions: 1

Curve_Aiming 생성

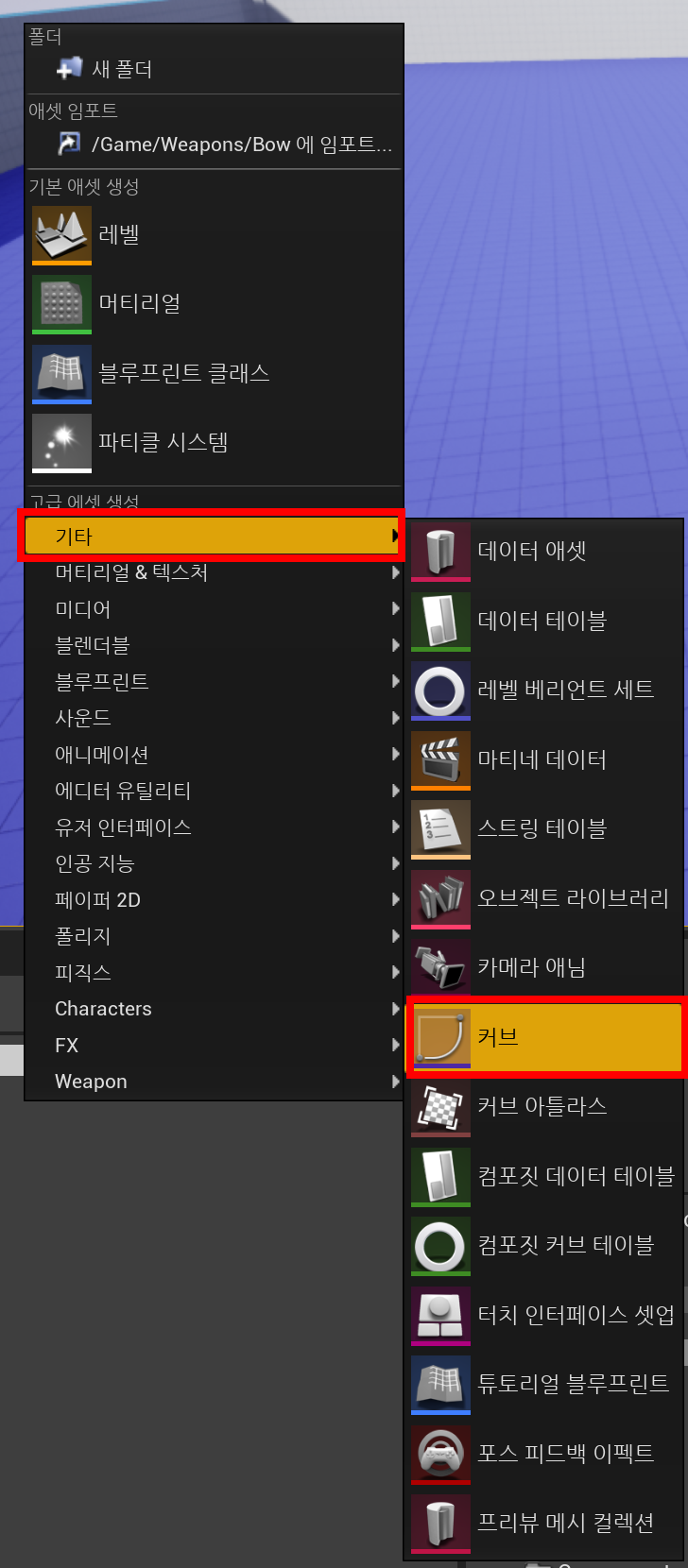

기타 - 커브 - Curve_Aiming 생성

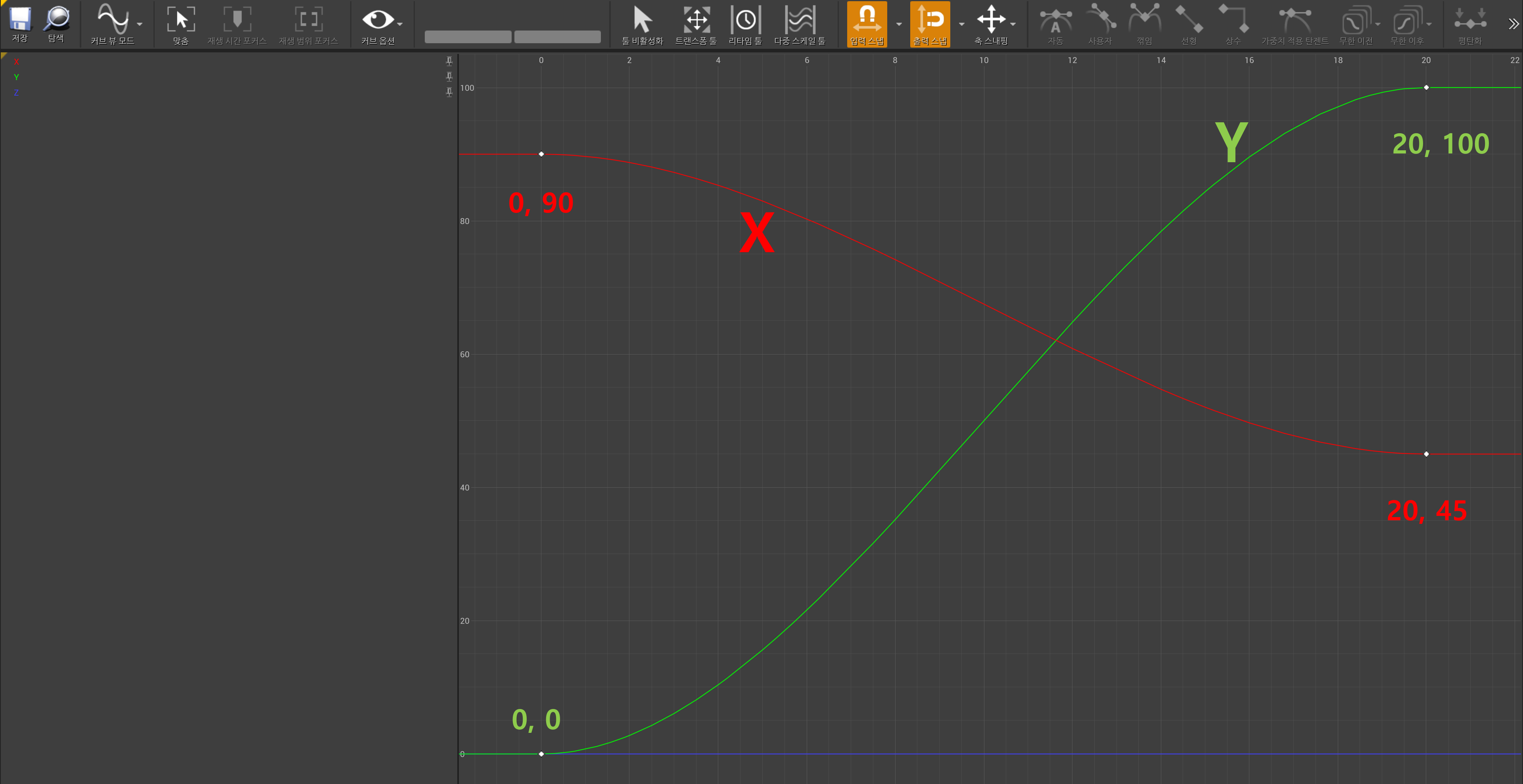

Y는 활의 휘는 정도를 조절하는 값이다.

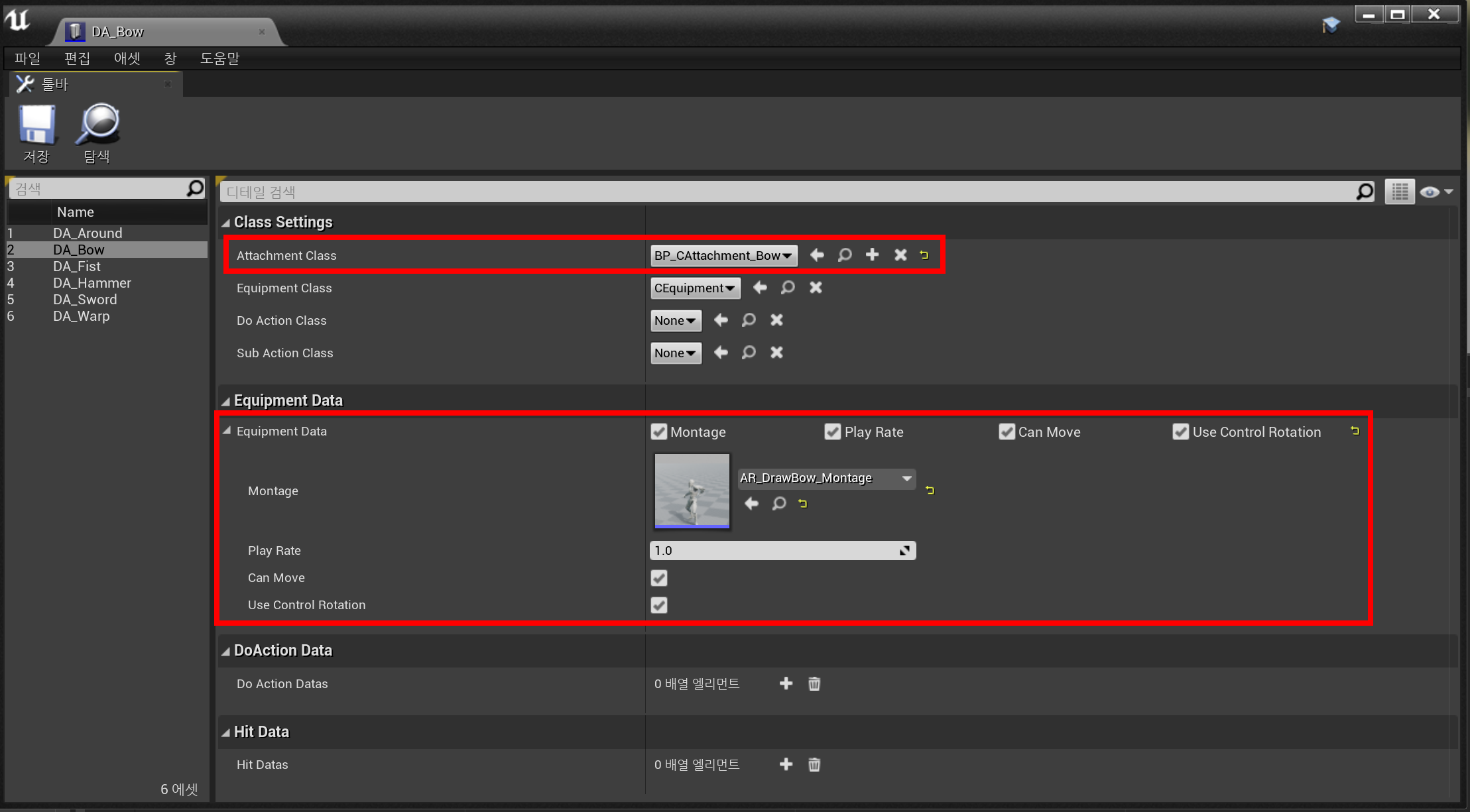

DA_Bow 생성

실행화면

클래스 지정자

Minimal API

private vs Minimal

private은 컴파일러 자체에서 숨겨버린다.
Minimal은 직렬화만 못하게 막아준다. 외부 노출을 최소화하여 속도를 높인다.
- 형 변환이 가능하지만, (inline 함수를 제외하고) 호출할 수 없다.
- .cpp 다 무시. .h에서 컴파일되는 inline 함수는 컴파일된다.

Minimal API 사용

class A : Character

{

void Add() { }

inline void Add() { }

}

A* ob = new A();

ob->Add(); 가능

Character* a = Cast<ACharacter>(ob);

ob->Add(); 사용 불가능.

단, inline함수로 선언된 경우 사용 가능하다. inline은 헤더 기준으로 컴파일 된다고 봐도 무방하다.

https://docs.unrealengine.com/4.27/ko/ProgrammingAndScripting/GameplayArchitecture/Classes/Specifiers/

클래스 지정자

클래스가 엔진과 에디터의 다양한 부분과 어떻게 작동하는지를 지정하기 위해 UClass 선언시 사용되는 키워드입니다.

docs.unrealengine.com

Transient

'⭐ Unreal Engine > UE RPG Skill' 카테고리의 다른 글

[UE] 활 시위 당기기 (0)	2023.07.07
[UE] 활 조준 (0)	2023.07.06
[UE] Around 스킬 구현하기 (0)	2023.07.04
[UE] Around 공격 구현하기 (0)	2023.07.03
[UE] 워프 Top View 만들기 (0)	2023.06.30

내 블로그 - 관리자 홈 전환	`Q` `Q`
새 글 쓰기	`W` `W`

글 수정 (권한 있는 경우)	`E` `E`
댓글 영역으로 이동	`C` `C`

이 페이지의 URL 복사	`S` `S`
맨 위로 이동	`T` `T`
티스토리 홈 이동	`H` `H`
단축키 안내	`Shift` + `/` `⇧` + `/`

[UE] 활 구현하기

활 구현하기

CPlayer.cpp - 키 맵핑 (Bow)

CAttachment

CAttachment_Bow 생성

BP_CAttachment_Bow 생성

ABP_Character - Bow 동작 추가하기

CSubAction_Bow 생성

※참고: TimelineComponent.h

BS_Aiming 생성

Curve_Aiming 생성

DA_Bow 생성

실행화면

클래스 지정자

Minimal API

'⭐ Unreal Engine > UE RPG Skill' 카테고리의 다른 글

댓글

이 글 공유하기

티스토리툴바

단축키

내 블로그

블로그 게시글

모든 영역

활 구현하기

CPlayer.cpp - 키 맵핑 (Bow)

CAttachment

CAttachment_Bow 생성

BP_CAttachment_Bow 생성

ABP_Character - Bow 동작 추가하기

CSubAction_Bow 생성

※참고: TimelineComponent.h

BS_Aiming 생성

Curve_Aiming 생성

DA_Bow 생성

실행화면

클래스 지정자

Minimal API

'⭐ Unreal Engine > UE RPG Skill' 카테고리의 다른 글

댓글

이 글 공유하기

다른 글

[UE] 활 시위 당기기

[UE] 활 조준

[UE] Around 스킬 구현하기

[UE] Around 공격 구현하기

티스토리툴바

단축키

내 블로그

블로그 게시글

모든 영역
