[UE] Behavior Tree 3, Spline(Bezier, Catmull-Rom)



언리얼 엔진에서 동작 트리를 만들려면 노드를 끌어다 놓아 트리 구조를 만들 수 있는 동작 트리 편집기를 사용할 수 있다. C++ 또는 Blueprint 스크립팅을 사용하여 사용자 지정 작업 및 장식자 노드를 정의할 수도 있다.



목차





---











Spline -  Bezier vs. Catmull-Rom

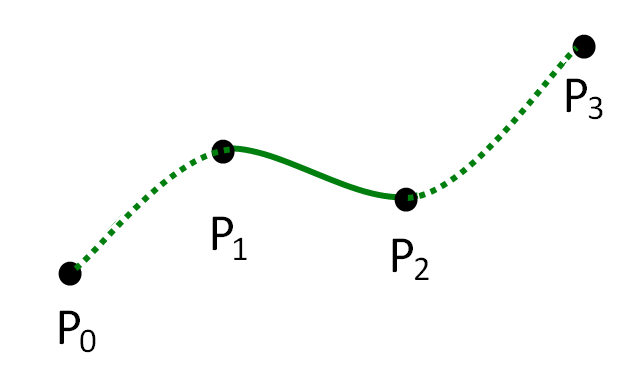

캣멀롬 스플라인은 보간 스플라인의 한 종류로서 제어점을 뚫는 모양을 가진다.

캣멀롬 스플라인은 네 개의 점 사이를 보간한다.



https://tsyang.tistory.com/57



https://blog.naver.com/PostView.nhn?isHttpsRedirect=true&blogId=sorkelf&logNo=40154552485





---



Behavior Tree - Patrol (+Spline Path)



0. BP_Enemy - StateComponent	BP_AIController_Melee	0. BB_AI 0. BT_Melee
1. BP_Enemy_AI - WeaponComponent - MovingComponent - BehaviorTree (Behavior Tree)	--------------------- 0. BP_PatrolPath ---------------------	1. BTService_Melee
2. BP_Enemy_AI_Melee	------------------------- 0. PatrolComponent -------------------------	2. BTTask_Speed 2. BTTask_Patrol





---



0. BP_PatrolPath 생성



Blueprint Class - Actor - BP_PatrolPath 생성



Viewport

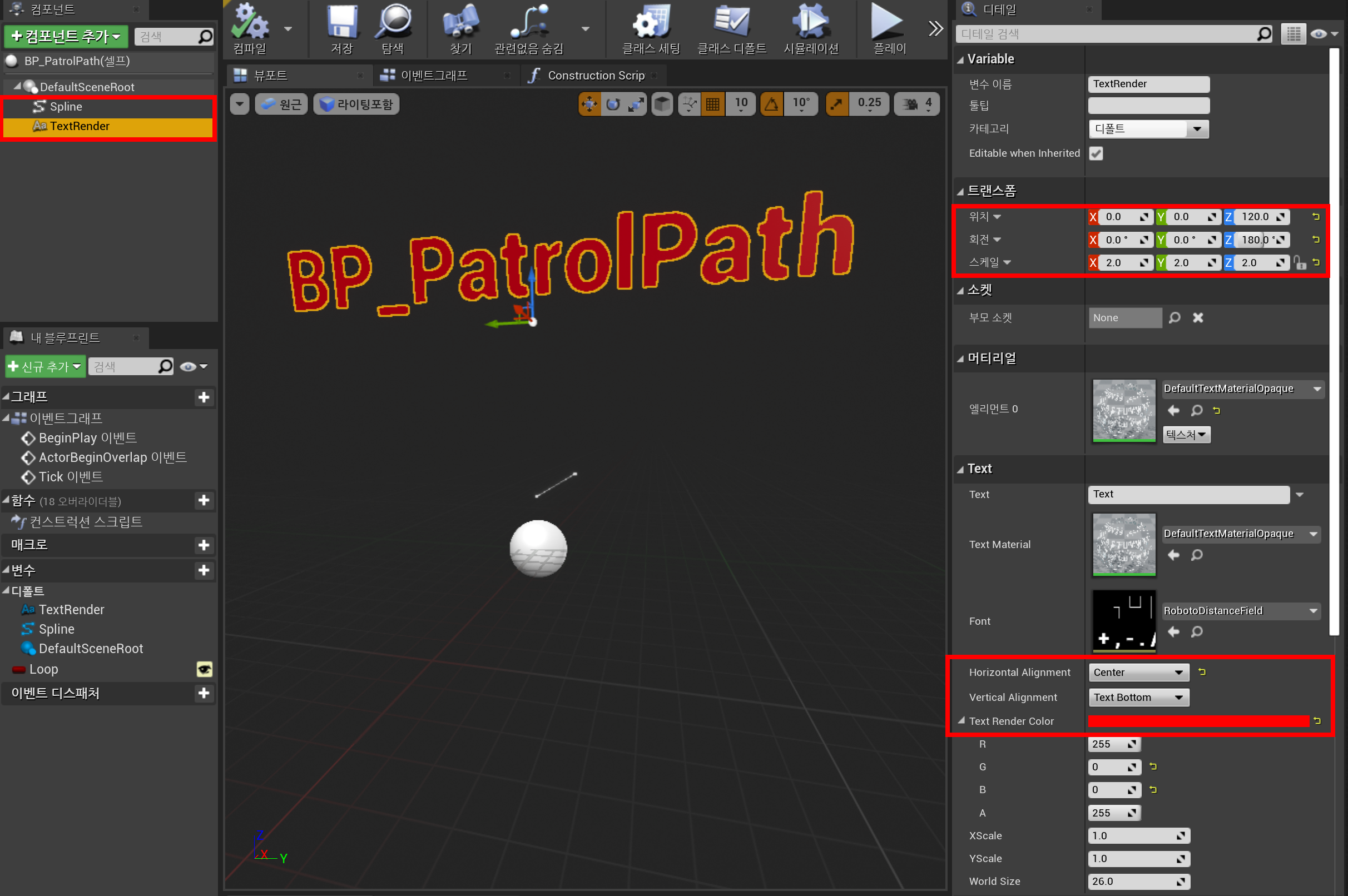

• 컴포넌트 추가 - Spline, TextRender
  • Spline: 위치(0, 0, 30)으로 수정.
  • TextRender: 트랜스폼 수정. 텍스트 가운데 정렬. 텍스트 색 빨강으로 변경.

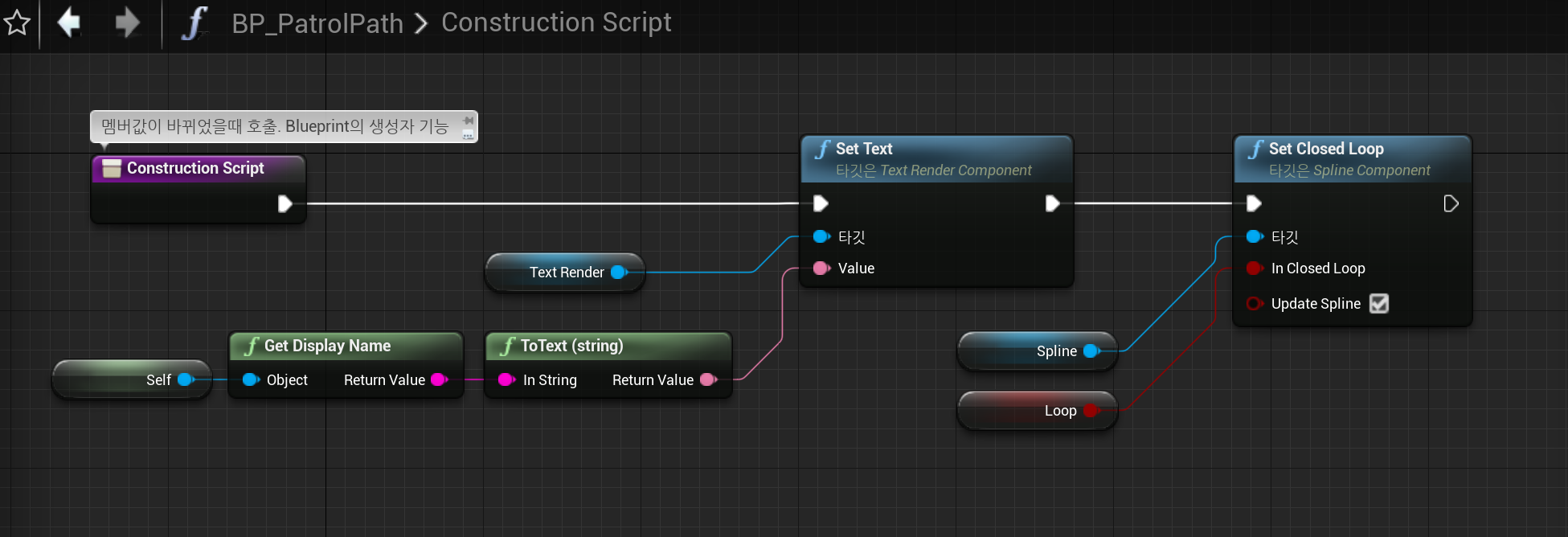

Construction Script

• Construction Script의 특징
  • Construction Script는 블루프린트의 생성자 정도로 생각하면 된다.
  • 배치가 되거나 생성이 되거나 멤버값이 바뀔 때 호출된다.
• 변수 생성: Loop (Boolean)
  • Patrol Path에 따라 이동할 때 Loop 여부를 체크하기 위해 만든 변수.



---



0. Patrol Component 생성



Blueprint Class - Actor Component - Patrol Component 생성





Is Valid Path (pure)

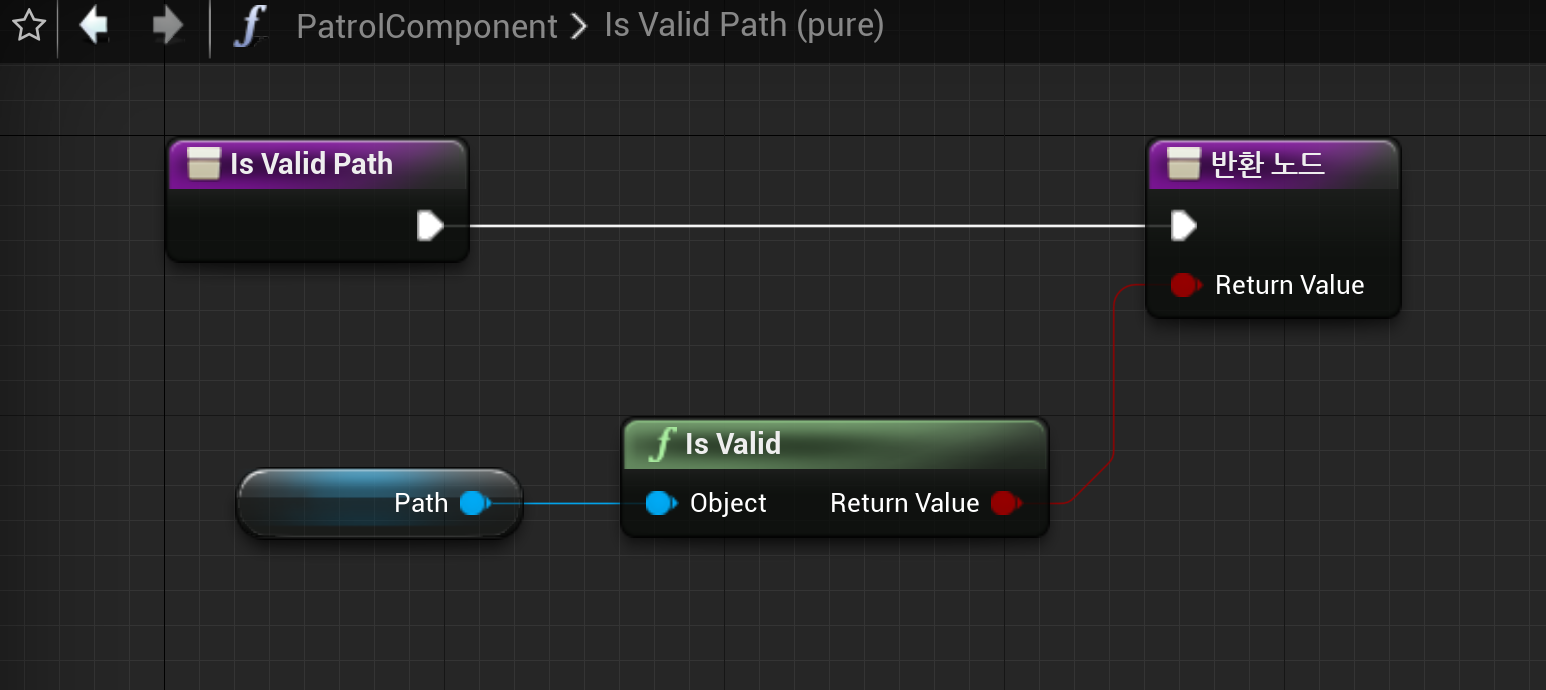

• Is Valid Path (pure) 함수 생성.
  • 지정해준 Path가 유효한지 확인해주는 함수. 리턴전용으로 만들어준다.
• 출력 추가: ReturnValue (Boolean)





Get Move To (pure)

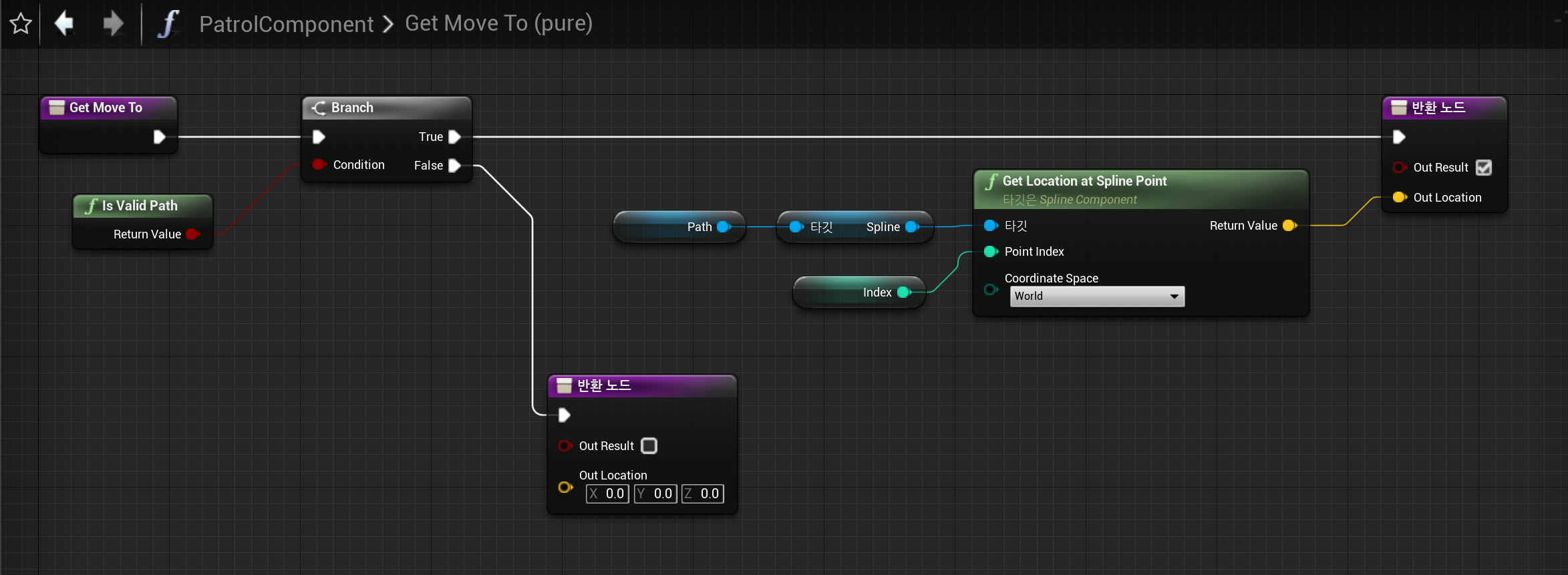

• Get Move To (pure) 함수 생성.
  • IsValidPath로 Path가 유효한지 검사.
    • True라면 Path의 Spline을 따라 이동한다. Get Location at Spline Point는 Spline Point Index의 위치를 리턴해준다.
    • False라면 바로 리턴한다.
• 출력 추가: Out Result (Boolean), OutLocation (Vector)
  • OutLocation: Spline Point 위치를 리턴한다.

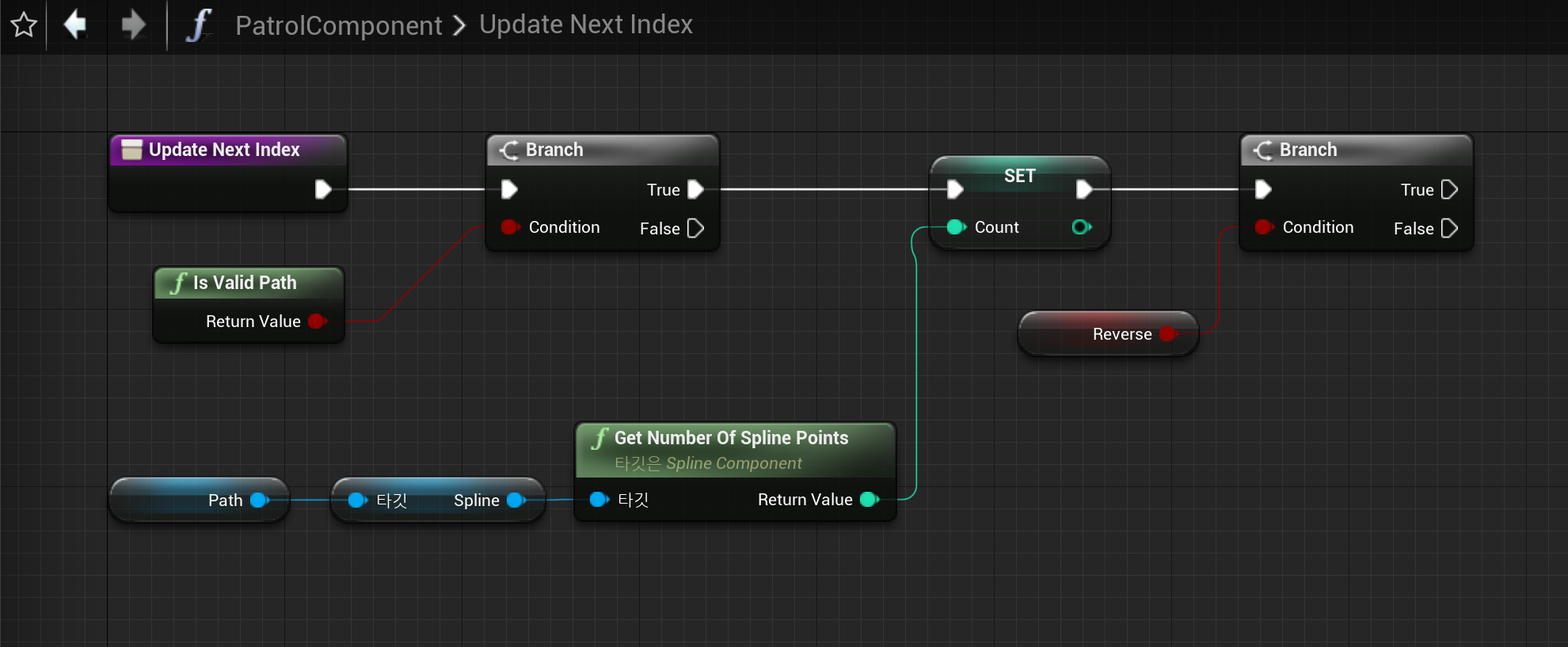

Update Next Index

• 변수 생성: Path (BP_PatrolPath), Update (Integer), Reserve (Boolean)
• 로컬변수 생성: Count (Integer)



---

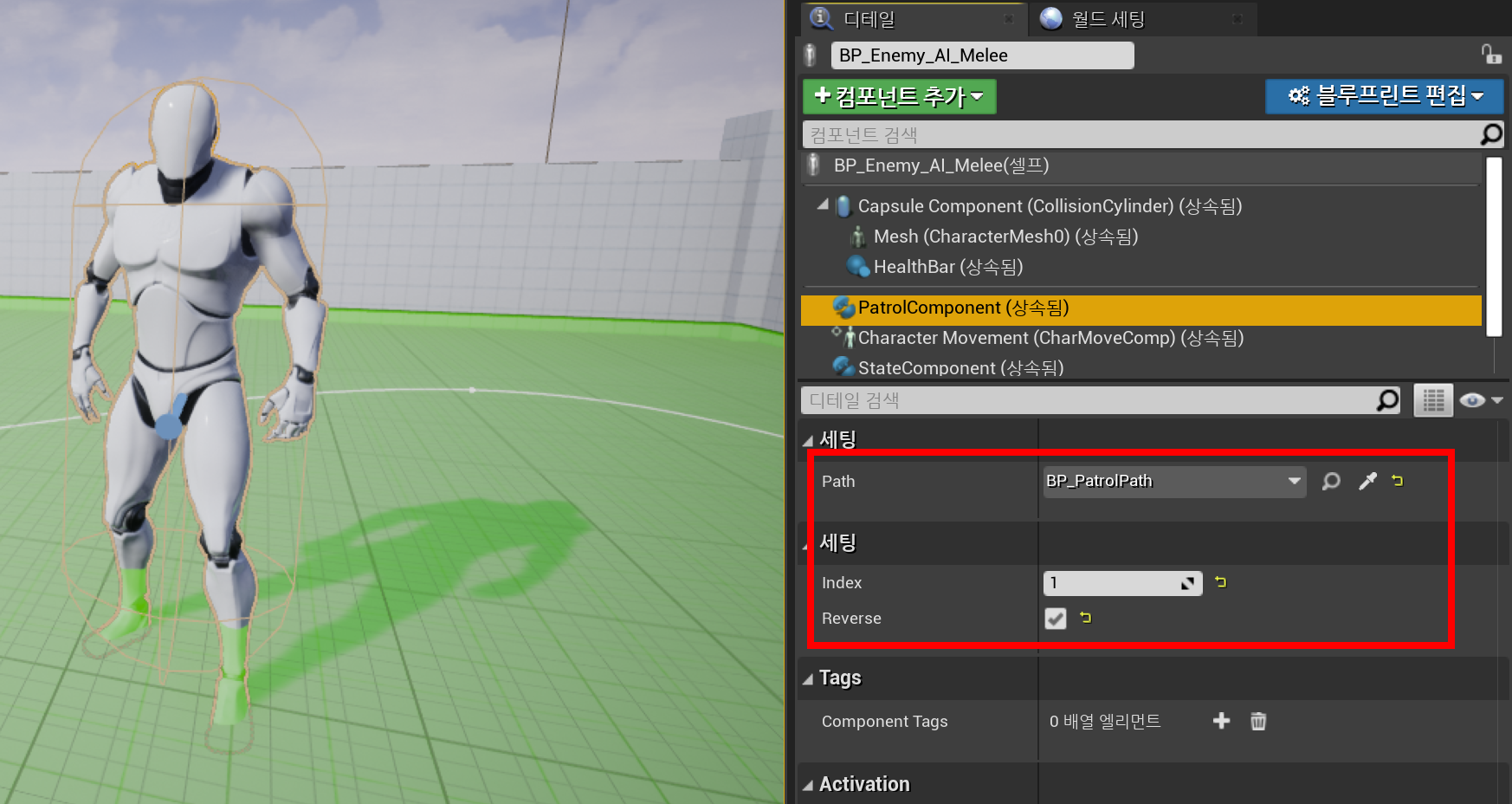

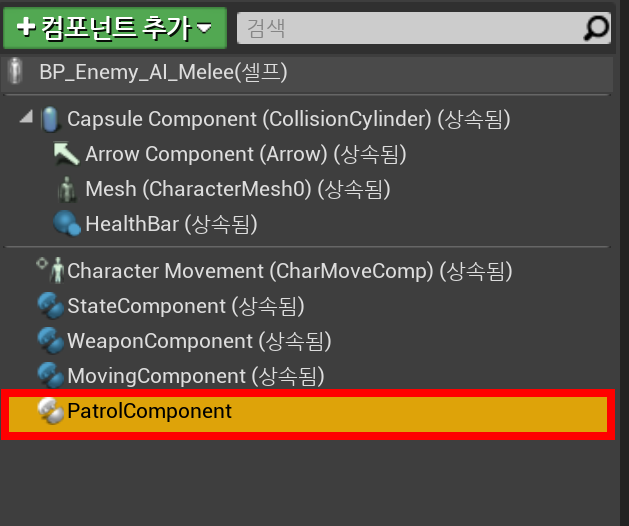

2. BP_Enemy_AI_Melee



• Patrol Component 추가







---



2. BTTask_Patrol



Drawing

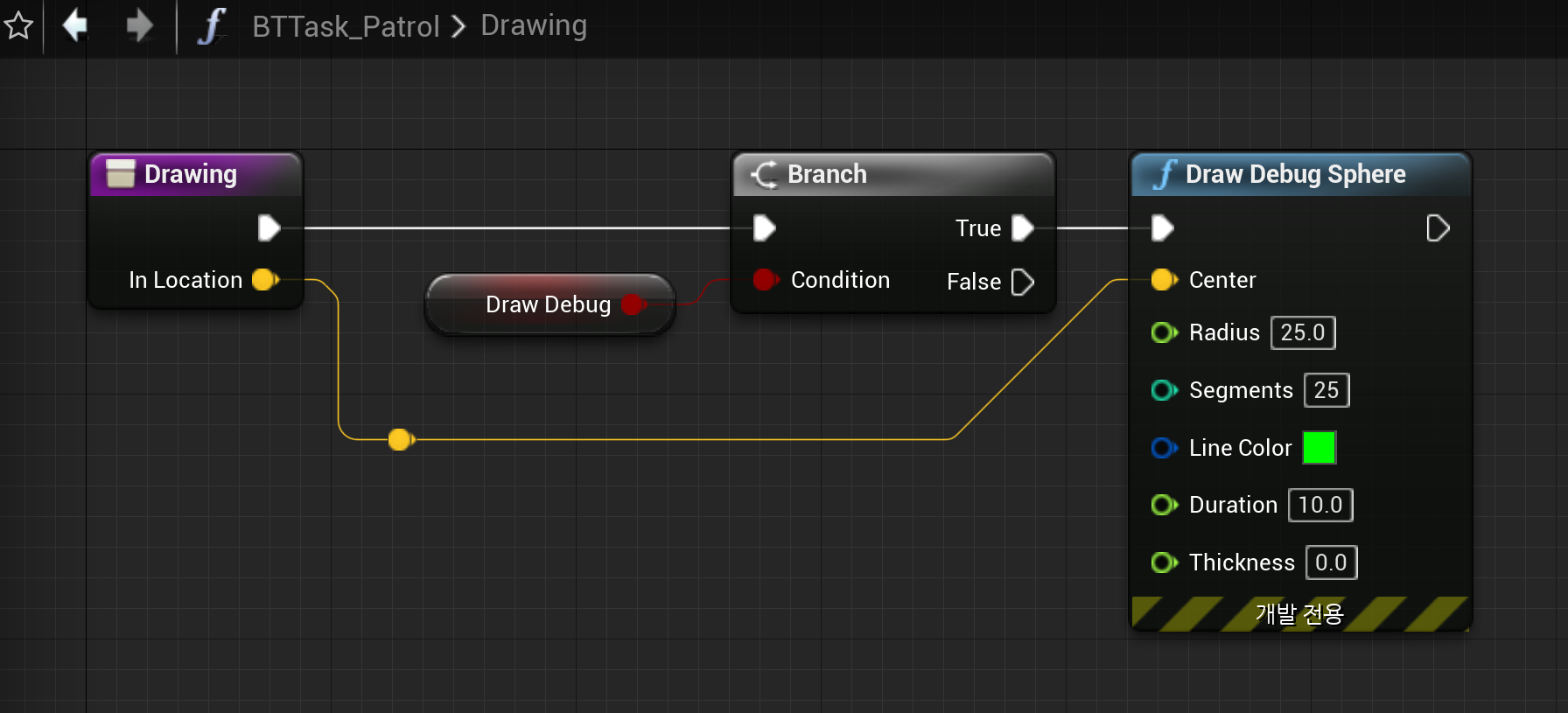

• Drawing 함수 추가
  • 움직일 곳을 Debugging용으로 보여줄 함수.
  • 체크용으로 사용하는 것이라 추후에 숨기거나 삭제한다.

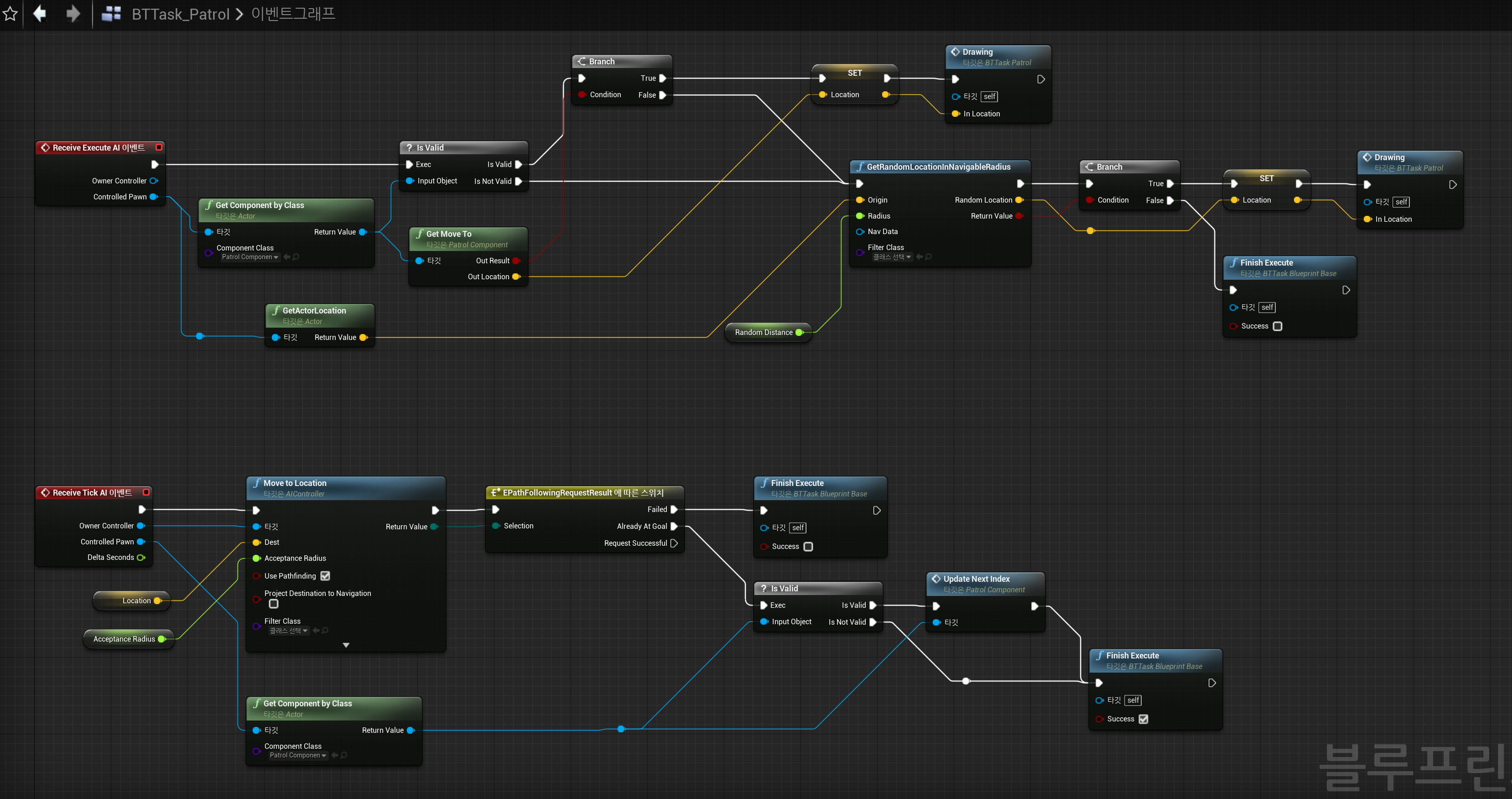

Event Graph

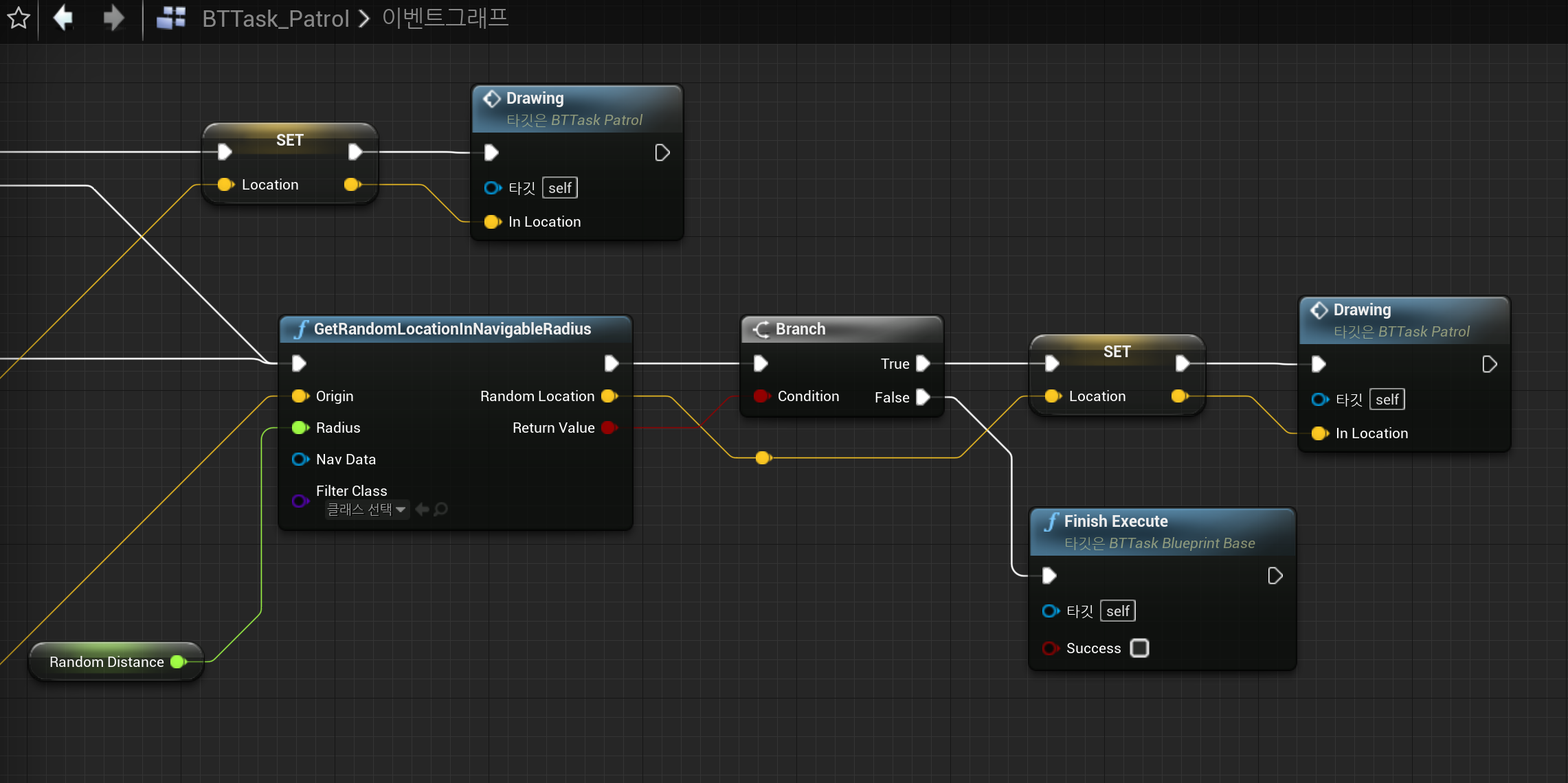

확대

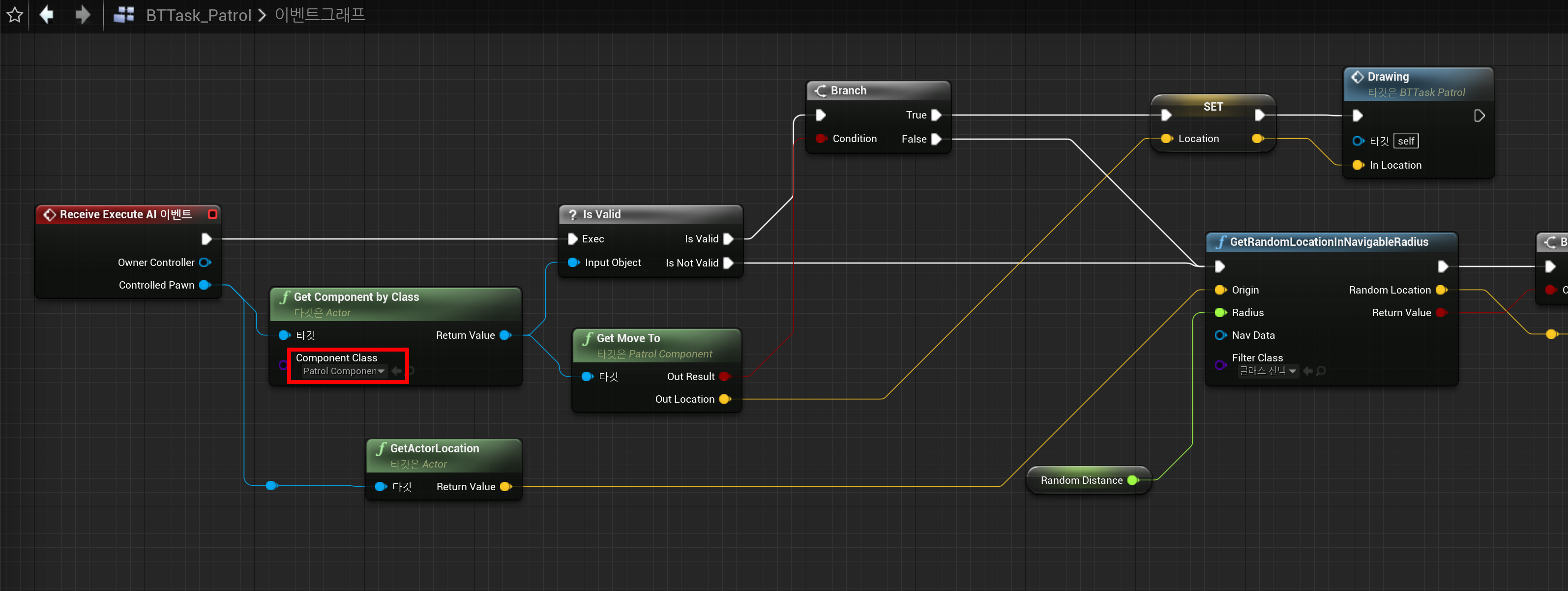

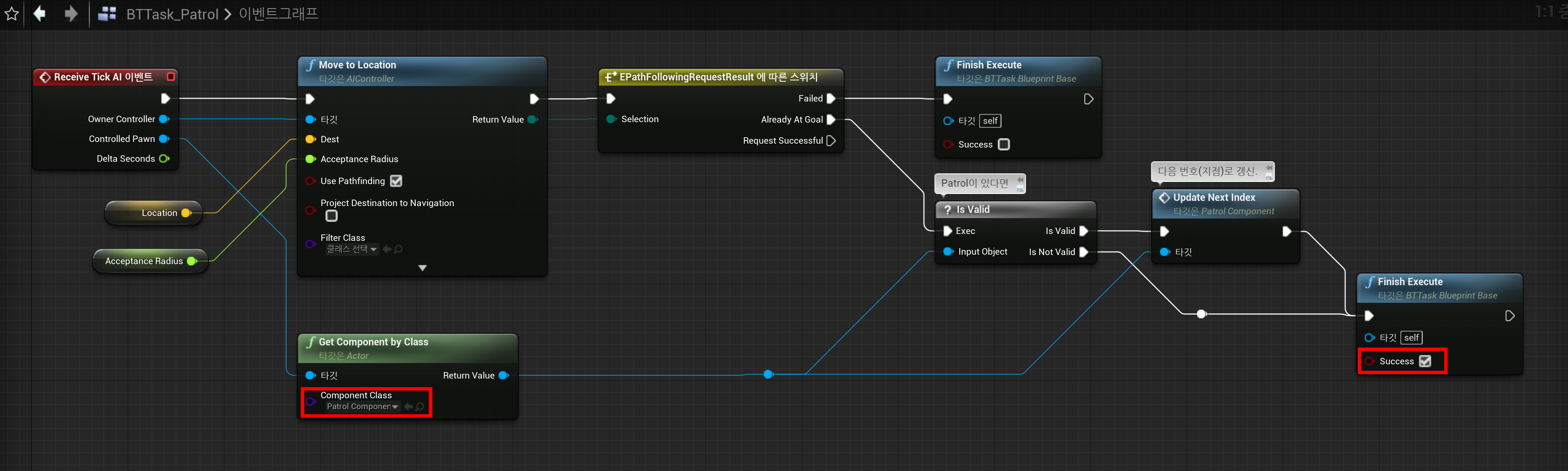

• 변수 생성: RandomDistance (Float), Location (Vector), AcceptanceRadius (Float), DrawDebug (Boolean)



---

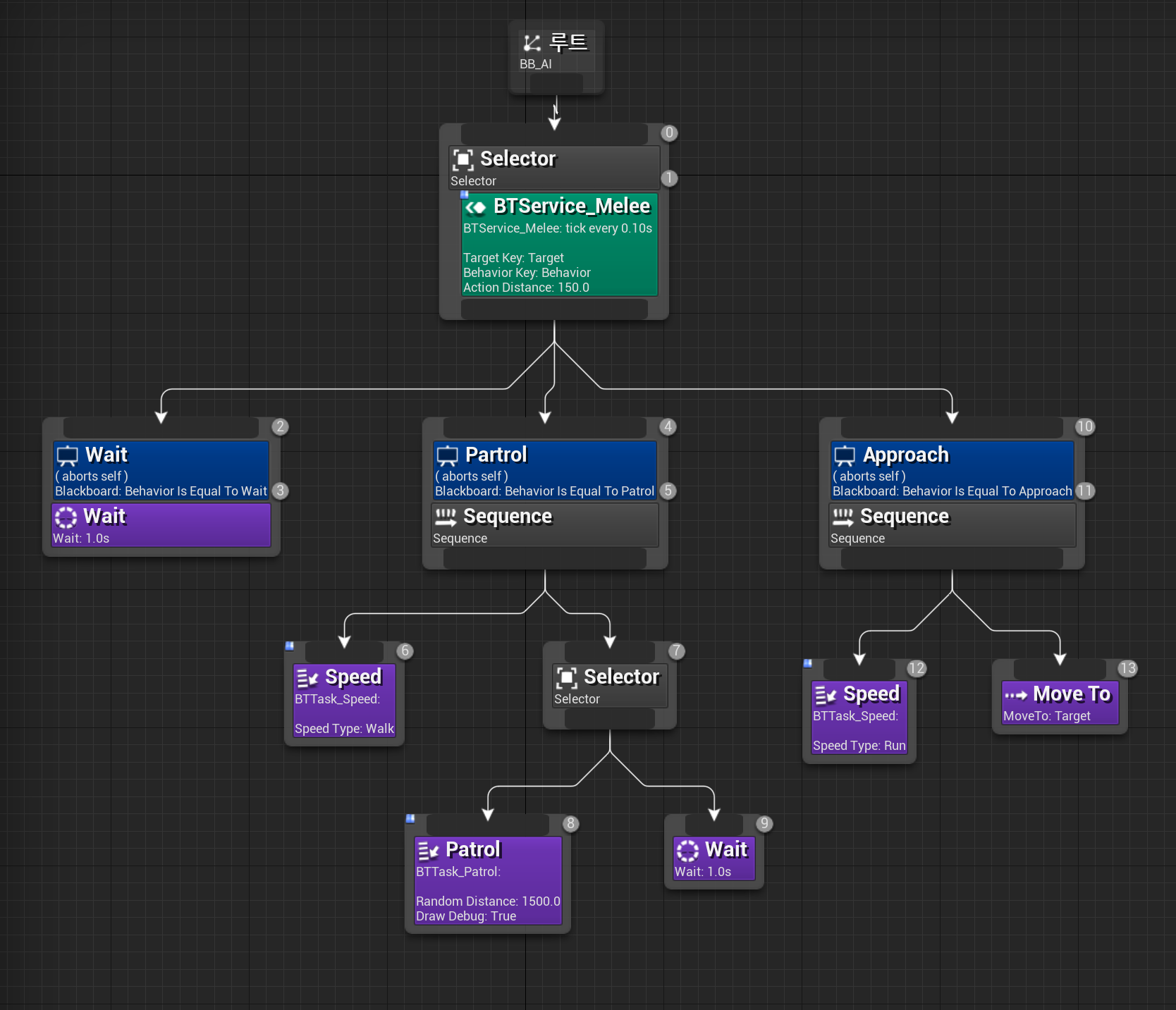

0. BT_Melee



---

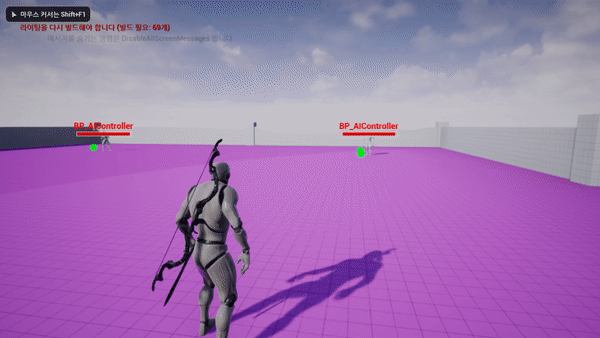

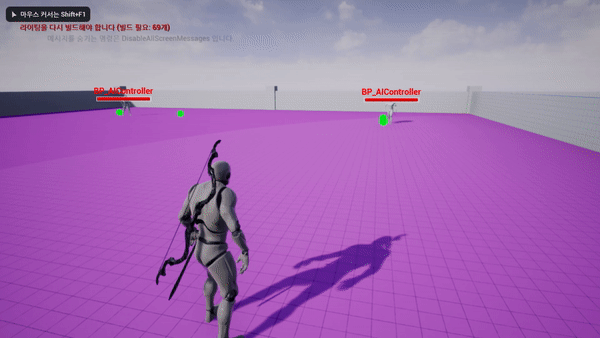

실행화면





---









Behavior Tree - Equip



0. BP_Enemy - StateComponent	BP_AIController_Melee	0. BB_AI 0. BT_Melee
1. BP_Enemy_AI - WeaponComponent - MovingComponent - BehaviorTree (Behavior Tree)	--------------------- 0. BP_PatrolPath ---------------------	1. BTService_Melee
2. BP_Enemy_AI_Melee	------------------------- 0. PatrolComponent -------------------------	2. BTTask_Speed 2. BTTask_Patrol 2. BTTask_Equip



---



2. BP_Enemy_AI_Melee



• WeaponComponent - Default - Weapon Classes
  • 슬롯 8개 생성 후 2번 위치에 Combo_Sword 지정

---

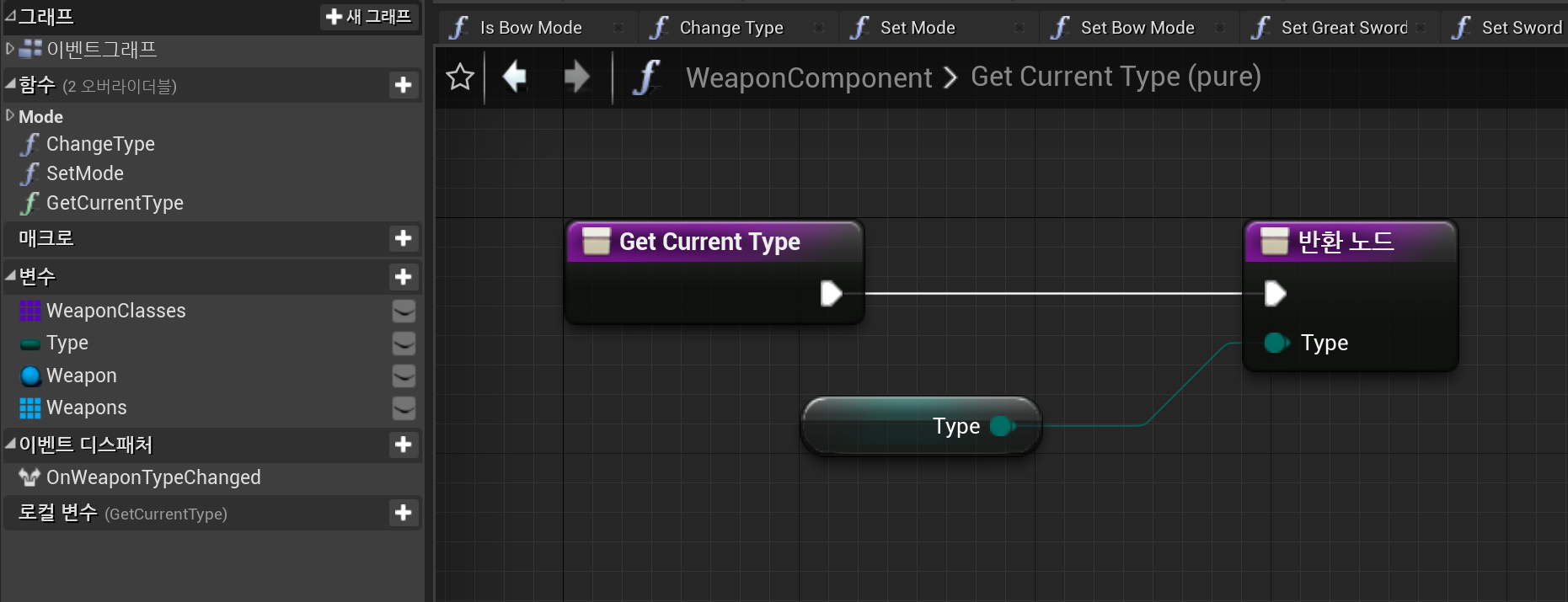

Weapon Component - Get Current Type 함수 생성



Get Current Type 함수 생성



---



2. BTTask_Equip 생성

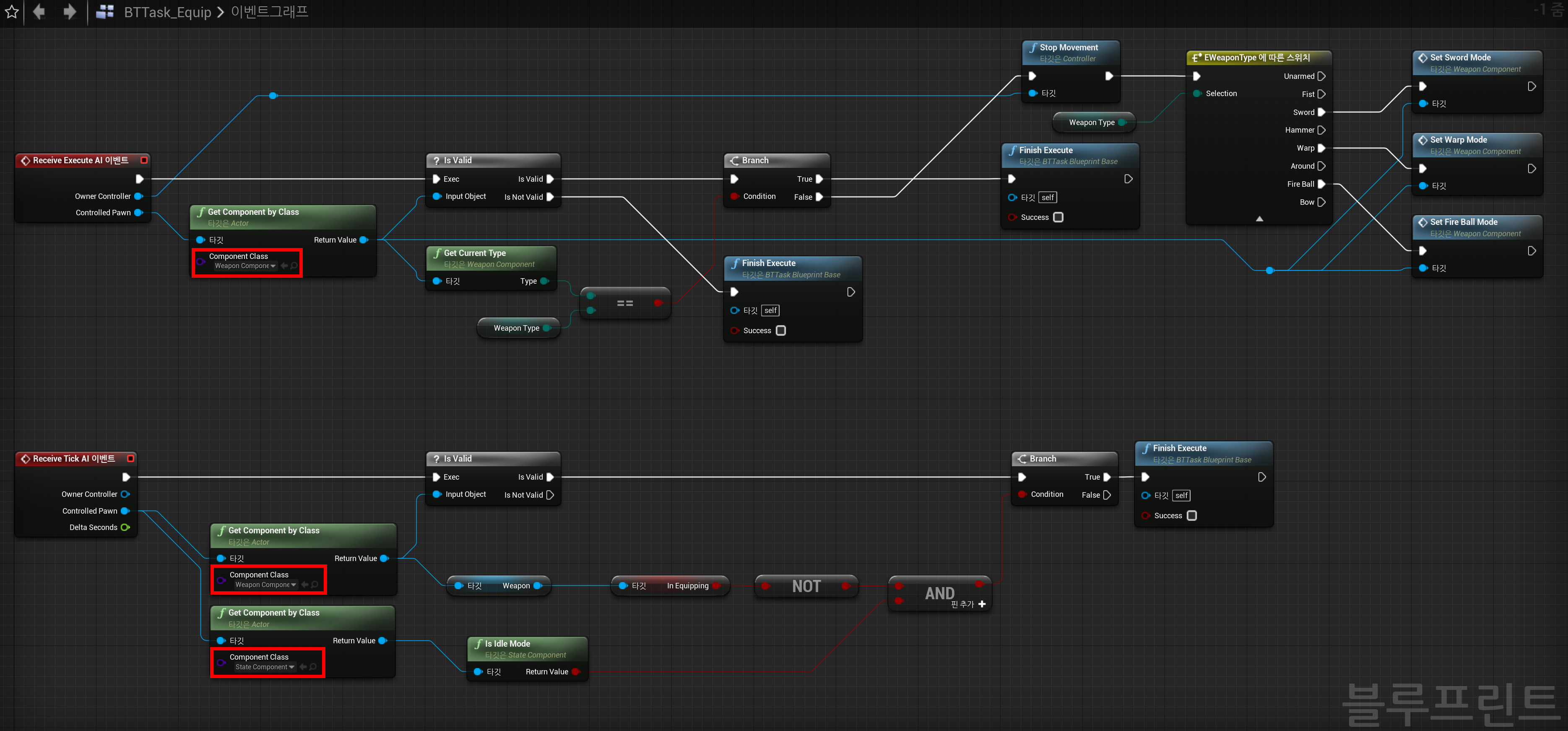

Event Graph

• Receive Execute AI 이벤트, Receive Tick AI 이벤트 생성
• 변수 생성: WeaponType (EWeaponType)
• Receive Tick AI 이벤트 상태 체크
  • Weapon - In Equipping이 False인지 체크
  • Is Idle Mode인지 체크
  • 아래의 이미지 참고

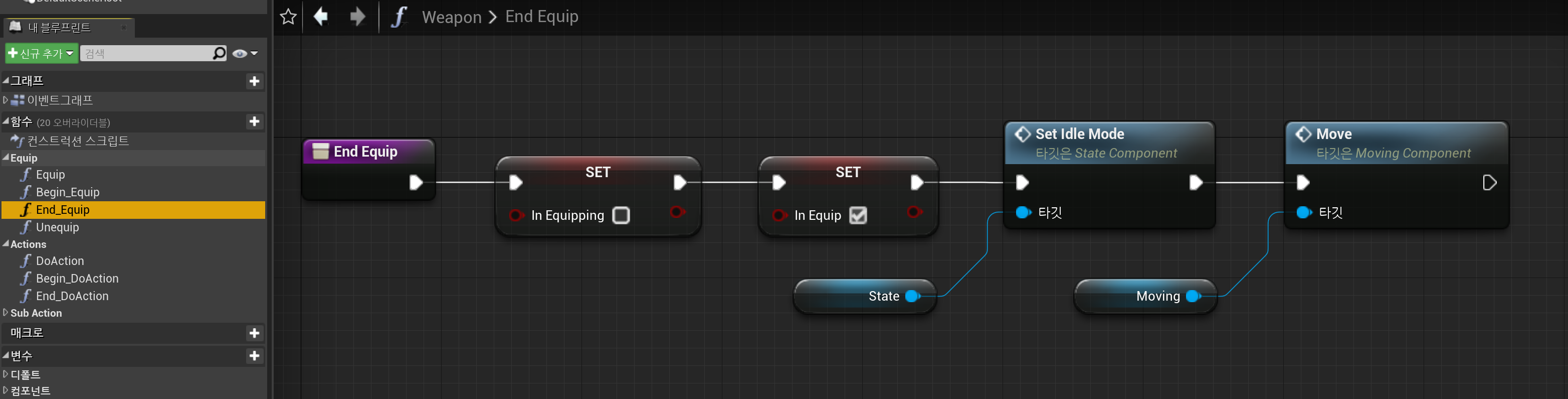

참고) Weapon의 End_Equip 함수



---

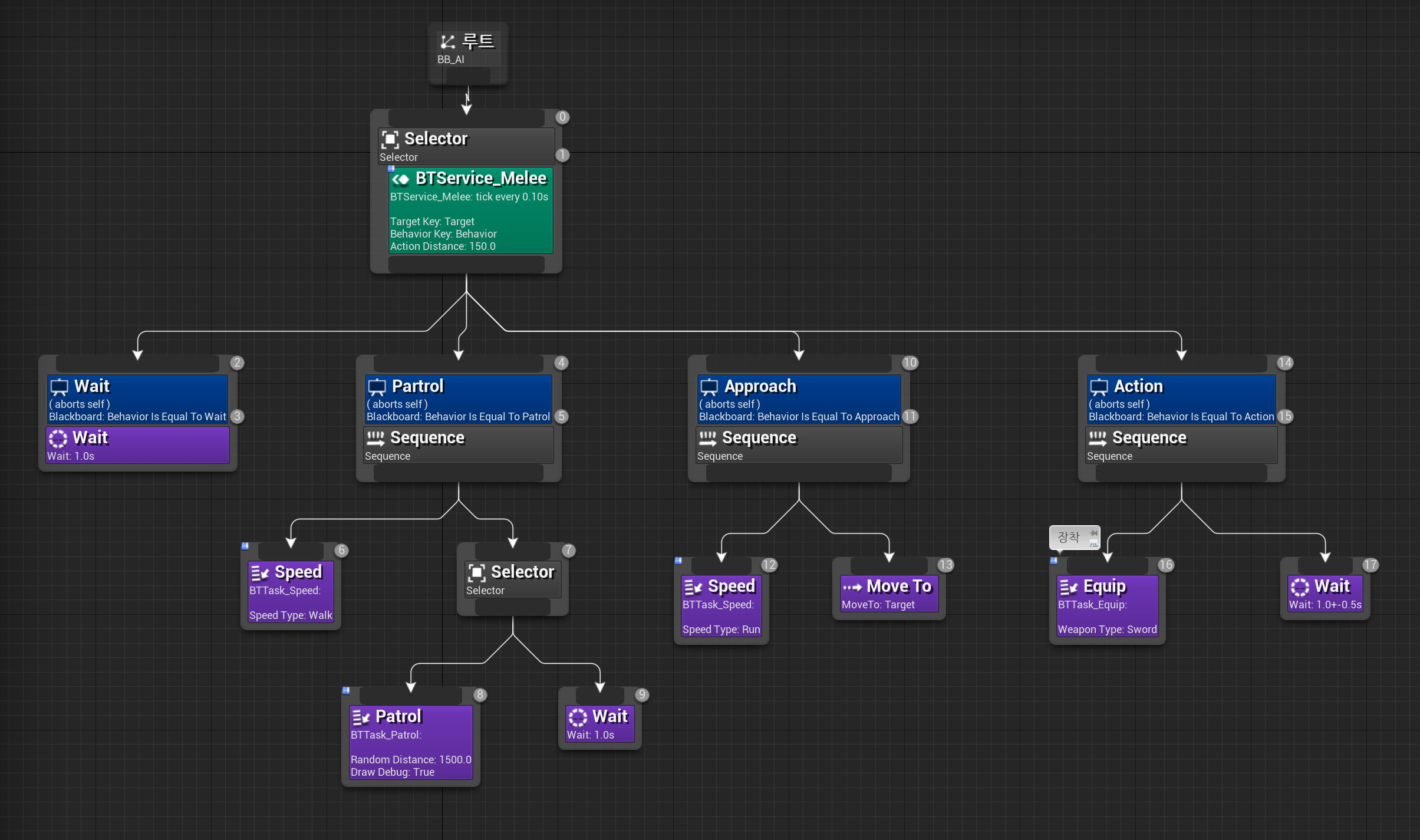

0. BT_Melee



• Action Sequence 추가

---



실행화면











---
