무기 장착 및 기본 공격하기

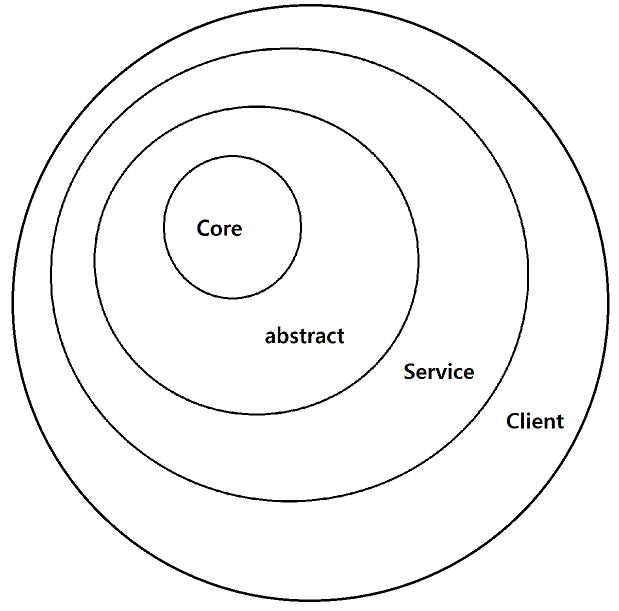

프로그래밍 설계의 진화

Top-Down 방식

초기(과거) 프로그래밍 설계
기능함수, 데이터 변수 수정에 대한 비용이 너무 크다는걸 인지.

그 후에 이 문제를 해결하기 위해...

객체(함수 + 변수)가 등장!!

요즘은 객체를 사용하여 프로그래밍한다.

Weapon 구조


	WeponComponent	WeaponAsset	Attachment Equipment - OnEquip Event - OnUnequp Event DoAction

같은 레벨의 클래스를 부르는 방법

Delegation 사용하는 방법
- 부분적으로 사용할 때 가장 좋은 방법
- ex. WeaponComponent → WeaponAsset → Equipment(에서 Event 발생 시 Delegation과 엮여있는 Attachment 내의 함수를 호출)
Friend를 사용하는 방법
- 클래스에서만 사용되는 부분은 private으로 막아준다.
- 다른곳에서 사용되는 부분을 public으로 열어준다.

CEquipment

CEquipment.h

 #pragma once

#include "CoreMinimal.h"
#include "UObject/NoExportTypes.h"
#include "Weapons/CWeaponStructures.h"
#include "CEquipment.generated.h"

//직렬화하여 BP에서 사용가능하도록 DYNAMIC, 여러함수를 받을 수 있도록 MULTICAST 사용.
DECLARE_DYNAMIC_MULTICAST_DELEGATE(FEquipmentBeginEquip);
DECLARE_DYNAMIC_MULTICAST_DELEGATE(FEquipmentUnequip);

UCLASS()
class U2212_06_API UCEquipment : public UObject
{
	GENERATED_BODY()

public:
	void BeginPlay(class ACharacter* InOwner, const FEquipmentData& InData);

public:
	UFUNCTION(BlueprintNativeEvent)//필요시 BP에서 재정의하기 위해 BlueprintNativeEvent사용.
		void Equip();
		void Equip_Implementation();

	UFUNCTION(BlueprintNativeEvent)
		void Begin_Equip();
		void Begin_Equip_Implementation();

	UFUNCTION(BlueprintNativeEvent)
		void End_Equip();
		void End_Equip_Implementation();

	UFUNCTION(BlueprintNativeEvent)
		void Unequip();
		void Unequip_Implementation();

public:
	FEquipmentBeginEquip OnEquipmentBeginEquip;//DECLARE_DYNAMIC_MULTICAST_DELEGATE 하였다.
	FEquipmentUnequip OnEquipmentUnequip;//DECLARE_DYNAMIC_MULTICAST_DELEGATE 하였다.

private:
	class ACharacter* OwnerCharacter;
	FEquipmentData Data;

private:
	class UCMovementComponent* Movement;
	class UCStateComponent* State;

private:
	bool bBeginEquip;//Equip이 시작되었는가 확인
	bool bEquipped;  //Equip이 완료되었는지 확인
};

델리게이트 생성

직렬화하여 BP에서 사용가능하도록 DYNAMIC, 여러함수를 받을 수 있도록 MULTICAST 사용.
DECLARE_DYNAMIC_MULTICAST_DELEGATE(FEquipmentBeginEquip);
DECLARE_DYNAMIC_MULTICAST_DELEGATE(FEquipmentUnequip);

델리게이트를 사용한 함수 선언

FEquipmentBeginEquip OnEquipmentBeginEquip;
FEquipmentUnequip OnEquipmentUnequip;

CEquipment.cpp

 #include "Weapons/CEquipment.h"
#include "Global.h"
#include "GameFramework/Character.h"
#include "Components/CMovementComponent.h"
#include "Components/CStateComponent.h"
#include "CEquipment.h"

void UCEquipment::BeginPlay(ACharacter* InOwner, const FEquipmentData& InData)
{
	OwnerCharacter = InOwner;
	Data = InData;

	Movement = CHelpers::GetComponent<UCMovementComponent>(InOwner);
	State = CHelpers::GetComponent<UCStateComponent>(InOwner);
}

void UCEquipment::Equip_Implementation()
{
	State->SetEquipMode();

	if (Data.bCanMove == false)
		Movement->Stop();

	if (Data.bUseControlRotation)
		Movement->EnableControlRotation();

	if (!!Data.Montage)
	{
		OwnerCharacter->PlayAnimMontage(Data.Montage, Data.PlayRate);
	}
	else
	{
		Begin_Equip();
		End_Equip();
	}
}

void UCEquipment::Begin_Equip_Implementation()
{
	bBeginEquip = true;

	if (OnEquipmentBeginEquip.IsBound())
		OnEquipmentBeginEquip.Broadcast();
}

void UCEquipment::End_Equip_Implementation()
{
	bBeginEquip = false;
	bEquipped = true;

	Movement->Move();
	State->SetIdleMode();
}

void UCEquipment::Unequip_Implementation()
{
	bEquipped = false;
	Movement->DisableControlRotation();

	if (OnEquipmentUnequip.IsBound())
		OnEquipmentUnequip.Broadcast();
}

Begin_Equip_Implementation()

OnEquipmentBeginEquip.Broadcast(); 해준다.

Unequip_Implementation()

OnEquipmentUnequip.Broadcast(); 해준다.

CAttachment + BP_CAttachment_Sword

CAttachment.h

 #pragma once

#include "CoreMinimal.h"
#include "GameFramework/Actor.h"
#include "CAttachment.generated.h"

UCLASS()
class U2212_06_API ACAttachment : public AActor
{
	GENERATED_BODY()

protected:
	UPROPERTY(BlueprintReadOnly, VisibleAnywhere)
		class USceneComponent* Root;

public:
	ACAttachment();

protected:
	virtual void BeginPlay() override;

public:
	UFUNCTION(BlueprintImplementableEvent)
		void OnBeginEquip();

	UFUNCTION(BlueprintImplementableEvent)
		void OnUnequip();

protected:
	UFUNCTION(BlueprintCallable, Category = "Attach")
		void AttachTo(FName InSocketName);

protected:
	UPROPERTY(BlueprintReadOnly, Category = "Game")
		class ACharacter* OwnerCharacter;
};

UFUNCTION(BlueprintImplementableEvent)
void OnBeginEquip();

UFUNCTION(BlueprintImplementableEvent)
void OnUnequip();

CAttachment.cpp

 #include "Weapons/CAttachment.h"
#include "Global.h"
#include "GameFramework/Character.h"
#include "Components/SceneComponent.h"

ACAttachment::ACAttachment()
{
	CHelpers::CreateComponent(this, &Root, "Root");
}

void ACAttachment::BeginPlay()
{
	OwnerCharacter = Cast<ACharacter>(GetOwner());
	//ACharacter를 먼저 Cast 한 후에 Super::BeginPlay() 호출.
	Super::BeginPlay();
}

void ACAttachment::AttachTo(FName InSocketName)
{
	AttachToComponent(OwnerCharacter->GetMesh(), FAttachmentTransformRules(EAttachmentRule::KeepRelative, true), InSocketName);
}

변경사항 없음.

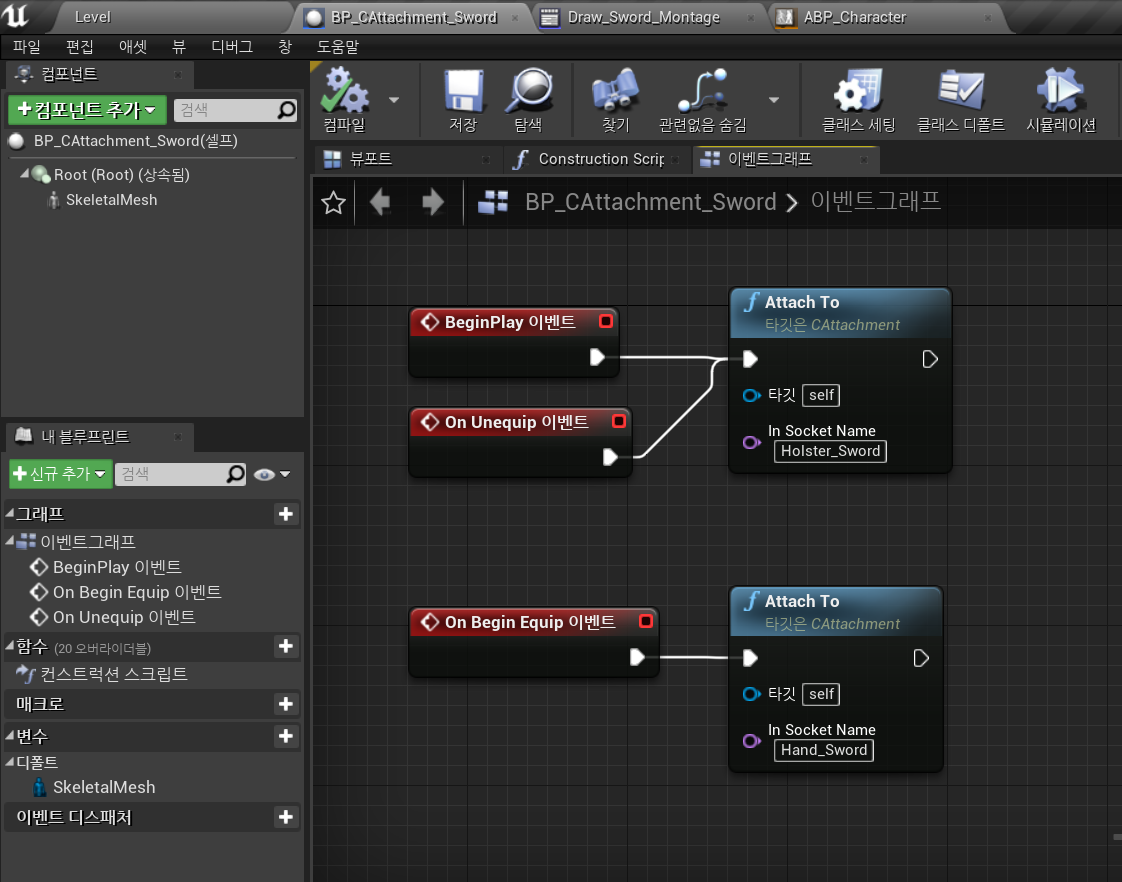

BP_CAttachment_Sword

CAnimNotifyState_Equip 생성 + Draw_Sword_Montage에 할당

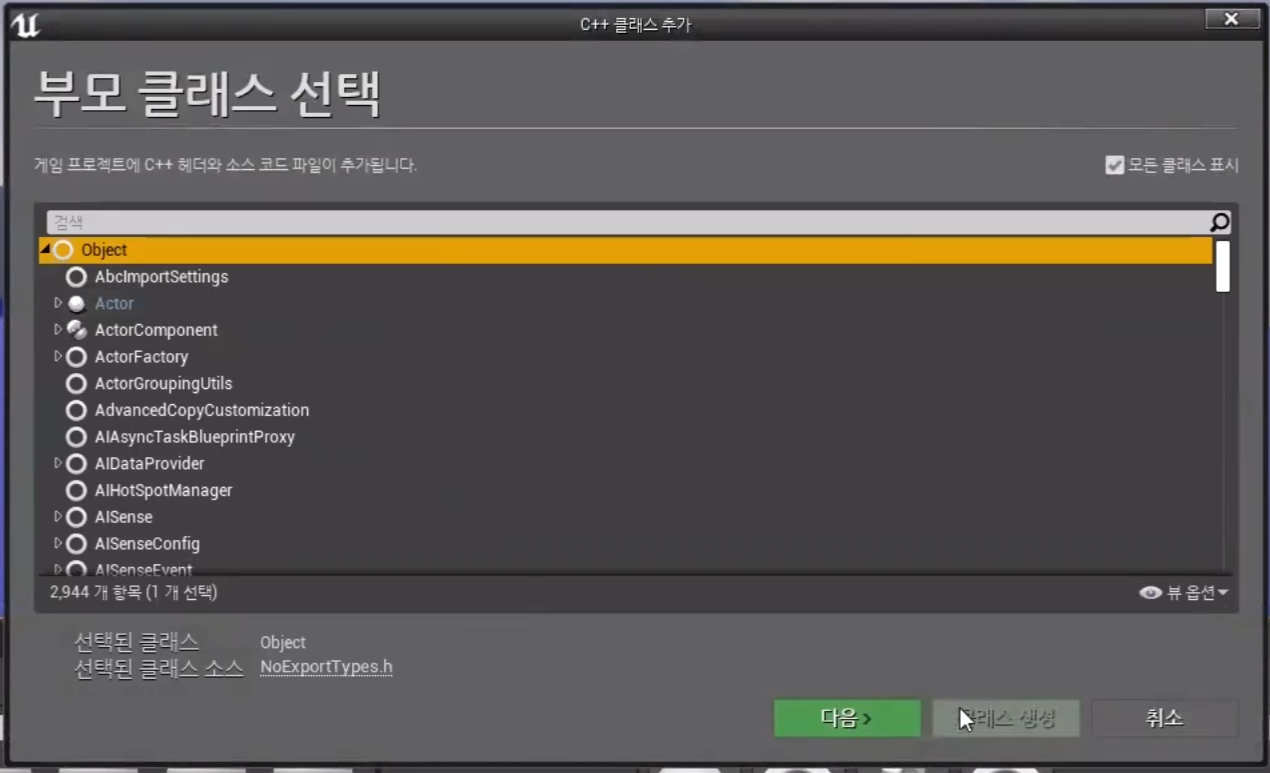

새 C++ 클래스 - AnimNotifyState - CAnimNotifyState_Equip 생성

CAnimNotifyState_Equip.h

 #pragma once

#include "CoreMinimal.h"
#include "Animation/AnimNotifies/AnimNotifyState.h"
#include "CAnimNotifyState_Equip.generated.h"

UCLASS()
class U2212_06_API UCAnimNotifyState_Equip : public UAnimNotifyState
{
	GENERATED_BODY()

public:
	FString GetNotifyName_Implementation() const override;

	virtual void NotifyBegin(USkeletalMeshComponent* MeshComp, UAnimSequenceBase* Animation, float TotalDuration) override;
	virtual void NotifyEnd(USkeletalMeshComponent* MeshComp, UAnimSequenceBase* Animation) override;
};

NotifyBegin, NotifyEnd 오버라이드

virtual void NotifyBegin(USkeletalMeshComponent* MeshComp, UAnimSequenceBase* Animation, float TotalDuration) override;
virtual void NotifyEnd(USkeletalMeshComponent* MeshComp, UAnimSequenceBase* Animation) override;

CAnimNotifyState_Equip.cpp

 #include "Notifies/CAnimNotifyState_Equip.h"
#include "Global.h"
#include "Components/CWeaponComponent.h"
#include "Weapons/CEquipment.h"

FString UCAnimNotifyState_Equip::GetNotifyName_Implementation() const
{
	return "Equip";
}

void UCAnimNotifyState_Equip::NotifyBegin(USkeletalMeshComponent* MeshComp, UAnimSequenceBase* Animation, float TotalDuration)
{
	Super::NotifyBegin(MeshComp, Animation, TotalDuration);
	CheckNull(MeshComp);
	CheckNull(MeshComp->GetOwner());

	UCWeaponComponent* weapon = CHelpers::GetComponent<UCWeaponComponent>(MeshComp->GetOwner());
	CheckNull(weapon);
	CheckNull(weapon->GetEquipment());

	weapon->GetEquipment()->Begin_Equip();
}

void UCAnimNotifyState_Equip::NotifyEnd(USkeletalMeshComponent* MeshComp, UAnimSequenceBase* Animation)
{
	Super::NotifyEnd(MeshComp, Animation);
	CheckNull(MeshComp);
	CheckNull(MeshComp->GetOwner());

	UCWeaponComponent* weapon = CHelpers::GetComponent<UCWeaponComponent>(MeshComp->GetOwner());
	CheckNull(weapon);
	CheckNull(weapon->GetEquipment());

	weapon->GetEquipment()->End_Equip();
}

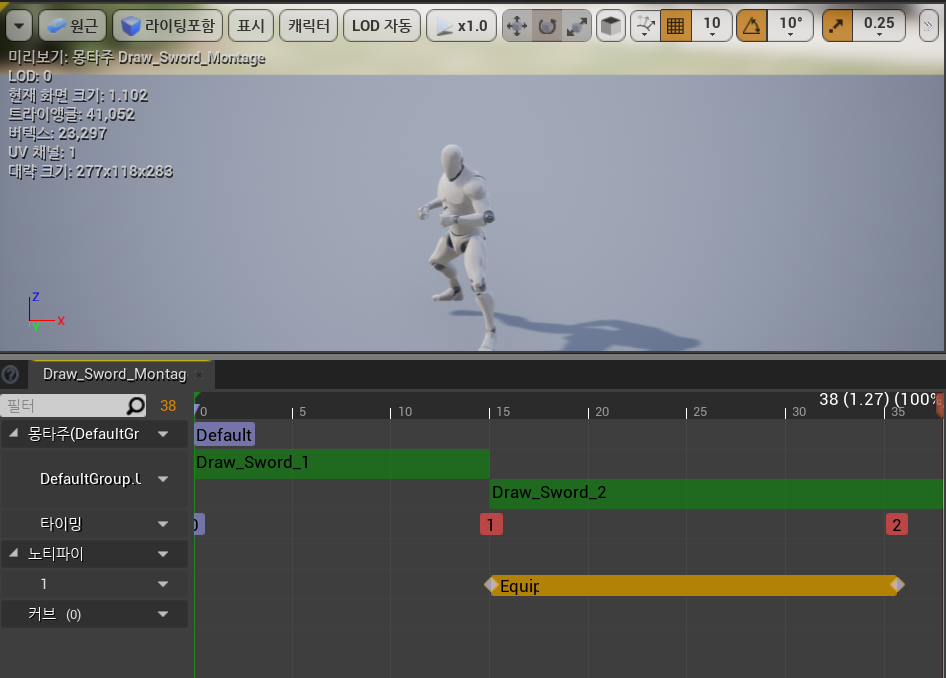

Draw_Sword_Montage

AnimNotifyState_Equp 할당

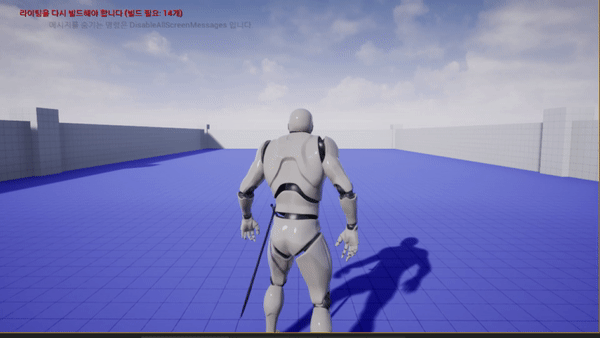

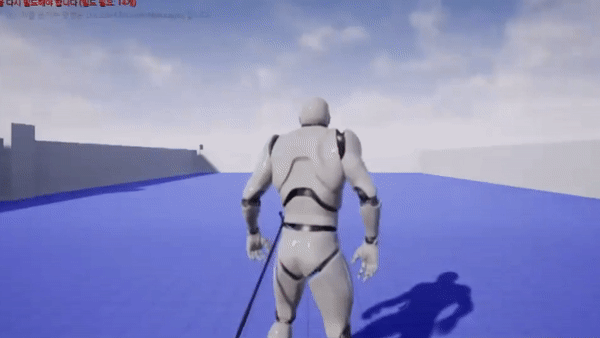

실행화면

Sword Mode 애니메이션

CAnimInstance

CAnimInstance.h

 #pragma once

#include "CoreMinimal.h"
#include "Animation/AnimInstance.h"
#include "Components/CWeaponComponent.h"
#include "CAnimInstance.generated.h"

UCLASS()
class U2212_06_API UCAnimInstance : public UAnimInstance
{
	GENERATED_BODY()

protected:
    UPROPERTY(BlueprintReadOnly, Category = "Animation")
        float Speed;

    UPROPERTY(BlueprintReadOnly, Category = "Animation")
        float Pitch;

    UPROPERTY(BlueprintReadOnly, Category = "Animation")
        float Direction;
protected:
    UPROPERTY(BlueprintReadOnly, EditAnywhere, Category = "Animation")
        EWeaponType WeaponType = EWeaponType::Max;

public:
    void NativeBeginPlay() override;
    void NativeUpdateAnimation(float DeltaSeconds) override;

private:
    UFUNCTION()
        void OnWeaponTypeChanged(EWeaponType InPrevType, EWeaponType InNewType);

private:
    class ACharacter* OwnerCharacter;
    class UCWeaponComponent* Weapon;

private:
    FRotator PrevRotation;
};

헤더 추가

#include "Components/CWeaponComponent.h"

변수 추가

UPROPERTY(BlueprintReadOnly, EditAnywhere, Category = "Animation")
EWeaponType WeaponType = EWeaponType::Max;
class UCWeaponComponent* Weapon;

함수 추가

UFUNCTION()
void OnWeaponTypeChanged(EWeaponType InPrevType, EWeaponType InNewType);

CAnimInstance.cpp

 #include "Characters/CAnimInstance.h"
#include "Global.h"
#include "GameFramework/Character.h"

void UCAnimInstance::NativeBeginPlay()
{
	Super::NativeBeginPlay();

	OwnerCharacter = Cast<ACharacter>(TryGetPawnOwner());
	CheckNull(OwnerCharacter);

	Weapon = CHelpers::GetComponent<UCWeaponComponent>(OwnerCharacter);
	if (!!Weapon)
		Weapon->OnWeaponTypeChange.AddDynamic(this, &UCAnimInstance::OnWeaponTypeChanged);
}

void UCAnimInstance::NativeUpdateAnimation(float DeltaSeconds)
{
	Super::NativeUpdateAnimation(DeltaSeconds);
	CheckNull(OwnerCharacter);

	Speed = OwnerCharacter->GetVelocity().Size2D();

	FRotator rotator = OwnerCharacter->GetVelocity().ToOrientationRotator();
	FRotator rotator2 = OwnerCharacter->GetControlRotation();
	FRotator delta = UKismetMathLibrary::NormalizedDeltaRotator(rotator, rotator2);
	PrevRotation = UKismetMathLibrary::RInterpTo(PrevRotation, delta, DeltaSeconds, 25);
	Direction = PrevRotation.Yaw;

	Pitch = UKismetMathLibrary::FInterpTo(Pitch, OwnerCharacter->GetBaseAimRotation().Pitch, DeltaSeconds, 25);
}

void UCAnimInstance::OnWeaponTypeChanged(EWeaponType InPrevType, EWeaponType InNewType)
{
	WeaponType = InNewType;
}

ABP_Character

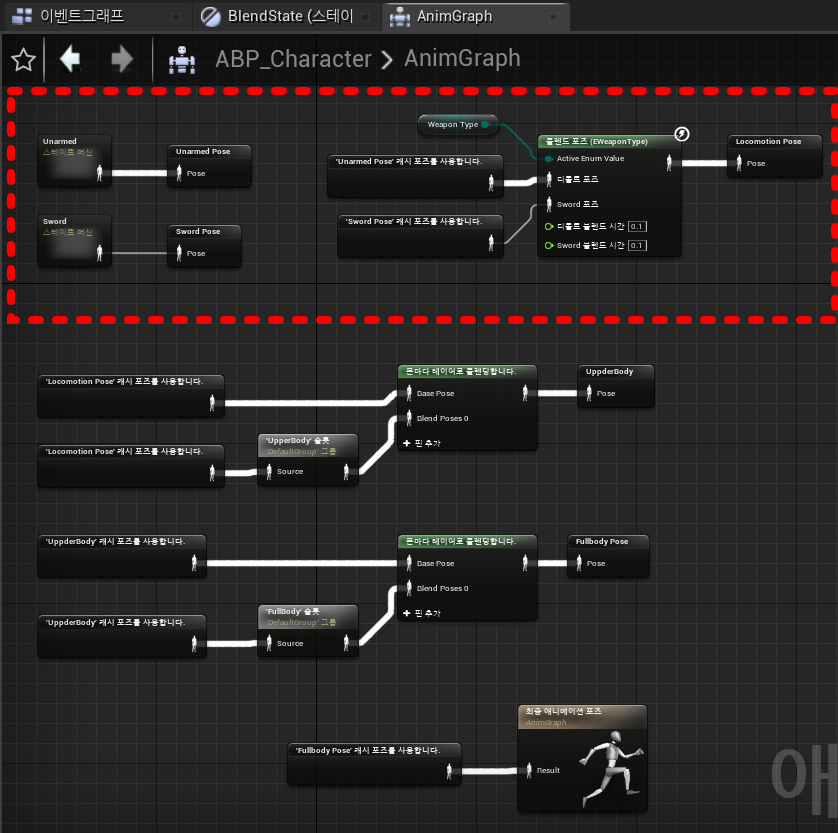

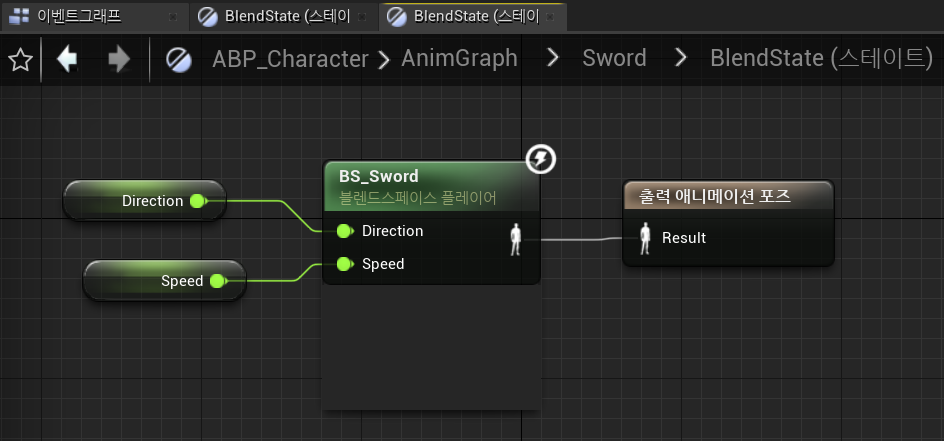

AnimGraph

실행화면

기본공격 구현

CWeaponStructures

CWeaponStructures.h

 #pragma once

#include "CoreMinimal.h"
#include "UObject/NoExportTypes.h"
#include "CWeaponStructures.generated.h"

USTRUCT()
struct FEquipmentData
{
	GENERATED_BODY()

public:
	UPROPERTY(EditAnywhere)
		class UAnimMontage* Montage;

	UPROPERTY(EditAnywhere)
		float PlayRate = 1;

	UPROPERTY(EditAnywhere)
		bool bCanMove = true;

	UPROPERTY(EditAnywhere)
		bool bUseControlRotation = true;
};

USTRUCT()
struct FDoActionData
{
	GENERATED_BODY()

public:
	UPROPERTY(EditAnywhere)
		class UAnimMontage* Montage;

	UPROPERTY(EditAnywhere)
		float PlayRate = 1;

	UPROPERTY(EditAnywhere)
		bool bCanMove = true;

	UPROPERTY(EditAnywhere)
		bool bFixedCamera;

	UPROPERTY(EditAnywhere)
		class UFXSystemAsset* Effect; //사용할 Effect 변수

	UPROPERTY(EditAnywhere)
		FVector EffectLocation = FVector::ZeroVector;//(Effect)지정 방향의 보정치.

	UPROPERTY(EditAnywhere)
		FVector EffectScale = FVector::OneVector;//Effect 크기 기본값 1 설정.

public:
	void DoAction(class ACharacter* InOwner);
};

UCLASS()
class U2212_06_API UCWeaponStructures : public UObject
{
	GENERATED_BODY()
};

이펙트에 사용될 변수 추가

UPROPERTY(EditAnywhere)
class UFXSystemAsset* Effect; //사용할 Effect 변수
FVector EffectLocation = FVector::ZeroVector; //(Effect)지정 방향의 보정치.
FVector EffectScale = FVector::OneVector; //Effect 크기 기본값 1 설정.

기본 공격 구현을 함수 추가

void DoAction(class ACharacter* InOwner);

CWeaponStructures.cpp

 #include "Weapons/CWeaponStructures.h"
#include "Global.h"
#include "GameFramework/Character.h"
#include "Components/CStateComponent.h"
#include "Components/CMovementComponent.h"
#include "Animation/AnimMontage.h"

void FDoActionData::DoAction(ACharacter* InOwner)
{
	UCMovementComponent* movement = CHelpers::GetComponent<UCMovementComponent>(InOwner);

	if (!!movement)
	{
		if (bFixedCamera)
			movement->EnableFixedCamera();

		if (bCanMove == false)
			movement->Stop();
	}

	if (!!Montage)
		InOwner->PlayAnimMontage(Montage, PlayRate);
}

CDoAction 생성

새 C++ 클래스 - Object - CDoAction 생성

CDoAction.h

 #pragma once

#include "CoreMinimal.h"
#include "UObject/NoExportTypes.h"
#include "Weapons/CWeaponStructures.h"
#include "CDoAction.generated.h"

UCLASS(Abstract)//DoAction 그 자체로는 객체화되면 안 되기 때문에 Abstract을 붙여준다.
class U2212_06_API UCDoAction : public UObject
{
	GENERATED_BODY()

public:
	UCDoAction();

	virtual void BeginPlay //재정의 할 수 있도록 virtual로 만든다.
	(
		class ACAttachment* InAttachment,
		class UCEquipment* InEquipment,
		class ACharacter* InOwner,
		const TArray<FDoActionData>& InDoActionDatas
	);

public:
	//재정의 할 수 있도록 virtual로 만든다.
	virtual void DoAction();
	virtual void Begin_DoAction();
	virtual void End_DoAction();

protected:
	bool bBeginAction;

	class ACharacter* OwnerCharacter;
	class UWorld* World;

	class UCMovementComponent* Movement;
	class UCStateComponent* State;

	TArray<FDoActionData> DoActionDatas;
};

DoAction에 대한 수행역할을 전부 구조체에 넣어준다.

USTRUCT()
struct FDoActionData

CDoAction.cpp

 #include "Weapons/CDoAction.h"
#include "Global.h"
#include "CAttachment.h"
#include "CEquipment.h"
#include "GameFramework/Character.h"
#include "Components/CStateComponent.h"
#include "Components/CMovementComponent.h"

UCDoAction::UCDoAction()
{
}

void UCDoAction::BeginPlay(ACAttachment* InAttachment, UCEquipment* InEquipment, ACharacter* InOwner, const TArray<FDoActionData>& InDoActionDatas)
{
	OwnerCharacter = InOwner;
	World = OwnerCharacter->GetWorld();

	State = CHelpers::GetComponent<UCStateComponent>(OwnerCharacter);
	Movement = CHelpers::GetComponent<UCMovementComponent>(OwnerCharacter);

	DoActionDatas = InDoActionDatas;
}

void UCDoAction::DoAction()
{
	State->SetActionMode();
}

void UCDoAction::Begin_DoAction()
{
	bBeginAction = true;
}

void UCDoAction::End_DoAction()
{
	bBeginAction = false;

	State->SetIdleMode();

	Movement->Move();
	Movement->DisableFixedCamera();
}

CDoAction_Combo 생성

새 C++ 클래스 - CDoAction 기반 C++ - CDoAction_Combo 생성

CDoAction_Combo.h

 #pragma once

#include "CoreMinimal.h"
#include "Weapons/CDoAction.h"
#include "CDoAction_Combo.generated.h"

UCLASS()
class U2212_06_API UCDoAction_Combo : public UCDoAction
{
	GENERATED_BODY()

public:
	FORCEINLINE void EnableCombo() { bEnable = true; }
	FORCEINLINE void DisableCombo() { bEnable = false; }

public:
	void DoAction() override;
	void Begin_DoAction() override;
	void End_DoAction() override;

private:
	int32 Index;

	bool bEnable;
	bool bExist;
};

CDoAction_Combo.cpp

 #include "Weapons/DoActions/CDoAction_Combo.h"
#include "Global.h"
#include "GameFramework/Character.h"
#include "Components/CStateComponent.h"

void UCDoAction_Combo::DoAction()
{
	CheckTrue(DoActionDatas.Num() < 1);

	if (bEnable) //bEnable이라면 Combo 구간
	{
		bEnable = false;
		bExist = true;

		return;
	}

	CheckFalse(State->IsIdleMode());

	Super::DoAction(); //첫 타격이 들어간 후에 Combo의 bEnable이 호출되어야 한다. 그래서 맨 위가 아닌 여기에 위치한다.//첫 타격 시 IsIdleMode()를 체크 통과한 후 부모의 DoAction으로 들어가 State->ActionMode()로 변경한다.
	DoActionDatas[Index].DoAction(OwnerCharacter);
}

void UCDoAction_Combo::Begin_DoAction()
{
	Super::Begin_DoAction();
	CheckFalse(bExist);//다음 Combo가 없으면 바로 End_DoAction으로 이동.

	bExist = false;
	DoActionDatas[++Index].DoAction(OwnerCharacter);
}

void UCDoAction_Combo::End_DoAction()
{
	Super::End_DoAction();

	Index = 0;
}

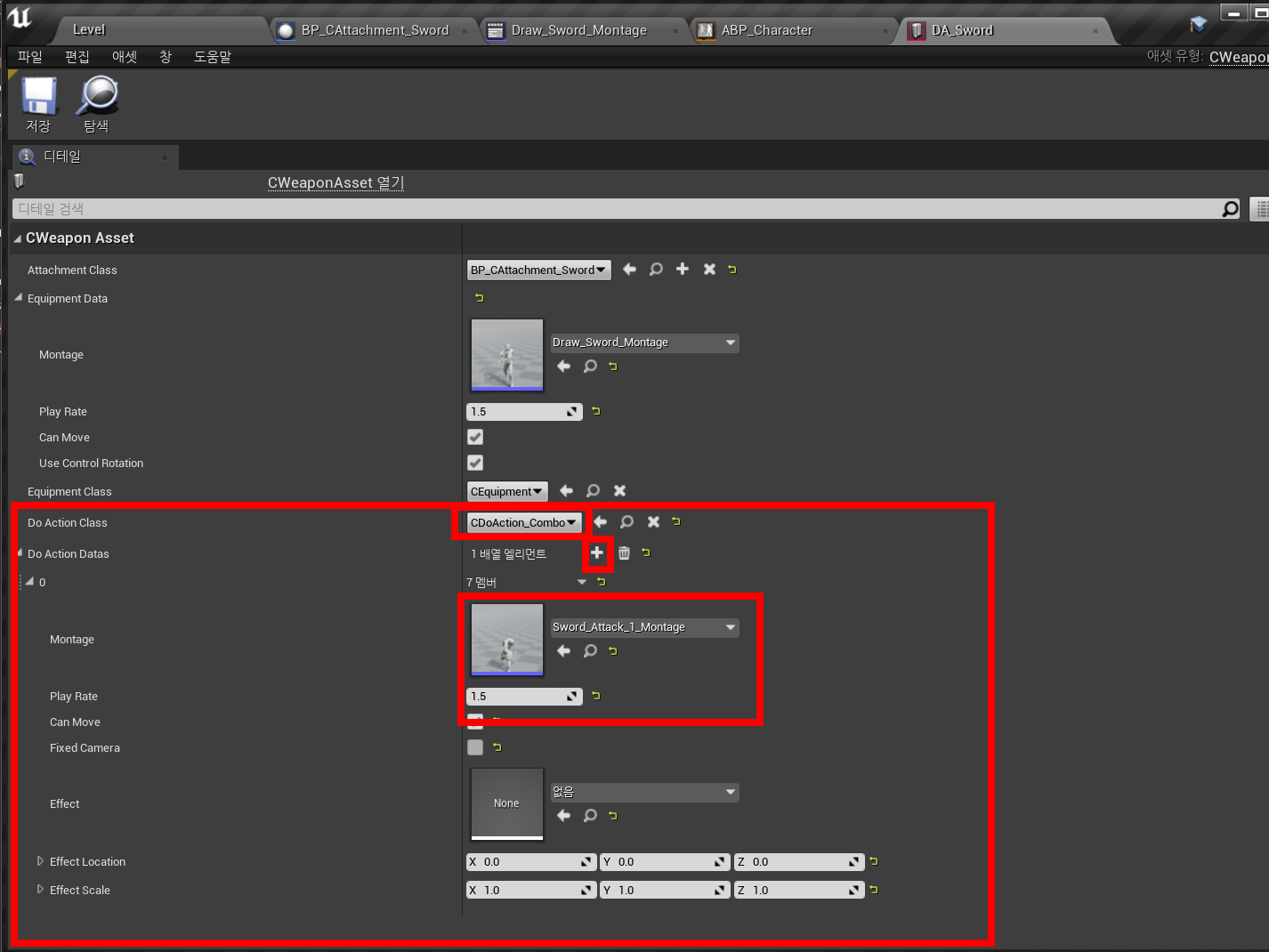

DA_Sword에 Do Action Class 할당

실행화면

'⭐ Unreal Engine > UE RPG Weapon System' 카테고리의 다른 글

[UE] Hit Data, Effect, Object Pooling(오브젝트 풀링) (0)	2023.05.09
[UE] AnimNotify, DoAction (0)	2023.05.08
[UE] 무기 시스템 설계하기 (0)	2023.05.01
[UE] Interface, AnimNotify, Backstep 구현하기 (0)	2023.04.28
[UE] Component 컴포넌트, Player 이동 (0)	2023.04.27

내 블로그 - 관리자 홈 전환	`Q` `Q`
새 글 쓰기	`W` `W`

글 수정 (권한 있는 경우)	`E` `E`
댓글 영역으로 이동	`C` `C`

이 페이지의 URL 복사	`S` `S`
맨 위로 이동	`T` `T`
티스토리 홈 이동	`H` `H`
단축키 안내	`Shift` + `/` `⇧` + `/`

[UE] 무기 장착 및 기본 공격하기

무기 장착 및 기본 공격하기

프로그래밍 설계의 진화

Weapon 구조

CEquipment

CAttachment + BP_CAttachment_Sword

CAnimNotifyState_Equip 생성 + Draw_Sword_Montage에 할당

실행화면

Sword Mode 애니메이션

CAnimInstance

ABP_Character

실행화면

기본공격 구현

CWeaponStructures

CDoAction 생성

CDoAction_Combo 생성

DA_Sword에 Do Action Class 할당

실행화면

'⭐ Unreal Engine > UE RPG Weapon System' 카테고리의 다른 글

댓글

이 글 공유하기

티스토리툴바

단축키

내 블로그

블로그 게시글

모든 영역

무기 장착 및 기본 공격하기

프로그래밍 설계의 진화

Weapon 구조

CEquipment

CAttachment + BP_CAttachment_Sword

CAnimNotifyState_Equip 생성 + Draw_Sword_Montage에 할당

실행화면

Sword Mode 애니메이션

CAnimInstance

ABP_Character

실행화면

기본공격 구현

CWeaponStructures

CDoAction 생성

CDoAction_Combo 생성

DA_Sword에 Do Action Class 할당

실행화면

'⭐ Unreal Engine > UE RPG Weapon System' 카테고리의 다른 글

댓글

이 글 공유하기

다른 글

[UE] Hit Data, Effect, Object Pooling(오브젝트 풀링)

[UE] AnimNotify, DoAction

[UE] 무기 시스템 설계하기

[UE] Interface, AnimNotify, Backstep 구현하기

티스토리툴바

단축키

내 블로그

블로그 게시글

모든 영역
