[UE] AnimNotify, DoAction

Combo 공격 구현
Collision 구현하

목차


Source
		Characters
		CAnimInstance.h .cpp CEnemy.h .cpp 생성 CPlayer.h .cpp ICharacter.h .cpp
		Components
		CMontagesComponent.h .cpp CMovementComponent.h .cpp CStateComponent.h .cpp CWeaponComponent.h .cpp
		Notifies
		CAnimNotifyState_BeginAction.h .cpp 생성 CAnimNotifyState_EndAction.h .cpp 생성 CAnimNotify_EndState.h .cpp CAnimNotifyState_Collision.h .cpp 생성 CAnimNotifyState_Combo.h .cpp 생성 CAnimNotifyState_Equip.h .cpp
		Utilities
		CHelper.h CLog.h .cpp
		Weapons
		CDoAction_Combo.h .cpp CAttachment.h .cpp CDoAction.h .cpp CEquipment.h .cpp CWeaponAsset.h .cpp CWeaponStructures.h .cpp
		Global.h CGameMode.h .cpp U2212_06.Build.cs
		U2212_06.uproject

Combo 공격 구현

CAnimNotify_BeginAction 생성

새 C++ 클래스 - AnimNotify - CAnimNotify_BeginAction 생성

CAnimNotify_BeginAction.h

 #pragma once

#include "CoreMinimal.h"
#include "Animation/AnimNotifies/AnimNotify.h"
#include "CAnimNotify_BeginAction.generated.h"

UCLASS()
class U2212_06_API UCAnimNotify_BeginAction : public UAnimNotify
{
	GENERATED_BODY()

public:
	FString GetNotifyName_Implementation() const override;//Notify 이름을 지어주는 함수.

	void Notify(USkeletalMeshComponent* MeshComp, UAnimSequenceBase* Animation) override;
};

CAnimNotify_BeginAction.cpp

 #include "Notifies/CAnimNotify_BeginAction.h"
#include "Global.h"
#include "Components/CWeaponComponent.h"
#include "Weapons/CDoAction.h"

FString UCAnimNotify_BeginAction::GetNotifyName_Implementation() const
{
	return "Begin_DoAction";//Notify이름을 Begin_DoAction으로 설정.
}

void UCAnimNotify_BeginAction::Notify(USkeletalMeshComponent* MeshComp, UAnimSequenceBase* Animation)
{
	Super::Notify(MeshComp, Animation);
	CheckNull(MeshComp);//MeshComp 있는지 체크
	CheckNull(MeshComp->GetOwner());//MeshComp->GetOwner() 있는지 체크

	UCWeaponComponent* weapon = CHelpers::GetComponent<UCWeaponComponent>(MeshComp->GetOwner());
	CheckNull(weapon);//weapon이 있는지 체크
	CheckNull(weapon->GetDoAction());//weapon 내에 GetDoAction()함수가 있는지 체크

	weapon->GetDoAction()->Begin_DoAction();//Begin_DoAction 실행
}

CAnimNotify_EndAction 생성

새 C++ 클래스 - AnimNotify - CAnimNotify_EndAction 생성

CAnimNotify_EndAction.h

 #pragma once

#include "CoreMinimal.h"
#include "Animation/AnimNotifies/AnimNotify.h"
#include "CAnimNotify_EndAction.generated.h"

UCLASS()
class U2212_06_API UCAnimNotify_EndAction : public UAnimNotify
{
	GENERATED_BODY()

public:
	FString GetNotifyName_Implementation() const override;

	void Notify(USkeletalMeshComponent* MeshComp, UAnimSequenceBase* Animation) override;
};

CAnimNotify_EndAction.cpp

 #include "Notifies/CAnimNotify_EndAction.h"
#include "Global.h"
#include "Components/CWeaponComponent.h"
#include "Weapons/CDoAction.h"

FString UCAnimNotify_EndAction::GetNotifyName_Implementation() const
{
	return "End_DoAction";
}

void UCAnimNotify_EndAction::Notify(USkeletalMeshComponent* MeshComp, UAnimSequenceBase* Animation)
{
	Super::Notify(MeshComp, Animation);
	CheckNull(MeshComp);
	CheckNull(MeshComp->GetOwner());

	UCWeaponComponent* weapon = CHelpers::GetComponent<UCWeaponComponent>(MeshComp->GetOwner());
	CheckNull(weapon);
	CheckNull(weapon->GetDoAction());

	weapon->GetDoAction()->End_DoAction();//End_DoAction 실행
}

CAnimNotifyState_Combo 생성

새 C++ 클래스 - AnimNotifyState - CAnimNotifyState_Combo 생성

CAnimNotifyState_Combo.h

 #pragma once

#include "CoreMinimal.h"
#include "Animation/AnimNotifies/AnimNotifyState.h"
#include "CAnimNotifyState_Combo.generated.h"

UCLASS()
class U2212_06_API UCAnimNotifyState_Combo : public UAnimNotifyState
{
	GENERATED_BODY()

public:
	FString GetNotifyName_Implementation() const override;

	virtual void NotifyBegin(USkeletalMeshComponent* MeshComp, UAnimSequenceBase* Animation, float TotalDuration) override;
	virtual void NotifyEnd(USkeletalMeshComponent* MeshComp, UAnimSequenceBase* Animation) override;
};

CAnimNotifyState_Combo.cpp

 #include "Notifies/CAnimNotifyState_Combo.h"
#include "Global.h"
#include "Components/CWeaponComponent.h"
#include "Weapons/DoActions/CDoAction_Combo.h"

FString UCAnimNotifyState_Combo::GetNotifyName_Implementation() const
{
	return "Combo"; //Notify이름 설정.
}

void UCAnimNotifyState_Combo::NotifyBegin(USkeletalMeshComponent* MeshComp, UAnimSequenceBase* Animation, float TotalDuration)
{
	Super::NotifyBegin(MeshComp, Animation, TotalDuration);
	CheckNull(MeshComp);
	CheckNull(MeshComp->GetOwner());

	UCWeaponComponent* weapon = CHelpers::GetComponent<UCWeaponComponent>(MeshComp->GetOwner());
	CheckNull(weapon);
	CheckNull(weapon->GetDoAction());


	UCDoAction_Combo* combo = Cast<UCDoAction_Combo>(weapon->GetDoAction());
	CheckNull(combo);

	combo->EnableCombo();//콤보 on
}

void UCAnimNotifyState_Combo::NotifyEnd(USkeletalMeshComponent* MeshComp, UAnimSequenceBase* Animation)
{
	Super::NotifyEnd(MeshComp, Animation);
	CheckNull(MeshComp);
	CheckNull(MeshComp->GetOwner());

	UCWeaponComponent* weapon = CHelpers::GetComponent<UCWeaponComponent>(MeshComp->GetOwner());
	CheckNull(weapon);
	CheckNull(weapon->GetDoAction());


	UCDoAction_Combo* combo = Cast<UCDoAction_Combo>(weapon->GetDoAction());
	CheckNull(combo);

	combo->DisableCombo();//콤보 off
}

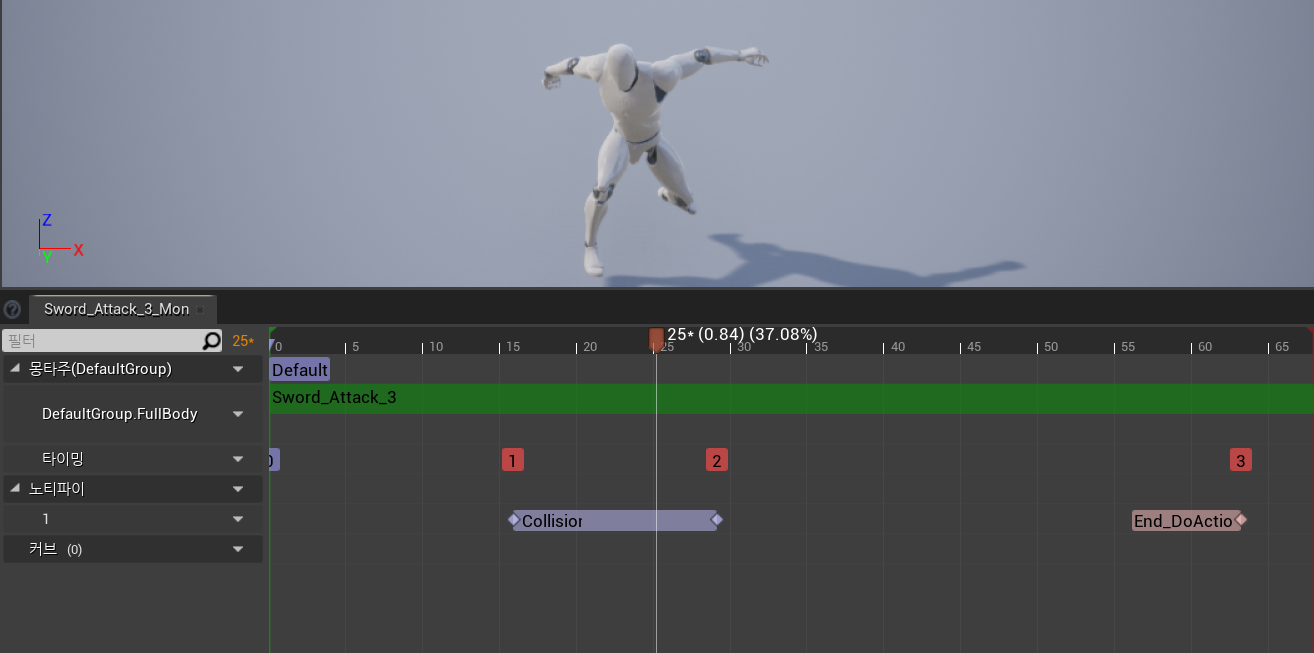

Montage 작업

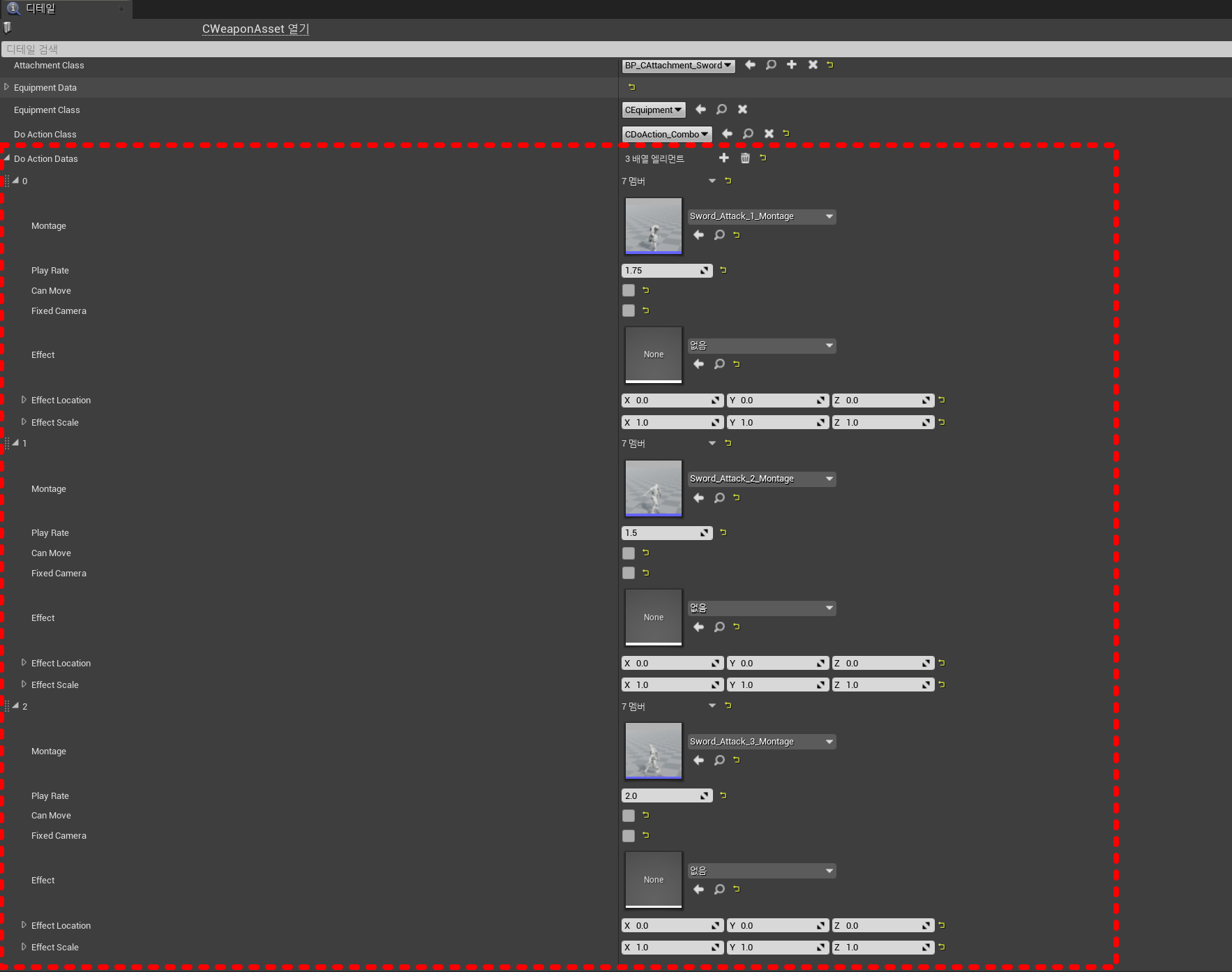

DA_Sword에 DoAction Datas 할당

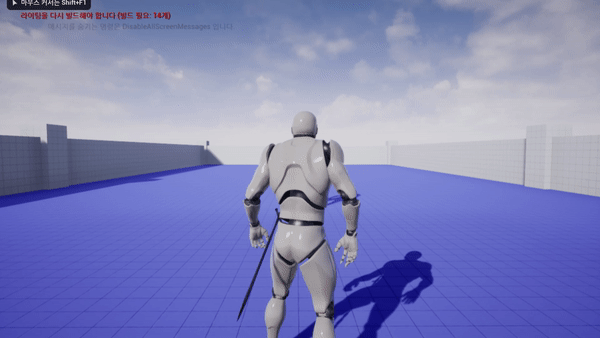

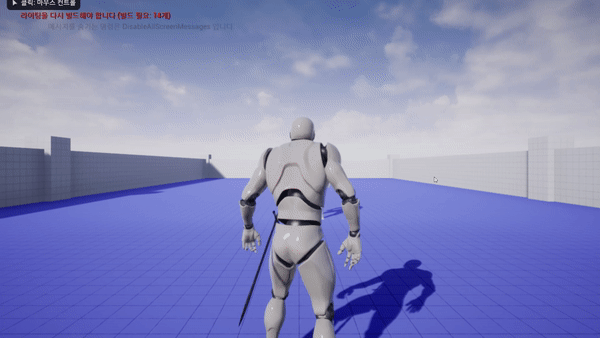

실행화면

Collision 구현하

ICharacter

ICharacter.h

 #pragma once

#include "CoreMinimal.h"
#include "UObject/Interface.h"
#include "ICharacter.generated.h"

UINTERFACE(MinimalAPI) //직렬화를 위한 부분
class UICharacter : public UInterface
{
	GENERATED_BODY()
};

class U2212_06_API IICharacter
{
	GENERATED_BODY()

public:
	virtual void End_BackStep() { }

public:
	void Create_DynamicMaterial(class ACharacter* InCharacter);
	void Change_Color(class ACharacter* InCharacter, FLinearColor InColor);
};

함수 추가

void Create_DynamicMaterial(class ACharacter* InCharacter);
void Change_Color(class ACharacter* InCharacter, FLinearColor InColor);

※참고)

추상 클래스는 직렬화 할 수 없다. 인터페이스는 직렬화 할 수 있다.

추상클래스나 인터페이스 모두 객체를 못 만든다. 인터페이스의 경우 자식클래스에서 구현될 때 직렬화 될 수 있다.

ICharacter.cpp

 #include "Characters/ICharacter.h"
#include "Global.h"
#include "GameFramework/Character.h"
#include "Components/SkeletalMeshComponent.h"
#include "Materials/MaterialInstanceDynamic.h"

void IICharacter::Create_DynamicMaterial(ACharacter* InCharacter)
{
	for (int32 i = 0; i< InCharacter->GetMesh()->GetMaterials().Num(); i++)
	{
		UMaterialInterface* material = InCharacter->GetMesh()->GetMaterials()[i];

		InCharacter->GetMesh()->SetMaterial(i, UMaterialInstanceDynamic::Create(material, InCharacter));
	}
}

void IICharacter::Change_Color(ACharacter* InCharacter, FLinearColor InColor)
{
	for(UMaterialInterface* material : InCharacter->GetMesh()->GetMaterials())
	{
		UMaterialInstanceDynamic* instance = Cast<UMaterialInstanceDynamic>(material);

		if (!!instance)
			instance->SetVectorParameterValue("BodyColor", InColor);
	}
}

CEnemy 생성

새 C++ 클래스 - Character - CEnemy 생성

CEnemy.h

 #pragma once

#include "CoreMinimal.h"
#include "Characters/ICharacter.h"
#include "Components/CStateComponent.h"
#include "GameFramework/Character.h"
#include "CEnemy.generated.h"

UCLASS()
class U2212_06_API ACEnemy : public ACharacter, public IICharacter //다중상속
{
	GENERATED_BODY()

private:
	UPROPERTY(EditAnywhere, Category = "Color")
		FLinearColor OriginColor = FLinearColor::White;//색상 설정.

private:
	UPROPERTY(VisibleAnywhere)
		class UCWeaponComponent* Weapon;

	UPROPERTY(VisibleAnywhere)
		class UCMontagesComponent* Montages;

	UPROPERTY(VisibleAnywhere)
		class UCMovementComponent* Movement;

	UPROPERTY(VisibleAnywhere)
		class UCStateComponent* State;

public:
	ACEnemy();

public:
	float TakeDamage(float DamageAmount, struct FDamageEvent const& DamageEvent, class AController* EventInstigator, AActor* DamageCauser) override;//TakeDamage 오버라이드하여 재정의.

protected:
	virtual void BeginPlay() override;

private:
	UFUNCTION()
		void OnStateTypeChanged(EStateType InPrevType, EStateType InNewType);
};

CEnemy.cpp

 #include "Characters/CEnemy.h"
#include "Global.h"
#include "CAnimInstance.h"
#include "GameFramework/SpringArmComponent.h"
#include "GameFramework/CharacterMovementComponent.h"
#include "Components/SkeletalMeshComponent.h"
#include "Components/CMontagesComponent.h"
#include "Components/CMovementComponent.h"
#include "Components/CWeaponComponent.h"

ACEnemy::ACEnemy()
{
	CHelpers::CreateActorComponent<UCWeaponComponent>(this, &Weapon, "Weapon");
	CHelpers::CreateActorComponent<UCMontagesComponent>(this, &Montages, "Montage");
	CHelpers::CreateActorComponent<UCMovementComponent>(this, &Movement, "Movement");
	CHelpers::CreateActorComponent<UCStateComponent>(this, &State, "State");

	GetMesh()->SetRelativeLocation(FVector(0, 0, -90));
	GetMesh()->SetRelativeRotation(FRotator(0, -90, 0));

	USkeletalMesh* mesh;
	CHelpers::GetAsset<USkeletalMesh>(&mesh, "SkeletalMesh'/Game/Character/Mesh/SK_Mannequin.SK_Mannequin'");
	GetMesh()->SetSkeletalMesh(mesh);

	TSubclassOf<UCAnimInstance> animInstance;
	CHelpers::GetClass<UCAnimInstance>(&animInstance, "AnimBlueprint'/Game/ABP_Character.ABP_Character_C'");
	GetMesh()->SetAnimClass(animInstance);

	GetCharacterMovement()->RotationRate = FRotator(0, 720, 0);

}

void ACEnemy::BeginPlay()
{
	Super::BeginPlay();

	Movement->OnWalk();//기본값 설정.

	Create_DynamicMaterial(this);//IICharacter의 함수 사용. 색이 적용되는 객체를 this(여기서는 Enemy)로 설정.
	Change_Color(this, OriginColor);//색상 할당.

	State->OnStateTypeChanged.AddDynamic(this, &ACEnemy::OnStateTypeChanged);

}

void ACEnemy::OnStateTypeChanged(EStateType InPrevType, EStateType InNewType)
{
}

float ACEnemy::TakeDamage(float DamageAmount, FDamageEvent const& DamageEvent, AController* EventInstigator, AActor* DamageCauser)
{
	float damage = Super::TakeDamage(DamageAmount, DamageEvent, EventInstigator, DamageCauser);

	CLog::Print(damage);

	return damage;
}

CEnemy 기반 BP - BP_CEnemy 생성

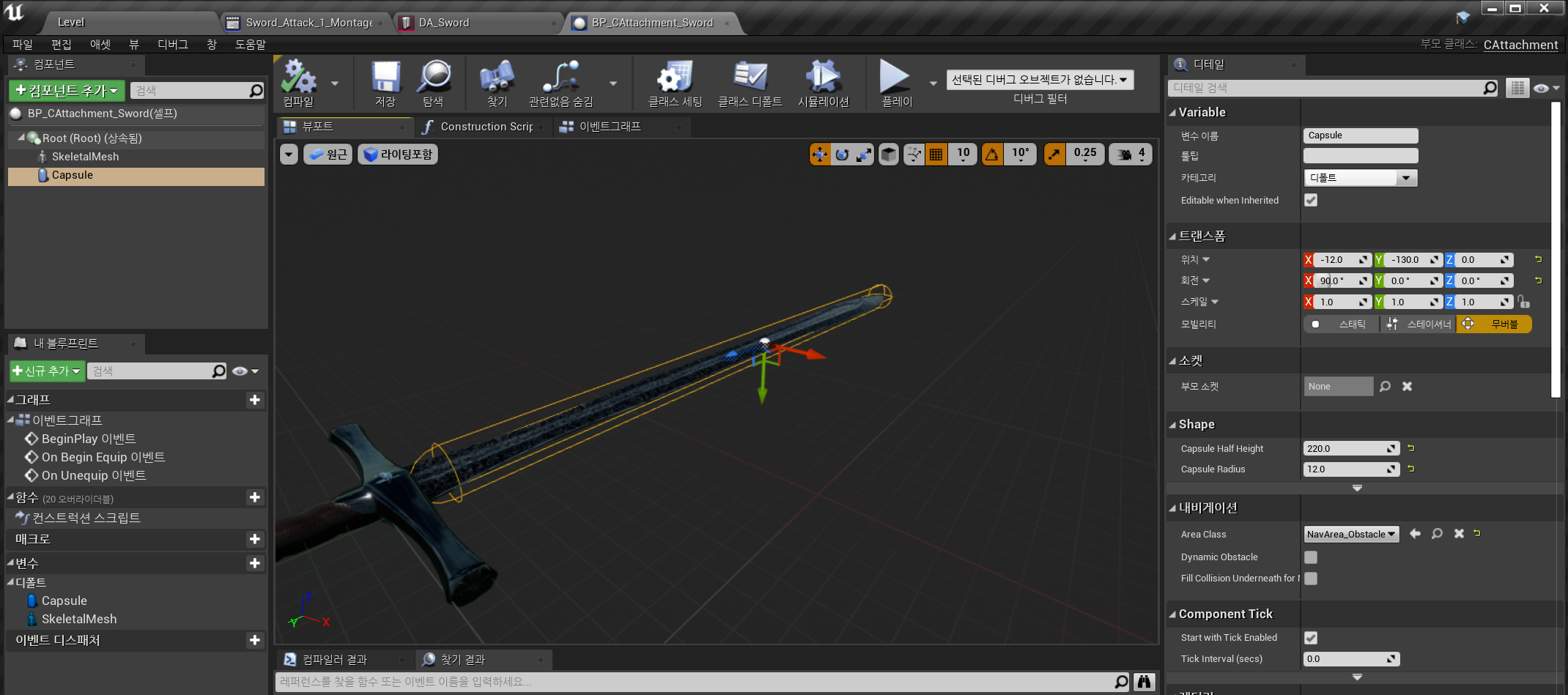

CAttachment

CAttachment.h

 #pragma once

#include "CoreMinimal.h"
#include "GameFramework/Actor.h"
#include "CAttachment.generated.h"

DECLARE_DYNAMIC_MULTICAST_DELEGATE(FAttachmentBeginCollision);
DECLARE_DYNAMIC_MULTICAST_DELEGATE(FAttachmentEndCollision);

DECLARE_DYNAMIC_MULTICAST_DELEGATE_ThreeParams(FAttachmentBeginOverlap, class ACharacter*, InAttacker, AActor*, InAttackCuaser, class ACharacter*, InOther);
DECLARE_DYNAMIC_MULTICAST_DELEGATE_TwoParams(FAttachmentEndOverlap, class ACharacter*, InAttacker, class ACharacter*, InOther);

UCLASS()
class U2212_06_API ACAttachment : public AActor
{
	GENERATED_BODY()

protected:
	UPROPERTY(BlueprintReadOnly, VisibleAnywhere)
		class USceneComponent* Root;

public:
	ACAttachment();

protected:
	virtual void BeginPlay() override;

public:
	UFUNCTION(BlueprintImplementableEvent)
		void OnBeginEquip();

	UFUNCTION(BlueprintImplementableEvent)
		void OnUnequip();

public:
	void OnCollisions(); //Collision 켜기
	void OffCollisions();//Collision 끄기

private:
	UFUNCTION()
		void OnComponentBeginOverlap(UPrimitiveComponent* OverlappedComponent, AActor* OtherActor, UPrimitiveComponent* OtherComp, int32 OtherBodyIndex, bool bFromSweep, const FHitResult& SweepResult);

	UFUNCTION()
		void OnComponentEndOverlap(UPrimitiveComponent* OverlappedComponent, AActor* OtherActor, UPrimitiveComponent* OtherComp, int32 OtherBodyIndex);

protected:
	UFUNCTION(BlueprintCallable, Category = "Attach")
		void AttachTo(FName InSocketName);

public:
	FAttachmentBeginCollision OnAttachmentBeginCollision;
	FAttachmentEndCollision OnAttachmentEndCollision;

	FAttachmentBeginOverlap OnAttachmentBeginOverlap;
	FAttachmentEndOverlap OnAttachmentEndOverlap;

protected:
	UPROPERTY(BlueprintReadOnly, Category = "Game")
		class ACharacter* OwnerCharacter;

	//UShapeComponent는 UBox,Capsule,SphereComponent의 상위클래스
	UPROPERTY(BlueprintReadOnly, Category = "Game")
		TArray<class UShapeComponent*> Collisions;
};

함수 추가

void OnCollisions(); //Collision 켜기
void OffCollisions(); //Collision 끄기

구조체 추가

FAttachmentBeginCollision OnAttachmentBeginCollision;
FAttachmentEndCollision OnAttachmentEndCollision;
FAttachmentBeginOverlap OnAttachmentBeginOverlap;
FAttachmentEndOverlap OnAttachmentEndOverlap;

변수 추가

UPROPERTY(BlueprintReadOnly, Category = "Game")
TArray<class UShapeComponent*> Collisions;
- UShapeComponent는 UBoxComponent, UCapsuleComponent, USphereComponent의 상위클래스다.

CAttachment.cpp

 #include "Weapons/CAttachment.h"
#include "Global.h"
#include "GameFramework/Character.h"
#include "Components/SceneComponent.h"
#include "Components/ShapeComponent.h"

ACAttachment::ACAttachment()
{
	CHelpers::CreateComponent(this, &Root, "Root");
}

void ACAttachment::BeginPlay()
{
	OwnerCharacter = Cast<ACharacter>(GetOwner());

	TArray<USceneComponent*> children;//최종 부모는 SceneComponent다.
	Root->GetChildrenComponents(true, children);
	for (USceneComponent* child : children)
	{
		UShapeComponent* shape = Cast<UShapeComponent>(child);

		if(!!shape)//shape이 있다면
		{
			//충돌 이벤트 연결
			shape->OnComponentBeginOverlap.AddDynamic(this, &ACAttachment::OnComponentBeginOverlap);
			shape->OnComponentEndOverlap.AddDynamic(this, &ACAttachment::OnComponentEndOverlap);

			Collisions.Add(shape);//Collsions배열에 shape 추가
		}
	}

	//ACharacter를 먼저 Cast 한 후에 Super::BeginPlay() 호출.
	Super::BeginPlay();
}

void ACAttachment::OnCollisions()
{
	//Pre (충돌체가 켜지기 전에 작업)
	if (OnAttachmentBeginCollision.IsBound())
		OnAttachmentBeginCollision.Broadcast();//연결되어 있는것 이벤트콜

	for (UShapeComponent* shape : Collisions)//Collisions배열의 for문
		shape->SetCollisionEnabled(ECollisionEnabled::QueryAndPhysics);//Collision을 QueryAndPhysics 설정.
}

void ACAttachment::OffCollisions()
{
	//Pre (충돌체가 꺼지기 전에 작업)
	if (OnAttachmentBeginCollision.IsBound())
		OnAttachmentBeginCollision.Broadcast();//연결되어 있는것 이벤트콜

	for (UShapeComponent* shape : Collisions)
		shape->SetCollisionEnabled(ECollisionEnabled::NoCollision);//Collision을 NoCollision 설정.
}

void ACAttachment::OnComponentBeginOverlap(UPrimitiveComponent* OverlappedComponent, AActor* OtherActor,
	UPrimitiveComponent* OtherComp, int32 OtherBodyIndex, bool bFromSweep, const FHitResult& SweepResult)
{
	CheckTrue(OwnerCharacter == OtherActor);//자기 자신
	CheckTrue(OwnerCharacter->GetClass() == OtherActor->GetClass());//GetClass()가 같다는 것은 아군이라는 의미

	if (OnAttachmentBeginOverlap.IsBound())
		OnAttachmentBeginOverlap.Broadcast(OwnerCharacter, this, Cast<ACharacter>(OtherActor));
}

void ACAttachment::OnComponentEndOverlap(UPrimitiveComponent* OverlappedComponent, AActor* OtherActor,
	UPrimitiveComponent* OtherComp, int32 OtherBodyIndex)
{
	CheckTrue(OwnerCharacter == OtherActor);//자기 자신
	CheckTrue(OwnerCharacter->GetClass() == OtherActor->GetClass());//GetClass()가 같다는 것은 아군이라는 의미

	if (OnAttachmentEndOverlap.IsBound())
		OnAttachmentEndOverlap.Broadcast(OwnerCharacter, Cast<ACharacter>(OtherActor));
}

void ACAttachment::AttachTo(FName InSocketName)
{
	AttachToComponent(OwnerCharacter->GetMesh(), FAttachmentTransformRules(EAttachmentRule::KeepRelative, true), InSocketName);
}

Collision - TakeDamage 설명

Blueprint의 Any와 Apply는 C++에서는 TakeDamage다.

Sword Enemy

Any Apply

Enemy->TakeDamage TakeDamage

Actor.h 내의 ReceiveAnyDamage, TakeDamage 선언

Actor.cpp 내의 ReceiveAnyDamage 정의

OnTakeAnyDamage는 AnyDamage 콜 될 때 Delegate.

UCDoAction_Combo에서 TakeDamage 적용되는 예시.

CDoAction

CDoAction.h

 #pragma once

#include "CoreMinimal.h"
#include "UObject/NoExportTypes.h"
#include "Weapons/CWeaponStructures.h"
#include "CDoAction.generated.h"

UCLASS(Abstract)//DoAction 그 자체로는 객체화되면 안 되기 때문에 Abstract을 붙여준다.
class U2212_06_API UCDoAction : public UObject
{
	GENERATED_BODY()

public:
	UCDoAction();

	virtual void BeginPlay //재정의 할 수 있도록 virtual로 만든다.
	(
		class ACAttachment* InAttachment,
		class UCEquipment* InEquipment,
		class ACharacter* InOwner,
		const TArray<FDoActionData>& InDoActionDatas
	);

public:
	//재정의 할 수 있도록 virtual로 만든다.
	virtual void DoAction();
	virtual void Begin_DoAction();
	virtual void End_DoAction();

public:
	UFUNCTION()
		virtual void OnAttachmentBeginCollision() {}

	UFUNCTION()
		virtual void OnAttachmentEndCollision() {}

	UFUNCTION()
		virtual void OnAttachmentBeginOverlap(class ACharacter* InAttacker, AActor* InAttackCauser, class ACharacter* InOther) { }

	UFUNCTION()
		virtual void OnAttachmentEndOverlap(class ACharacter* InAttacker, class ACharacter* InOther) { }

protected:
	bool bBeginAction;

	class ACharacter* OwnerCharacter;
	class UWorld* World;

	class UCMovementComponent* Movement;
	class UCStateComponent* State;

	TArray<FDoActionData> DoActionDatas;
};

가상함수 생성

virtual void OnAttachmentBeginOverlap(class ACharacter* InAttacker, AActor* InAttackCauser, class ACharacter* InOther) { }
virtual void OnAttachmentEndOverlap(class ACharacter* InAttacker, class ACharacter* InOther) { }
위의 2개의 가상함수는 CDoAction_Combo에서 오버라이드된다!

※ 언리얼C++에서 직렬화 코드(ex. UFUNCTION)도 상속된다.

CDoAction.cpp

 #include "Weapons/CDoAction.h"
#include "Global.h"
#include "CAttachment.h"
#include "CEquipment.h"
#include "GameFramework/Character.h"
#include "Components/CStateComponent.h"
#include "Components/CMovementComponent.h"

UCDoAction::UCDoAction()
{
}

void UCDoAction::BeginPlay(ACAttachment* InAttachment, UCEquipment* InEquipment, ACharacter* InOwner, const TArray<FDoActionData>& InDoActionDatas)
{
	OwnerCharacter = InOwner;
	World = OwnerCharacter->GetWorld();

	State = CHelpers::GetComponent<UCStateComponent>(OwnerCharacter);
	Movement = CHelpers::GetComponent<UCMovementComponent>(OwnerCharacter);

	DoActionDatas = InDoActionDatas;
}

void UCDoAction::DoAction()
{
	State->SetActionMode();
}

void UCDoAction::Begin_DoAction()
{
	bBeginAction = true;
}

void UCDoAction::End_DoAction()
{
	bBeginAction = false;

	State->SetIdleMode();

	Movement->Move();
	Movement->DisableFixedCamera();
}

변경사항 없음.

CWeaponAsset

CWeaponAsset.h

 #pragma once

#include "CoreMinimal.h"
#include "Engine/DataAsset.h"
#include "Weapons/CWeaponStructures.h"
#include "CWeaponAsset.generated.h"

UCLASS()
class U2212_06_API UCWeaponAsset : public UDataAsset
{
	GENERATED_BODY()

private:
	UPROPERTY(EditAnywhere)
		TSubclassOf<class ACAttachment> AttachmentClass;

	UPROPERTY(EditAnywhere)
		FEquipmentData EquipmentData;

	UPROPERTY(EditAnywhere)
		TSubclassOf<class UCEquipment> EquipmentClass;

	UPROPERTY(EditAnywhere)
		TSubclassOf<class UCDoAction> DoActionClass;

	UPROPERTY(EditAnywhere)
		TArray<FDoActionData> DoActionDatas;

public:
	FORCEINLINE class ACAttachment* GetAttachment() { return Attachment; }//외부에 생성된 것을 리턴해줌.
	FORCEINLINE class UCEquipment* GetEquipment() { return Equipment; }//외부에 생성된 것을 리턴해줌.
	FORCEINLINE class UCDoAction* GetDoAction() { return DoAction; }//외부에 생성된 것을 리턴해줌.

public:
	UCWeaponAsset();

	void BeginPlay(class ACharacter* InOwner);

private:
	//UPROPERTY를 붙여 가비지 콜렉터가 제거하기 전까지 물고 있게 만든다.
	//UWeaponAsset은 UObject로부터 상속받아 Actor의 생성주기에 영향을 받지 않아 가비지 콜렉터에 영향을 받는다.
	UPROPERTY()
		class ACAttachment* Attachment;

	UPROPERTY()
		class UCEquipment* Equipment;

	UPROPERTY()
		class UCDoAction* DoAction;
};

변경사항 없음.

CWeaponAsset.cpp

 #include "Weapons/CWeaponAsset.h"
#include "Global.h"
#include "CAttachment.h"
#include "CEquipment.h"
#include "CDoAction.h"
#include "GameFramework/Character.h"

UCWeaponAsset::UCWeaponAsset()
{
	AttachmentClass = ACAttachment::StaticClass();//기본값
	EquipmentClass = UCEquipment::StaticClass();//기본값
	DoActionClass = UCDoAction::StaticClass();//기본값
}

void UCWeaponAsset::BeginPlay(ACharacter* InOwner)
{
	if (!!AttachmentClass)//AttachmentClass가 선택되어 있다면
	{
		FActorSpawnParameters params;
		params.Owner = InOwner;

		Attachment = InOwner->GetWorld()->SpawnActor<ACAttachment>(AttachmentClass, params);
	}

	if (!!EquipmentClass)//EquipmentClass가 선택되어 있다면
	{
		Equipment = NewObject<UCEquipment>(this, EquipmentClass);
		Equipment->BeginPlay(InOwner, EquipmentData);

		if (!!Attachment)//Attachment가 있다면
		{
			Equipment->OnEquipmentBeginEquip.AddDynamic(Attachment, &ACAttachment::OnBeginEquip);
			Equipment->OnEquipmentUnequip.AddDynamic(Attachment, &ACAttachment::OnUnequip);
		}
	}

	if(!!DoActionClass)
	{
		DoAction = NewObject<UCDoAction>(this, DoActionClass);
		DoAction->BeginPlay(Attachment, Equipment, InOwner, DoActionDatas);

		if (!!Attachment)
		{
			Attachment->OnAttachmentBeginCollision.AddDynamic(DoAction, &UCDoAction::OnAttachmentBeginCollision);
			Attachment->OnAttachmentEndCollision.AddDynamic(DoAction, &UCDoAction::OnAttachmentEndCollision);

			Attachment->OnAttachmentBeginOverlap.AddDynamic(DoAction, &UCDoAction::OnAttachmentBeginOverlap);
			Attachment->OnAttachmentEndOverlap.AddDynamic(DoAction, &UCDoAction::OnAttachmentEndOverlap);
		}
	}
}

DoAction 부분에 AddDynamic으로 Collision을 넣어준다.

if (!!Attachment) {
Attachment->OnAttachmentBeginCollision.AddDynamic(DoAction, &UCDoAction::OnAttachmentBeginCollision);
Attachment->OnAttachmentEndCollision.AddDynamic(DoAction, &UCDoAction::OnAttachmentEndCollision);

Attachment->OnAttachmentBeginOverlap.AddDynamic(DoAction, &UCDoAction::OnAttachmentBeginOverlap);
Attachment->OnAttachmentEndOverlap.AddDynamic(DoAction, &UCDoAction::OnAttachmentEndOverlap);
}

BP_CAttachment_Sword - Collision용 Capsule 추가

실행화면

'⭐ Unreal Engine > UE RPG Weapon System' 카테고리의 다른 글

[UE] Hit Effect 구현, Status Component, Hammer 공격 구현 (0)	2023.05.10
[UE] Hit Data, Effect, Object Pooling(오브젝트 풀링) (0)	2023.05.09
[UE] 무기 장착 및 기본 공격하기 (0)	2023.05.02
[UE] 무기 시스템 설계하기 (0)	2023.05.01
[UE] Interface, AnimNotify, Backstep 구현하기 (0)	2023.04.28

티스토리툴바
