[DirectX11] 107-110 Dynamic Cube Map

큐브맵은 3D 그래픽스에서 환경 맵핑(environment mapping)에 주로 사용되며, 사실적인 조명 효과와 반사 효과를 구현하는 데 필수적이다. 큐브맵 UV는 큐브맵을 효율적으로 활용하는 기술로, 3D 공간에서의 객체와 환경 사이의 상호작용을 정교하게 표현하게 해준다.



목차





---







Dynamic Cube Map







Shaders
	Global.fx DynamicCubMap.fx 생성
Framework
	Objects
	DynamicCubeMap.h .cpp 생성
UnitTest
	Objects
	DynamicCubeMapDemo.h .cpp 생성



---





Dynamic Cube Map 매핑 원리





View[6] - GS에서 생성



Projection

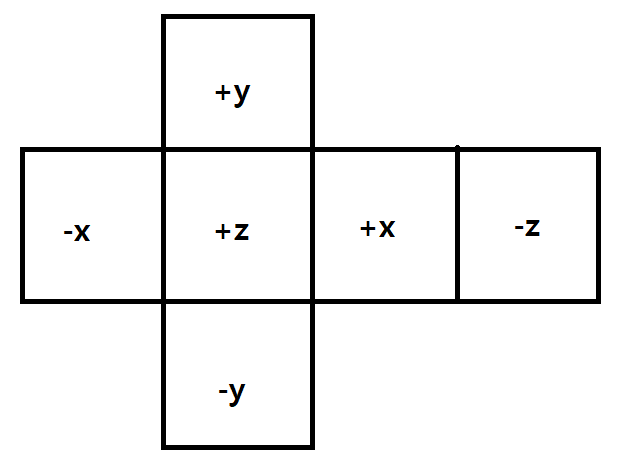

큐브맵(CubeMap)

큐브맵은 하나의 텍스처가 아닌 6개의 면으로 구성된 직육면체 형태의 텍스처다.

• 각 면은 텍스처 큐브(TextureCube)로 구현되며, 이를 통해 360도 모든 방향에서의 시각적 정보를 제공한다.
• 하늘이나 주변 환경 등을 입체적으로 표현할 때 사용한다.
• 3D 세계에서 객체가 위치한 환경을 반영하는 데에 자주 쓰이며, 반사나 굴절 효과를 구현할 때도 유용하다.

큐브맵 UV

큐브맵을 사용할 때, 각 정점의 로컬 위치는 UV 좌표로 사용된다.

• 정점의 로컬 위치는 방향 벡터로 간주되며, 이 방향이 큐브맵 상의 어느 면과 충돌하는지를 계산하여 해당 면의 픽셀을 렌더링한다.
• 로컬 정점의 위치를 방향으로 해석하여, 그 방향에 해당하는 큐브맵의 면에서 샘플링을 진행한다.
• 큐브맵을 샘플링할 때는 TextureCube.Sample(샘플러, 로컬 정점의 위치)와 같은 함수를 사용하여, 정점의 위치에 따른 텍스처 데이터를 얻어낸다.

---





Global.fx



Global.fx - 추가된 부분

struct MeshOutput
{
    float4 Position : SV_Position0; //Rasterizing Position
    float3 oPosition : Position1; //Original Position
    float3 wPosition : Position2; //World Position
    float4 wvpPosition : Position3; //WVP
    float4 wvpPosition_Sub : Position4; //WVP
    float4 sPosition : Position5; //Light WVP

    float3 Normal : Normal;
    float3 Tangent : Tangent;
    float2 Uv : Uv;
    float4 Color : Color;
};

struct MeshGeometryOutput
{
    float4 Position : SV_Position0; //Rasterizing Position
    float3 oPosition : Position1; //Original Position
    float3 wPosition : Position2; //World Position

    float3 Normal : Normal;
    float3 Tangent : Tangent;
    float2 Uv : Uv;
    float4 Color : Color;

    uint TargetIndex : SV_RenderTargetArrayIndex; //RenderTarget 인덱스 번호를 부여한다.
};

MeshOutput ConvetMeshOutput(MeshGeometryOutput input)
{
    MeshOutput output;

    output.Position = input.Position;
    output.oPosition = input.oPosition;
    output.wPosition = input.wPosition;
    output.Normal = input.Normal;
    output.Tangent = input.Tangent;
    output.Uv = input.Uv;
    output.Color = input.Color;

    return output;
}

DynamicCubeMap.fx에 넘겨줄 데이터 추가

• struct MehsOutput
• struct MeshGeometryOutput
• MeshOutput ConvetMeshOutput



---





DynamicCubeMap.fx



DynamicCubeMap.fx

cbuffer CB_DynamicCube
{
    uint CubeRenderType;
    float3 CB_DynamicCube_Padding;

    matrix CubeViews[6];
    matrix CubeProjection;
};

[maxvertexcount(18)]
void GS_PreRender(triangle MeshOutput input[3], inout TriangleStream<MeshGeometryOutput> stream)
{
    int vertex = 0;
    MeshGeometryOutput output;

    [unroll(6)]
    for (int i = 0; i < 6; i++)
    {
        output.TargetIndex = i;

        [unroll(3)]
        for (vertex = 0; vertex < 3; vertex++)
        {
            output.Position = mul(float4(input[vertex].wPosition, 1), CubeViews[i]);
            output.Position = mul(output.Position, CubeProjection);

            output.oPosition = input[vertex].oPosition;
            output.wPosition = input[vertex].wPosition;
            output.Normal = input[vertex].Normal;
            output.Tangent = input[vertex].Tangent;
            output.Uv = input[vertex].Uv;
            output.Color = input[vertex].Color;

            stream.Append(output);
        }

        stream.RestartStrip();
    }
}

float4 PS_PreRender_Sky(MeshGeometryOutput input) : SV_Target
{
    return PS_Sky(ConvetMeshOutput(input));
}

float4 PS_PreRender(MeshGeometryOutput input) : SV_Target
{
    return PS_AllLight(ConvetMeshOutput(input));
}


TextureCube DynamicCubeMap;
float RefractionAmount = 0.2f;
float RefractionAlpha = 0.75f;

float CubeMapAmount = 1.0f;
float CubeMapBias = 1.0f;
float CubeMapScale = 1.0f;

float4 PS_CubeMap(MeshOutput input) : SV_Target
{
    float4 color = 0;

    float3 view = normalize(input.wPosition - ViewPosition());
    float3 normal = normalize(input.Normal);
    float3 reflection = reflect(view, normal);

    float3 refraction = refract(view, normal, RefractionAmount);

    float4 diffuse = 0;

    if(CubeRenderType == 0)
    {
        color = DynamicCubeMap.Sample(LinearSampler, input.oPosition);
    }
    else if (CubeRenderType == 1)
    {
        color = DynamicCubeMap.Sample(LinearSampler, reflection);
    }
    else if (CubeRenderType == 2)
    {
        color = DynamicCubeMap.Sample(LinearSampler, -refraction);
        color.a = RefractionAlpha;
    }
    else if (CubeRenderType == 3)
    {
        diffuse = PS_AllLight(input);
        color = DynamicCubeMap.Sample(LinearSampler, reflection);

        color.rgb *= (0.15f + diffuse * 0.95f);
    }
    else if (CubeRenderType == 4)
    {
        diffuse = PS_AllLight(input);
        color = DynamicCubeMap.Sample(LinearSampler, reflection);

        float4 fresnel = CubeMapBias + (1.0f - CubeMapScale) * pow(abs(1.0f - dot(view, normal)), CubeMapAmount);
        color = CubeMapAmount * diffuse + lerp(diffuse, color, fresnel);
        color.a = 1.0f;
    }

    return color;
}

technique11 T0
{
    //Sky
    P_RS_DSS_VP(P0, FrontCounterClockwise_True, DepthEnable_False, VS_Mesh, PS_Sky)

    //Render
    P_VP(P1, VS_Mesh, PS)
    P_VP(P2, VS_Model, PS)
    P_VP(P3, VS_Animation, PS)

    //Billboard
    P_BS_VGP(P4, AlphaBlend, VS, GS_Billboard, PS_Billboard)
    P_RS_BS_VGP(P5, CullMode_None, AlphaBlend_AlphaToCoverageEnable, VS, GS_Cross, PS_Billboard)

    //Dynamic Cube Map PreRender
    P_RS_DSS_VGP(P6, FrontCounterClockwise_True, DepthEnable_False, VS_Mesh, GS_PreRender, PS_PreRender_Sky)
    P_VGP(P7, VS_Mesh, GS_PreRender, PS_PreRender)
    P_VGP(P8, VS_Model, GS_PreRender, PS_PreRender)
    P_VGP(P9, VS_Animation, GS_PreRender, PS_PreRender)

    //Dynamic CubeMap Render
    P_BS_VP(P10, AlphaBlend, VS_Mesh, PS_CubeMap)
    P_BS_VP(P11, AlphaBlend, VS_Model, PS_CubeMap)
    P_BS_VP(P12, AlphaBlend, VS_Animation, PS_CubeMap)
}

핵심 코드





---





DynamicCubeMap.h .cpp



DynamicCubeMap.h

#pragma once

class DynamicCubeMap
{
public:
	DynamicCubeMap(Shader* shader, UINT width, UINT height);
	~DynamicCubeMap();

	void PreRender(Vector3& position, Vector3& scale, float zNear = 0.1f, float zFar = 500.0f, float fov = 0.5f);
	void Type(UINT val) { desc.Type = val; }

	ID3D11ShaderResourceView* SRV() { return srv; }
	Perspective* GetPerspective() { return perspective; }

private:

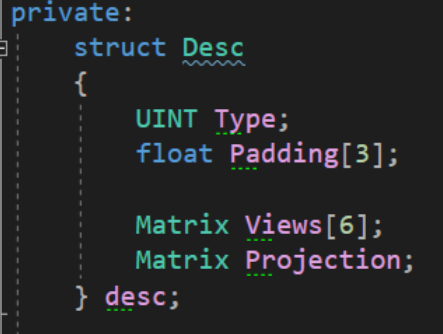

	struct Desc
	{
		UINT Type;
		float Padding[3];

		Matrix Views[6];
		Matrix Projection;
	} desc;

private:
	Shader* shader;
	Vector3 position; //CubeMap의 위치

	UINT width, height;//CubeMap의 폭, 높이

	ID3D11Texture2D* rtvTexture;//Render Target View
	ID3D11RenderTargetView* rtv;
	ID3D11ShaderResourceView* srv;

	ID3D11Texture2D* dsvTexture;
	ID3D11DepthStencilView* dsv;

	Perspective* perspective;
	Viewport* viewport;

	class ConstantBuffer* buffer;
	ID3DX11EffectConstantBuffer* sBuffer = NULL;
};







DynamicCubeMap.cpp

#include "Framework.h"
#include "DynamicCubeMap.h"

DynamicCubeMap::DynamicCubeMap(Shader * shader, UINT width, UINT height)
	: shader(shader), position(0, 0, 0), width(width), height(height)
{
	DXGI_FORMAT rtvFormat = DXGI_FORMAT_R8G8B8A8_UNORM;

	//Create Texture2D - RTV
	{
		D3D11_TEXTURE2D_DESC desc;
		ZeroMemory(&desc, sizeof(D3D11_TEXTURE2D_DESC));
		desc.Width = width;
		desc.Height = height;
		desc.ArraySize = 6;
		desc.Format = rtvFormat;
		desc.BindFlags = D3D11_BIND_SHADER_RESOURCE | D3D11_BIND_RENDER_TARGET;
		desc.MiscFlags = D3D11_RESOURCE_MISC_TEXTURECUBE; //TextureCube형태로 렌더를 할 수 있게 해준다.
		desc.MipLevels = 1;
		desc.SampleDesc.Count = 1;

		Check(D3D::GetDevice()->CreateTexture2D(&desc, NULL, &rtvTexture));
	}

	//Create RTV
	{	//시스템에게 알려준다. DX 부분
		D3D11_RENDER_TARGET_VIEW_DESC desc;
		ZeroMemory(&desc, sizeof(D3D11_RENDER_TARGET_VIEW_DESC));
		desc.Format = rtvFormat;
		desc.ViewDimension = D3D11_RTV_DIMENSION_TEXTURE2DARRAY;
		desc.Texture2DArray.ArraySize = 6; //6개로 지정.

		Check(D3D::GetDevice()->CreateRenderTargetView(rtvTexture, &desc, &rtv));
	}

	//Create SRV
	{	//쉐이더에게 알려준다. Shader 부분
		D3D11_SHADER_RESOURCE_VIEW_DESC desc;
		ZeroMemory(&desc, sizeof(D3D11_SHADER_RESOURCE_VIEW_DESC));
		desc.Format = rtvFormat;
		desc.ViewDimension = D3D11_SRV_DIMENSION_TEXTURECUBE;//TextureCube형태로 알려준다.
		desc.TextureCube.MipLevels = 1;

		Check(D3D::GetDevice()->CreateShaderResourceView(rtvTexture, &desc, &srv));
	}


	DXGI_FORMAT dsvFormat = DXGI_FORMAT_D32_FLOAT;
	//Create Texture - DSV
	{
		D3D11_TEXTURE2D_DESC desc;
		ZeroMemory(&desc, sizeof(D3D11_TEXTURE2D_DESC));
		desc.Width = width;
		desc.Height = height;
		desc.ArraySize = 6;
		desc.Format = dsvFormat;
		desc.BindFlags = D3D11_BIND_DEPTH_STENCIL;
		desc.MiscFlags = D3D11_RESOURCE_MISC_TEXTURECUBE;
		desc.MipLevels = 1;
		desc.SampleDesc.Count = 1;

		Check(D3D::GetDevice()->CreateTexture2D(&desc, NULL, &dsvTexture));
	}

	//CreateDSV
	{
		D3D11_DEPTH_STENCIL_VIEW_DESC desc;
		ZeroMemory(&desc, sizeof(D3D11_DEPTH_STENCIL_VIEW_DESC));
		desc.Format = dsvFormat;
		desc.ViewDimension = D3D11_DSV_DIMENSION_TEXTURE2DARRAY;
		desc.Texture2DArray.ArraySize = 6;

		Check(D3D::GetDevice()->CreateDepthStencilView(dsvTexture, &desc, &dsv));
	}

	viewport = new Viewport((float)width, (float)height);

	buffer = new ConstantBuffer(&desc, sizeof(Desc));
	sBuffer = shader->AsConstantBuffer("CB_DynamicCube");
}

DynamicCubeMap::~DynamicCubeMap()
{
	SafeRelease(rtvTexture);
	SafeRelease(srv);
	SafeRelease(rtv);

	SafeRelease(dsvTexture);
	SafeRelease(dsv);

	SafeDelete(viewport);
	SafeDelete(buffer);
}

void DynamicCubeMap::PreRender(Vector3 & position, Vector3 & scale, float zNear, float zFar, float fov)
{
	this->position = position;

	//Create Views
	{
		float x = position.x;
		float y = position.y;
		float z = position.z;

		struct LookAt
		{
			Vector3 LookAt;
			Vector3 Up;
		} lookAt[6];

		lookAt[0] = { Vector3(x + scale.x, y, z), Vector3(0, 1, 0) };
		lookAt[1] = { Vector3(x - scale.x, y, z), Vector3(0, 1, 0) };
		lookAt[2] = { Vector3(x, y + scale.y, z), Vector3(0, 0, -1) };
		lookAt[3] = { Vector3(x, y - scale.y, z), Vector3(0, 0, +1) };
		lookAt[4] = { Vector3(x, y, z + scale.z), Vector3(0, 1, 0) };
		lookAt[5] = { Vector3(x, y, z - scale.z), Vector3(0, 1, 0) };

		for (UINT i = 0; i < 6; i++)
			D3DXMatrixLookAtLH(&desc.Views[i], &position, &lookAt[i].LookAt, &lookAt[i].Up);
	}

	perspective = new Perspective(1, 1, zNear, zFar, Math::PI * fov);//절두체를 활용한 perspective 구하기. fov각이 작으면 왜곡이 심해진다.
	perspective->GetMatrix(&desc.Projection);

	buffer->Render();
	sBuffer->SetConstantBuffer(buffer->Buffer());


	D3D::Get()->SetRenderTarget(rtv, dsv);
	D3D::Get()->Clear(Color(0, 0, 0, 1), rtv, dsv);

	viewport->RSSetViewport();
}



---





DynamicCubeMapDemo



DynamicCubeMapDemo.h

#pragma once
#include "Systems/IExecute.h"

class DynamicCubeMapDemo : public IExecute
{
public:
	virtual void Initialize() override;
	virtual void Ready() override {}
	virtual void Destroy() override {}
	virtual void Update() override;
	virtual void PreRender() override;
	virtual void Render() override;
	virtual void PostRender() override;
	virtual void ResizeScreen() override {}

private:
	void Billboards();
	void Mesh();
	void Airplane();
	void Kachujin();
	void KachujinCollider();
	void KachujinWeapon();
	void PointLighting();
	void SpotLighting();

	void Pass(UINT mesh, UINT model, UINT anim);

private:
	Shader* shader;

	DynamicCubeMap* cubeMap;

	Billboard* billboard;

	CubeSky* sky;

	Material* floor;
	Material* stone;
	Material* brick;
	Material* wall;

	MeshRender* cube;
	MeshRender* cylinder;
	MeshRender* sphere;
	MeshRender* sphere2;
	MeshRender* grid;

	ModelRender* airplane = NULL;


	ModelAnimator* kachujin = NULL;
	Transform* colliderInitTransforms;
	ColliderObject** colliders;

	ModelRender* weapon = NULL;
	Transform* weaponInitTransform;

	vector<MeshRender *> meshes;
	vector<ModelRender *> models;
	vector<ModelAnimator *> animators;
};







DynamicCubeMapDemo.cpp

#include "stdafx.h"
#include "DynamicCubeMapDemo.h"

void DynamicCubeMapDemo::Initialize()
{
	Context::Get()->GetCamera()->RotationDegree(20, 0, 0);
	Context::Get()->GetCamera()->Position(1, 36, -85);
	((Freedom *)Context::Get()->GetCamera())->Speed(50, 2);


	shader = new Shader(L"107_DynamicCubeMap.fxo");

	cubeMap = new DynamicCubeMap(shader, 256, 256);


	sky = new CubeSky(L"Environment/GrassCube1024.dds", shader);

	Billboards();

	Mesh();
	Airplane();

	Kachujin();
	KachujinCollider();
	KachujinWeapon();

	PointLighting();
	SpotLighting();
}

void DynamicCubeMapDemo::Update()
{
	Vector3 position;
	sphere2->GetTransform(0)->Position(&position);

	if (Keyboard::Get()->Press('L'))
		position.x += 20 * Time::Delta();
	else if (Keyboard::Get()->Press('J'))
		position.x -= 20 * Time::Delta();

	if (Keyboard::Get()->Press('I'))
		position.z += 20 * Time::Delta();
	else if (Keyboard::Get()->Press('K'))
		position.z -= 20 * Time::Delta();

	if (Keyboard::Get()->Press('O'))
		position.y += 20 * Time::Delta();
	else if (Keyboard::Get()->Press('U'))
		position.y -= 20 * Time::Delta();

	sphere2->GetTransform(0)->Position(position);
	sphere2->UpdateTransforms();


	sky->Update();

	cube->Update();
	grid->Update();
	cylinder->Update();
	sphere->Update();
	sphere2->Update();

	airplane->Update();
	kachujin->Update();

	Matrix worlds[MAX_MODEL_TRANSFORMS];
	for (UINT i = 0; i < kachujin->GetTransformCount(); i++)
	{
		kachujin->GetAttachTransform(i, worlds);
		weapon->GetTransform(i)->World(weaponInitTransform->World() * worlds[40]);
	}

	weapon->UpdateTransforms();
	weapon->Update();

	billboard->Update();
}

void DynamicCubeMapDemo::PreRender()
{
	//Dynamic CubeMap
	{
		Vector3 p, s;
		sphere2->GetTransform(0)->Position(&p);
		sphere2->GetTransform(0)->Scale(&s);

		cubeMap->PreRender(p, s);


		sky->Pass(6);
		sky->Render();

		Pass(7, 8, 9);

		wall->Render();
		sphere->Render();

		brick->Render();
		cylinder->Render();

		stone->Render();
		cube->Render();

		floor->Render();
		grid->Render();

		airplane->Render();

		kachujin->Render();
		weapon->Render();
	}
}

void DynamicCubeMapDemo::Render()
{
	sky->Pass(0);
	sky->Render();

	Pass(1, 2, 3);

	wall->Render();
	sphere->Render();


	shader->AsSRV("DynamicCubeMap")->SetResource(cubeMap->SRV());
	sphere2->Pass(10);
	sphere2->Render();

	brick->Render();
	cylinder->Render();

	stone->Render();
	cube->Render();

	floor->Render();
	grid->Render();

	airplane->Render();

	kachujin->Render();
	weapon->Render();

	billboard->Render();
}

void DynamicCubeMapDemo::PostRender()
{

}

void DynamicCubeMapDemo::Billboards()
{
	billboard = new Billboard(shader);
	//billboard->Pass(3);
	billboard->Pass(4);

	billboard->AddTexture(L"Terrain/grass_14.tga");
	billboard->AddTexture(L"Terrain/grass_07.tga");
	billboard->AddTexture(L"Terrain/grass_11.tga");

	for (UINT i = 0; i < 1200; i++)
	{
		Vector2 scale = Math::RandomVec2(1, 3);
		Vector2 position = Math::RandomVec2(-60, 60);

		billboard->Add(Vector3(position.x, scale.y * 0.5f, position.y), scale, 0);
	}

	for (UINT i = 0; i < 300; i++)
	{
		Vector2 scale = Math::RandomVec2(1, 3);
		Vector2 position = Math::RandomVec2(-60, 60);

		billboard->Add(Vector3(position.x, scale.y * 0.5f, position.y), scale, 1);
	}

	for (UINT i = 0; i < 700; i++)
	{
		Vector2 scale = Math::RandomVec2(1, 3);
		Vector2 position = Math::RandomVec2(-60, 60);

		billboard->Add(Vector3(position.x, scale.y * 0.5f, position.y), scale, 2);
	}
}

void DynamicCubeMapDemo::Mesh()
{
	//Create Material
	{
		floor = new Material(shader);
		floor->DiffuseMap("Floor.png");
		floor->Specular(1, 1, 1, 20);
		floor->SpecularMap("Floor_Specular.png");
		floor->NormalMap("Floor_Normal.png");

		stone = new Material(shader);
		stone->DiffuseMap("Stones.png");
		stone->Specular(1, 1, 1, 20);
		stone->SpecularMap("Stones_Specular.png");
		stone->Emissive(0.15f, 0.15f, 0.15f, 0.3f);
		stone->NormalMap("Stones_Normal.png");


		brick = new Material(shader);
		brick->DiffuseMap("Bricks.png");
		brick->Specular(1, 0.3f, 0.3f, 20);
		brick->SpecularMap("Bricks_Specular.png");
		brick->Emissive(0.15f, 0.15f, 0.15f, 0.3f);
		brick->NormalMap("Bricks_Normal.png");

		wall = new Material(shader);
		wall->DiffuseMap("Wall.png");
		wall->Specular(1, 1, 1, 20);
		wall->SpecularMap("Wall_Specular.png");
		wall->Emissive(0.15f, 0.15f, 0.15f, 0.3f);
		wall->NormalMap("Wall_Normal.png");
	}

	//Create Mesh
	{
		Transform* transform = NULL;

		cube = new MeshRender(shader, new MeshCube());
		transform = cube->AddTransform();
		transform->Position(0, 5, 0);
		transform->Scale(20, 10, 20);

		grid = new MeshRender(shader, new MeshGrid(5, 5));
		transform = grid->AddTransform();
		transform->Position(0, 0, 0);
		transform->Scale(12, 1, 12);

		cylinder = new MeshRender(shader, new MeshCylinder(0.5f, 3.0f, 20, 20));
		sphere = new MeshRender(shader, new MeshSphere(0.5f, 20, 20));
		for (UINT i = 0; i < 5; i++)
		{
			transform = cylinder->AddTransform();
			transform->Position(-30, 6, -15.0f + (float)i * 15.0f);
			transform->Scale(5, 5, 5);

			transform = cylinder->AddTransform();
			transform->Position(30, 6, -15.0f + (float)i * 15.0f);
			transform->Scale(5, 5, 5);


			transform = sphere->AddTransform();
			transform->Position(-30, 15.5f, -15.0f + (float)i * 15.0f);
			transform->Scale(5, 5, 5);

			transform = sphere->AddTransform();
			transform->Position(30, 15.5f, -15.0f + (float)i * 15.0f);
			transform->Scale(5, 5, 5);
		}

		sphere2 = new MeshRender(shader, new MeshSphere(0.5f, 20, 20));
		transform = sphere2->AddTransform();
		transform->Position(10, 10, 0);
		transform->Scale(5, 5, 5);
	}

	sphere->UpdateTransforms();
	cylinder->UpdateTransforms();
	cube->UpdateTransforms();
	grid->UpdateTransforms();
	sphere2->UpdateTransforms();

	meshes.push_back(sphere);
	meshes.push_back(sphere2);
	meshes.push_back(cylinder);
	meshes.push_back(cube);
	meshes.push_back(grid);
}

void DynamicCubeMapDemo::Airplane()
{
	airplane = new ModelRender(shader);
	airplane->ReadMesh(L"B787/Airplane");
	airplane->ReadMaterial(L"B787/Airplane");

	Transform* transform = airplane->AddTransform();
	transform->Position(2.0f, 9.91f, 2.0f);
	transform->Scale(0.004f, 0.004f, 0.004f);
	airplane->UpdateTransforms();

	models.push_back(airplane);
}

void DynamicCubeMapDemo::Kachujin()
{
	kachujin = new ModelAnimator(shader);
	kachujin->ReadMesh(L"Kachujin/Mesh");
	kachujin->ReadMaterial(L"Kachujin/Mesh");
	kachujin->ReadClip(L"Kachujin/Sword And Shield Idle");
	kachujin->ReadClip(L"Kachujin/Sword And Shield Walk");
	kachujin->ReadClip(L"Kachujin/Sword And Shield Run");
	kachujin->ReadClip(L"Kachujin/Sword And Shield Slash");
	kachujin->ReadClip(L"Kachujin/Salsa Dancing");


	Transform* transform = NULL;

	transform = kachujin->AddTransform();
	transform->Position(0, 0, -30);
	transform->Scale(0.075f, 0.075f, 0.075f);
	kachujin->PlayTweenMode(0, 0, 1.0f);

	transform = kachujin->AddTransform();
	transform->Position(-15, 0, -30);
	transform->Scale(0.075f, 0.075f, 0.075f);
	kachujin->PlayTweenMode(1, 1, 1.0f);

	transform = kachujin->AddTransform();
	transform->Position(-30, 0, -30);
	transform->Scale(0.075f, 0.075f, 0.075f);
	kachujin->PlayTweenMode(2, 2, 0.75f);

	transform = kachujin->AddTransform();
	transform->Position(15, 0, -30);
	transform->Scale(0.075f, 0.075f, 0.075f);
	kachujin->PlayBlendMode(3, 0, 1, 2);
	kachujin->SetBlendAlpha(3, 1.5f);

	transform = kachujin->AddTransform();
	transform->Position(30, 0, -32.5f);
	transform->Scale(0.075f, 0.075f, 0.075f);
	kachujin->PlayTweenMode(4, 4, 0.75f);

	kachujin->UpdateTransforms();

	animators.push_back(kachujin);
}

void DynamicCubeMapDemo::KachujinCollider()
{
	UINT count = kachujin->GetTransformCount();
	colliders = new  ColliderObject*[count];

	colliderInitTransforms = new Transform();
	colliderInitTransforms->Position(-2.9f, 1.45f, -50.0f);
	colliderInitTransforms->Scale(5, 5, 75);

	for (UINT i = 0; i < count; i++)
	{
		colliders[i] = new ColliderObject();

		//colliders[i]->Init = new Transform();
		//colliders[i]->Init->Position(0, 0, 0);
		//colliders[i]->Init->Scale(10, 30, 10);

		colliders[i]->Transform = new Transform();
		//colliders[i]->Collider = new Collider(colliders[i]->Transform, colliders[i]->Init);
		colliders[i]->Collider = new Collider(colliders[i]->Transform, colliderInitTransforms);
	}
}

void DynamicCubeMapDemo::KachujinWeapon()
{
	weapon = new ModelRender(shader);
	weapon->ReadMesh(L"Weapon/Sword");
	weapon->ReadMaterial(L"Weapon/Sword");

	UINT count = kachujin->GetTransformCount();
	for (UINT i = 0; i < count; i++)
		weapon->AddTransform();

	weapon->UpdateTransforms();
	models.push_back(weapon);


	weaponInitTransform = new Transform();
	weaponInitTransform->Position(-2.9f, 1.45f, -6.45f);
	weaponInitTransform->Scale(0.5f, 0.5f, 0.75f);
	weaponInitTransform->Rotation(0, 0, 1);
}

void DynamicCubeMapDemo::PointLighting()
{
	PointLight light;
	light =
	{
		Color(0.0f, 0.0f, 0.0f, 1.0f), //Ambient
		Color(0.0f, 0.0f, 1.0f, 1.0f), //Diffuse
		Color(0.0f, 0.0f, 0.7f, 1.0f), //Specular
		Color(0.0f, 0.0f, 0.7f, 1.0f), //Emissive
		Vector3(-30, 10, -30), 5.0f, 0.9f
	};
	Lighting::Get()->AddPointLight(light);

	light =
	{
		Color(0.0f, 0.0f, 0.0f, 1.0f),
		Color(1.0f, 0.0f, 0.0f, 1.0f),
		Color(0.6f, 0.2f, 0.0f, 1.0f),
		Color(0.6f, 0.3f, 0.0f, 1.0f),
		Vector3(15, 10, -30), 10.0f, 0.3f
	};
	Lighting::Get()->AddPointLight(light);

	light =
	{
		Color(0.0f, 0.0f, 0.0f, 1.0f), //Ambient
		Color(0.0f, 1.0f, 0.0f, 1.0f), //Diffuse
		Color(0.0f, 0.7f, 0.0f, 1.0f), //Specular
		Color(0.0f, 0.7f, 0.0f, 1.0f), //Emissive
		Vector3(-5, 1, -17.5f), 5.0f, 0.9f
	};
	Lighting::Get()->AddPointLight(light);

	light =
	{
		Color(0.0f, 0.0f, 0.0f, 1.0f),
		Color(0.0f, 0.0f, 1.0f, 1.0f),
		Color(0.0f, 0.0f, 0.7f, 1.0f),
		Color(0.0f, 0.0f, 0.7f, 1.0f),
		Vector3(-10, 1, -17.5f), 5.0f, 0.9f
	};
	Lighting::Get()->AddPointLight(light);
}

void DynamicCubeMapDemo::SpotLighting()
{
	SpotLight light;
	light =
	{
		Color(0.3f, 1.0f, 0.0f, 1.0f),
		Color(0.7f, 1.0f, 0.0f, 1.0f),
		Color(0.3f, 1.0f, 0.0f, 1.0f),
		Color(0.3f, 1.0f, 0.0f, 1.0f),
		Vector3(-15, 20, -30), 25.0f,
		Vector3(0, -1, 0), 30.0f, 0.4f
	};
	Lighting::Get()->AddSpotLight(light);

	light =
	{
		Color(1.0f, 0.2f, 0.9f, 1.0f),
		Color(1.0f, 0.2f, 0.9f, 1.0f),
		Color(1.0f, 0.2f, 0.9f, 1.0f),
		Color(1.0f, 0.2f, 0.9f, 1.0f),
		Vector3(0, 20, -30), 30.0f,
		Vector3(0, -1, 0), 40.0f, 0.55f
	};
	Lighting::Get()->AddSpotLight(light);
}

void DynamicCubeMapDemo::Pass(UINT mesh, UINT model, UINT anim)
{
	for (MeshRender* temp : meshes)
		temp->Pass(mesh);

	for (ModelRender* temp : models)
		temp->Pass(model);

	for (ModelAnimator* temp : animators)
		temp->Pass(anim);
}





---

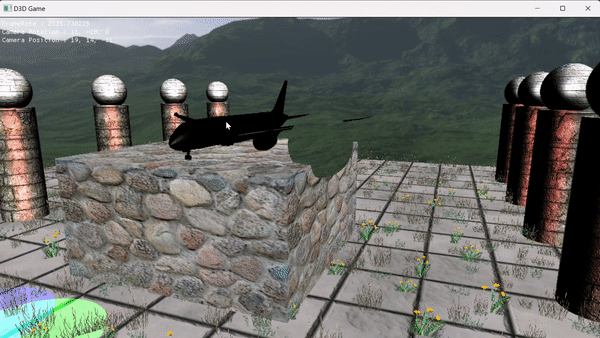

실행화면
