[DirectX11] 015 Cube





목차





---





Cube





---

Cube.fx



Cube.fx

matrix World;
matrix View;
matrix Projection;
float4 Color;

struct VertexInput
{
    float4 Position : Position;
};

struct VertexOutput
{
    float4 Position : SV_Position;
};

VertexOutput VS(VertexInput input)
{
    VertexOutput output;
    output.Position = mul(input.Position, World);
    output.Position = mul(output.Position, View);
    output.Position = mul(output.Position, Projection);

    return output;
}

float4 PS(VertexOutput input) : SV_Target
{
    return Color;
}

RasterizerState FillMode_Wireframe
{
    FillMode = Wireframe;
};

technique11 T0
{
    pass P0
    {
        SetVertexShader(CompileShader(vs_5_0, VS()));
        SetPixelShader(CompileShader(ps_5_0, PS()));
    }

    pass P1
    {
        SetRasterizerState(FillMode_Wireframe);

        SetVertexShader(CompileShader(vs_5_0, VS()));
        SetPixelShader(CompileShader(ps_5_0, PS()));
    }
}





---



Context



Context.h

#pragma once

class Context
{
public:
	static Context* Get();
	static void Create();
	static void Delete();

private:
	Context();
	~Context();

public:
	void ResizeScreen();

	void Update();
	void Render();

	Matrix View();
	Matrix Projection();

	class Perspective* GetPerspective() { return perspective; }
	class Viewport* GetViewport() { return viewport; }
	class Camera* GetCamera() { return camera; }

private:
	static Context* instance;

private:
	class Perspective* perspective;
	class Viewport* viewport;
	class Camera* camera;
};





Context.cpp

#include "Framework.h"
#include "Context.h"
#include "Viewer/Viewport.h"
#include "Viewer/Perspective.h"
#include "Viewer/Freedom.h"

Context* Context::instance = NULL;

Context * Context::Get()
{
	//assert(instance != NULL);

	return instance;
}

void Context::Create()
{
	assert(instance == NULL);

	instance = new Context();
}

void Context::Delete()
{
	SafeDelete(instance);
}

Context::Context()
{
	D3DDesc desc = D3D::GetDesc();

	perspective = new Perspective(desc.Width, desc.Height);
	viewport = new Viewport(desc.Width, desc.Height);
	camera = new Freedom();
}

Context::~Context()
{
	SafeDelete(perspective);
	SafeDelete(viewport);
	SafeDelete(camera);
}

void Context::ResizeScreen()
{
	perspective->Set(D3D::Width(), D3D::Height());
	viewport->Set(D3D::Width(), D3D::Height());
}

void Context::Update()
{
	camera->Update();
}

void Context::Render()
{
	viewport->RSSetViewport();


	string str = string("FrameRate : ") + to_string(ImGui::GetIO().Framerate);
	Gui::Get()->RenderText(5, 5, 1, 1, 1, str);

	Vector3 R;
	camera->RotationDegree(&R);

	Vector3 P;
	camera->Position(&P);

	str = "Camera Rotation : ";
	str += to_string((int)R.x) + ", " + to_string((int)R.y) + ", " + to_string((int)R.z);
	Gui::Get()->RenderText(5, 20, 1, 1, 1, str);

	str = "Camera Position : ";
	str += to_string((int)P.x) + ", " + to_string((int)P.y) + ", " + to_string((int)P.z);
	Gui::Get()->RenderText(5, 35, 1, 1, 1, str);
}

Matrix Context::View()
{
	Matrix view;
	camera->GetMatrix(&view);

	return view;
}

D3DXMATRIX Context::Projection()
{
	Matrix projection;
	perspective->GetMatrix(&projection);

	return projection;
}





---



Cube



GridDemo.h와  GridDemo.cpp 그 전과 동일하게 사용



CubeDemo.h

#pragma once
#include "Systems/IExecute.h"

class CubeDemo : public IExecute
{
public:
	virtual void Initialize() override;
	virtual void Ready() override {}
	virtual void Destroy() override;
	virtual void Update() override;
	virtual void PreRender() override {}
	virtual void Render() override;
	virtual void PostRender() override {}
	virtual void ResizeScreen() override {}

private:
	Shader* shader;

	UINT vertexCount;
	Vertex* vertices;
	ID3D11Buffer* vertexBuffer;

	UINT indexCount;
	UINT* indices;
	ID3D11Buffer* indexBuffer;

	Vector3 position = Vector3(0, 0, 0);
	Vector3 rotation = Vector3(0, 0, 0);
	Matrix world;
	Color color = Color(0, 0, 1, 1);
};





CubeDemo.cpp

#include "stdafx.h"
#include "CubeDemo.h"

void CubeDemo::Initialize()
{
	Context::Get()->GetCamera()->RotationDegree(13, 0, 0);
	Context::Get()->GetCamera()->Position(0, 7, -19);


	shader = new Shader(L"15_Cube.fx");


	float w = 0.5f, h = 0.5f, d = 0.5f;

	vertexCount = 24;
	vertices = new Vertex[vertexCount];

	//Front
	vertices[0].Position = Vector3(-w, -h, -d);
	vertices[1].Position = Vector3(-w, +h, -d);
	vertices[2].Position = Vector3(+w, -h, -d);
	vertices[3].Position = Vector3(+w, +h, -d);

	//Back
	vertices[4].Position = Vector3(-w, -h, +d);
	vertices[5].Position = Vector3(+w, -h, +d);
	vertices[6].Position = Vector3(-w, +h, +d);
	vertices[7].Position = Vector3(+w, +h, +d);

	//Top
	vertices[8].Position = Vector3(-w, +h, -d);
	vertices[9].Position = Vector3(-w, +h, +d);
	vertices[10].Position = Vector3(+w, +h, -d);
	vertices[11].Position = Vector3(+w, +h, +d);

	//Bottom
	vertices[12].Position = Vector3(-w, -h, -d);
	vertices[13].Position = Vector3(+w, -h, -d);
	vertices[14].Position = Vector3(-w, -h, +d);
	vertices[15].Position = Vector3(+w, -h, +d);

	//Left
	vertices[16].Position = Vector3(-w, -h, +d);
	vertices[17].Position = Vector3(-w, +h, +d);
	vertices[18].Position = Vector3(-w, -h, -d);
	vertices[19].Position = Vector3(-w, +h, -d);

	//Right
	vertices[20].Position = Vector3(+w, -h, -d);
	vertices[21].Position = Vector3(+w, +h, -d);
	vertices[22].Position = Vector3(+w, -h, +d);
	vertices[23].Position = Vector3(+w, +h, +d);


	indexCount = 36;
	indices = new UINT[indexCount]
	{
		0, 1, 2, 2, 1, 3,
		4, 5, 6, 6, 5, 7,
		8, 9, 10, 10, 9, 11,
		12, 13, 14, 14, 13, 15,
		16, 17, 18, 18, 17, 19,
		20, 21, 22, 22, 21, 23
	};



	//Create Vertex Buffer
	{
		D3D11_BUFFER_DESC desc;
		ZeroMemory(&desc, sizeof(D3D11_BUFFER_DESC));
		desc.ByteWidth = sizeof(Vertex) * vertexCount;
		desc.BindFlags = D3D11_BIND_VERTEX_BUFFER;

		D3D11_SUBRESOURCE_DATA subResource = { 0 };
		subResource.pSysMem = vertices;

		Check(D3D::GetDevice()->CreateBuffer(&desc, &subResource, &vertexBuffer));
	}


	//Create Index Buffer
	{
		D3D11_BUFFER_DESC desc;
		ZeroMemory(&desc, sizeof(D3D11_BUFFER_DESC));
		desc.ByteWidth = sizeof(UINT) * indexCount;
		desc.BindFlags = D3D11_BIND_INDEX_BUFFER;

		D3D11_SUBRESOURCE_DATA subResource = { 0 };
		subResource.pSysMem = indices;

		Check(D3D::GetDevice()->CreateBuffer(&desc, &subResource, &indexBuffer));
	}

	SafeDeleteArray(vertices);
	SafeDeleteArray(indices);


	D3DXMatrixIdentity(&world);
}

void CubeDemo::Destroy()
{
	SafeDelete(shader);

	SafeRelease(vertexBuffer);
	SafeRelease(indexBuffer);
}

void CubeDemo::Update()
{
	static float speed = 10.0f;
	ImGui::SliderFloat("Speed", &speed, 5, 20);

	static float speed2 = 2.0f;
	ImGui::SliderFloat("Speed2", &speed2, 1, 5);

	if (Keyboard::Get()->Press(VK_SHIFT))
	{
		if (Keyboard::Get()->Press(VK_RIGHT))
			rotation.x += speed * Time::Delta();
		else if (Keyboard::Get()->Press(VK_LEFT))
			rotation.x -= speed * Time::Delta();

		if (Keyboard::Get()->Press(VK_UP))
			rotation.z += speed * Time::Delta();
		else if (Keyboard::Get()->Press(VK_DOWN))
			rotation.z -= speed * Time::Delta();
	}
	else
	{
		if (Keyboard::Get()->Press(VK_RIGHT))
			position.x += speed * Time::Delta();
		else if (Keyboard::Get()->Press(VK_LEFT))
			position.x -= speed * Time::Delta();

		if (Keyboard::Get()->Press(VK_UP))
			position.z += speed * Time::Delta();
		else if (Keyboard::Get()->Press(VK_DOWN))
			position.z -= speed * Time::Delta();
	}

	Matrix R, T;
	D3DXMatrixRotationYawPitchRoll(&R, rotation.y, rotation.x, rotation.z);
	D3DXMatrixTranslation(&T, position.x, position.y, position.z);

	world = R * T;
}

void CubeDemo::Render()
{
	shader->AsVector("Color")->SetFloatVector(color);
	shader->AsMatrix("World")->SetMatrix(world);
	shader->AsMatrix("View")->SetMatrix(Context::Get()->View());
	shader->AsMatrix("Projection")->SetMatrix(Context::Get()->Projection());


	UINT stride = sizeof(Vertex);
	UINT offset = 0;

	D3D::GetDC()->IASetPrimitiveTopology(D3D11_PRIMITIVE_TOPOLOGY_TRIANGLELIST);
	D3D::GetDC()->IASetVertexBuffers(0, 1, &vertexBuffer, &stride, &offset);
	D3D::GetDC()->IASetIndexBuffer(indexBuffer, DXGI_FORMAT_R32_UINT, 0);

	shader->DrawIndexed(0, 0, indexCount);
}



Main.cpp

#include "stdafx.h"
#include "Main.h"
#include "Systems/Window.h"

#include "CubeDemo.h"
#include "GridDemo.h"

void Main::Initialize()
{
	Push(new CubeDemo());
	Push(new GridDemo());
}

아래코드 전과 동일







---

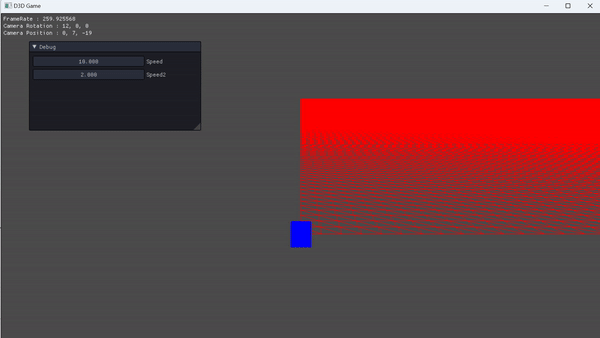

실행화면
