Camera





---

D3DXMATRIX *D3DXMatrixLookAtLH



D3DXMATRIX *D3DXMatrixLookAtLH(



    D3DXMATRIX *pOut,
    CONST D3DXVECTOR3 *pEye,
    CONST D3DXVECTOR3 *pAt,
    CONST D3DXVECTOR3 *pUp

);



zaxis = normal(At - Eye)
xaxis = normal(cross(Up, zaxis))
yaxis = cross(zaxis, xaxis)

 xaxis.x           yaxis.x           zaxis.x          0
 xaxis.y           yaxis.y           zaxis.y          0
 xaxis.z           yaxis.z           zaxis.z          0
-dot(xaxis, eye)  -dot(yaxis, eye)  -dot(zaxis, eye)  1

• Cross -> 외적





https://learn.microsoft.com/ko-kr/windows/win32/direct3d10/d3d10-d3dxmatrixlookatlh

D3DXMatrixLookAtLH 함수(D3DX10Math.h) - Win32 apps



http://telnet.or.kr/directx/graphics/reference/d3dx/functions/math/d3dxmatrixlookatlh.htm

D3DXMatrixLookAtLH 함수



---



Camera GridDemo 코드



GridDemo.h

#pragma once
#include "Systems/IExecute.h"

class GridDemo : public IExecute
{
public:
	virtual void Initialize() override;
	virtual void Ready() override {}
	virtual void Destroy() override;
	virtual void Update() override;
	virtual void PreRender() override {}
	virtual void Render() override;
	virtual void PostRender() override {}
	virtual void ResizeScreen() override {}

private:
	Shader* shader;

	UINT width = 256, height = 256;

	UINT vertexCount;
	Vertex* vertices;
	ID3D11Buffer* vertexBuffer;

	UINT indexCount;
	UINT* indices;
	ID3D11Buffer* indexBuffer;

	Matrix world;
};



GridDemo.cpp

#include "stdafx.h"
#include "GridDemo.h"

void GridDemo::Initialize()
{
	shader = new Shader(L"10_World.fx");


	vertexCount = (width + 1) * (height + 1);
	vertices = new Vertex[vertexCount];

	for (UINT y = 0; y <= height; y++)
	{
		for (UINT x = 0; x <= width; x++)
		{
			UINT i = (width + 1) * y + x;

			vertices[i].Position.x = (float)x;
			vertices[i].Position.y = 0.0f;
			vertices[i].Position.z = (float)y;
		}
	}

	//Create Vertex Buffer
	{
		D3D11_BUFFER_DESC desc;
		ZeroMemory(&desc, sizeof(D3D11_BUFFER_DESC));
		desc.ByteWidth = sizeof(Vertex) * vertexCount;
		desc.BindFlags = D3D11_BIND_VERTEX_BUFFER;

		D3D11_SUBRESOURCE_DATA subResource = { 0 };
		subResource.pSysMem = vertices;

		Check(D3D::GetDevice()->CreateBuffer(&desc, &subResource, &vertexBuffer));
	}



	indexCount = (width * height) * 6;
	indices = new UINT[indexCount];

	UINT index = 0;
	for (UINT y = 0; y < height; y++)
	{
		for (UINT x = 0; x < width; x++)
		{
			indices[index + 0] = (width + 1) * y + x;
			indices[index + 1] = (width + 1) * (y + 1) + x;
			indices[index + 2] = (width + 1) * y + x + 1;
			indices[index + 3] = (width + 1) * y + x + 1;
			indices[index + 4] = (width + 1) * (y + 1) + x;
			indices[index + 5] = (width + 1) * (y + 1) + x + 1;

			index += 6;
		}
	}


	//Create Index Buffer
	{
		D3D11_BUFFER_DESC desc;
		ZeroMemory(&desc, sizeof(D3D11_BUFFER_DESC));
		desc.ByteWidth = sizeof(UINT) * indexCount;
		desc.BindFlags = D3D11_BIND_INDEX_BUFFER;

		D3D11_SUBRESOURCE_DATA subResource = { 0 };
		subResource.pSysMem = indices;

		Check(D3D::GetDevice()->CreateBuffer(&desc, &subResource, &indexBuffer));
	}

	SafeDeleteArray(vertices);
	SafeDeleteArray(indices);


	D3DXMatrixIdentity(&world);
}

void GridDemo::Destroy()
{
	SafeDelete(shader);

	SafeRelease(vertexBuffer);
	SafeRelease(indexBuffer);
}

void GridDemo::Update()
{

}

void GridDemo::Render()
{
	shader->AsScalar("Index")->SetInt(0);
	shader->AsMatrix("World")->SetMatrix(world);
	shader->AsMatrix("View")->SetMatrix(Context::Get()->View());
	shader->AsMatrix("Projection")->SetMatrix(Context::Get()->Projection());


	UINT stride = sizeof(Vertex);
	UINT offset = 0;

	D3D::GetDC()->IASetPrimitiveTopology(D3D11_PRIMITIVE_TOPOLOGY_TRIANGLELIST);
	D3D::GetDC()->IASetVertexBuffers(0, 1, &vertexBuffer, &stride, &offset);
	D3D::GetDC()->IASetIndexBuffer(indexBuffer, DXGI_FORMAT_R32_UINT, 0);

	shader->DrawIndexed(0, 1, indexCount);
}



Main.cpp

#include "stdafx.h"
#include "Main.h"
#include "Systems/Window.h"

#include "GridDemo.h"

void Main::Initialize()
{
	Push(new GridDemo());
}

void Main::Ready()
{

}

void Main::Destroy()
{
	for (IExecute* exe : executes)
	{
		exe->Destroy();
		SafeDelete(exe);
	}
}

void Main::Update()
{
	for (IExecute* exe : executes)
		exe->Update();
}

void Main::PreRender()
{
	for (IExecute* exe : executes)
		exe->PreRender();
}

void Main::Render()
{
	for (IExecute* exe : executes)
		exe->Render();
}

void Main::PostRender()
{
	for (IExecute* exe : executes)
		exe->PostRender();
}

void Main::ResizeScreen()
{
	for (IExecute* exe : executes)
		exe->ResizeScreen();
}

void Main::Push(IExecute * execute)
{
	executes.push_back(execute);

	execute->Initialize();
}

int WINAPI WinMain(HINSTANCE instance, HINSTANCE prevInstance, LPSTR param, int command)
{
	D3DDesc desc;
	desc.AppName = L"D3D Game";
	desc.Instance = instance;
	desc.bFullScreen = false;
	desc.bVsync = false;
	desc.Handle = NULL;
	desc.Width = 1280;
	desc.Height = 720;
	desc.Background = Color(0.3f, 0.3f, 0.3f, 1.0f);
	D3D::SetDesc(desc);

	Main* main = new Main();
	WPARAM wParam = Window::Run(main);

	SafeDelete(main);

	return wParam;
}





---

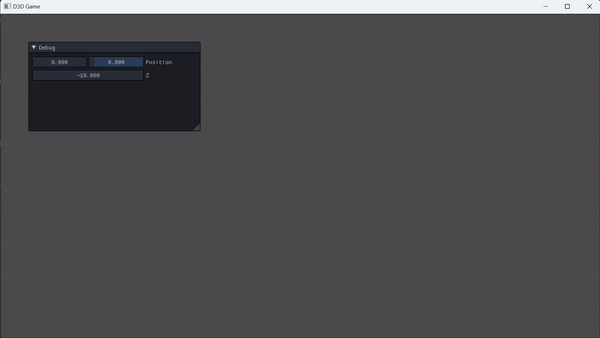

실행화면







---



D3DXVec3Transform



mul(input.position, world);

= position의 값을 world 공간으로 변환하겠다.



D3DXVec3TransformCoord(위치,   )

D3DXVec3TransformNormal(방향,   )





https://learn.microsoft.com/ko-kr/windows/win32/direct3d10/d3d10-d3dxvec3transform

D3DXVec3Transform 함수(D3DX10Math.h) - Win32 apps

http://telnet.or.kr/directx/graphics/reference/d3dx/functions/math/d3dxvec3transform.htm

D3DXVec3Transform 함수





---





Camera, Freedom, Context 코드



Camera.h

#pragma once

class Camera
{
public:
	Camera();
	virtual ~Camera();

	virtual void Update() = 0;

public:
	void Position(float x, float y, float z);
	void Position(Vector3& vec);
	void Position(Vector3* vec);

	void Rotation(float x, float y, float z);
	void Rotation(Vector3& vec);
	void Rotation(Vector3* vec);

	void RotationDegree(float x, float y, float z);
	void RotationDegree(Vector3& vec);
	void RotationDegree(Vector3* vec);


	void GetMatrix(Matrix* matrix);

	Vector3 Forward() { return forward; }
	Vector3 Up() { return up; }
	Vector3 Right() { return right; }

protected:
	virtual void Rotation();
	virtual void Move();

protected:
	void View();

protected:
	Matrix matView; //뷰 행렬

private:
	Vector3 position = Vector3(0, 0, 0);
	Vector3 rotation = Vector3(0, 0, 0);

	Vector3 forward = Vector3(0, 0, 1);
	Vector3 up = Vector3(0, 1, 0);
	Vector3 right = Vector3(1, 0, 0);

	Matrix matRotation; //회전 행렬
};



Camera.cpp

#include "Framework.h"
#include "Camera.h"

Camera::Camera()
{
	D3DXMatrixIdentity(&matRotation);
	D3DXMatrixIdentity(&matView);

	Rotation();
	Move();
}

Camera::~Camera()
{

}

void Camera::Position(float x, float y, float z)
{
	Position(Vector3(x, y, z));
}

void Camera::Position(Vector3 & vec)
{
	position = vec;

	Move();
}

void Camera::Position(Vector3 * vec)
{
	*vec = position;
}

void Camera::Rotation(float x, float y, float z)
{
	Rotation(Vector3(x, y, z));
}

void Camera::Rotation(Vector3 & vec)
{
	rotation = vec;

	Rotation();
}

void Camera::Rotation(Vector3 * vec)
{
	*vec = rotation;
}

void Camera::RotationDegree(float x, float y, float z)
{
	RotationDegree(Vector3(x, y, z));
}

void Camera::RotationDegree(Vector3 & vec)
{
	//라디안으로 바꿔주는 수식
	//rotation = vec * Math::PI / 180.0f;
	rotation = vec * 0.01745328f;

	Rotation();
}

void Camera::RotationDegree(Vector3 * vec)
{
	//라디안을 degree로 돌려주는 수식
	//*vec = rotation * 180.0f / Math::PI;
	*vec = rotation * 57.29577957f;
}

void Camera::GetMatrix(Matrix * matrix)
{
	//대입 방식
	//*matrix = matView;
	//메모리복사 방식, 이 방법이 대입 방식보다 빠르다
	memcpy(matrix, &matView, sizeof(Matrix));
}

void Camera::Rotation()
{
	Matrix X, Y, Z;
	//세 축이 회전
	D3DXMatrixRotationX(&X, rotation.x);
	D3DXMatrixRotationY(&Y, rotation.y);
	D3DXMatrixRotationZ(&Z, rotation.z);
	//세 축이 회전한 축을 matRotation에 넣어준다
	matRotation = X * Y * Z;


	D3DXVec3TransformNormal(&forward, &Vector3(0, 0, 1), &matRotation);
	D3DXVec3TransformNormal(&up, &Vector3(0, 1, 0), &matRotation);
	D3DXVec3TransformNormal(&right, &Vector3(1, 0, 0), &matRotation);
}

void Camera::Move()
{
	View();
}

void Camera::View()
{
	D3DXMatrixLookAtLH(&matView, &position, &(position + forward), &up);
}



Freedom.h

#pragma once
#include "Camera.h"

class Freedom : public Camera
{
public:
	Freedom();
	~Freedom();

	void Update() override;

	void Speed(float move, float rotation = 2.0f);

private:
	float move = 20.0f;
	float rotation = 2.0f;
};



Freedom.cpp

#include "Framework.h"
#include "Freedom.h"

Freedom::Freedom() : Camera()
{
}

Freedom::~Freedom()
{
}

void Freedom::Update()
{
	if(Mouse::Get()->Press(1) == false) return;

	Vector3 f = Forward();
	Vector3 u = Up();
	Vector3 r = Right();

	//Vector3 f = Vector3(0, 0, 1);
	//Vector3 u = Vector3(0, 1, 0);
	//Vector3 r = Vector3(1, 0, 0);

	//Move
	{
		Vector3 P;
		Position(&P);

		if (Keyboard::Get()->Press('W'))
			P = P + f * move * Time::Delta();
		else if (Keyboard::Get()->Press('S'))
			P = P - f * move * Time::Delta();

		if (Keyboard::Get()->Press('D'))
			P = P + r * move * Time::Delta();
		else if (Keyboard::Get()->Press('A'))
			P = P - r * move * Time::Delta();

		if (Keyboard::Get()->Press('E'))
			P = P + u * move * Time::Delta();
		else if (Keyboard::Get()->Press('Q'))
			P = P - u * move * Time::Delta();

		Position(P);
	}


	//Rotation
	{
		Vector3 R;
		Rotation(&R);

		Vector3 val = Mouse::Get()->GetMoveValue();
		R.x = R.x + val.y * rotation * Time::Delta();
		R.y = R.y + val.x * rotation * Time::Delta();
		R.z = 0.0f;

		Rotation(R);
	}
}

void Freedom::Speed(float move, float rotation)
{
	this->move = move;
	this->rotation = rotation;
}



Context.h

#pragma once

class Context
{
public:
	static Context* Get();
	static void Create();
	static void Delete();

private:
	Context();
	~Context();

public:
	void ResizeScreen();

	void Update();
	void Render();

	Matrix View();
	Matrix Projection();

	class Perspective* GetPerspective() { return perspective; }
	class Viewport* GetViewport() { return viewport; }

private:
	static Context* instance;

private:
	class Perspective* perspective;
	class Viewport* viewport;
	class Camera* camera;
};



Context.cpp

#include "stdafx.h"
#include "Main.h"
#include "Systems/Window.h"

#include "GridDemo.h"

void Main::Initialize()
{
	Push(new GridDemo());
}

void Main::Ready()
{

}

void Main::Destroy()
{
	for (IExecute* exe : executes)
	{
		exe->Destroy();
		SafeDelete(exe);
	}
}

void Main::Update()
{
	for (IExecute* exe : executes)
		exe->Update();
}

void Main::PreRender()
{
	for (IExecute* exe : executes)
		exe->PreRender();
}

void Main::Render()
{
	for (IExecute* exe : executes)
		exe->Render();
}

void Main::PostRender()
{
	for (IExecute* exe : executes)
		exe->PostRender();
}

void Main::ResizeScreen()
{
	for (IExecute* exe : executes)
		exe->ResizeScreen();
}

void Main::Push(IExecute * execute)
{
	executes.push_back(execute);

	execute->Initialize();
}

int WINAPI WinMain(HINSTANCE instance, HINSTANCE prevInstance, LPSTR param, int command)
{
	D3DDesc desc;
	desc.AppName = L"D3D Game";
	desc.Instance = instance;
	desc.bFullScreen = false;
	desc.bVsync = false;
	desc.Handle = NULL;
	desc.Width = 1280;
	desc.Height = 720;
	desc.Background = Color(0.3f, 0.3f, 0.3f, 1.0f);
	D3D::SetDesc(desc);

	Main* main = new Main();
	WPARAM wParam = Window::Run(main);

	SafeDelete(main);

	return wParam;
}

---



실행화면







---
