[DirectX11] 020~22 Normal Vector

Normalize

A = V1 - V0

B = V2 - V0

Normal 방향 = Cross(A, B)

Normal = Normalize(cross(A, B))

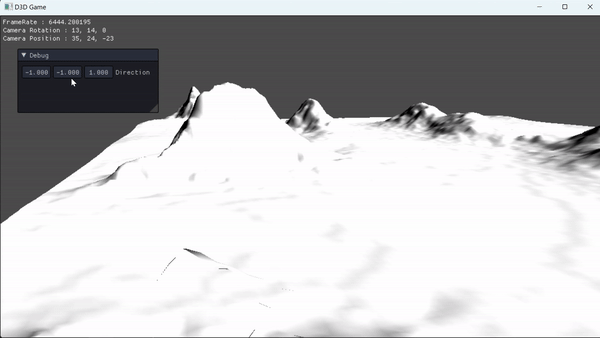

Light Direction 내적

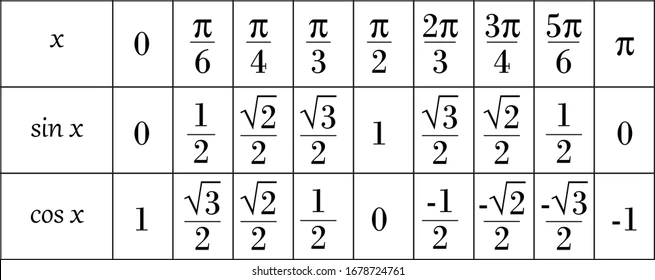

A ⊙ B = |A||B|cosθ

Normalize해서 1 x 1 x cosθ = cosθ

빛이 90도로 들어오면 0.

Normal Vector의 방향

Normal Vector 방향은 항상 World 변환하여야 한다. Normal의 방향이 바뀌었을때 Update가 되어야 하기 때문이다.

w의 활용

w = 1 일 때, 위치

w = 0 일 때, 방향

w는..

Vertex Shader(VS)에서는 위치와 방향을 표기하기 위하여 사용하고

Pixel Shader(PS)에서는 화면 비율에 활용하기 위해 사용한다.

https://lipcoder.tistory.com/114

[DirectX 12] 렌더링 파이프라인 - 2

입력 조립기 단계(Input Assembler, IA) 입력 조립기 단계는 메모리에서 기하 자료(정점, 인덱스)를 읽어서 기본 도형(삼각형, 선분 등)을 조립한다. 정점(Vertex) 수학적으로, 한 삼각형의 정점은 두 변

lipcoder.tistory.com

https://designerd.tistory.com/entry/DirectX12-Matrix

[게임수학] Matrix 행렬

Matrix 행렬 행렬 곱셈 (앞 행렬의 행의 수) × (뒤 행렬의 열의 수) 즉, 앞 행렬이 m×n 크기이고 뒤 행렬이 n×r 크기인 경우 곱은 m×r 크기의 행렬이 된다. 행렬은 교환법칙 성립X, 결합법칙 성립O Digon

designerd.tistory.com

Terrain & DebugLine.fx

Terrain.fx

matrix World;
matrix View;
matrix Projection;
float3 Direction;

struct VertexInput
{
    float4 Position : Position;
    float3 Normal : Normal;
};

struct VertexOutput
{
    float4 Position : SV_Position;
    float3 Normal : Normal;
};

VertexOutput VS(VertexInput input)
{
    VertexOutput output;
    output.Position = mul(input.Position, World);
    output.Position = mul(output.Position, View);
    output.Position = mul(output.Position, Projection);

    output.Normal = mul(input.Normal, (float3x3) World);

    return output;
}

float4 PS(VertexOutput input) : SV_Target
{
    float3 normal = normalize(input.Normal);
    float3 light = -Direction;

    return float4(1, 1, 1, 1) * dot(light, normal);
}

RasterizerState FillMode_Wireframe
{
    FillMode = Wireframe;
};

technique11 T0
{
    pass P0
    {
        SetVertexShader(CompileShader(vs_5_0, VS()));
        SetPixelShader(CompileShader(ps_5_0, PS()));
    }

    pass P1
    {
        SetRasterizerState(FillMode_Wireframe);

        SetVertexShader(CompileShader(vs_5_0, VS()));
        SetPixelShader(CompileShader(ps_5_0, PS()));
    }
}

DebugLine.fx

matrix World;
matrix View;
matrix Projection;

struct VertexInput
{
    float4 Position : Position;
    float4 Color : Color;
};

struct VertexOutput
{
    float4 Position : SV_Position;
    float4 Color : Color;
};

VertexOutput VS(VertexInput input)
{
    VertexOutput output;
    output.Position = mul(input.Position, World);
    output.Position = mul(output.Position, View);
    output.Position = mul(output.Position, Projection);

    output.Color = input.Color;

    return output;
}

float4 PS(VertexOutput input) : SV_Target
{
    return input.Color;
}

technique11 T0
{
    pass P0
    {
        SetVertexShader(CompileShader(vs_5_0, VS()));
        SetPixelShader(CompileShader(ps_5_0, PS()));
    }
}

Terrain

Terrain.h

#pragma once

class Terrain
{
public:
	typedef VertexNormal TerrainVertex;

public:
	Terrain(Shader* shader, wstring heightFile);
	~Terrain();

	void Update();
	void Render();

	void Pass(UINT val) { pass = val; }

private:
	void CreateVertexData();
	void CreateIndexData();
	void CreateNormalData();
	void CreateBuffer();

private:
	UINT pass = 0;
	Shader* shader;

	Texture* heightMap;


	UINT width, height;

	UINT vertexCount;
	TerrainVertex* vertices;
	ID3D11Buffer* vertexBuffer;

	UINT indexCount;
	UINT* indices;
	ID3D11Buffer* indexBuffer;
};

Terrain.cpp

#include "Framework.h"
#include "Terrain.h"

Terrain::Terrain(Shader * shader, wstring heightFile)
	: shader(shader)
{
	heightMap = new Texture(heightFile);

	CreateVertexData();
	CreateIndexData();
	CreateNormalData();

	CreateBuffer();
}

Terrain::~Terrain()
{
	SafeDelete(heightMap);

	SafeDeleteArray(vertices);
	SafeDeleteArray(indices);

	SafeRelease(vertexBuffer);
	SafeRelease(indexBuffer);
}

void Terrain::Update()
{
	//빛의 방향
	static Vector3 direction = Vector3(-1, -1, 1);
	ImGui::SliderFloat3("Direction", direction, -1, 1);
	shader->AsVector("Direction")->SetFloatVector(direction);


	Matrix world;
	D3DXMatrixIdentity(&world);

	shader->AsMatrix("World")->SetMatrix(world);
	shader->AsMatrix("View")->SetMatrix(Context::Get()->View());
	shader->AsMatrix("Projection")->SetMatrix(Context::Get()->Projection());
}

void Terrain::Render()
{

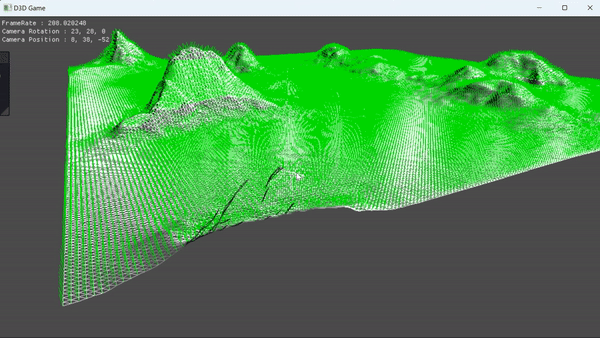

	//Normal Vector 그리기 /////////////////
	for (int i = 0; i < vertexCount; i++)
	{
		Vector3 start = vertices[i].Position;
        //start위치에서 vertices[i].Normal * 2 만큼 늘렸다
		Vector3 end = vertices[i].Position + vertices[i].Normal * 2;

		DebugLine::Get()->RenderLine(start, end, Color(0, 1, 0, 1));
	}
	////////////////////////////////////////

	UINT stride = sizeof(TerrainVertex);
	UINT offset = 0;

	D3D::GetDC()->IASetPrimitiveTopology(D3D11_PRIMITIVE_TOPOLOGY_TRIANGLELIST);
	D3D::GetDC()->IASetVertexBuffers(0, 1, &vertexBuffer, &stride, &offset);
	D3D::GetDC()->IASetIndexBuffer(indexBuffer, DXGI_FORMAT_R32_UINT, 0);

	shader->DrawIndexed(0, pass, indexCount);
}

void Terrain::CreateVertexData()
{
	vector<Color> heights;
	heightMap->ReadPixel(DXGI_FORMAT_R8G8B8A8_UNORM, &heights);

	width = heightMap->GetWidth();
	height = heightMap->GetHeight();


	vertexCount = width * height;
	vertices = new TerrainVertex[vertexCount];
	for (UINT z = 0; z < height; z++)
	{
		for (UINT x = 0; x < width; x++)
		{
			UINT index = width * z + x;
			UINT pixel = width * (height - 1 - z) + x;

			vertices[index].Position.x = (float)x;
			vertices[index].Position.y = heights[pixel].r * 255.0f / 10.0f;
			vertices[index].Position.z = (float)z;
		}
	}
}

void Terrain::CreateIndexData()
{
	indexCount = (width - 1) * (height - 1) * 6;
	indices = new UINT[indexCount];

	UINT index = 0;
	for (UINT y = 0; y < height - 1; y++)
	{
		for (UINT x = 0; x < width - 1; x++)
		{
			indices[index + 0] = width * y + x;
			indices[index + 1] = width * (y + 1) + x;
			indices[index + 2] = width * y + x + 1;
			indices[index + 3] = width * y + x + 1;
			indices[index + 4] = width * (y + 1) + x;
			indices[index + 5] = width * (y + 1) + x + 1;

			index += 6;
		}
	}
}

void Terrain::CreateNormalData()
{
	for (UINT i = 0; i < indexCount / 3; i++)
	{
		UINT index0 = indices[i * 3 + 0];
		UINT index1 = indices[i * 3 + 1];
		UINT index2 = indices[i * 3 + 2];

		TerrainVertex v0 = vertices[index0];
		TerrainVertex v1 = vertices[index1];
		TerrainVertex v2 = vertices[index2];


		Vector3 a = v1.Position - v0.Position;
		Vector3 b = v2.Position - v0.Position;

		Vector3 normal;
		D3DXVec3Cross(&normal, &a, &b);

		vertices[index0].Normal += normal;
		vertices[index1].Normal += normal;
		vertices[index2].Normal += normal;
	}

	for (UINT i = 0; i < vertexCount; i++)
		D3DXVec3Normalize(&vertices[i].Normal, &vertices[i].Normal);
}

void Terrain::CreateBuffer()
{
	//Create Vertex Buffer
	{
		D3D11_BUFFER_DESC desc;
		ZeroMemory(&desc, sizeof(D3D11_BUFFER_DESC));
		desc.ByteWidth = sizeof(TerrainVertex) * vertexCount;
		desc.BindFlags = D3D11_BIND_VERTEX_BUFFER;

		D3D11_SUBRESOURCE_DATA subResource = { 0 };
		subResource.pSysMem = vertices;

		Check(D3D::GetDevice()->CreateBuffer(&desc, &subResource, &vertexBuffer));
	}

	//Create Index Buffer
	{
		D3D11_BUFFER_DESC desc;
		ZeroMemory(&desc, sizeof(D3D11_BUFFER_DESC));
		desc.ByteWidth = sizeof(UINT) * indexCount;
		desc.BindFlags = D3D11_BIND_INDEX_BUFFER;

		D3D11_SUBRESOURCE_DATA subResource = { 0 };
		subResource.pSysMem = indices;

		Check(D3D::GetDevice()->CreateBuffer(&desc, &subResource, &indexBuffer));
	}
}

Normal Vector

NormalVectorDemo.h

#pragma once
#include "Systems/IExecute.h"

class NormalVectorDemo : public IExecute
{
public:
	virtual void Initialize() override;
	virtual void Ready() override {}
	virtual void Destroy() override;
	virtual void Update() override;
	virtual void PreRender() override {}
	virtual void Render() override;
	virtual void PostRender() override {}
	virtual void ResizeScreen() override {}

private:
	Shader* shader;

	Terrain* terrain;
};

NormalVectorDemo.cpp

#include "stdafx.h"
#include "NormalVectorDemo.h"

void NormalVectorDemo::Initialize()
{
	Context::Get()->GetCamera()->RotationDegree(12, 0, 0);
	Context::Get()->GetCamera()->Position(35, 10, -55);

	shader = new Shader(L"19_Terrain.fx");

	terrain = new Terrain(shader, L"Terrain/Gray256.png");
	terrain->Pass(0);
}

void NormalVectorDemo::Destroy()
{
	SafeDelete(shader);

	SafeDelete(terrain);
}

void NormalVectorDemo::Update()
{
	terrain->Update();
}

void NormalVectorDemo::Render()
{
	terrain->Render();

	DebugLine::Get()->RenderLine(0, 0, 0, 0, 100, 0, 1, 0, 0); //빨간색 기준선
	DebugLine::Get()->RenderLine(1, 0, 0, 5, 10, 0, 0, 1, 0); //초록색 기준선
}

DebugLine

DebugLine.h

#pragma once
#define MAX_DEBUG_LINE 150000

class DebugLine
{
public:
	friend class Window;

private:
	static void Create();
	static void Delete();

public:
	static DebugLine* Get();

public:
	void RenderLine(Vector3& start, Vector3& end);
	void RenderLine(Vector3& start, Vector3& end, float r, float g, float b);
	void RenderLine(Vector3& start, Vector3& end, Color& color);

	void RenderLine(float x, float y, float z, float x2, float y2, float z2);
	void RenderLine(float x, float y, float z, float x2, float y2, float z2, float r, float g, float b);
	void RenderLine(float x, float y, float z, float x2, float y2, float z2, Color& color);

private:
	void Update();
	void Render();


private:
	DebugLine();
	~DebugLine();

private:
	static DebugLine* instance;

private:
	Shader* shader;

	Matrix world;

	ID3D11Buffer* vertexBuffer;
	VertexColor* vertices;

	UINT drawCount = 0;
};

DebugLine.cpp

#include "Framework.h"
#include "DebugLine.h"

DebugLine* DebugLine::instance = NULL;

void DebugLine::Create()
{
	assert(instance == NULL);

	instance = new DebugLine();
}

void DebugLine::Delete()
{
	SafeDelete(instance);
}

DebugLine * DebugLine::Get()
{
	assert(instance != NULL);

	return instance;
}

void DebugLine::RenderLine(Vector3 & start, Vector3 & end)
{
	RenderLine(start, end, Color(0, 1, 0, 1));
}

void DebugLine::RenderLine(Vector3 & start, Vector3 & end, float r, float g, float b)
{
	RenderLine(start, end, Color(r, g, b, 1));
}

void DebugLine::RenderLine(float x, float y, float z, float x2, float y2, float z2)
{
	RenderLine(Vector3(x, y, z), Vector3(x2, y2, z2), Color(0, 1, 0, 1));
}

void DebugLine::RenderLine(float x, float y, float z, float x2, float y2, float z2, float r, float g, float b)
{
	RenderLine(Vector3(x, y, z), Vector3(x2, y2, z2), Color(r, g, b, 1));
}

void DebugLine::RenderLine(float x, float y, float z, float x2, float y2, float z2, Color & color)
{
	RenderLine(Vector3(x, y, z), Vector3(x2, y2, z2), color);
}

void DebugLine::RenderLine(Vector3 & start, Vector3 & end, Color & color)
{
	vertices[drawCount].Color = color;
	vertices[drawCount++].Position = start;

	vertices[drawCount].Color = color;
	vertices[drawCount++].Position = end;
}

void DebugLine::Update()
{
	Matrix world;
	D3DXMatrixIdentity(&world);

	shader->AsMatrix("World")->SetMatrix(world);
	shader->AsMatrix("View")->SetMatrix(Context::Get()->View());
	shader->AsMatrix("Projection")->SetMatrix(Context::Get()->Projection());
}

void DebugLine::Render()
{
	if (drawCount < 1) return;

	D3D::GetDC()->UpdateSubresource(vertexBuffer, 0, NULL, vertices, sizeof(VertexColor) * drawCount, 0);


	UINT stride = sizeof(VertexColor);
	UINT offset = 0;

	D3D::GetDC()->IASetPrimitiveTopology(D3D11_PRIMITIVE_TOPOLOGY_LINELIST);
	D3D::GetDC()->IASetVertexBuffers(0, 1, &vertexBuffer, &stride, &offset);

	shader->Draw(0, 0, drawCount);


	drawCount = 0;
	ZeroMemory(vertices, sizeof(VertexColor) * MAX_DEBUG_LINE);
}

DebugLine::DebugLine()
{
	shader = new Shader(L"20_DebugLine.fx");

	vertices = new VertexColor[MAX_DEBUG_LINE];
	ZeroMemory(vertices, sizeof(VertexColor) * MAX_DEBUG_LINE);


	//Create Vertex Buffer
	{
		D3D11_BUFFER_DESC desc;
		ZeroMemory(&desc, sizeof(D3D11_BUFFER_DESC));
		desc.ByteWidth = sizeof(VertexColor) * MAX_DEBUG_LINE;
		desc.BindFlags = D3D11_BIND_VERTEX_BUFFER;

		D3D11_SUBRESOURCE_DATA subResource = { 0 };
		subResource.pSysMem = vertices;

		Check(D3D::GetDevice()->CreateBuffer(&desc, &subResource, &vertexBuffer));
	}

	D3DXMatrixIdentity(&world);
}

DebugLine::~DebugLine()
{
	SafeDelete(shader);

	SafeDeleteArray(vertices);
	SafeRelease(vertexBuffer);
}

Window.cpp 수정

#include "Framework.h"
#include "Window.h"
#include "IExecute.h"

IExecute* Window::mainExecute = NULL;

WPARAM Window::Run(IExecute * main)
{
	mainExecute = main;
	Create();

	D3DDesc desc = D3D::GetDesc();

	D3D::Create();
	Keyboard::Create();
	Mouse::Create();

	Time::Create();
	Time::Get()->Start();

	Gui::Create();
	Context::Create();
	DebugLine::Create();


	mainExecute->Initialize();


	MSG msg = { 0 };
	while (true)

	{
		if (PeekMessage(&msg, NULL, 0, 0, PM_REMOVE))
		{
			if (msg.message == WM_QUIT)
				break;

			TranslateMessage(&msg);
			DispatchMessage(&msg);
		}
		else
		{
			MainRender();
		}
	}
	mainExecute->Destroy();


	DebugLine::Delete();
	Context::Delete();
	Gui::Delete();
	Time::Delete();
	Mouse::Delete();
	Keyboard::Delete();
	D3D::Delete();

	Destroy();

	return msg.wParam;
}

void Window::Create()
{
	D3DDesc desc = D3D::GetDesc();


	WNDCLASSEX wndClass;
	wndClass.cbClsExtra = 0;
	wndClass.cbWndExtra = 0;
	wndClass.hbrBackground = (HBRUSH)GetStockObject(WHITE_BRUSH);
	wndClass.hCursor = LoadCursor(NULL, IDC_ARROW);
	wndClass.hIcon = LoadIcon(NULL, IDI_WINLOGO);
	wndClass.hIconSm = wndClass.hIcon;
	wndClass.hInstance = desc.Instance;
	wndClass.lpfnWndProc = (WNDPROC)WndProc;
	wndClass.lpszClassName = desc.AppName.c_str();
	wndClass.lpszMenuName = NULL;
	wndClass.style = CS_HREDRAW | CS_VREDRAW | CS_OWNDC;
	wndClass.cbSize = sizeof(WNDCLASSEX);

	WORD wHr = RegisterClassEx(&wndClass);
	assert(wHr != 0);

	if (desc.bFullScreen == true)
	{
		DEVMODE devMode = { 0 };
		devMode.dmSize = sizeof(DEVMODE);
		devMode.dmPelsWidth = (DWORD)desc.Width;
		devMode.dmPelsHeight = (DWORD)desc.Height;
		devMode.dmBitsPerPel = 32;
		devMode.dmFields = DM_BITSPERPEL | DM_PELSWIDTH | DM_PELSHEIGHT;

		ChangeDisplaySettings(&devMode, CDS_FULLSCREEN);
	}

	desc.Handle = CreateWindowEx
	(
		WS_EX_APPWINDOW
		, desc.AppName.c_str()
		, desc.AppName.c_str()
		, WS_CLIPSIBLINGS | WS_CLIPCHILDREN | WS_OVERLAPPEDWINDOW
		, CW_USEDEFAULT
		, CW_USEDEFAULT
		, CW_USEDEFAULT
		, CW_USEDEFAULT
		, NULL
		, (HMENU)NULL
		, desc.Instance
		, NULL
	);
	assert(desc.Handle != NULL);
	D3D::SetDesc(desc);


	RECT rect = { 0, 0, (LONG)desc.Width, (LONG)desc.Height };

	UINT centerX = (GetSystemMetrics(SM_CXSCREEN) - (UINT)desc.Width) / 2;
	UINT centerY = (GetSystemMetrics(SM_CYSCREEN) - (UINT)desc.Height) / 2;

	AdjustWindowRect(&rect, WS_OVERLAPPEDWINDOW, FALSE);
	MoveWindow
	(
		desc.Handle
		, centerX, centerY
		, rect.right - rect.left, rect.bottom - rect.top
		, TRUE
	);
	ShowWindow(desc.Handle, SW_SHOWNORMAL);
	SetForegroundWindow(desc.Handle);
	SetFocus(desc.Handle);

	ShowCursor(true);
}

void Window::Destroy()
{
	D3DDesc desc = D3D::GetDesc();

	if (desc.bFullScreen == true)
		ChangeDisplaySettings(NULL, 0);

	DestroyWindow(desc.Handle);

	UnregisterClass(desc.AppName.c_str(), desc.Instance);
}

LRESULT CALLBACK Window::WndProc(HWND handle, UINT message, WPARAM wParam, LPARAM lParam)
{
	Mouse::Get()->InputProc(message, wParam, lParam);

	if (Gui::Get()->MsgProc(handle, message, wParam, lParam))
		return true;

	if (message == WM_SIZE)
	{
		if (mainExecute != NULL)
		{
			float width = (float)LOWORD(lParam);
			float height = (float)HIWORD(lParam);

			if (D3D::Get() != NULL)
				D3D::Get()->ResizeScreen(width, height);

			if (Context::Get() != NULL)
				Context::Get()->ResizeScreen();

			mainExecute->ResizeScreen();
		}
	}

	if (message == WM_CLOSE || message == WM_DESTROY)
	{
		PostQuitMessage(0);

		return 0;
	}

	return DefWindowProc(handle, message, wParam, lParam);
}

void Window::MainRender()
{
	Time::Get()->Update();

	if (ImGui::IsMouseHoveringAnyWindow() == false)
	{
		Keyboard::Get()->Update();
		Mouse::Get()->Update();
	}

	Gui::Get()->Update();
	Context::Get()->Update();
	DebugLine::Get()->Update();

	mainExecute->Update();

	mainExecute->PreRender();


	D3DDesc desc = D3D::GetDesc();

	D3D::Get()->SetRenderTarget();
	D3D::Get()->Clear(desc.Background);
	{
		Context::Get()->Render();

		mainExecute->Render();
		DebugLine::Get()->Render();

		mainExecute->PostRender();

		Gui::Get()->Render();
	}
	D3D::Get()->Present();
}

DebugLine 부분 추가

Normal Vector 실행화면

Normal Vector

빛의 방향

'⭐ DirectX > DirectX11 3D' 카테고리의 다른 글

[DirectX11] 024 Vertical Raycast (0)	2023.01.20
[DirectX11] 023 Get Height (0)	2023.01.20
[DirectX11] 019 Heightmap (0)	2023.01.16
[DirectX11] 018 Texture Sampler (0)	2023.01.16
[DirectX11] 017 Texture Load (0)	2023.01.14

[DirectX11] 020~22 Normal Vector

Normalize

Light Direction 내적

Normal Vector의 방향

w의 활용

Terrain & DebugLine.fx

Terrain

Normal Vector

DebugLine

Normal Vector 실행화면

'⭐ DirectX > DirectX11 3D' 카테고리의 다른 글

댓글

이 글 공유하기

티스토리툴바

Normalize

Light Direction 내적

Normal Vector의 방향

w의 활용

Terrain & DebugLine.fx

Terrain

Normal Vector

DebugLine

Normal Vector 실행화면

'⭐ DirectX > DirectX11 3D' 카테고리의 다른 글

댓글

이 글 공유하기

다른 글

[DirectX11] 024 Vertical Raycast

[DirectX11] 023 Get Height

[DirectX11] 019 Heightmap

[DirectX11] 018 Texture Sampler

티스토리툴바
