[UE] Around 공격 구현하기

플레이어 주위를 도는 구형 이펙터로 적에게 피해를 입히는 공격패턴을 만들것이다. 충돌체는 0.2초 간격으로 데미지를 전달할 것이다. 주위에 적이 많을 때 지속적인 데미지를 전달하기 유용한 공격패턴이 될 것이다.



목차





---





Plugins
	Weapon
		Resource
			Icon128.png weapon_thumbnail_icon.png
		Source
			Weapon
			SWeaponCheckBoxes.h .cpp SWeaponDetailsView.h .cpp SWeaponDoActionData.h .cpp SWeaponEquipmentData.h .cpp SWeaponHitData.h .cpp SWeaponLeftArea.h .cpp Weapon.Build.cs WeaponAssetEditor.h .cpp WeaponAssetFactory.h .cpp WeaponCommand.h .cpp  WeaponContextMenu.h .cpp WeaponModule.h .cpp WeaponStyle.h .cpp



Source
	U2212_06
		Characters
		CAnimInstance.h .cpp CEnemy.h .cpp  CPlayer.h .cpp ICharacter.h .cpp
		Components
		CMontagesComponent.h .cpp  CMovementComponent.h .cpp  CStateComponent.h .cpp CStatusComponent.h .cpp   CWeaponComponent.h .cpp
		Notifies
		CAnimNotifyState_BeginAction.h .cpp  CAnimNotify_CameraShake.h .cpp  CAnimNotifyState_EndAction.h .cpp CAnimNotify_EndState.h .cpp CAnimNotifyState.h .cpp CAnimNotifyState_CameraAnim.h .cpp CAnimNotifyState_Collision.h .cpp  CAnimNotifyState_Combo.h .cpp CAnimNotifyState_Equip.h .cpp CAnimNotifyState_SubAction.h .cpp
		Utilities
		CHelper.h CLog.h .cpp
		Weapons
		CAura.h .cpp CCamerModifier.h .cpp CGhostTrail.h .cpp CRotate_Object.h .cpp 생성 CDoAction_Around.h .cpp 생성 CDoAction_Combo.h .cpp CDoAction_Warp.h .cpp CSubAction_Fist.h .cpp CSubAction_Hammer.h .cpp CSubAction_Sword.h .cpp CDoAction_Warp.h .cpp CAttachment.h .cpp CDoAction.h .cpp CEquipment.h .cpp CSubAction.h .cpp CWeaponAsset.h .cpp CWeaponStructures.h .cpp
		Global.h CGameMode.h .cpp U2212_06.Build.cs
		U2212_06.uproject











Around 공격 구현하기





---





CPlayer.cpp -  키 입력 추가



CPlayer.h

변동사항 없음.





CPlayer.cpp

#include "Characters/CPlayer.h"
#include "Global.h"
#include "CAnimInstance.h"
#include "GameFramework/SpringArmComponent.h"
#include "GameFramework/CharacterMovementComponent.h"
#include "Camera/CameraComponent.h"
#include "Components/SkeletalMeshComponent.h"
#include "Components/InputComponent.h"
#include "Components/CMontagesComponent.h"
#include "Components/CMovementComponent.h"
#include "Components/CWeaponComponent.h"

ACPlayer::ACPlayer()
{
	CHelpers::CreateComponent<USpringArmComponent>(this, &SpringArm, "SpringArm", GetMesh());
	CHelpers::CreateComponent<UCameraComponent>(this, &Camera, "Camera", SpringArm);

	CHelpers::CreateActorComponent<UCWeaponComponent>(this, &Weapon, "Weapon");
	CHelpers::CreateActorComponent<UCMontagesComponent>(this, &Montages, "Montages");
	CHelpers::CreateActorComponent<UCMovementComponent>(this, &Movement, "Movement");
	CHelpers::CreateActorComponent<UCStateComponent>(this, &State, "State");

	GetMesh()->SetRelativeLocation(FVector(0, 0, -90));
	GetMesh()->SetRelativeRotation(FRotator(0, -90, 0));

	USkeletalMesh* mesh;
	CHelpers::GetAsset<USkeletalMesh>(&mesh, "SkeletalMesh'/Game/Character/Mesh/SK_Mannequin.SK_Mannequin'");
	GetMesh()->SetSkeletalMesh(mesh);

	TSubclassOf<UCAnimInstance> animInstance;
	CHelpers::GetClass<UCAnimInstance>(&animInstance, "AnimBlueprint'/Game/ABP_Character.ABP_Character_C'");
	GetMesh()->SetAnimClass(animInstance);

	SpringArm->SetRelativeLocation(FVector(0, 0, 140));
	SpringArm->SetRelativeRotation(FRotator(0, 90, 0));
	SpringArm->TargetArmLength = 200;
	SpringArm->bDoCollisionTest = false;
	SpringArm->bUsePawnControlRotation = true;
	SpringArm->bEnableCameraLag = true;

	GetCharacterMovement()->RotationRate = FRotator(0, 720, 0);

}

void ACPlayer::BeginPlay()
{
	Super::BeginPlay();

	Movement->OnRun(); //Movement의 기본을 Run으로 설정
	Movement->DisableControlRotation();//Movement의 기본을 DisableControlRotation으로 설정

	State->OnStateTypeChanged.AddDynamic(this, &ACPlayer::OnStateTypeChanged);
}

void ACPlayer::SetupPlayerInputComponent(UInputComponent* PlayerInputComponent)
{
	Super::SetupPlayerInputComponent(PlayerInputComponent);

	PlayerInputComponent->BindAxis("MoveForward", Movement, &UCMovementComponent::OnMoveForward);
	PlayerInputComponent->BindAxis("MoveRight", Movement, &UCMovementComponent::OnMoveRight);
	PlayerInputComponent->BindAxis("VerticalLook", Movement, &UCMovementComponent::OnVerticalLook);
	PlayerInputComponent->BindAxis("HorizontalLook", Movement, &UCMovementComponent::OnHorizontalLook);

	PlayerInputComponent->BindAction("Sprint", EInputEvent::IE_Pressed, Movement, &UCMovementComponent::OnSprint);
	PlayerInputComponent->BindAction("Sprint", EInputEvent::IE_Released, Movement, &UCMovementComponent::OnRun);

	PlayerInputComponent->BindAction("Avoid", EInputEvent::IE_Pressed, this, &ACPlayer::OnAvoid);

	PlayerInputComponent->BindAction("Fist", EInputEvent::IE_Pressed, Weapon, &UCWeaponComponent::SetFistMode);
	PlayerInputComponent->BindAction("Sword", EInputEvent::IE_Pressed, Weapon, &UCWeaponComponent::SetSwordMode);
	PlayerInputComponent->BindAction("Hammer", EInputEvent::IE_Pressed, Weapon, &UCWeaponComponent::SetHammerMode);
	PlayerInputComponent->BindAction("Warp", EInputEvent::IE_Pressed, Weapon, &UCWeaponComponent::SetWarpMode);
	PlayerInputComponent->BindAction("Around", EInputEvent::IE_Pressed, Weapon, &UCWeaponComponent::SetAroundMode);

	PlayerInputComponent->BindAction("Action", EInputEvent::IE_Pressed, Weapon, &UCWeaponComponent::DoAction);

	PlayerInputComponent->BindAction("SubAction", EInputEvent::IE_Pressed, Weapon, &UCWeaponComponent::SubAction_Pressed);
	PlayerInputComponent->BindAction("SubAction", EInputEvent::IE_Released, Weapon, &UCWeaponComponent::SubAction_Released);
}

void ACPlayer::OnStateTypeChanged(EStateType InPrevType, EStateType InNewType)
{
	switch (InNewType)
	{
		case EStateType::BackStep: BackStep(); break;
	}
}

void ACPlayer::OnAvoid()
{
	CheckFalse(State->IsIdleMode());
	CheckFalse(Movement->CanMove());

	CheckTrue(InputComponent->GetAxisValue("MoveForward") >= 0.0f);//뒷방향을 입력했다면

	State->SetBackStepMode();//State을 BackStepMode로 변경한다.
}

void ACPlayer::BackStep()
{
	Movement->EnableControlRotation();//정면을 바라본 상태로 뒤로 뛰어야하기 때문에 EnableControlRotation으로 만들어준다.

	Montages->PlayBackStepMode();//PlayBackStepMode()를 통해 몽타주 재생.
}

void ACPlayer::End_BackStep()
{
	Movement->DisableControlRotation();//Backstep이 끝나면 원래대로 돌려준다.

	State->SetIdleMode();//Idle상태로 돌려줌.
}

키 입력 추가 - Around

• void ACPlayer::SetupPlayerInputComponent(UInputComponent* PlayerInputComponent)

  • PlayerInputComponent->BindAction("Around", EInputEvent::IE_Pressed, Weapon,  &UCWeaponComponent::SetAroundMode);





BP_CPlayer에 Weapon - DA_Around 할당하기

Weapon

• Data Assets: DA _Around 할당



---

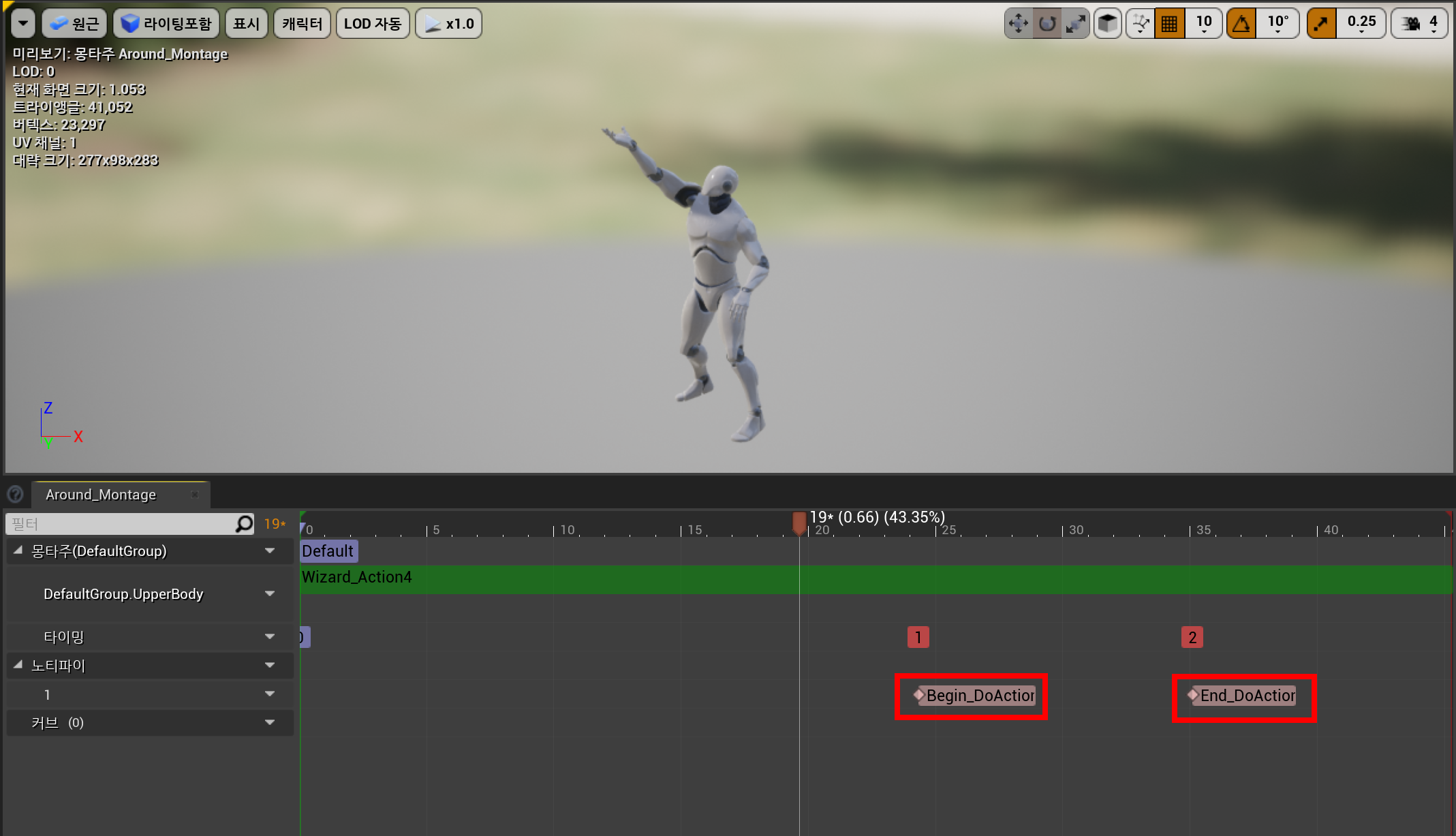

Around_Montage 생성



Begin_DoAction과 End_DoAction 할당.

---





CDoAction_Around 생성

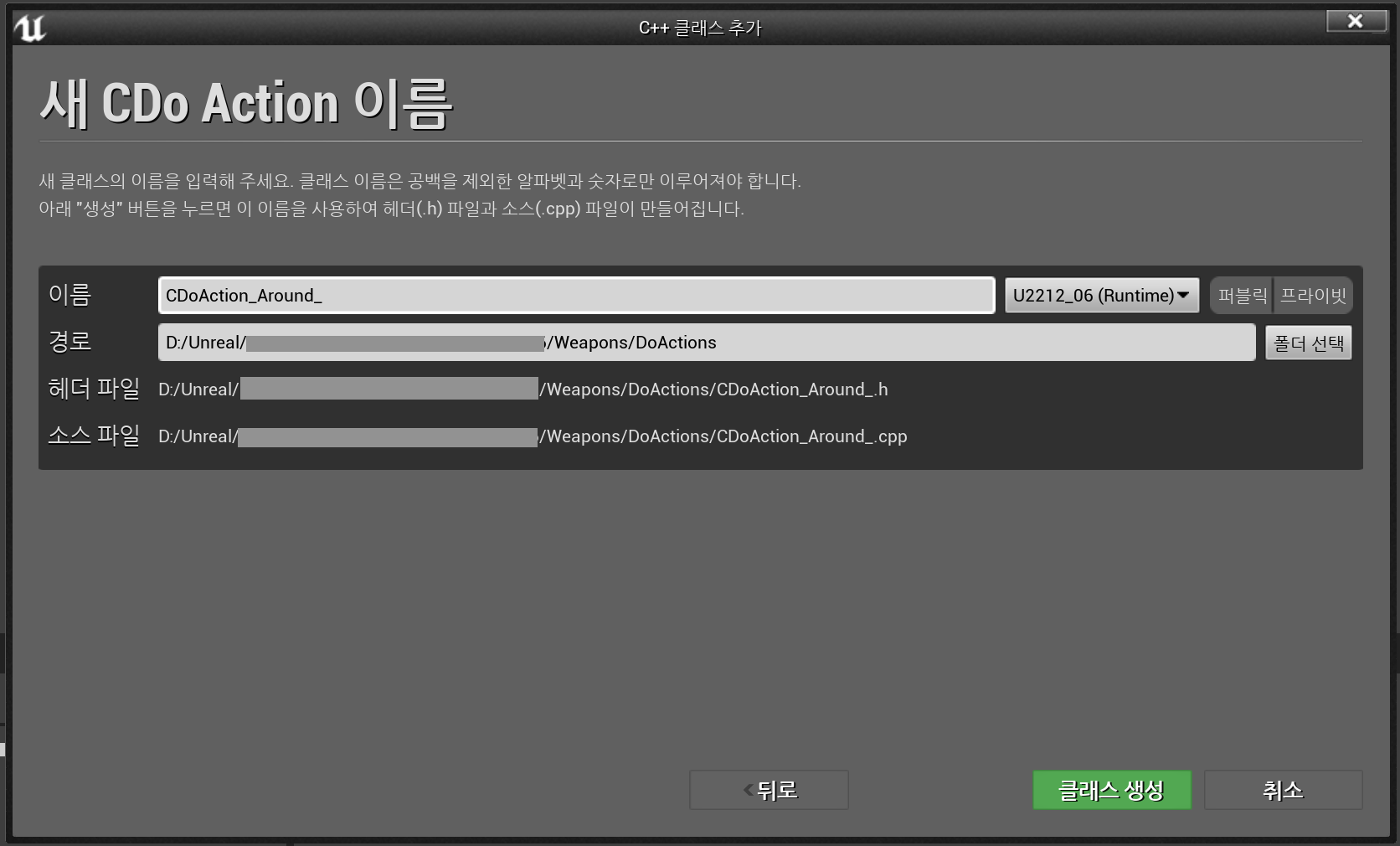

새 C++ 클래스 - CDoAction - CDoAction_Around 생성





CDoAction_Around.h

#pragma once
#include "CoreMinimal.h"
#include "Weapons/CDoAction.h"
#include "CDoAction_Around.generated.h"

UCLASS(Blueprintable)
class U2212_06_API UCDoAction_Around : public UCDoAction
{
	GENERATED_BODY()

private:
	UPROPERTY(EditAnywhere, Category = "SpawnClass")
		TArray<TSubclassOf<class ACRotate_Object>> RotateClasses;//회전체를 여러개 만들기위해 배열로 생성한다.

public:
	void DoAction() override;
	void Begin_DoAction() override;
};







CDoAction_Around.cpp

#include "Weapons/DoActions/CDoAction_Around.h"
#include "Global.h"
#include "GameFramework/Character.h"
#include "Components/CStateComponent.h"

void UCDoAction_Around::DoAction()
{
	CheckFalse(DoActionDatas.Num() > 0);
	CheckFalse(State->IsIdleMode());

	Super::DoAction();

	DoActionDatas[0].DoAction(OwnerCharacter);
}

void UCDoAction_Around::Begin_DoAction()
{
	Super::Begin_DoAction();

	int32 index = UKismetMathLibrary::RandomIntegerInRange(0, RotateClasses.Num() - 1);


	FActorSpawnParameters params;
	params.Owner = OwnerCharacter;
	params.SpawnCollisionHandlingOverride = ESpawnActorCollisionHandlingMethod::AlwaysSpawn;

	OwnerCharacter->GetWorld()->SpawnActor<ACRotate_Object>(RotateClasses[index], params);
}

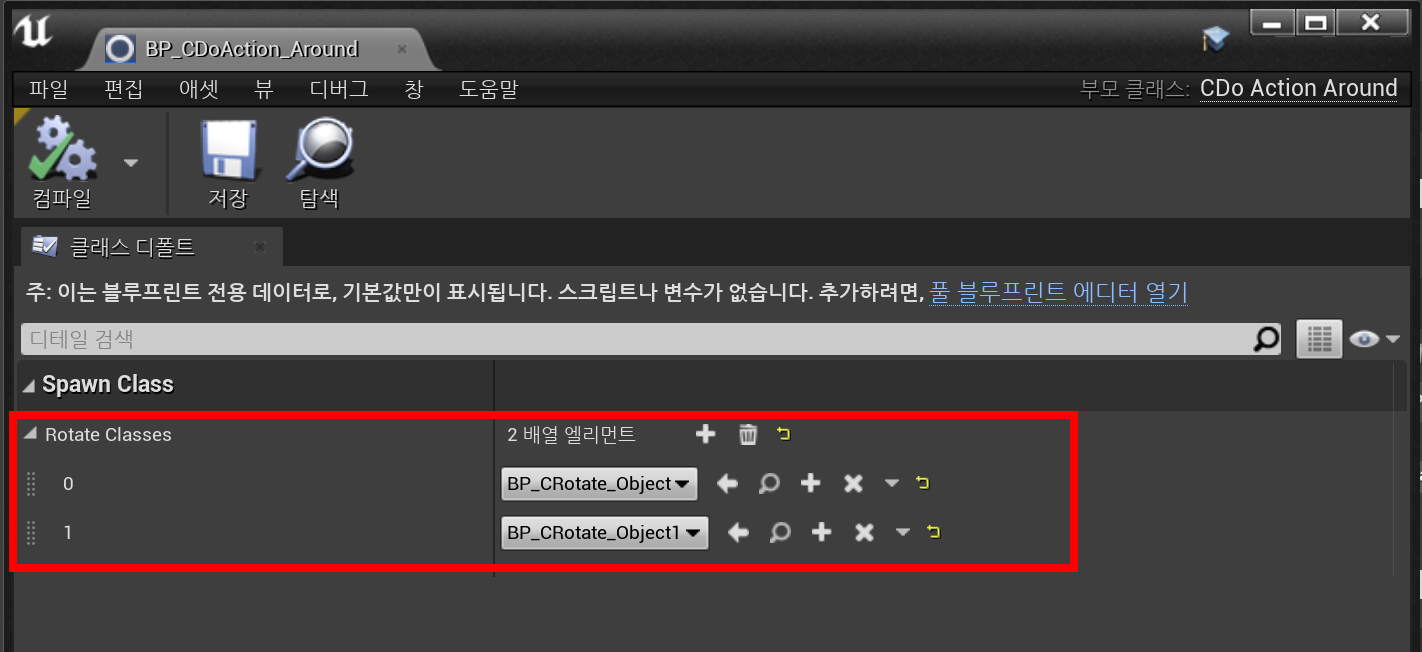

BP_CDoAction_Around 생성

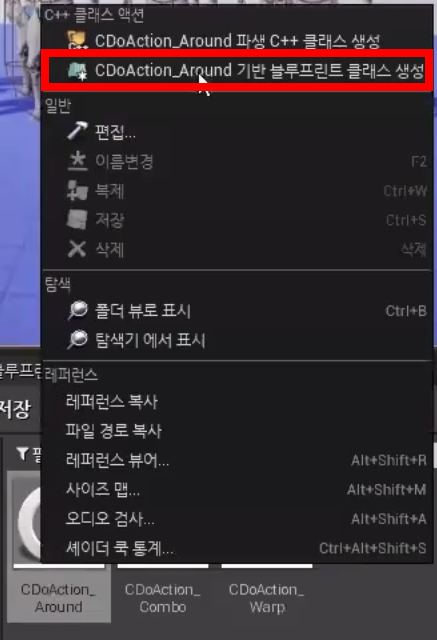

CDoAction_Around 기반 블루프린트 클래스 생성 - BP_CDoAction_Around 생성

.Spawn Class

• Rotate Classes:  BP_CRotate_Object, BP_CRotate_Object1 할당



---





CRotate_Object 생성



새 C++ 클래스 - Actor - CRotate_Object 생성





CRotate_Object .h

#pragma once
#include "CoreMinimal.h"
#include "GameFramework/Actor.h"
#include "Weapons/CWeaponStructures.h"
#include "CRotate_Object.generated.h"

UCLASS()
class U2212_06_API ACRotate_Object : public AActor
{
	GENERATED_BODY()

private:
	UPROPERTY(EditDefaultsOnly, Category = "Damage")
		FHitData HitData;

private:
	UPROPERTY(EditDefaultsOnly, Category = "Spawn")
		float Speed = 300;//돌아가는 속도

	UPROPERTY(EditDefaultsOnly, Category = "Spawn")
		float Distance = 150;//중심으로부터의 거리

	UPROPERTY(EditDefaultsOnly, Category = "Spawn")
		bool bNegative;//시계방향, 반시계 방향 결정

	UPROPERTY(EditDefaultsOnly, Category = "Spawn")
		float DamageInteval = 0.1f;//데미지 들어갈 간격

private:
	UPROPERTY(VisibleDefaultsOnly)
		class UCapsuleComponent* Capsule;//충돌체

	UPROPERTY(VisibleDefaultsOnly)
		class UParticleSystemComponent* Particle;

private:
	UFUNCTION()
		void OnComponentBeginOverlap(UPrimitiveComponent* OverlappedComponent, AActor* OtherActor, UPrimitiveComponent* OtherComp, int32 OtherBodyIndex, bool bFromSweep, const FHitResult& SweepResult);

	UFUNCTION()
		void OnComponentEndOverlap(UPrimitiveComponent* OverlappedComponent, AActor* OtherActor, UPrimitiveComponent* OtherComp, int32 OtherBodyIndex);

	UFUNCTION()
		void SendDamage();

public:
	ACRotate_Object();

protected:
	virtual void BeginPlay() override;
	virtual void EndPlay(const EEndPlayReason::Type EndPlayReason);//타이머를 종료시키기 위해 EndPlay가 필요하다.

public:
	virtual void Tick(float DeltaTime) override;

private:
	float Angle;//현재 돌아가는 각도

	TArray<ACharacter*> Hitted;//데미지 받을 애들
	FTimerHandle TimerHandle;//타이머
};







CRotate_Object .cpp

#include "Weapons/AddOns/CRotate_Object.h"
#include "Global.h"
#include "GameFramework/Character.h"
#include "Components/CapsuleComponent.h"
#include "Particles/ParticleSystemComponent.h"

ACRotate_Object::ACRotate_Object()
{
	PrimaryActorTick.bCanEverTick = true;

	CHelpers::CreateComponent<UCapsuleComponent>(this, &Capsule, "Capsule");
	CHelpers::CreateComponent<UParticleSystemComponent>(this, &Particle, "Particle", Capsule);

	//구형태에 가깝게 HalfHeight와 Radius값을 동일하게 설정하였다.
	Capsule->SetCapsuleHalfHeight(44);
	Capsule->SetCapsuleRadius(44);

	InitialLifeSpan = 5;

	HitData.Launch = 0;//HitData 초기값 설정.
	HitData.Power = 5;//HitData 초기값 설정.

	CHelpers::GetAsset<UAnimMontage>(&HitData.Montage, "AnimMontage'/Game/Character/Montages/Common/HitReaction_Stop_Montage.HitReaction_Stop_Montage'");//HitReaction 몽타주
}

void ACRotate_Object::BeginPlay()
{
	Super::BeginPlay();

	Angle = UKismetMathLibrary::RandomFloatInRange(0, 360);//시작 각도를 랜덤으로 잡아준다. 매번 앞에서만 스폰되는것을 방지하기 위해서다.

	//충돌
	Capsule->OnComponentBeginOverlap.AddDynamic(this, &ACRotate_Object::OnComponentBeginOverlap);
	Capsule->OnComponentEndOverlap.AddDynamic(this, &ACRotate_Object::OnComponentEndOverlap);

	GetWorld()->GetTimerManager().SetTimer(TimerHandle, this, &ACRotate_Object::SendDamage, DamageInteval, true);//타이머 설정. 타이머가 돌고있는 동안 계속해서 Damage가 들어간다.
}

void ACRotate_Object::EndPlay(const EEndPlayReason::Type EndPlayReason)
{
	Super::EndPlay(EndPlayReason);

	GetWorld()->GetTimerManager().ClearTimer(TimerHandle);//타이머 제거.
}

void ACRotate_Object::Tick(float DeltaTime)
{
	Super::Tick(DeltaTime);


	FVector location = GetOwner()->GetActorLocation();

	//시계방향인 경우와 반시계방향인 경우를 고려해서 삼항 연산자로 구현한다.
	Angle += (bNegative ? -Speed : +Speed) * DeltaTime;
	if (FMath::IsNearlyEqual(Angle, bNegative ? -360 : +360))
		Angle = 0;//짐벌락 현상을 방지하기 위해서 +-360도가 되었을때 0도로 만들어준다.

	FVector distance = FVector(Distance, 0, 0);
	FVector value = distance.RotateAngleAxis(Angle, FVector::UpVector);//UpVector(Yaw)기준으로 회전.
	location += value;//현재위치에서 회전해서 이동한 위치값을 더해준다.

	SetActorLocation(location);//위치 갱신
	SetActorRotation(FRotator(0, Angle, 0));//각 갱신
}

void ACRotate_Object::OnComponentBeginOverlap(UPrimitiveComponent* OverlappedComponent, AActor* OtherActor, UPrimitiveComponent* OtherComp, int32 OtherBodyIndex, bool bFromSweep, const FHitResult& SweepResult)
{
	CheckTrue(GetOwner() == OtherActor);

	ACharacter* character = Cast<ACharacter>(OtherActor);
	if (!!character)
		Hitted.AddUnique(character);
}

void ACRotate_Object::OnComponentEndOverlap(UPrimitiveComponent* OverlappedComponent, AActor* OtherActor, UPrimitiveComponent* OtherComp, int32 OtherBodyIndex)
{
	CheckTrue(GetOwner() == OtherActor);

	ACharacter* character = Cast<ACharacter>(OtherActor);
	if (!!character)
		Hitted.Remove(character);
}

void ACRotate_Object::SendDamage()
{
	//데미지 전달.
	for (int32 i = Hitted.Num() - 1; i >= 0; i--)
		HitData.SendDamage(Cast<ACharacter>(GetOwner()), this, Hitted[i]);
}

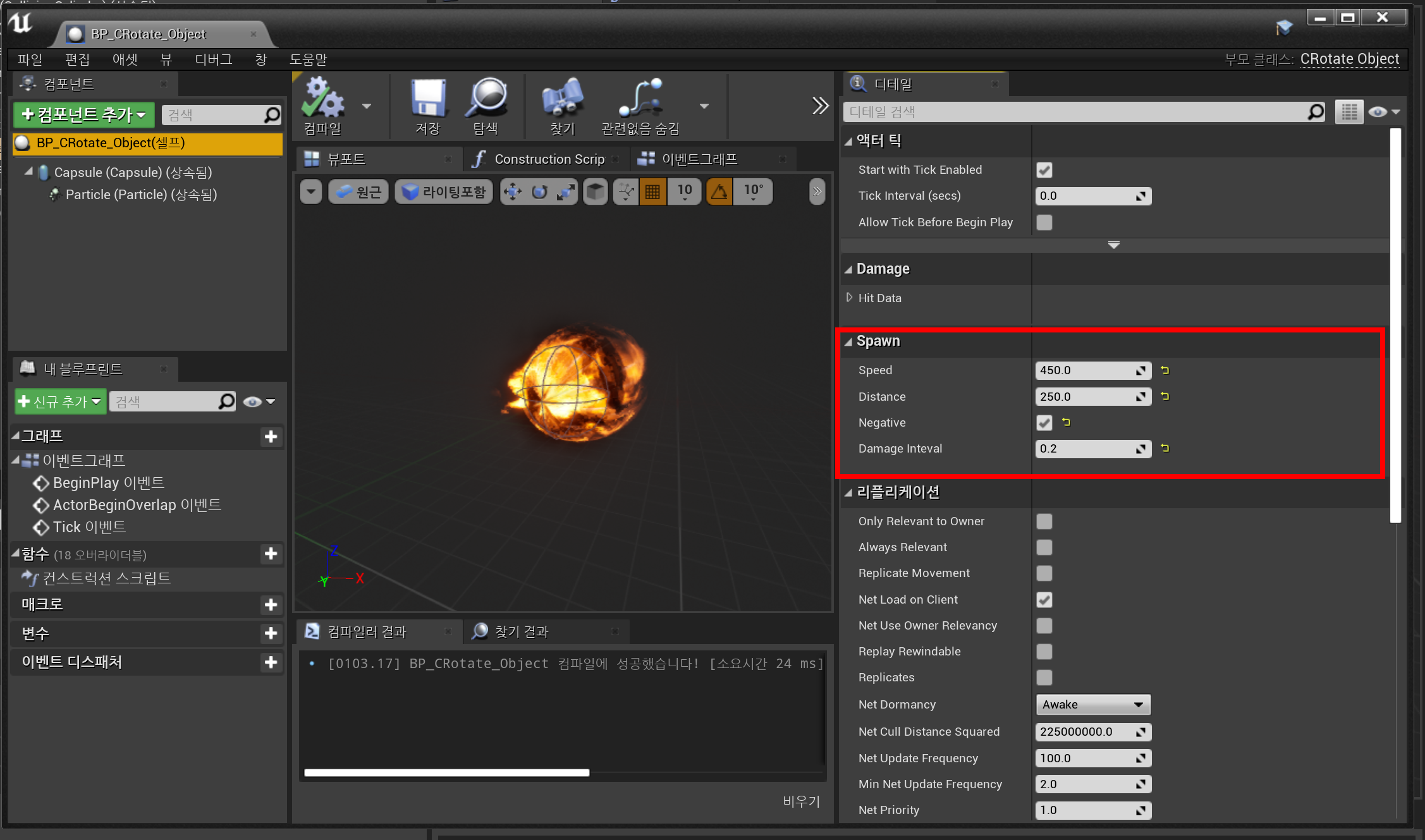

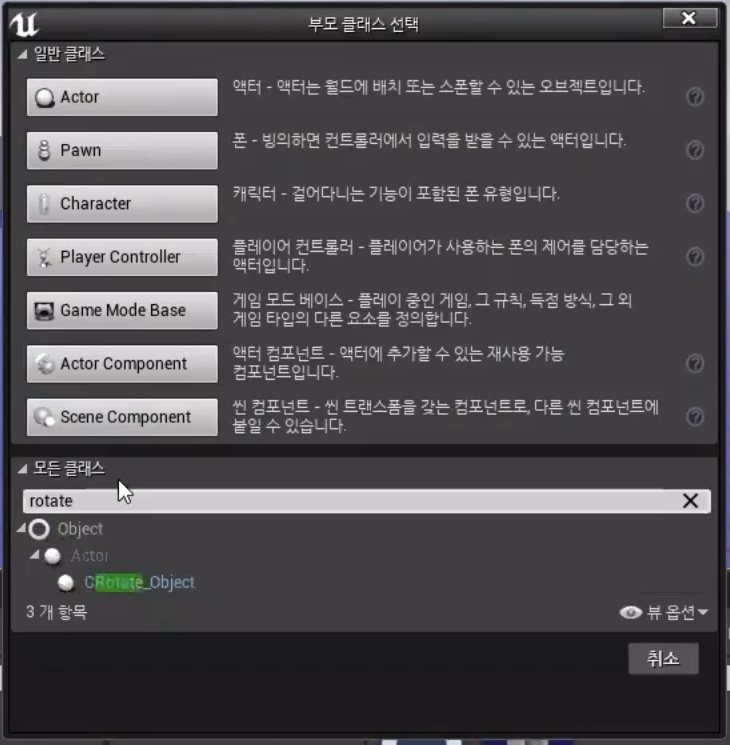

BP_CRotateObject, BP_CRotateObject1 생성

BP_CRotateObject

BP_CRotateObject1

---





DA_Around 생성



DA_Around

---

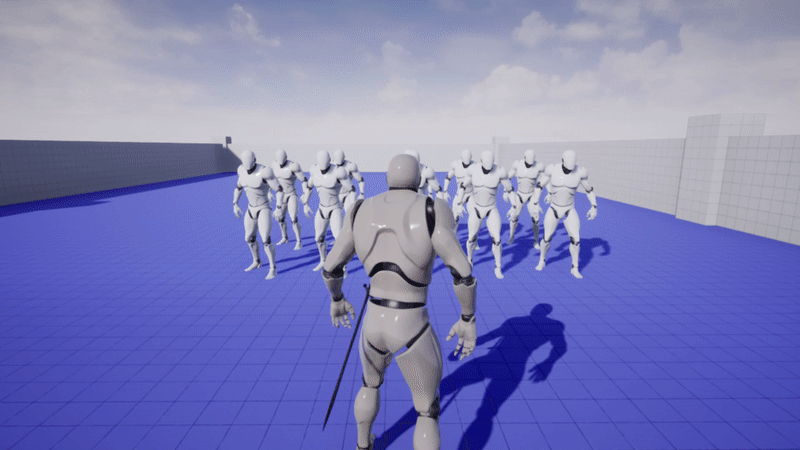

실행화면





---
