[UE] 워프 Top View 만들기

지난 시간에 구현한 워프는 워프 시 일반적인 플레이어의 뷰에서 커서가 가르키는 방향으로 이동하였다. 플레이어의 시점에서 워프를 실행하기 때문에 뒤로 이동하려면 뒤를 돌아야 한다. 이동 가능한 범위가 한 눈에 들어오도록 Top View를 제공해 워프 이동이 좀 더 다양하도록 선택권을 넓혀줄것이다. 마우스 우클릭으로 Top View가 나오도록 SubAction_Warp를 만들것이다.





목차





---





Plugins
	Weapon
		Resource
			Icon128.png weapon_thumbnail_icon.png
		Source
			Weapon
			SWeaponCheckBoxes.h .cpp SWeaponDetailsView.h .cpp SWeaponDoActionData.h .cpp SWeaponEquipmentData.h .cpp SWeaponHitData.h .cpp SWeaponLeftArea.h .cpp Weapon.Build.cs WeaponAssetEditor.h .cpp WeaponAssetFactory.h .cpp WeaponCommand.h .cpp  WeaponContextMenu.h .cpp WeaponModule.h .cpp WeaponStyle.h .cpp



Source
	U2212_06
		Characters
		CAnimInstance.h .cpp CEnemy.h .cpp  CPlayer.h .cpp ICharacter.h .cpp
		Components
		CMontagesComponent.h .cpp  CMovementComponent.h .cpp  CStateComponent.h .cpp CStatusComponent.h .cpp   CWeaponComponent.h .cpp
		Notifies
		CAnimNotifyState_BeginAction.h .cpp  CAnimNotify_CameraShake.h .cpp  CAnimNotifyState_EndAction.h .cpp CAnimNotify_EndState.h .cpp CAnimNotifyState.h .cpp CAnimNotifyState_CameraAnim.h .cpp CAnimNotifyState_Collision.h .cpp  CAnimNotifyState_Combo.h .cpp CAnimNotifyState_Equip.h .cpp CAnimNotifyState_SubAction.h .cpp
		Utilities
		CHelper.h CLog.h .cpp
		Weapons
		CAura.h .cpp CCamerModifier.h .cpp CGhostTrail.h .cpp CDoAction_Combo.h .cpp CDoAction_Warp.h .cpp CSubAction_Fist.h .cpp CSubAction_Hammer.h .cpp CSubAction_Sword.h .cpp CDoAction_Warp.h .cpp 생성 CAttachment.h .cpp CDoAction.h .cpp CEquipment.h .cpp CSubAction.h .cpp CWeaponAsset.h .cpp CWeaponStructures.h .cpp
		Global.h CGameMode.h .cpp U2212_06.Build.cs
		U2212_06.uproject







워프 Top View 만들기



---





카메라 이론 설명



W: 직육면체

VP: Frustum



Vp: 직육면체



종횡비율 Aspect Raio





OrthoWidth만 정하고 OrthoHeight는 정하지 않는 이유는?

Width를 가진 상태로 종횡비로 Height를 정하기 때문이다.





---





CMovementComponent  -  Top View 시에 Player를 절대방향으로 움직이도록 수정



평상 시에는 Actor(=플레이어)의 전방 방향을 기준으로 플레이어가 움직인다. 하지만 Warp를 위한 우클릭 시 플레이어가 이동할 때는 Orthographic Top View이기 때문에 플레이어를 절대방향으로 움직일 수 있도록 수정해준다.





CMovementComponent .h

#pragma once
#include "CoreMinimal.h"
#include "Components/ActorComponent.h"
#include "CMovementComponent.generated.h"

UENUM()
enum class ESpeedType : uint8
{
	Walk = 0, Run, Sprint, Max,
};

UCLASS()
class U2212_06_API UCMovementComponent : public UActorComponent
{
	GENERATED_BODY()

private:
	UPROPERTY(EditAnywhere, Category = "CameraSpeed")
		float HorizontalLook = 45;

	UPROPERTY(EditAnywhere, Category = "CameraSpeed")
		float VerticalLook = 45;

private:
	UPROPERTY(EditAnywhere, Category = "Speed")
		float Speed[(int32)ESpeedType::Max] = { 200, 400, 600 };

public:
	FORCEINLINE bool CanMove() { return bCanMove; }
	FORCEINLINE void Move() { bCanMove = true; }
	FORCEINLINE void Stop() { bCanMove = false; }

	FORCEINLINE float GetWalkSpeed() { return Speed[(int32)ESpeedType::Walk]; }
	FORCEINLINE float GetRunSpeed() { return Speed[(int32)ESpeedType::Run]; }
	FORCEINLINE float GetSprintSpeed() { return Speed[(int32)ESpeedType::Sprint]; }

	FORCEINLINE bool GetFixedCamera() { return bFixedCamera; }
	FORCEINLINE void EnableFixedCamera() { bFixedCamera = true; }
	FORCEINLINE void DisableFixedCamera() { bFixedCamera = false; }

	FORCEINLINE void EnableTopViewCamera() { bTopViewCamera = true; }
	FORCEINLINE void DisableTopViewCamera() { bTopViewCamera = false; }

public:
	UCMovementComponent();

protected:
	virtual void BeginPlay() override;

private:
	void SetSpeed(ESpeedType InType);

public:
	void OnSprint();
	void OnRun();
	void OnWalk();

	void EnableControlRotation();
	void DisableControlRotation();

public:
	void OnMoveForward(float InAxis);
	void OnMoveRight(float InAxis);
	void OnHorizontalLook(float InAxis);
	void OnVerticalLook(float InAxis);

private:
	class ACharacter* OwnerCharacter;

private:
	bool bCanMove = true; //이동할 수 있는가
	bool bFixedCamera; //카메라 고정인가
	bool bTopViewCamera;
};

Top View로 사용할 변수 추가

•  class ACameraActor* CameraActor;



FORCEINLINE 함수 추가

• FORCEINLINE void EnableTopViewCamera() { bTopViewCamera = true; }
• FORCEINLINE void DisableTopViewCamera() { bTopViewCamera = false; }







CMovementComponent .cpp

#include "Components/CMovementComponent.h"
#include "Global.h"
#include "GameFramework/Character.h"
#include "GameFramework/CharacterMovementComponent.h"

UCMovementComponent::UCMovementComponent()
{
}

void UCMovementComponent::BeginPlay()
{
	Super::BeginPlay();

	OwnerCharacter = Cast<ACharacter>(GetOwner());
}

void UCMovementComponent::SetSpeed(ESpeedType InType)
{
	OwnerCharacter->GetCharacterMovement()->MaxWalkSpeed = Speed[(int32)InType];
}

void UCMovementComponent::OnSprint()
{
	SetSpeed(ESpeedType::Sprint);
}

void UCMovementComponent::OnRun()
{
	SetSpeed(ESpeedType::Run);
}

void UCMovementComponent::OnWalk()
{
	SetSpeed(ESpeedType::Walk);
}

void UCMovementComponent::EnableControlRotation()
{
	OwnerCharacter->bUseControllerRotationYaw = true;
	OwnerCharacter->GetCharacterMovement()->bOrientRotationToMovement = false;
}

void UCMovementComponent::DisableControlRotation()
{
	OwnerCharacter->bUseControllerRotationYaw = false;
	OwnerCharacter->GetCharacterMovement()->bOrientRotationToMovement = true;
}

void UCMovementComponent::OnMoveForward(float InAxis)
{
	CheckFalse(bCanMove);

	FRotator rotator = FRotator(0, OwnerCharacter->GetControlRotation().Yaw, 0);
	FVector direction = FQuat(rotator).GetForwardVector();

	if (bTopViewCamera)
		direction = FVector::XAxisVector;

	OwnerCharacter->AddMovementInput(direction, InAxis);
}

void UCMovementComponent::OnMoveRight(float InAxis)
{
	CheckFalse(bCanMove);

	FRotator rotator = FRotator(0, OwnerCharacter->GetControlRotation().Yaw, 0);
	FVector direction = FQuat(rotator).GetRightVector();

	if (bTopViewCamera)
		direction = FVector::YAxisVector;

	OwnerCharacter->AddMovementInput(direction, InAxis);
}

void UCMovementComponent::OnHorizontalLook(float InAxis)
{
	CheckTrue(bFixedCamera);

	OwnerCharacter->AddControllerYawInput(InAxis * HorizontalLook * GetWorld()->GetDeltaSeconds());
}

void UCMovementComponent::OnVerticalLook(float InAxis)
{
	CheckTrue(bFixedCamera);

	OwnerCharacter->AddControllerPitchInput(InAxis * VerticalLook * GetWorld()->GetDeltaSeconds());
}

Top View 시 플레이어의 방향을 플레이어 기준이 아니라 XAxisVector, YAxisVector로 변경시켜 준다.

• void UCMovementComponent::OnMoveForward(float InAxis)
  • if (bTopViewCamera)
        direction = FVector::XAxisVector;
• void UCMovementComponent::OnMoveRight(float InAxis)
  • if (bTopViewCamera)
        direction = FVector::YAxisVector;



---





CSubAction_Warp 생성

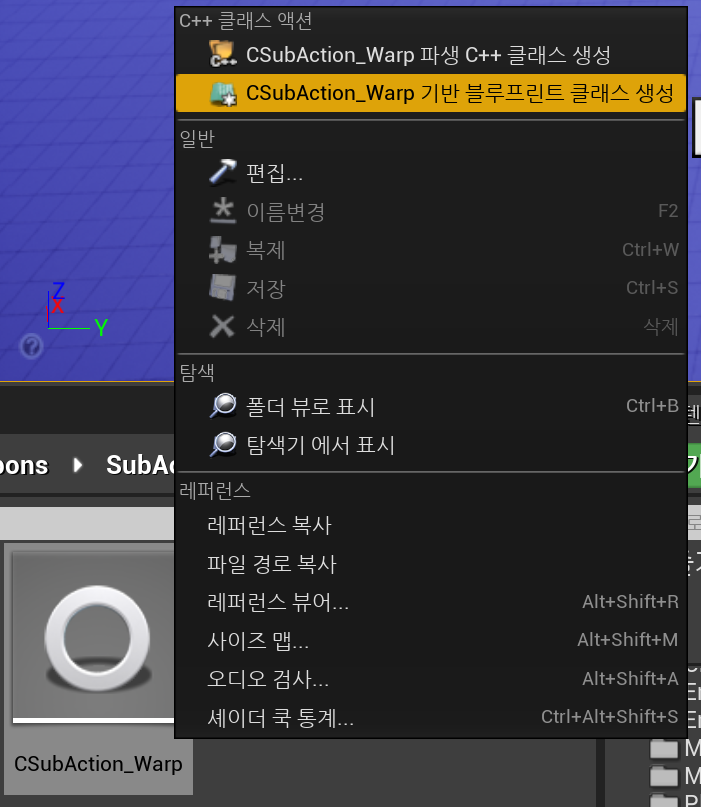

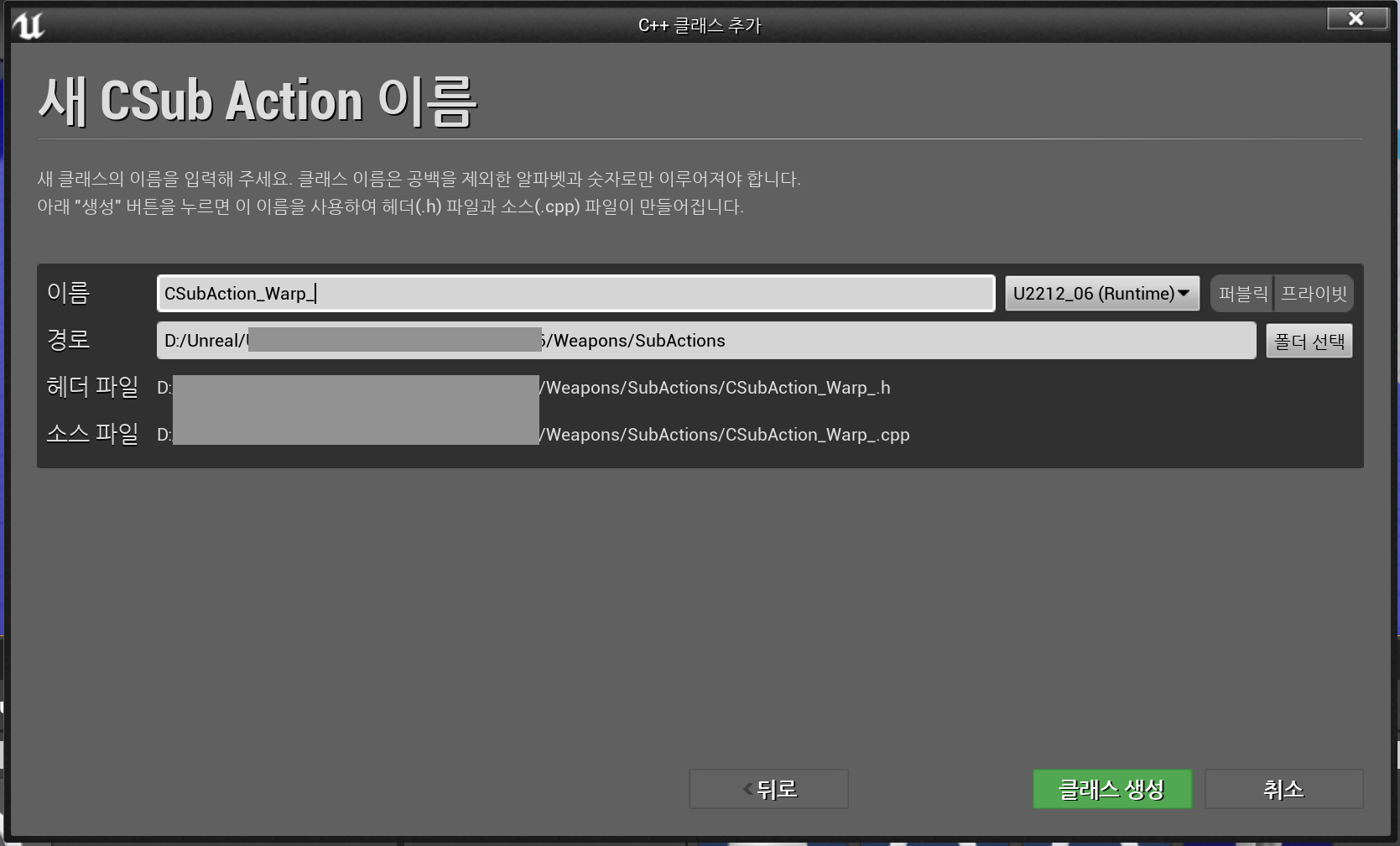

새 C++ 클래스 - CSubAction - CSubAction_Warp 생성





CSubAction_Warp.h

#pragma once
#include "CoreMinimal.h"
#include "Weapons/CSubAction.h"
#include "CSubAction_Warp.generated.h"

UCLASS(Blueprintable)
class U2212_06_API UCSubAction_Warp : public UCSubAction
{
	GENERATED_BODY()

private:
    UPROPERTY(EditDefaultsOnly, Category = "Camera")
        TSubclassOf<class ACameraActor> CameraActorClass;

    UPROPERTY(EditDefaultsOnly, Category = "Camera")
        FVector CameraRelativeLocation = FVector(0, 0, 1000);//플레이어와 카메라 사이의 상대간격

    UPROPERTY(EditDefaultsOnly, Category = "Camera")
        TEnumAsByte<ECameraProjectionMode::Type> ProjectionMode;//Projection모드: perspective, orthographic

    UPROPERTY(EditDefaultsOnly, Category = "Camera")
        float OrthoWidth = 2000;

    UPROPERTY(EditDefaultsOnly, Category = "Camera")
        float FieldOfView = 90;

    UPROPERTY(EditDefaultsOnly, Category = "Camera")
        float BlendIn = 0;//Player카메라에서 Warp카메라로 전환되는 시간

    UPROPERTY(EditDefaultsOnly, Category = "Camera")
        float BlendOut = 0;//Warp카메라에서 Player카메라로 전환되는 시간

public:
    UCSubAction_Warp();

public:
    virtual void Pressed() override;
    virtual void Released() override;

public:
    void BeginPlay(class ACharacter* InOwner, class ACAttachment* InAttachment, class UCDoAction* InDoAction) override;

public:
    void Tick_Implementation(float InDeltaTime) override;

private:
    class APlayerController* PlayerController;
    class ACameraActor* CameraActor;
};









CSubAction_Warp.cpp

#include "Weapons/SubActions/CSubAction_Warp.h"
#include "Global.h"
#include "GameFramework/Character.h"
#include "GameFramework/PlayerController.h"
#include "Components/CStateComponent.h"
#include "Components/CMovementComponent.h"
#include "Camera/CameraActor.h"
#include "Camera/CameraComponent.h"

UCSubAction_Warp::UCSubAction_Warp()
{
	//선택하지 않아도 기본자료형으로 만들 수 있도록 설정. Abstract이 아닌 경우 null 대신 많이 사용하는 형식이다.
	CameraActorClass = ACameraActor::StaticClass();
}

void UCSubAction_Warp::BeginPlay(ACharacter* InOwner, ACAttachment* InAttachment, UCDoAction* InDoAction)
{
	Super::BeginPlay(InOwner, InAttachment, InDoAction);

	PlayerController = InOwner->GetController<APlayerController>();//PlayController를 가져온다.

	CameraActor = InOwner->GetWorld()->SpawnActor<ACameraActor>(CameraActorClass);//CameraActor를 Spawn 시킨다.
	CameraActor->SetActorRotation(FRotator(-90.0f, 0.0f, 0.0f));//위에서 아래를 바라보도록 Rotator 설정.

	UCameraComponent* camera = CHelpers::GetComponent<UCameraComponent>(CameraActor);//CameraComponent 생성
	//변수로 설정한 값들을 camera의 해당 항목에 대입시켜 준다.
	camera->ProjectionMode = ProjectionMode;
	camera->OrthoWidth = OrthoWidth;
	camera->FieldOfView = FieldOfView;
}

void UCSubAction_Warp::Pressed()
{
	CheckNull(PlayerController);
	CheckTrue(State->IsSubActionMode());

	Super::Pressed();


	State->OnSubActionMode();
	Movement->EnableTopViewCamera();//CMovementComponent의 bTopViewCamera를 true로 만듬. 절대방향으로 움직임.
	PlayerController->SetViewTargetWithBlend(CameraActor, BlendIn);
}

void UCSubAction_Warp::Released()
{
	CheckNull(PlayerController);
	CheckFalse(State->IsSubActionMode());

	Super::Released();


	State->OffSubActionMode();
	Movement->DisableTopViewCamera();//CMovementComponent의 bTopViewCamera를 false로 만듬.
	PlayerController->SetViewTargetWithBlend(Owner, BlendOut);
}

void UCSubAction_Warp::Tick_Implementation(float InDeltaTime)
{
	Super::Tick_Implementation(InDeltaTime);

	CheckNull(PlayerController);
	CheckNull(CameraActor);

	//카메라의 위치를 Player위치로 실시간 옮겨준다.
	CameraActor->SetActorLocation(Owner->GetActorLocation() + CameraRelativeLocation);
}









BP_CSubAction_Warp 생성

CSubAction_Warp 기반 블루프린트 클래스생성 -  BP_CSubAction_Warp 생성

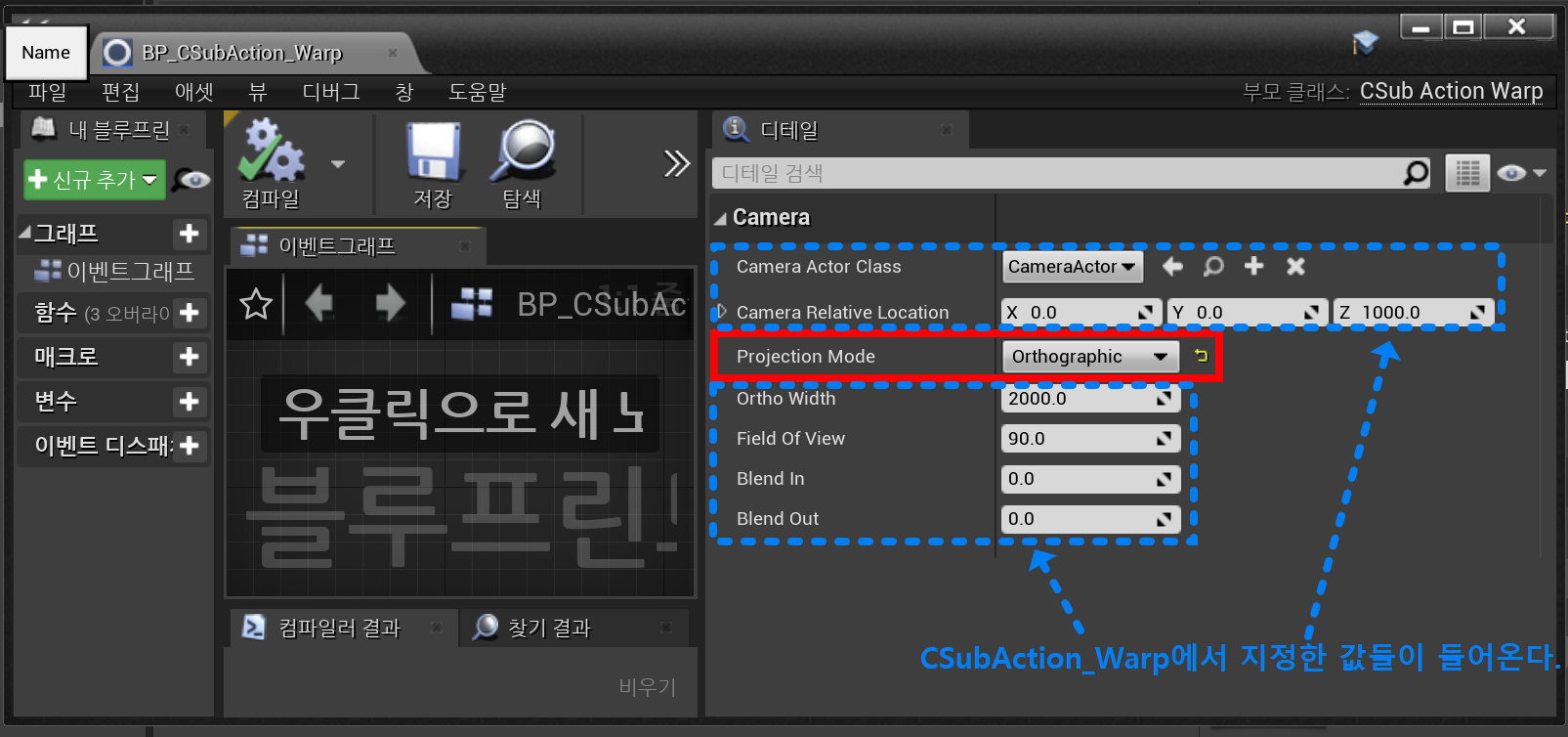

Camera
