Targeting












내적과 외적이 같이 쓰이는 경우는?

  •



D3DMatrixLookAtLH





IA -> VS -> RS -> PS -> OM

  •  RS: 3d에서2d로 변환하는 과정을 갖는다. Culling 과정



Culling: 3d 공간에서 자름

Clipping: 2d 공간에서 자름



수직변의 양이면 앞

수직변이 음이면 뒤



외적으로 좌우를




Target Component

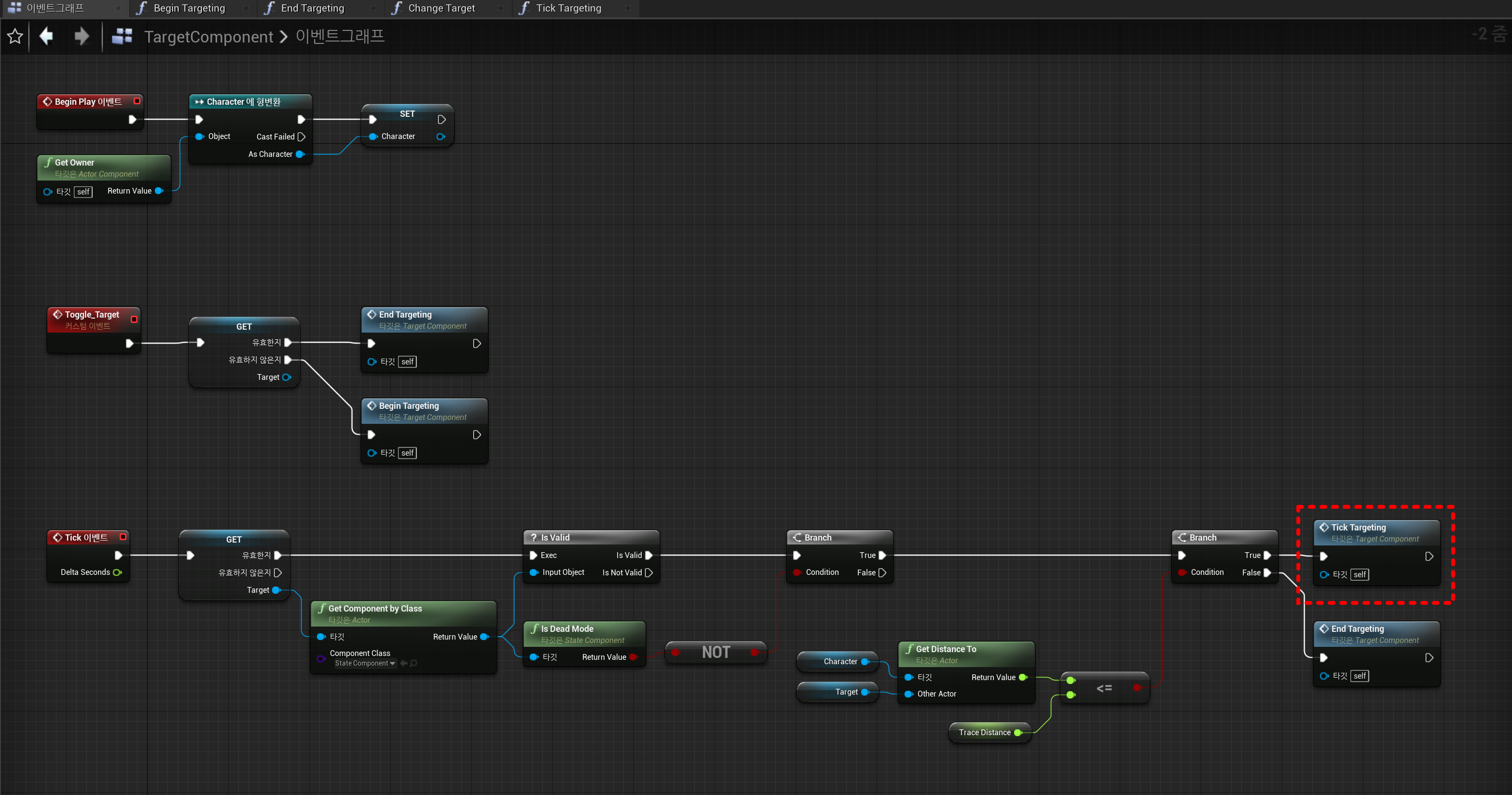

Event Graph

  • Tick Targeting 노드 추가

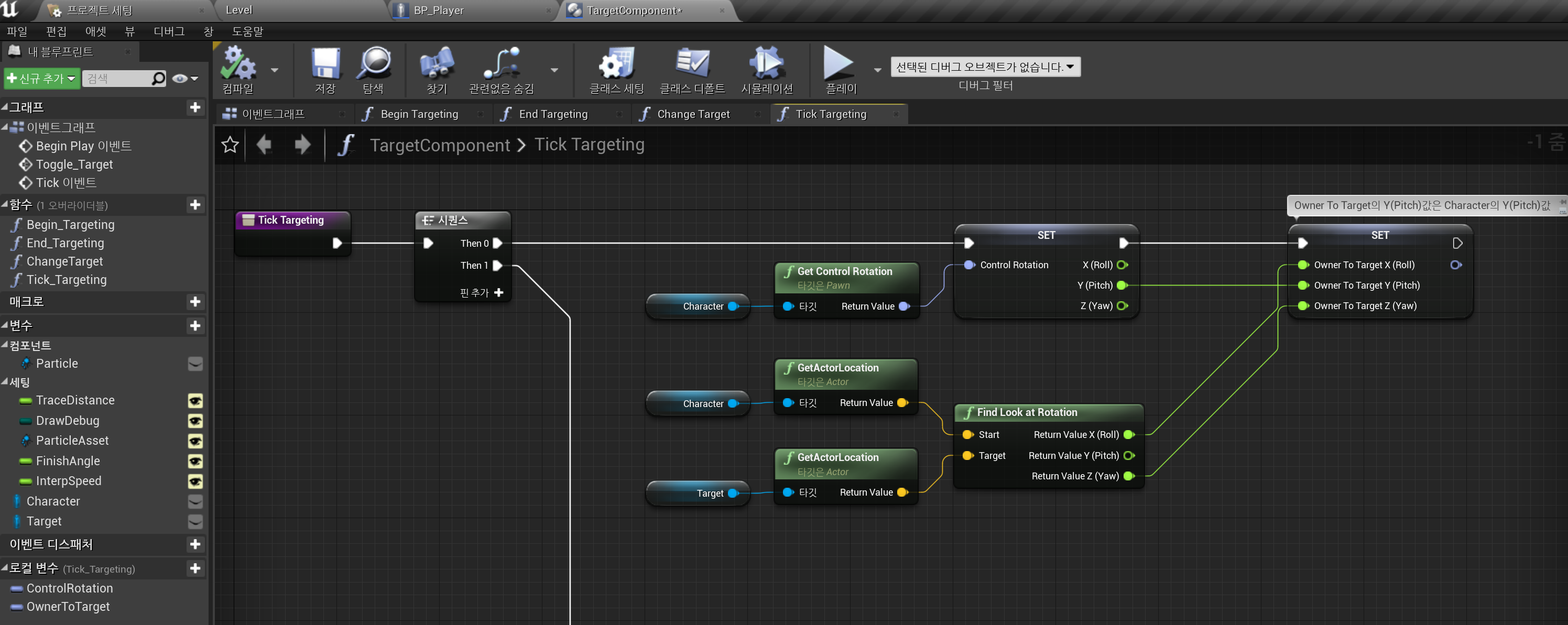

Tick Targeting

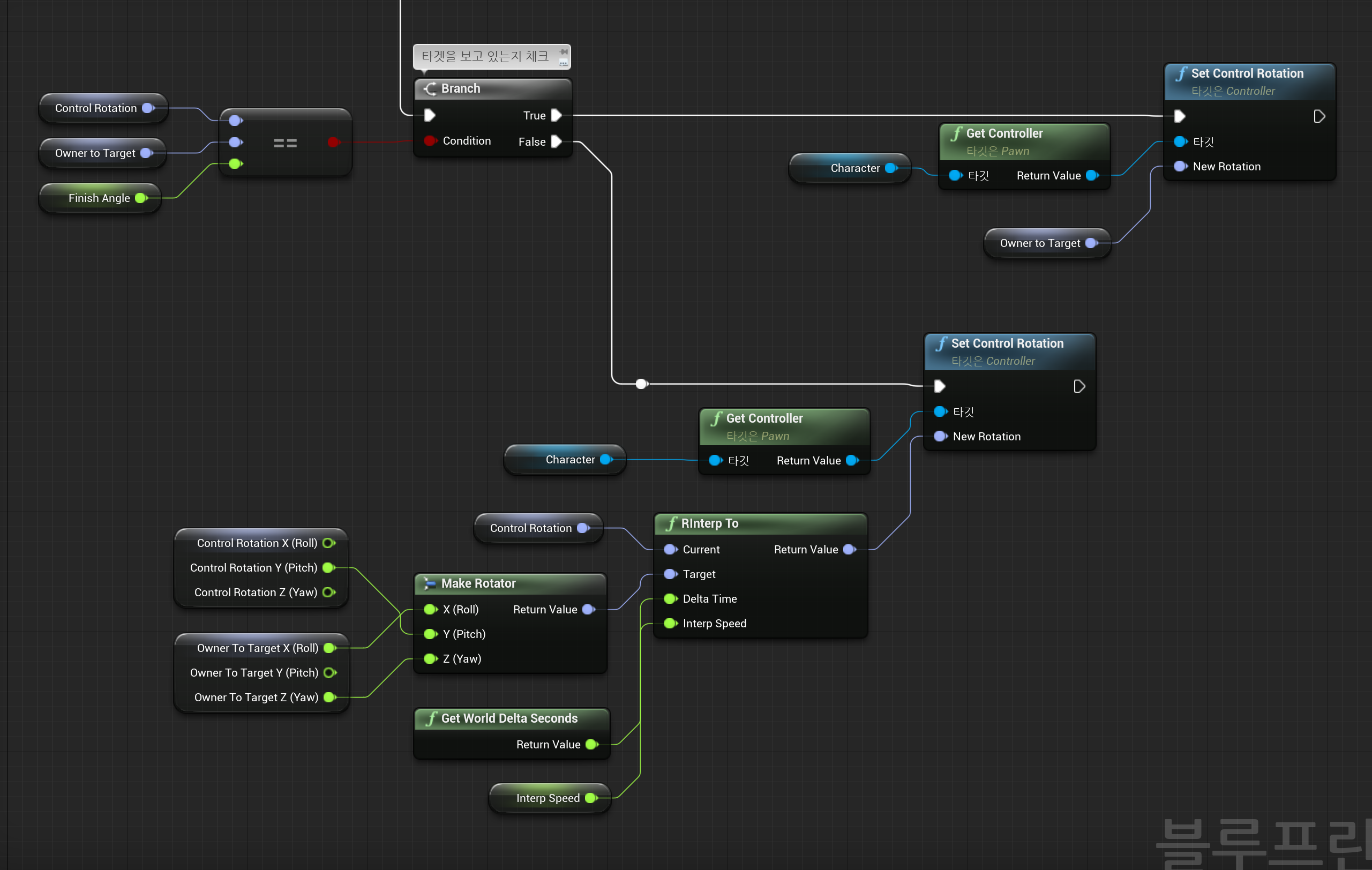

확대

  • Character - Get Controller - Set Control Rotation
    • Character 안에 Get Controller는 있지만 Set Control Rotation 없다.
    • 그래서 Get Controller를 먼저 호출한 후에 Set Control Rotation에 연결한다.
    • Owner to Target과 연결
  • Owner to Target = 회전이 완료되어야 하는 값
  • Make Rotator
    • Y(Pitch)값 = Control Rotation의 Y(Pitch)값
    • 위아래는 보간이 안 되도록 만들어준다.

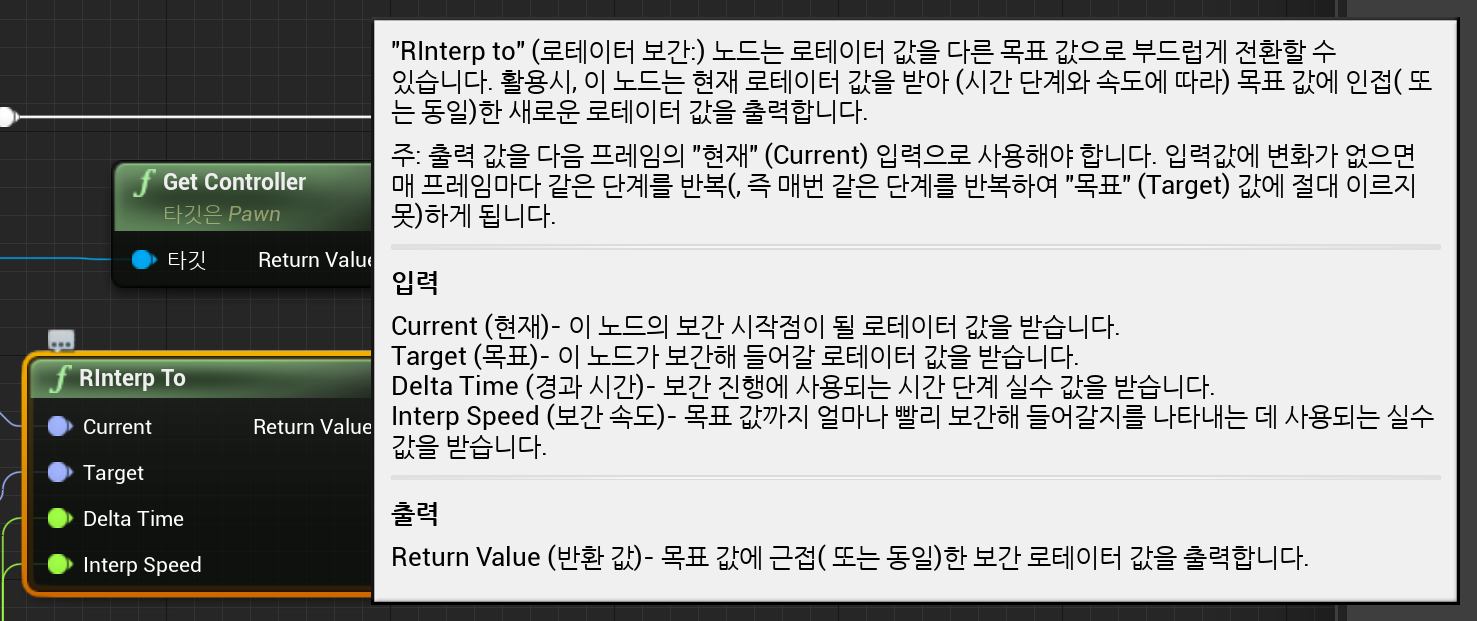

  • Current >> Target으로 보간
  • Current = Control Rotation, Target = Make Rotator 값
  • Make Rotator값
    • X (Roll) = Owner To Target X (Roll)
    • Y (Pitch) = Control Rotation X (Roll)
    • Z (Yaw) = Owner To Target Z (Yaw)
  • X, Z는 Control Rotation X, Z에서 Owner To Target X, Z값으로 보간.
  • Y는 Control Rotation Y에서 Control Rotation Y값으로 보간 = 보간 없음.






실행화면






















벡터 외적

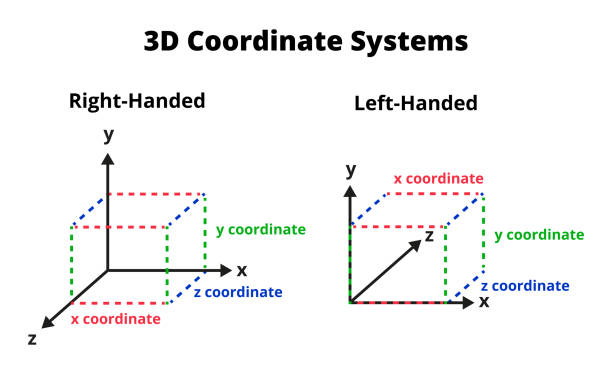

왼손 좌표계



https://hellowoori.tistory.com/38



https://blog.naver.com/destiny9720/221411770100




BP_Cross 생성



Blueprint Class - Actor - BP_Cross 생성





Get Player Location (pure)

  • Get Player Location (pure) 생성
  • 변수 생성: Player (Static Mesh Actor)

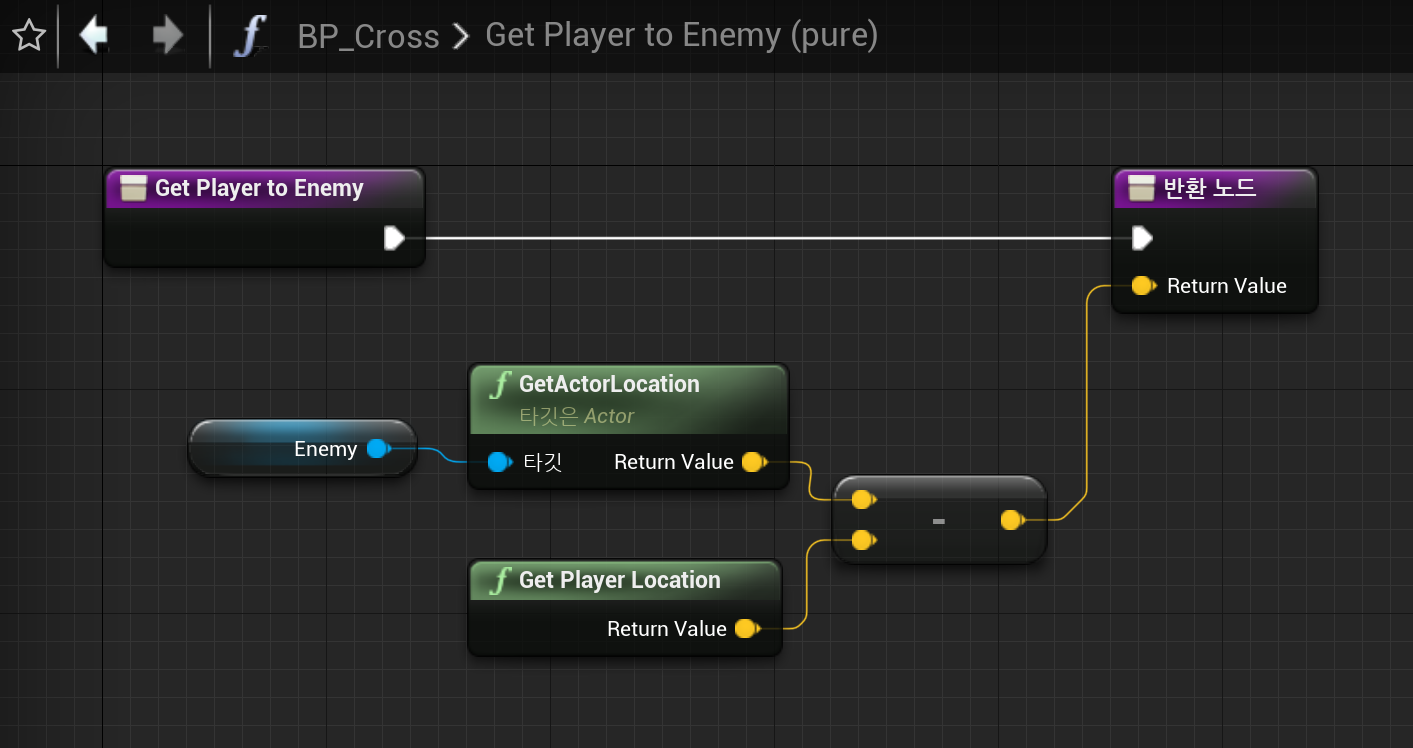

Get Player to Enemy (pure)

  • Get Player to Enemy (pure) 생성
  • 변수 생성: Enemy (Static Mesh Actor)

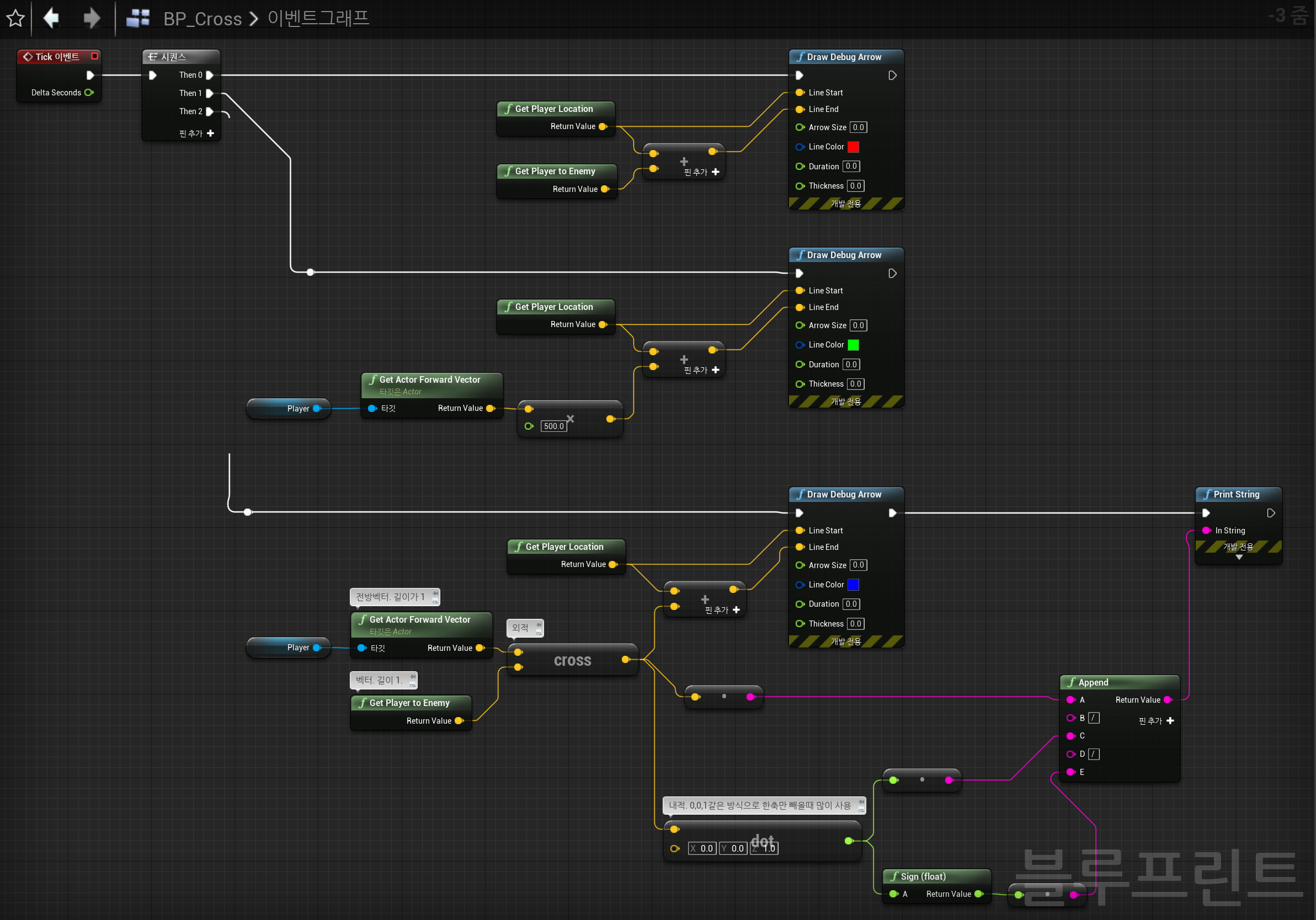

Event Graph








실행화면
