[UE] Component 컴포넌트, Player 이동





목차





---





Source
		Characters
		CAnimInstance.h .cpp CPlayer.h .cpp
		Components
		CMontagesComponent.h .cpp .생성 CMovementComponent.h .cpp 생성 CStateComponent.h .cpp 생성 CWeaponComponent.h .cpp 생성
		Utilities
		CHelper.h CLog.h .cpp
		Global.h CGameMode.h .cpp U2212_06.Build.cs
		U2212_06.uproject





Component 만들기 (Movement, State, Montage)





---



CMovementComponent 생성



새 C++ 클래스 - ActorComponent - CMovementComponent 생성



CMovementComponent.h

#pragma once

#include "CoreMinimal.h"
#include "Components/ActorComponent.h"
#include "CMovementComponent.generated.h"

UENUM()
enum class ESpeedType : uint8
{
	Walk = 0, Run, Sprint, Max,
};

UCLASS()
class U2212_06_API UCMovementComponent : public UActorComponent
{
	GENERATED_BODY()

private:
	UPROPERTY(EditAnywhere, Category = "CameraSpeed")
		float HorizontalLook = 45;

	UPROPERTY(EditAnywhere, Category = "CameraSpeed")
		float VerticalLook = 45;

private:
	UPROPERTY(EditAnywhere, Category = "Speed")
		float Speed[(int32)ESpeedType::Max] = { 200, 400, 600 };

public:
	FORCEINLINE bool CanMove() { return bCanMove; }
	FORCEINLINE void Move() { bCanMove = true; }
	FORCEINLINE void Stop() { bCanMove = false; }

	FORCEINLINE float GetWalkSpeed() { return Speed[(int32)ESpeedType::Walk]; }
	FORCEINLINE float GetRunSpeed() { return Speed[(int32)ESpeedType::Run]; }
	FORCEINLINE float GetSprintSpeed() { return Speed[(int32)ESpeedType::Sprint]; }

	FORCEINLINE bool GetFixedCamera() { return bFixedCamera; }
	FORCEINLINE void EnableFixedCamera() { bFixedCamera = true; }
	FORCEINLINE void DisableFixedCamera() { bFixedCamera = false; }

public:
	UCMovementComponent();

protected:
	virtual void BeginPlay() override;

private:
	void SetSpeed(ESpeedType InType);

public:
	void OnSprint();
	void OnRun();
	void OnWalk();

	void EnableControlRotation();
	void DisableControlRotation();

public:
	void OnMoveForward(float InAxis);
	void OnMoveRight(float InAxis);
	void OnHorizontalLook(float InAxis);
	void OnVerticalLook(float InAxis);

private:
	class ACharacter* OwnerCharacter;

private:
	bool bCanMove = true; //이동할 수 있는가
	bool bFixedCamera; //카메라 고정인가
};







CMovementComponent.cpp

#include "Components/CMovementComponent.h"
#include "Global.h"
#include "GameFramework/Character.h"
#include "GameFramework/CharacterMovementComponent.h"

UCMovementComponent::UCMovementComponent()
{

}

void UCMovementComponent::BeginPlay()
{
	Super::BeginPlay();

	OwnerCharacter = Cast<ACharacter>(GetOwner());
}

void UCMovementComponent::SetSpeed(ESpeedType InType)
{
	OwnerCharacter->GetCharacterMovement()->MaxWalkSpeed = Speed[(int32)InType];
}

void UCMovementComponent::OnSprint()
{
	SetSpeed(ESpeedType::Sprint);
}

void UCMovementComponent::OnRun()
{
	SetSpeed(ESpeedType::Run);
}

void UCMovementComponent::OnWalk()
{
	SetSpeed(ESpeedType::Walk);
}

void UCMovementComponent::EnableControlRotation()
{
	OwnerCharacter->bUseControllerRotationYaw = true;
	OwnerCharacter->GetCharacterMovement()->bOrientRotationToMovement = false;
}

void UCMovementComponent::DisableControlRotation()
{
	OwnerCharacter->bUseControllerRotationYaw = false;
	OwnerCharacter->GetCharacterMovement()->bOrientRotationToMovement = true;
}

void UCMovementComponent::OnMoveForward(float InAxis)
{
	CheckFalse(bCanMove);

	FRotator rotator = FRotator(0, OwnerCharacter->GetControlRotation().Yaw, 0);
	FVector direction = FQuat(rotator).GetForwardVector();

	OwnerCharacter->AddMovementInput(direction, InAxis);
}

void UCMovementComponent::OnMoveRight(float InAxis)
{
	CheckFalse(bCanMove);

	FRotator rotator = FRotator(0, OwnerCharacter->GetControlRotation().Yaw, 0);
	FVector direction = FQuat(rotator).GetRightVector();

	OwnerCharacter->AddMovementInput(direction, InAxis);
}

void UCMovementComponent::OnHorizontalLook(float InAxis)
{
	CheckTrue(bFixedCamera);

	OwnerCharacter->AddControllerYawInput(InAxis * HorizontalLook * GetWorld()->GetDeltaSeconds());
}

void UCMovementComponent::OnVerticalLook(float InAxis)
{
	CheckTrue(bFixedCamera);

	OwnerCharacter->AddControllerPitchInput(InAxis * VerticalLook * GetWorld()->GetDeltaSeconds());
}





---





CStateComponent 생성



새 C++ 클래스 - ActorComponent - CStateComponent 생성



CStateComponent.h

#pragma once

#include "CoreMinimal.h"
#include "Components/ActorComponent.h"
#include "CStateComponent.generated.h"

UENUM()
enum class EStateType : uint8
{
	Idle = 0, BackStep, Equip, Hitted, Dead, Action, Max,
};
DECLARE_DYNAMIC_MULTICAST_DELEGATE_TwoParams(FStateTypeChanged, EStateType, InPrevType, EStateType, InNewType);

UCLASS()
class U2212_06_API UCStateComponent : public UActorComponent
{
	GENERATED_BODY()

public:
	FORCEINLINE bool IsIdleMode() { return Type == EStateType::Idle; }
	FORCEINLINE bool IsBackstepMode() { return Type == EStateType::BackStep; }
	FORCEINLINE bool IsEquipMode() { return Type == EStateType::Equip; }
	FORCEINLINE bool IsHittedMode() { return Type == EStateType::Hitted; }
	FORCEINLINE bool IsDeadMode() { return Type == EStateType::Dead; }
	FORCEINLINE bool IsActionMode() { return Type == EStateType::Action; }

public:
	UCStateComponent();

protected:
	virtual void BeginPlay() override;

public:
	void SetIdleMode();
	void SetBackStepMode();
	void SetEquipMode();
	void SetHittedMode();
	void SetDeadMode();
	void SetActionMode();

private:
	void ChangeType(EStateType InType);

public:
	FStateTypeChanged OnStateTypeChanged;

private:
	EStateType Type;
};







CStateComponent.cpp

#include "Components/CStateComponent.h"
#include "Global.h"

UCStateComponent::UCStateComponent()
{

}

void UCStateComponent::BeginPlay()
{
	Super::BeginPlay();

}

void UCStateComponent::SetIdleMode()
{
	ChangeType(EStateType::Idle);
}

void UCStateComponent::SetBackStepMode()
{
	ChangeType(EStateType::BackStep);
}

void UCStateComponent::SetEquipMode()
{
	ChangeType(EStateType::Equip);
}

void UCStateComponent::SetHittedMode()
{
	ChangeType(EStateType::Hitted);
}

void UCStateComponent::SetDeadMode()
{
	ChangeType(EStateType::Dead);
}

void UCStateComponent::SetActionMode()
{
	ChangeType(EStateType::Action);
}

void UCStateComponent::ChangeType(EStateType InType)
{
	EStateType prevType = Type;
	Type = InType;

	if (OnStateTypeChanged.IsBound())
		OnStateTypeChanged.Broadcast(prevType, Type);
}







---







CMontageComponent 생성



새 C++ 클래스 - ActorComponent - CMontageComponent 생성



 CMontageComponent .h

#pragma once

#include "CoreMinimal.h"
#include "Components/ActorComponent.h"
#include "Components/CStateComponent.h"
#include "Engine/DataTable.h"
#include "CMontagesComponent.generated.h"

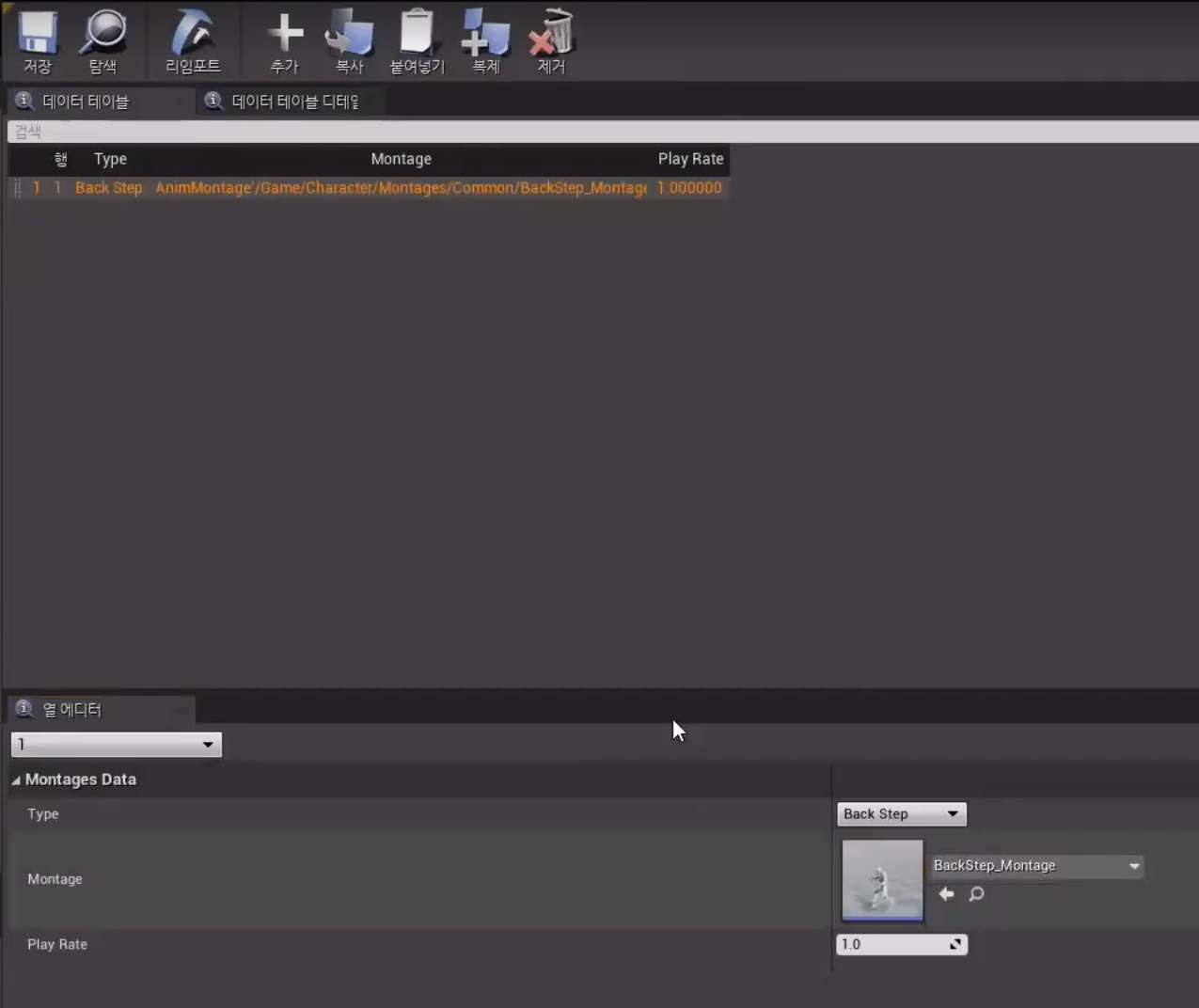

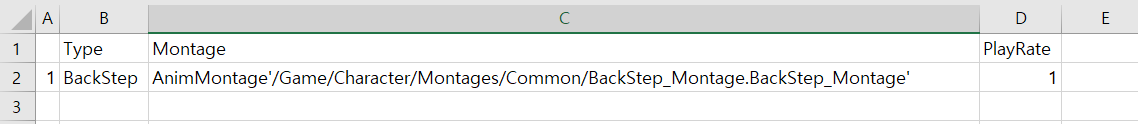

USTRUCT()
struct FMontageData
	: public FTableRowBase
{
	GENERATED_BODY()

public:
	UPROPERTY(EditAnywhere)
		EStateType Type; //상태 Type

	UPROPERTY(EditAnywhere)
		class UAnimMontage* Montage;

	UPROPERTY(EditAnywhere)
		float PlayRate = 1; //Player 속도
};

UCLASS(ClassGroup = (Custom), meta = (BlueprintSpawnableComponent))
class U2212_06_API UCMontagesComponent : public UActorComponent
{
	GENERATED_BODY()

private:
	UPROPERTY(EditAnywhere, Category = "DataTable")
		UDataTable* DataTable;

public:
	UCMontagesComponent();

protected:
	virtual void BeginPlay() override;

public:
	void PlayBackStepMode();

private:
	void PlayAnimMontage(EStateType InType);

private:
	class ACharacter* OwnerCharacter;
	FMontageData* Datas[(int32)EStateType::Max];
};







 CMontageComponent .cpp

#include "Components/CMontagesComponent.h"
#include "Global.h"
#include "GameFramework/Character.h"

UCMontagesComponent::UCMontagesComponent()
{
}

void UCMontagesComponent::BeginPlay()
{
	Super::BeginPlay();

	if(DataTable == nullptr)//DataTable이 없다면
	{   //DataTable이 없다고 메시지를 띄워준다.
		GLog->Log(ELogVerbosity::Error, "DataTable is not selected");

		return;
	}

	OwnerCharacter = Cast<ACharacter>(GetOwner());

	TArray<FMontageData*> datas;
	DataTable->GetAllRows<FMontageData>("", datas);//전체 데이터를 가져온다.

	//가져온 데이터를 배열에 넣어준다.
	for (int32 i = 0; i< (int32)EStateType::Max; i++)
	{
		for(FMontageData* data : datas)
		{
			if((EStateType)i == data->Type)
			{
				Datas[i] = data;

				continue;
			}
		}//for(data)
	}//for(i)
}

//#define LOG_UCMontagesComponent 1
#if LOG_UCMontagesComponent
for (FMontagesData* data : datas)
{
	if (data == nullptr)
		continue;

	FString str;
	//Static이 붙는 애들은 Reflection(자료형의 타입을 변수로 다룰 수 있게 해준다).
	str.Append(StaticEnum<EStateType>()->GetValueAsString(data->Type));//Enum을 문자열로 바꾸어서 자료형의 이름을 가져온다.
	str.Append(" / ");
	str.Append(data->Montage->GetPathName());

	CLog::Log(str);
}
#endif

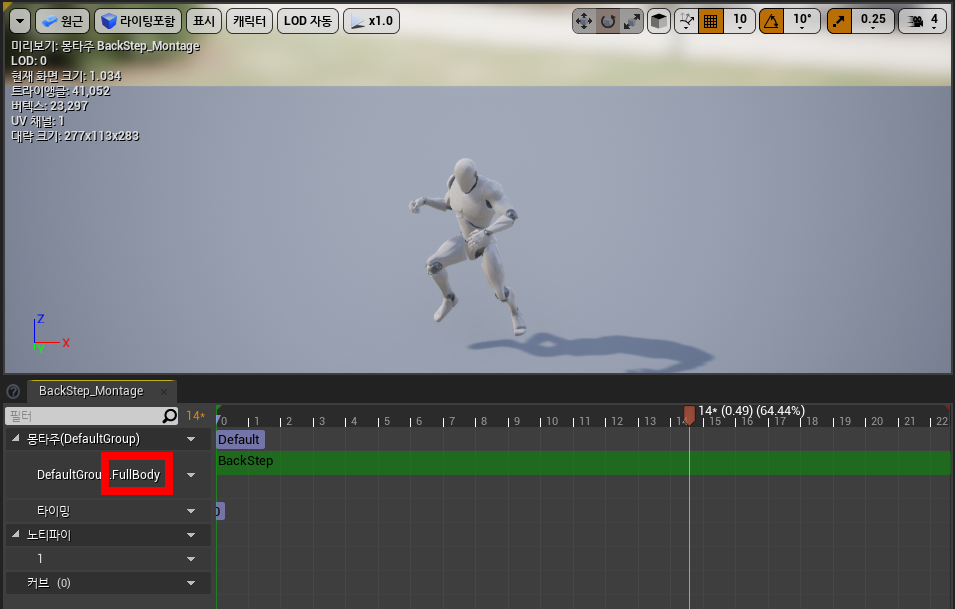

void UCMontagesComponent::PlayBackStepMode()
{
	PlayAnimMontage(EStateType::BackStep);
}

void UCMontagesComponent::PlayAnimMontage(EStateType InType)
{
	CheckNull(OwnerCharacter);

	FMontageData* data = Datas[(int32)InType];

	if(data == nullptr || data->Montage == nullptr)
	{
		GLog->Log(ELogVerbosity::Error, "None montages data");

		return;
	}

	OwnerCharacter->PlayAnimMontage(data->Montage, data->PlayRate);//data의 몽타주를 PlayRate속도로 OwnerCharacter에 적용하여 재생.
}





---





CPlayer 생성



CPlayer.h

#pragma once

#include "CoreMinimal.h"
#include "GameFramework/Character.h"
#include "Components/CStateComponent.h"
#include "CPlayer.generated.h"

UCLASS()
class U2212_06_API ACPlayer : public ACharacter
{
	GENERATED_BODY()

private:
	UPROPERTY(VisibleAnywhere)
		class USpringArmComponent* SpringArm;

	UPROPERTY(VisibleAnywhere)
		class UCameraComponent* Camera;

private:
	UPROPERTY(VisibleAnywhere)
		class UCMontagesComponent* Montages;

	UPROPERTY(VisibleAnywhere)
		class UCMovementComponent* Movement;

	UPROPERTY(VisibleAnywhere)
		class UCStateComponent* State;

public:
	ACPlayer();

protected:
	virtual void BeginPlay() override;

public:
	virtual void SetupPlayerInputComponent(class UInputComponent* PlayerInputComponent) override;

private:
	UFUNCTION()
		void OnStateTypeChanged(EStateType InPrevType, EStateType InNewType);

private:
	void OnAvoid();

private:
	void BackStep();
};





CPlayer.cpp

#include "Characters/CPlayer.h"
#include "Global.h"
#include "CAnimInstance.h"
#include "GameFramework/SpringArmComponent.h"
#include "GameFramework/CharacterMovementComponent.h"
#include "Camera/CameraComponent.h"
#include "Components/SkeletalMeshComponent.h"
#include "Components/InputComponent.h"
#include "Components/CMontagesComponent.h"
#include "Components/CMovementComponent.h"

ACPlayer::ACPlayer()
{
	CHelpers::CreateComponent<USpringArmComponent>(this, &SpringArm, "SpringArm", GetMesh());
	CHelpers::CreateComponent<UCameraComponent>(this, &Camera, "Camera", SpringArm);

	CHelpers::CreateActorComponent<UCMontagesComponent>(this, &Montages, "Montage");
	CHelpers::CreateActorComponent<UCMovementComponent>(this, &Movement, "Movement");
	CHelpers::CreateActorComponent<UCStateComponent>(this, &State, "State");

	GetMesh()->SetRelativeLocation(FVector(0, 0, -90));
	GetMesh()->SetRelativeRotation(FRotator(0, -90, 0));

	USkeletalMesh* mesh;
	CHelpers::GetAsset<USkeletalMesh>(&mesh, "SkeletalMesh'/Game/Character/Mesh/SK_Mannequin.SK_Mannequin'");
	GetMesh()->SetSkeletalMesh(mesh);

	TSubclassOf<UCAnimInstance> animInstance;
	CHelpers::GetClass<UCAnimInstance>(&animInstance, "AnimBlueprint'/Game/ABP_Character.ABP_Character_C'");
	GetMesh()->SetAnimClass(animInstance);

	SpringArm->SetRelativeLocation(FVector(0, 0, 140));
	SpringArm->SetRelativeRotation(FRotator(0, 90, 0));
	SpringArm->TargetArmLength = 200;
	SpringArm->bDoCollisionTest = false;
	SpringArm->bUsePawnControlRotation = true;
	SpringArm->bEnableCameraLag = true;

	GetCharacterMovement()->RotationRate = FRotator(0, 720, 0);

}

void ACPlayer::BeginPlay()
{
	Super::BeginPlay();

	Movement->OnRun(); //Movement의 기본을 Run으로 설정
	Movement->DisableControlRotation();//Movement의 기본을 DisableControlRotation으로 설정

	State->OnStateTypeChanged.AddDynamic(this, &ACPlayer::OnStateTypeChanged);
}

void ACPlayer::SetupPlayerInputComponent(UInputComponent* PlayerInputComponent)
{
	Super::SetupPlayerInputComponent(PlayerInputComponent);

	PlayerInputComponent->BindAxis("MoveForward", Movement, &UCMovementComponent::OnMoveForward);
	PlayerInputComponent->BindAxis("MoveRight", Movement, &UCMovementComponent::OnMoveRight);
	PlayerInputComponent->BindAxis("VerticalLook", Movement, &UCMovementComponent::OnVerticalLook);
	PlayerInputComponent->BindAxis("HorizontalLook", Movement, &UCMovementComponent::OnHorizontalLook);

	PlayerInputComponent->BindAction("Sprint", EInputEvent::IE_Pressed, Movement, &UCMovementComponent::OnSprint);
	PlayerInputComponent->BindAction("Sprint", EInputEvent::IE_Released, Movement, &UCMovementComponent::OnRun);

	PlayerInputComponent->BindAction("Avoid", EInputEvent::IE_Pressed, this, &ACPlayer::OnAvoid);
}

void ACPlayer::OnStateTypeChanged(EStateType InPrevType, EStateType InNewType)
{
	switch (InNewType)
	{
		case EStateType::BackStep: BackStep(); break;
	}
}

void ACPlayer::OnAvoid()
{
	CheckFalse(State->IsIdleMode());
	CheckFalse(Movement->CanMove());

	CheckTrue(InputComponent->GetAxisValue("MoveForward") >= 0.0f);//뒷방향을 입력했다면

	State->SetBackStepMode();//State을 BackStepMode로 변경한다.
}

void ACPlayer::BackStep()
{
	Movement->EnableControlRotation();//정면을 바라본 상태로 뒤로 뛰어야하기 때문에 EnableControlRotation으로 만들어준다.

	Montages->PlayBackStepMode();//PlayBackStepMode()를 통해 몽타주 재생.
}





---





이론 설명



---



UCLASS 접근을 제한하는 방법



• 열어두면 기획이나 디자이너가 접근하여 수정할 수 있다.

• 프로그래머만 접근할 수 있다.

---





원격 빌드 원리



CI, CD, CD

DevOps





Jenkins    ←    Repo

                          ↑ push

                       소스(clinet)   원격빌드





---









언리얼 에디터 상에서의 작업



---







StepBack 몽타주 생성



---









DT_Player (csv. 파일 + DataTable 만들기)



액셀로 csv 파일을 만들어 DT_Player라고 이름 짓고 저장한다.

• 첫번째 열에 인덱스 숫자 기입
• 두번재 열에 Type 이름 넣기 (여기서는 BackStep)
• 세번째 열에 언리얼 내에 저장된 Montage를 레퍼런스 복사하여 넣는다.
• 네번째 열에 PlayRate(재생속도)를 기입한다.







DT_Player



---





ABP_Player



AnimGraph





---

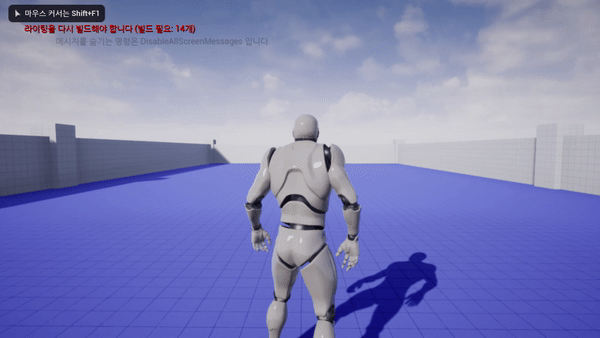

실행화면 - Stepback





---
