[UE] Hit Effect 구현, Status Component, Hammer 공격 구현





목차





---







Source
		Characters
		CAnimInstance.h .cpp CEnemy.h .cpp  CPlayer.h .cpp ICharacter.h .cpp
		Components
		CMontagesComponent.h .cpp  CMovementComponent.h .cpp  CStateComponent.h .cpp 생성 CWeaponComponent.h .cpp
		Notifies
		CAnimNotifyState_BeginAction.h .cpp  CAnimNotifyState_EndAction.h .cpp CAnimNotify_EndState.h .cpp CAnimNotifyState_Collision.h .cpp  CAnimNotifyState_Combo.h .cpp CAnimNotifyState_Equip.h .cpp
		Utilities
		CHelper.h CLog.h .cpp
		Weapons
		CDoAction_Combo.h .cpp CAttachment.h .cpp CDoAction.h .cpp CEquipment.h .cpp CWeaponAsset.h .cpp CWeaponStructures.h .cpp
		Global.h CGameMode.h .cpp U2212_06.Build.cs
		U2212_06.uproject









Hit Effect 넣기





---







CWeaponStructure



CWeaponStructure.h

#pragma once

#include "CoreMinimal.h"
#include "UObject/NoExportTypes.h"
#include "CWeaponStructures.generated.h"

USTRUCT()
struct FEquipmentData
{
	GENERATED_BODY()

public:
	UPROPERTY(EditAnywhere)
		class UAnimMontage* Montage;

	UPROPERTY(EditAnywhere)
		float PlayRate = 1;

	UPROPERTY(EditAnywhere)
		bool bCanMove = true;

	UPROPERTY(EditAnywhere)
		bool bUseControlRotation = true;
};

USTRUCT()
struct FDoActionData
{
	GENERATED_BODY()

public:
	UPROPERTY(EditAnywhere)
		class UAnimMontage* Montage;

	UPROPERTY(EditAnywhere)
		float PlayRate = 1;

	UPROPERTY(EditAnywhere)
		bool bCanMove = true;

	UPROPERTY(EditAnywhere)
		bool bFixedCamera;

	UPROPERTY(EditAnywhere)
		class UFXSystemAsset* Effect; //사용할 Effect 변수

	UPROPERTY(EditAnywhere)
		FVector EffectLocation = FVector::ZeroVector;//(Effect)지정 방향의 보정치.

	UPROPERTY(EditAnywhere)
		FVector EffectScale = FVector::OneVector;//Effect 크기 기본값 1 설정.

public:
	void DoAction(class ACharacter* InOwner);

	void PlayEffect(UWorld* InWorld, const FVector& InLocation);
	void PlayEffect(UWorld* InWorld, const FVector& InLocation, const FRotator& InRotation);
};

USTRUCT()
struct FHitData
{
	GENERATED_BODY()

	UPROPERTY(EditAnywhere)
		class UAnimMontage* Montage;

	UPROPERTY(EditAnywhere)
		float PlayRate = 1;

	UPROPERTY(EditAnywhere)
		float Power;

	UPROPERTY(EditAnywhere)
		float Launch = 100;

	UPROPERTY(EditAnywhere)
		float StopTime;

	UPROPERTY(EditAnywhere)
		class USoundWave* Sound;

	UPROPERTY(EditAnywhere)
		class UFXSystemAsset* Effect;

	UPROPERTY(EditAnywhere)
		FVector EffectLocation = FVector::ZeroVector;

	UPROPERTY(EditAnywhere)
		FVector EffectScale = FVector::OneVector;

public:
	void SendDamage(class ACharacter* InAttacker, AActor* InAttackCauser, class ACharacter* InOther);
	void PlayMontage(class ACharacter* InOwner);
	void PlayHitStop(UWorld* InWorld);
	void PlaySoundWave(class ACharacter* InOwner);
	void PlayEffect(UWorld* InWorld, const FVector& InLocation);
	void PlayEffect(UWorld* InWorld, const FVector& InLocation, const FRotator& InRotation);
};

USTRUCT()
struct FActionDamageEvent : public FDamageEvent
{
	GENERATED_BODY()

public:
	FHitData* HitData;
};


UCLASS()
class U2212_06_API UCWeaponStructures : public UObject
{
	GENERATED_BODY()

};

FDoActionData 구조체에 함수 추가

• void PlayEffect(UWorld* InWorld, const FVector& InLocation);
• void PlayEffect(UWorld* InWorld, const FVector& InLocation, const FRotator& InRotation);
• 공격할 때 나오는 Effect 재생을 위한 함수



FHitData 구조체에 함수 추가

• void PlayEffect(UWorld* InWorld, const FVector& InLocation);
• void PlayEffect(UWorld* InWorld, const FVector& InLocation, const FRotator& InRotation);
• 맞았을 때 때 나오는 Effect 재생을 위한 함수







CWeaponStructure.cp

#include "Weapons/CWeaponStructures.h"
#include "Global.h"
#include "GameFramework/Character.h"
#include "Components/CStateComponent.h"
#include "Components/CMovementComponent.h"
#include "Animation/AnimMontage.h"

void FDoActionData::DoAction(ACharacter* InOwner)
{
	UCMovementComponent* movement = CHelpers::GetComponent<UCMovementComponent>(InOwner);

	if (!!movement)
	{
		if (bFixedCamera)
			movement->EnableFixedCamera();

		if (bCanMove == false)
			movement->Stop();
	}

	if (!!Montage)
		InOwner->PlayAnimMontage(Montage, PlayRate);
}

void FDoActionData::PlayEffect(UWorld* InWorld, const FVector& InLocation)
{
	CheckNull(Effect);

	FTransform transform;
	transform.SetLocation(EffectLocation);
	transform.SetScale3D(EffectScale);
	transform.AddToTranslation(InLocation);

	CHelpers::PlayEffect(InWorld, Effect, transform);
}

void FDoActionData::PlayEffect(UWorld* InWorld, const FVector& InLocation, const FRotator& InRotation)
{
	CheckNull(Effect);

	FTransform transform;
	transform.SetLocation(InLocation + InRotation.RotateVector(EffectLocation));
	transform.SetScale3D(EffectScale);

	CHelpers::PlayEffect(InWorld, Effect, transform);
}


void FHitData::SendDamage(ACharacter* InAttacker, AActor* InAttackCauser, ACharacter* InOther)
{
	FActionDamageEvent e;
	e.HitData = this;

	InOther->TakeDamage(Power, e, InAttacker->GetController(), InAttackCauser);

}

void FHitData::PlayMontage(ACharacter* InOwner)
{
	if (!!Montage)
		InOwner->PlayAnimMontage(Montage, PlayRate);
}

void FHitData::PlayHitStop(UWorld* InWorld)
{
	CheckTrue(FMath::IsNearlyZero(StopTime));

	TArray<ACharacter*> characters;
	for(AActor* actor : InWorld->GetCurrentLevel()->Actors)
	{
		ACharacter* character = Cast<ACharacter>(actor);

		if(!!character)
		{
			character->CustomTimeDilation = 1e-3f;

			characters.Add(character);
		}
	}

	//익명 메소드 //람다 클로저
	//람다는 외부에서 닫힌 상태로 실행되는 객체
	FTimerDelegate timerDelegate;
	timerDelegate.BindLambda([=]()
		{
			for (ACharacter* character : characters)
				character->CustomTimeDilation = 1;
		});

	FTimerHandle timerHandle;
	InWorld->GetTimerManager().SetTimer(timerHandle, timerDelegate, StopTime, false);
}

void FHitData::PlaySoundWave(ACharacter* InOwner)
{
	CheckNull(Sound);

	UWorld* world = InOwner->GetWorld();
	FVector location = InOwner->GetActorLocation();

	UGameplayStatics::SpawnSoundAtLocation(world, Sound, location);
}


void FHitData::PlayEffect(UWorld* InWorld, const FVector& InLocation)
{
	CheckNull(Effect);

	FTransform transform;
	transform.SetLocation(EffectLocation);
	transform.SetScale3D(EffectScale);
	transform.AddToTranslation(InLocation);

	CHelpers::PlayEffect(InWorld, Effect, transform);
}

void FHitData::PlayEffect(UWorld* InWorld, const FVector& InLocation, const FRotator& InRotation)
{
	CheckNull(Effect);

	FTransform transform;
	transform.SetLocation(InLocation + InRotation.RotateVector(EffectLocation));
	transform.SetScale3D(EffectScale);

	CHelpers::PlayEffect(InWorld, Effect, transform);
}





---





HP 관리하기





---





CStatusComponent 생성



새 C++ 클래스 - Actor Component - CStatusComponent 생성



CStatusComponent.h

#pragma once

#include "CoreMinimal.h"
#include "Components/ActorComponent.h"
#include "CStatusComponent.generated.h"


UCLASS(ClassGroup = (Custom), meta = (BlueprintSpawnableComponent))
class U2212_06_API UCStatusComponent : public UActorComponent
{
    GENERATED_BODY()

private:
    UPROPERTY(EditAnywhere, Category = "Health")
        float MaxHealth = 100;

public:
    FORCEINLINE float GetHealth() { return Health; }
    FORCEINLINE bool IsDead() { return Health <= 0.0f; }

public:
    UCStatusComponent();

protected:
    virtual void BeginPlay() override;

public:
    void Damage(float InAmount);

private:
    class ACharacter* OwnerCharacter;

private:
    float Health;
};







CStatusComponent.cpp

#include "Components/CStatusComponent.h"
#include "Global.h"
#include "GameFramework/Character.h"

UCStatusComponent::UCStatusComponent()
{
}

void UCStatusComponent::BeginPlay()
{
	Super::BeginPlay();

	OwnerCharacter = Cast<ACharacter>(GetOwner());

	Health = MaxHealth;
}

void UCStatusComponent::Damage(float InAmount)
{
	Health += (InAmount * -1.0f);
	Health = FMath::Clamp(Health, 0.0f, MaxHealth);
}









---





CMontageComponent



CMontageComponent.h

#pragma once

#include "CoreMinimal.h"
#include "Components/ActorComponent.h"
#include "Components/CStateComponent.h"
#include "Engine/DataTable.h"
#include "CMontagesComponent.generated.h"

USTRUCT()
struct FMontageData
	: public FTableRowBase
{
	GENERATED_BODY()

public:
	UPROPERTY(EditAnywhere)
		EStateType Type; //상태 Type

	UPROPERTY(EditAnywhere)
		class UAnimMontage* Montage;

	UPROPERTY(EditAnywhere)
		float PlayRate = 1; //Player 속도
};

UCLASS(ClassGroup = (Custom), meta = (BlueprintSpawnableComponent))
class U2212_06_API UCMontagesComponent : public UActorComponent
{
	GENERATED_BODY()

private:
	UPROPERTY(EditAnywhere, Category = "DataTable")
		UDataTable* DataTable;

public:
	UCMontagesComponent();

protected:
	virtual void BeginPlay() override;

public:
	void PlayBackStepMode();
	void PlayDeadMode();

private:
	void PlayAnimMontage(EStateType InType);

private:
	class ACharacter* OwnerCharacter;
	FMontageData* Datas[(int32)EStateType::Max];
};

함수 생성

• void PlayDeadMode();







CMontageComponent.cpp

#include "Components/CMontagesComponent.h"
#include "Global.h"
#include "GameFramework/Character.h"

//#define LOG_UCMontagesComponent 1

UCMontagesComponent::UCMontagesComponent()
{
}

void UCMontagesComponent::BeginPlay()
{
	Super::BeginPlay();

	if(DataTable == nullptr)//DataTable이 없다면
	{   //DataTable이 없다고 메시지를 띄워준다.
		GLog->Log(ELogVerbosity::Error, "DataTable is not selected");

		return;
	}

	OwnerCharacter = Cast<ACharacter>(GetOwner());

	TArray<FMontageData*> datas;
	DataTable->GetAllRows<FMontageData>("", datas);//전체 데이터를 가져온다.

	//가져온 데이터를 배열에 넣어준다.
	for (int32 i = 0; i< (int32)EStateType::Max; i++)
	{
		for(FMontageData* data : datas)
		{
			if((EStateType)i == data->Type)
			{
				Datas[i] = data;

				continue;
			}
		}//for(data)
	}//for(i)
}


#if LOG_UCMontagesComponent
for (FMontagesData* data : datas)
{
	if (data == nullptr)
		continue;

	FString str;
	//Static이 붙는 애들은 Reflection(자료형의 타입을 변수로 다룰 수 있게 해준다).
	str.Append(StaticEnum<EStateType>()->GetValueAsString(data->Type));//Enum을 문자열로 바꾸어서 자료형의 이름을 가져온다.
	str.Append(" / ");
	str.Append(data->Montage->GetPathName());

	CLog::Log(str);
}
#endif


void UCMontagesComponent::PlayBackStepMode()
{
	PlayAnimMontage(EStateType::BackStep);
}

void UCMontagesComponent::PlayDeadMode()
{
	PlayAnimMontage(EStateType::Dead);
}

void UCMontagesComponent::PlayAnimMontage(EStateType InType)
{
	CheckNull(OwnerCharacter);

	FMontageData* data = Datas[(int32)InType];

	if(data == nullptr || data->Montage == nullptr)
	{
		GLog->Log(ELogVerbosity::Error, "None montages data");

		return;
	}

	OwnerCharacter->PlayAnimMontage(data->Montage, data->PlayRate);//data의 몽타주를 PlayRate속도로 OwnerCharacter에 적용하여 재생.
}

함수 정의

• void UCMontagesComponent::PlayDeadMode()  { PlayAnimMontage(EStateType::Dead); }
  • EStateType을 Dead로 만들어준다.





---





CAnimNotify_EndState



CAnimNotify_EndState.h

#pragma once

#include "CoreMinimal.h"
#include "Animation/AnimNotifies/AnimNotify.h"
#include "Components/CStateComponent.h"
#include "CAnimNotify_EndState.generated.h"

UCLASS()
class U2212_06_API UCAnimNotify_EndState : public UAnimNotify
{
	GENERATED_BODY()

private:
	UPROPERTY(EditAnywhere, Category = "Type")
		EStateType StateType;

public:
	FString GetNotifyName_Implementation() const override;

	void Notify(USkeletalMeshComponent* MeshComp, UAnimSequenceBase* Animation) override;
};

변경사항 없음.





CAnimNotify_EndState.cpp

#include "CAnimNotify_EndState.h"
#include "Global.h"
#include "Characters/ICharacter.h"

FString UCAnimNotify_EndState::GetNotifyName_Implementation() const
{
	return "EndState";
}

void UCAnimNotify_EndState::Notify(USkeletalMeshComponent* MeshComp, UAnimSequenceBase* Animation)
{
	Super::Notify(MeshComp, Animation);
	CheckNull(MeshComp);
	CheckNull(MeshComp->GetOwner());

	IICharacter* character = Cast<IICharacter>(MeshComp->GetOwner());
	CheckNull(character);

	switch(StateType)
	{
		case EStateType::BackStep: character->End_BackStep(); break;
		case EStateType::Hitted: character->End_Hitted(); break;
		case EStateType::Dead: character->End_Dead(); break;
	}
}

EndState::Notify에 EStateType을 추가한다.

• switch(StateType) {
  case EStateType::BackStep: character->End_BackStep(); break;
  case EStateType::Hitted: character->End_Hitted(); break;
  case EStateType::Dead: character->End_Dead(); break;
  }



---



DT_Enemy 생성 후 BP_CEnemy에할당



DT_Enemy 생성









BP_CEnemy - Montages에 DT_Enemy 할당



---

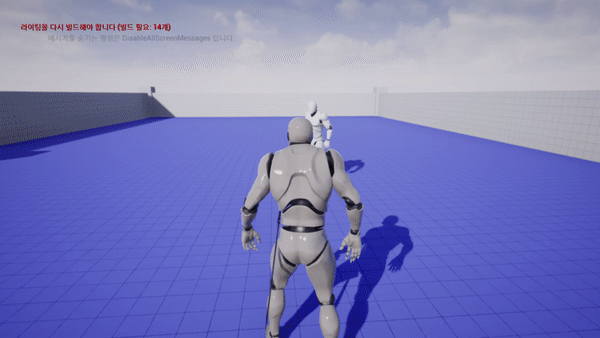

실행화면







---









Hammer 공격 구현하기





---

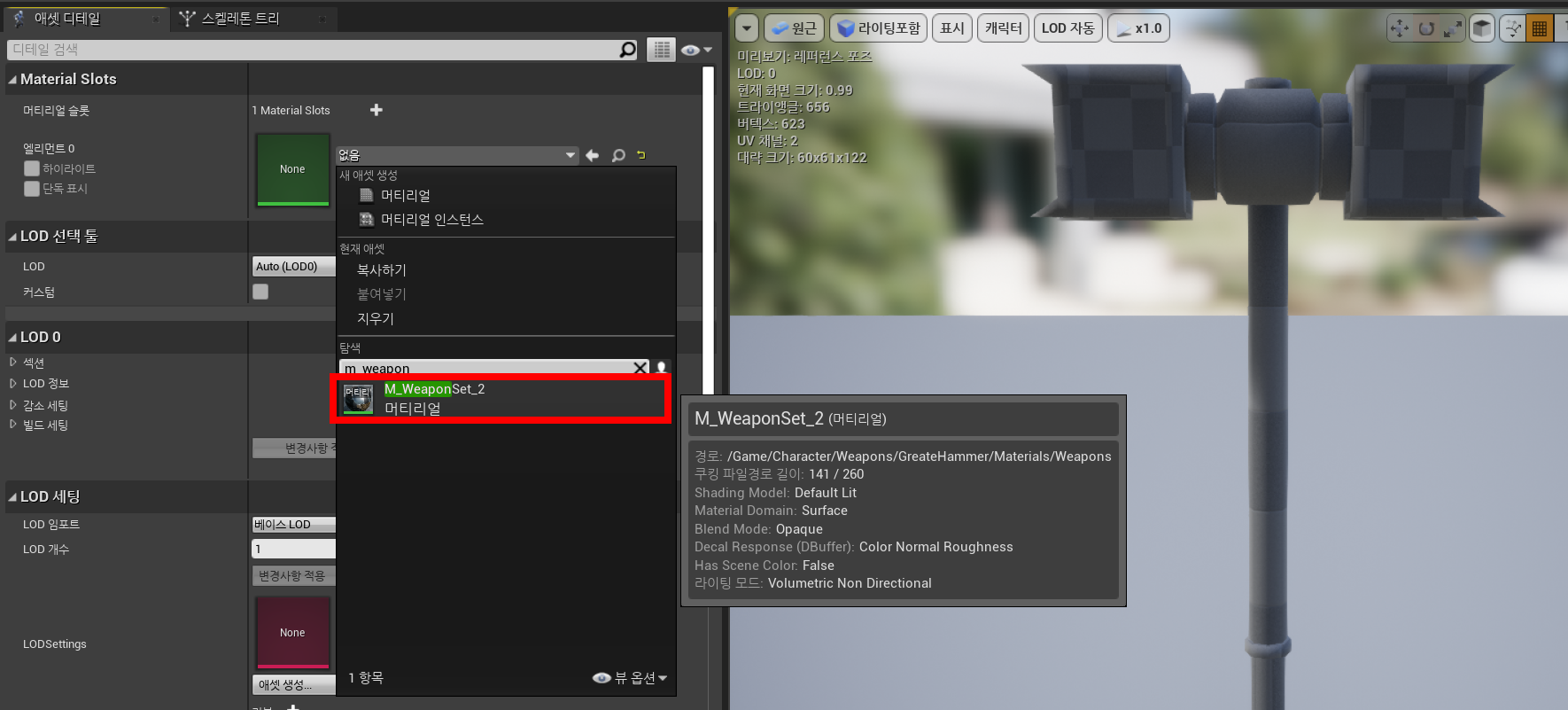

Static Mesh를 Skeletal Mesh로 바꾸는 방법



• 에셋 액션 - 익스포트 - fbx로 저장
• 다른 폴더에서 fbx로 임포트

• Skeletal Mesh 체크 후에 모두 임포트
• UCX 3개는 삭제





---



BP_CAttachment_Hammer 생성



BP_CAttachment_Sword 복사하여 BP_CAttachment_Hammer 생성



Event Graph



---





DA_Hammer 생성



DA_Sword 복사하여 DA_Hammer 생성







---

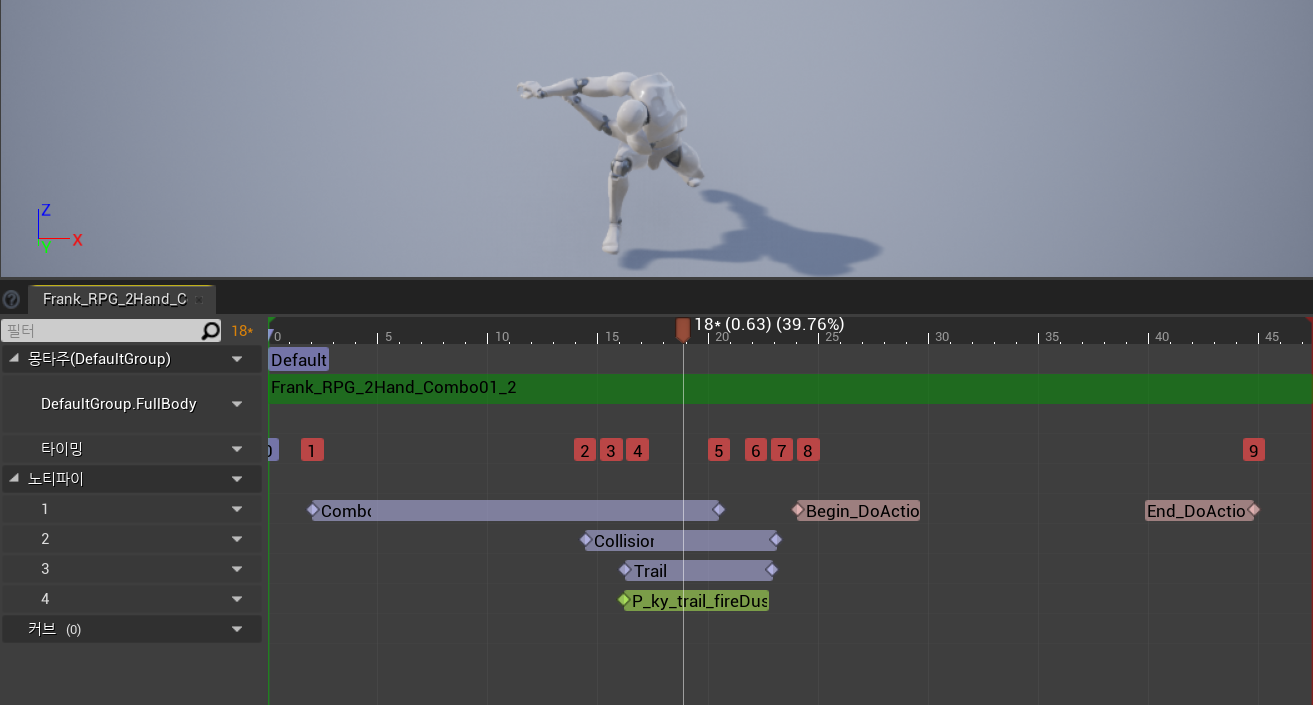

몽타주 수정





---

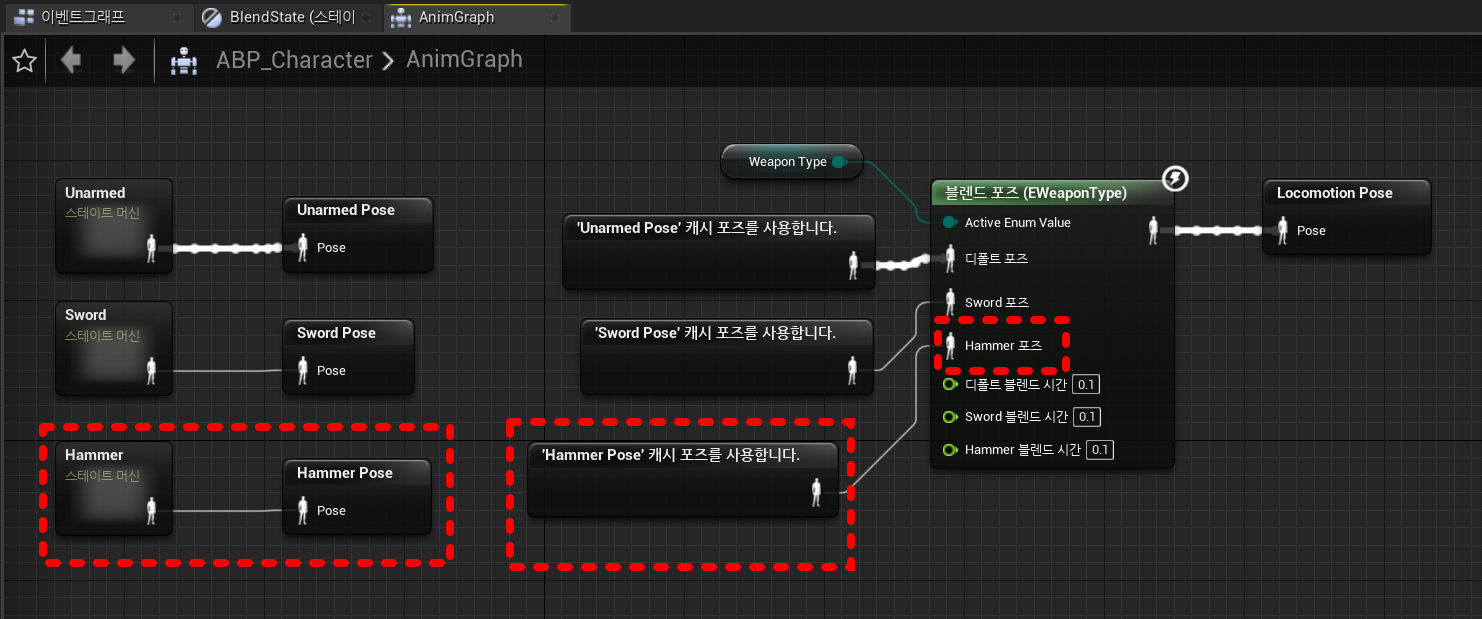

ABP_Character



Hammer 추가





---

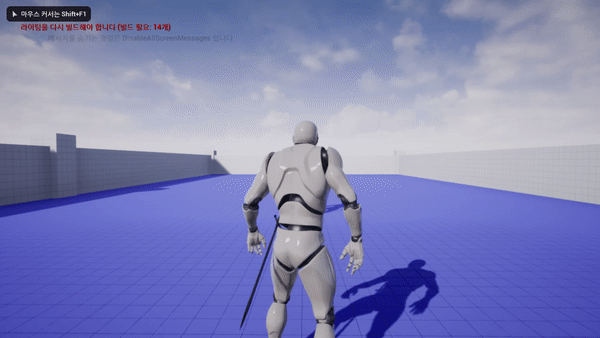

실행화면







---
