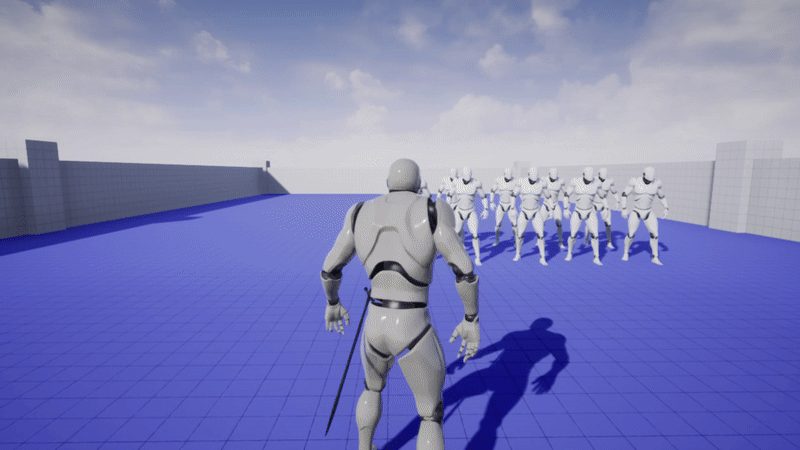

마우스가 지정한 위치에 플레이어를 이동하는 워프 스킬을 구현해볼 것이다. 마우스가 가리키는 곳의 위치에 데칼을 표시해준다. 데칼 위치를 받아온 후 마우스 좌클릭을 하면 그 곳으로 이동하는 워프 스킬을 만들어보자.





목차










    Plugins

      Weapon

        Resource

        Source

          Weapon
          SWeaponCheckBoxes.h .cpp
    SWeaponDetailsView.h .cpp
    SWeaponDoActionData.h .cpp
    SWeaponEquipmentData.h .cpp
    SWeaponHitData.h .cpp
    SWeaponLeftArea.h .cpp
    Weapon.Build.cs
    WeaponAssetEditor.h .cpp
    WeaponAssetFactory.h .cpp
    WeaponCommand.h .cpp
    WeaponContextMenu.h .cpp
    WeaponModule.h .cpp
    WeaponStyle.h .cpp





    Source
      U2212_06
        Characters
        CAnimInstance.h .cpp
    CEnemy.h .cpp
    CPlayer.h .cpp
    ICharacter.h .cpp
        Components
        CMontagesComponent.h .cpp
    CMovementComponent.h .cpp
    CStateComponent.h .cpp
    CStatusComponent.h .cpp
    CWeaponComponent.h .cpp
        Notifies
        CAnimNotifyState_BeginAction.h .cpp
    CAnimNotify_CameraShake.h .cpp
    CAnimNotifyState_EndAction.h .cpp
    CAnimNotify_EndState.h .cpp
    CAnimNotifyState.h .cpp
    CAnimNotifyState_CameraAnim.h .cpp
    CAnimNotifyState_Collision.h .cpp
    CAnimNotifyState_Combo.h .cpp
    CAnimNotifyState_Equip.h .cpp
    CAnimNotifyState_SubAction.h .cpp
        Utilities
        CHelper.h
    CLog.h .cpp
        Weapons
        CAura.h .cpp
    CCamerModifier.h .cpp
    CGhostTrail.h .cpp
    CDoAction_Combo.h .cpp

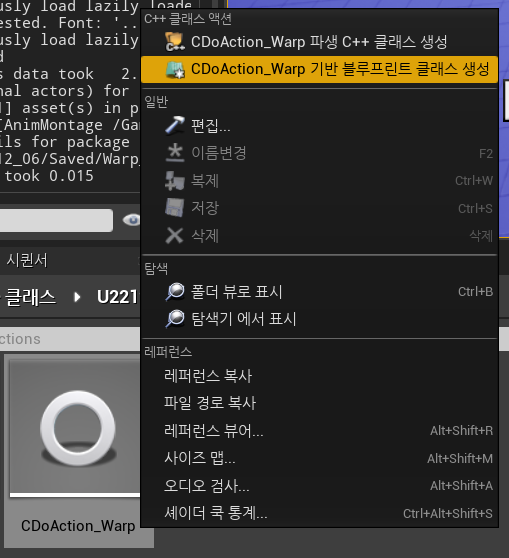

    CDoAction_Warp.h .cpp 생성
    CSubAction_Fist.h .cpp
    CSubAction_Hammer.h .cpp
    CSubAction_Sword.h .cpp
    CAttachment.h .cpp
    CDoAction.h .cpp
    CEquipment.h .cpp
    CSubAction.h .cpp
    CWeaponAsset.h .cpp
    CWeaponStructures.h .cpp
        Global.h
    CGameMode.h .cpp
    U2212_06.Build.cs
        U2212_06.uproject










    워프 스킬 구현하기

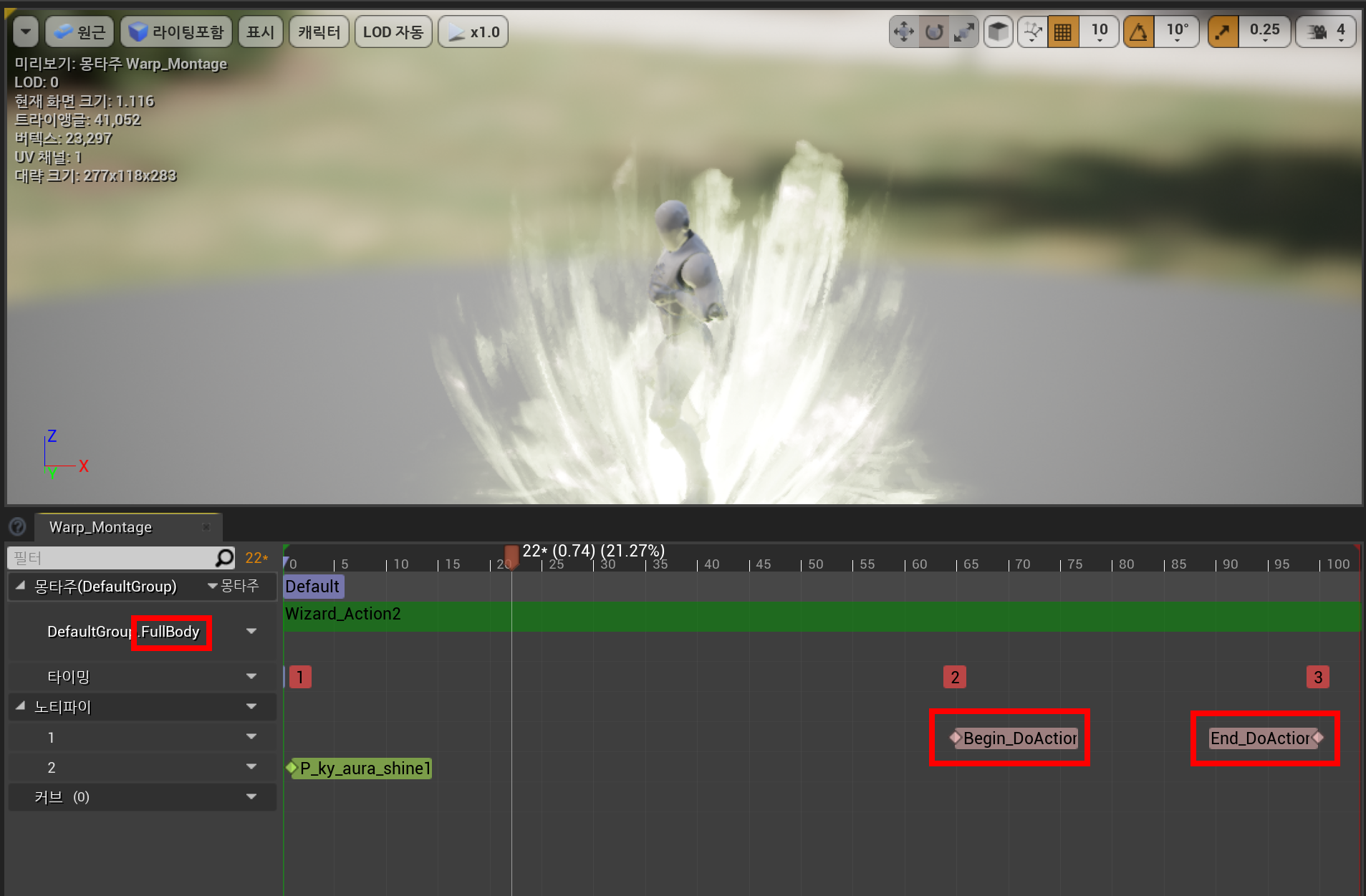

    Warp_Montage 생성



    Begin_DoAction과 End_DoAction을 설정해준다.









    BP_CAttachment_Warp 생성

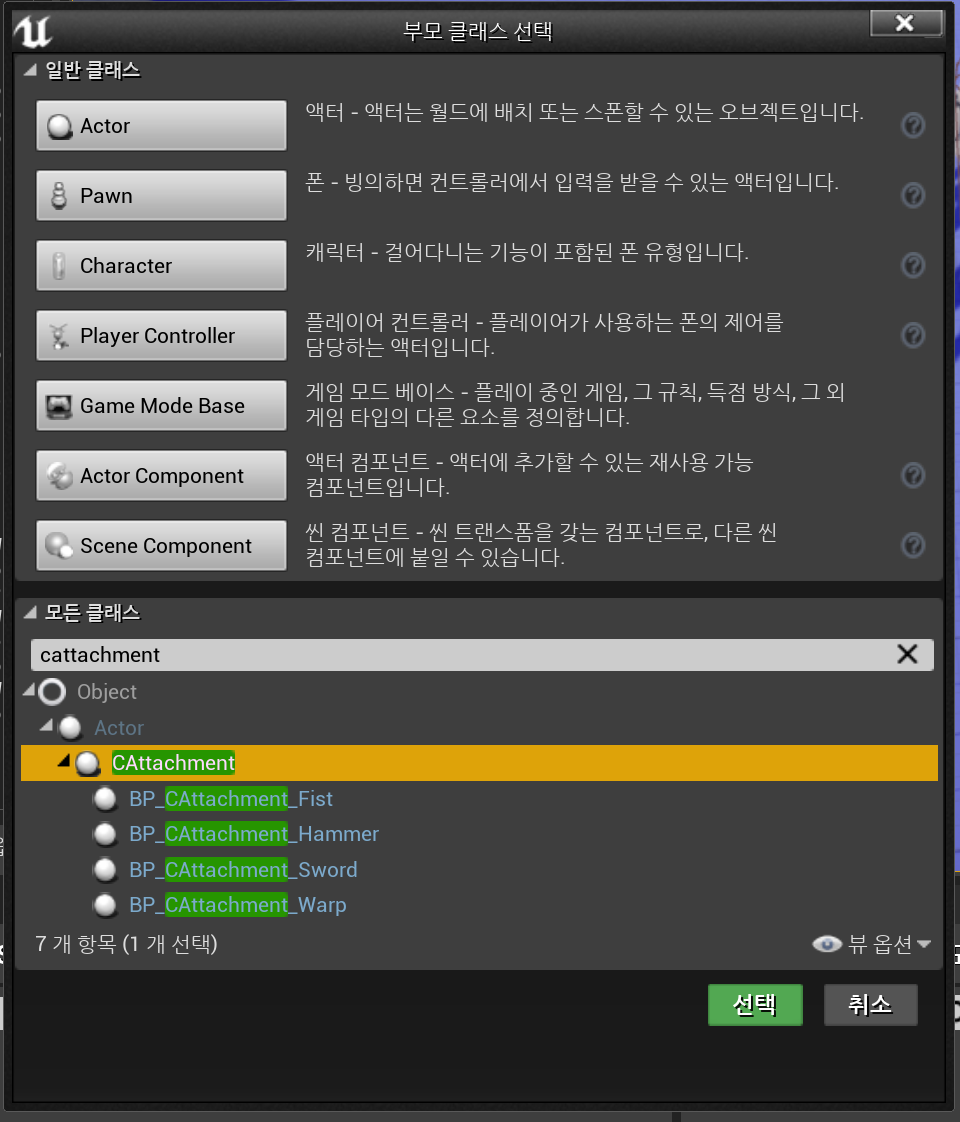

    블루프린트 클래스 - CAttachment - BP_CAttachment_Warp 생성

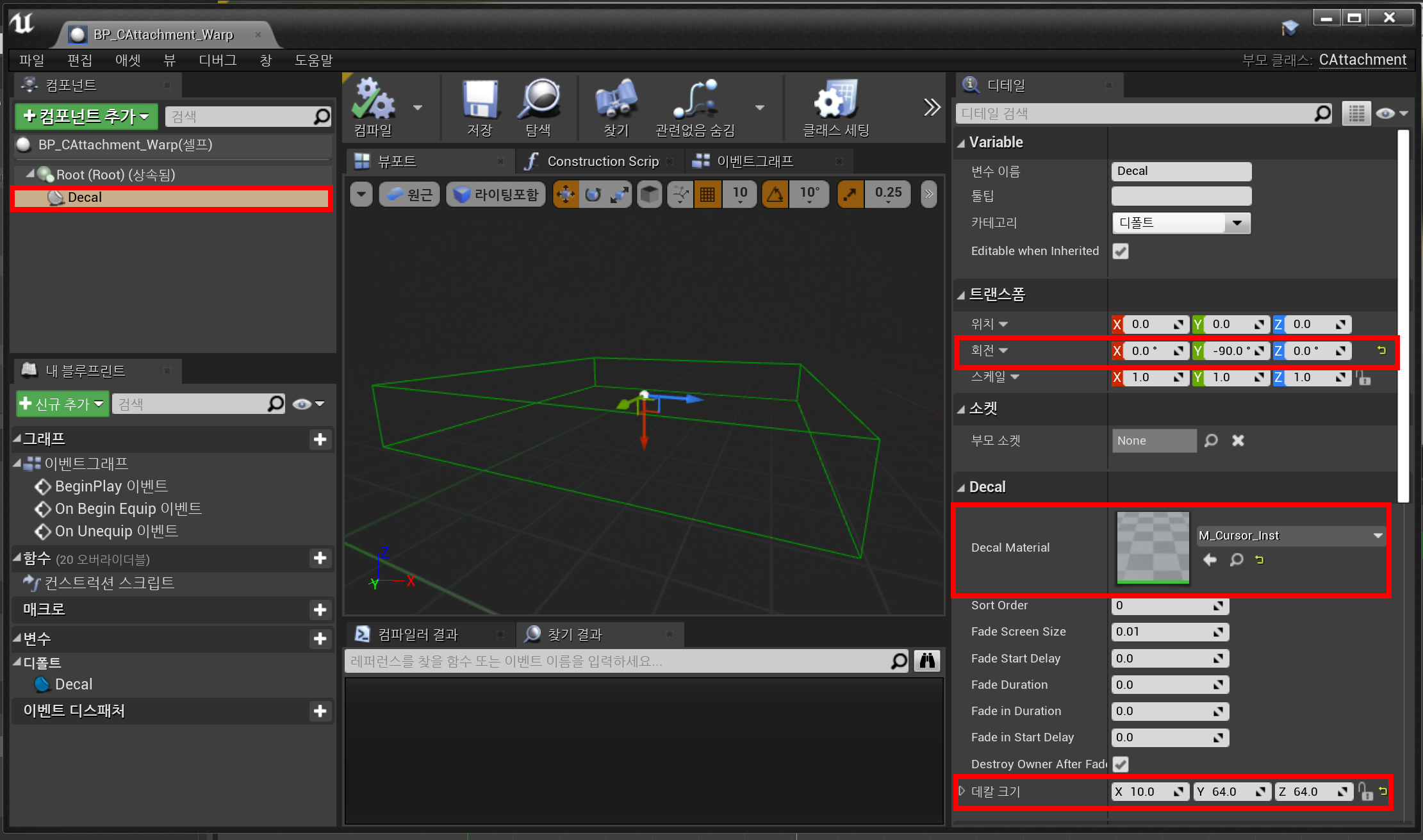

    Decal를 추가

    • 트랜스폼
      • 회전: 0.0, -90.0, 0.0 설정
    • Decal
      • Decal Material: M_Cusor_Inst 설정
      • 데칼 크기: 10.0, 64.0, 64.0 설정

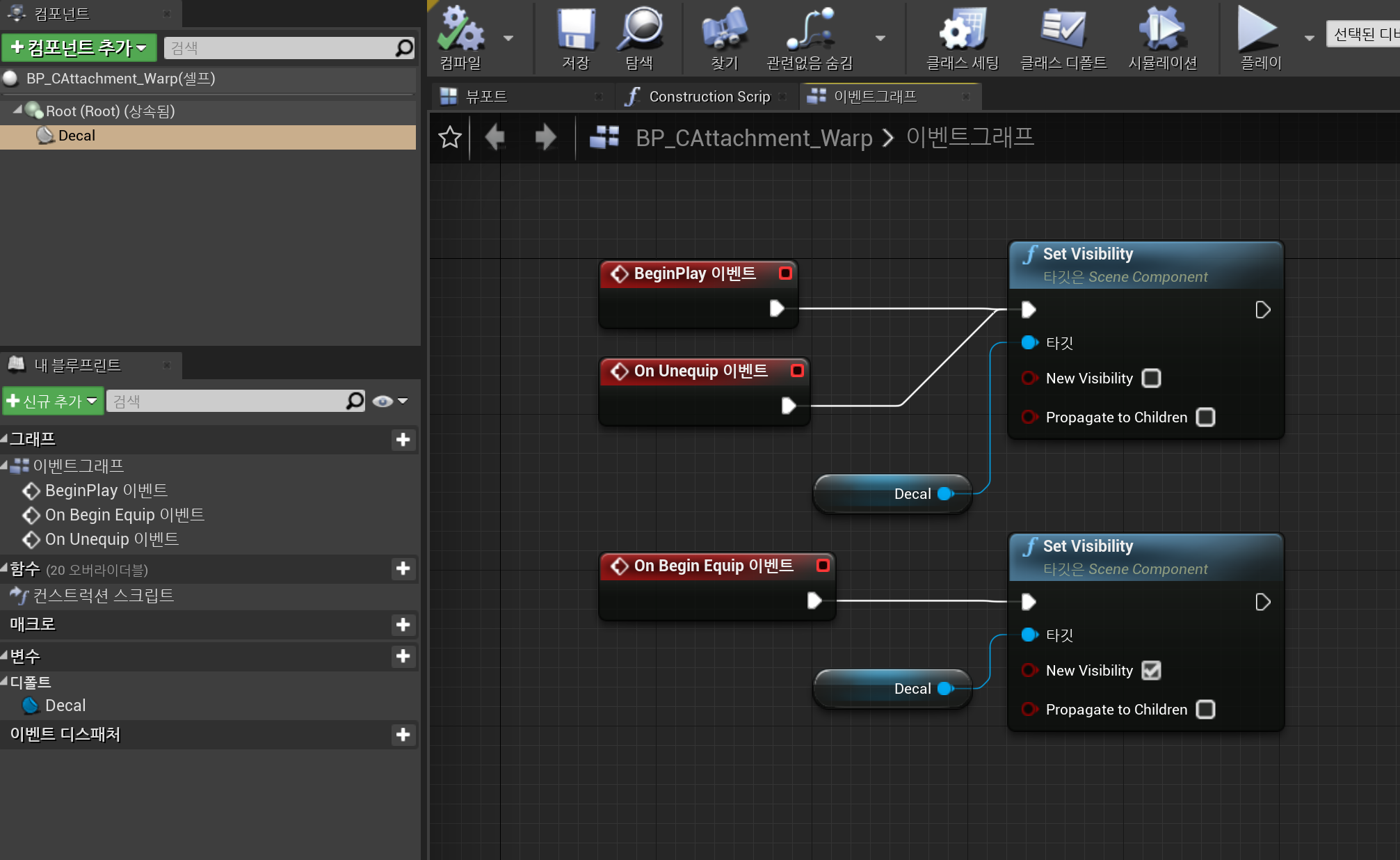

    Event Graph







    CPlayer.cpp  -  키 맵핑 (Warp)



    CPlayer.cpp

    더보기
    #include "Characters/CPlayer.h"
#include "Global.h"
#include "CAnimInstance.h"
#include "GameFramework/SpringArmComponent.h"
#include "GameFramework/CharacterMovementComponent.h"
#include "Camera/CameraComponent.h"
#include "Components/SkeletalMeshComponent.h"
#include "Components/InputComponent.h"
#include "Components/CMontagesComponent.h"
#include "Components/CMovementComponent.h"
#include "Components/CWeaponComponent.h"

ACPlayer::ACPlayer()
{
	CHelpers::CreateComponent<USpringArmComponent>(this, &SpringArm, "SpringArm", GetMesh());
	CHelpers::CreateComponent<UCameraComponent>(this, &Camera, "Camera", SpringArm);

	CHelpers::CreateActorComponent<UCWeaponComponent>(this, &Weapon, "Weapon");
	CHelpers::CreateActorComponent<UCMontagesComponent>(this, &Montages, "Montages");
	CHelpers::CreateActorComponent<UCMovementComponent>(this, &Movement, "Movement");
	CHelpers::CreateActorComponent<UCStateComponent>(this, &State, "State");

	GetMesh()->SetRelativeLocation(FVector(0, 0, -90));
	GetMesh()->SetRelativeRotation(FRotator(0, -90, 0));

	USkeletalMesh* mesh;
	CHelpers::GetAsset<USkeletalMesh>(&mesh, "SkeletalMesh'/Game/Character/Mesh/SK_Mannequin.SK_Mannequin'");
	GetMesh()->SetSkeletalMesh(mesh);

	TSubclassOf<UCAnimInstance> animInstance;
	CHelpers::GetClass<UCAnimInstance>(&animInstance, "AnimBlueprint'/Game/ABP_Character.ABP_Character_C'");
	GetMesh()->SetAnimClass(animInstance);

	SpringArm->SetRelativeLocation(FVector(0, 0, 140));
	SpringArm->SetRelativeRotation(FRotator(0, 90, 0));
	SpringArm->TargetArmLength = 200;
	SpringArm->bDoCollisionTest = false;
	SpringArm->bUsePawnControlRotation = true;
	SpringArm->bEnableCameraLag = true;

	GetCharacterMovement()->RotationRate = FRotator(0, 720, 0);

}

void ACPlayer::BeginPlay()
{
	Super::BeginPlay();

	Movement->OnRun(); //Movement의 기본을 Run으로 설정
	Movement->DisableControlRotation();//Movement의 기본을 DisableControlRotation으로 설정

	State->OnStateTypeChanged.AddDynamic(this, &ACPlayer::OnStateTypeChanged);
}

void ACPlayer::SetupPlayerInputComponent(UInputComponent* PlayerInputComponent)
{
	Super::SetupPlayerInputComponent(PlayerInputComponent);

	PlayerInputComponent->BindAxis("MoveForward", Movement, &UCMovementComponent::OnMoveForward);
	PlayerInputComponent->BindAxis("MoveRight", Movement, &UCMovementComponent::OnMoveRight);
	PlayerInputComponent->BindAxis("VerticalLook", Movement, &UCMovementComponent::OnVerticalLook);
	PlayerInputComponent->BindAxis("HorizontalLook", Movement, &UCMovementComponent::OnHorizontalLook);

	PlayerInputComponent->BindAction("Sprint", EInputEvent::IE_Pressed, Movement, &UCMovementComponent::OnSprint);
	PlayerInputComponent->BindAction("Sprint", EInputEvent::IE_Released, Movement, &UCMovementComponent::OnRun);

	PlayerInputComponent->BindAction("Avoid", EInputEvent::IE_Pressed, this, &ACPlayer::OnAvoid);

	PlayerInputComponent->BindAction("Fist", EInputEvent::IE_Pressed, Weapon, &UCWeaponComponent::SetFistMode);
	PlayerInputComponent->BindAction("Sword", EInputEvent::IE_Pressed, Weapon, &UCWeaponComponent::SetSwordMode);
	PlayerInputComponent->BindAction("Hammer", EInputEvent::IE_Pressed, Weapon, &UCWeaponComponent::SetHammerMode);
	PlayerInputComponent->BindAction("Warp", EInputEvent::IE_Pressed, Weapon, &UCWeaponComponent::SetWarpMode);

	PlayerInputComponent->BindAction("Action", EInputEvent::IE_Pressed, Weapon, &UCWeaponComponent::DoAction);

	PlayerInputComponent->BindAction("SubAction", EInputEvent::IE_Pressed, Weapon, &UCWeaponComponent::SubAction_Pressed);
	PlayerInputComponent->BindAction("SubAction", EInputEvent::IE_Released, Weapon, &UCWeaponComponent::SubAction_Released);
}

void ACPlayer::OnStateTypeChanged(EStateType InPrevType, EStateType InNewType)
{
	switch (InNewType)
	{
		case EStateType::BackStep: BackStep(); break;
	}
}

void ACPlayer::OnAvoid()
{
	CheckFalse(State->IsIdleMode());
	CheckFalse(Movement->CanMove());

	CheckTrue(InputComponent->GetAxisValue("MoveForward") >= 0.0f);//뒷방향을 입력했다면

	State->SetBackStepMode();//State을 BackStepMode로 변경한다.
}

void ACPlayer::BackStep()
{
	Movement->EnableControlRotation();//정면을 바라본 상태로 뒤로 뛰어야하기 때문에 EnableControlRotation으로 만들어준다.

	Montages->PlayBackStepMode();//PlayBackStepMode()를 통해 몽타주 재생.
}

void ACPlayer::End_BackStep()
{
	Movement->DisableControlRotation();//Backstep이 끝나면 원래대로 돌려준다.

	State->SetIdleMode();//Idle상태로 돌려줌.
}

    키 맵핑 void ACPlayer::SetupPlayerInputComponent(UInputComponent* PlayerInputComponent)

    • PlayerInputComponent->BindAction("Warp", EInputEvent::IE_Pressed, Weapon,  &UCWeaponComponent::SetWarpMode);



    CDoAction.h



    CDoAction.h

    더보기
    #pragma once

#include "CoreMinimal.h"
#include "UObject/NoExportTypes.h"
#include "Weapons/CWeaponStructures.h"
#include "CDoAction.generated.h"

UCLASS(Abstract)//DoAction 그 자체로는 객체화되면 안 되기 때문에 Abstract을 붙여준다.
class U2212_06_API UCDoAction : public UObject
{
	GENERATED_BODY()

public:
	UCDoAction();

	virtual void BeginPlay //재정의 할 수 있도록 virtual로 만든다.
	(
		class ACAttachment* InAttachment,
		class UCEquipment* InEquipment,
		class ACharacter* InOwner,
		const TArray<FDoActionData>& InDoActionDatas,//CWeaponStucture내의 FDoActionData
		const TArray<FHitData>& InHitDatas //CWeaponStucture내의 FHitData
	);
	virtual void Tick(float InDeltaTime) { }

public:
	//재정의 할 수 있도록 virtual로 만든다.
	virtual void DoAction();
	virtual void Begin_DoAction();
	virtual void End_DoAction();

public:
	UFUNCTION()
		virtual void OnAttachmentBeginCollision() {}

	UFUNCTION()
		virtual void OnAttachmentEndCollision() {}

	UFUNCTION()
		virtual void OnAttachmentBeginOverlap(class ACharacter* InAttacker, AActor* InAttackCauser, class ACharacter* InOther) { }

	UFUNCTION()
		virtual void OnAttachmentEndOverlap(class ACharacter* InAttacker, class ACharacter* InOther) { }

protected:
	bool bInAction;
	bool bBeginAction;

	class ACharacter* OwnerCharacter;
	class UWorld* World;

	class UCMovementComponent* Movement;
	class UCStateComponent* State;

	TArray<FDoActionData> DoActionDatas;
	TArray<FHitData> HitDatas;
};

    CDoAction_Warp에서 재정의 할 수 있도록 상위 클래스인 CDoAction에서 Tick 함수를 만든다.

    • virtual void Tick(float InDeltaTime) { }



    변수 추가

    • bool bInAction;
      • Action이 들어왔는지 true, false 체크해주는 변수를 추가한다.







    CDoAction.cpp

    더보기
    #include "Weapons/CDoAction.h"
#include "Global.h"
#include "CAttachment.h"
#include "CEquipment.h"
#include "GameFramework/Character.h"
#include "Components/CStateComponent.h"
#include "Components/CMovementComponent.h"

UCDoAction::UCDoAction()
{
}

void UCDoAction::BeginPlay(ACAttachment* InAttachment, UCEquipment* InEquipment, ACharacter* InOwner, const TArray<FDoActionData>& InDoActionDatas, const TArray<FHitData>& InHitDatas)
{
	OwnerCharacter = InOwner;
	World = OwnerCharacter->GetWorld();

	State = CHelpers::GetComponent<UCStateComponent>(OwnerCharacter);
	Movement = CHelpers::GetComponent<UCMovementComponent>(OwnerCharacter);

	DoActionDatas = InDoActionDatas;
	HitDatas = InHitDatas;
}

void UCDoAction::DoAction()
{
	bInAction = true;

	State->SetActionMode();
}

void UCDoAction::Begin_DoAction()
{
	bBeginAction = true;
}

void UCDoAction::End_DoAction()
{
	bInAction = false;
	bBeginAction = false;

	State->SetIdleMode();

	Movement->Move();
	Movement->DisableFixedCamera();
}

    추가한 bInAction 변수를 DoAction()과 End_DoAction()에 넣어 Action의 시작과 끝을 알려준다.

    • void UCDoAction::DoAction()
      • bInAction = true;
    • void UCDoAction::End_DoAction()
      • bInAction = false;







    CWeaponComponent.cpp  -  Tick 함수 추가



    CWeaponComponent.h

    더보기
    #pragma once
#include "CoreMinimal.h"
#include "Components/ActorComponent.h"
#include "CWeaponComponent.generated.h"

UENUM(BlueprintType)
enum class EWeaponType : uint8
{
	Fist, Sword, Hammer, Warp, Around, Bow, Max,
};
DECLARE_DYNAMIC_MULTICAST_DELEGATE_TwoParams(FWeaponTypeChanged, EWeaponType, InPrevType, EWeaponType, InNewType);

UCLASS(ClassGroup = (Custom), meta = (BlueprintSpawnableComponent))
class U2212_06_API UCWeaponComponent : public UActorComponent
{
	GENERATED_BODY()

private://DataAsset을 받아온다.
	UPROPERTY(EditAnywhere, Category = "DataAsset")
		class UCWeaponAsset* DataAssets[(int32)EWeaponType::Max];

public: //무기 Type이 맞는지 확인해주는 함수들
	FORCEINLINE bool IsUnarmedMode() { return Type == EWeaponType::Max; }
	FORCEINLINE bool IsFistMode() { return Type == EWeaponType::Fist; }
	FORCEINLINE bool IsSwordMode() { return Type == EWeaponType::Sword; }
	FORCEINLINE bool IsHammerMode() { return Type == EWeaponType::Hammer; }
	FORCEINLINE bool IsWarpMode() { return Type == EWeaponType::Warp; }
	FORCEINLINE bool IsAroundMode() { return Type == EWeaponType::Around; }
	FORCEINLINE bool IsBowMode() { return Type == EWeaponType::Bow; }

public:
	UCWeaponComponent();

protected:
	virtual void BeginPlay() override;

public:
	virtual void TickComponent(float DeltaTime, ELevelTick TickType, FActorComponentTickFunction* ThisTickFunction) override;

private:
	bool IsIdleMode();//StateComponent, WeaponComponent 둘 다 같은 레벨이다. 서로 소유할 수 없는 관계이기 때문에 참조만해서 리턴받기 위해 IsIdleMode를 사용한다.

public:
	class ACAttachment* GetAttachment();
	class UCEquipment* GetEquipment();
	class UCDoAction* GetDoAction();
	class UCSubAction* GetSubAction();

public: //무기 세팅
	void SetUnarmedMode();
	void SetFistMode();
	void SetSwordMode();
	void SetHammerMode();
	void SetWarpMode();
	void SetAroundMode();
	void SetBowMode();

	void DoAction();
	void SubAction_Pressed();
	void SubAction_Released();

private:
	void SetMode(EWeaponType InType);
	void ChangeType(EWeaponType InType);

public: //무기가 바뀌었을때 통보해줄 delegate
	FWeaponTypeChanged OnWeaponTypeChange;

private:
	class ACharacter* OwnerCharacter;

	EWeaponType Type = EWeaponType::Max;
};

    변경사항 없음.







    CWeaponComponent.cpp

    더보기
    #include "Components/CWeaponComponent.h"
#include "Global.h"
#include "CStateComponent.h"
#include "GameFramework/Character.h"
#include "Weapons/CWeaponAsset.h"
#include "Weapons/CAttachment.h"
#include "Weapons/CEquipment.h"
#include "Weapons/CDoAction.h"
#include "Weapons/CSubAction.h"

UCWeaponComponent::UCWeaponComponent()
{
	//Tick을 실행시켜주는 코드
	PrimaryComponentTick.bCanEverTick = true;
}

void UCWeaponComponent::BeginPlay()
{
	Super::BeginPlay();

	OwnerCharacter = Cast<ACharacter>(GetOwner());
	for (int32 i=0; i < (int32)EWeaponType::Max; i++)
	{
		if (!!DataAssets[i]) //DataAssets[i]이 있다면(=무기가 할당되어 있다면)
			DataAssets[i]->BeginPlay(OwnerCharacter);//BeginPla y 시 OwnerCharacter에 Spawn시켜준다.
	}
}

void UCWeaponComponent::TickComponent(float DeltaTime, ELevelTick TickType, FActorComponentTickFunction* ThisTickFunction)
{
	Super::TickComponent(DeltaTime, TickType, ThisTickFunction);

	if (!!GetDoAction())//DoAction이 있다면
		GetDoAction()->Tick(DeltaTime);//DoAction의 Tick을 콜 해준다.

	if (!!GetSubAction())//SubAction이 있다면
		GetSubAction()->Tick(DeltaTime);//SubAction의 Tick을 콜 해준다.
}

bool UCWeaponComponent::IsIdleMode()
{
	return CHelpers::GetComponent<UCStateComponent>(OwnerCharacter)->IsIdleMode();
}

ACAttachment* UCWeaponComponent::GetAttachment()
{
	CheckTrueResult(IsUnarmedMode(), nullptr);
	CheckFalseResult(!!DataAssets[(int32)Type], nullptr);

	return DataAssets[(int32)Type]->GetAttachment();
}

UCEquipment* UCWeaponComponent::GetEquipment()
{
	CheckTrueResult(IsUnarmedMode(), nullptr);
	CheckFalseResult(!!DataAssets[(int32)Type], nullptr);

	return DataAssets[(int32)Type]->GetEquipment();
}

UCDoAction* UCWeaponComponent::GetDoAction()
{
	CheckTrueResult(IsUnarmedMode(), nullptr);
	CheckFalseResult(!!DataAssets[(int32)Type], nullptr);

	return DataAssets[(int32)Type]->GetDoAction();
}

UCSubAction* UCWeaponComponent::GetSubAction()
{
	CheckTrueResult(IsUnarmedMode(), nullptr);
	CheckFalseResult(!!DataAssets[(int32)Type], nullptr);

	return DataAssets[(int32)Type]->GetSubAction();
}

void UCWeaponComponent::SetUnarmedMode()
{
	GetEquipment()->Unequip();

	ChangeType(EWeaponType::Max);
}

void UCWeaponComponent::SetFistMode()
{
	CheckFalse(IsIdleMode());

	SetMode(EWeaponType::Fist);
}

void UCWeaponComponent::SetSwordMode()
{
	CheckFalse(IsIdleMode());

	SetMode(EWeaponType::Sword);
}

void UCWeaponComponent::SetHammerMode()
{
	CheckFalse(IsIdleMode());

	SetMode(EWeaponType::Hammer);
}

void UCWeaponComponent::SetWarpMode()
{
	CheckFalse(IsIdleMode());

	SetMode(EWeaponType::Warp);
}

void UCWeaponComponent::SetAroundMode()
{
	CheckFalse(IsIdleMode());

	SetMode(EWeaponType::Around);
}

void UCWeaponComponent::SetBowMode()
{
	CheckFalse(IsIdleMode());

	SetMode(EWeaponType::Bow);
}

void UCWeaponComponent::SetMode(EWeaponType InType)
{
	if (Type == InType)
	{
		SetUnarmedMode();

		return;
	}
	else if (IsUnarmedMode() == false)
	{
		GetEquipment()->Unequip();
	}

	if (!!DataAssets[(int32)InType])
	{
		DataAssets[(int32)InType]->GetEquipment()->Equip();

		ChangeType(InType);
	}
}

void UCWeaponComponent::ChangeType(EWeaponType InType)
{
	EWeaponType prevType = Type;
	Type = InType;

	if (OnWeaponTypeChange.IsBound())
		OnWeaponTypeChange.Broadcast(prevType, InType);
}

void UCWeaponComponent::DoAction()
{
	if (!!GetDoAction())
		GetDoAction()->DoAction();
}

void UCWeaponComponent::SubAction_Pressed()
{
	if (!!GetSubAction())
		GetSubAction()->Pressed();
}

void UCWeaponComponent::SubAction_Released()
{
	if (!!GetSubAction())
		GetSubAction()->Released();
}

    Tick함수에서 DoAction이 있다면 DoAction의 Tick을 콜 해준다.

    • void UCWeaponComponent::TickComponent(float DeltaTime, ELevelTick TickType, FActorComponentTickFunction* ThisTickFunction)
      • if (!!GetDoAction())
              GetDoAction()->Tick(DeltaTime);





    CDoAction_Warp 생성





    CDoAction_Warp.h

    더보기
    #pragma once
#include "CoreMinimal.h"
#include "Weapons/CDoAction.h"
#include "CDoAction_Warp.generated.h"

UCLASS(Blueprintable)
class U2212_06_API UCDoAction_Warp : public UCDoAction
{
	GENERATED_BODY()

public:
    UCDoAction_Warp();

    virtual void BeginPlay
    (
        class ACAttachment* InAttachment,
        class UCEquipment* InEquipment,
        class ACharacter* InOwner,
        const TArray<FDoActionData>& InDoActionData,
        const TArray<FHitData>& InHitData
    );
    void Tick(float InDeltaTime) override;

public:
    void DoAction() override;
    void Begin_DoAction() override;

private:
    bool GetCursorLocationAndRotation(FVector& OutLocation, FRotator& OutRotation);

private:
    class APlayerController* PlayerController;
    class UDecalComponent* Decal;

private:
    FVector MoveToLocation;
};

    블루프린트로 만들 수 있게 Blueprintable를 적어준다.

    • UCLASS(Blueprintable)







    CDoAction_Warp.cpp

    더보기
    #include "Weapons/DoActions/CDoAction_Warp.h"
#include "Global.h"
#include "GameFramework/Character.h"
#include "GameFramework/PlayerController.h"
#include "Components/CStateComponent.h"
#include "Components/DecalComponent.h"
#include "Components/CapsuleComponent.h"
#include "Weapons/CAttachment.h"

UCDoAction_Warp::UCDoAction_Warp()
{
}

void UCDoAction_Warp::BeginPlay(ACAttachment* InAttachment, UCEquipment* InEquipment, ACharacter* InOwner, const TArray<FDoActionData>& InDoActionData, const TArray<FHitData>& InHitData)
{
	Super::BeginPlay(InAttachment, InEquipment, InOwner, InDoActionData, InHitData);

	Decal = CHelpers::GetComponent<UDecalComponent>(InAttachment);
	PlayerController = OwnerCharacter->GetController<APlayerController>();
}

void UCDoAction_Warp::Tick(float InDeltaTime)
{
	Super::Tick(InDeltaTime);

	FVector location = FVector::ZeroVector;
	FRotator rotation = FRotator::ZeroRotator;

	//GetCursorLocationAndRotation이 false면 hit가 안 된 것이다.
	if (GetCursorLocationAndRotation(location, rotation) == false)
	{
		Decal->SetVisibility(false);

		return;
	}

	//Warp 실행 중에는 Cursor가 움직이지 않도록 만든다.
	if (bInAction)//Action이 실행중이라면 실행을 할 필요가 없으므로
		return;//리턴


	Decal->SetVisibility(true);
	//Decal이 그려지는 위치와 회전값을 설정해준다.
	Decal->SetWorldLocation(location);
	Decal->SetWorldRotation(rotation);
}

void UCDoAction_Warp::DoAction()
{
	CheckFalse(DoActionDatas.Num() > 0);
	CheckFalse(State->IsIdleMode());

	Super::DoAction();


	FRotator rotation;
	if (GetCursorLocationAndRotation(MoveToLocation, rotation))
	{
		//땅에 뭍히는것을 방지하기 위해 CapsuleHalfHeight만큼 높이를 보정해준다.
		float height = OwnerCharacter->GetCapsuleComponent()->GetScaledCapsuleHalfHeight();
		MoveToLocation = FVector(MoveToLocation.X, MoveToLocation.Y, MoveToLocation.Z + height);

		float yaw = UKismetMathLibrary::FindLookAtRotation(OwnerCharacter->GetActorLocation(), MoveToLocation).Yaw;
		OwnerCharacter->SetActorRotation(FRotator(0, yaw, 0));
	}
	else
		return;

	DoActionDatas[0].DoAction(OwnerCharacter);
}

void UCDoAction_Warp::Begin_DoAction()
{
	Super::Begin_DoAction();

	OwnerCharacter->SetActorLocation(MoveToLocation);//DoAction에서 설정한 MoveToLocation 위치로 이동한다.
	MoveToLocation = FVector::ZeroVector;//이동 후에 MoveToLocation 위치를 ZeroVector로 초기화해준다.
}

bool UCDoAction_Warp::GetCursorLocationAndRotation(FVector& OutLocation, FRotator& OutRotation)
{
	CheckNullResult(PlayerController, false);//PlayerController가 없으면 실행하면 안 되니 체크해준다.

	FHitResult hitResult;
	PlayerController->GetHitResultUnderCursorByChannel(ETraceTypeQuery::TraceTypeQuery1, false, hitResult);

	CheckFalseResult(hitResult.bBlockingHit, false);//부딪히는게 없다면 false 리턴.


	OutLocation = hitResult.Location;//hit된 위치
	OutRotation = hitResult.ImpactNormal.Rotation();//hit된 Normal의 회전값

	return true;
}









    BP_CDoAction_Warp

    CDoAction_Warp 기반 블루프린트 클래스 생성 - BP_CDoAction_Warp 생성

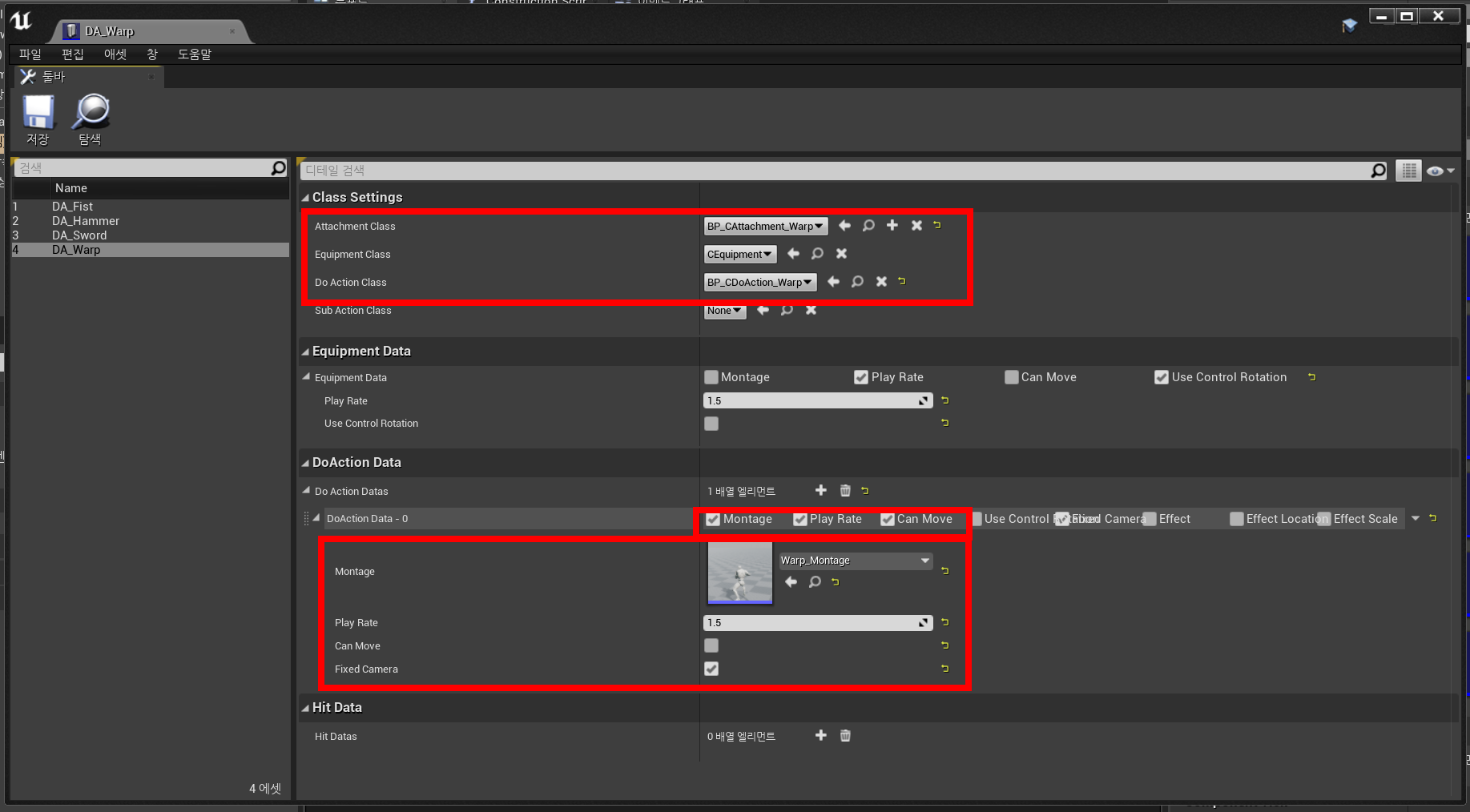

    DA_Warp 생성



    DA_Warp 생성

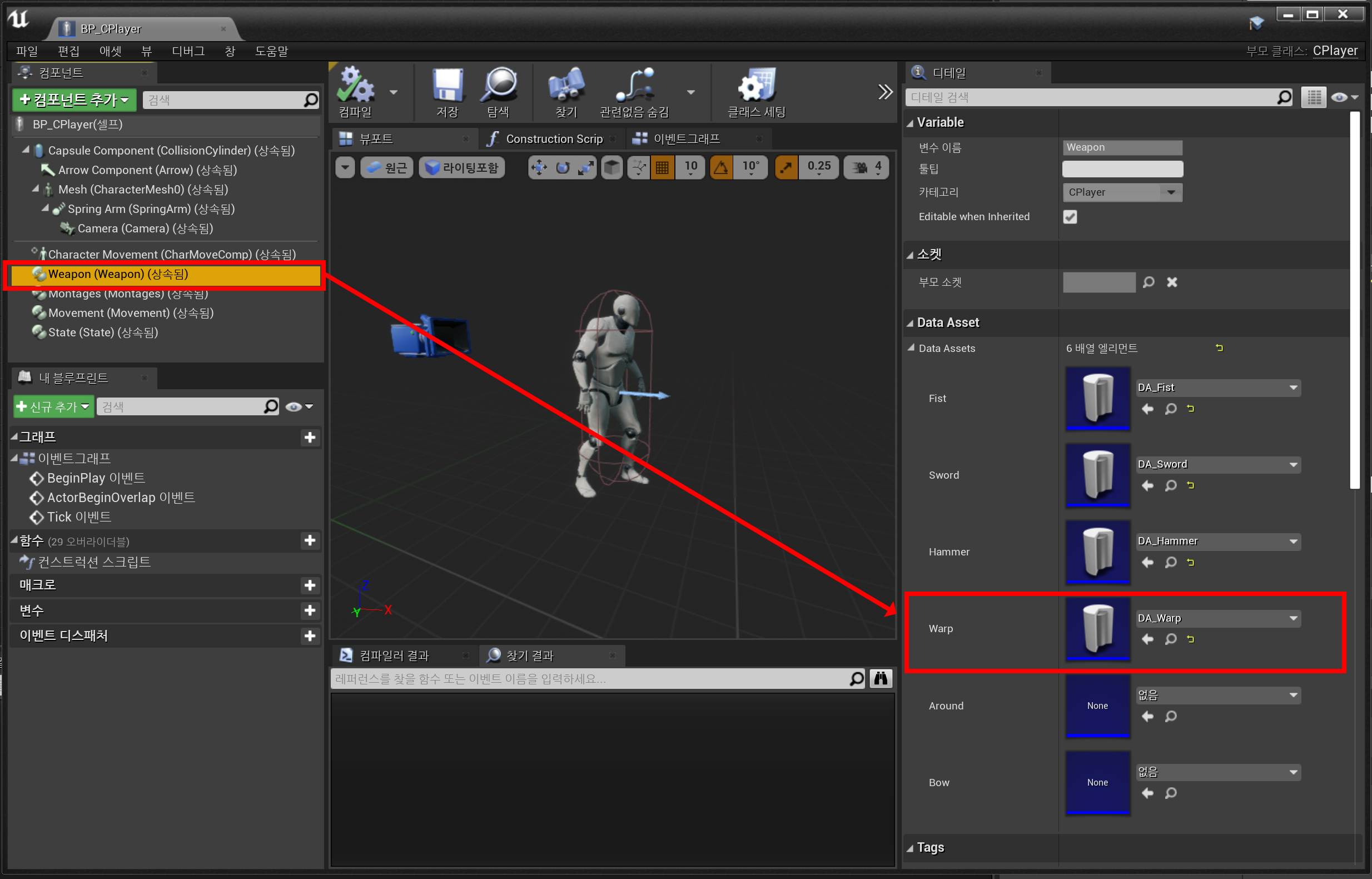

    BP_CPlayer - Weapon에 DA_Warp 할당하기



    BP_CPlayer







    실행화면















    '⭐ Unreal Engine > UE RPG Skill' 카테고리의 다른 글

    [UE] Around 공격 구현하기  (0) 2023.07.03
    [UE] 워프 Top View 만들기  (0) 2023.06.30
    [UE] 해머 스킬 만들기  (0) 2023.06.27
    [UE] 일섬 스킬 충돌, 해머 스킬 만들기  (0) 2023.06.26
    [UE] 주먹 스킬 충돌처리, 전진 찌르기 스킬 구현하기  (0) 2023.06.23

    티스토리툴바
