[UE] 보간식, Bow Aim 2, Cross Hair 만들기







목차





---









ABP: Animation Blueprint
AN: Blueprint Class AnimNotify
ANS: Blueprint Class - AnimNotifyState

AO: Aim Offset

BP: Blueprint Class
BS: Blend Space

BF: Blueprint Function Library
CS: Matinee Camera Shake
E: Enum 열거형
DT: Data Table
F: 구조체

I: Blueprint Interface

WB: Widget Bluepprint



UE2212_02

	Level - LEVEL ABP_Player BP_GameMode BF_Helper IDamage
AdvancedMagicFX12	Materials
	Meshes
	Particles
	Textures
Character	Animation	Bow
		Common
		Fist
		Hammer
		Parkour
		Sword
		Unarmed
		Wizard
	BlendSpaces	BS_Bow BS_Fist BS_Hammer BS_Sword BS_Unarmed BS_Wizard
	Materials	MaterialLayers
		M_UE4Man_Body M_UE4Man_ChestLogo
	Mesh	SK_Mannequin SK_MAnnequin_PhysicsAsset Skel_Mannequin
	Montages	Around	Around_Montage
		Bow	AR_DrawBow_Montage AR_ShootAndDraw_Montage
		Common	HitReaction_Move_Montage HitReaction_Stop_Montage
		Fist	Fist_Attack_1_Montage Fist_Attack_2_Montage Fist_Attack_3_Montage Fist_Hitted_Montage
		Hammer	Frank_RPG_2Hand_Combo01_1_Montage Frank_RPG_2Hand_Combo01_2_Montage Frank_RPG_2Hand_Combo01_3_Montage Frank_RPG_2Hand_Combo01_4_Montage
		Sword	Draw_Sword_Montage Sword_Attack_1_Montage Sword_Attack_2_Montage Sword_Attack_3_Montage
		Warp	Warp_Montage
		Enemy_DeadFall_Montage HitReaction_Montage
	Textures	UE4_LOGO_CARD UE4_Mannequin__normals UE4_Mannequin_MAT_MASKA UE4Man_Logo_N
	Weapons	Elven Bow
		Greate Hammer
		Sword
Component	EStateType MovingComponent StateComponent WeaponComponent
Effects	P_Cube_Mesh_Test P_Genno_Weapon_Lightning_01
Enemies	BP_Enemy
Environment	Materials	Textures
	Meshes
	Obstacle
InfinityBladeEffects	Effects	FX_Combat_Base
		FX_Materials
		FX_Meshes
		FX_Monsters
		FX_Textures
		FX_Textures_IB
		Masters
Materials	M_Mesh M_White_Inst M_Red_Inst M_Green_Inst M_Blue_Inst M_UE4Man_Body_Inst M_UE4Man_ChesLogo_Inst
Meshes	Cone_2 Cube_2 Cylinder_2 Sphere_2
Notifies	ANS_Equip ANS_Combo ANS_Collision AN_BeginAction AN_EndAction AN_CameraShake
Player	BP_Player
Sounds	S_BGM S_HitPunch S_OneHand_Hit
Textures	Crosshair
Weapons	Around	Around_FireBall Around_FireBall1 Around_IceBall Around_IceBall1 DT_DoAction_Around DT_Equip_Around DT_HitData_Around Skill_Around Weapon_Around
	Bow	AO_Aim Curve_Aim DT_DoAction_Bow DT_Equip_Bow DT_HitData_Bow FAimData Skill_Aim Skill_Arrow Weapon_Bow
	FireBall	DT_DoAction_FireBall DT_Equip_FireBall DT_HitData_FireBall Skill_FireBall Weapon_FireBall
	Fist	Combo_Fist - Blueprint Class Actor Weapon_Combo 상속 CS_Fist DT_DoAction_Fist DT_Equip_Fist DT_HitData_Fist
	Hammer	Combo_Fist - Blueprint Class Actor Weapon_Combo 상속 CS_Hammer DT_DoAction_Hammer DT_Equip_Hammer DT_HitData_Hammer
	Sword	Combo_Sword - Blueprint Class Actor Weapon_Combo 상속 CS_Sword DT_DoAction_Sword DT_Equip_Sword DT_HitData_Sword
	Warp	Weapon_Warp -  Blueprint Class Actor Weapon 상속 DT_DoAction_Warp DT_Equip_Warp
	EWeaponType FDoActionData FEquipData FHitData Weapon - Blueprint Class Actor Weapon_Combo - Blueprint Class Actor Weapon 상속 M_Weapon Skill
Widget	WB_CrossHair







Cross Hair 조준점 만들기





---

Curve_Aim 생성 + 보간식

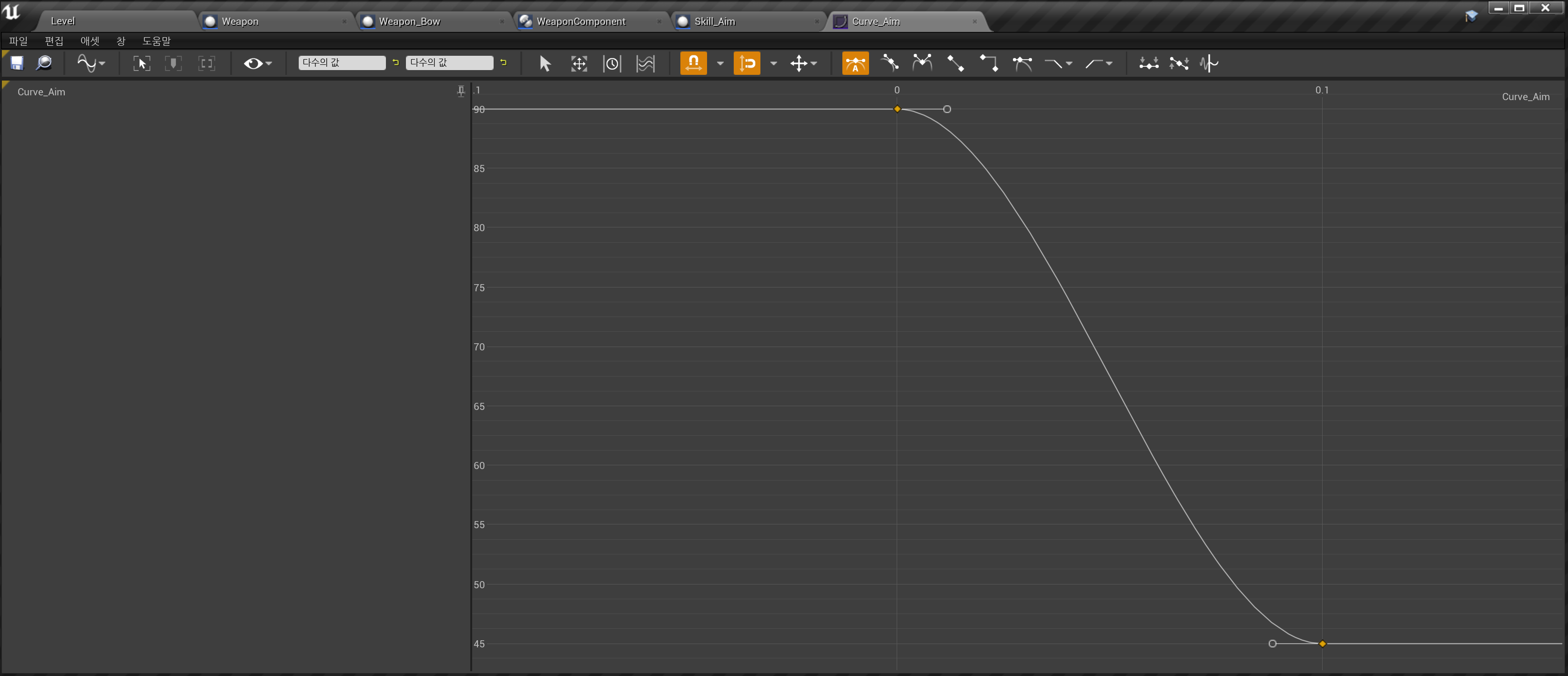

기타 - 커브 - CurveFloat - Curve_Aim 생성

• (0, 90), (0.1, 45) 값 넣기
• 3차(큐빅) 보간- 자동 탄젠트 눌러주기



보간식



https://easings.net/ko

Easing Functions Cheat Sheet







---



Skill_Aim 수정



Event Graph

Pressed, Released 커스텀이벤트 부분

Zoom In_Template, Zoom Out_Template

Tick 이벤트 부분





BeginPlay 이벤트 - CrossHair





---



ABP_Character 수정



Event Graph

추가한 부분

• Weapon Component를 검증된 Get으로 변경한 이유는?
  • 적의 경우 없는 경우도 있기 때문에 검증된 Get으로 변환하여 유효한지/유효하지않은지 구분하여 사용한다.

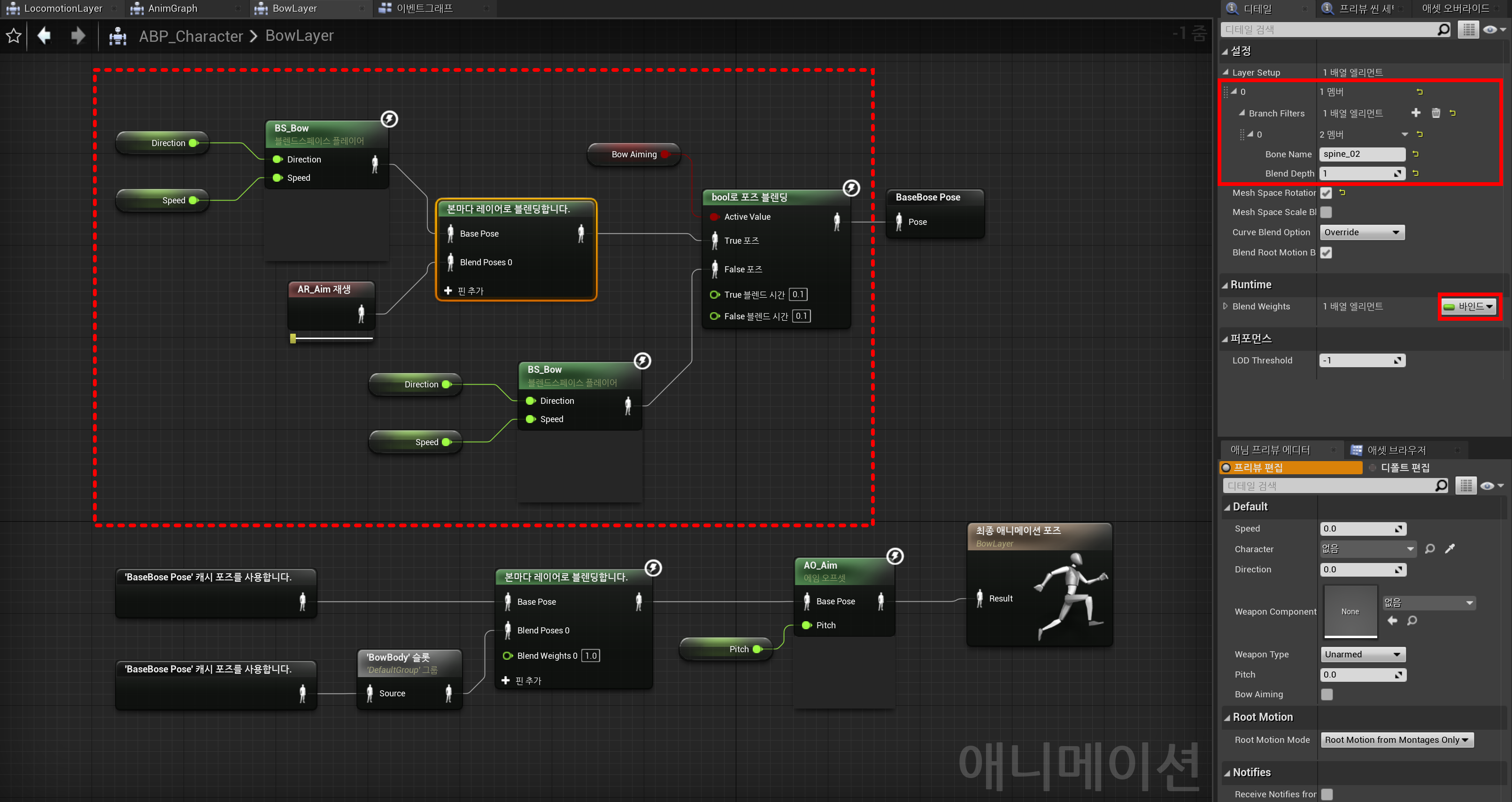

BowLayer







---



WB_CrossHair 생성 + Widget 설명



유저 인터페이스 - 위젯 블루프린트 - WB_CrossHair 생성



Designer



Graph









Widget
UMG	Slate
게임의 UI	편집툴의 UI



Screen에 그려지는 UI

• HUD: Canvas가 화면이랑 1:1 매칭되면 HUD
• ex. 조준점, HP, MP



World에 그려지는 UI

---





Skill_Arrow







Destroy Actor로 삭제하면 Weapon_Bow 블루프린트의 변수 Arrows(Skill Arrow 배열)는 NULL이어서 Dangling Pointer가 될까? 만약 그렇다면 어떻게 지워줄까?



Yes. Dangling Pointer가 된다. 그래서

• Skill_Arrow 블루프린트에 End Play 이벤트를 만들어준다.
• Weapon_Bow 블루프린트에 OnArrowDestroyed를 만들어준다.



Skill_Arrow 블루프린트

Event Graph



Weapon_Bow 블루프린트

CreateArrow



OnArrowDestoryed



---

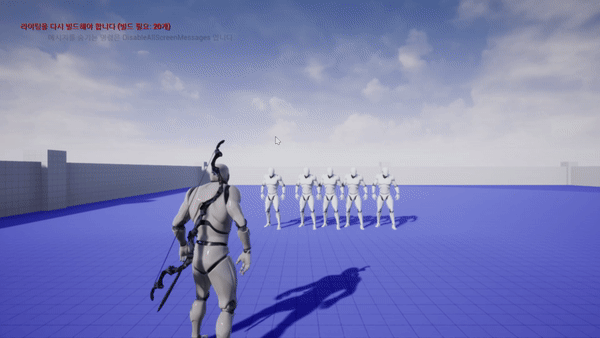

실행화면















https://docs.unrealengine.com/4.26/ko/ProgrammingAndScripting/ProgrammingWithCPP/UnrealArchitecture/Actors/ActorLifecycle/

액터의 수명 주기





Yes. Dangling Pointer가 된다. 그래서

• Skill_Arrow 블루프린트에 End Play 이벤트를 만들어준다.
• Weapon_Bow 블루프린트에 OnArrowDestroyed를 만들어준다.



Skill_Arrow 블루프린트

Event Graph



Weapon_Bow 블루프린트

CreateArrow



OnArrowDestoryed
