    플레이어 카메라 시야각 조정

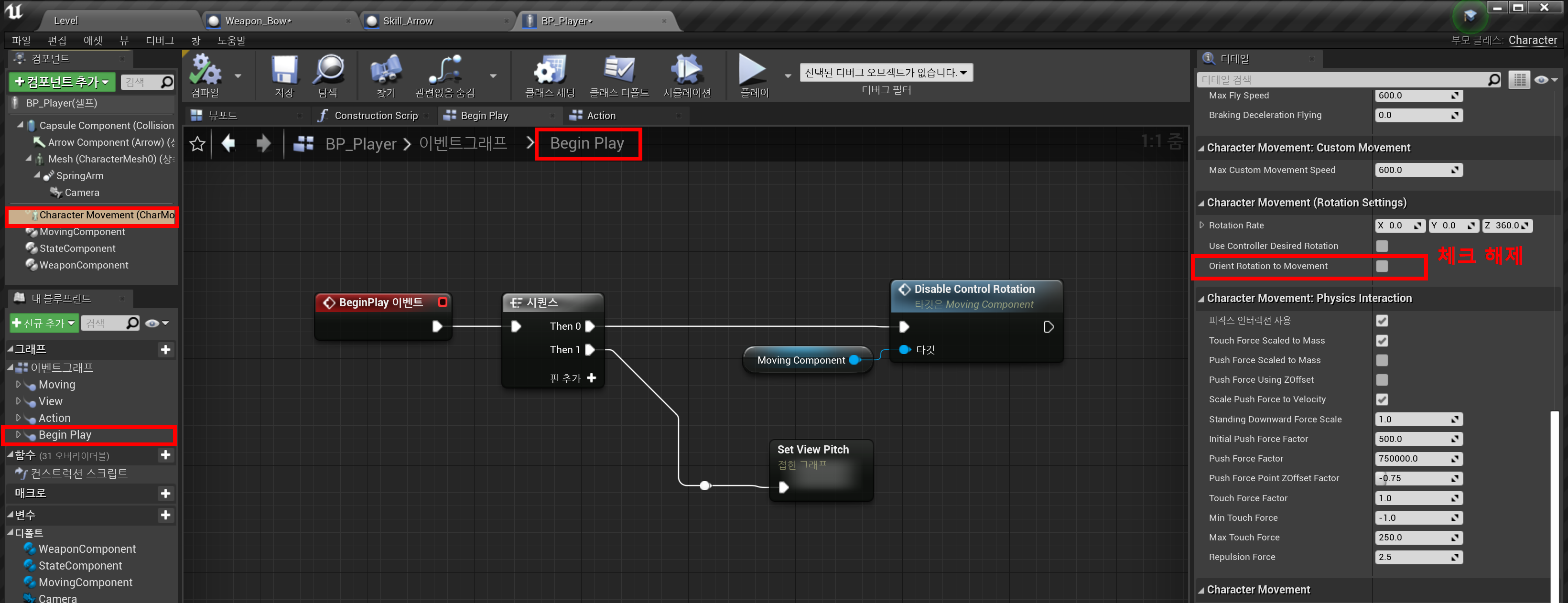

    BP_Player



    • BP_Player - Pawn - Use Controller Rotation Yaw 체크
    • Character Movement - Character Movement (Rotation Settings) - Orient Rotation to Movement 체크 해제

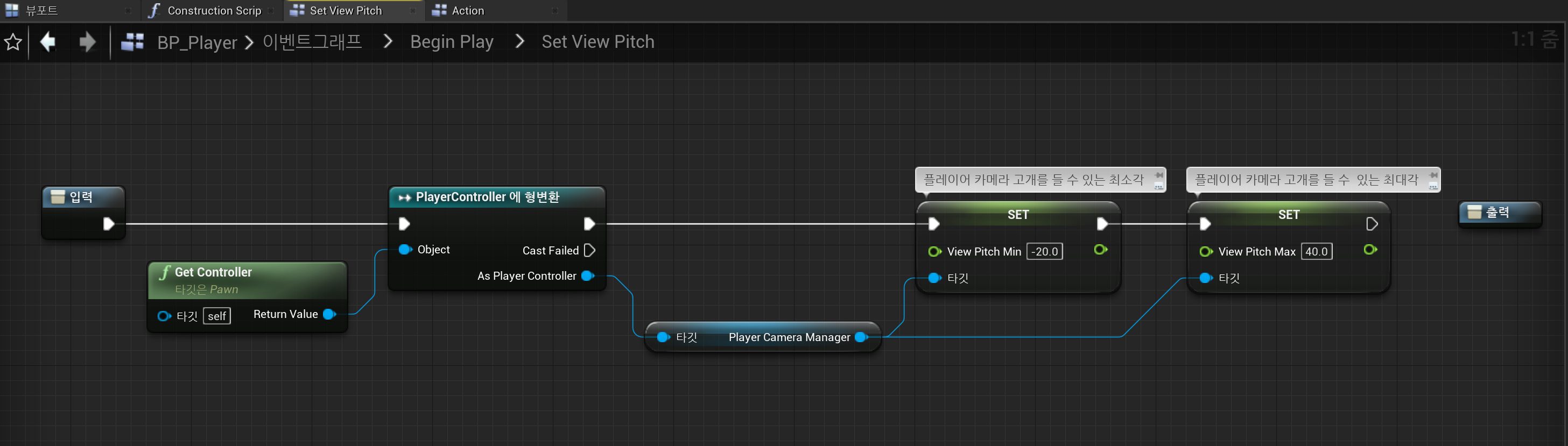

    Begin Play

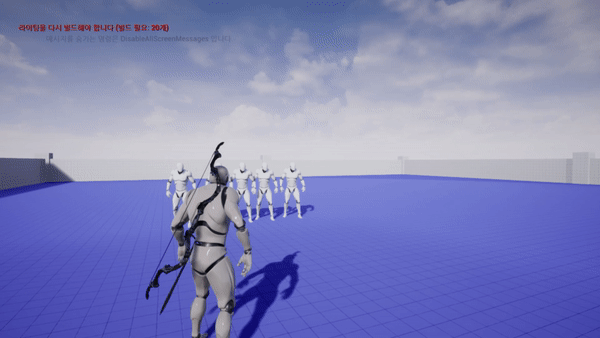

    실행화면














    Bow와 Arrow 장착해제 수정






    Weapon_Bow



    <함수>

    Equip

    • End_Equip
    • Unequip

    Actions

    • DoAction
    • Begin_DoAction
    • End_DoAction



    • CreateArrow






    End Equp



    Unequip        (Bow와 Arrow 장착해제 구현)

    • Bow와 Arrow 장착해제
    • Bow를 등쪽으로 장착.
    • Arrow 없애줌
    더보기
    0 1 2 3
    for(int i = 0; i<4; i++)
    {
        if( ==2)
          Remove(2);
    }



    0 1 3









    DoAction





    BeginDoAction

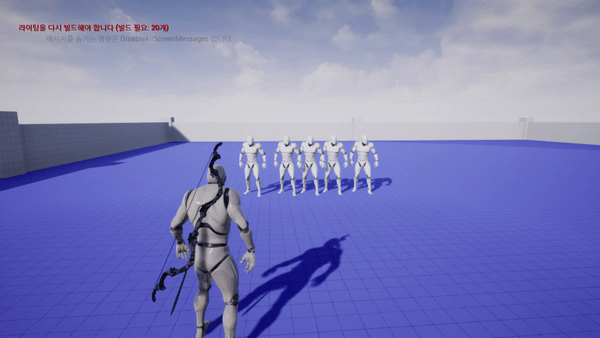

    실행화면












    Aim 모션 만들기

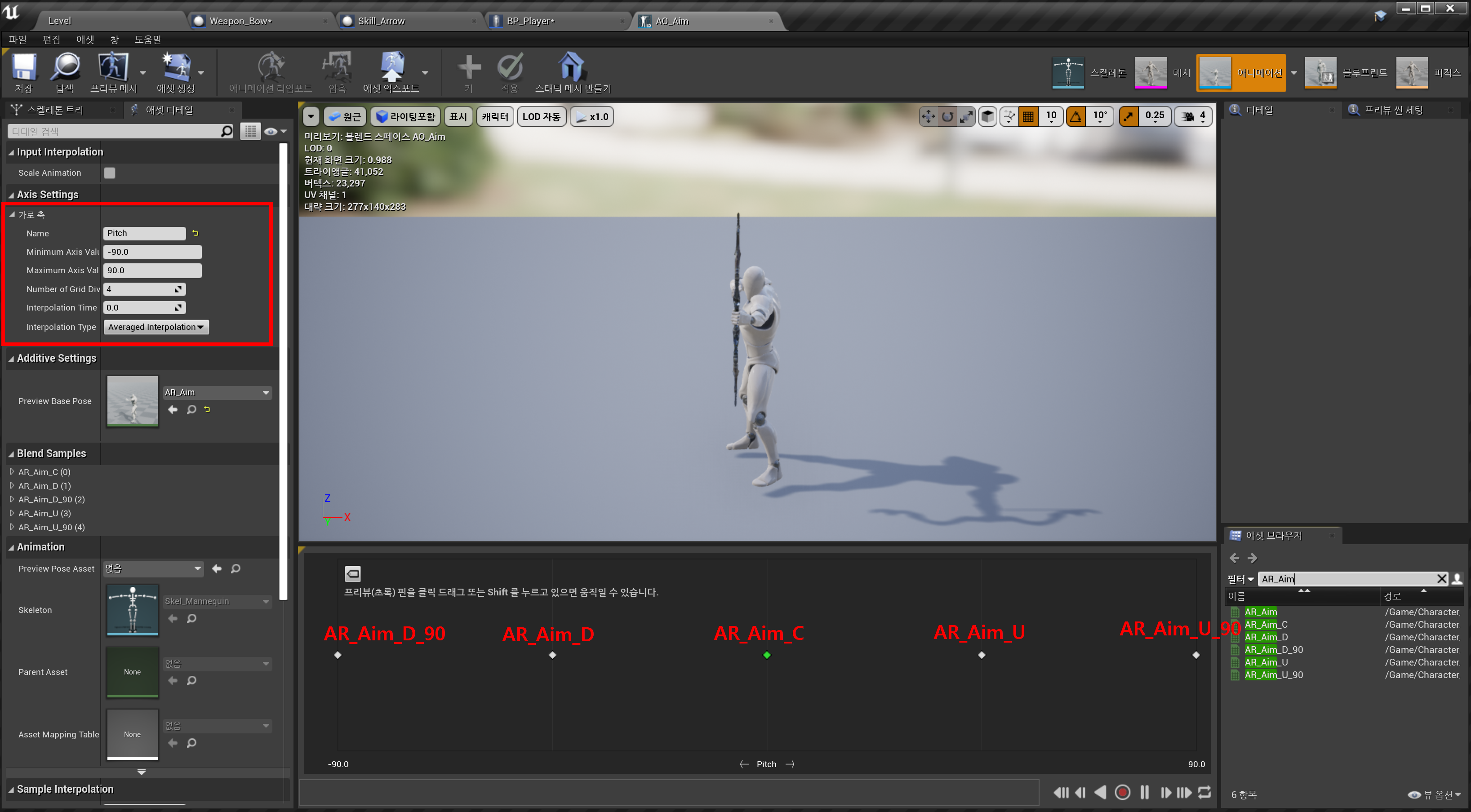

    AO_Aim 생성



    Animation - Aim Offset 1D - Skel_Mannequin - AO_Aim 생성












    Skel_Mannequin 슬롯 추가



    • 창 - 애님 슬롯 매니저 클릭하여 활성화 해준다.
    • 애님 슬롯 매니저 - 슬롯 추가 -  BowBody 추가








    ABP_Character 수정



    BowLayer

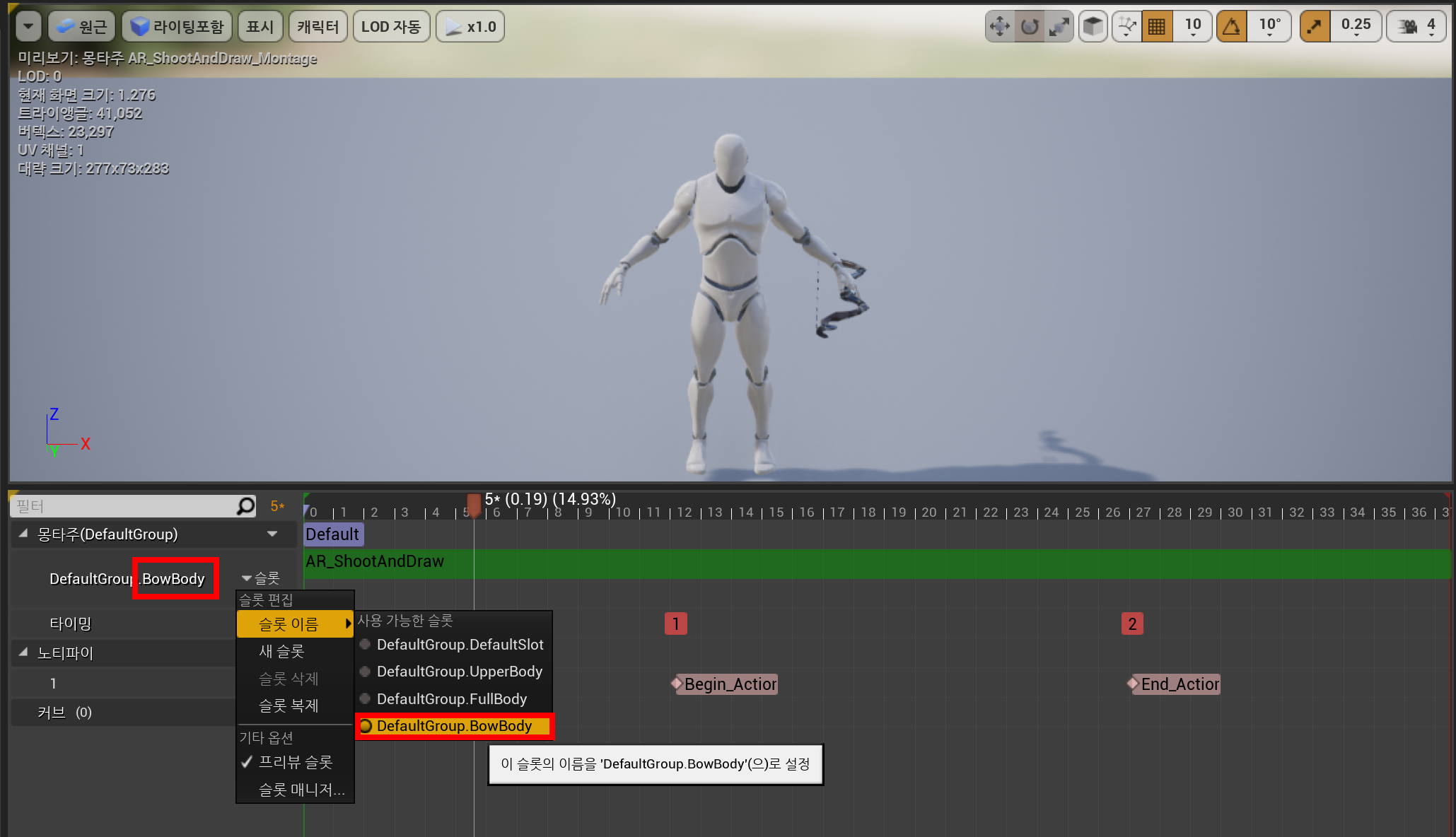

    AR_ShootAndDraw_Montage 수정



    • 몽타주 - 슬롯을 BowBody로 변경













    Aim








    Project Setting



    • 입력 - 액션 매핑 - SubAction 오른쪽 마우스 버튼 추가





    Weapon 수정



    <함수>

    Equip

    • Equip
    • Begin_Equip
    • End_Equip

    Unequip

    • Actions
    • DoAction
    • Begin_DoAction
    • End_DoAction

    Sub Action

    • Pressed
    • Released



    Pressed, Released 함수 생성

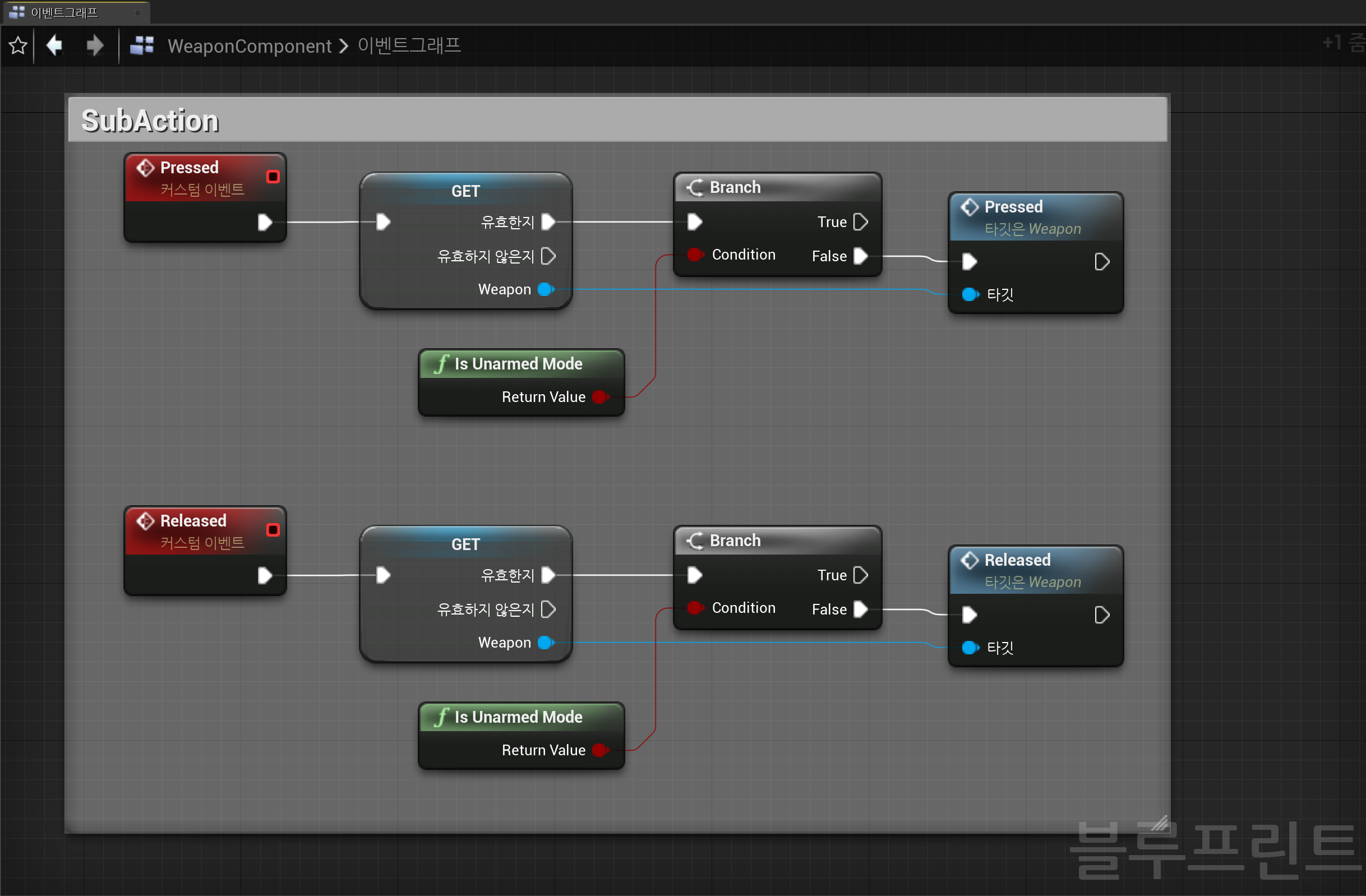

    Weapon Component 수정



    Event Graph

    • SubAction에 관한 노드들
    • Pressed, Released 커스텀 이벤트를 만들어 Weapon에서 만든 Pressed와 Released 함수를 불러온다.

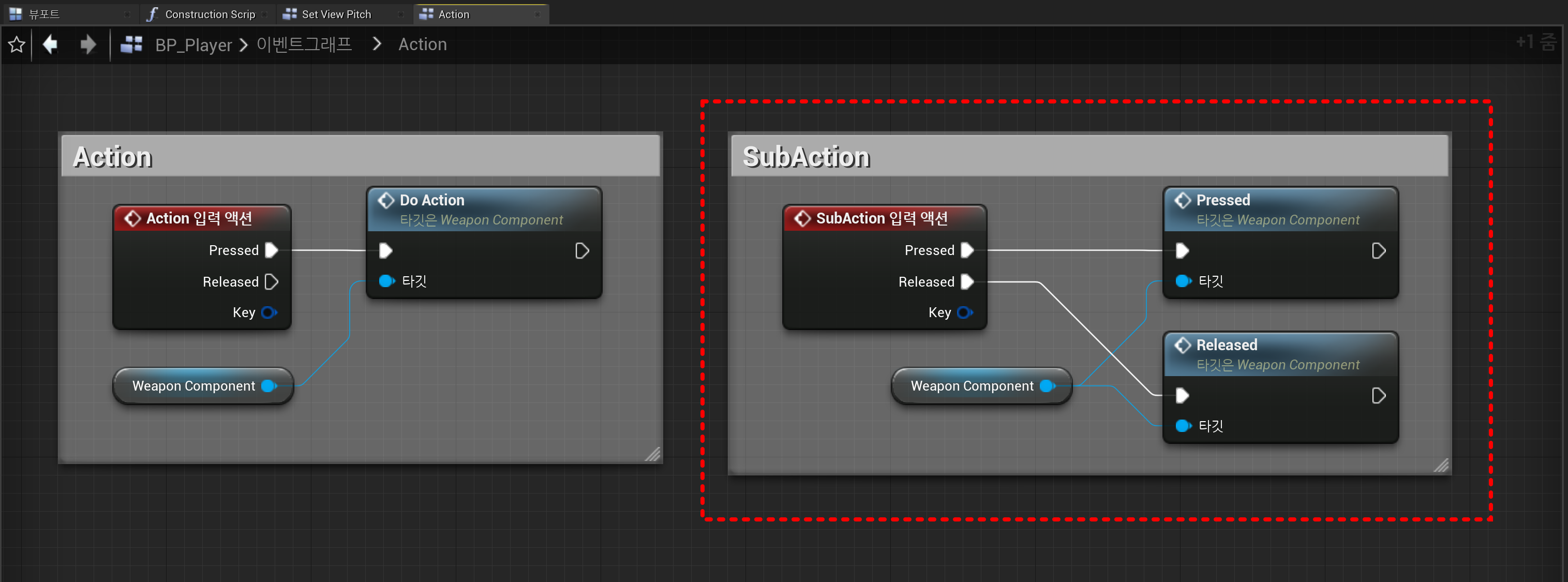

    BP_Player 수정



    Event Graph > Action

    • SubAction 입력 액션 추가
    • Weapon Component의 PressedReleased를 매핑해준다.






    Weapon_Bow



    <함수>

    Equip

    • End_Equip
    • Unequip

    Actions

    • DoAction
    • Begin_DoAction
    • End_DoAction

    Sub Action

    • Pressed
    • Released



    • CreateArrow




    End Equp



    Unequip

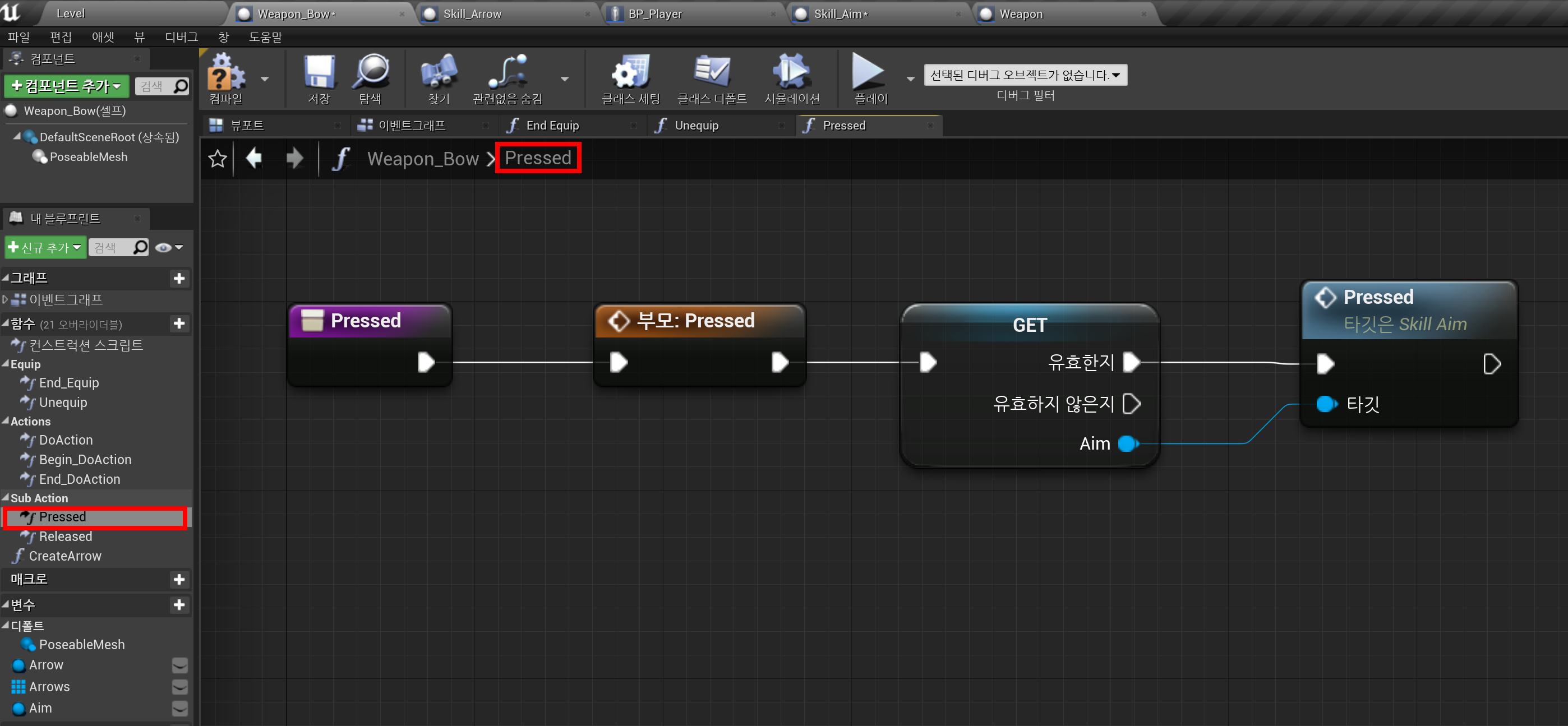

    Pressed

    • 변수로 설정한 Arrow(Skill Arrow)를 검증된 Get으로 변환한 후 유효한지 확인
    • 유효하다면 Pressed 함수 콜

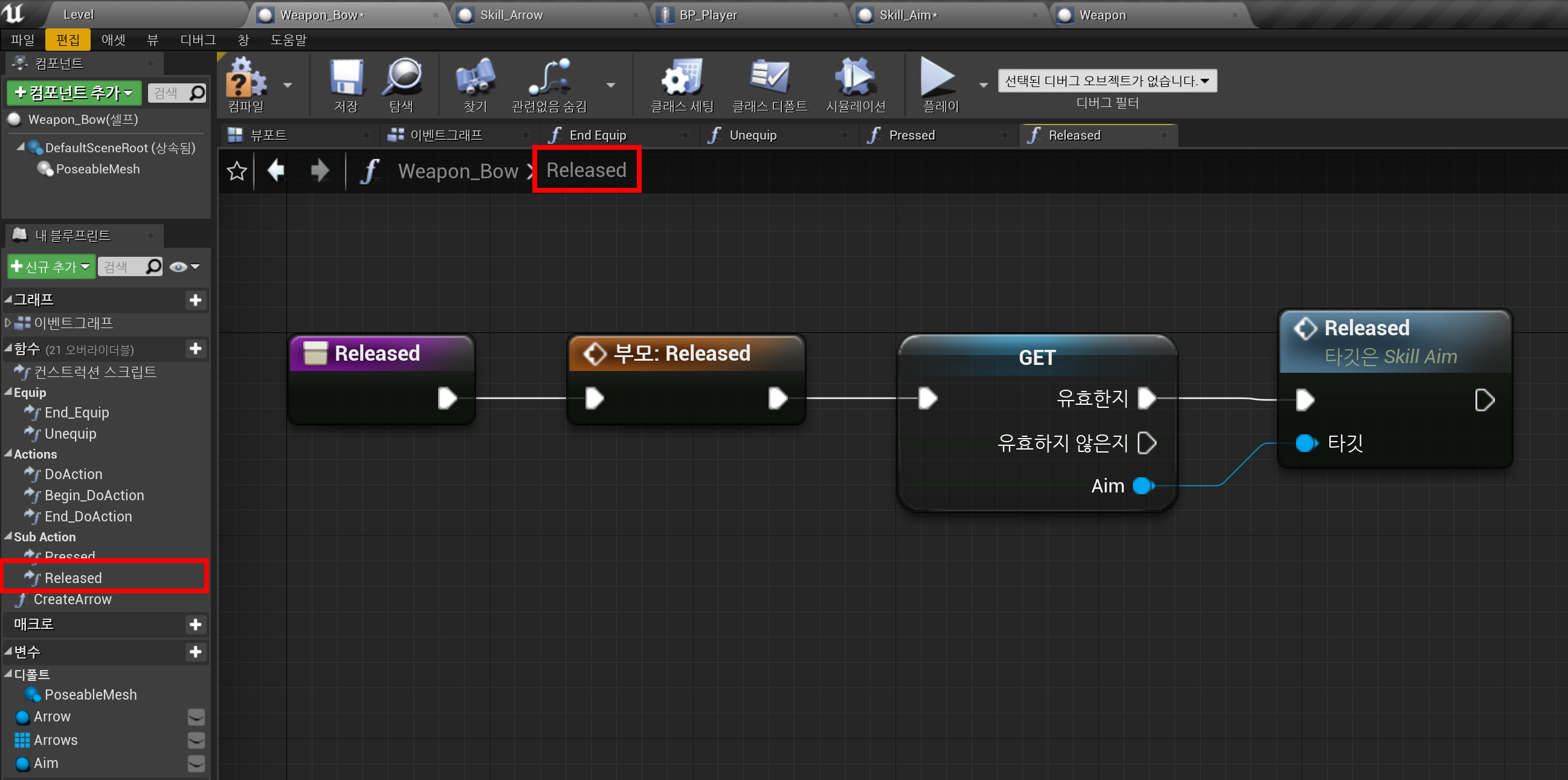

    Released










    Skill_Aim 생성



    Blueprint Class - Actor - Skill - Skill_Aim 생성



    Event Graph

    ZoomIn

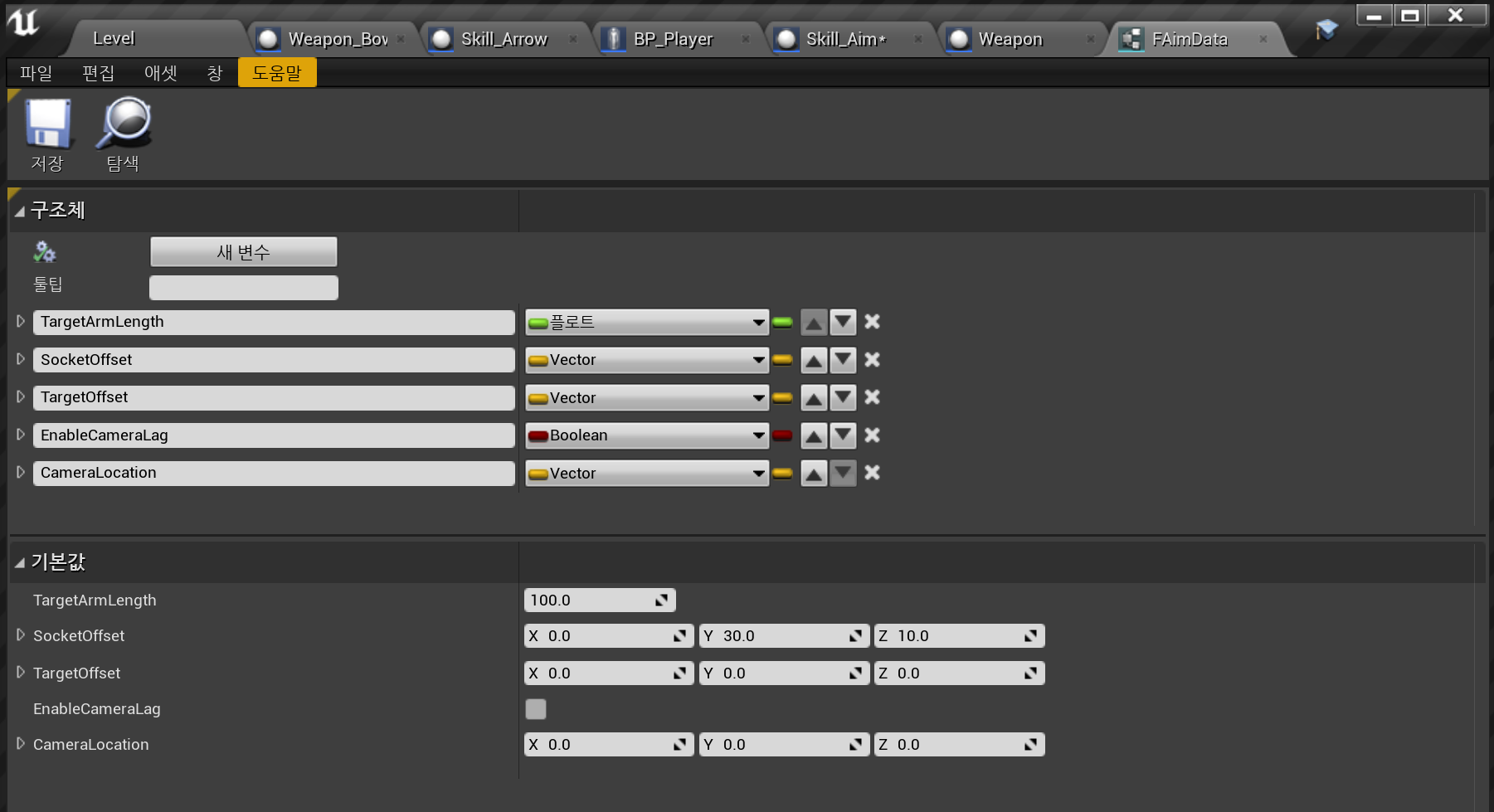

    FAimData 생성



    블루프린 - 구조체 - FAimData 생성

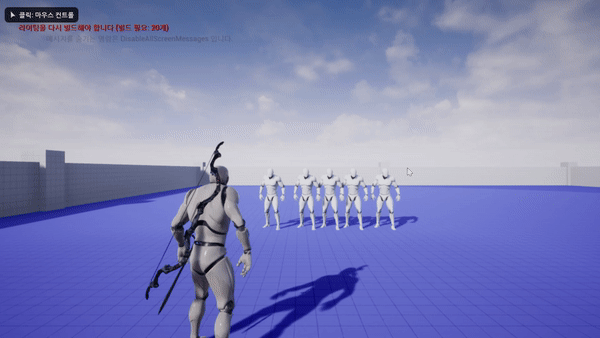

    실행화면
