Around 피격 구현

ABP: Animation Blueprint
AN: Blueprint Class AnimNotify
ANS: Blueprint Class - AnimNotifyState

BP: Blueprint Class
BS: Blend Space

BF: Blueprint Function Library
CS: Matinee Camera Shake
E: Enum 열거형
DT: Data Table
F: 구조체

I: Blueprint Interface



UE2212_02

	Level - LEVEL ABP_Player BP_GameMode BF_Helper IDamage
AdvancedMagicFX12	Materials
	Meshes
	Particles
	Textures
Character	Animation	Bow
		Common
		Fist
		Hammer
		Parkour
		Sword
		Unarmed
		Wizard
	BlendSpaces	BS_Bow BS_Fist BS_Hammer BS_Sword BS_Unarmed BS_Wizard
	Materials	MaterialLayers
		M_UE4Man_Body M_UE4Man_ChestLogo
	Mesh	SK_Mannequin SK_MAnnequin_PhysicsAsset Skel_Mannequin
	Montages	Around	Around_Montage
		Common	HitReaction_Move_Montage HitReaction_Stop_Montage
		Fist	Fist_Attack_1_Montage Fist_Attack_2_Montage Fist_Attack_3_Montage Fist_Hitted_Montage
		Hammer	Frank_RPG_2Hand_Combo01_1_Montage Frank_RPG_2Hand_Combo01_2_Montage Frank_RPG_2Hand_Combo01_3_Montage Frank_RPG_2Hand_Combo01_4_Montage
		Sword	Draw_Sword_Montage Sword_Attack_1_Montage Sword_Attack_2_Montage Sword_Attack_3_Montage
		Warp	Warp_Montage
		Enemy_DeadFall_Montage HitReaction_Montage
	Textures	UE4_LOGO_CARD UE4_Mannequin__normals UE4_Mannequin_MAT_MASKA UE4Man_Logo_N
	Weapons	Elven Bow
		Greate Hammer
		Sword
Component	EStateType MovingComponent StateComponent WeaponComponent
Effects	P_Cube_Mesh_Test P_Genno_Weapon_Lightning_01
Enemies	BP_Enemy
Environment	Materials	Textures
	Meshes
	Obstacle
InfinityBladeEffects	Effects	FX_Combat_Base
		FX_Materials
		FX_Meshes
		FX_Monsters
		FX_Textures
		FX_Textures_IB
		Masters
Materials	M_Mesh M_White_Inst M_Red_Inst M_Green_Inst M_Blue_Inst M_UE4Man_Body_Inst M_UE4Man_ChesLogo_Inst
Meshes	Cone_2 Cube_2 Cylinder_2 Sphere_2
Notifies	ANS_Equip ANS_Combo ANS_Collision AN_BeginAction AN_EndAction AN_CameraShake
Player	BP_Player
Sounds	S_BGM S_HitPunch S_OneHand_Hit
Weapons	Around	Around_FireBall Around_FireBall1 Around_IceBall Around_IceBall1 DT_DoAction_Around DT_Equip_Around DT_HitData_Around Skill_Around Weapon_Around
	FireBall	DT_DoAction_FireBall DT_Equip_FireBall DT_HitData_FireBall Skill_FireBall Weapon_FireBall
	Fist	Combo_Fist - Blueprint Class Actor Weapon_Combo 상속 CS_Fist DT_DoAction_Fist DT_Equip_Fist DT_HitData_Fist
	Hammer	Combo_Fist - Blueprint Class Actor Weapon_Combo 상속 CS_Hammer DT_DoAction_Hammer DT_Equip_Hammer DT_HitData_Hammer
	Sword	Combo_Sword - Blueprint Class Actor Weapon_Combo 상속 CS_Sword DT_DoAction_Sword DT_Equip_Sword DT_HitData_Sword
	Warp	Weapon_Warp -  Blueprint Class Actor Weapon 상속 DT_DoAction_Warp DT_Equip_Warp
	EWeaponType FDoActionData FEquipData FHitData Weapon - Blueprint Class Actor Weapon_Combo - Blueprint Class Actor Weapon 상속 M_Weapon Skill





---



DT_HitData_Around 생성





---





Skill_Around 수정



Event Graph

Zoom In



---

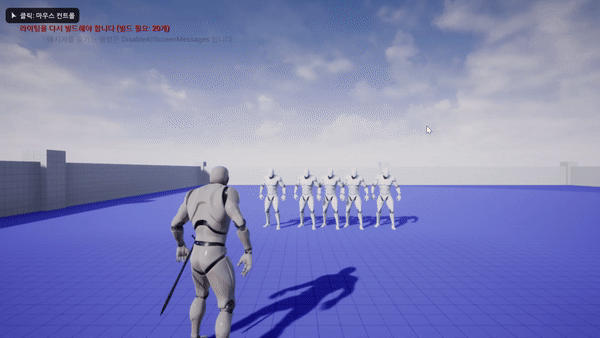

실행화면



---

















Fire Ball 만들기



---



DT_Equip_FireBall, DT_DoAction_FireBall, DT_HitData_FireBall 생성

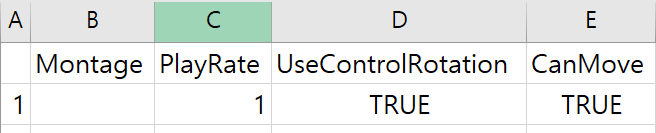

DT_Equip_FireBall.csv



DT_DoAction_FireBall.csv



DT_HitData_FireBall.csv



---



FireBall_Montage 생성



• Hand_R에 소켓 추가 -  Hand_FireBall  생성
• Relative Location을 손의 위치에 잘 맞게 조절
• UpperBody로 변경
• Begin_Action, End_Action 키값 주기



---

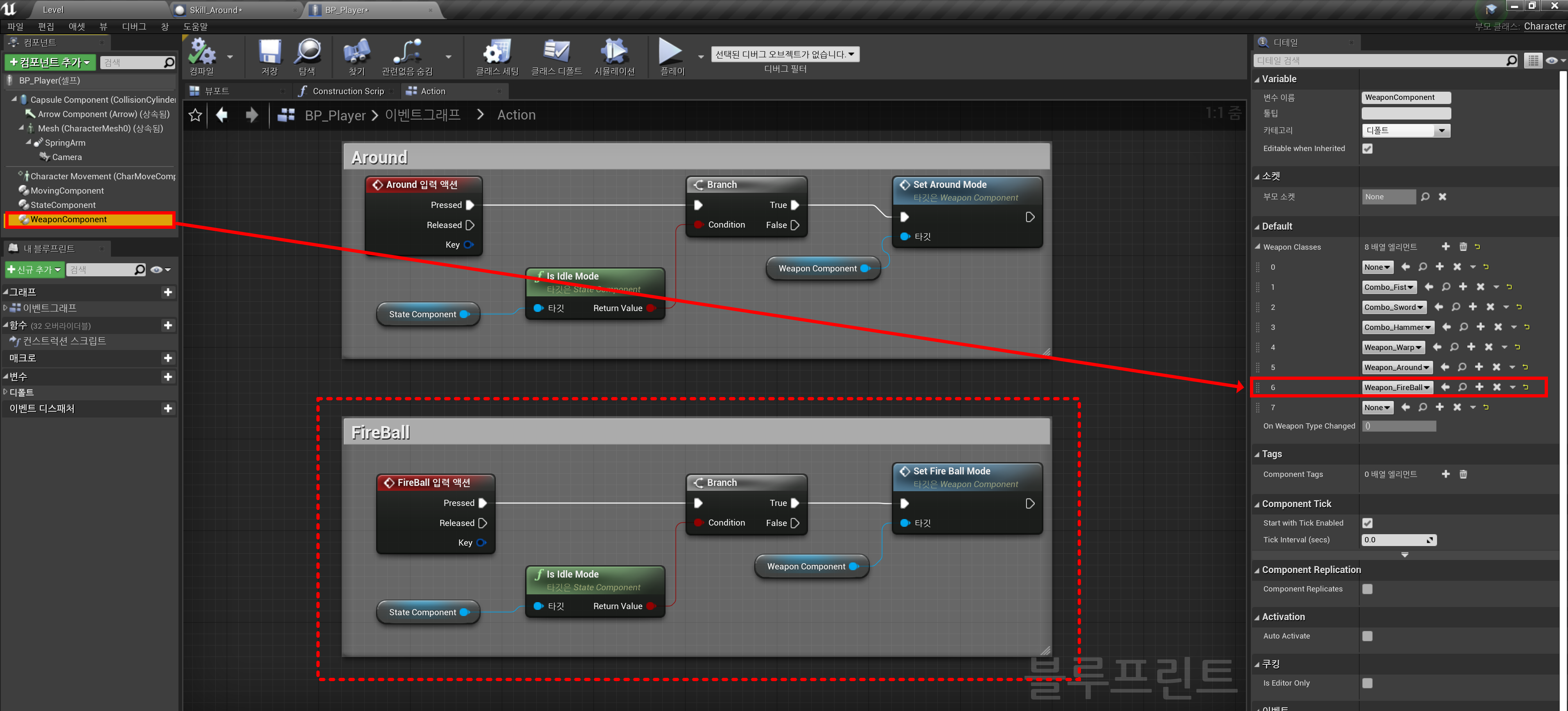

BP_Player 입력 액션 추가



Event Graph > Action



---



ABP_Character 캐시 포즈 추가



AnimGraph



---

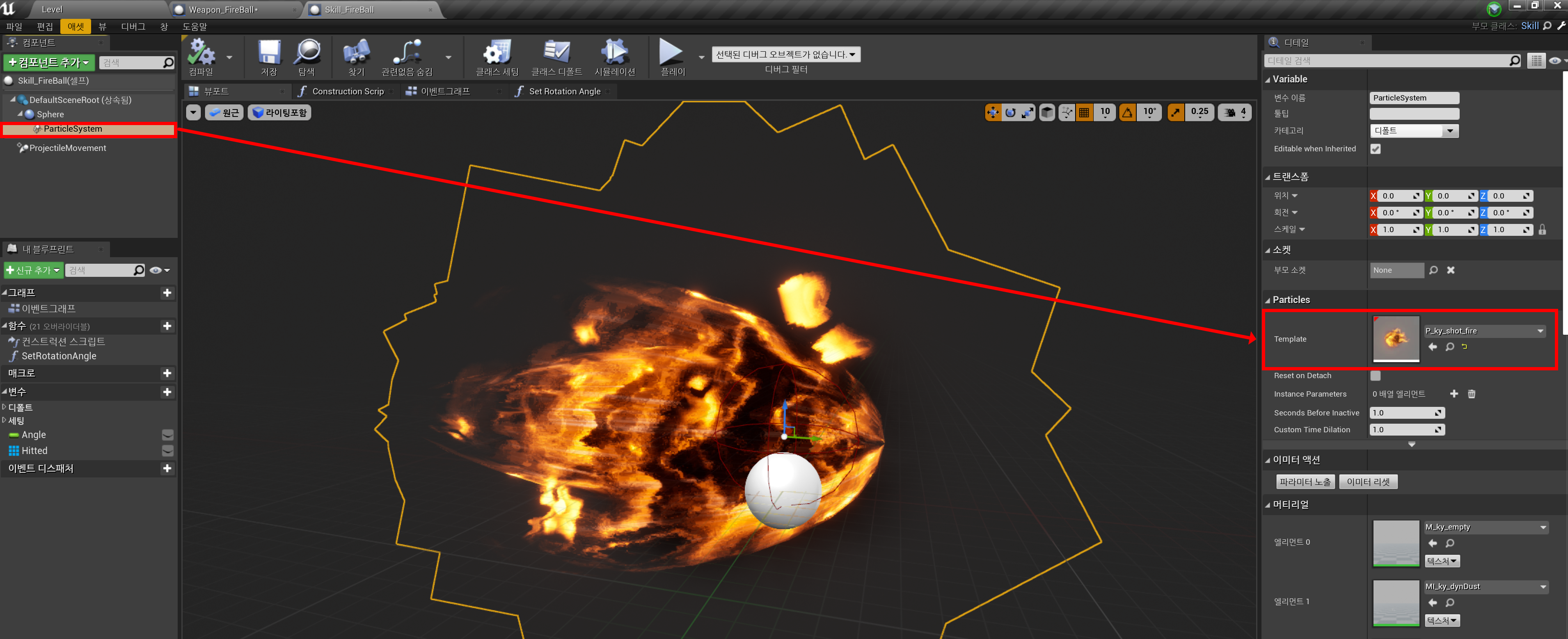

Skill_FireBall 생성



• ProjectileMovement 생성
• ProjectileMovemnet - Initial Speed 1500.0으로 설정





 발사체의 속도 = Initial Speed x  Velocity



여기서는 1500.0 x (x방향 1, y방향 0, z 방향 0) = x방향으로 1500 속도로 발사









































Event Graph

추후 추가 코드. 파이어볼 방향 추가. 파이어볼 피격 추가

• Projectile Movement - Activation - Auto Active 체크 해제
• Custom Event - Shoot 커스텀 이벤트 생성
• 커스텀 이벤트 Shoot 입력에 InDirection(vector) 생성
• On Component Overlay Begin: 상대방이 FireBall을 맞았을 때 피격을 구현하는 부분
  • Skill_Around의 Damaged 커스텀 이벤트 부분을 수정해서 사용.



---



Weapon_FireBall 생성



Begin Do Action

추후 추가 코드. Skill_FireBall에서 만든 커스텀이벤트 Shoot을 불러온다.



Do Action



---

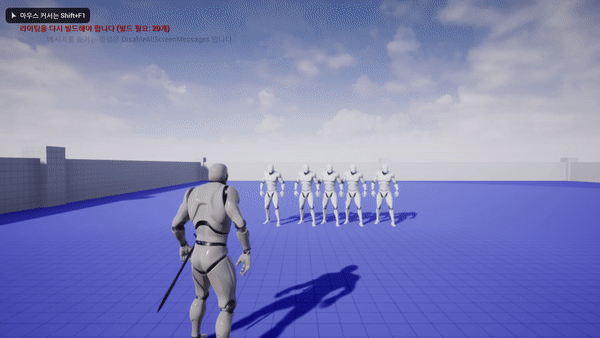

실행화면
