[UE] Collision

무기에 Collision Capsule을 달아 충돌이 일어나도록 만든다. 공격 몽타주 내에  AnimNotifyState으로 설정한 범위 동안 충돌을 켜서 무기 충돌이 일어나게 만든다.





목차





---





Collision

BP: Blueprint Class

BS: Blend Space

ABP: Animation Blueprint

AN: Blueprint Class AnimNotify

ANS: Blueprint Class - AnimNotifyState

01_Blueprints	Level - LEVEL BP_01_Variable
02_Player	02_Player - LEVEL ABP_Player BP_Player
03_Vector	03_Vector - LEVEL 03_Vector_Trace - LEVEL BP_03_01_Location BP_03_02_Direction BP_03_03_Trace
04_Sword	BP_Sword
05_Collision	05_Collision - LEVEL BP_05_01_ActorOverlap BP_05_02_ComponentOverlap BP_05_03_OverlapAndHit
06_Enemy	ABP_Enemy BP_Enemy
Character	Animation	OneHand
		Unarmed
	BlendSpaces	BS_Sword         BS_Unarmed
	Materials	MaterialLayers
		M_UE4Man_Body M_UE4Man_ChestLogo
	Mesh	SK_Mannequin SK_MAnnequin_PhysicsAsset Skel_Mannequin
	Montages	Sword_Attack_1_Montage Sword_Attack_2_Montage Sword_Attack_3_Montage
	Textures
	Weapons	Sword
Materials	M_Mesh M_White_Inst M_Red_Inst M_Green_Inst M_Blue_Inst M_UE4Man_Body_Inst M_UE4Man_ChesLogo_Inst
Meshes	Cone_2 Cube_2 Cylinder_2 Sphere_2
Notifies	AN_Begin_Equip AN_Begin_Unequip AN_Begin_Action AN_End_Equip AN_End_Unequip AN_End_Action ANS_Combo ANS_Collision





---

BP_05_01_ActorOverlap



Event Graph







---

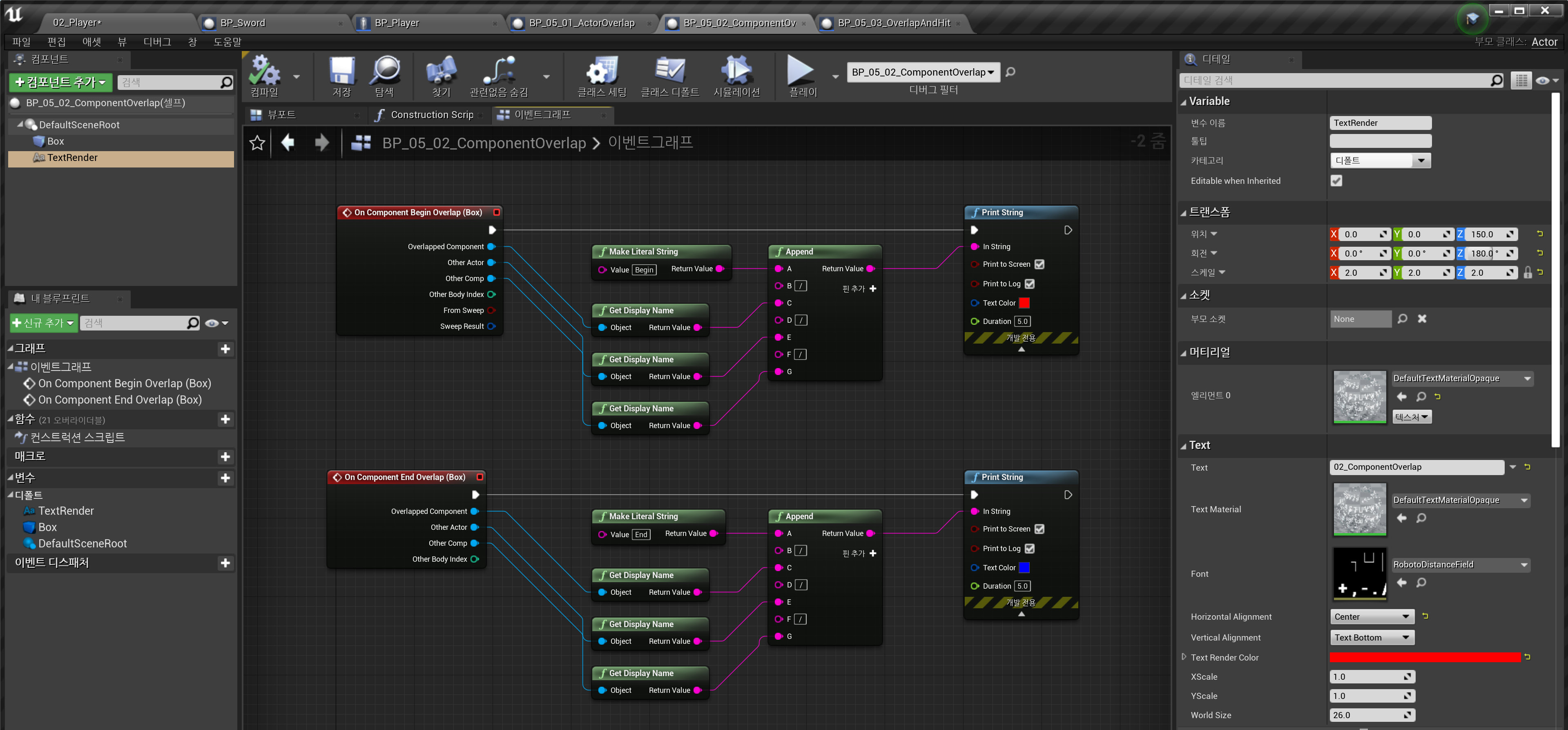

BP_05_02_ComponentOverlap



Event Graph





---

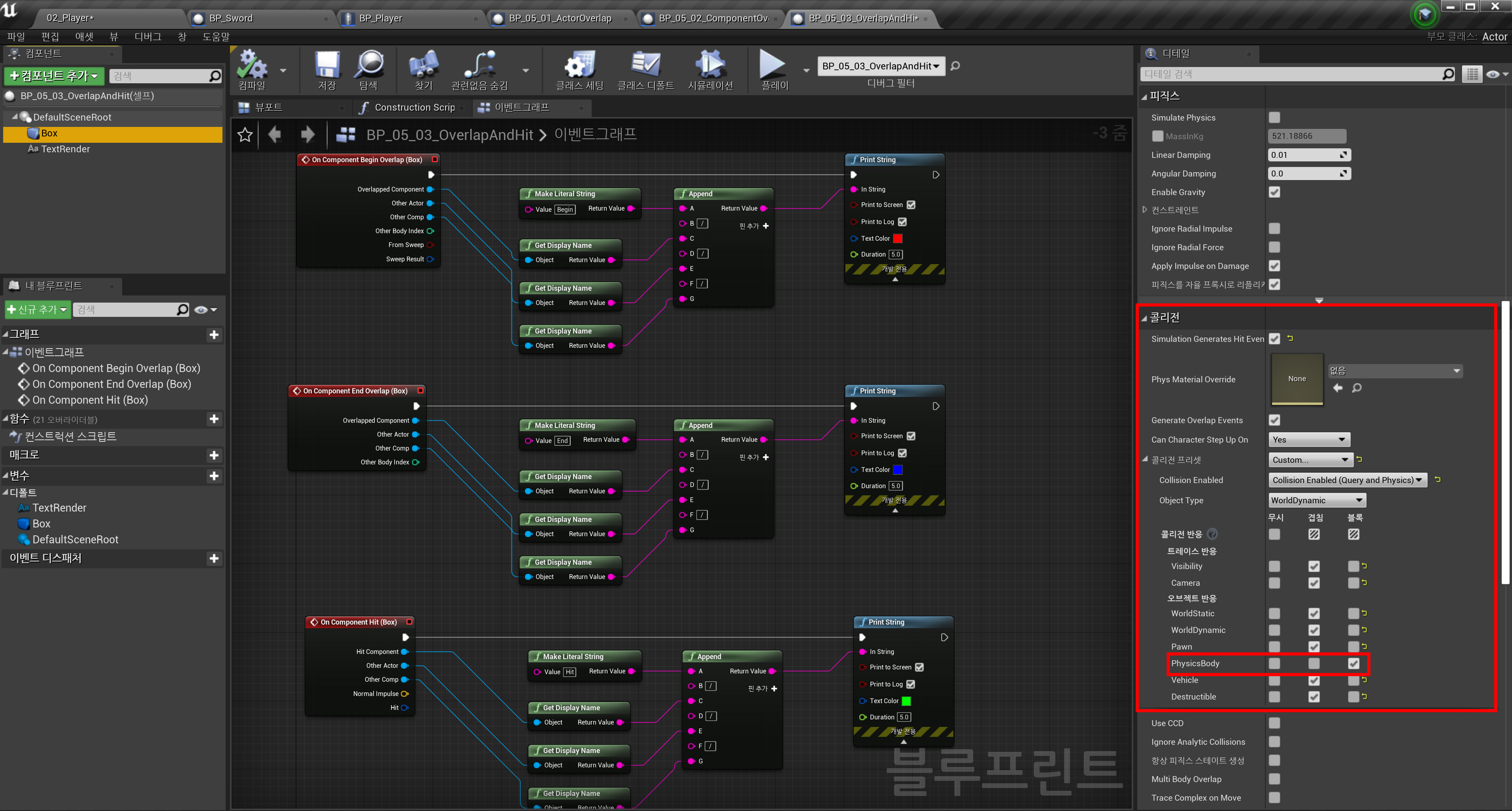

BP_05_03_OverlapAndHit



Event Graph





---



BP_Sword



Event Graph

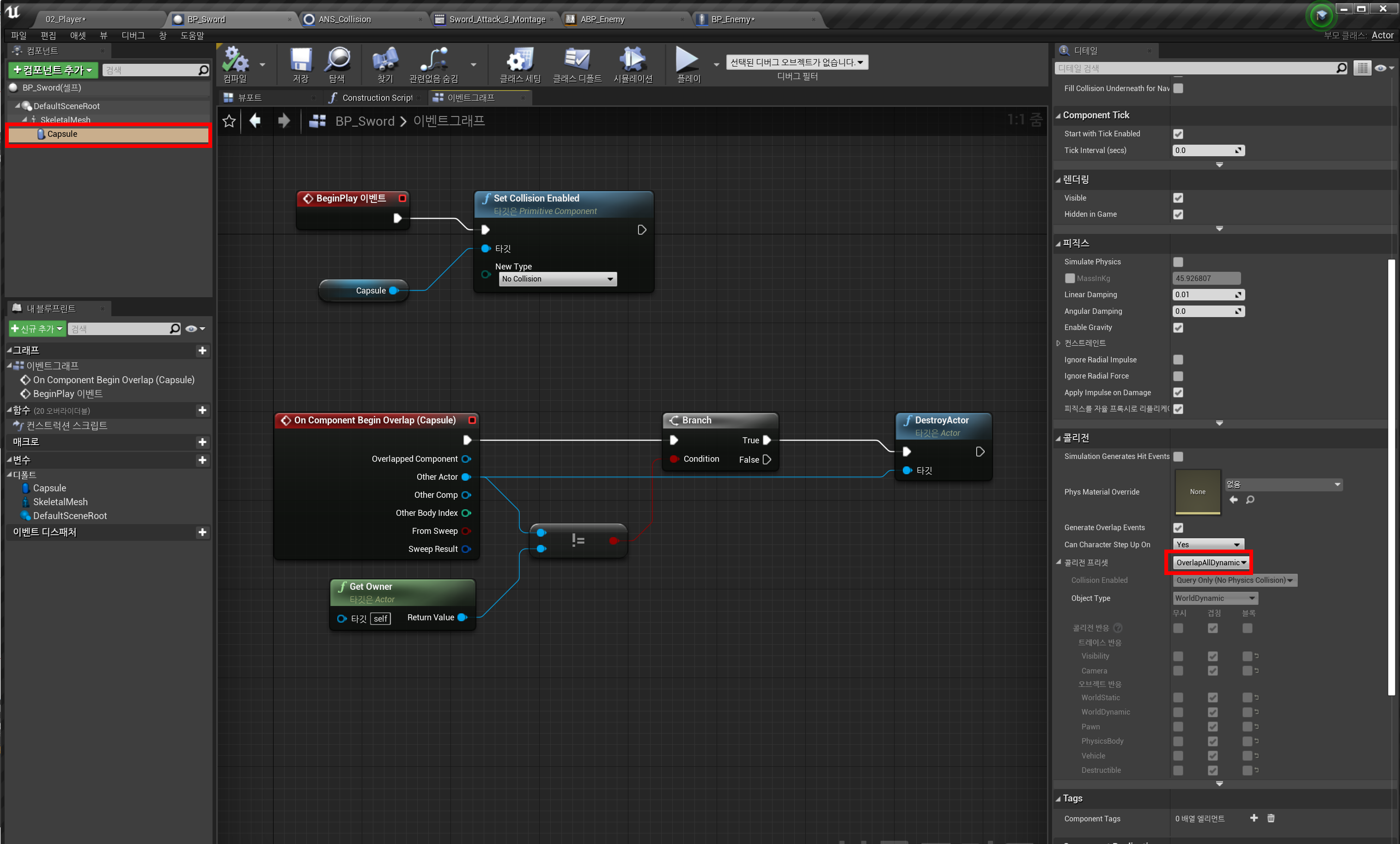

• Capsule - Collision - Collision Preset - OverlapAllDynamic으로 변경
• On Component Begin Overlap (Capsule) 캡슐과 부딪히는 물체가 자기 자신이 아니라면 DestroyActor 호출





---



05_Collision 레벨 실행화면









---



ANS_Collision 생성



Get Notify Name



Received Notify Begin

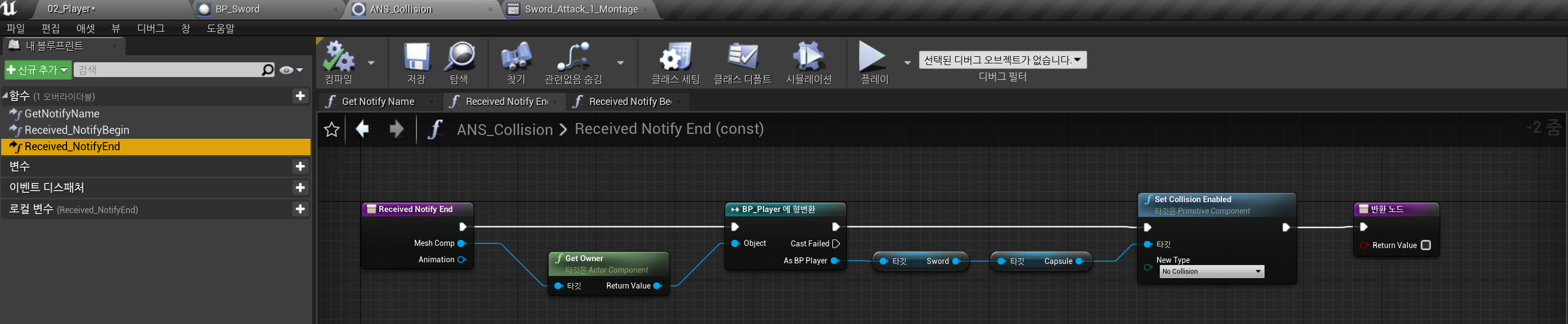

Received Notify End



---



Montage에 AN_Collision 노티파이 추가



• Sword_Attack_Montage에 노티파이 트랙 추가 - 노티파이 스테이트 추가 - ANS Collsion 추가





Sword_Attack_1_Montage

Sword_Attack_2_Montage

Sword_Attack_3_Montage





---



BP_Enemy



BP_Player를 복사해서 BP_Enemy 생성



Event Graph



---

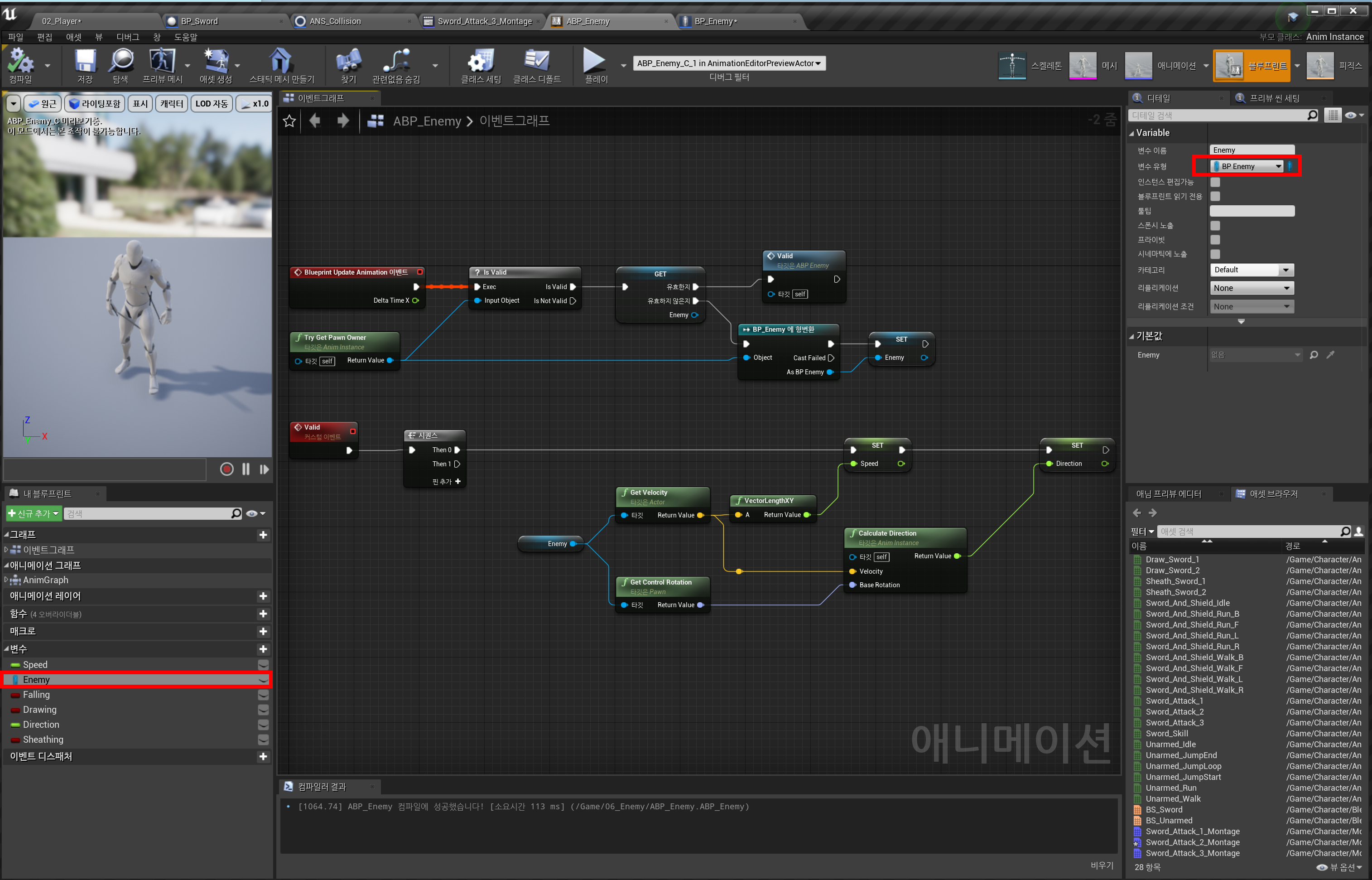

ABP_Enemy



ABP_Player를 복사해서 ABP_Enemy 생성



Event Graph

• 변수 Player 부분을 변수 Enemy로 수정하고 변수 유형을 BP_Enemy로 변경한다.
• Enemy는 점프, 무기 탈착 기능은 필요 없으므로 해당 기능구현 노드들은 지워준다.



---

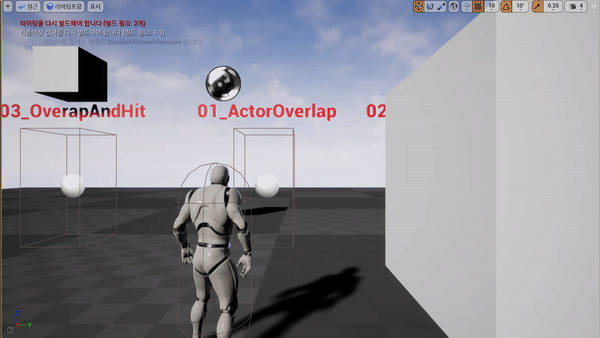

실행화면
